CITRIX ja Microsoft dynaamisen infrastruktuurin mahdollistajina Windows Server 2008 & End-to-end V irtualization

1. CITRIX ja Microsoft dynaamisen infrastruktuurin mahdollistajinaWindows Server 2008 & End-to-end Virtualization Mikael Lindholm, Systems Engineer, Citrix Systems Finland

2. Announcements on January 22nd 2008 • Citrix Virtualization Infrastructure to Support Microsoft Windows Server 2008 • Citrix XenServer and Citrix XenDesktop to Provide Interoperability and Cross Compatibility with the Windows Platform • Microsoft and Citrix Expand Alliance to Deliver Virtualization Solutions from Desktops to Datacenters • Companies to Deliver Desktop Virtualization Solutions and Develop Interoperability between Citrix XenServer and Windows Server 2008, Microsoft System Center

3. Citrix Vision Application Delivery Infrastructure Deliver any Application

4. Citrix Vision Desktopsare aservice Apps are delivered Datacenters are dynamic Desktop virtualization Application virtualization Server virtualization

5. End-to-end Virtualization Microsoft System Center Desktop virtualization Application virtualization Server virtualization Windows Server 2008, Hyper-V …together with Microsoft

6. A New Platform:Windows Server 2008

7. Microsoft Virtualization Products A comprehensive set of virtualization products, from the data center to the desktop Assets – both virtual and physical – are managed from a single platform

8. Areas of focus: Enhanced presentation virtualization platform for partner solutions Make it simple for new customers to adopt presentation virtualization

9. Presentation Server on Windows Server 2008 Citrix drives depth by enabling App Delivery End-to-End Application Delivery CentralizedControl ApplicationCompatibility Optimized UserExperience ComprehensiveAccess EnterpriseScalability Security Extensibility Stability Connectivity Windows Server 2008 Terminal Services “Presentation Virtualization Platform” Windows Server 2008 increases the breadth of the solution

10. Application Virtualization: Presentation Server for Windows Server 2008

11. Platinum Edition Enterprise Edition Advanced Edition Presentation Server Product Line Name Change Citrix Presentation Server Citrix XenApp Project Delaware –embrace and extendWindows Server 2008

12. XenApp Product Enhancements • Leverage the Terminal Server 2008 Enhancements • Enhanced Application Streaming • Preferential Load Balancing • New Web Interface and Monitoring Tools • Improved User Experience

13. Leverage the Terminal Server 2008 Enhancements • Patch Terminal Services without rebooting and loosing sessions • Enhanced security of XenApp services • Support User Account Control (UAC) • Improved USB P’n’P support

14. Streaming Enhancementswith XenApp for Windows 2008™ CLIENT-SIDE Data Center Application Streaming Isolation 2.0 ApplicationHub Application Streaming Presentation Virtualization Protocol Isolation 2.0 SERVER-SIDE

15. XenApp: Aggregate Profiles • Applications packaged separately & isolated Aggregate • Aggregation allows isolated apps to communicate • Individual updates automatically propagate to aggregates

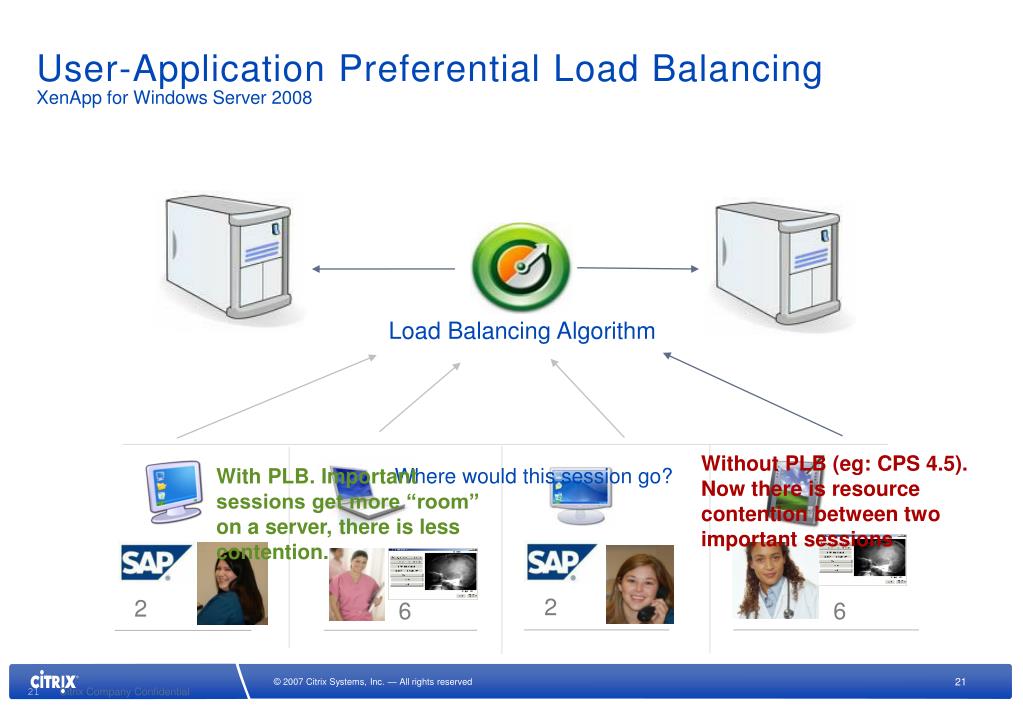

16. User-Application Preferential Load BalancingXenApp for Windows Server 2008 Load Balancing Algorithm Without PLB (eg: CPS 4.5). Now there is resource contention between two important sessions Where would this session go? With PLB. Important sessions get more “room” on a server, there is less contention. 2 2 6 6 21 Citrix Company Confidential

17. New Application Performance MonitoringPowered by EdgeSight 5.0 • Improved User Interface • Real Time Service Level Monitoring • Expanded User Experience Metrics • Integration of Health Assistant Alerts • Enhanced Resource Manager

18. New Web Interface

21. User Experience Enhancements • XPS printing support • Special folder redirection • ClearType font smoothing • IPv6 support • Added WAN Optimization (powered by WANScaler) Fonts

22. Project Delaware Early Release Program Pre-register at www.citrix.com/delaware/earlyrelease

23. Citrix Virtual Design Studio • Deliver OpenGL design applications to enable product design anywhere, any time • Register for beta athttps://www.citrix.com/English/ps2/products/product.asp?contentID=1318525

24. Server Virtualization:XenServer

25. Two Steps to a Dynamic Datacenter • High performance hypervisor • Effective provisioning

26. Emulation Virtualization Legacy Hypervisor UserApps UserApps Slow, expensive software emulation layer HALT SAFE HALT Hardware

27. Next-Generation Virtualization Paravirtualization • Kernel and I/O paths know they are being virtualized • Cooperation provides best performance Xen • Hardware assisted • Hardware-assist allows high performance without emulation UserApps UserApps HALT Paravirtualized guests makes high-speed calls directly to the hypervisor Other guests benefit from hardware-accelerated call translation HALT HYPERCALL VT/AMD-V Hardware

28. Xen runs on bare metal Extremely thin; only 50K lines of code Processor and memory access through hypervisor Network and storage Accessed through management domain Uses standard Linux device drivers OpenSource ControlInterface Storage Drivers Xen ControlInterface Virtualized Hardware VT/AMD-V Hardware XenServer Platform Architecture

29. XenServer Architecture Benefits • Next Generation Hypervisor • Native 64-bit hypervisor with full support for 64-bit guests • Uses paravirtualization and hardware virtualization • Superb Performance • Linux ~ 0.5% to 3% overhead • Windows ~ 2 to 5% overhead • Leverage open source device drivers

30. The Best Platform for VirtualizingXenAppOptimizing XenServer for XenApp Screenshot from Miami Take note! • Create a new virtual machine using the in-built Presentation Server template That’s It!

31. Project Satori Applications Applications Applications VSC VSP Hypercall Adapter Our Microsoft Partnership Child Partitions ParentPartition LonghornServer LonghornServer, Windows Server 2003 Non-hypervisor aware OS User Mode Virtualization Stack Xen Ready Linux OS: RHEL 5, SLES 10 VM WorkerProcess WMI Provider VM Service Kernel Mode Xen LinuxKernel WindowsKernel WindowsKernel VMBus Emulation VMBus VMBus Windows Hyper-V Linux VSC “Designed for Windows” Server Hardware

32. XenServer and Microsoft Hyper-VTaking the partnership proven in the Terminal Services space Microsoft Hyper-V Microsoft RDP Windows Server Windows Server Citrix App Virtualization Services Citrix Dynamic Virtualization Services ApplicationPerformanceMonitoring SpeedScreenProgressiveDisplay Provisioning Server High Availability Single Sign-On DRS SmartAccess Easyall SmartAuditor XenCenter Storage Delivery Svc Citrix XenApp Citrix XenServer ICA Xen Hypervisor

33. A Provision Fast, Effortless Provisioning • Traditional "virtual" provisioning • Create virtual machine with XenApp workload • Duplicate virtual disk/virtual machine to create new virtual machines • XenServer improves provisioning with templates • Creating a virtual machine from a template is single-step • New virtual machines provisioned in seconds • XenServer Platinum Edition takes this further • Provisioning Server can provision virtual and physical servers

34. B Silo One C A Silo Two Silo Three How Provisioning Server Works Provisioning Server (streaming service) Networkstorage

35. B C A How Provisioning Server Works Silo One Provisioning Server (streaming service) Silo Two Networkstorage Silo Three 42

36. B C A How Provisioning Server Works Silo One Provisioning Server (streaming service) Silo Two Networkstorage Silo Three

37. XenServer Platinum A XenServer Hypervisor B Eliminates the P2V Barrier by provisioning physical and virtual servers from the same workload image A single virtual disk image used to provision both physical and virtual servers; no P2V conversion required Virtualized Server Provisioning Server (streaming service) Network Storage Storage and management costs are reduced and server consistency is guaranteed Physical Server

38. Citrix XenServer 4.1 Public Beta “Miami” Register and download atwww.citrix.com/xenserver/beta/

39. Desktop Virtualization:XenDesktop

40. Different Virtual Desktop Infrastructure Solutions • VDI without XenDesktop • Single image for every desktop • Desktops managed individually • Same problems, in a new location • VDI with XenDesktop • Single OS image to store & maintain • Apps not installed, stored as single image, delivered on demand and maintained centrally • Managed Profiles 1:1 Network Storage Network Storage Hypervisor Xen, Hyper-V, VM

41. Desktop Delivery Vision Profiles Virtualized & Isolated Profile Apps Windows Apps Dynamically Delivered Hardware XenDesktop • Fewest possible desktop images • Desktop image simplicity • Fewer conflicts, minimized testing • Low-touch, self-serve re-imaging OS

42. Controller Complete Scenario ThomasZ Terminals XenDesktop Shared O/S via XenApp Worker High Speed Protocol (ICA) Security & Optimization Virtual O/S via XenServer Hyper-V / VMWare Physical O/S via blades PC’s User Datacenter

43. XenDesktop Beta • Register for beta athttp://www.citrix.com/English/ps2/products/feature.asp?contentID=1318945

44. End-to-end Virtualization:Tying it All Together

45. End-to-end Virtualization XenServer XenDesktop Desktop virtualization Application virtualization Server virtualization XenApp

46. Compose. Automate. Orchestrate.

47. Citrix Workflow Studio Compose. Automate. Orchestrate.

48. Citrix Workflow Studio Composer Microsoft PowerShell APICalls CLI Modules WebServices 3rd Party Plug-in Citrix Ready Products Citrix Products 3rd Party Infrastructure

49. Easily Automate Administration Tasks Automatically restart a hung application

50. Orchestrate Dynamic Changes of the Datacenter Automatically change or add new servers to your farm
