  1. Increasing Intrusion Tolerance Via Scalable Redundancy Mike Reiter reiter@cmu.edu Natassa Ailamaki Greg Ganger Priya Narasimhan Chuck Cranor

  2. Technical Objective • To design, prototype and evaluate new protocols for implementing intrusion-tolerant services that scale better • Here, “scale” refers to efficiency as number of servers and number of failures tolerated grows • Targeting three types of services • Read-write data objects • Custom “flat” object types for particular applications, notably directories for implementing an intrusion-tolerant file system • Arbitrary objects that support object nesting

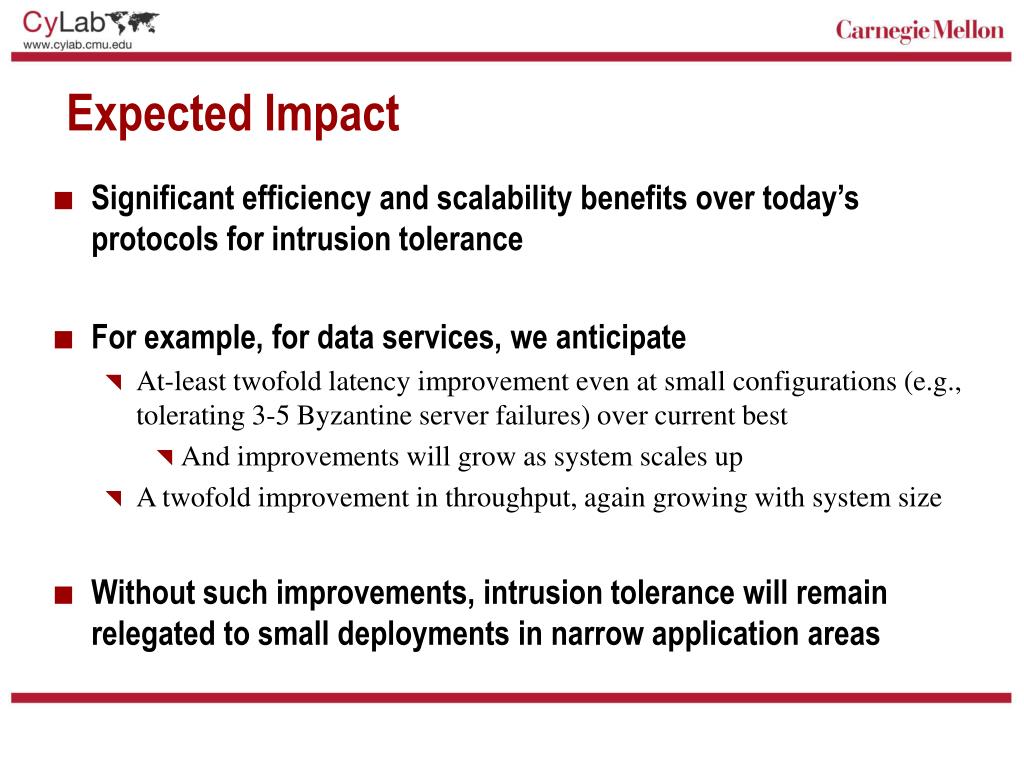

  3. Expected Impact • Significant efficiency and scalability benefits over today’s protocols for intrusion tolerance • For example, for data services, we anticipate • At-least twofold latency improvement even at small configurations (e.g., tolerating 3-5 Byzantine server failures) over current best • And improvements will grow as system scales up • A twofold improvement in throughput, again growing with system size • Without such improvements, intrusion tolerance will remain relegated to small deployments in narrow application areas

  4. The Problem Space • Distributed services manage redundant state across servers to tolerate faults • We consider tolerance to Byzantine faults, as might result from an intrusion into a server or client • A faulty server or client may behave arbitrarily • We also make no timing assumptions in this work • An “asynchronous” system • Primary existing practice: replicated state machines • Offers no load dispersion, requires data replication, and degrades as system scales in terms of # messages

  5. Evaluation • Baseline for current work: the BFT library • Popular, publicly available implementation of Byzantine fault-tolerant state machine replication (by Castro & Liskov) • Reported to be an efficient implementation of that approach • Two measures • Average latency of operations, from client’s perspective • Peak sustainable throughput of operations • Our consistency definition: linearizability of invocations

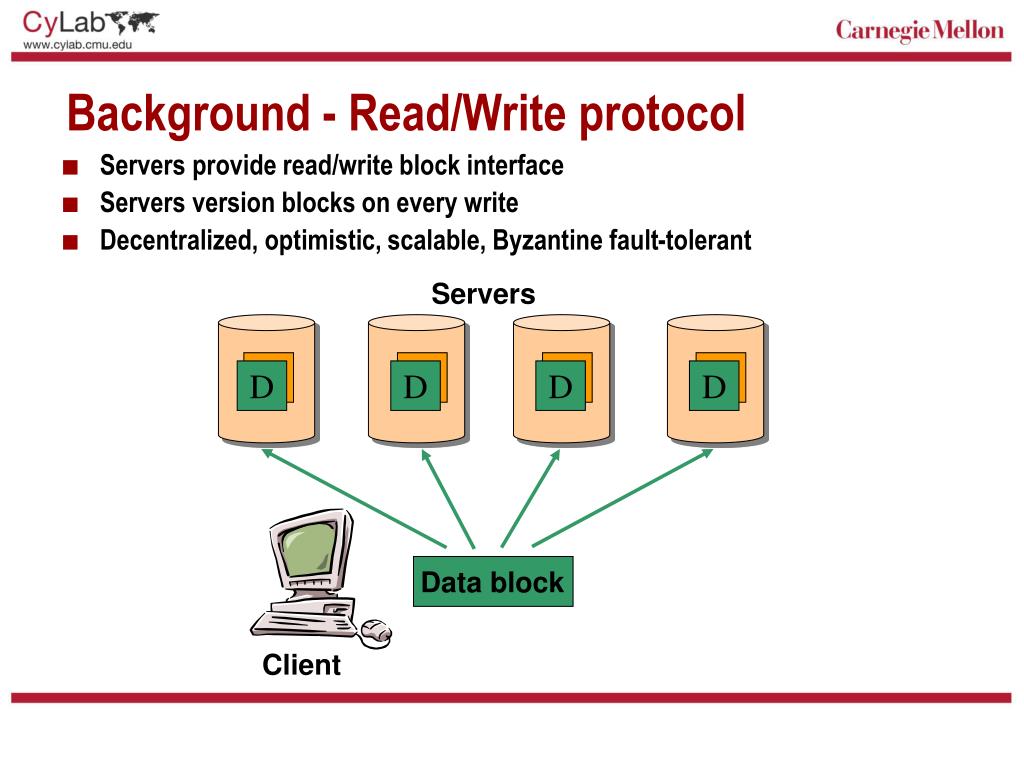

  6. Background - Read/Write protocol • Servers provide read/write block interface • Servers version blocks on every write • Decentralized, optimistic, scalable, Byzantine fault-tolerant Servers D D D D D D D D Data block Client

  7. R/W semantics • R/W protocol appropriate for block storage • But R/W protocol inappropriate for building general services • Doesn’t provide replicated state machine semantics • A metadata service for a R/W-based block store motivated us to develop a protocol with stronger semantics

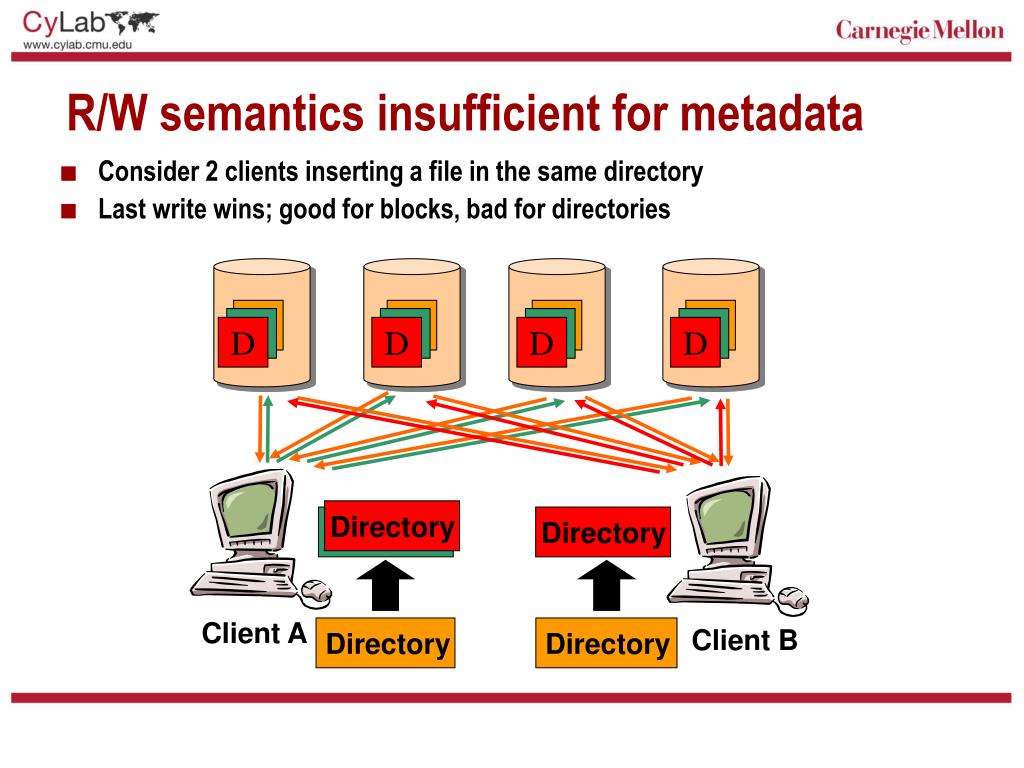

  8. Client A Directory Directory R/W semantics insufficient for metadata • Consider 2 clients inserting a file in the same directory • Last write wins; good for blocks, bad for directories D D D D D D D D D D D D Directory Directory Directory Client B

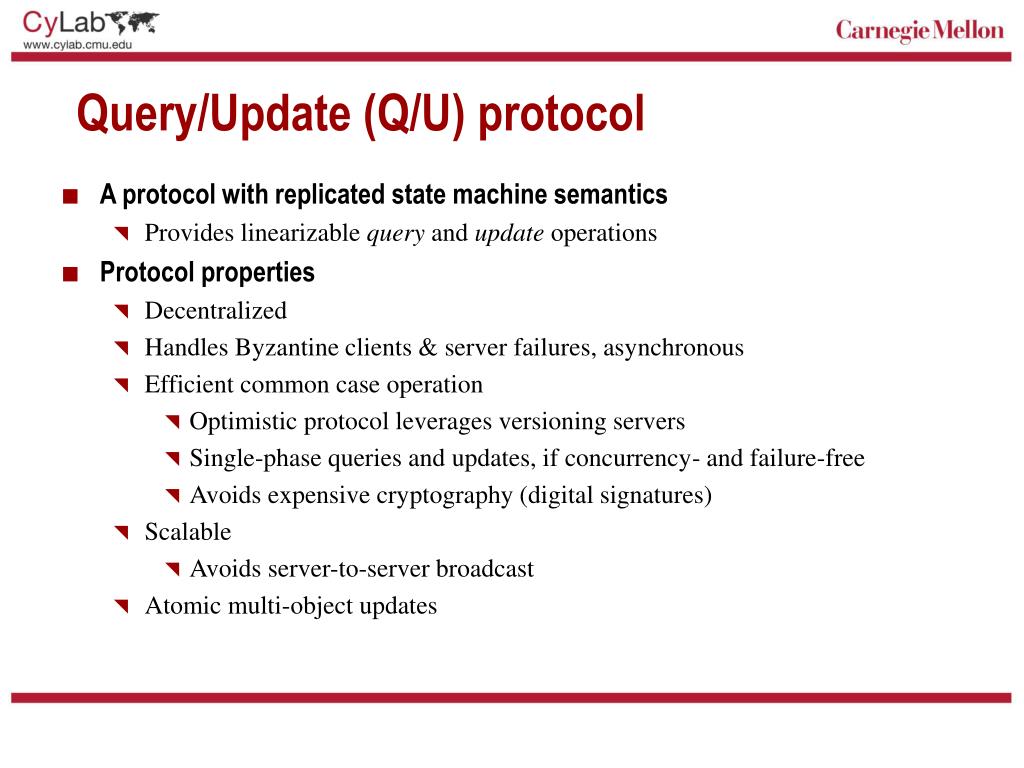

  9. Query/Update (Q/U) protocol • A protocol with replicated state machine semantics • Provides linearizable query and update operations • Protocol properties • Decentralized • Handles Byzantine clients & server failures, asynchronous • Efficient common case operation • Optimistic protocol leverages versioning servers • Single-phase queries and updates, if concurrency- and failure-free • Avoids expensive cryptography (digital signatures) • Scalable • Avoids server-to-server broadcast • Atomic multi-object updates

  10. Outline • Motivation • Query/Update protocol • Overview • Query, update operations • Validation, object syncing, multi-object operations • Evaluation

  11. Client A Directory Directory Read/conditional-write primitive • Servers accept an update operation only if the object hasn’t been modified since read directory D D D D D D D D Directory Directory Client B

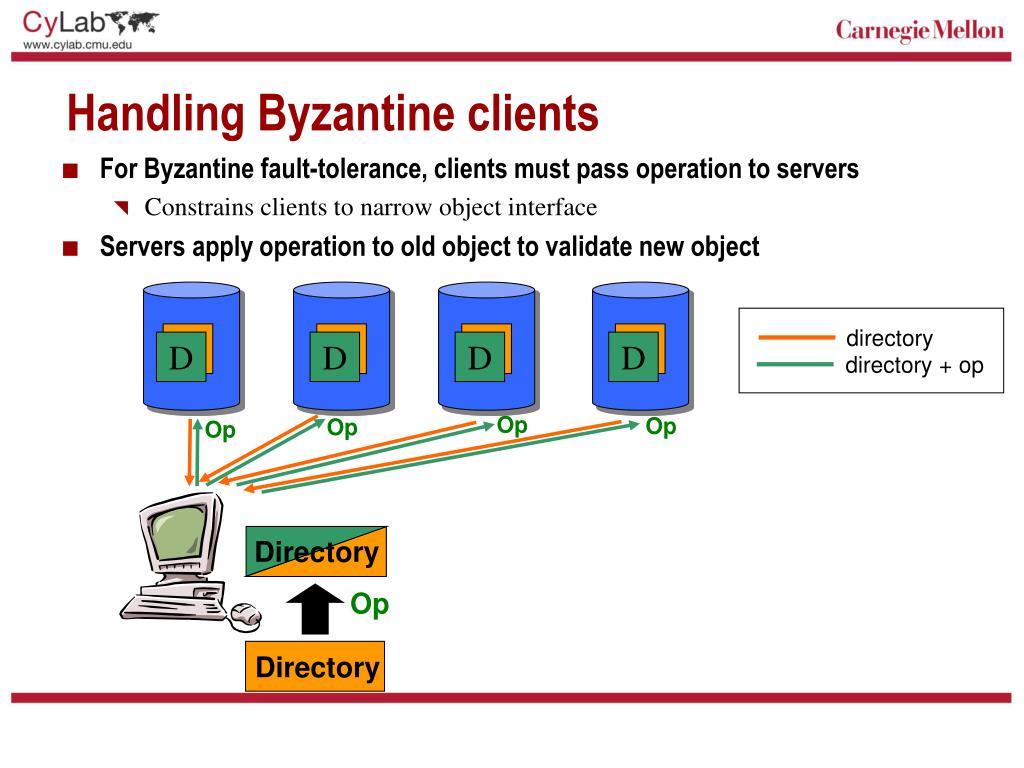

  12. Directory Handling Byzantine clients • For Byzantine fault-tolerance, clients must pass operation to servers • Constrains clients to narrow object interface • Servers apply operation to old object to validate new object directory D D D D D D D D directory + op Op Op Op Op Directory Op

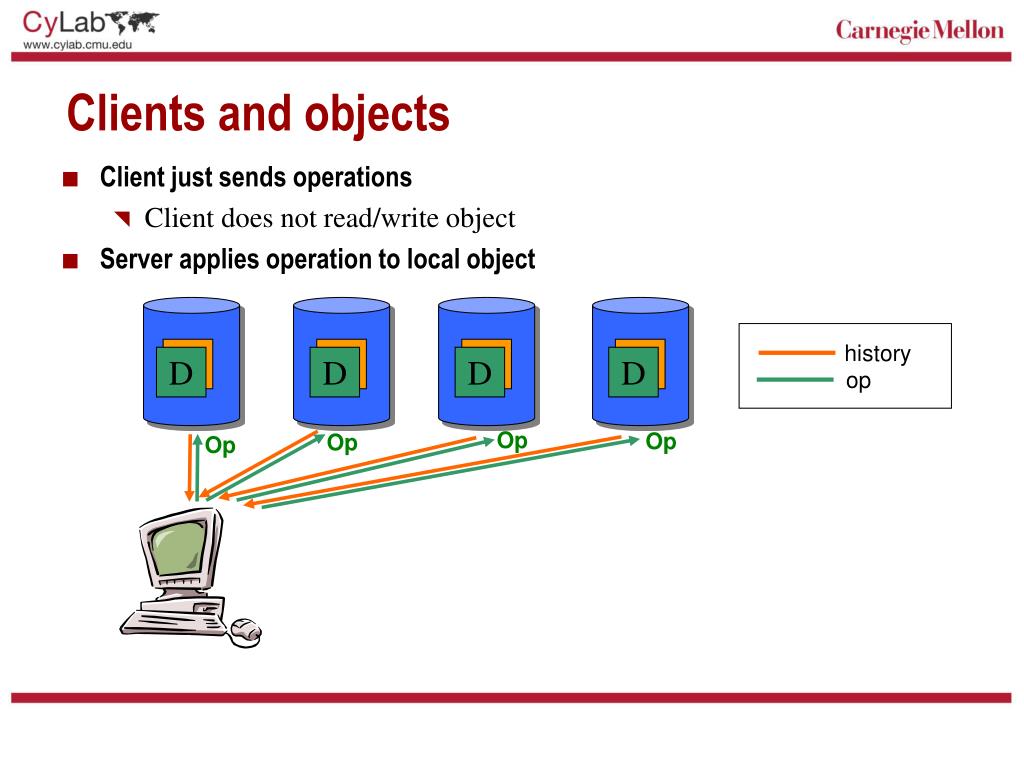

  13. Clients and objects • Client just sends operations • Client does not read/write object • Server applies operation to local object history D D D D D D D D op Op Op Op Op

  14. B 1 0 A 5 4 3 Query/Update protocol • Servers host objects • Optimistic protocol  versioning • Export an operation interface (more than read/write) • Can export any deterministic operation • Server exports three types of operations: Server Read History (object) Returns timestamp vector Query (Object,Version) Read-only; returns object state; e.g., getattr Update (Object, OHS, Value) Mutating; updates object, conditioned on object not having been modified; e.g., setattr C 9 8

  15. Outline • Motivation • Query/Update protocol • Overview • Query, update operations • Validation, object syncing, multi-object operations • Evaluation

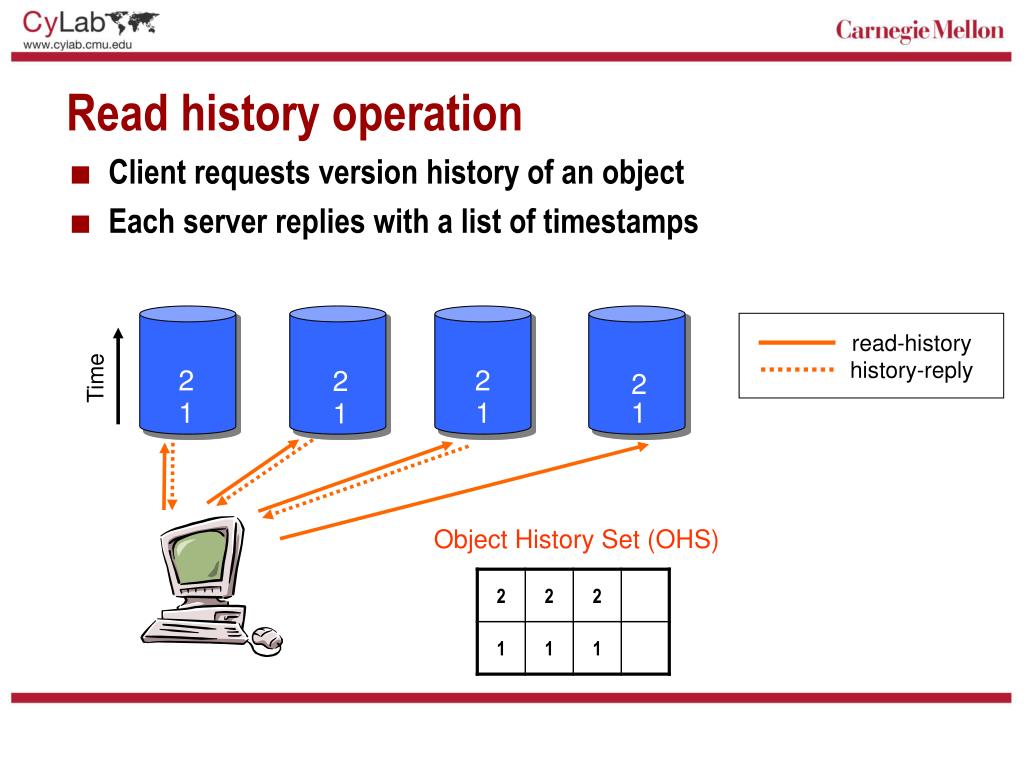

  16. Read history operation • Client requests version history of an object • Each server replies with a list of timestamps 3 read-history history-reply 2 2 2 2 Time 2 1 1 1 1 1 Object History Set (OHS)

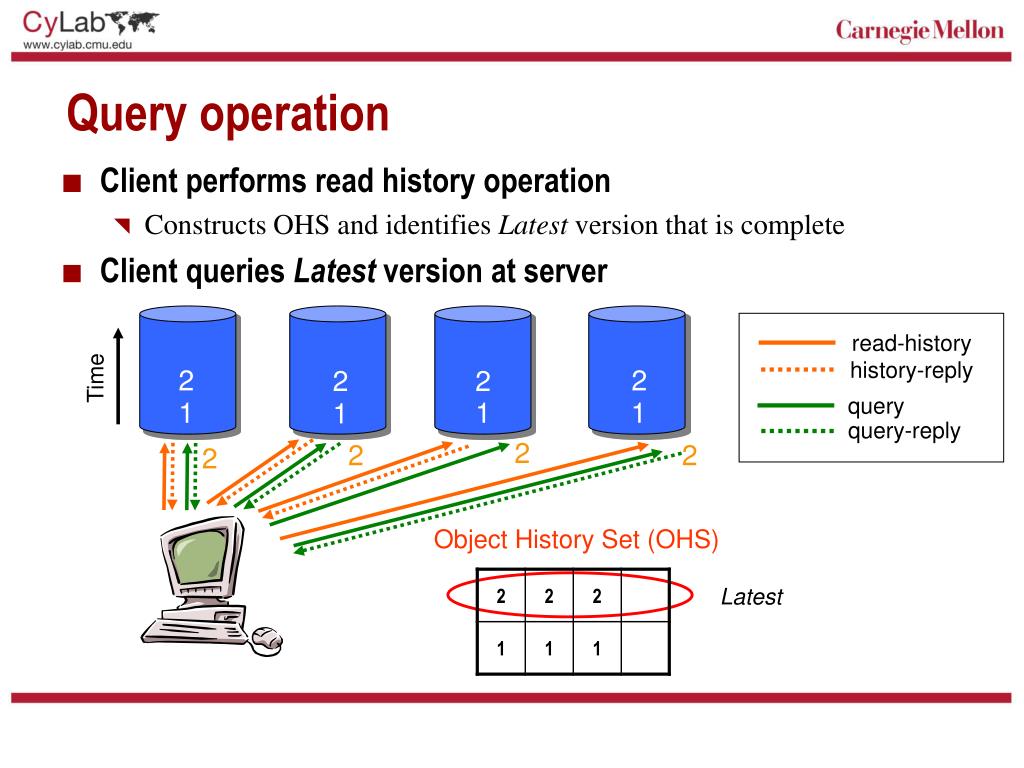

  17. 2 2 2 2 Latest Query operation • Client performs read history operation • Constructs OHS and identifies Latest version that is complete • Client queries Latest version at server 3 read-history history-reply 2 2 2 2 2 Time query 1 1 1 1 1 query-reply Object History Set (OHS)

  18. OHS OHS OHS OHS Latest Update operation • Client performs read-history operation • Constructs OHS and identifies Latest version that is complete • Client sends operation and OHS to servers • Operation is conditioned on OHS 3 3 3 3 read-history 3 history-reply 2 2 2 2 Time 2 update 1 1 1 1 1 update-reply Object History Set (OHS)

  19. Server validation for update operations • A server needs to verify that the client conditioned operation on Latest • Validation steps: • Ensure read/conditional-write semantics • Check that local history matches that in OHS • Classify Latest write version • Ensures operation is based on appropriate timestamp • Protection against Byzantine failures • Check authenticators • Ensures integrity of OHS

  20. 2 2 2 2 Server validation example • Earlier example of 2 clients concurrently updating same directory • Servers reject client B’s operation, due to “stale” OHS 3 read-history history-reply 2 Time update 1 1 1 1 1 Client B Client A

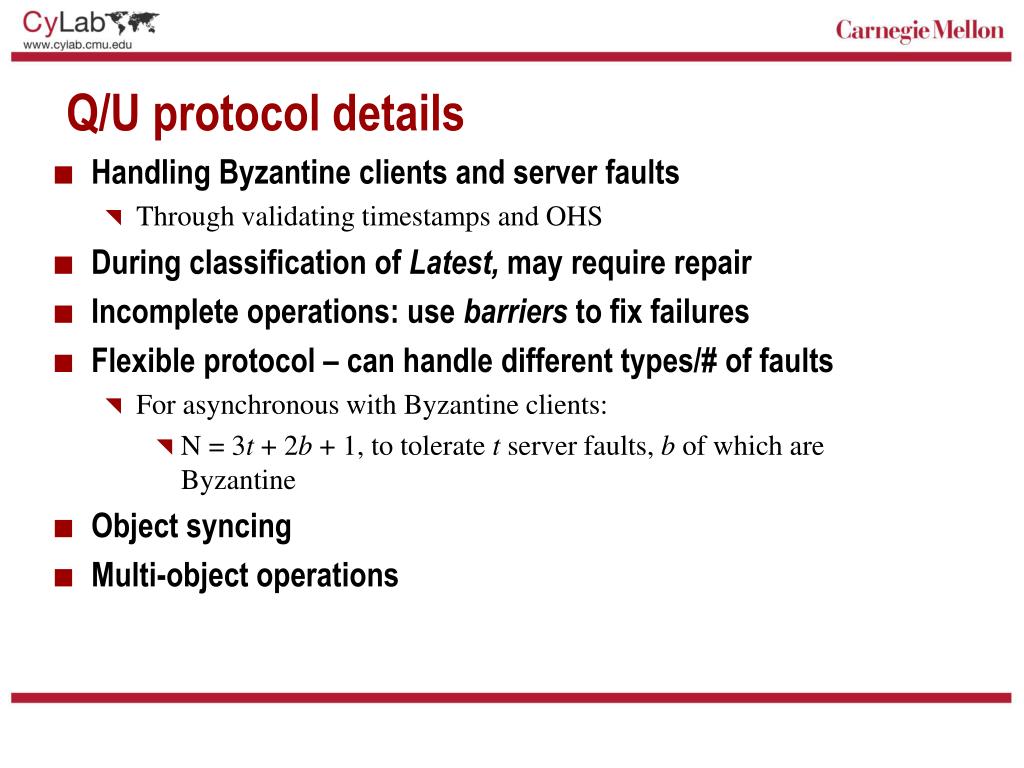

  21. Q/U protocol details • Handling Byzantine clients and server faults • Through validating timestamps and OHS • During classification of Latest, may require repair • Incomplete operations: use barriers to fix failures • Flexible protocol – can handle different types/# of faults • For asynchronous with Byzantine clients: • N = 3t + 2b + 1, to tolerate t server faults, b of which are Byzantine • Object syncing • Multi-object operations

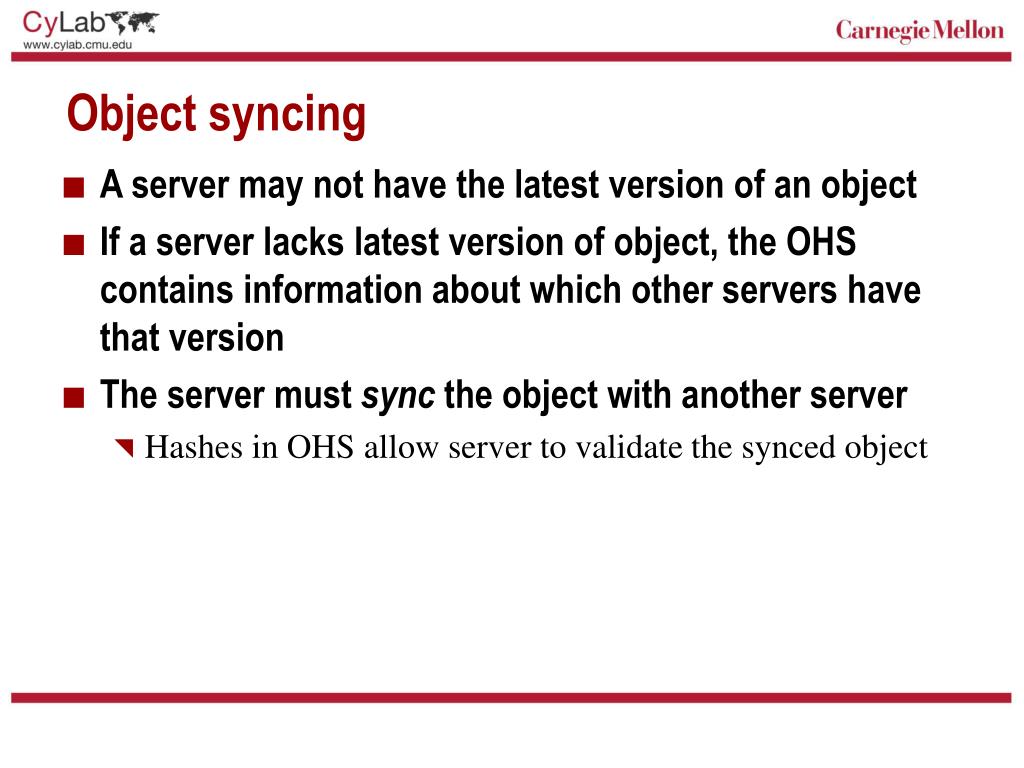

  22. Object syncing • A server may not have the latest version of an object • If a server lacks latest version of object, the OHS contains information about which other servers have that version • The server must sync the object with another server • Hashes in OHS allow server to validate the synced object

  23. Multi-object operation • An update can span multiple objects • A client must construct OHS for each object • Servers perform validation for each object • Operations perform atomically across multiple objects

  24. Outline • Motivation • Query/Updateprotocol • Overview • Query, update operations • Validation, object syncing, multi-object operations • Evaluation

  25. Prototype evaluation • Built a counter object using Q/U and BFT protocols • incmethod increments counter and returns new value • fetchmethod returns current counter value • Light-weight operations to demonstrate network and computation overhead inherent to protocols • Both Q/U and BFT implement efficient, optimistic queries • Evaluation focuses on updates • Q/U common case: no concurrency; preferred quorums • BFT common case: shared counter to allow batching

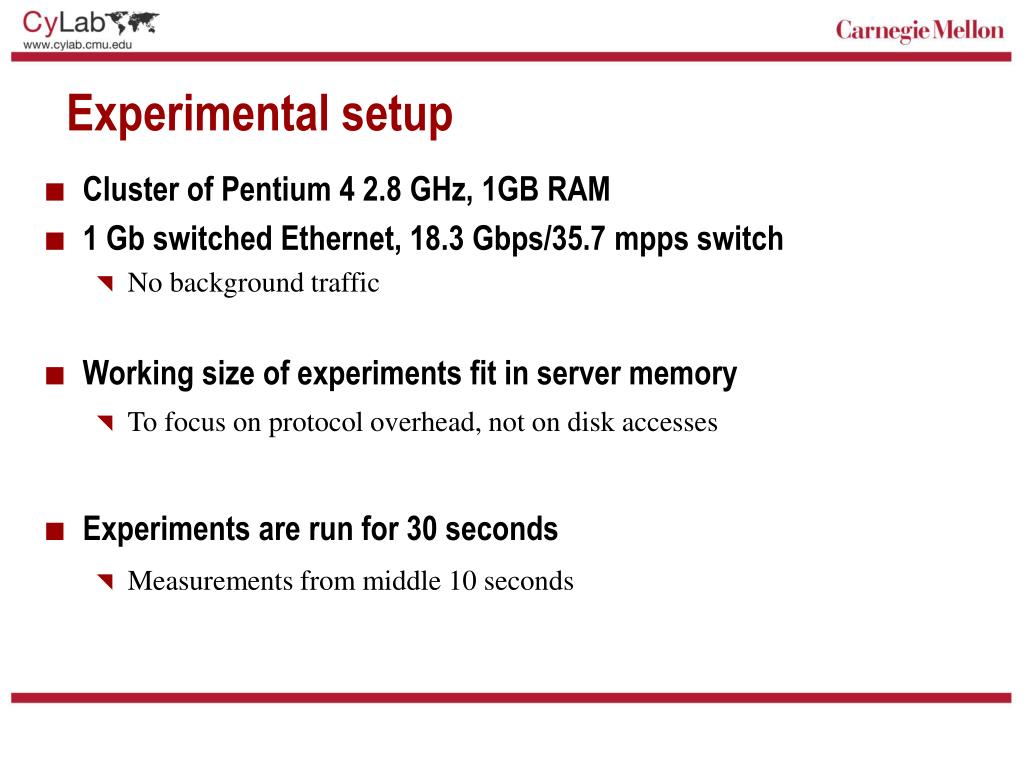

  26. Experimental setup • Cluster of Pentium 4 2.8 GHz, 1GB RAM • 1 Gb switched Ethernet, 18.3 Gbps/35.7 mpps switch • No background traffic • Working size of experiments fit in server memory • To focus on protocol overhead, not on disk accesses • Experiments are run for 30 seconds • Measurements from middle 10 seconds

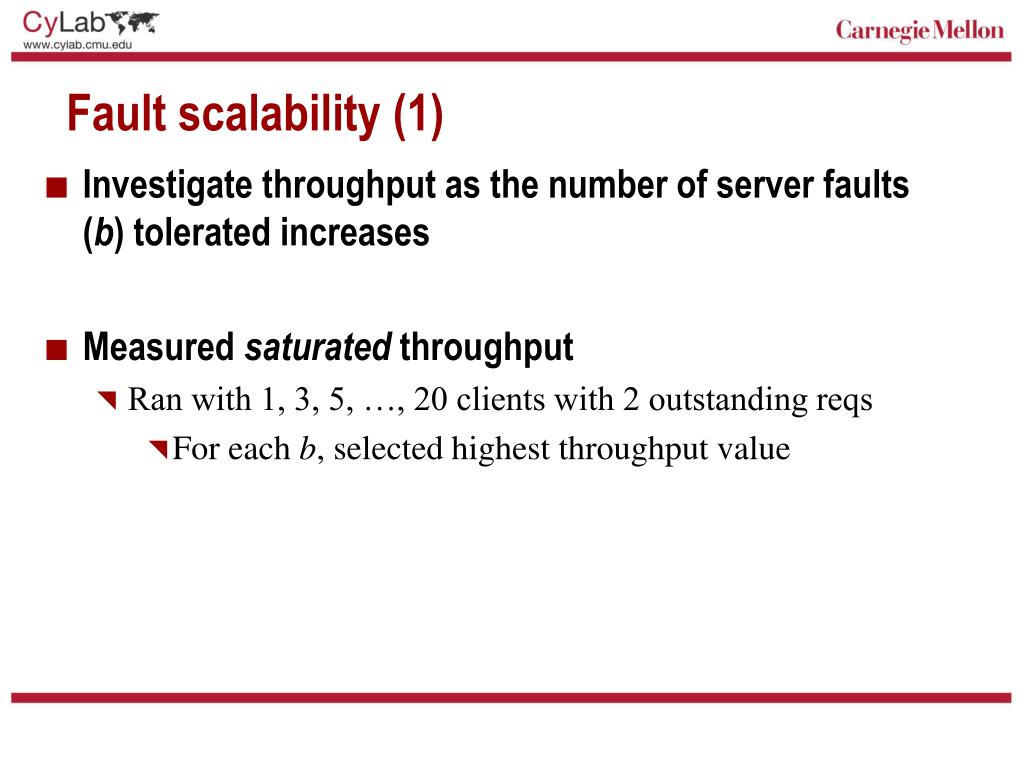

  27. Fault scalability (1) • Investigate throughput as the number of server faults (b) tolerated increases • Measured saturated throughput • Ran with 1, 3, 5, …, 20 clients with 2 outstanding reqs • For each b, selected highest throughput value

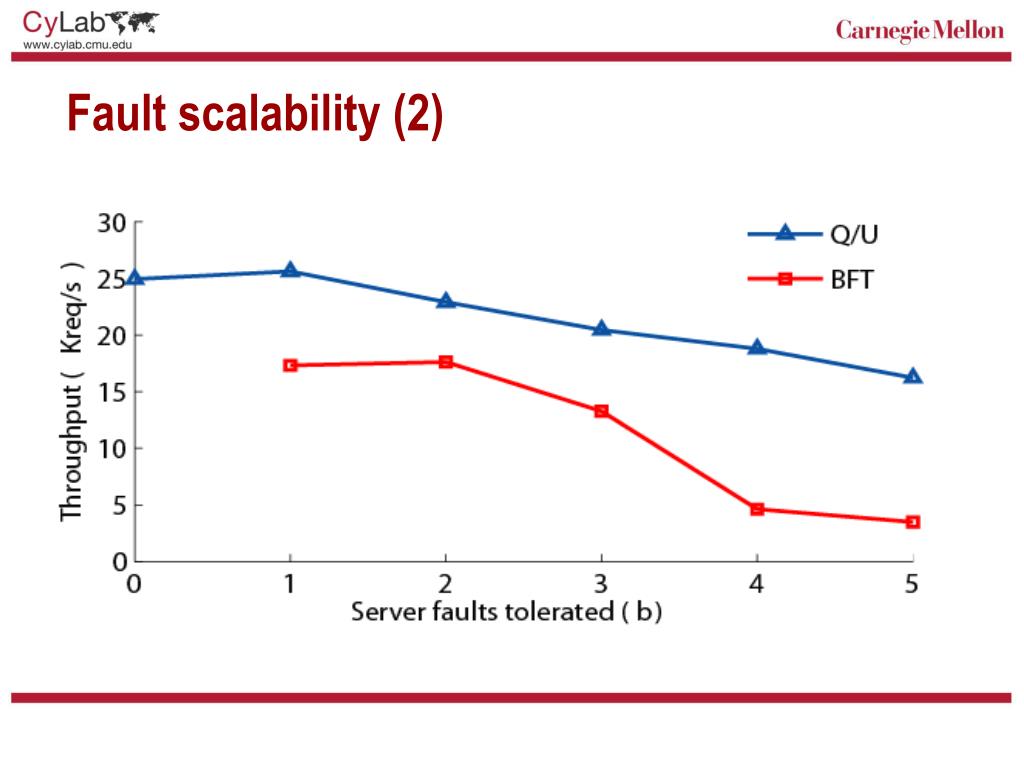

  28. Fault scalability (2)

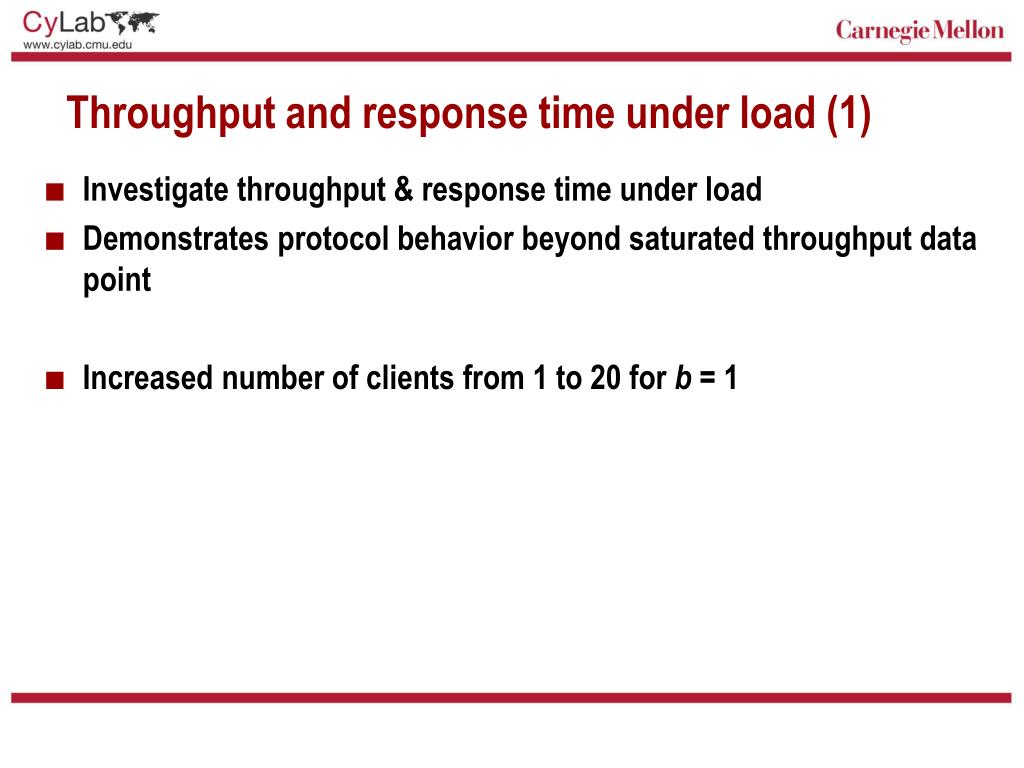

  29. Throughput and response time under load (1) • Investigate throughput & response time under load • Demonstrates protocol behavior beyond saturated throughput data point • Increased number of clients from 1 to 20 for b = 1

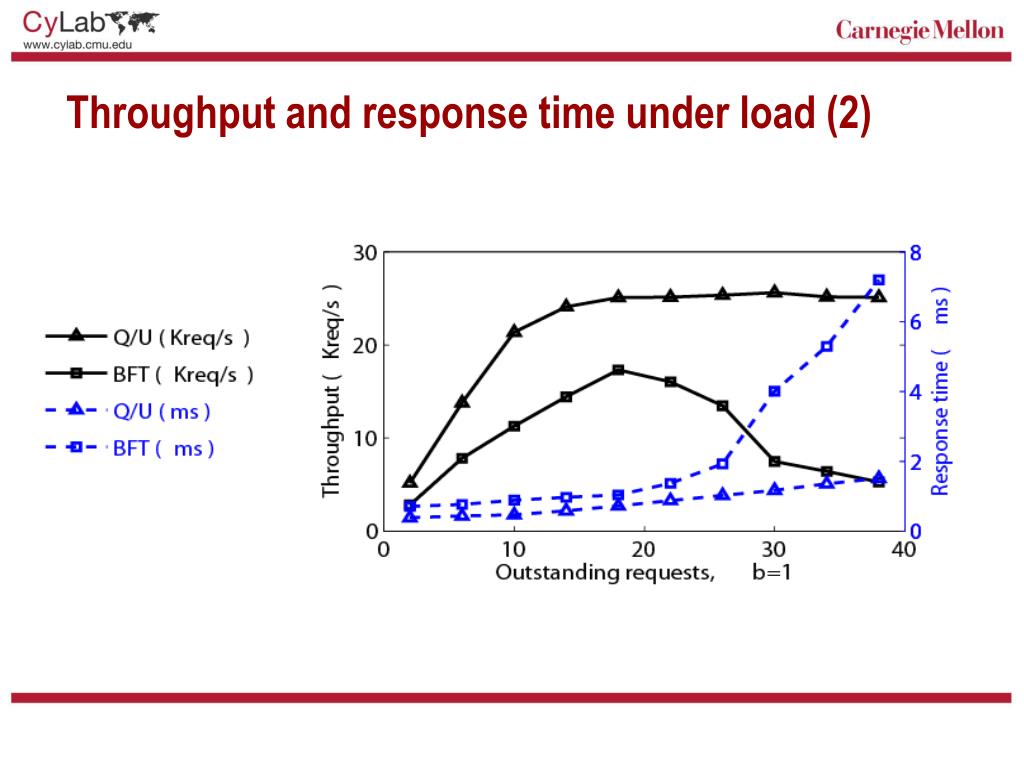

  30. Throughput and response time under load (2)

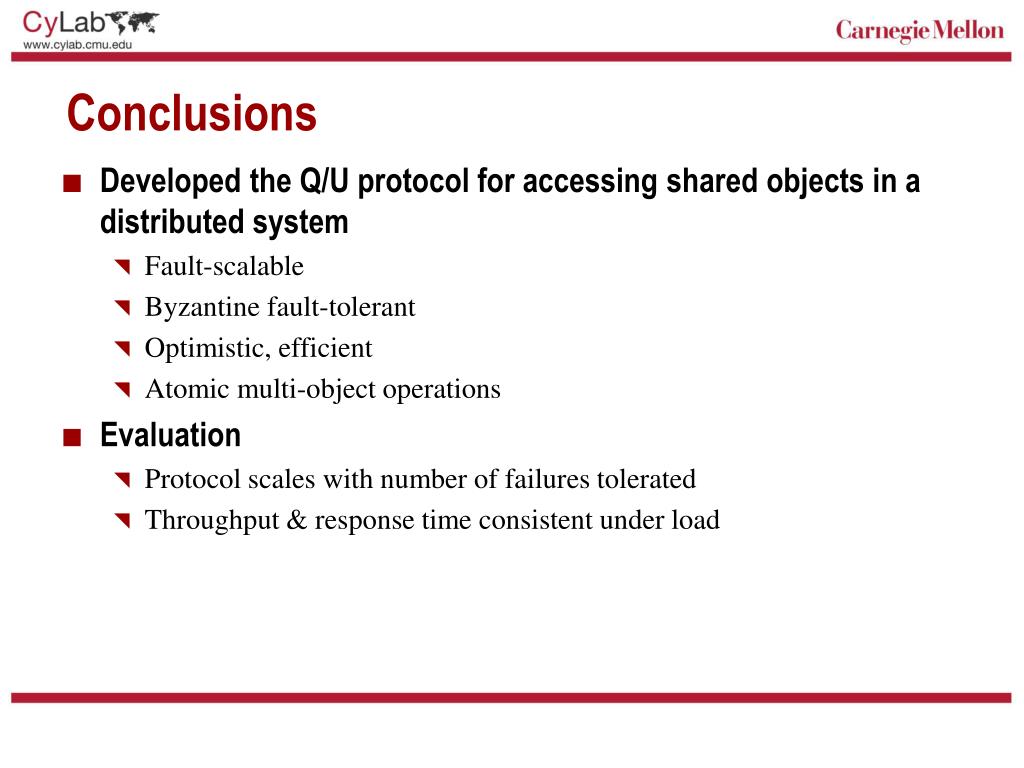

  31. Conclusions • Developed the Q/U protocol for accessing shared objects in a distributed system • Fault-scalable • Byzantine fault-tolerant • Optimistic, efficient • Atomic multi-object operations • Evaluation • Protocol scales with number of failures tolerated • Throughput & response time consistent under load
