1 / 4

TANGENTS

TANGENTS. If a line is tangent to a circle, than the line is perpendicular to the radius drawn to the point of tangency. •. O. h. A. If h tangent to circle than. Created by ﺠﻴﻄ for Mathlabsky.wordpress.com. Created by ﺠﻴﻄ for Mathlabsky.wordpress.com.

upton
Télécharger la présentation

TANGENTS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

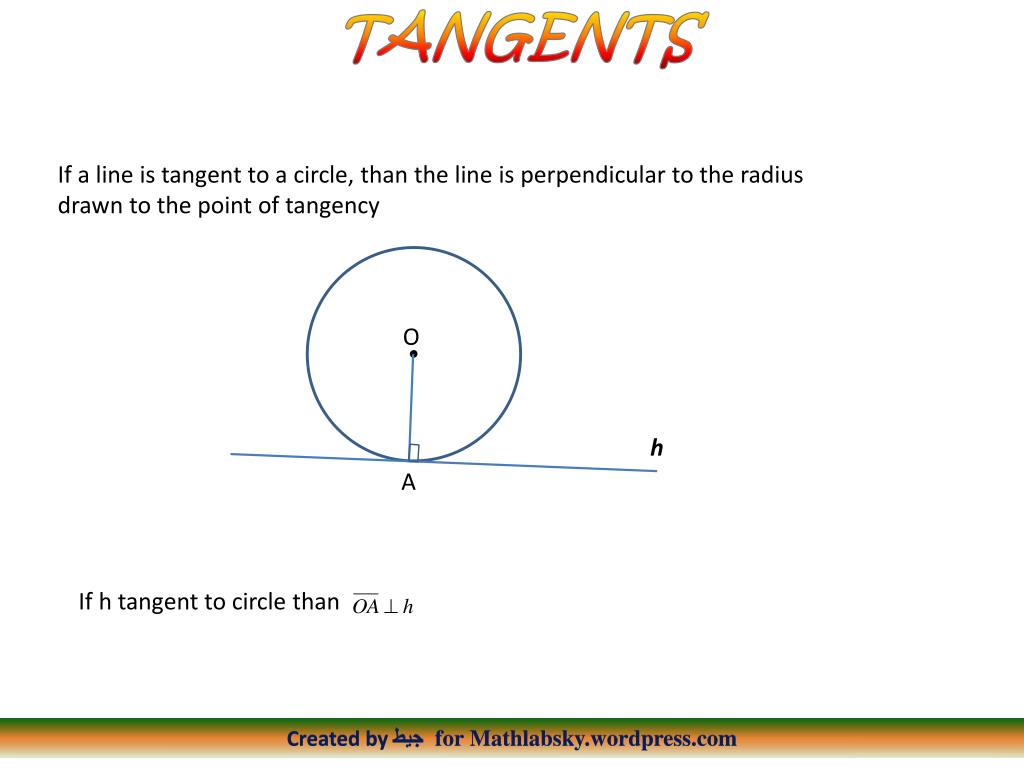

  1. TANGENTS If a line is tangent to a circle, than the line is perpendicular to the radius drawn to the point of tangency • O h A If h tangent to circle than Created by ﺠﻴﻄ for Mathlabsky.wordpress.com Created by ﺠﻴﻄ for Mathlabsky.wordpress.com

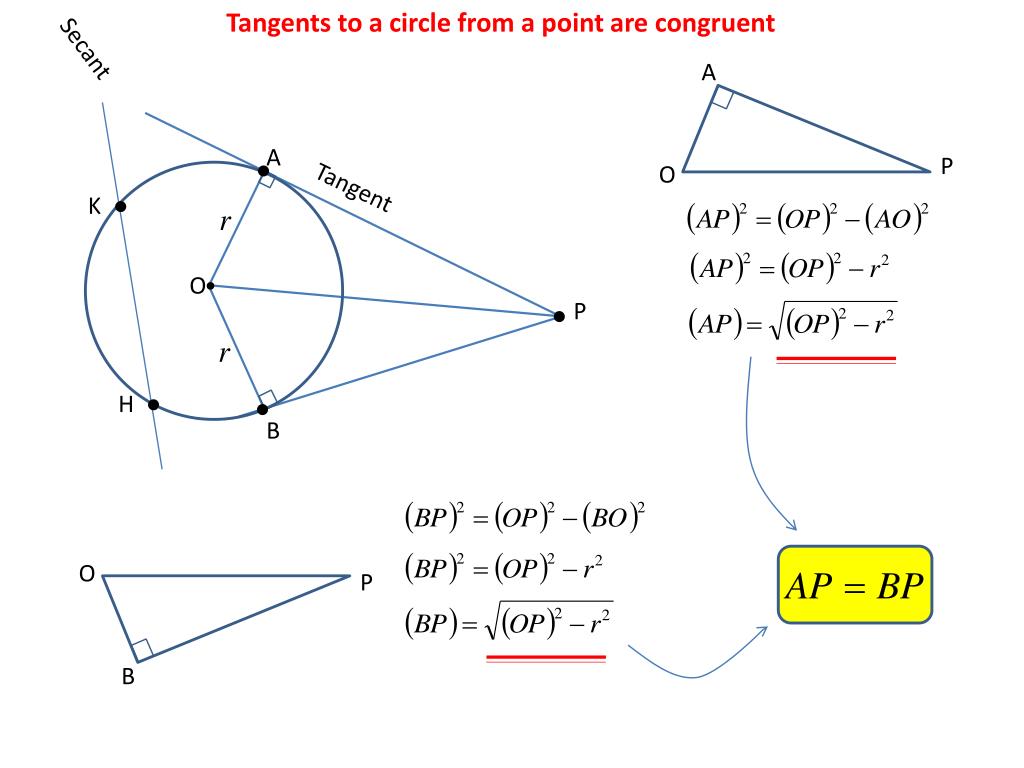

  2. Tangents to a circle from a point are congruent Secant A A P ● O Tangent K ● • O P ● O P H ● ● B B

  3. Common internal tangent C B • • P Q A C P Q

  4. Common external tangent A AB = CQ B • • C P Q C Q P
