  1. Peer-to-PeerNetworks Mozafar Bag-Mohammadi Ilam University

  2. The Road Ahead • p2p file sharing techniques • Downloading: Whole-file vs. chunks • Searching • Centralized index (Napster, etc.) • Flooding (Gnutella, etc.) • Smarter flooding (KaZaA, …) • Routing (Freenet, etc.) • Challenges • Fairness, freeloading, security, …

  3. P2p file-sharing • Quickly grown in popularity • Dozens or hundreds of file sharing applications • 35 million American adults use P2P networks -- 29% of all Internet users in US! • Audio/Video transfer now dominates traffic on the Internet

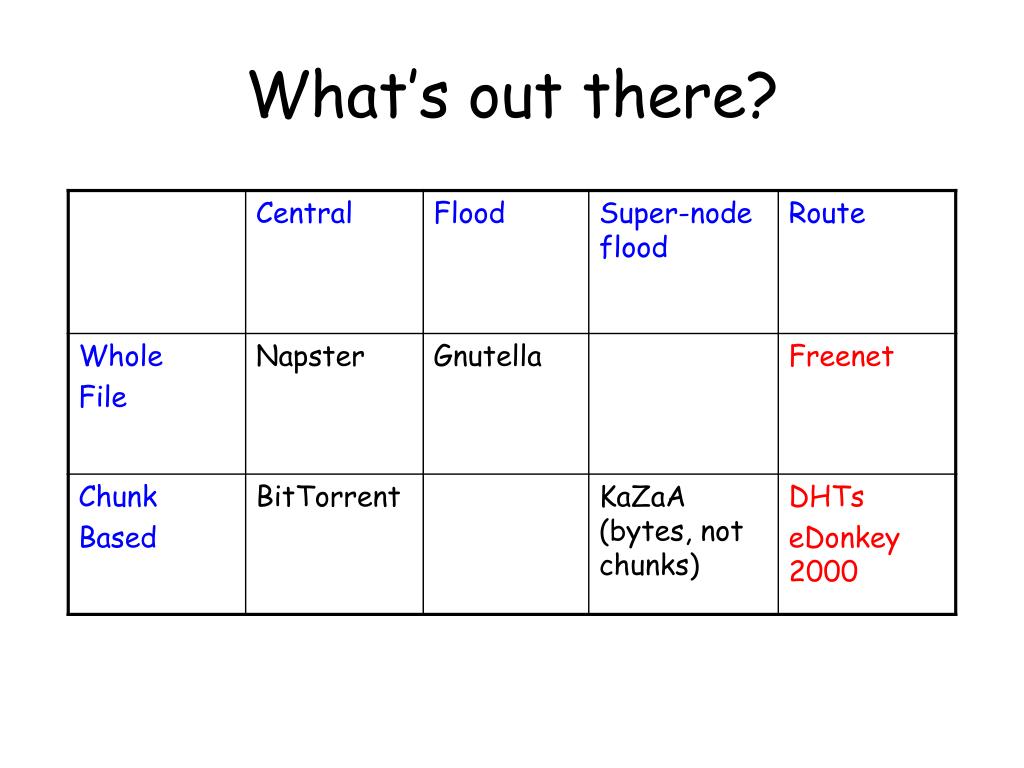

  4. What’s out there?

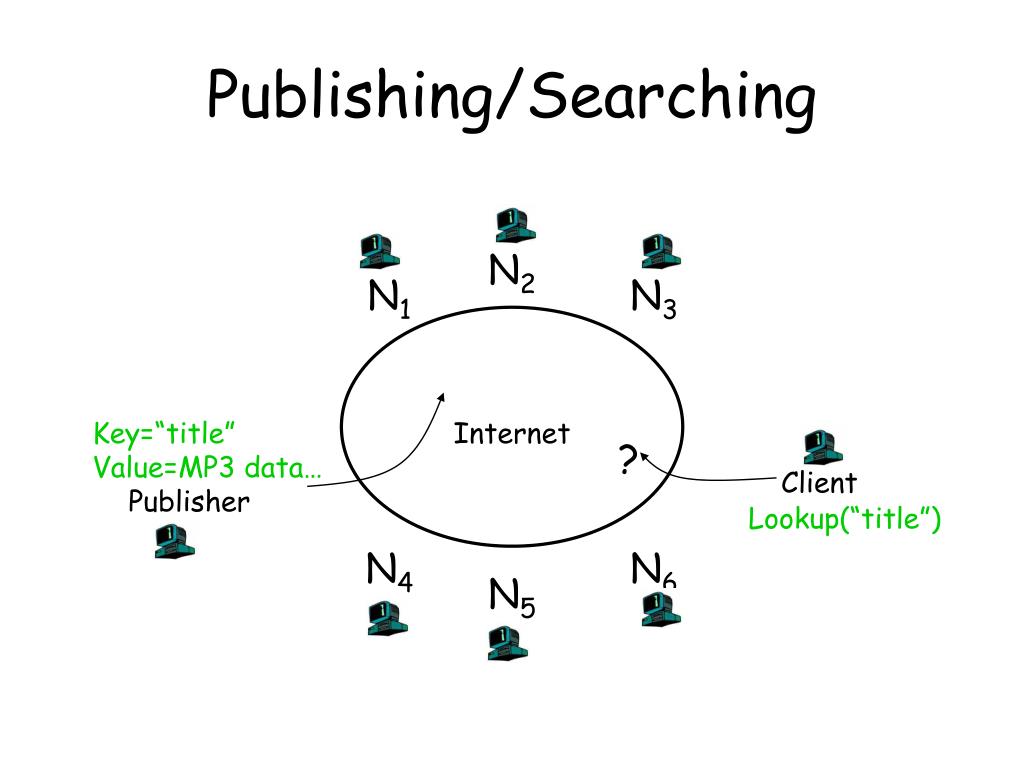

  5. Publishing/Searching N2 N1 N3 Key=“title” Value=MP3 data… Internet ? Client Publisher Lookup(“title”) N4 N6 N5

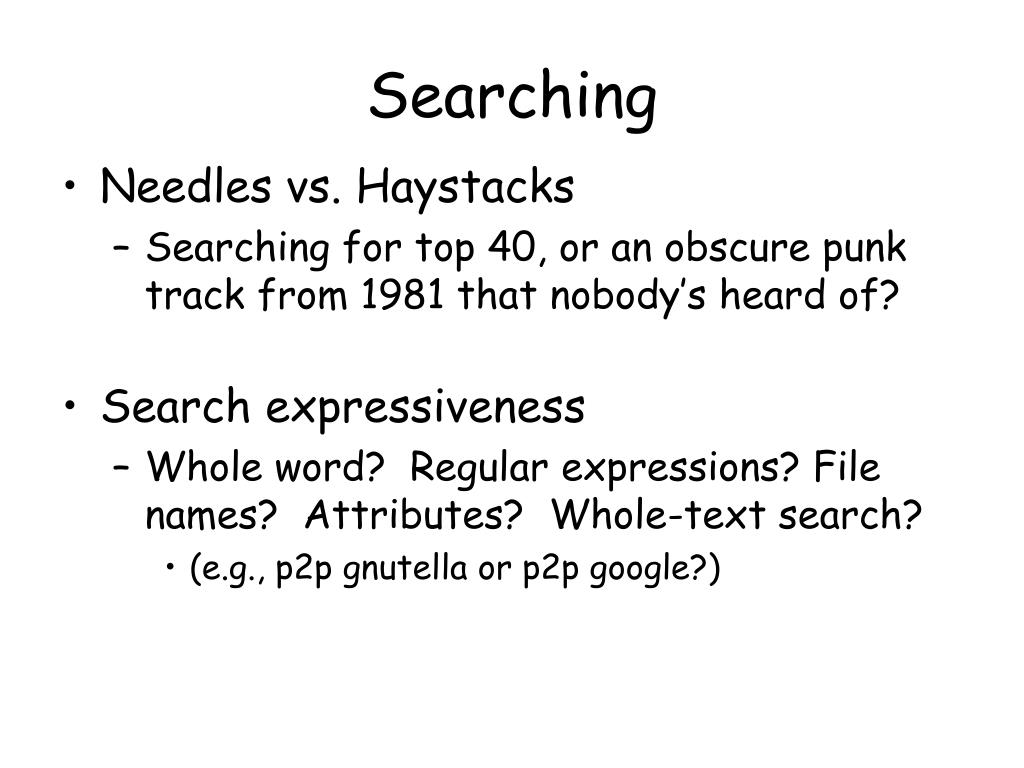

  6. Searching • Needles vs. Haystacks • Searching for top 40, or an obscure punk track from 1981 that nobody’s heard of? • Search expressiveness • Whole word? Regular expressions? File names? Attributes? Whole-text search? • (e.g., p2p gnutella or p2p google?)

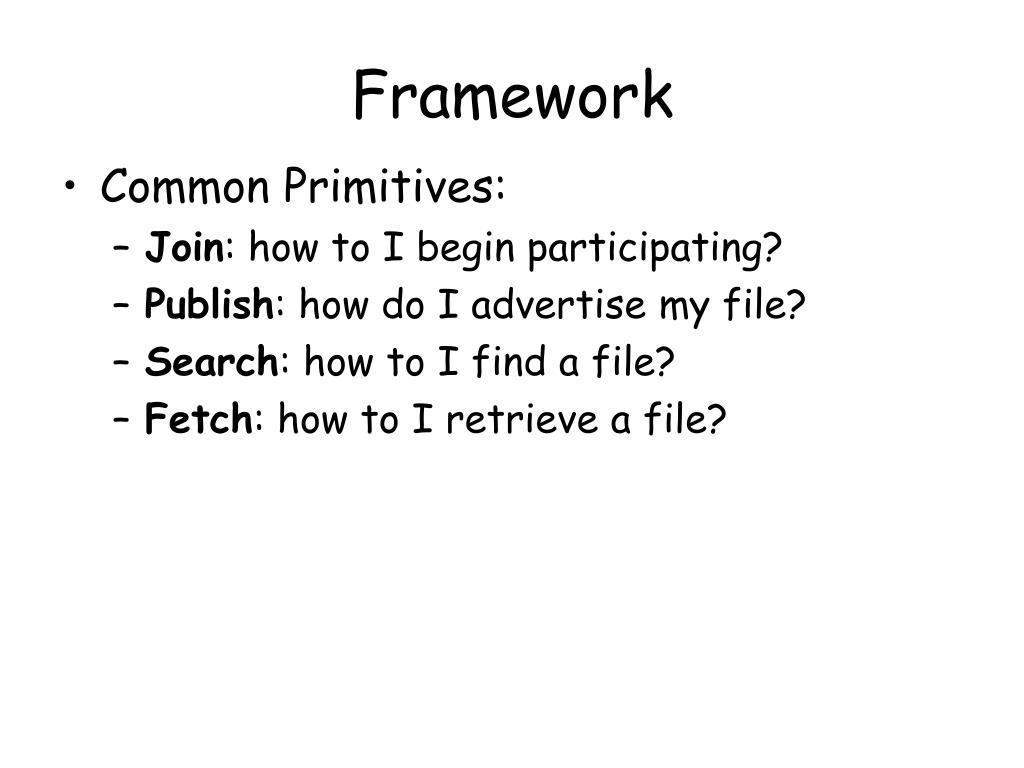

  7. Framework • Common Primitives: • Join: how to I begin participating? • Publish: how do I advertise my file? • Search: how to I find a file? • Fetch: how to I retrieve a file?

  8. Napster: Overview • History • 1999: Sean Fanning launches Napster • Peaked at 1.5 million simultaneous users • Jul 2001: Napster shuts down • Centralized Database: • Join: on startup, client contacts central server • Publish: reports list of files to central server • Search: query the server => return someone that stores the requested file • Fetch: get the file directly from peer

  9. Publish Napster: Publish insert(X, 123.2.21.23) ... I have X, Y, and Z! 123.2.21.23

  10. Fetch Query Reply Napster: Search 123.2.0.18 search(A) --> 123.2.0.18 Where is file A?

  11. Napster: Discussion • Pros: • Simple • Search scope is O(1) • Controllable (pro or con?) • Cons: • Server maintains lot of state • Server does all processing • Single point of failure

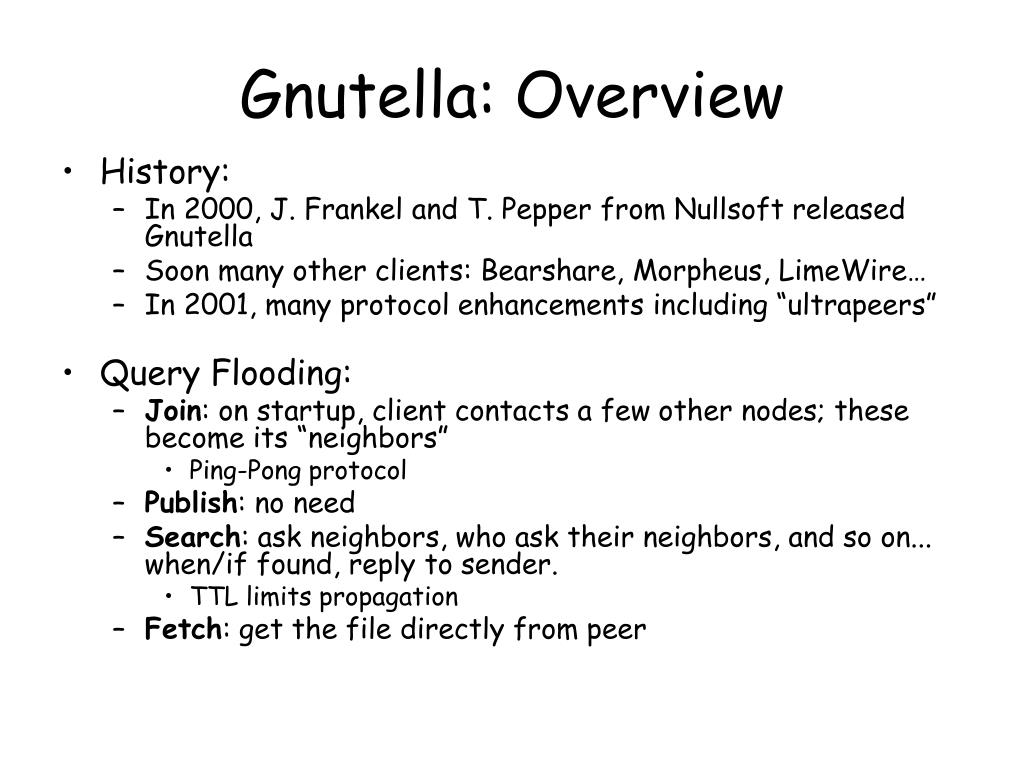

  12. Gnutella: Overview • History: • In 2000, J. Frankel and T. Pepper from Nullsoft released Gnutella • Soon many other clients: Bearshare, Morpheus, LimeWire… • In 2001, many protocol enhancements including “ultrapeers” • Query Flooding: • Join: on startup, client contacts a few other nodes; these become its “neighbors” • Ping-Pong protocol • Publish: no need • Search: ask neighbors, who ask their neighbors, and so on... when/if found, reply to sender. • TTL limits propagation • Fetch: get the file directly from peer

  13. I have file A. I have file A. Reply Query Gnutella: Search Where is file A?

  14. Gnutella: Discussion • Pros: • Fully de-centralized • Search cost distributed • Processing @ each node permits powerful search semantics • Cons: • Search scope is O(N) • Search time is O(???) • Nodes leave often, network unstable • TTL-limited search works well for haystacks. • For scalability, does NOT search every node. May have to re-issue query later

  15. KaZaA: Overview • Gnutella X Napster • No didicated server • But.. not all peers are equal! • “Smart” Query Flooding: • Join: on startup, client contacts a “supernode” ... may at some point become one itself • Publish: send list of files to supernode • Search: send query to supernode, supernodes flood query amongst themselves. • Fetch: get the file directly from peer(s); can fetch simultaneously from multiple peers

  16. “Super Nodes” KaZaA: Network Design

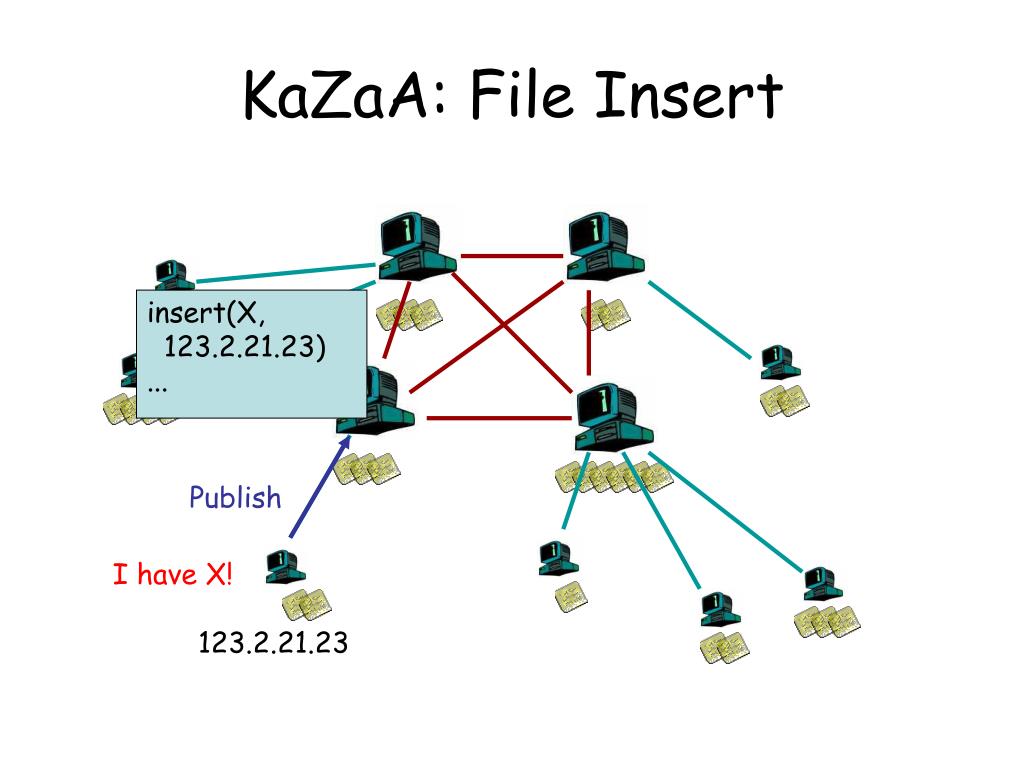

  17. Publish KaZaA: File Insert insert(X, 123.2.21.23) ... I have X! 123.2.21.23

  18. search(A) --> 123.2.22.50 search(A) --> 123.2.0.18 123.2.22.50 Query Replies 123.2.0.18 KaZaA: File Search Where is file A?

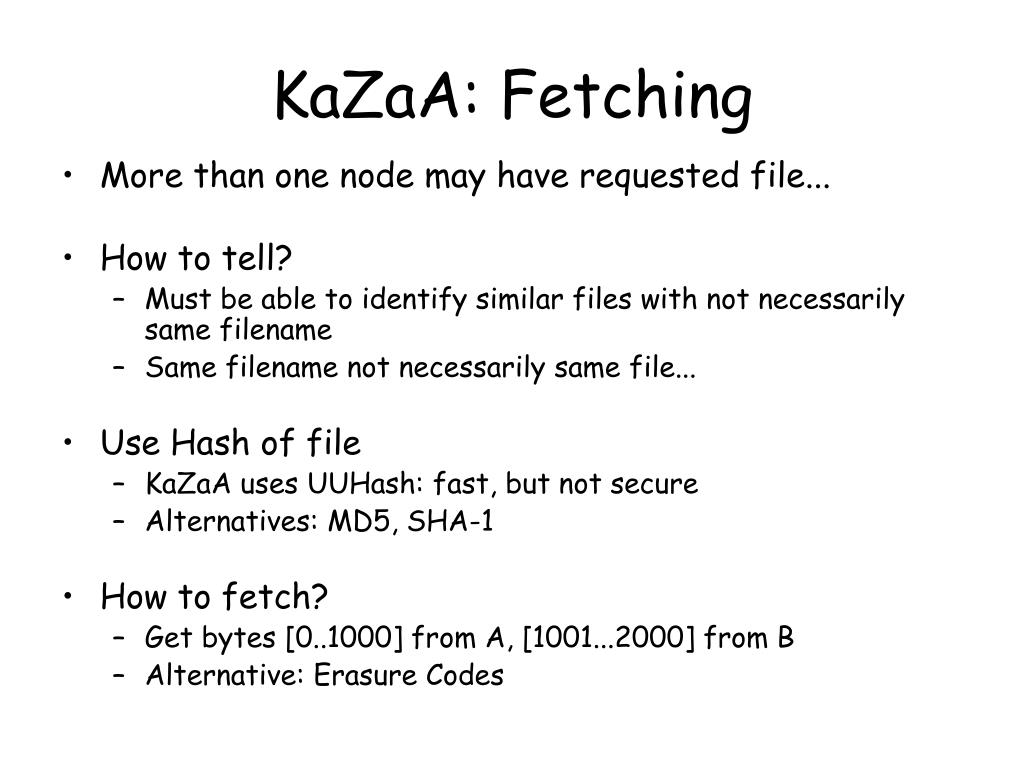

  19. KaZaA: Fetching • More than one node may have requested file... • How to tell? • Must be able to identify similar files with not necessarily same filename • Same filename not necessarily same file... • Use Hash of file • KaZaA uses UUHash: fast, but not secure • Alternatives: MD5, SHA-1 • How to fetch? • Get bytes [0..1000] from A, [1001...2000] from B • Alternative: Erasure Codes

  20. Stability and Superpeers (Supernodes) • Why superpeers? • Query consolidation • Many connected nodes may have only a few files • Propagating a query to a sub-node would take more b/w than answering it yourself • Superpeer selection is time-based • How long you’ve been on is a good predictor of how long you’ll be around.

  21. KaZaA: Discussion • Pros: • Tries to take into account node heterogeneity: • Bandwidth • Host Computational Resources • Host Availability (?) • Cons: • Mechanisms easy to circumvent • Can freeload easily • Still no real guarantees on search scope or search time • Similar behavior to Gnutella, but better.

  22. BitTorrent: History • Key Motivation: • Popularity exhibits temporal locality (Flash Crowds) • E.g., Slashdot effect, CNN on 9/11, new movie/game release • Focused on Efficient Fetching, not Searching: • Distribute the same file to all peers • Single publisher, multiple downloaders • Has some “real” publishers

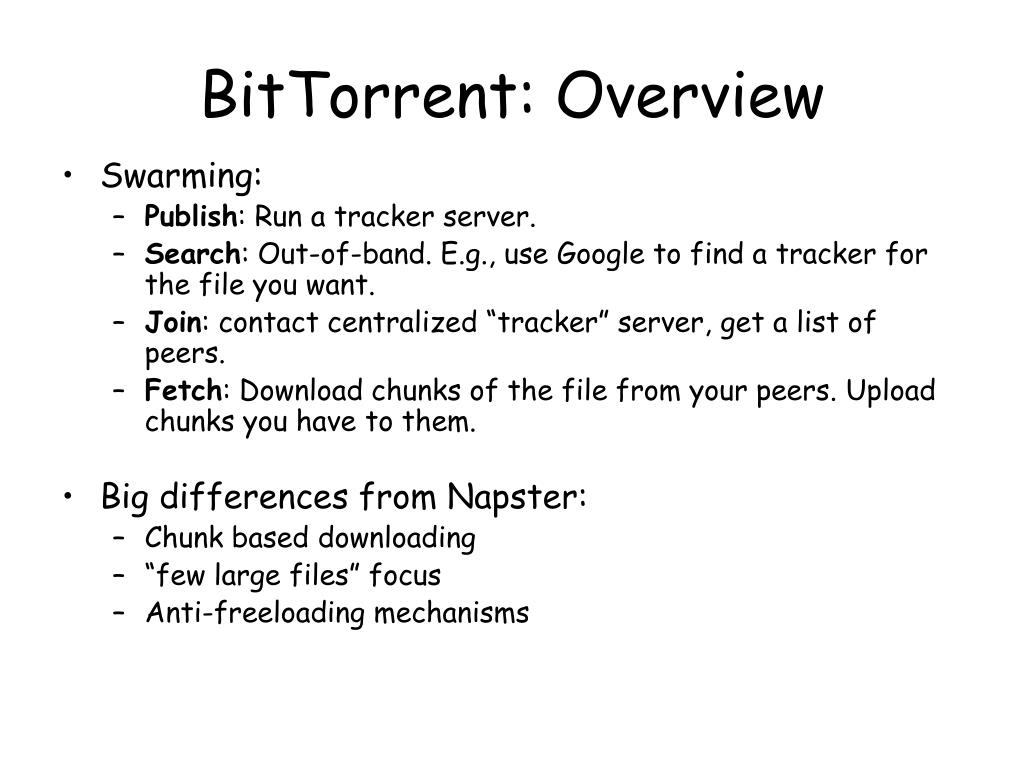

  23. BitTorrent: Overview • Swarming: • Publish: Run a tracker server. • Search: Out-of-band. E.g., use Google to find a tracker for the file you want. • Join: contact centralized “tracker” server, get a list of peers. • Fetch: Download chunks of the file from your peers. Upload chunks you have to them. • Big differences from Napster: • Chunk based downloading • “few large files” focus • Anti-freeloading mechanisms

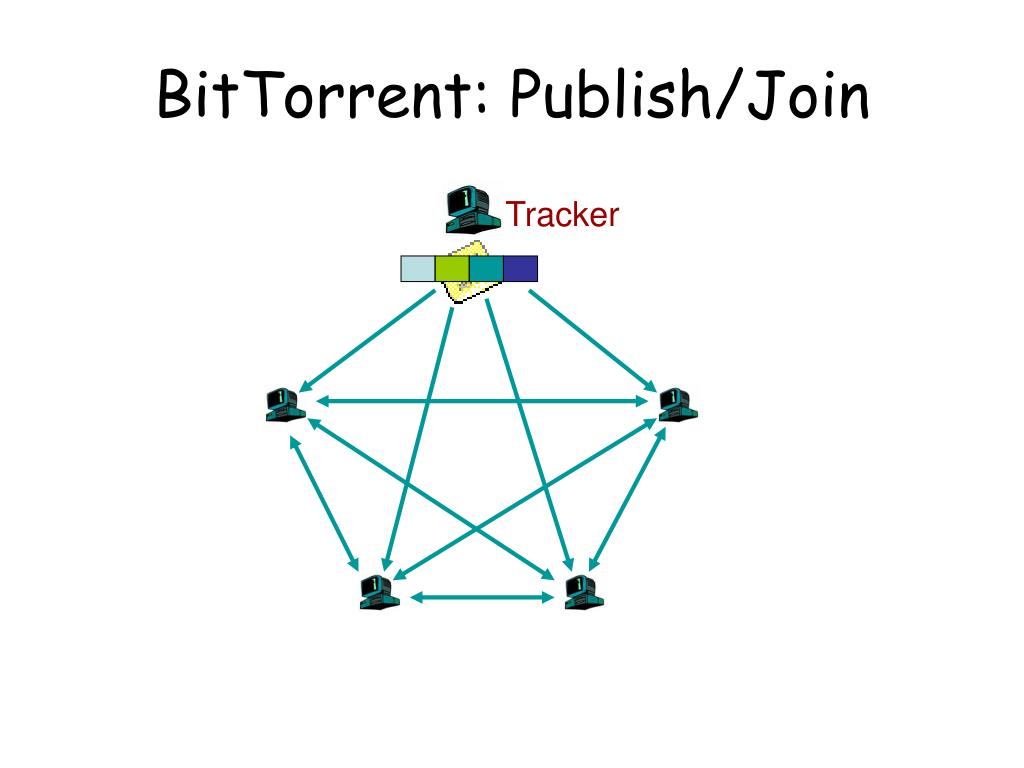

  24. BitTorrent: Publish/Join Tracker

  25. BitTorrent: Fetch

  26. BitTorrent: Sharing Strategy • Employ “Tit-for-tat” sharing strategy • A is downloading from some other people • A will let the fastest N of those download from him • Be optimistic: occasionally let freeloaders download • Otherwise no one would ever start! • Also allows you to discover better peers to download from when they reciprocate

  27. BitTorrent: Discussion • Pros: • Works reasonably well in practice • Gives peers incentive to share resources; avoids freeloaders • Cons: • Pareto Efficiency relatively weak condition • Central tracker server needed to bootstrap swarm

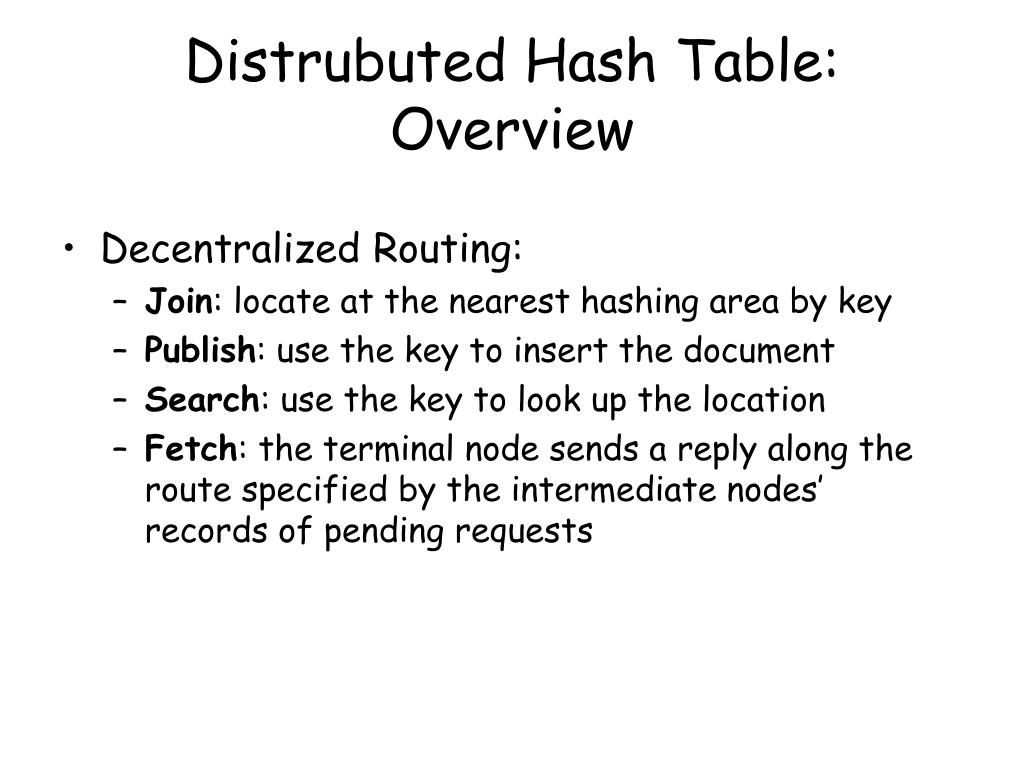

  28. Distrubuted Hash Table: Overview • Decentralized Routing: • Join: locate at the nearest hashing area by key • Publish: use the key to insert the document • Search: use the key to look up the location • Fetch: the terminal node sends a reply along the route specified by the intermediate nodes’ records of pending requests

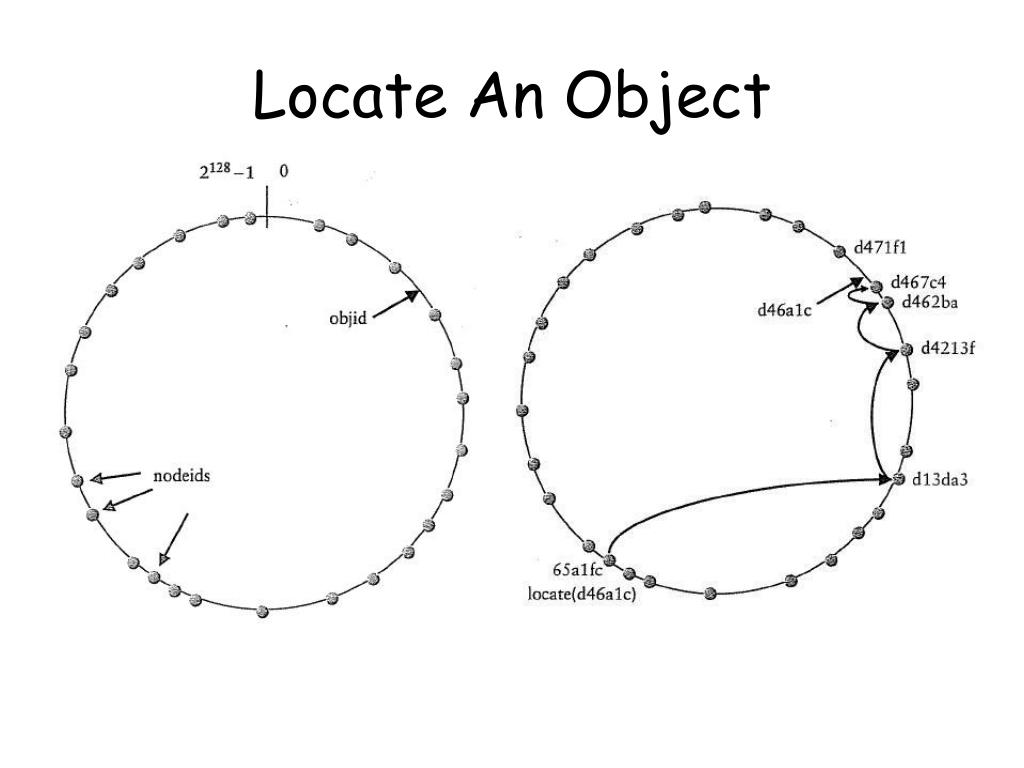

  29. Locate An Object

  30. Table in A Node

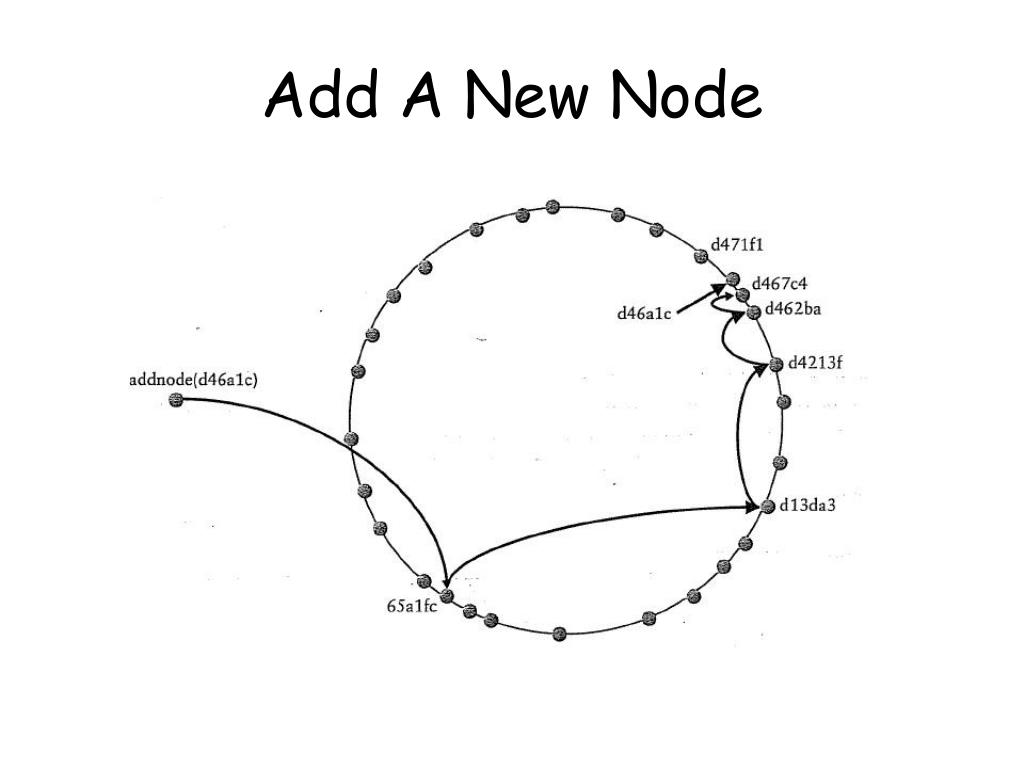

  31. Add A New Node

  32. DHT: Discussion • Pros: • Self-organize into a distributed, clustered structure where nodes tend to hold data items that are close together in key space • All node communications are identical • Simple data structure • Cons: • No guarantee on finding the piece of data

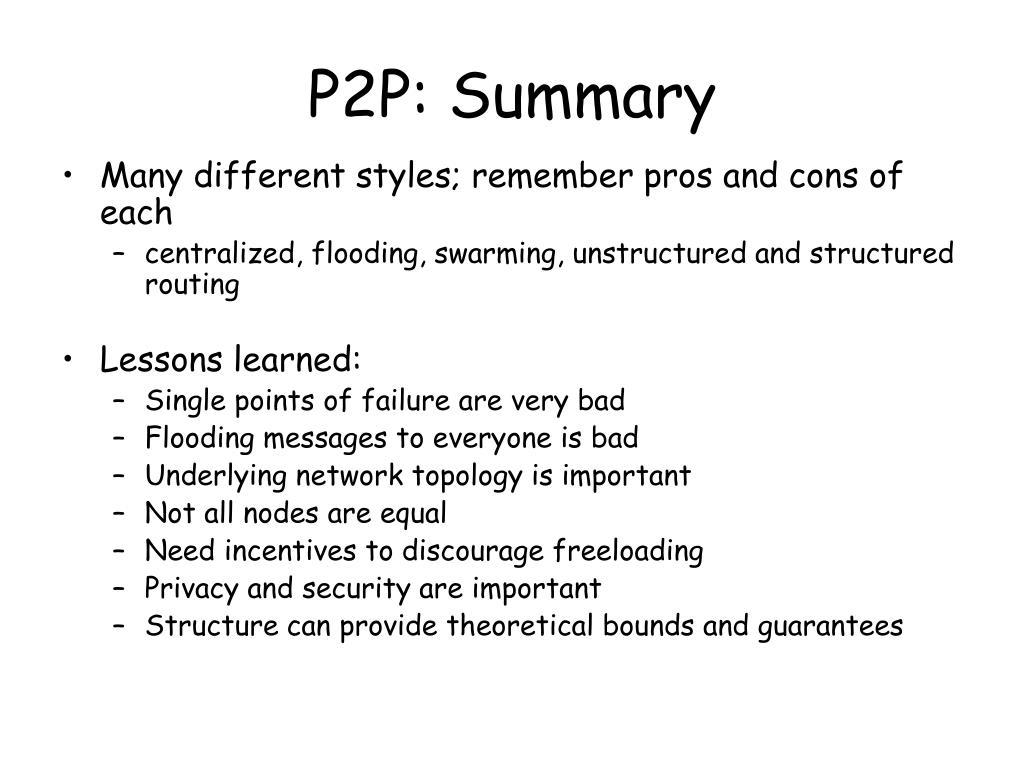

  33. P2P: Summary • Many different styles; remember pros and cons of each • centralized, flooding, swarming, unstructured and structured routing • Lessons learned: • Single points of failure are very bad • Flooding messages to everyone is bad • Underlying network topology is important • Not all nodes are equal • Need incentives to discourage freeloading • Privacy and security are important • Structure can provide theoretical bounds and guarantees
