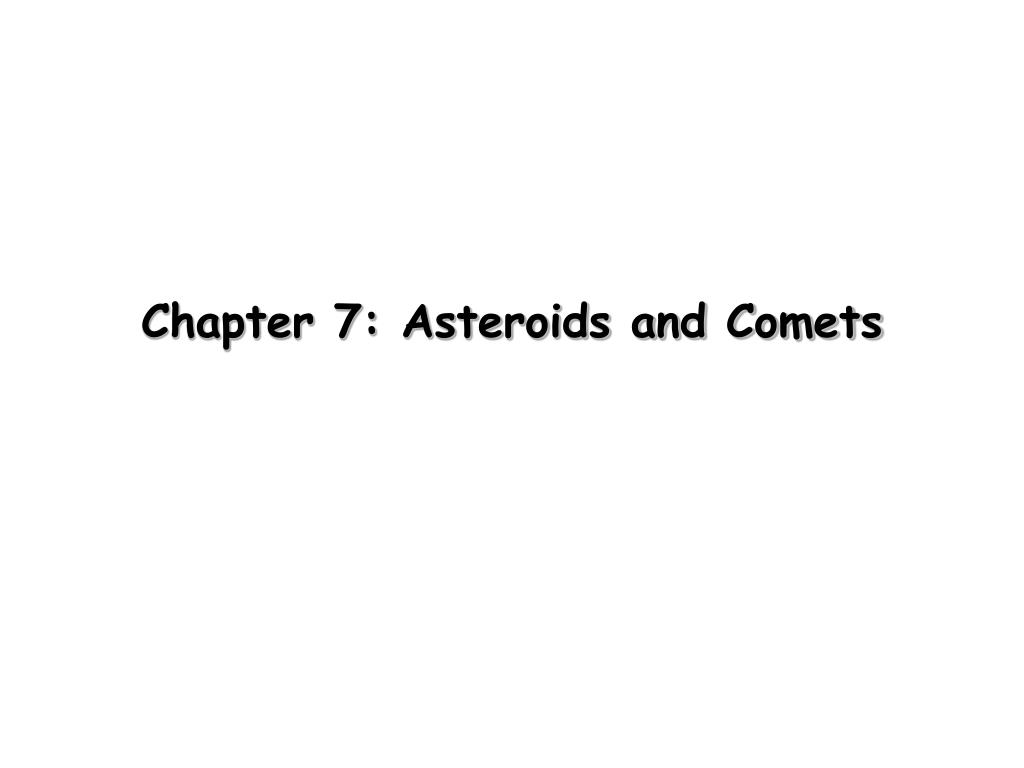

  1. Chapter 7: Asteroids and Comets

  2. Review: asteroids • Mostly rocky bodies • Found in the asteroid belt between Mars and Jupiter • Also the Trojans at the Jupiter Lagrangian points • The source of most meteorites • Asteroids get perturbed from their orbits, into Earth-crossing trajectories

  3. Spectroscopy • reflectivity spectra different for different materials • matching asteroid and meteorite spectra shows that most meteorites are likely pieces of asteroids

  4. Asteroid Types • igneous (once heated) much more common in inner belt • primitive (unaltered) mainly in outer belt • stony (S) and metallic (M) asteroids mainly in inner belt • carbonaceous (C) mostly at 3AU and farther • composition vs. distance trend mainly original – formation driven

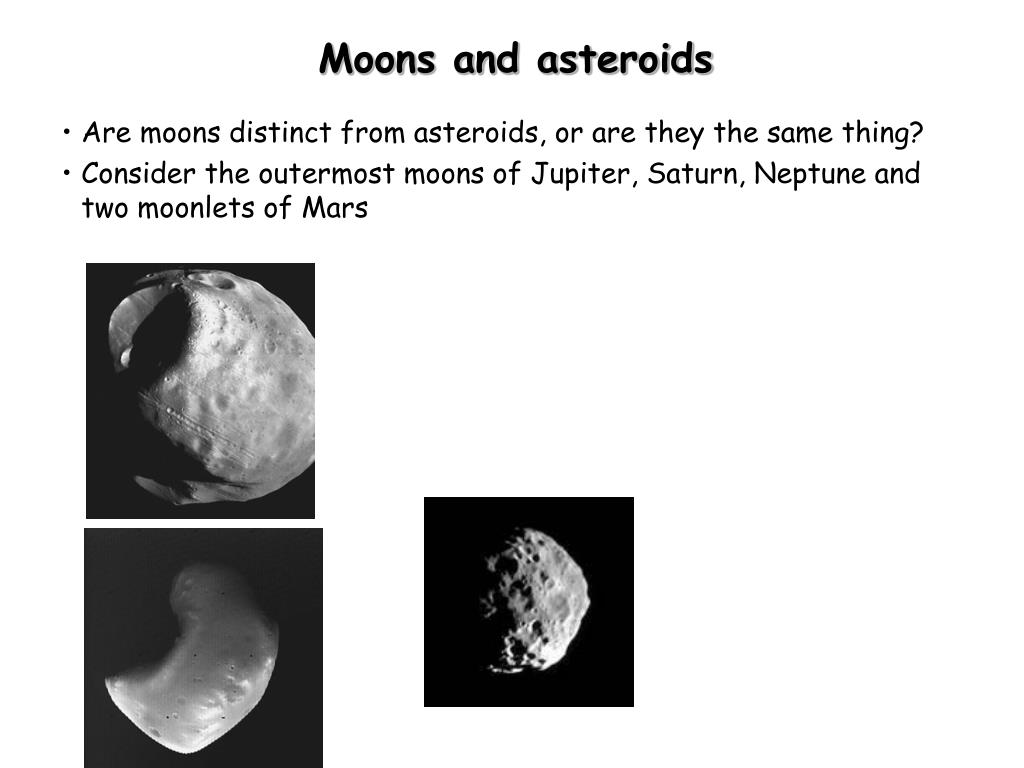

  5. Moons and asteroids • Are moons distinct from asteroids, or are they the same thing? • Consider the outermost moons of Jupiter, Saturn, Neptune and two moonlets of Mars

  6. Surface Heating • Radiation from the Sun heats the surface of planets, asteroids to a temperature that depends on distance. • Assume a fraction (1-Av) of the solar flux is absorbed at a distance r, and reradiated as a blackbody. • Assume body is rotating, so is heated evenly all over surface • What is the temperature of the piece of coal, orbiting at 3AU, assuming its infrared albedo is similar to its visible albedo?

  7. Internal Heat Sources • Gravitational energy? • For Ceres, what is the maximum temperature increase possible from gravitational assembly? • The heat capacity of typical rock is

  8. Impact Heating • Two asteroids orbit the Sun in virtually identical orbits. One has a radius of 40 km and a density of 3300 kg/m3. The other has a radius of only 100 m, and the same density. Due to a small difference in initial velocity, the two asteroids approach each other and are attracted gravitationally. • How much heating might be expected from this collision?

  9. Internal heat sources • Radioactive heating? • Unstable isotopes present in solar or carbonaceous chondrite mixture can be powerful sources of energy • Especially at earlier times when more of the radioactive isotope was available.

  10. Conduction • In solid rock, the main method of heat transport is conduction. The rate of heat loss (dQ/dt) is related to the conduction efficiency and temperature gradient: • where A is the surface area, dx is the distance over which the heat is transmitted, kc is the thermal conductivity of the material. • For a spherical asteroid, radius R, assume the surface temperature is T=0, and the T gradient is linear. How long will it take to radiate away all its internal energy?

  11. Cooling times • For rocky material, the thermal diffusivity kc/ρcv=1x10-6m2/s so τyr~1x104Rkm2 • A body the size of an asteroid (R~500 km) will lose any internal energy in less than ~2.5 Gyr. • Note that while the heat acquired in various ways is proportional to mass (and thus R3), the heat radiated away is proportional to surface area (thus R2). • smaller bodies preferentially cool faster.

  12. Break

  13. Heating • Consider the equilibrium case where the internal heating rate changes slowly, relative to the cooling rate. • Assuming a roughly linear temperature gradient: • The rate of heat loss is given by: • If l=L/M is the heat production per mass (W/kg) then setting the total heating rate lM equal to the cooling rate gives:

  14. E.g. Ceres • Estimate the core temperature of Ceres, assuming it is in equilibrium with the flux of radiation from the Sun. • You will need the following information: • The mass is M=9.5x1020 kg • The diameter is D=1000 km. • For typical carbonaceous chondrites, the energy produced by radioactivity is L/M~4x10-12 W/kg, and the thermal conductivity is kc=3W/K/m

  15. Comets • Comet Hale-Bopp in 1997, photographed at Mono Lake, CA

  16. The nature of comets • Comets are distinguished from all other SS bodies by their appearance which includes a bright coma and long tails • The appearance of a comet changes as it moves through its orbit, becoming brighter as it approaches the Sun and fainter again as it moves away.

  17. Asteroid or Comet? • The only distinction between asteroids and comets is the presence of a Coma and tail • These features get dimmer as a comet moves farther away from the Sun. • E.g. comet Wilson-Harrington, discovered in 1949, was “rediscoverd” in 1979 as an asteroid. • Similarly, the asteroid 2060 Chiron moves in a cometlike orbit, and in 1988 it came closer to the Sun and became brighter and more cometlike. • Coma and tail are caused by sublimation of ice. Thus distinction is simply one of ice content.
