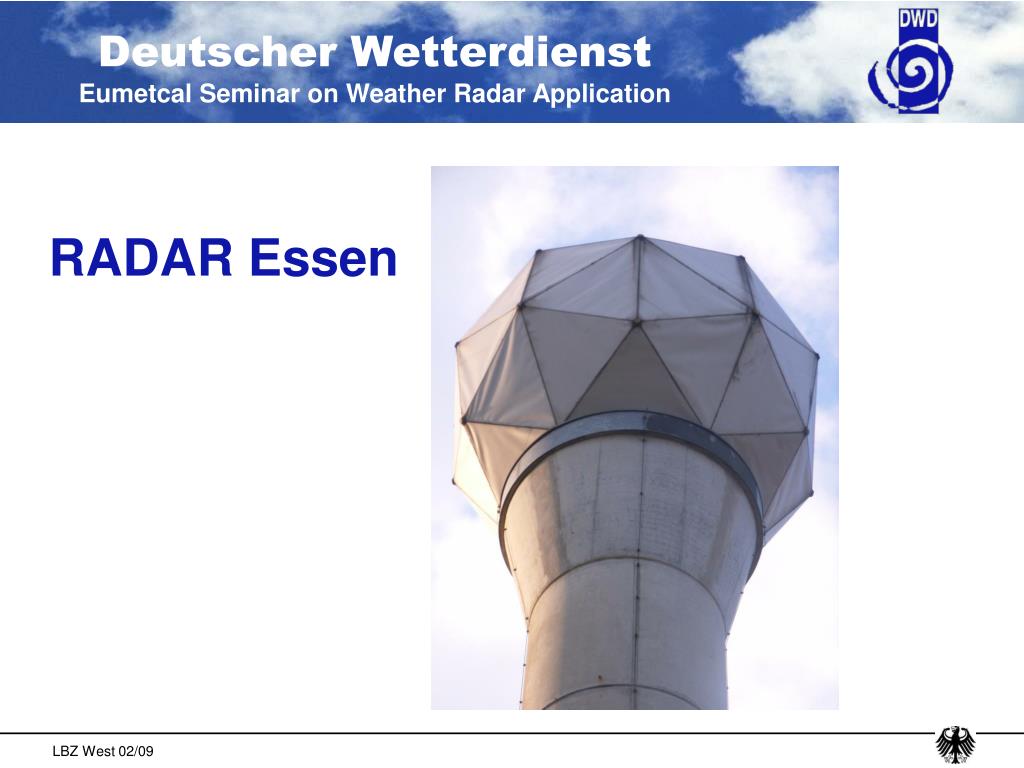

  1. RADAR Essen

  2. EuropeanWeather Radars • ESSEN (WMO No. 10410)

  3. View from North

  4. Radar site: View from South

  5. View from South II

  6. Orography around Radar Essen (100 km) (by TI 33)

  7. Construction work in progress (1989-1991)

  8. Radar Tower (27.2 m)

  9. RADOME from inside

  10. Radar Hardware

  11. Radar Hardware II

  12. Factsheet: • C – Band Doppler-RADAR: wavelenght 5.7 cm • Diameter of dish: ~4 m • Rotation speed: 3 rpm (rounds per minute) • Elevation scan: 18 steps from 37° down to 0.5° • Vertical range: up to 12 km • Horizontal range: up to 230 km

  13. New Radar System (Dual Polarisation) 2009 - 2012 (by TI 33)

  14. DWDRadar-Sites (16) by TI 33

  15. LBZ WestAviationWeatherAdvisoryCenter

  16. Radar Application with NinJo • New • Integrated • JAVA • Application • NINJA > NinJo

  17. Composit: PM (2x2 km) 23.11.2008 18.00 UTC

  18. National Composit: RX (1x1 km)

  19. Composit: PE Echotop

  20. Composit: PM (2x2 km) 05.12.2008 13.00 UTC

  21. Radar Essen PL: 05.12.2008 13.00 UTC

  22. Radial Wind (PU: z= 1 km) : 05.12.2008 13.00 UTC

  23. Single Radar Essen: Radial Wind (PR):05.12.2008 13.00 UTC

  24. Single Radar Essen (PL): 05.12.2008 13.00 UTC

  25. RX (1x1 km): 05.12.2008 13.00 UTC

  26. RX (Zoom): 15.06.2008 10.25 UTC

  27. Thank you for your attention
