Introducing the SNC-CS3P: Your Entry-Level IP Camera for Security and Monitoring Needs

The SNC-CS3P Video Network Camera completes our IP camera lineup, designed to meet diverse customer needs in security and remote monitoring applications. Utilizing the same platform as the SNC-RZ30P and SNC-Z20P, this entry-level IP camera ensures high performance with a VGA resolution of 25fps and exceptional low-light sensitivity (0.4 lx). It features a 3.0-8.0mm auto iris vari-focal lens, high-quality imaging, and versatile networking capabilities. Available by the end of 2003, the SNC-CS3P is perfect for reliable surveillance.

ursula-donovan
Télécharger la présentation

Introducing the SNC-CS3P: Your Entry-Level IP Camera for Security and Monitoring Needs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

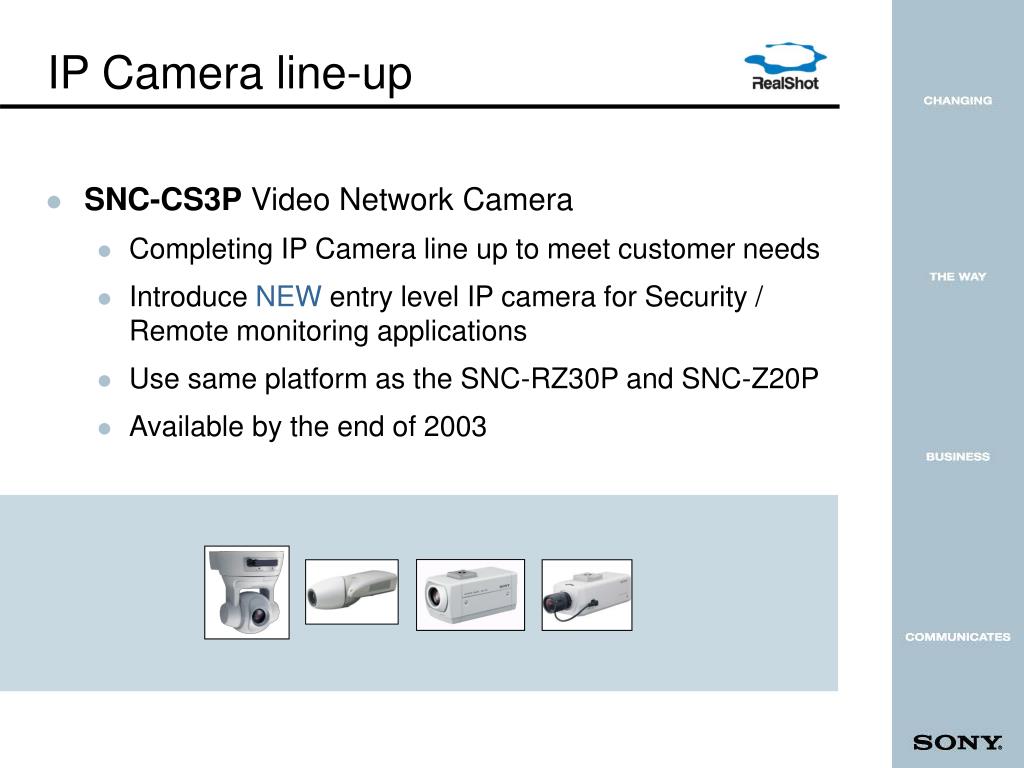

  1. IP Camera line-up • SNC-CS3P Video Network Camera • Completing IP Camera line up to meet customer needs • Introduce NEW entry level IP camera for Security / Remote monitoring applications • Use same platform as the SNC-RZ30P and SNC-Z20P • Available by the end of 2003

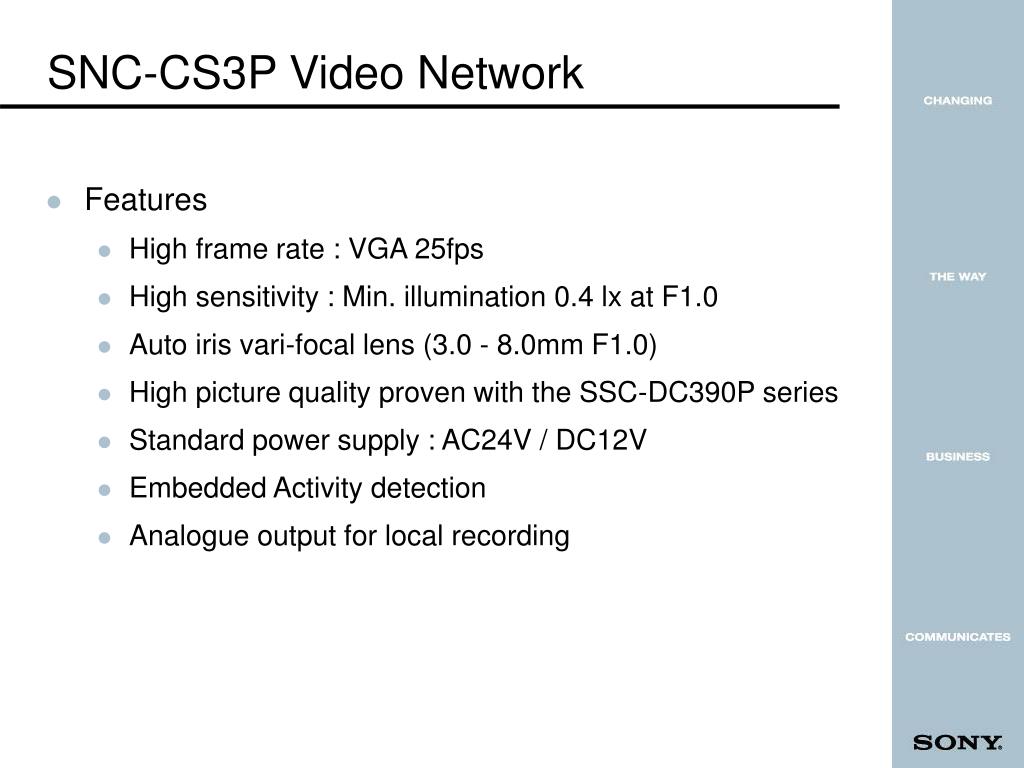

  2. SNC-CS3P Video Network • Features • High frame rate : VGA 25fps • High sensitivity : Min. illumination 0.4 lx at F1.0 • Auto iris vari-focal lens (3.0 - 8.0mm F1.0) • High picture quality proven with the SSC-DC390P series • Standard power supply : AC24V / DC12V • Embedded Activity detection • Analogue output for local recording

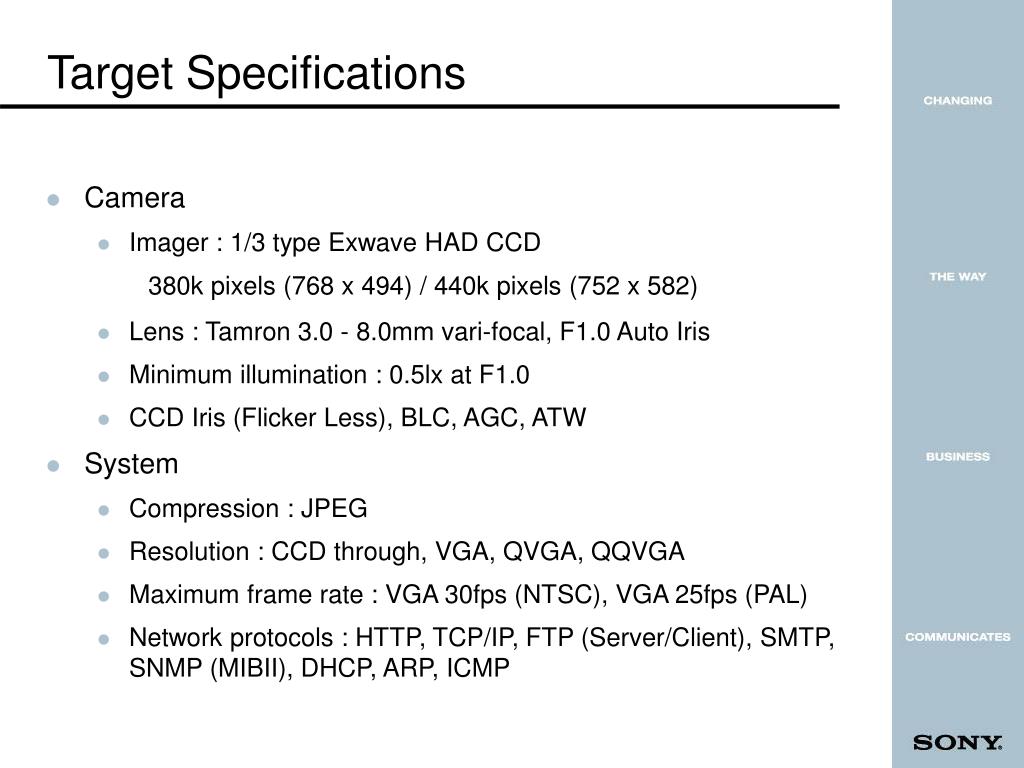

  3. Target Specifications • Camera • Imager : 1/3 type Exwave HAD CCD 380k pixels (768 x 494) / 440k pixels (752 x 582) • Lens : Tamron 3.0 - 8.0mm vari-focal, F1.0 Auto Iris • Minimum illumination : 0.5lx at F1.0 • CCD Iris (Flicker Less), BLC, AGC, ATW • System • Compression : JPEG • Resolution : CCD through, VGA, QVGA, QQVGA • Maximum frame rate : VGA 30fps (NTSC), VGA 25fps (PAL) • Network protocols : HTTP, TCP/IP, FTP (Server/Client), SMTP, SNMP (MIBII), DHCP, ARP, ICMP

  4. Target Specifications • Interface • Network : RJ45 x 1 (100 Base-TX/10 Base-T ) • Serial : RS-232C (transparency function) • Alarm input : Terminal connector x 1 • Alarm output : Terminal connector x 2 • Video output : BNC x 1 (Analog composite) • Others • Power requirements : AC24V / DC12V • Power consumption : 7W • Operating temperature : -10 to 50 degree Celsius • Dimensions : 70 (W) x 57 (H) x 159 (D) mm (Lens is not included) • Weight : 650g

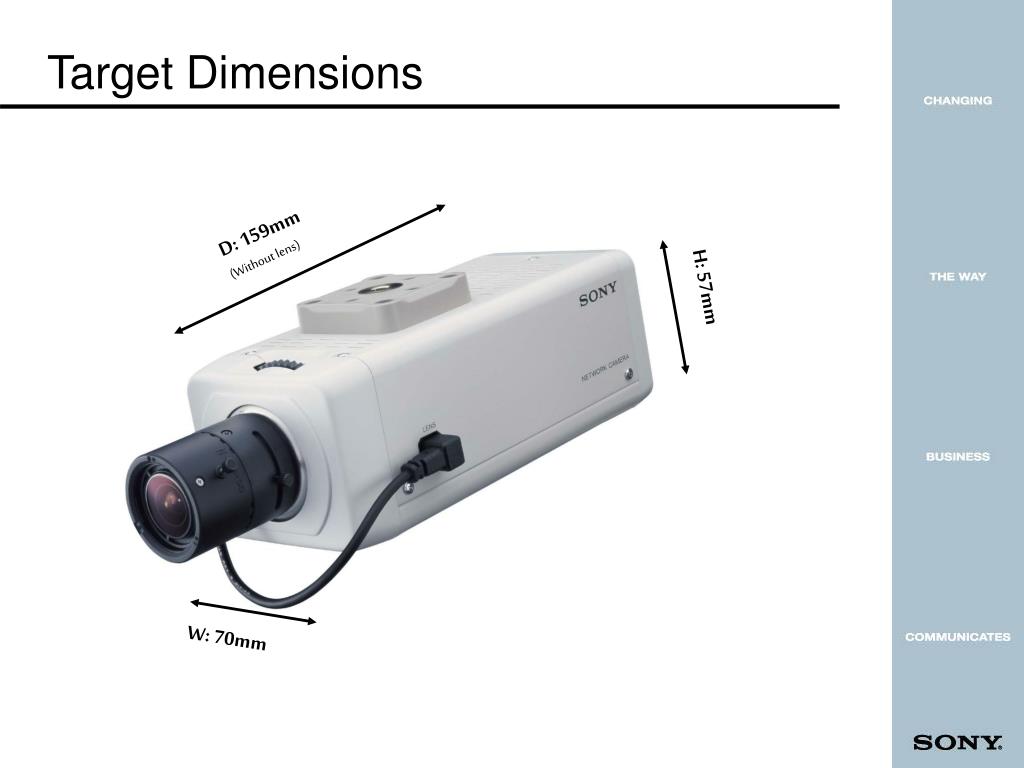

  5. Target Dimensions D: 159mm (Without lens) H: 57mm W: 70mm
