BLOODSTAIN PATTERN ANALYSIS

1. BLOODSTAIN PATTERN ANALYSIS

2. The success or failure of any criminal investigation often depends on the recognition of physical evidence left at a crime scene and the proper analysis of that evidence. • Crime scenes that involve bloodshed often contain a wealth of information in the form of bloodstains. The pattern, size, shape, and the location of such stains may be very useful in the reconstruction of the events that occurred

3. Bloodstain Pattern Analysis:is the examination of the shapes, locations, and distribution patterns of bloodstains, in order to provide an interpretation of the physical events which gave rise to their origin.

4. The determinations made from bloodstain patterns at the scene or from the clothingof principals in a case can be used to: • Confirm or refute assumptions concerning events and their sequence:Position of victim. (standing, sitting, lying)Evidence of a struggle. (blood smears, blood trails) • Confirm or refute statements made by principals in the case:Are stain patterns on a suspects clothing consistent with his reported actions?Are stain patterns on a victim or at a scene consistent with accounts given by witnesses or the suspect?

5. Properties of Blood • Blood Volume • On average, accounts for 8 % of total body weight5 to 6 liters of blood for males • 4 to 5 liters of blood for femalesA 40 percent blood volume loss, internally or/and externally,is required to produce irreversible shock (death).A blood loss of 1.5 liters, internally or externally, is required to cause incapacitation.

6. Surface TensionThe elastic like property of the surface of the liquid that makes it tend to contract,caused by the forces of attraction between the molecules of the liquid.The cohesive forces tend to resist penetration and separation.

7. Categories of Bloodstains • PASSIVE

8. TRANSFER

9. PROJECTED

10. TRANSFER BLOODSTAINS • A transfer bloodstain is created when a wet, bloody surface comes in contact with a secondary surface. • A recognizable image of all or a portion of the original surface may be observed in the pattern,as in the case of a bloody hand or footwear

11. Transfer bloodstains can be further subdivided into; • Contact bleeding • Swipe or Smear • Wipe • Smudge

12. PASSIVE BLOODSTAINS • Passive Bloodstains are drops created or formed by the force of gravity acting alone.

13. This category can be further subdivided to include; • Drops • Drip patterns • Pools • Clots

14. TARGET SURFACE TEXTURE • Blood droplets that strike a hard smooth surface, like a piece of glass, will have little or no distortion around the edge. • Blood droplets that strike linoleum flooring take on a slightly different appearance. Notice the distortion (scalloping) around the edge of the blood droplets.

15. Surfaces such as wood or concrete are distorted to a larger extent. Notice the spinesand secondary spatter present.

16. LARGE VOLUMES OF BLOOD (patterns created by same volume of blood,from same source to target distance) • "Dripped Blood"

17. "Spilled Blood"

18. Projected Blood" (through syringe)

19. PROJECTED BLOODSTAINS • Projected bloodstains are created when an exposed blood source is subjected to an action or force, greater than the force of gravity. (Internally or Externally produced) • The size, shape, and number of resulting stains will depend, primarily, on the amount of force utilized to strike the blood source.

21. Arterial Spurt / Gush • Bloodstain pattern(s) resulting from blood exiting the body under pressure from a breached artery:

22. Cast-off Stains • Blood released or thrown from a blood-bearing object in motion

23. Impact Spatter • Blood stain patterns created when a blood source receives a blow or force resulting in the random dispersion of smaller drops of blood. This category can be further subdivided into; Low Velocity Gravitational pull up to5 feet/sec. Relatively large stains4mm in size and greater

24. Medium Velocity Force of 5 to 25 feet/sec. Preponderant stain size1 to 4mm in size

25. High Velocity • Force of 100 feet/sec. andgreaterPreponderant stain size1mm in size and smaller Mist like appearance

26. DIRECTIONALITY OF BLOODSTAINS • When a droplet of blood strikes a surface perpendicular (90 degrees) the resulting bloodstain will be circular.That being the length and width of the stain will be equal. • Blood that strikes a surface at an angle less than 90 degrees will be

28. IMPACT ANGLE DETERMINATION • ANGLE of IMPACTis the acute angle formed between the direction of the blood dropand the plane of the surface it strikes

29. POINT OF CONVERGENCE AND ORIGIN DETERMINATION • The common point, on a 2 dimensional surface, over which the directionalityof several bloodstains can be retraced. • Once the directionality of a group of stains has been determined,it's possible to determine a two dimensional point or area for the group of stains. • By drawing a line through the long axis of a group of bloodstains the point of convergence can be determined. Where the lines of the group of stains intersect one anotherthe convergence point can be established.

31. THREE DIMENSIONAL POINT OF ORIGIN DETERMINATION WITH IMPACT ANGLE CALCULATIONS

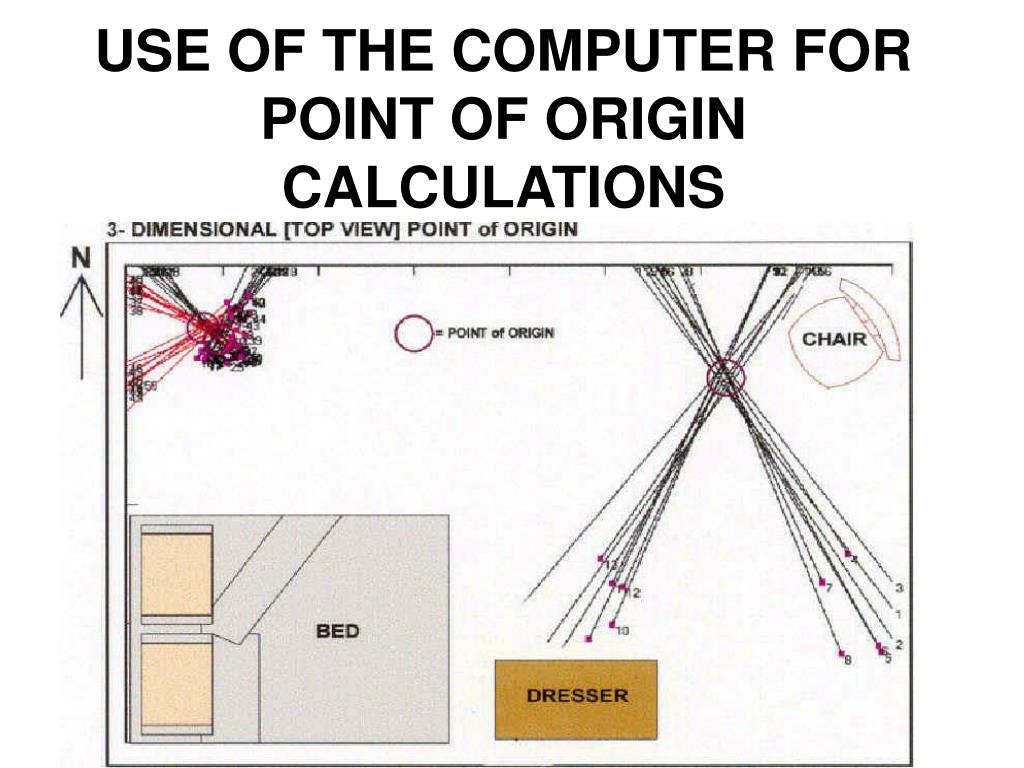

32. USE OF THE COMPUTER FOR POINT OF ORIGIN CALCULATIONS

33. Suicide via Shotgun

34. Homicide Scene

35. Fingerprints in Blood- Lab Experiment
