  1. RDF Query language The following slides are from Grigoris Antoniou, Frank van Harmelen, “A Semantic Web Primer” Dean Allemang, Jim Hendler, “Semantic Web for the working ontologist”

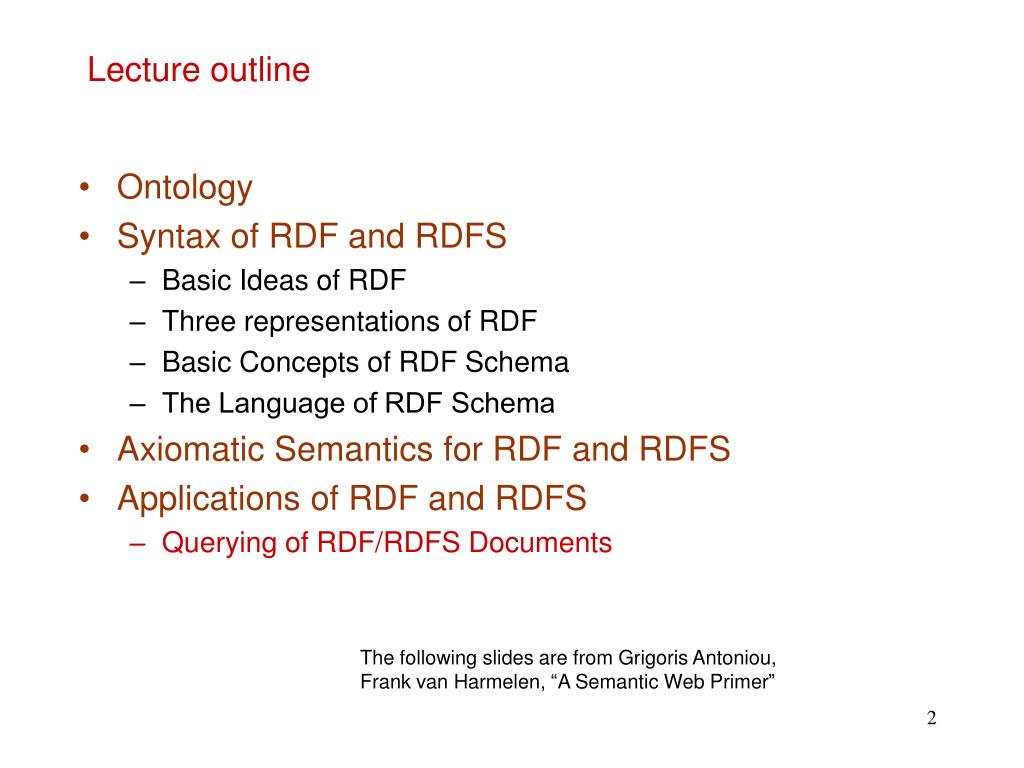

  2. Lecture outline • Ontology • Syntax of RDF and RDFS • Basic Ideas of RDF • Three representations of RDF • Basic Concepts of RDF Schema • Τhe Language of RDF Schema • Axiomatic Semantics for RDF and RDFS • Applications of RDF and RDFS • Querying of RDF/RDFS Documents The following slides are from Grigoris Antoniou, Frank van Harmelen, “A Semantic Web Primer”

  3. Why RDF Query language—different XML representation • There are XML query languages, such as XQuery • XML at a lower level of abstraction than RDF • There are various ways of syntactically representing an RDF statement in XML • Thus we would require several XQuery queries, e.g. • //uni:lecturer/uni:title if uni:title is an element • //uni:lecturer/@uni:title if uni:title is an attribute • Both XML representations equivalent!

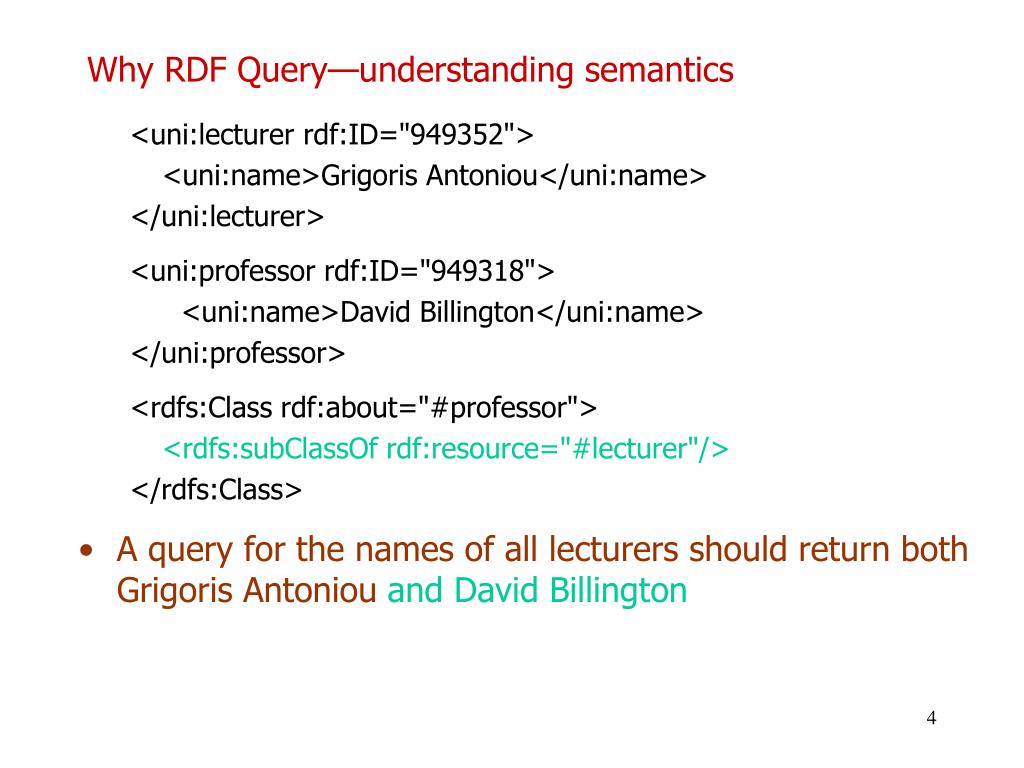

  4. Why RDF Query—understanding semantics <uni:lecturer rdf:ID="949352"> <uni:name>Grigoris Antoniou</uni:name> </uni:lecturer> <uni:professor rdf:ID="949318"> <uni:name>David Billington</uni:name> </uni:professor> <rdfs:Class rdf:about="#professor"> <rdfs:subClassOf rdf:resource="#lecturer"/> </rdfs:Class> • A query for the names of all lecturers should return both Grigoris Antoniou and David Billington

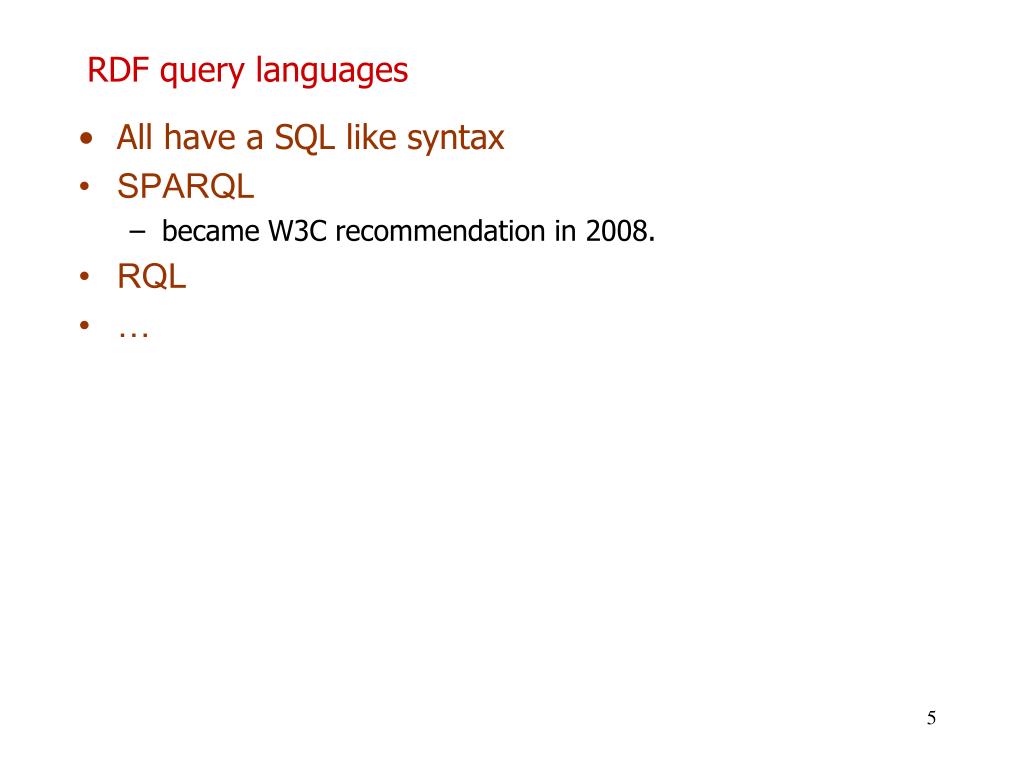

  5. RDF query languages • All have a SQL like syntax • SPARQL • became W3C recommendation in 2008. • RQL • …

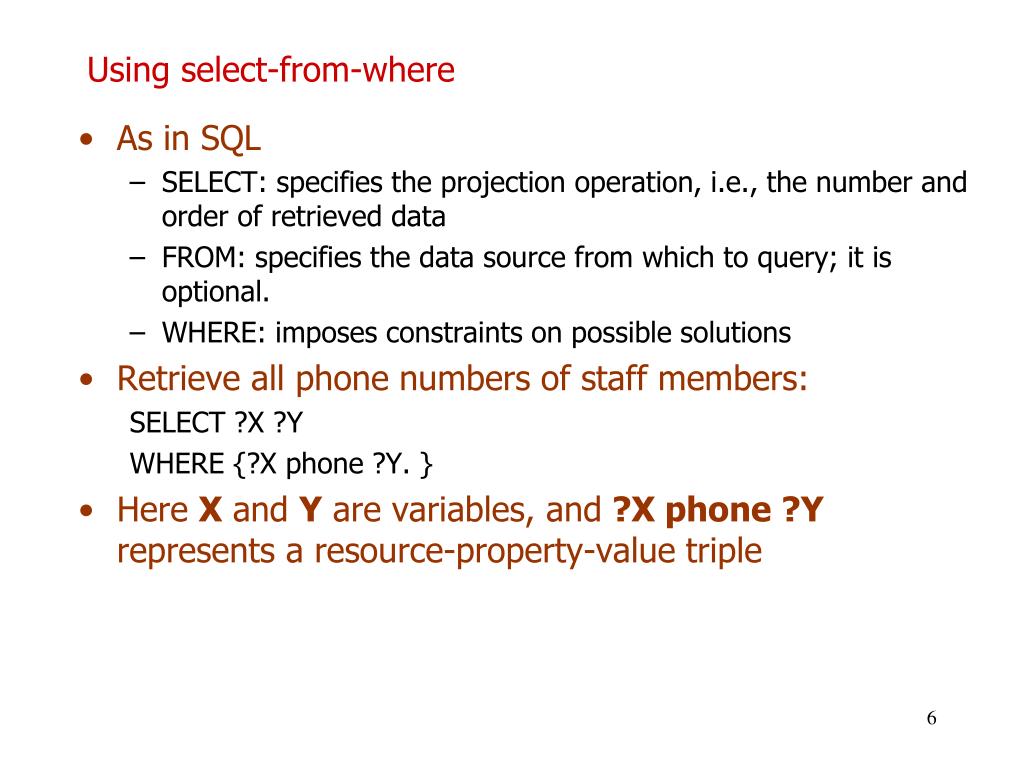

  6. Using select-from-where • As in SQL • SELECT: specifies the projection operation, i.e., the number and order of retrieved data • FROM: specifies the data source from which to query; it is optional. • WHERE: imposes constraints on possible solutions • Retrieve all phone numbers of staff members: SELECT ?X ?Y WHERE {?X phone ?Y. } • Here X and Y are variables, and ?X phone ?Y represents a resource-property-value triple

  7. Retrieve all lecturers and their phone numbers: SELECT ?X ?Y WHERE {?X rdf:type lecturer. ?X phone ?Y. } SELECT ?X ?Y WHERE {?X rdf:type lecturer; phone ?Y. }

  8. Triple representation lit:Shakespeare lit:wrote lit:AsYouLikeIt; lit:wrote lit:Twel fthNight; lit:wrote lit:KingLear; lit:wrote lit:LovesLaboursLost ; lit:wrote lit:Hamlet; lit:wrote lit:TheTempest; lit:wrote lit:WintersTale; lit:wrote lit:HenryV; lit:wrote lit:MeasureForMeasure; lit:wrote lit:Othello; bio: livedIn geo: Stratford. bio: AnneHathaway bio: married lit:Shakespeare. geo: Stratford geo:isIn geo:England. geo: Scotland geo:partOf geo:UK. geo: England geo:partOf geo:UK. geo: Wales geo:partOf geo:UK. geo: NorthernIreland geo: partOf geo:UK. geo: ChannelIslands geo: part Of geo: UK. geo: IsleOfMan geo: partOf geo: UK.

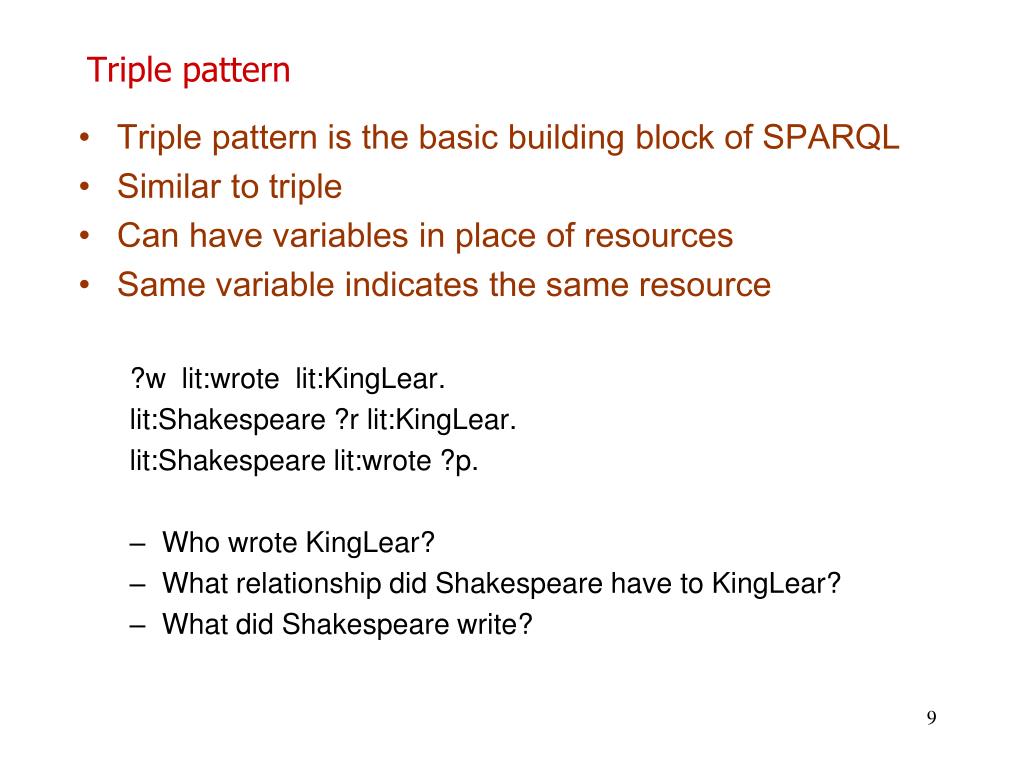

  9. Triple pattern • Triple pattern is the basic building block of SPARQL • Similar to triple • Can have variables in place of resources • Same variable indicates the same resource ?wlit:wrotelit:KingLear. lit:Shakespeare ?rlit:KingLear. lit:Shakespearelit:wrote ?p. • Who wrote KingLear? • What relationship did Shakespeare have to KingLear? • What did Shakespeare write?

  10. Graph pattern • List of triple pattern enclosed in braces {?person bio: livedIn ?place. ?place geo: isIn geo:England. ?person lit:wrote lit:KingLear. } • Result ?person=Shakespeare ?place=Stratford

  11. {?person bio:married ?s . ?person lit:wrote lit:KingLear. } Result No result Solution bio:married owl:inverseOf bio:married . Another solution { {{?spouse1 bio:married ?spouse2} UNION { ?spouse2 bio:married ?spouse1} } { ?spouse1 lit:wrote lit:KingLear} } Graph pattern

  12. There are SPARQL query interfaces, e.g., • http://dbpedia.org/sparql • You can query dbpedia, e.g., select ?person where {?person <http://www.w3.org/2000/01/rdf-schema#label> "Steve"@en } • The result is • person • http://dbpedia.org/resource/Steve • http://dbpedia.org/class/yago/SteveMcMichael • http://dbpedia.org/class/yago/Steve,TheFirst • …
