XML Key Management Services - Tutorial

XML Key Management Services - Tutorial. 9 December 01. Blair Dillaway Software Architect Microsoft Corp. Outline. Historical Perspective XKMS Overview Trust Models Using XKMS What’s Next. Historical Perspective. PKI complexity has limited its use Enrollment – multiple approaches

vahe
Télécharger la présentation

XML Key Management Services - Tutorial

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. XML Key Management Services - Tutorial 9 December 01 Blair Dillaway Software Architect Microsoft Corp.

  2. Outline • Historical Perspective • XKMS Overview • Trust Models • Using XKMS • What’s Next

  3. Historical Perspective • PKI complexity has limited its use • Enrollment – multiple approaches • No std discovery approach – CAs, Certs, Keys • ‘Cert’ standardization & interpretation • Trust management • Chain-building logic • ‘OID’ interpretation • Cross certification & cert hierarchies • Client handling of complex ASN.1 and PKCS data structures • Effective Revocation/Validation • Affects every client • Interoperability issues

  4. XKMS Overview • Define XML compatible key mgmt • Make PKI-based security easier to use • Address multi-vendor, cross-plat issues • Support multiple Trust/PKI infrastructures • Allow clients to offload complex, and difficult, trust assessment • Integrate key validity checks • Keep the interfaces simple • Keep interactions simple

  5. XKMS Approach XKMS Service Internet Client App PKI Std. Protocols: HTTP SOAP Std. Discovery: UDDI WSDL Web Service App

  6. Trust Models (1 of 2) • XKMS is trust model agnostic • PKIX, PGP, Key-based, Proprietary • Services define supported model • Similar to CA publishing a CPS • Contract between the Service and Applications • XKMS doesn’t tell one how to do this or what the business relationship should be

  7. Trust (2 of 2) • But, there’s still a bootstrapping problem • Apps need to pick the right trust infrastructure • Need trust in an XKMS service(s) • XKMS doesn’t define how to handle this • Will likely mirror what already happens • Keys for high-volume, low-value, Services widely distributed • Keys for Enterprise Services distributed via internal trust • Keys for vertical market, high-value, apps using high assurance mechanism

  8. Using XKMS (1 of 2) • Getting started • Pick the right service, get its usage profile info, etc. • Tailor the XKMS client for the service • Cache the service identifying info • Set the service URL • Understand supported KeyInfo elements • Structural requirements on data (i.e., KeyID or KeyName formatting)

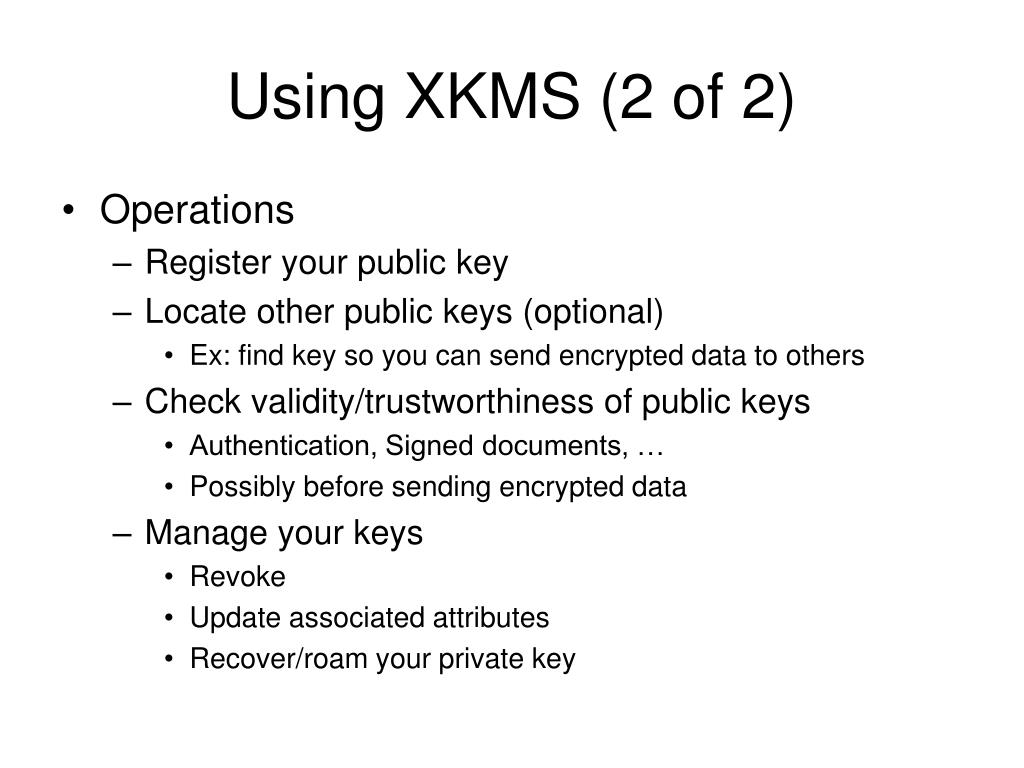

  9. Using XKMS (2 of 2) • Operations • Register your public key • Locate other public keys (optional) • Ex: find key so you can send encrypted data to others • Check validity/trustworthiness of public keys • Authentication, Signed documents, … • Possibly before sending encrypted data • Manage your keys • Revoke • Update associated attributes • Recover/roam your private key

  10. Next Steps • Refinement of XKMS 1.1 • Interface refinement • Xml Signature context issues • Bulk operations • Message level authentication, integrity, confidentiality • Update for conformance with latest XML stds • Move forward as a W3C recommendation

  11. XKMS Message Samples

  12. <soap:Envelope > <soap:Body> <Register xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Prototype Id="KB01"> <Status>Valid</Status> <KeyID>abc123</KeyID> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>mykey</KeyName> <KeyValue> <RSAKeyValue> <Modulus>8nSoscDtBoSA5jiqrMn3yg0TRvRdfFFzrutP7zHATX4lD8cgPns=</Modulus> <Exponent>AQAB</Exponent> </RSAKeyValue> </KeyValue> <RetrievalMethod URI="http://someURI" Type="http://someType" /> <PassPhrase>85XRXbVMov0efQi1NvS41Q1YsZg=</PassPhrase> <ValidityInterval> <NotBefore>2000-09-20T12:00:00.0000000-07:00</NotBefore> <NotAfter>2001-09-20T12:00:00.0000000-07:00</NotAfter> </ValidityInterval> <KeyUsageType>Signature</KeyUsageType> <KeyUsageType>Exchange</KeyUsageType> </Prototype> <AuthInfo> <AuthUserInfo> <ProofOfPossession> <Signature xmlns="http://www.w3.org/2000/09/xmldsig#"> <SignedInfo> <CanonicalizationMethod Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315" /> <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1" /> <Reference URI="#KB01"> <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1" /> <DigestValue>mX8qoz9e+Ko01d4GcfLiyBeFg5Q=</DigestValue> </Reference> </SignedInfo> <SignatureValue>KKRHMd5eL7wwBG1Xs7A=</SignatureValue> </Signature> </ProofOfPossession> <KeyBindingAuth> <Signature xmlns="http://www.w3.org/2000/09/xmldsig#"> <SignedInfo> <CanonicalizationMethod Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315" /> <SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#hmac-sha1" /> <Reference URI="#KB01"> <DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1" /> <DigestValue>mX8qoz9e+1d4GcfLiyBeFg5Q=</DigestValue> </Reference> </SignedInfo> <SignatureValue>9uT2hVmuZ4sBLk414=</SignatureValue> </Signature> </KeyBindingAuth> <PassPhraseAuth>JMffIc07Z23iJelIXHE=</PassPhraseAuth> </AuthUserInfo> </AuthInfo> <Respond> <string>KeyName</string> <string>X509Cert</string> </Respond> </Register> </soap:Body> </soap:Envelope> Registration Request

  13. Register Result <soap:Envelope > <soap:Body> <RegisterResult xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Result>Success</Result> <Answer> <KeyBinding Id="KB01"> <Status>Valid</Status> <KeyID>abc123</KeyID> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>mykey</KeyName> <X509Data> <X509SubjectName>CN=MyName, O=Microsoft</X509SubjectName> <X509IssuerSerial> <X509IssuerName>CN=TheCA</X509IssuerName> <X509SerialNumber>123456</X509SerialNumber> </X509IssuerSerial> <X509Certificate>Thn3s9ozskDXj1ibjrhxz092LG4ivz+3ARpNT+mARKY=</X509Certificate> </X509Data> <ValidityInterval> <NotBefore>2000-09-20T12:00:00.0000000-07:00</NotBefore> <NotAfter>2001-09-20T12:00:00.0000000-07:00</NotAfter> </ValidityInterval> <KeyUsageType>Signature</KeyUsageType> <KeyUsageType>Exchange</KeyUsageType> </KeyBinding> </Answer> </RegisterResult> </soap:Body> </soap:Envelope>

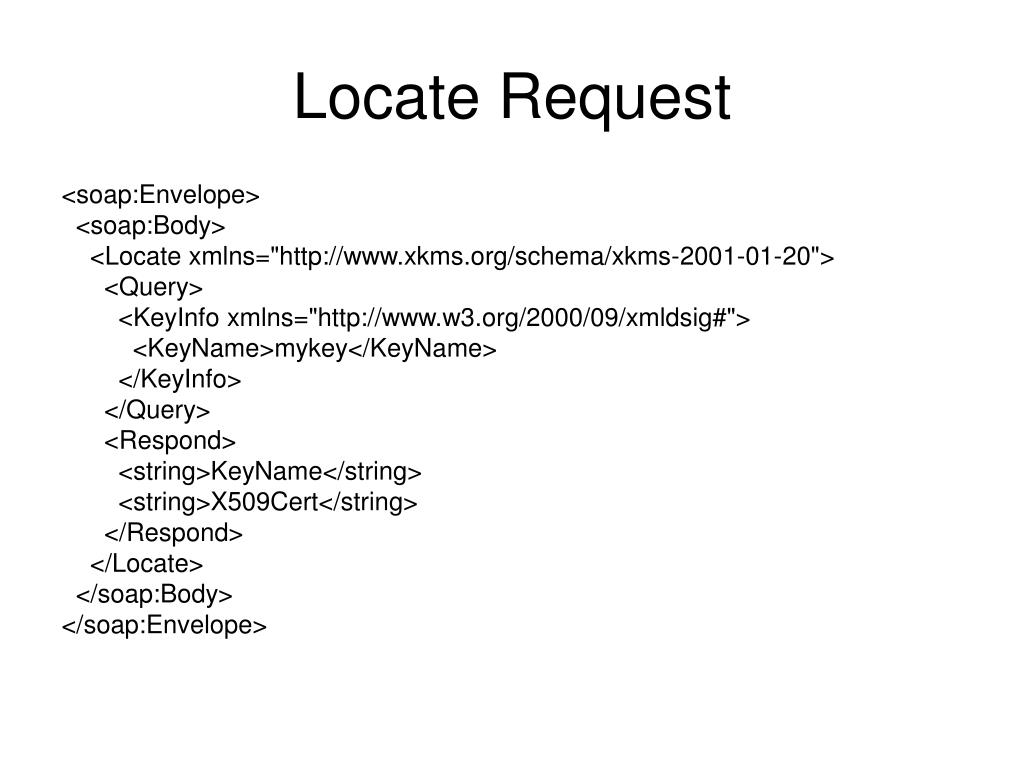

  14. Locate Request <soap:Envelope> <soap:Body> <Locate xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Query> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>mykey</KeyName> </KeyInfo> </Query> <Respond> <string>KeyName</string> <string>X509Cert</string> </Respond> </Locate> </soap:Body> </soap:Envelope>

  15. Locate Response <soap:Envelope> <soap:Body> <LocateResult xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Result>Success</Result> <Answer> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>mykey</KeyName> <MgmtData>My Management Data</MgmtData> <SPKIData>My-SPKI-Cert</SPKIData> <KeyValue> <RSAKeyValue> <Modulus>mpk9qt0uwUb8KyMNiHEK6Y1efkBVBC3FE=</Modulus> <Exponent>AQAB</Exponent> </RSAKeyValue> </KeyValue> <X509Data> <X509SubjectName>CN=MyName, O=Microsoft</X509SubjectName> <X509IssuerSerial> <X509IssuerName>CN=TheCA</X509IssuerName> <X509SerialNumber>123456</X509SerialNumber> </X509IssuerSerial> <X509Certificate>UbCDPEkqMtlSNBxmfQt8i6tZWpqFntJilP50iRKwBLw=</X509Certificate> </X509Data> </KeyInfo> </Answer> </LocateResult> </soap:Body> </soap:Envelope>

  16. Validate Request <soap:Envelope > <soap:Body> <Validate xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Query> <Status>Valid</Status> <KeyID>abc123</KeyID> <KeyUsageType>Signature</KeyUsageType> <KeyUsageType>Encryption</KeyUsageType> </Query> <Respond> <string>KeyName</string> <string>X509Cert</string> </Respond> </Validate> </soap:Body> </soap:Envelope>

  17. Validate Response <soap:Envelope > <soap:Body> <ValidateResult xmlns="http://www.xkms.org/schema/xkms-2001-01-20"> <Result>Success</Result> <Answer> <KeyBinding> <Status>Valid</Status> <KeyID>abc123</KeyID> <KeyInfo xmlns="http://www.w3.org/2000/09/xmldsig#"> <KeyName>mykey</KeyName> <MgmtData>My Management Data</MgmtData> <X509Data> <X509SubjectName>CN=MyName, O=Microsoft</X509SubjectName> <X509IssuerSerial> <X509IssuerName>CN=TheCA</X509IssuerName> <X509SerialNumber>123456</X509SerialNumber> </X509IssuerSerial> <X509Certificate>UbCDPEkqMtlSNBxmfQt8i6tZWpqFntJilP50iRKwBLw=</X509Certificate> </X509Data> <ValidityInterval> <NotBefore>2000-09-20T12:00:00.0000000-07:00</NotBefore> <NotAfter>2001-09-20T12:00:00.0000000-07:00</NotAfter> </ValidityInterval> <KeyUsageType>Signature</KeyUsageType> <KeyUsageType>Exchange</KeyUsageType> </KeyBinding> </Answer> </ValidateResult> </soap:Body> </soap:Envelope>
