  1. Medical Genetics 2 Prof Duncan Shaw

  2. Risk calculations • In genetic counselling, we want accurate risk assessment for families with genetic disease • What kinds of information can be used? • Pedigree • Biochemical • DNA • Using X-linked recessive inheritance as an example…

  3. X-linked recessive inheritance • Usually affects males • Usually born to asymptomatic carrier mothers who may have other affected male relatives • Females may be affected if the father affected and mother a carrier • Females may be affected due to non-random X inactivation • No male to male transmission

  4. Duchenne Muscular Dystrophy • DMD is a relatively common (1/3000 births) and fatal genetic disorder • Major symptom is progressive muscle weakness • Incurable • Affected boys are in wheelchairs by age 10-12, and die by early 20s of heart or respiratory failure • Caused by mutation in the dystrophin gene on Xp21 From USA Muscular Dystrophy Association

  5. Dystrophin

  6. Genetics of DMD • 1/3 of DMD cases are new mutations (so no LD) • 2/3 have carrier mothers, 1/3 of which are new mutations themselves • About 60% of mutations are deletions • DMD is a big gene – over 2Mb • Other mutations in this gene cause a milder phenotype - Becker Muscular Dystrophy (BMD)

  7. II 1 III 1 2 3 4 A DMD pedigree • II 1 had brothers with DMD • She has 4 healthy sons • Is she a carrier?

  8. Evidence for carrier risk calculation • Pedigree evidence - her mother is a carrier so her prior risk is 50% - but has 4 healthy sons • Biochemical evidence - because of X inactivation some muscle cells have mutant X active and release creatine kinase (CK) so 2/3 carrier females have increased CK levels • DNA evidence: • Deletions of the DMD gene could be tested for (60% of DMD caused by deletion mutations) • Linked markers • None of the above is necessarily definitive

  9. Bayesian calculation

  10. Biochemical evidence • Creatine kinase in normal women and DMD carriers

  11. Bayesian calculation (2)

  12. DNA evidence • 60% of DMD mutations are deletions – easy to detect by DNA analysis • If we don’t have DNA from the affected family members, can’t be sure if mutation in family is a deletion • So if we test the DNA and it isn’t deleted, there could still be a DMD mutation (such as a frame-shift)

  13. Bayesian calculation (3)

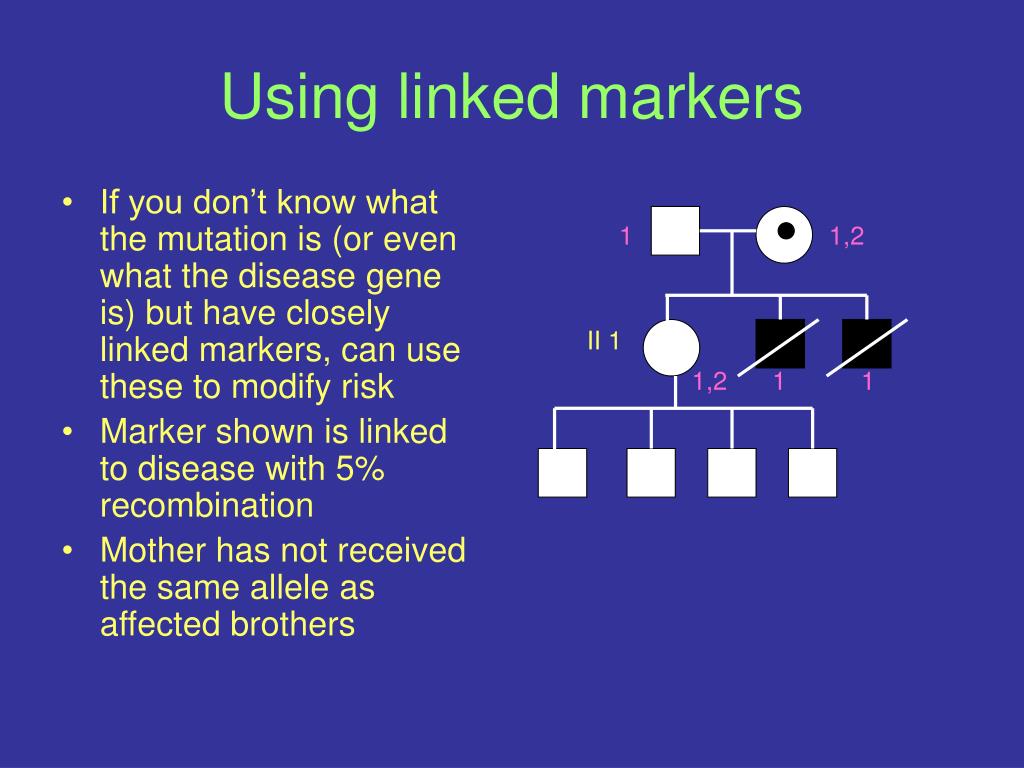

  14. 1 1,2 II 1 1,2 1 1 Using linked markers • If you don’t know what the mutation is (or even what the disease gene is) but have closely linked markers, can use these to modify risk • Marker shown is linked to disease with 5% recombination • Mother has not received the same allele as affected brothers

  15. Bayesian calculation (4)
