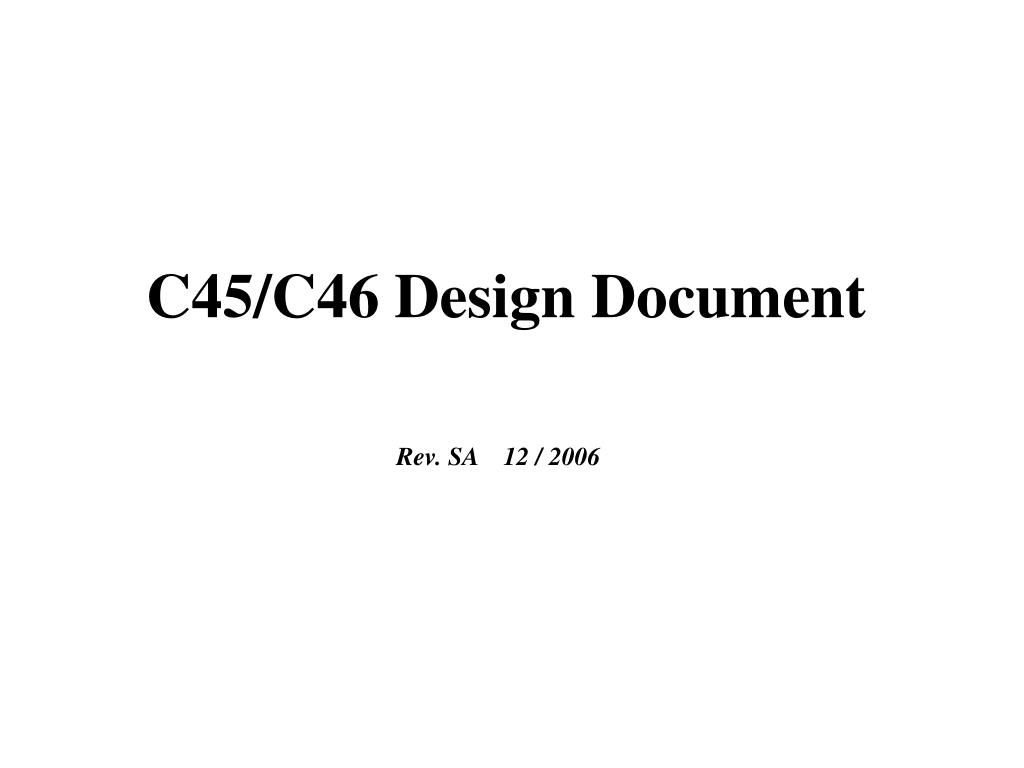

  1. C45/C46 Design Document Rev. SA 12 / 2006

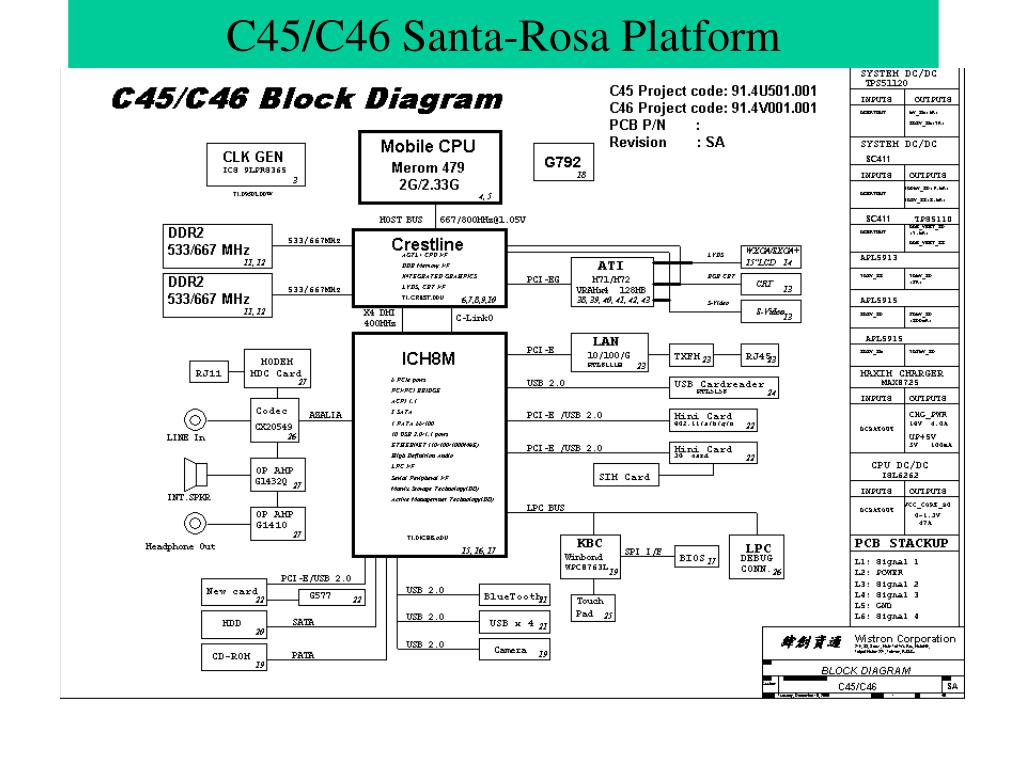

  2. C45/C46 Santa-Rosa Platform

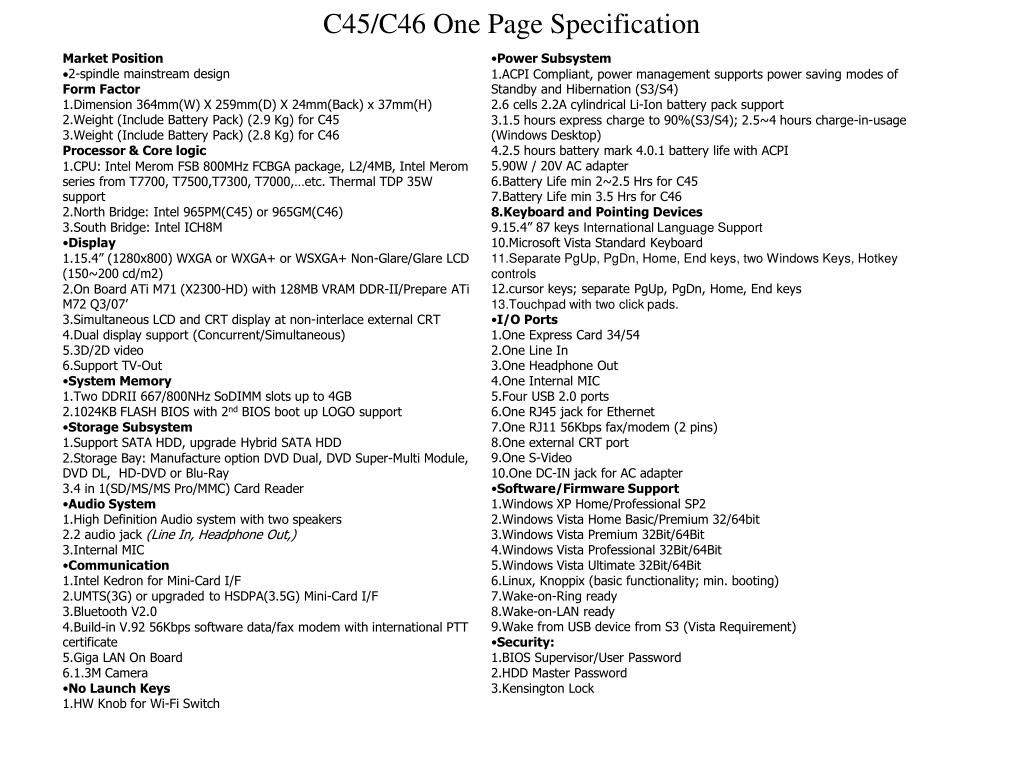

  3. C45/C46 One Page Specification

  4. C45/C46 Clock Block Diagram Crystal 14.31818MHz CPU CLK_CPU_BCLK (166 MHz) X1/X2 CPUT0 BCLK0 CLK_CPU_BCLK# (166 MHz) BCLK1 CPUC0 KBC WPC8763L PCLK_KBC (33 MHz) Crystal 32.768KHz PCI4 FWH PCLK_FWH (33 MHz) PCI3 CLK_MCH_BCLK (166 MHz) CPUT1_F HPLL_CLK Crestline CLK_MCH_BCLK# (166 MHz) CPUC1_F HPLL_CLK# PCI2 CLK_MCH_3GPLL (100 MHz) SRCT3 PEG_CLK CLK_MCH_3GPLL# (100 MHz) SRCC3 PEG_CLK# CLK_PCIE_LAN SRCT8 LAN 10/100 RTL8111b DREFCLK (96 MHz) DPLL_REF_CLK SRCT0/DOTT_96 (100 MHz) Crystal 25MHz DPLL_REF_CLK# DREFCLK# (96 MHz) SRCC0/DOTC_96 CLK_PCIE_LAN# SRCC8 SRCT7 DREFSSCLK (100 MHz) DPLL_REF_SSCLK (100 MHz) DPLL_REF_SSCLK# SRCC7 DREFSSCLK# (100 MHz) CLK_PCIE_MINI1 SRCT4 MINI CARD 802.11 a/b/g/n (100 MHz) REF0 CLK_PCIE_MINI1# SRCC4 (100 MHz) CLK_PCIE_SATA M_CLK_DDR2/# M_CLK_DDR0/# M_CLK_DDR3/# M_CLK_DDR1/# SRCT2 SATA (100 MHz) ICH8-M CLK_PCIE_SATA# SRCC2 CLK_ICH14 (14.318 MHz) CLK14 (100 MHz) CLK_PCIE_PEG SRCT10 ATI M71/M72 DDR2 NORMAL TYPE DDR2 NORMAL TYPE (100 MHz) CLK48_ICH (48 MHz) USB_48MHz/FSLA CLK48 CLK_PCIE_PEG# SRCC10 (100 MHz) CLK_ICHPCI(33 MHz) PCI_F5/ITP_EN PCICLK CLK_PCIE_NEW CODEC CX20549 SRCT1 NEW CARD ACZ_BITCLK (100 MHz) CLK_PCIE_ICH(100 MHz) DMI_CLKN CLK_PCIE_NEW# SRCT6 SRCC1 CLK_PCIE_ICH#(100 MHz) SRCC6 CLKGEN DMI_CLKP (100 MHz) MDC X1/X2 AMOM_DIPP AMOM_DIPN RTM865-433 RTC 32.768kHz

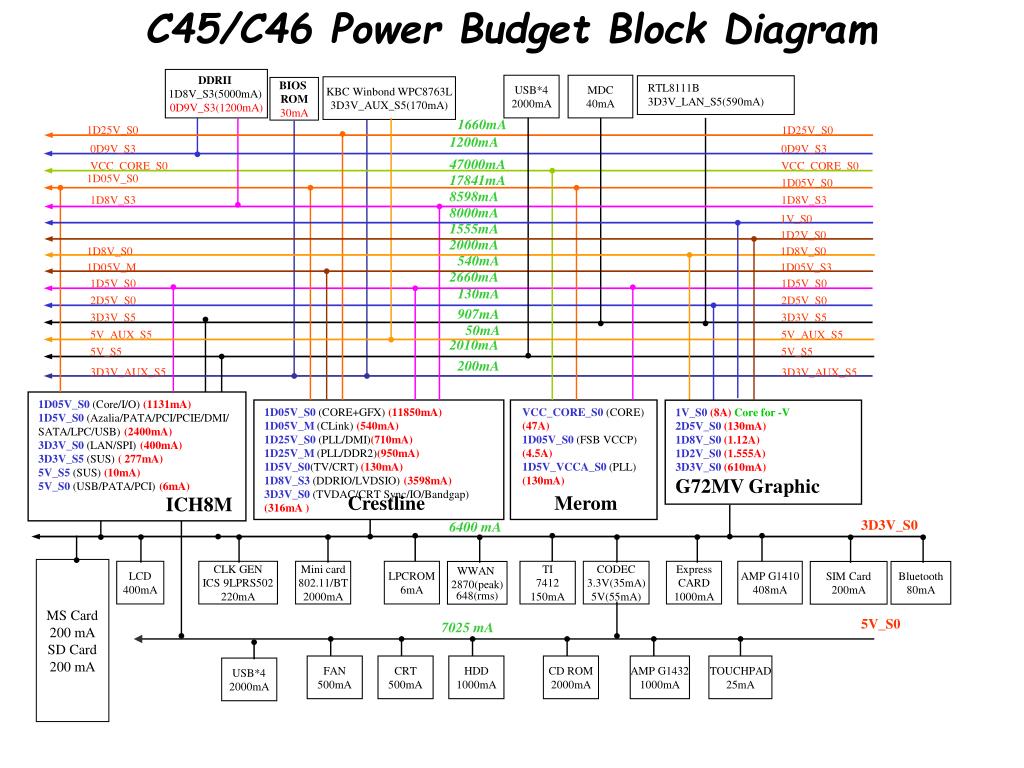

  5. C45/C46 Power Budget Block Diagram DDRII 1D8V_S3(5000mA) 0D9V_S3(1200mA) USB*4 2000mA MDC 40mA RTL8111B 3D3V_LAN_S5(590mA) KBC Winbond WPC8763L 3D3V_AUX_S5(170mA) BIOS ROM 30mA 1660mA 1D25V_S0 1D25V_S0 1200mA 0D9V_S3 0D9V_S3 47000mA VCC_CORE_S0 VCC_CORE_S0 1D05V_S0 17841mA 1D05V_S0 8598mA 1D8V_S3 1D8V_S3 8000mA 1V_S0 1555mA 1D2V_S0 2000mA 1D8V_S0 1D8V_S0 540mA 1D05V_M 1D05V_S3 2660mA 1D5V_S0 1D5V_S0 130mA 2D5V_S0 2D5V_S0 907mA 3D3V_S5 3D3V_S5 50mA 5V_AUX_S5 5V_AUX_S5 2010mA 5V_S5 5V_S5 200mA 3D3V_AUX_S5 3D3V_AUX_S5 1D05V_S0 (Core/I/O) (1131mA) 1D5V_S0 (Azalia/PATA/PCI/PCIE/DMI/ SATA/LPC/USB) (2400mA) 3D3V_S0 (LAN/SPI) (400mA) 3D3V_S5 (SUS) ( 277mA) 5V_S5 (SUS) (10mA) 5V_S0 (USB/PATA/PCI) (6mA) ICH8M Crestline 1D05V_S0 (CORE+GFX) (11850mA) 1D05V_M (CLink) (540mA) 1D25V_S0 (PLL/DMI)(710mA) 1D25V_M (PLL/DDR2)(950mA) 1D5V_S0(TV/CRT) (130mA) 1D8V_S3 (DDRIO/LVDSIO) (3598mA) 3D3V_S0 (TVDAC/CRT Sync/IO/Bandgap) (316mA ) Merom VCC_CORE_S0 (CORE) (47A) 1D05V_S0 (FSB VCCP) (4.5A) 1D5V_VCCA_S0 (PLL) (130mA) 1V_S0 (8A) Core for -V 2D5V_S0(130mA) 1D8V_S0(1.12A) 1D2V_S0 (1.555A) 3D3V_S0(610mA) G72MV Graphic 3D3V_S0 6400mA MS Card 200 mA SD Card 200 mA LCD 400mA CLK GENICS 9LPRS502 220mA Mini card 802.11/BT 2000mA LPCROM 6mA TI 7412 150mA CODEC 3.3V(35mA) 5V(55mA) Express CARD 1000mA AMP G1410 408mA WWAN 2870(peak) 648(rms) SIM Card 200mA Bluetooth 80mA 5V_S0 7025mA FAN 500mA CRT 500mA HDD 1000mA CD ROM 2000mA AMP G1432 1000mA TOUCHPAD 25mA USB*4 2000mA

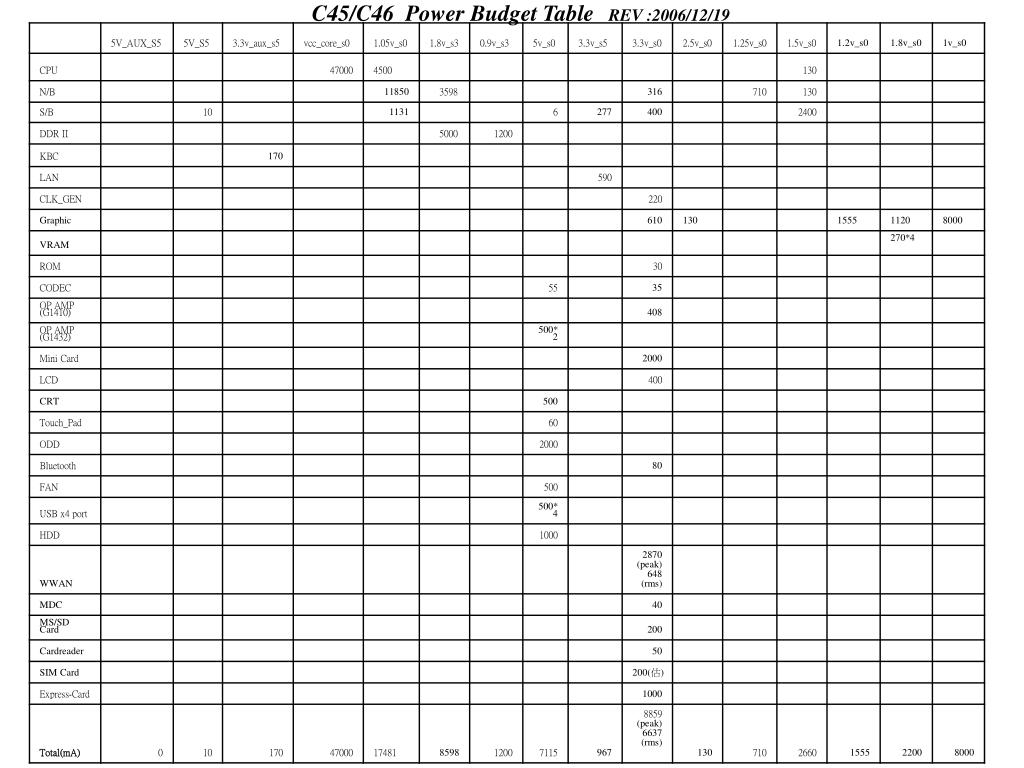

  6. C45/C46 Power Budget TableREV :2006/12/19

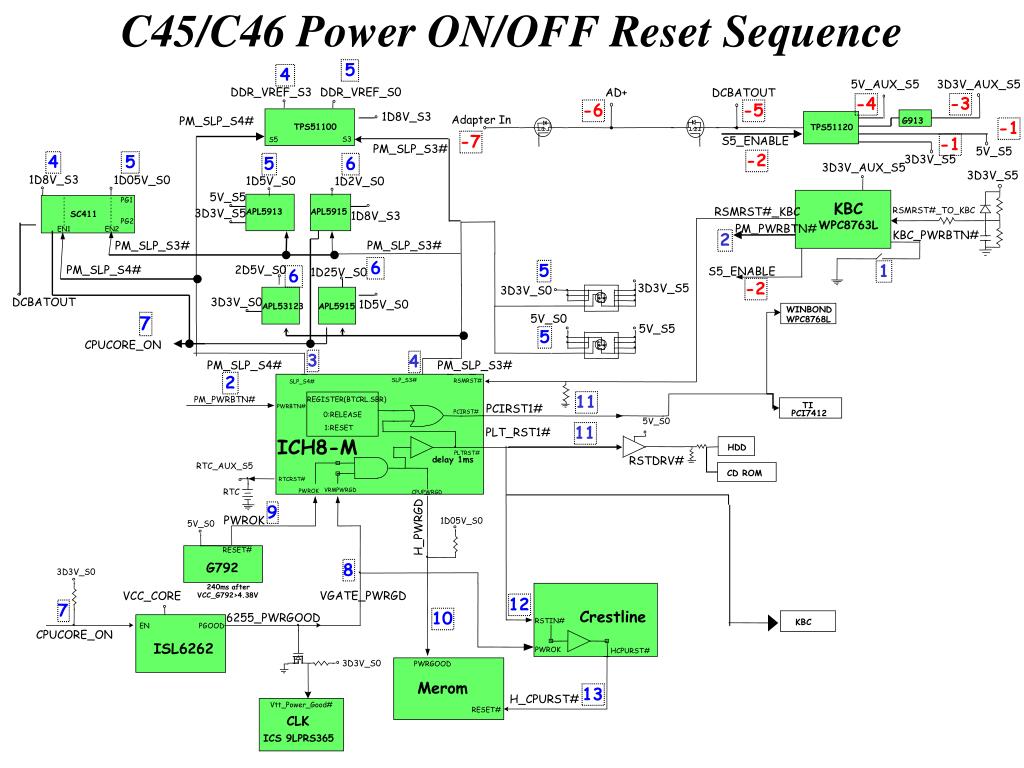

  7. C45/C46 Power ON/OFF Reset Sequence 5 4 5V_AUX_S5 3D3V_AUX_S5 DDR_VREF_S3 DDR_VREF_S0 AD+ DCBATOUT -3 -4 -6 -5 1D8V_S3 Adapter In PM_SLP_S4# G913 -1 TPS51100 TPS51120 -7 S5_ENABLE -1 S3 S5 PM_SLP_S3# 5V_S5 -2 4 5 3D3V_S5 5 6 3D3V_AUX_S5 3D3V_S5 1D8V_S3 1D05V_S0 1D5V_S0 1D2V_S0 5V_S5 PG1 KBCWPC8763L RSMRST#_KBC RSMRST#_TO_KBC 3D3V_S5 APL5913 APL5915 SC411 1D8V_S3 PG2 PM_PWRBTN# EN1 EN2 KBC_PWRBTN# 2 PM_SLP_S3# PM_SLP_S3# 6 5 1 PM_SLP_S4# 2D5V_S0 S5_ENABLE 1D25V_S0 6 -2 3D3V_S5 3D3V_S0 DCBATOUT 3D3V_S0 1D5V_S0 APL53123 APL5915 WINBOND 5V_S0 7 WPC8768L 5V_S5 5 CPUCORE_ON 3 4 PM_SLP_S4# PM_SLP_S3# 2 SLP_S3# RSMRST# SLP_S4# 11 PM_PWRBTN# REGISTER(BTCRL.SBR) TI PCIRST1# PWRBTN# PCIRST# PCI7412 0:RELEASE 5V_S0 11 1:RESET PLT_RST1# ICH8-M HDD PLTRST# RSTDRV# delay 1ms RTC_AUX_S5 CD ROM RTCRST# VRMPWRGD RTC PWROK CPUPWRGD 9 PWROK 1D05V_S0 5V_S0 H_PWRGD RESET# 8 G792 3D3V_S0 240ms after VGATE_PWRGD VCC_CORE VCC_G792>4.38V 12 7 Crestline 10 6255_PWRGOOD RSTIN# KBC EN PGOOD CPUCORE_ON ISL6262 PWROK HCPURST# 3D3V_S0 PWRGOOD Merom 13 H_CPURST# Vtt_Power_Good# RESET# CLK ICS 9LPRS365

  8. T:IRTCCLK C45/C46 Power On/Off SequenceREV :2006/12/06 :Resume event Power On Sequence S1 State Sequence S3 State Sequence Power Off Sequence AD+ DCBATOUT 5V_AUX/3D3V_AUX S5_EN 5V_S5/3D3V_S5 3D3V_LAN_S5 RSMRST# >5ms SB_PWRBTN# PM_SLP_S5# <110ms PM_SLP_S3# >1T and <2T DDR_VREF_S3/1D8V_S3 5V_S0/3D3V_S0/NVDD_S0/1D8V_S0 2D5V_S0/1D5V_S0/0D9V_S0 1D05V_S0/1D2V_S0 CPUCORE_ON CLK_EN# >10ms PWROK VGATE_PWRGD PLT_RST1#/PCIRST# >33T and <41T H_CPURST#

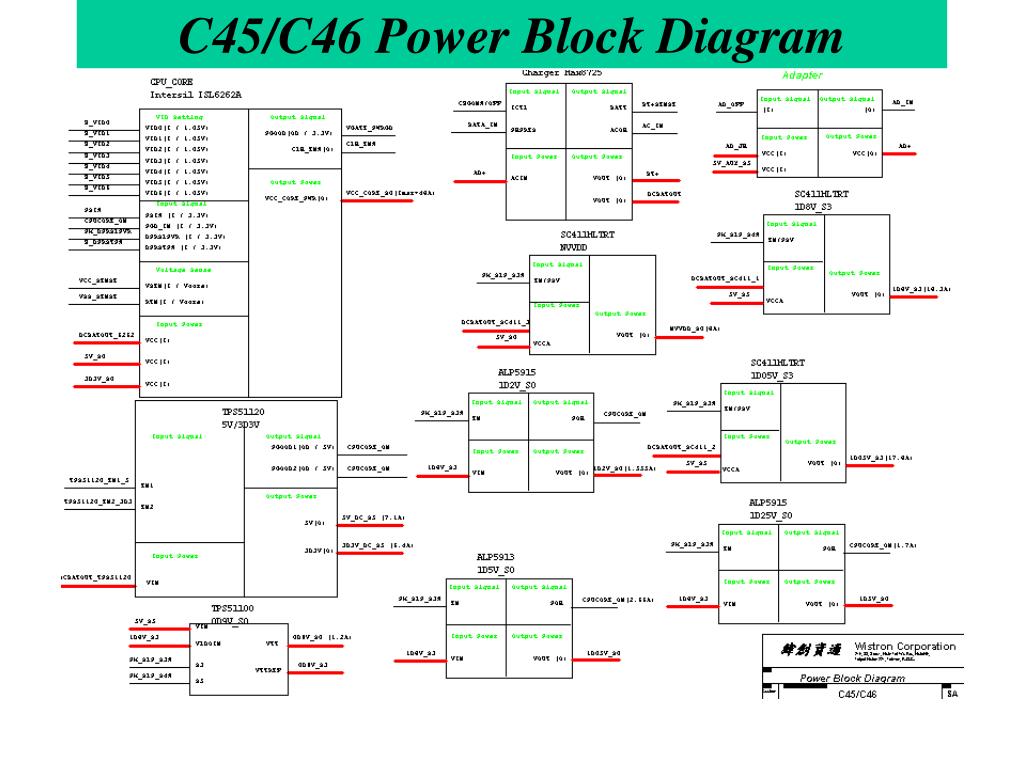

  9. C45/C46 Power Block Diagram CPUCORE_ON VCC_CORE DCBATOUT ISL6262 1D25V_S0 APL5915 3D3V_LAN_S5 3D3V_S0 2D5V_S0 AO4422 APL53123 3D3V_S5 PM_SLP_S3# SYSTEM POWER DC/DC TPS51120 5V_S5 5V_S0 AO4422 DCBATOUT AD+ MAX8725 THER_SHUT# PM_SLP_S3# BT+ PM_SLP_S3# 1D5V_S0 APL5913 1D8V_S3 0D9V_PWR SC411 TPS51100 DCBATOUT PM_SLP_S4# PM_SLP_S3# 1D05V_S0 ON1 ON2 PM_SLP_S4# PM_SLP_S3#

  10. C45/C46 Power Block Diagram

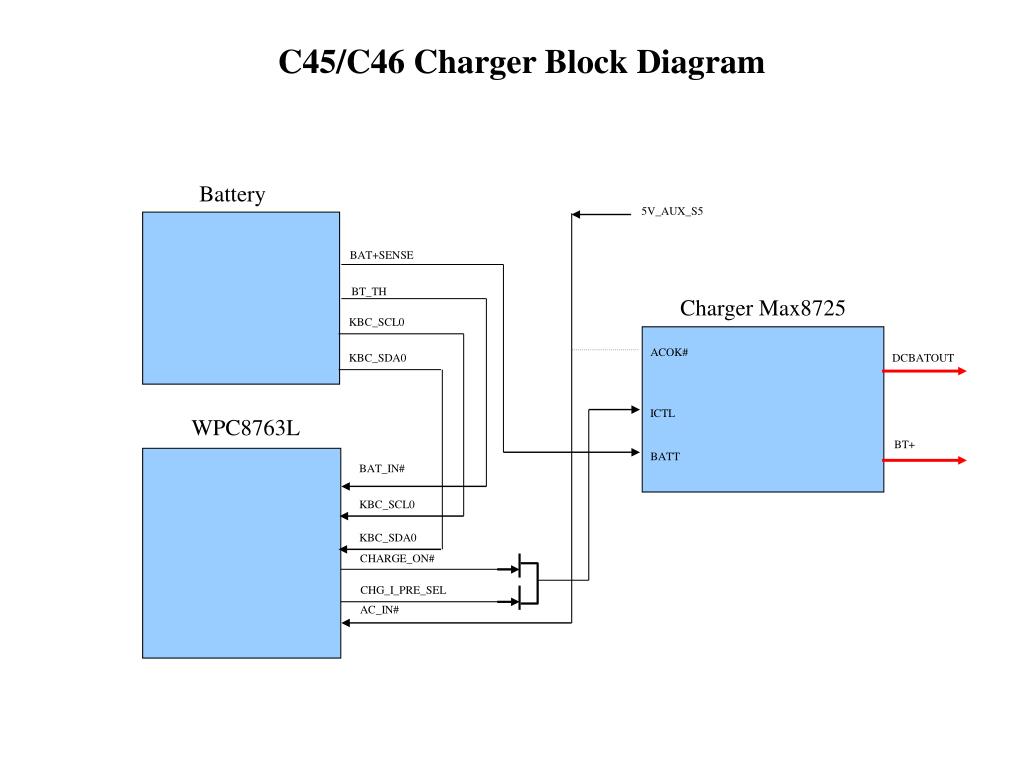

  11. C45/C46 Charger Block Diagram Battery 5V_AUX_S5 BAT+SENSE BT_TH Charger Max8725 KBC_SCL0 ACOK# KBC_SDA0 DCBATOUT ICTL WPC8763L BT+ BATT BAT_IN# KBC_SCL0 KBC_SDA0 CHARGE_ON# CHG_I_PRE_SEL AC_IN#

  12. C45/C46 VCC_CORE Block Diagram REV :2006/06/14 VCC_CORE Mobile CPU Merom DCBATOUT VID[0..6] 6262_UGSTE1 ISL6262 UGSTE1 VID[0..6] VCC_CORE_S0 TPS51120 6262_PHASE1 PHASE1 6262_LGSTE1 LGSTE1 CPUCORE_ON RISEN1 VR_ON APL5913 6262_ISEN1 ISEN1 APL5915 VGATE_PWRGD PGOOD 6262_UGSTE2 UGSTE2 H_DPRSLP# VCC_CORE_S0 DPSTP# 6262_PHASE2 PHASE2 6262_LGSTE2 LGSTE2 RISEN2 ICH8-M ISEN2 6262_ISEN2 DPRSLPVR PM_DPRSLPVR

  13. C45/C46 SMI/SCI/SWI Interface LPC BUS ICH8-M X-Bus KBC WPC8763L FWH ECSCI#_KBC GPIO7 ECSCI# ECSMI#_KBC GPIO8 PM_SLP_S3# GPIO64/SMI# GPIO01 ECSWI# GPIO12 GPIO63/PWUREQ# ACZ_SDATAOUT LID_CLOSE# HDA_SDOUT GPIO07 RSMRST#_KBC AC_IN# GPIO40 RSMRST# GPIO06 MDC CODEC CX20549 PM_PWRBTN# AD_OFF GPIO23 GPIO42 PWRBTN# BAT_IN# GPIO12 HDA_SDIN0 GPIO23 3D3V_AUX_S5 ACZ_SDATAIN0 KBC_PWRBTN# VCC_POR# ECRST# Power Switch block RSMRST# G792 THRM/Fan Alert# From S3 state wakeup event: (1) Power Button; (2) WOL ( AC Only ); (3) Embedded Modem ( AC Only ) ;(4) RTC; (5) Lid; (6) Battery Critical

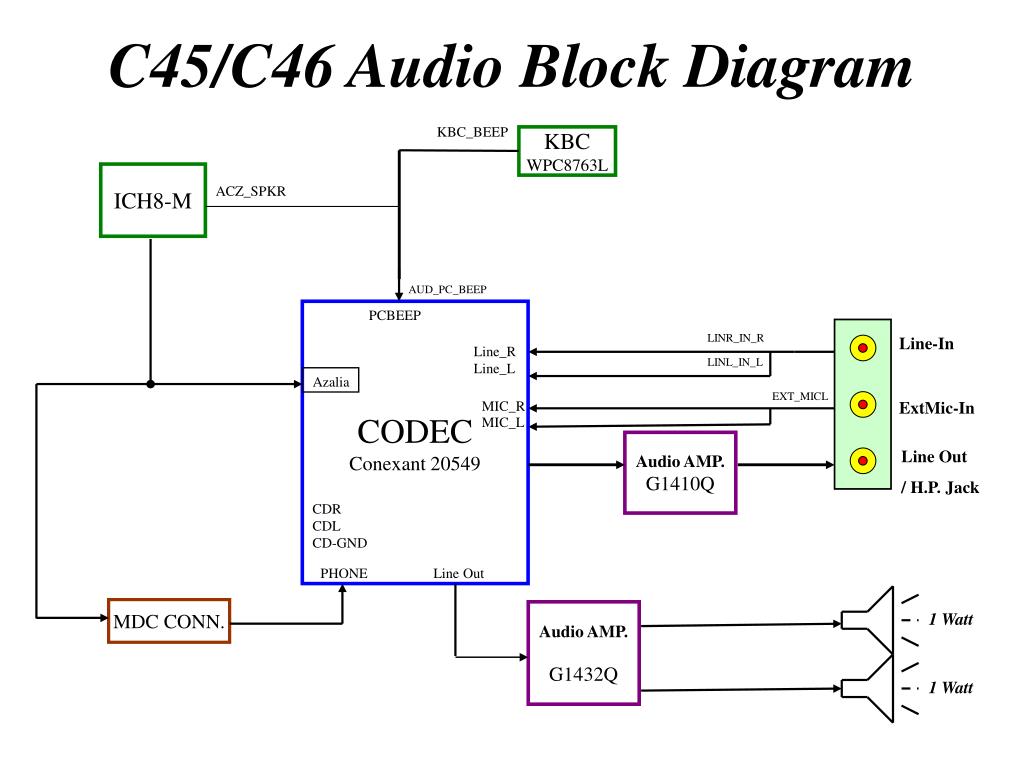

  14. C45/C46 Audio Block Diagram KBC_BEEP KBC WPC8763L ICH8-M ACZ_SPKR AUD_PC_BEEP CODEC Conexant 20549 PCBEEP LINR_IN_R Line-In Line_R Line_L LINL_IN_L Azalia EXT_MICL MIC_R ExtMic-In MIC_L Audio AMP. G1410Q Line Out / H.P. Jack CDR CDL CD-GND PHONE Line Out MDC CONN. Audio AMP. G1432Q 1 Watt 1 Watt

  15. C45/C46 SMB Interface(1) 5V_S0 3D3V_S5 3D3V_S0 4D7K 4D7K SMBC_ICH ICH8_M SMBD_ICH 1D8V_S0 1D8V_S0 3D3V_S0 DDR2 DIMM A ID=A0/A1 DDR2 DIMM B ID=A2/A3 CLK GEN ICS 9LPRS502 ID=D2/D3 3D3V_S0 3D3V_S0 5V_S0 10K 3D3V_AUX_S5 Thermal G792 10K 3D3V_AUX_S5 ID=7A/7B KBC_SCL2 VCC KBC KBC_SDA2 BAT_SCL WPC8763L BAT_SDA 5V_AUX_S5 Battery A ID=16/17

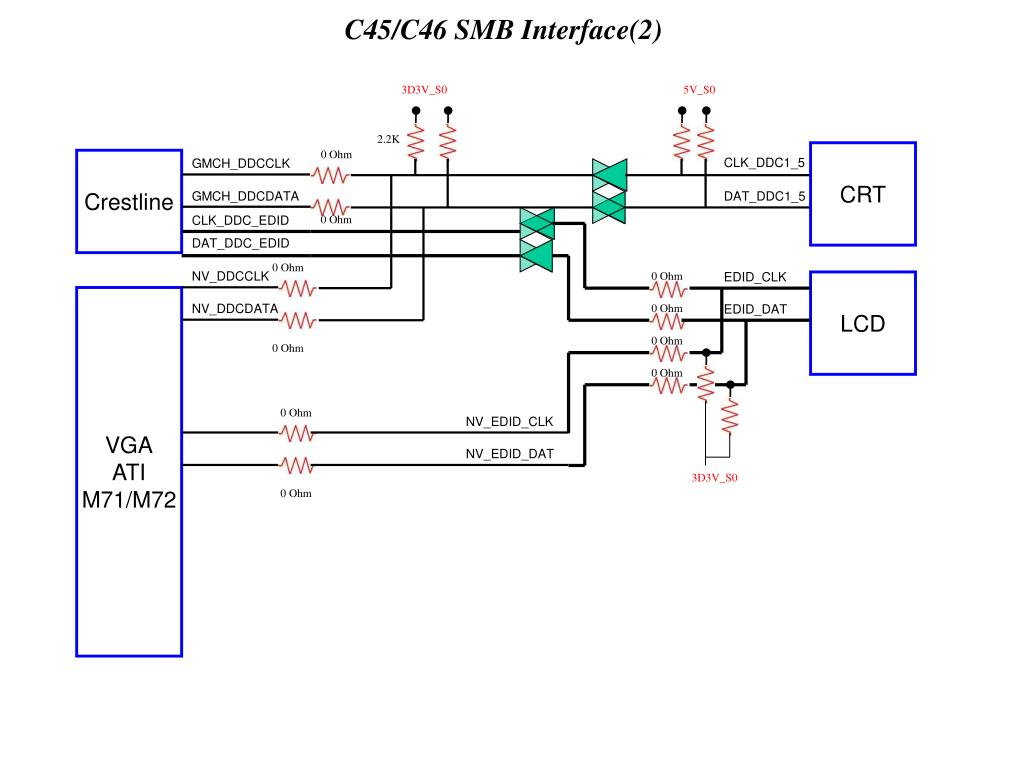

  16. C45/C46 SMB Interface(2) 3D3V_S0 5V_S0 2.2K 0 Ohm CRT CLK_DDC1_5 Crestline GMCH_DDCCLK GMCH_DDCDATA DAT_DDC1_5 CLK_DDC_EDID 0 Ohm DAT_DDC_EDID 0 Ohm NV_DDCCLK 0 Ohm EDID_CLK LCD VGA ATI M71/M72 NV_DDCDATA 0 Ohm EDID_DAT 0 Ohm 0 Ohm 0 Ohm 0 Ohm NV_EDID_CLK NV_EDID_DAT 3D3V_S0 0 Ohm

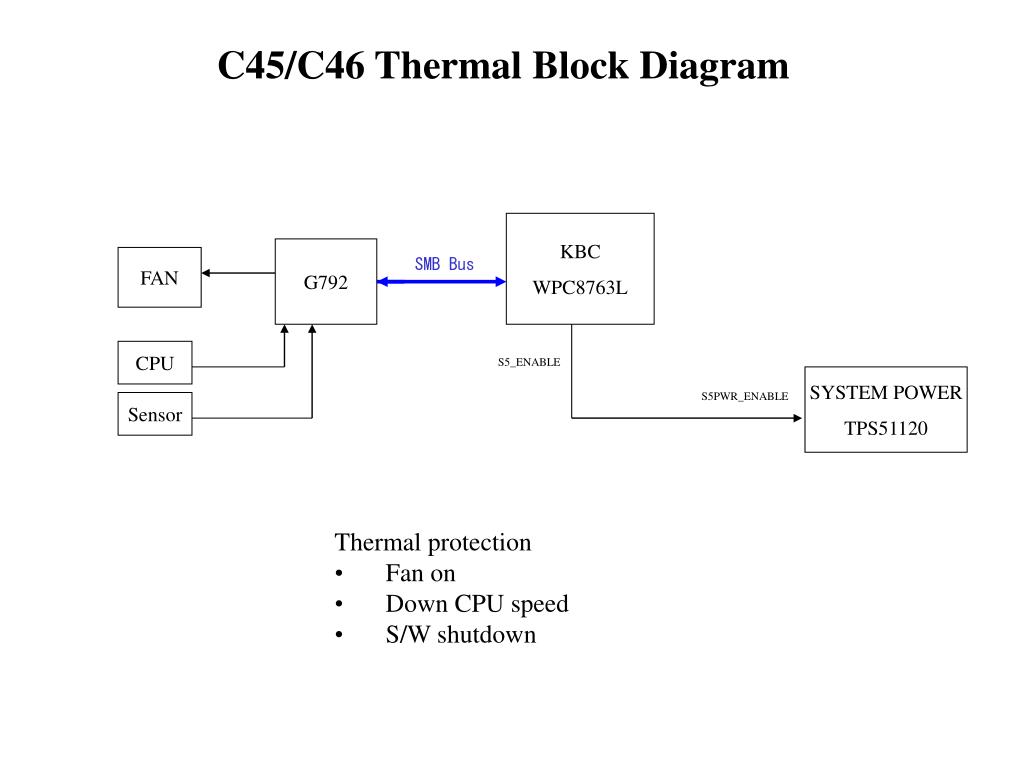

  17. C45/C46 Thermal Block Diagram KBC WPC8763L G792 FAN SMB Bus CPU S5_ENABLE SYSTEM POWER TPS51120 S5PWR_ENABLE Sensor • Thermal protection • Fan on • Down CPU speed • S/W shutdown

  18. Stack up

  19. Placement (TOP) 270.0 SB PCMCIA 360.0

  20. Placement (BOTTON) RJ-11 DC in USB USB Mini Card / MDC RJ-45 Fan CPU VGA DDR ODD NB DVI MXM Card Type II S-Video USBX2 1394 HDD 270 Battery 6 Cell Express Card C/R FIR Audio 360.0
