  1. HUMBOLDT-UNIVERSITÄT ZU BERLIN INSTITUT FÜR INFORMATIK Zuverlässige Systeme für Web und E-Business (Dependable Systems for Web and E-Business) Vorlesung 10 CASE STUDIES Wintersemester 2000/2001 Leitung: Prof. Dr. Miroslaw Malek www.informatik.hu-berlin.de/~rok/zs DS - X - CS - 1

  2. CASE STUDIES • OBJECTIVES: • TO SHOW EXAMPLES OF EXISTING SYSTEMS WHICH ARE DESIGNED TO ASSURE HIGH RELIABILITY • TO RELATE GENERAL RELIABILITY METHODOLOGIES DESCRIBED EARLIER TO PRACTICAL IMPLEMENTATIONS OF THOSE IDEAS • TO SURVEY THE GENERAL EXISTING RELIABILITY CONCEPTS WITH EXEMPLARY CASES • CONTENTS: • COMMERCIAL SYSTEMS FROM AT&T, SEQUOIA, STRATUS AND TANDEM • FTMP - FAULT-TOLERANT MULTIPROCESSOR • SIFT - SOFTWARE IMPLEMENTED FAULT TOLERANCE • COMMUNICATION CONTROLLER • FAULT-TOLERANT BUILDING BLOCK ARCHITECTURE DS - X - CS - 2

  3. AT&T's ELECTRONIC SWITCHING SYSTEMS ESS1A - ESS 5 AND 3B20 (1) • REQUIREMENTS: • Downtime for the entire system not to exceed 2 hours over 40 years life • % of calls handled incorrectly < 0.02% • System outage ≤ 3 min/year • 100% availability 24 hours a day from user's perspective • Two minutes of downtime are contributed by • 24 sec - hardware faults (20%) • 18 sec - software deficiencies (15%) • 36 sec - procedural errors (30%) • 42 sec - recovery deficiencies (35%) DS - X - CS - 3

  4. AT&T's ELECTRONIC SWITCHING SYSTEMS ESS1A - ESS 5 AND 3B20 (2) • OTHER FEATURES: • 95% of hardware and software faults detected and diagnosed automatically • 90% of hardware faults diagnosed within field replaceable unit (FRC). Repair time less than 2 hours on ESS 1 minute on 3B20 • REDUNDANCY • FULL DUPLICATION (of critical modules) • CPU, memory, I/O, disks, bus systems • STANDBY SPARES • call store • ERROR DETECTION (at both hardware and software levels) • replication checks • timing checks • coding checks • internal checks (self-checking) DS - X - CS - 4

  5. AT&T's ELECTRONIC SWITCHING SYSTEMS ESS1A - ESS 5 AND 3B20 (3) • replication checks • duplex system with comparison on every cycle • timing checks • used in all hardware components; also several timer resets driven by software interrupts • coding • m-out-of-n (4-out-of-8) codes, parity and cyclic codes • internal checks • address limits • multiple comparators help software to locate faults faster DS - X - CS - 5

  6. SYSTEM VIEW (3B20) DS - X - CS - 6

  7. FAULT TREATMENT • Detection of an error generates an interrupt and the fault treatment and recovery programs (FT/RP) are invoked • Three priority categories: • immediate interrupt (maintenance interrupt) • if the fault is severe enough to effect the execution of the currently executing program • deferred interrupt • if too many calls are potentially affected by interrupt, then wait until the completion of the currently executing program • polite interrupt • waits until periodic routine diagnostic is executed • FT/RP identify and isolate the faulty unit and reconfigure the system to use one fault-free CPU • If storage has no duplication, other memory area will be assigned DS - X - CS - 7

  8. RELIABLE SOFTWARE GOALS • OPERATE CONTINUOUSLY FOR MONTHS OR YEARS • TECHNIQUES USED FOR HIGH SOFTWARE RELIABILITY • PROCESSES HAVE INDIVIDUAL FAULT RECOVERY AND ROLLBACK MECHANISMS WHICH RECOVER FROM HARDWARE FAILURES OR TRANSIENT SOFTWARE FAILURES • SYSTEM INTEGRITY SOFTWARE MONITORS CORRECT OPERATION OF THE ENTIRE HARDWARE AND SOFTWARE SYSTEM • AUDITS VALIDATE DATA CONSISTENCY AND RECLAIM LOST RESOURCES USING ROBUST DATA STRUCTURES • OVERLOAD CONTROLS ENSURE THE AVAILABILITY OF RESOURCES AND PREVENT CATASTROPHIC FAILURES • EXCEPTION HANDLING TECHNIQUES • NONCRITICAL PROGRAMS USUALLY TERMINATE AND RESTART • CRITICAL PROGRAMS WILL ROLLBACK AND RETRY DS - X - CS - 8

  9. PROGRESSIVE RECOVERY EFFORT LEVELACTION LOCAL LOCAL RECOVERY 1 OPERATING SYSTEM AND I/O DRIVER ROLLBACK 2 QUICK BOOTSTRAP 3 COMPLETE BOOTSTRAP; RELOAD CONFIGURATION DATABASE 4 MANUAL: CLEAR ALL OF MEMORY; DO #3 ABOVE  • ALTHOUGH DOWNTIME DOES NOT INCREASE SIGNIFICANTLY AS RECOVERY ACTIONS ESCALATE, DISRUPTIONS TO USERS OF APPLICATIONS DO INCREASE SIGNIFICANTLY  • ABORTED TRANSACTIONS DS - X - CS - 9

  10. SYSTEM ENHANCEMENT GOALS • INSTALL NEW HARDWARE AND SOFTWARE • WITHOUT TAKING DOWN THE SYSTEM • METHODS TO ADD UPDATES • CHANGE HARDWARE AND SOFTWARE WITH NO DISRUPTION IN SERVICE • INSTALL NEW HARDWARE, FIRMWARE, OR SOFTWARE WITH MINIMAL DISRUPTION IN SERVICE   • OFF-LINE SOFTWARE REPLACEMENT SYSTEM • COMPILE THE NEW SOURCE CODE • COMPARE NEW OBJECT CODE TO OLD OBJECT CODE • DETERMINE KINDS OF REPLACEMENTS NEEDED • GENERATE THE REPLACEMENT FILES • METHODS TO REMOVE FAULTY UPDATES • BACK OUT ANY UPDATES WHICH WERE FOUND TO CONTAIN FAULTS • AUTOMATICALLY BACK OUT OF ANY UPDATE SUSPECTED OF CAUSING A FAILURE DS - X - CS - 10

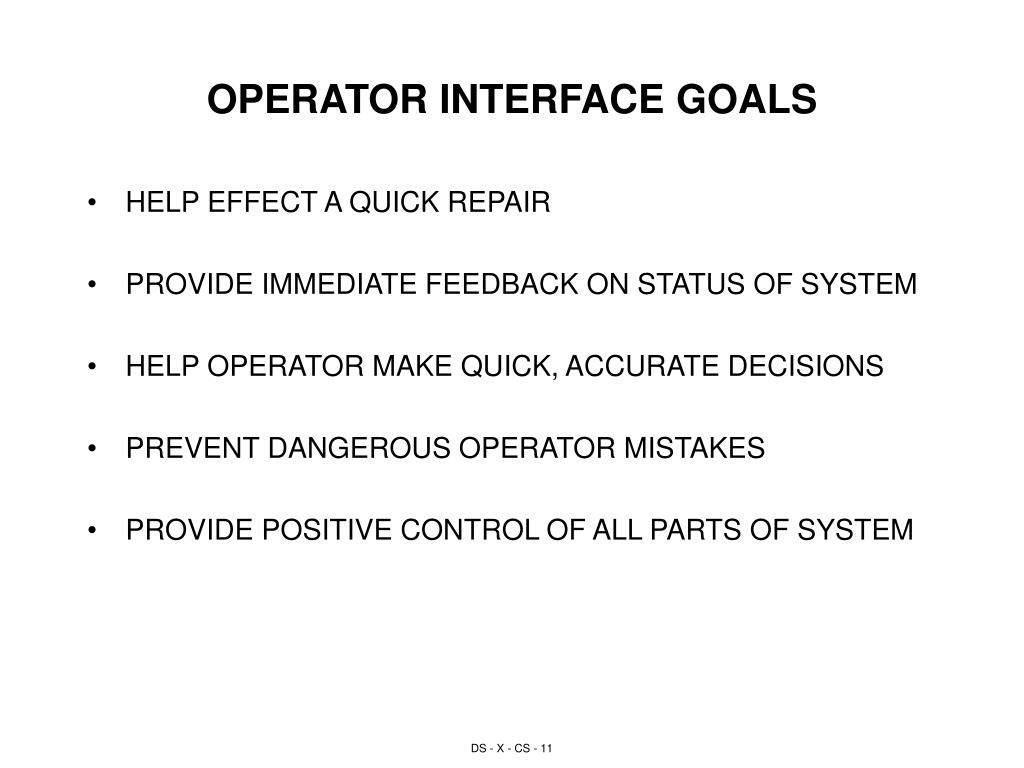

  11. OPERATOR INTERFACE GOALS • HELP EFFECT A QUICK REPAIR • PROVIDE IMMEDIATE FEEDBACK ON STATUS OF SYSTEM • HELP OPERATOR MAKE QUICK, ACCURATE DECISIONS • PREVENT DANGEROUS OPERATOR MISTAKES • PROVIDE POSITIVE CONTROL OF ALL PARTS OF SYSTEM DS - X - CS - 11

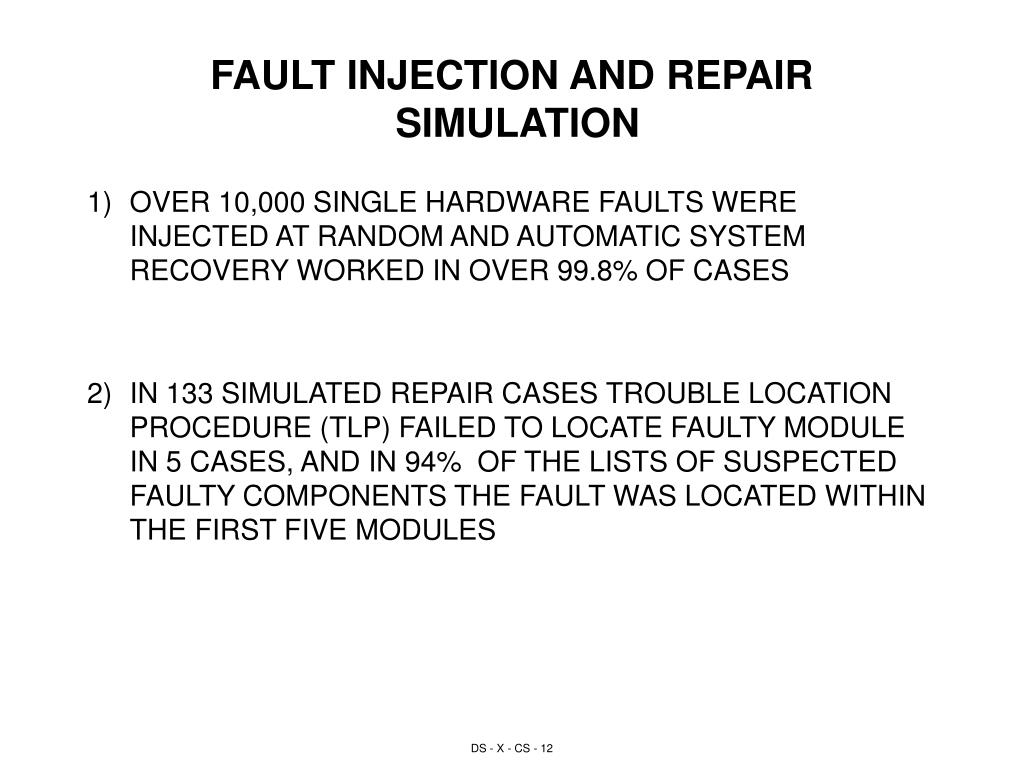

  12. FAULT INJECTION AND REPAIR SIMULATION • OVER 10,000 SINGLE HARDWARE FAULTS WERE INJECTED AT RANDOM AND AUTOMATIC SYSTEM RECOVERY WORKED IN OVER 99.8% OF CASES • IN 133 SIMULATED REPAIR CASES TROUBLE LOCATION PROCEDURE (TLP) FAILED TO LOCATE FAULTY MODULE IN 5 CASES, AND IN 94% OF THE LISTS OF SUSPECTED FAULTY COMPONENTS THE FAULT WAS LOCATED WITHIN THE FIRST FIVE MODULES DS - X - CS - 12

  13. AVAILABILITY ASSURANCE • MODEL AVAILABILITY • THROUGH ENTIRE LIFECYCLE • TEST FOR AVAILABILITY • TO MEET SPECIFIED AVAILABILITY • TRACK ON-SITE EXPERIENCE • TO ENSURE AVAILABILITY OBJECTIVES ARE MET DS - X - CS - 13

  14. SEQUOIA(Marlboro, MA 01752; ph. 617-480-0800) • TIGHTLY-COUPLED MULTIPROCESSOR capable of trading performance for dependability and vice versa • MC68020 PROCESSORS (20MHz clock) • up to 64 PEs • up to 128 MEs (16 M bytes with ECC) • up to 96 IOEs • two 40-bit 10MHz buses • FAULT DETECTION • error-detecting codes (e.g., half odd-half even parity) • comparison of duplicated operations (duplex microprocessors) • protocol monitoring • PE faults are located by polling • RECONFIGURATION • reassignment to fault-free processors DS - X - CS - 14

  15. STRATUS (also IBM's System/88)(Natick, MA 01760; ph. 617-653-1466) • TWO-PAIRS OF DUPLEXED PEs (PAIR AND SPARE PAIR) • UP TO 32 PEs ON RING -TYPE LOCAL AREA NETWORK • RED-LIGHT NOTIFICATION ABOUT FAULTY BOARD • ABILITY TO EXCHANGE BOARDS ON LINE • ECC ON MEMORIES (Up to 32M bytes per PE) • PERFORMANCE/FAULT TOLERANCE OPTIONS DS - X - CS - 15

  16. A B CPU CPU CPU CPU Memory Subsystem Memory Subsystem Memory Subsystem Memory Subsystem IOP IOP IOP IOP Ethernet Disk Control Comm STRATUS XA/R SERIES 300PAIR AND SPARE CONCEPT STRATUS XA/R SERIES 300 MODULE DS - X - CS - 16

  17. TANDEM(Cupertino, CA 95014; ph. 408-725-6000) • CONFIGURATIONS: • SINGLE SYSTEM 2-16 PEs • FIBER OPTIC CABLE-CONNECTED SYSTEM UP TO 224 PEs (14X16) • WORLD-WIDE NETWORK UP TO 4,080 PEs • THE FAULT-TOLERANT COMPUTER OF THE EIGHTIES FEATURES: • NONSTOP II OR NONSTOP TXP PROCESSOR WITH 64KB CACHE • DUAL DYNABUS (26 Mbytes/sec) • 2-8 Mbytes Memories • Dual Disk (MTBF for a single disk is 3-5 years; with dual disk, THE MTBF increases to 1500 years) • FAULT DETECTION - 100% by duplication or by timeout mechanism (absence of "I'm alive" message) • FAULT-TOLERANT WITH RESPECT TO ANY SINGLE HARDWARE FAULT • RECOVERY by rollback to the latest checkpoint in memory  • LATEST SYSTEM: INTEGRITY S2 USES TMR OF MIPS PROCESSORS ("SELECTIVE" TMR) DS - X - CS - 17

  18. NONSTOP CYCLONE (TANDEM COMPUTERS Inc.) • CYCLONE TOLERATES SINGLE HARDWARE OR SOFTWARE FAULT • IT USES A FAULT-TOLERANT LOAD BALANCING OPERATING SYSTEM CALLED GUARDIAN 90 • GUARDIAN 90 MAINTAINS BACKUP OF USER PROCESSES ON SEPARATE PROCESSORS AND KEEPS CONSISTENCY BY PERIODIC CHECKPOINTING • 16 AND 64 PROCESSOR CONFIGURATIONS WITH UP TO 2 GB MEMORY; 64 I/O CHANNELS (WITH FOX NETWORK UP TO 255 PROCESSORS CAN WORK TOGETHER) DS - X - CS - 18

  19. NONSTOP CYCLONE (TANDEM COMPUTERS Inc.) TANDEM NONSTOP CYCLONE SYSTEM DS - X - CS - 19

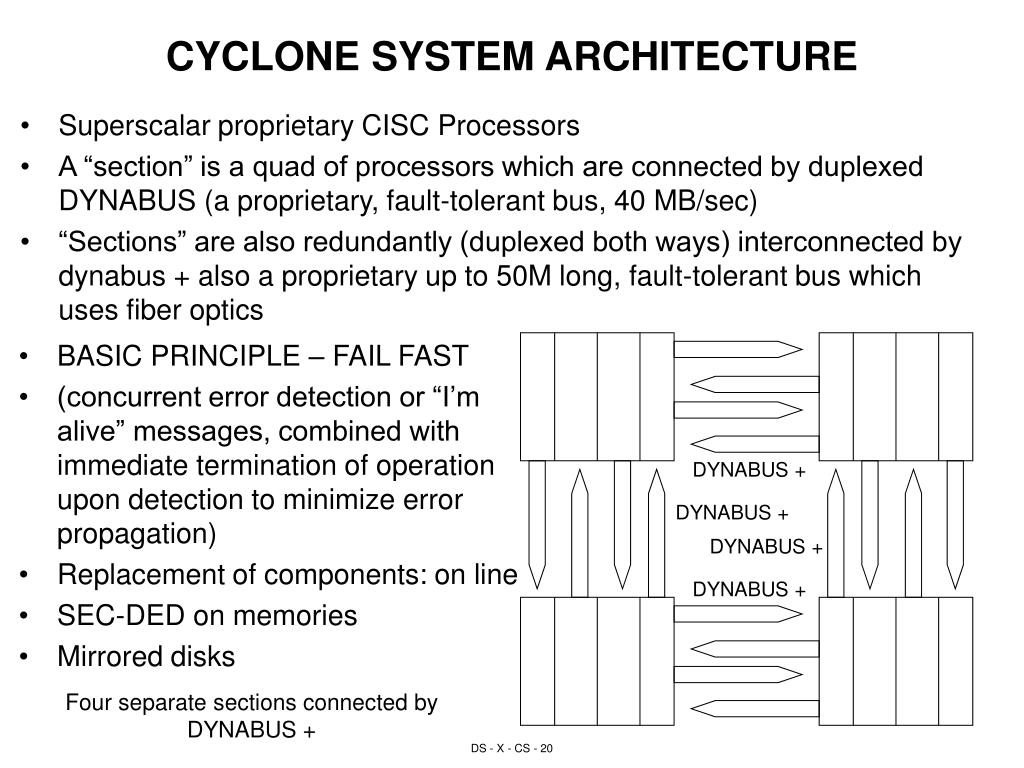

  20. CYCLONE SYSTEM ARCHITECTURE • Superscalar proprietary CISC Processors • A “section” is a quad of processors which are connected by duplexed DYNABUS (a proprietary, fault-tolerant bus, 40 MB/sec) • “Sections” are also redundantly (duplexed both ways) interconnected by dynabus + also a proprietary up to 50M long, fault-tolerant bus which uses fiber optics • BASIC PRINCIPLE – FAIL FAST • (concurrent error detection or “I’m alive” messages, combined with immediate termination of operation upon detection to minimize error propagation) • Replacement of components: on line • SEC-DED on memories • Mirrored disks DYNABUS + DYNABUS + DYNABUS + DYNABUS + Four separate sections connected by DYNABUS + DS - X - CS - 20

  21. H H V V Processor Processor Processor Processor Multifunction Controller Multifunction Controller Multifunction Controller Multifunction Controller I/O SLOT I/O SLOT I/O SLOT I/O SLOT I/O SLOT I/O SLOT Network Controller Network Controller HIMALAYA K10000 (TANDEM COMPUTERS Inc.) DS - X - CS - 21

  22. HIMALAYA K10000’s INTERSECTION NETWORK Section Dual Fiber Optic Rings Node DS - X - CS - 22

  23. FTMP - FAULT-TOLERANTMULTIPROCESSOR (DRAPER LABS) • THREE TRIADS IN TMR CONFIGURATION (NINE PROCESSOR SYSTEM) • TMR ON COMMUNICATION LINES • FAULT-TOLERANT TMR CLOCK • FAULT-TOLERANT WITH RESPECT TO ANY SINGLE FAULT • DESIGN GOALS • 10-9 FAILURES/HOUR • 10 HOUR MISSION TIME • 300 HOUR MAINTENANCE INTERVALS DS - X - CS - 23

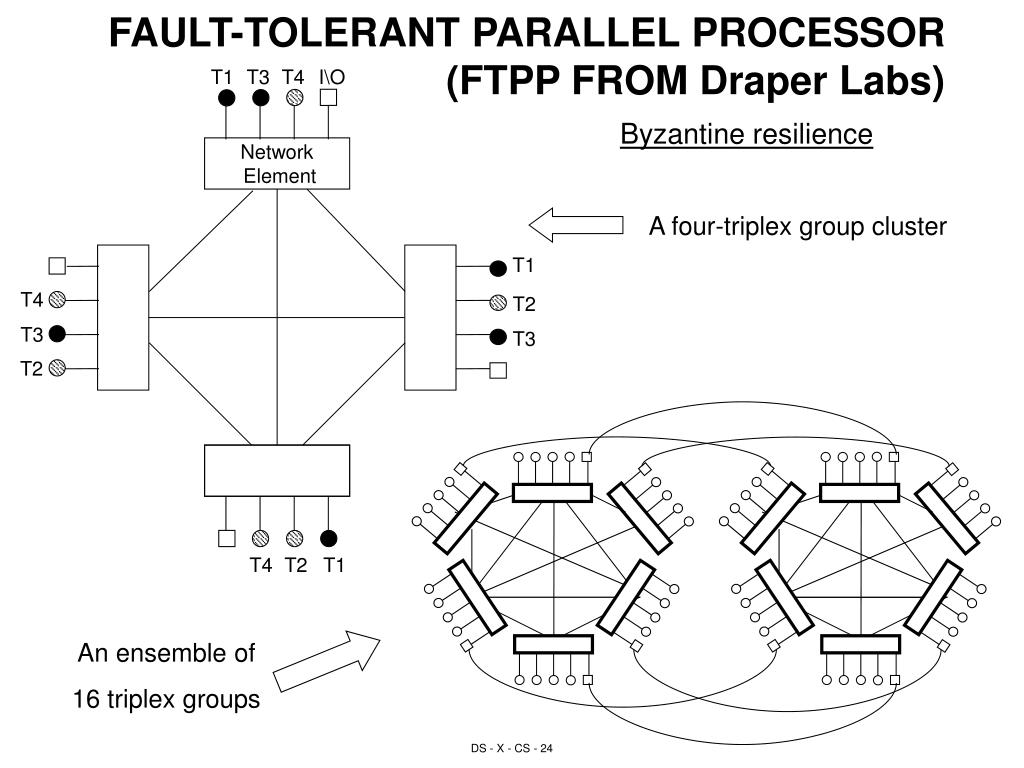

  24. T1 T3 T4 I\O Network Element T1 T2 T3 T4 T2 T1 FAULT-TOLERANT PARALLEL PROCESSOR(FTPP FROM Draper Labs) Byzantine resilience A four-triplex group cluster T4 T3 T2 An ensemble of 16 triplex groups DS - X - CS - 24

  25. SIFT - SOFTWARE IMPLEMENTED FAULT TOLERANCE • NINE PROCESSOR SYSTEM WITH CAPABILITY TO SCHEDULE TASKS TO RUN ON 1, 3, 5, 7 OR 9 PROCESSORS DEPENDING ON TASK CRITICALITY • LOCAL EXECUTIVE FOR EACH TASK • error handler/detector • scheduler • software voter • repeated communication • GLOBAL EXECUTIVE • runs in TMR mode • allocates resources • diagnoses reports from local error handlers • SYSTEM SHOULD HAVE FAILURE RATE l<10-9 OVER 10 HOUR MISSION TIME • FLEXIBLE TRADING OF PERFORMANCEAND RELIABILITY DS - X - CS - 25

  26. COMMUNICATION CONTROLLER • EXAMPLE OF A SELF-TESTING MICROPROCESSOR-BASED SYSTEM A COMMUNICATION CONTROLLER FROM E-SYSTEMS, INC. THE CPU OF A SELF-TESTING SYSTEM • SELF TEST PROGRAM IS STORED IN THE 1K TEST ROM. • SELF TEST PROGRAM IS EXECUTED IN BACKGROUND MODE (INVOKED BY A LOW PRIORITY INTERRUPT). • DETECTION OF FAULT CAUSES AN INDICATION LIGHT TO BE TURNED ON IN AN LED PANEL. • THE ACTIVE MICROPROCESSOR MUST ACCESS AND RESET A TIMER AT REGULAR INTERVALS. FAILURE TO DO SO CAUSES A TIME-OUT CIRCUIT TO TRANSFER CONTROL TO THE BACK-UP MICROPROCESSOR AND TURN ON THE CPU FAULT LIGHT. DS - X - CS - 26

  27. MICROPROCESSOR MICROPROCESSOR NO. 1 NO. 2 µ P DISABLE NO. 2 µ P DISABLE NO. 1 TIME-OUT CLOCK CIRCUIT TEST ROM FAULT SYSTEM DISPLAY BUS UNIT from J.P. Hayes and E.J. McCluskey, IEEE Computer, March 1980 THE CPU OF A SELF-TESTING SYSTEM • ROMs ARE TESTED BY CHECK SUMMING • RAM IS TESTED BY CHECKERBOARD PATTERNS WITH BUFFERING A CURRENT WORD UNDER TEST IN THE CPU REGISTER • I/O TESTS ARE PERFORMED USING THE LOOP-BACK PROCEDURE. I.E., OUTPUTS ARE CONNECTED TO INPUTS UNDER THE CPU CONTROL. DS - X - CS - 27

  28. GPC 1 FC 1 FC2 FC3 FC4 DDU 2 DDU 3 DDU 4 DDU 5 DDU 1 (Left) (Right) (AFT) (Right) (Left) GPC 2 MDM FF2 MDM FF3 MDM FF4 MDM FF1 GPC 3 FC 1 FC2 FC3 FC4 FC5 FC6 FC7 FC8 GPC 4 MDM FA2 MDM FA3 MDM FA4 MDM FA1 MEC 1 GPC 5 MEC 2 MEC 1 MEC 2 MEC 3 FC 5 FC6 FC7 FC8 SPACE SHUTTLE SYSTEM The Data Processing System (DPS) of the Space Shuttle A FAULT-TOLERANT BUILDING BLOCK ARCHITECTURE • Five General-Purpose Computers (GPC’s) • Time-shared Data Bus • Two Magnetic Tape Mass Storage Units • Specialized hardware components with redundancy level 2 to 5 DS - X - CS - 28

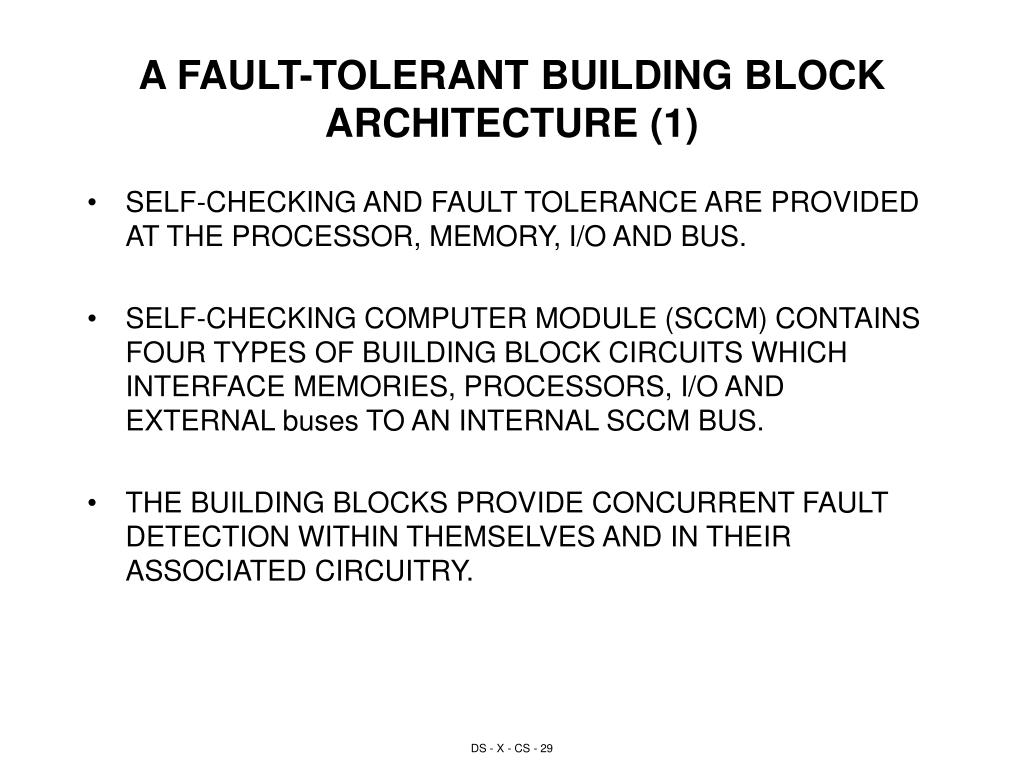

  29. A FAULT-TOLERANT BUILDING BLOCKARCHITECTURE (1) • SELF-CHECKING AND FAULT TOLERANCE ARE PROVIDED AT THE PROCESSOR, MEMORY, I/O AND BUS. • SELF-CHECKING COMPUTER MODULE (SCCM) CONTAINS FOUR TYPES OF BUILDING BLOCK CIRCUITS WHICH INTERFACE MEMORIES, PROCESSORS, I/O AND EXTERNAL buses TO AN INTERNAL SCCM BUS. • THE BUILDING BLOCKS PROVIDE CONCURRENT FAULT DETECTION WITHIN THEMSELVES AND IN THEIR ASSOCIATED CIRCUITRY. DS - X - CS - 29

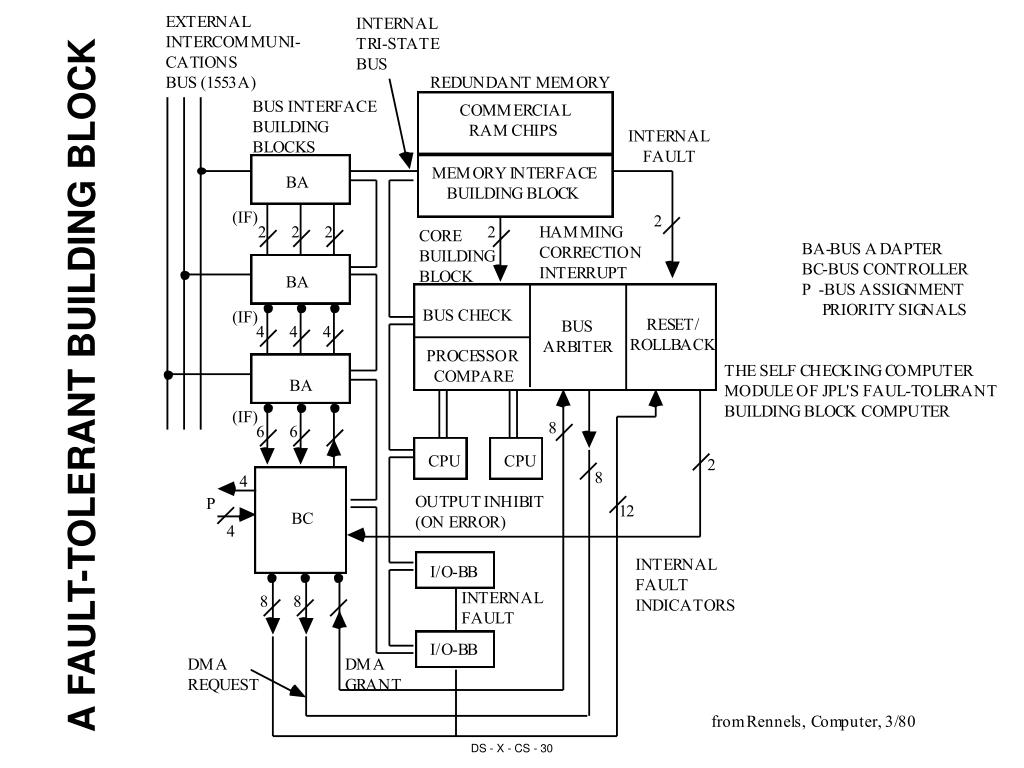

  30. A FAULT-TOLERANT BUILDING BLOCK DS - X - CS - 30

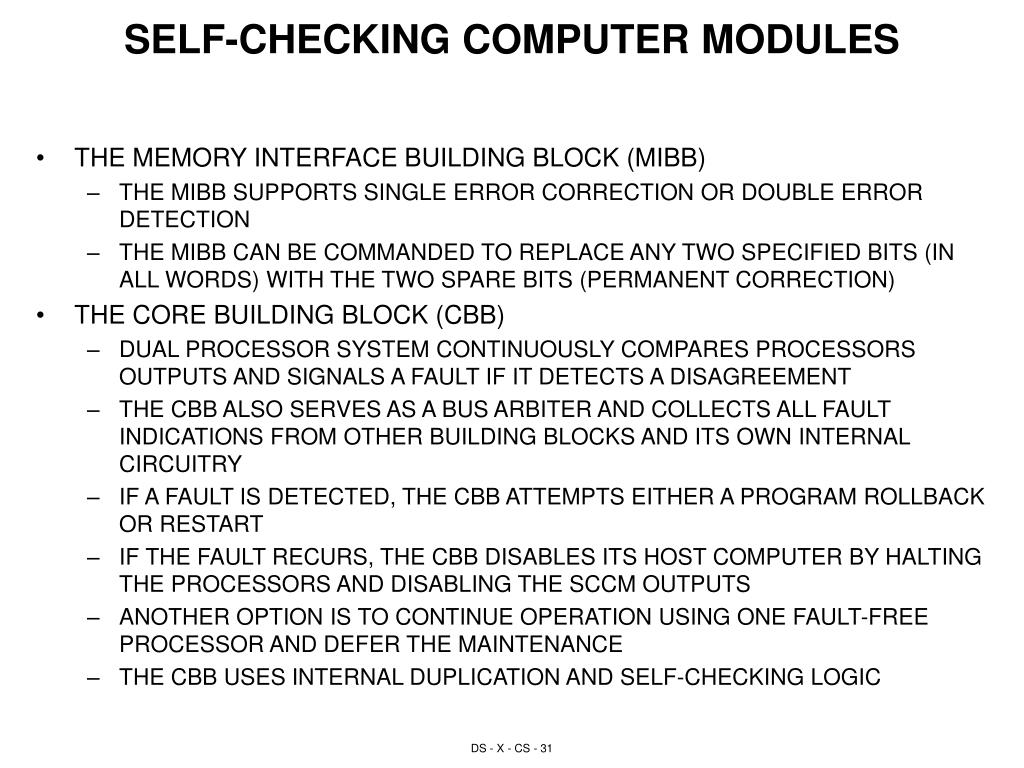

  31. SELF-CHECKING COMPUTER MODULES • THE MEMORY INTERFACE BUILDING BLOCK (MIBB) • THE MIBB SUPPORTS SINGLE ERROR CORRECTION OR DOUBLE ERROR DETECTION • THE MIBB CAN BE COMMANDED TO REPLACE ANY TWO SPECIFIED BITS (IN ALL WORDS) WITH THE TWO SPARE BITS (PERMANENT CORRECTION) • THE CORE BUILDING BLOCK (CBB) • DUAL PROCESSOR SYSTEM CONTINUOUSLY COMPARES PROCESSORS OUTPUTS AND SIGNALS A FAULT IF IT DETECTS A DISAGREEMENT • THE CBB ALSO SERVES AS A BUS ARBITER AND COLLECTS ALL FAULT INDICATIONS FROM OTHER BUILDING BLOCKS AND ITS OWN INTERNAL CIRCUITRY • IF A FAULT IS DETECTED, THE CBB ATTEMPTS EITHER A PROGRAM ROLLBACK OR RESTART • IF THE FAULT RECURS, THE CBB DISABLES ITS HOST COMPUTER BY HALTING THE PROCESSORS AND DISABLING THE SCCM OUTPUTS • ANOTHER OPTION IS TO CONTINUE OPERATION USING ONE FAULT-FREE PROCESSOR AND DEFER THE MAINTENANCE • THE CBB USES INTERNAL DUPLICATION AND SELF-CHECKING LOGIC DS - X - CS - 31

  32. BUS INTERFACE BUILDING BLOCKS (BIBBS) • THE BIBBS PROVIDE COMMUNICATIONS THROUGH REDUNDANT BUSES WITH OTHER COMPUTERS IN THE NETWORK • STATUS MESSAGES AND CODING VERIFY PROPER TRANSMISSION AND REDUNDANT BUSES PROVIDE BACKING TRANSMISSION PATHS • OVERHEAD ANALYSIS • NONREDUNDANT SYSTEM REQUIRES 35 LSI CHIPS • ADDING SCCMs INCREASES THE CHIP COUNT TO 43 (23% INCREASE) • MEMORY OVERHEAD (IF ALL OPTIONS ARE INCLUDED, MAY BE AS HIGH AS 60% DS - X - CS - 32

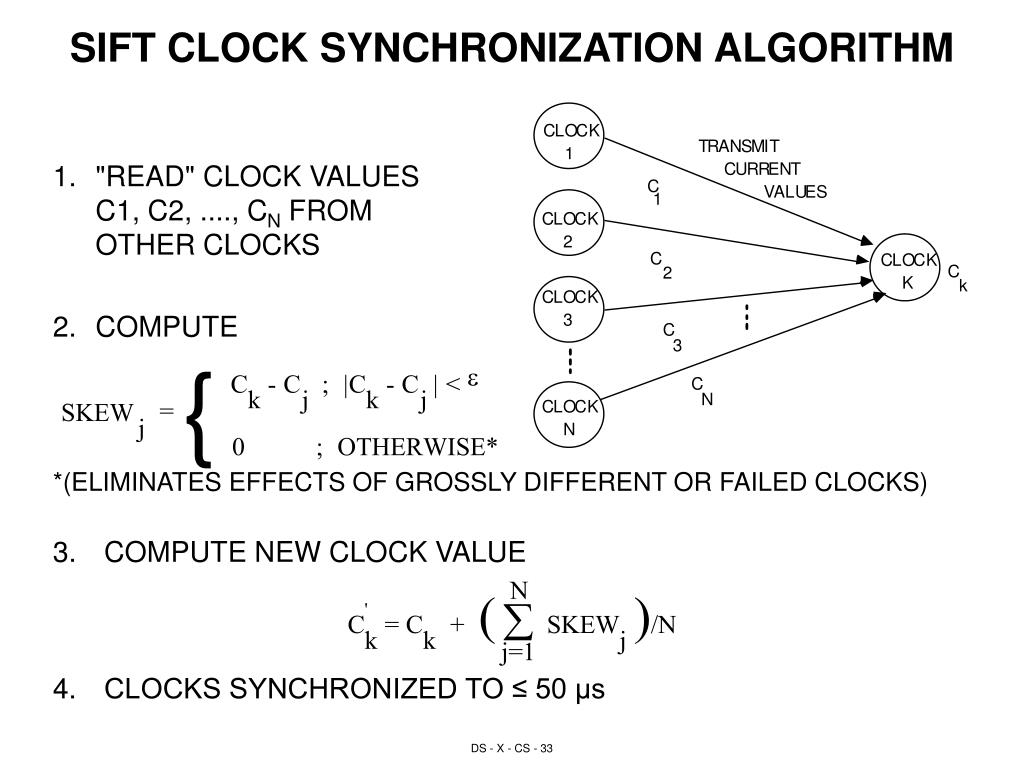

  33. SIFT CLOCK SYNCHRONIZATION ALGORITHM • "READ" CLOCK VALUES C1, C2, ...., CN FROM OTHER CLOCKS • COMPUTE • *(ELIMINATES EFFECTS OF GROSSLY DIFFERENT OR FAILED CLOCKS) • COMPUTE NEW CLOCK VALUE • CLOCKS SYNCHRONIZED TO ≤ 50 µs DS - X - CS - 33

  34. CONCLUSIONS • USE COMBINED METHODS OF: • CODING • RECONFIGURATION • REPLICATION • TIMERS • WATCHDOG PROCESSOR • RECOVERY POINTS • ROLL BACK OR ROLL FORWARD REMEMBER THE CONCEPT OF VERTICAL MIGRATION DS - X - CS - 34
