  1. RADview Amnon Wiesel Product Manager Network Management Solutions Version 3.40 GA April 2013

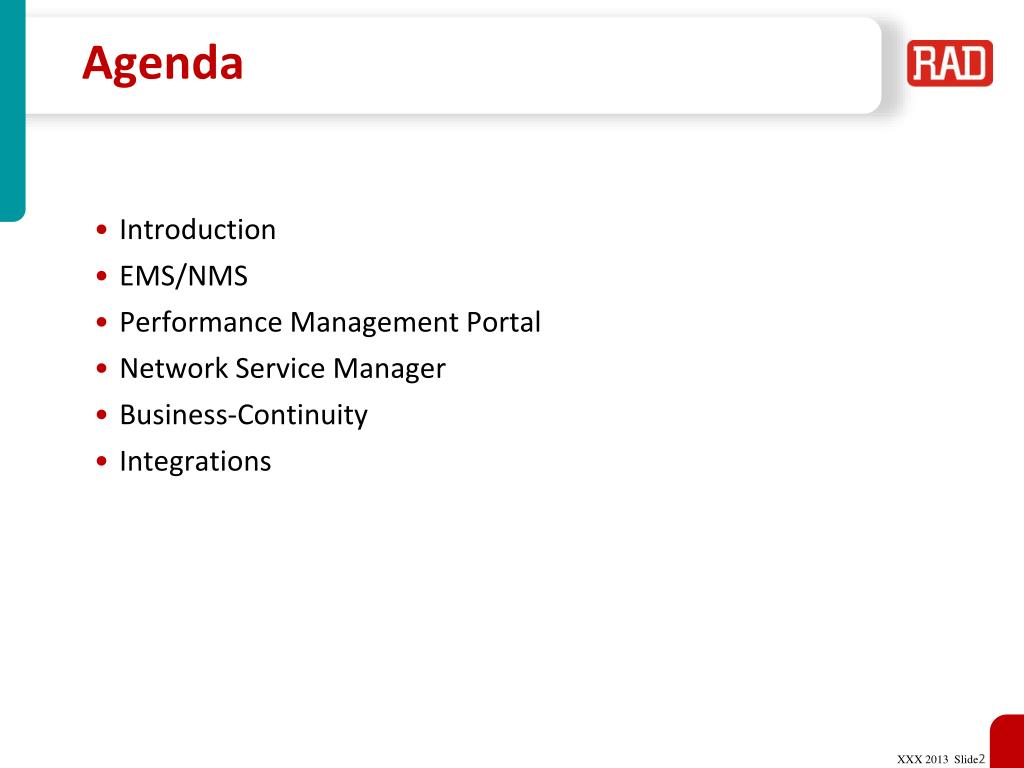

  2. Agenda • Introduction • EMS/NMS • Performance Management Portal • Network Service Manager • Business-Continuity • Integrations

  3. is a unified, carrier-class management platform composed of three major management elements: • Element Management Level (FCAPS) • Performance Monitoring Portal • Network Service Manager

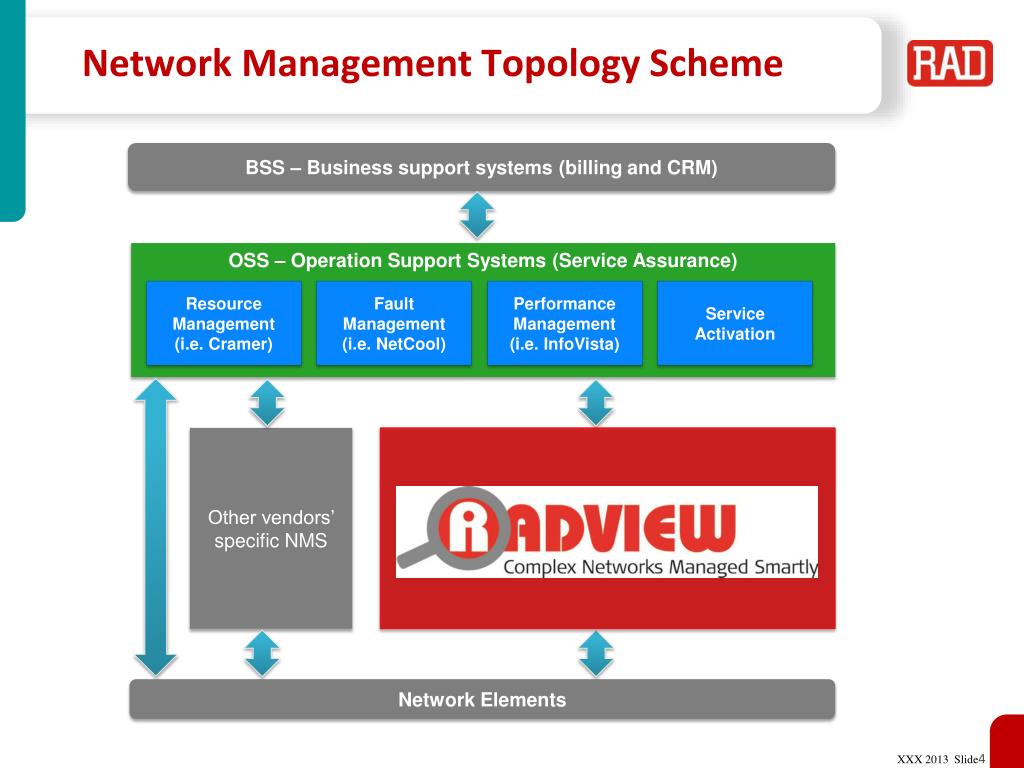

  4. Network Management Topology Scheme BSS – Business support systems (billing and CRM) OSS – Operation Support Systems (Service Assurance) Resource Management (i.e. Cramer) Fault Management (i.e. NetCool) Performance Management (i.e. InfoVista) Service Activation RADview Other vendors’ specific NMS Network Elements

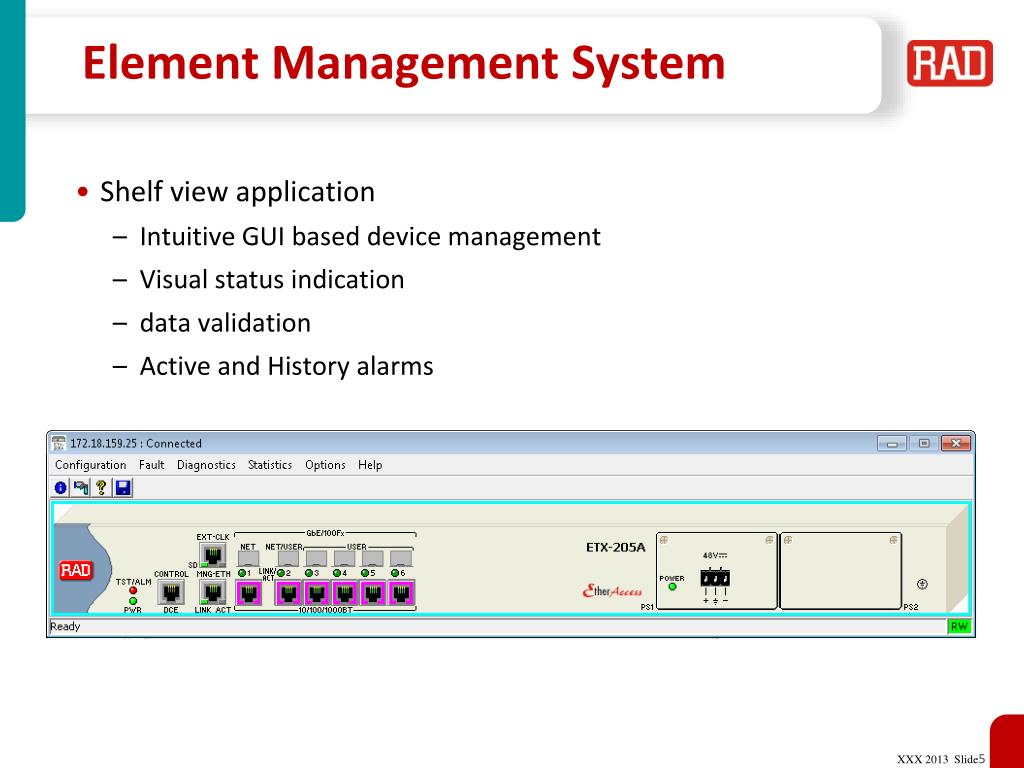

  5. Element Management System • Shelf view application • Intuitive GUI based device management • Visual status indication • data validation • Active and History alarms

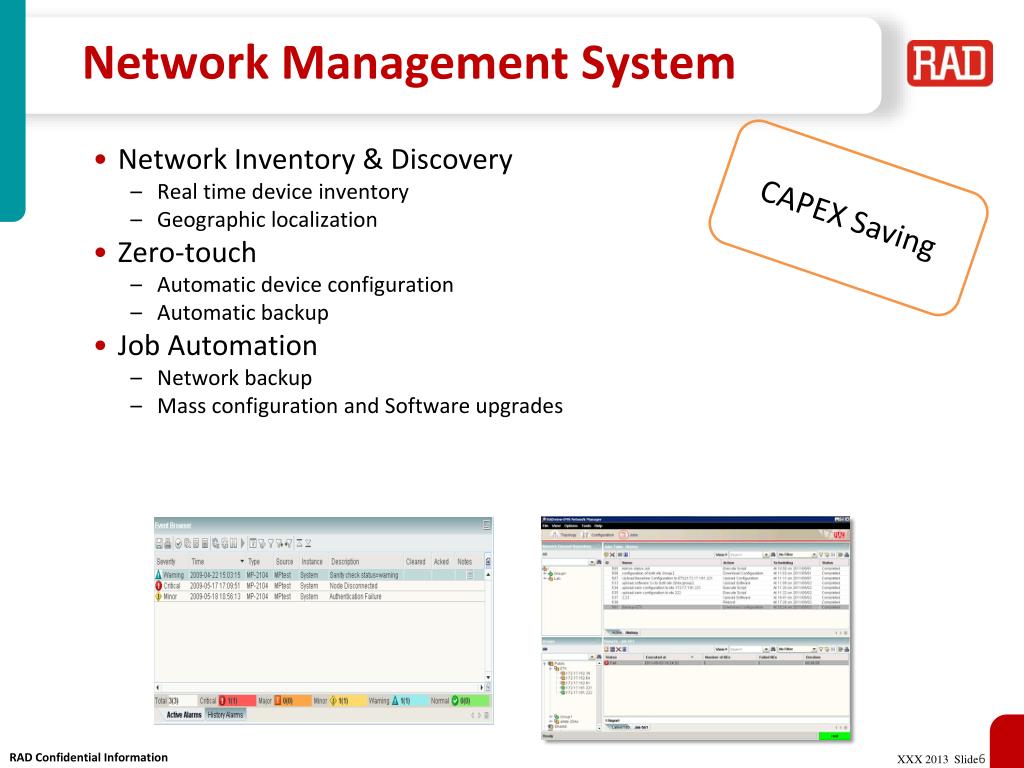

  6. Network Management System CAPEX Saving • Network Inventory & Discovery • Real time device inventory • Geographic localization • Zero-touch • Automatic device configuration • Automatic backup • Job Automation • Network backup • Mass configuration and Software upgrades

  7. RADviewFCAPS Fault Configuration Administration Performance Security • Manage Event Log parameters, and share notes • Manage the way Events are displayed in the Event Browser • Trap Synchronization upon connection failure between RADview to NE (*supported devices only) • Perform:– Mask, Severity, De-duplication, Forwarding, Threshold, Clearing, Formatting • IBM Tivoli’s Netcool®/OMNIbus™ plug-in

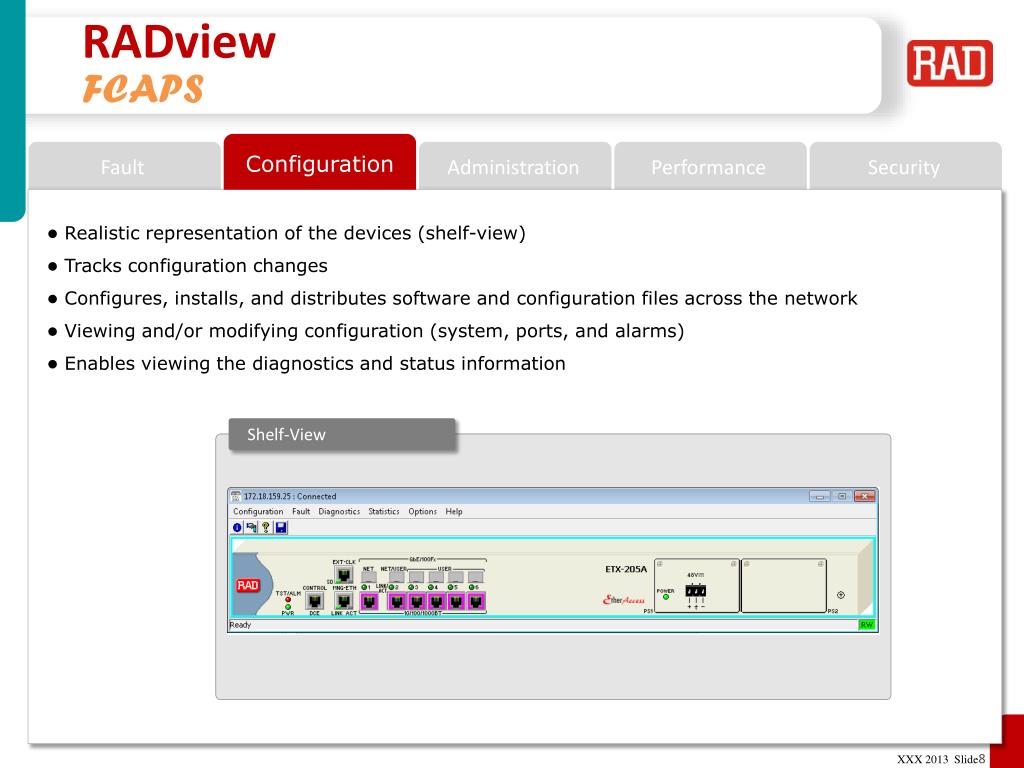

  8. RADviewFCAPS Configuration Fault Administration Performance Security • Realistic representation of the devices (shelf-view) • Tracks configuration changes • Configures, installs, and distributes software and configuration files across the network • Viewing and/or modifying configuration (system, ports, and alarms) • Enables viewing the diagnostics and status information Shelf-View

  9. RADviewFCAPS Administration Fault Configuration Performance Security • Audit trails for Security, System and Applications activities • Tracks and log the shelf-view user activity • Create and manage user accounts and groups • Manage various server setting Security logs Applications activities

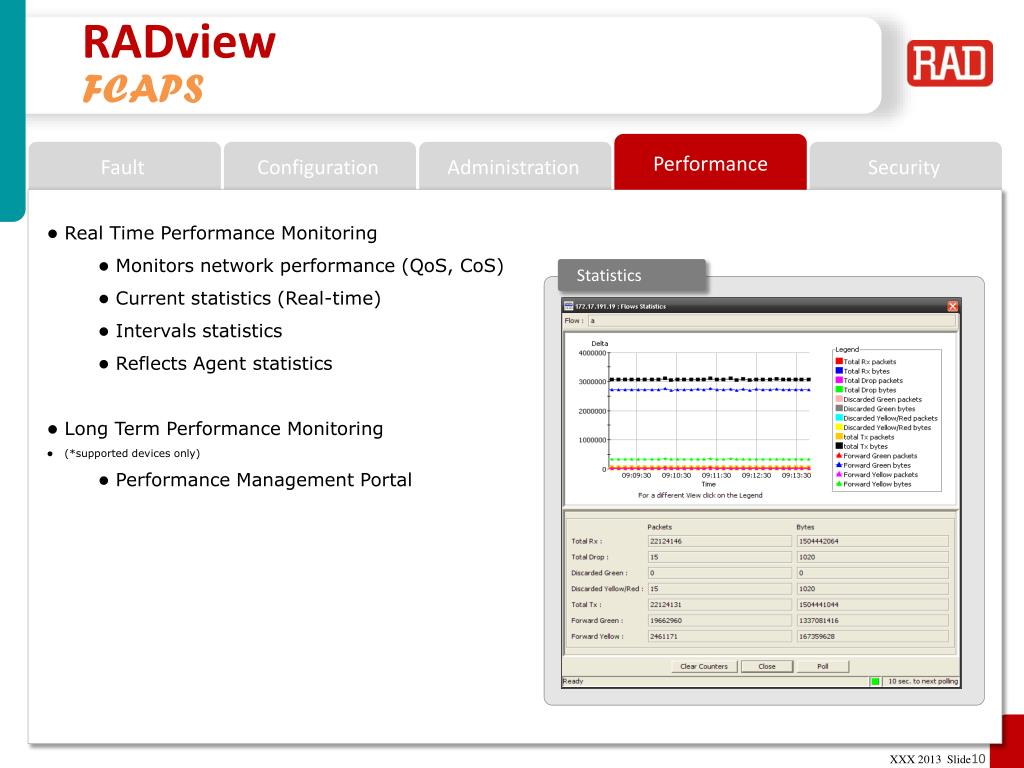

  10. RADviewFCAPS Performance Fault Configuration Administration Security • Real Time Performance Monitoring • Monitors network performance (QoS, CoS) • Current statistics (Real-time) • Intervals statistics • Reflects Agent statistics • Long Term Performance Monitoring • (*supported devices only) • Performance Management Portal Statistics

  11. RADviewFCAPS Security Fault Configuration Administration Performance • View and manage EMS Security profiles in a graphical interface. • Create Common/Private view profiles per user/group • Define password policies Password policy Security profiles

  12. 3rd Party Equipment • 24/7 connectivity status alerts • Displaying generic traps • GUI cut-through to the device’s Web Management/EMS • Supporting CLI over Telnet/SSH • Manual discovery of the device • Inventory management for NEs supporting RFC-4133 (Entity MIB)

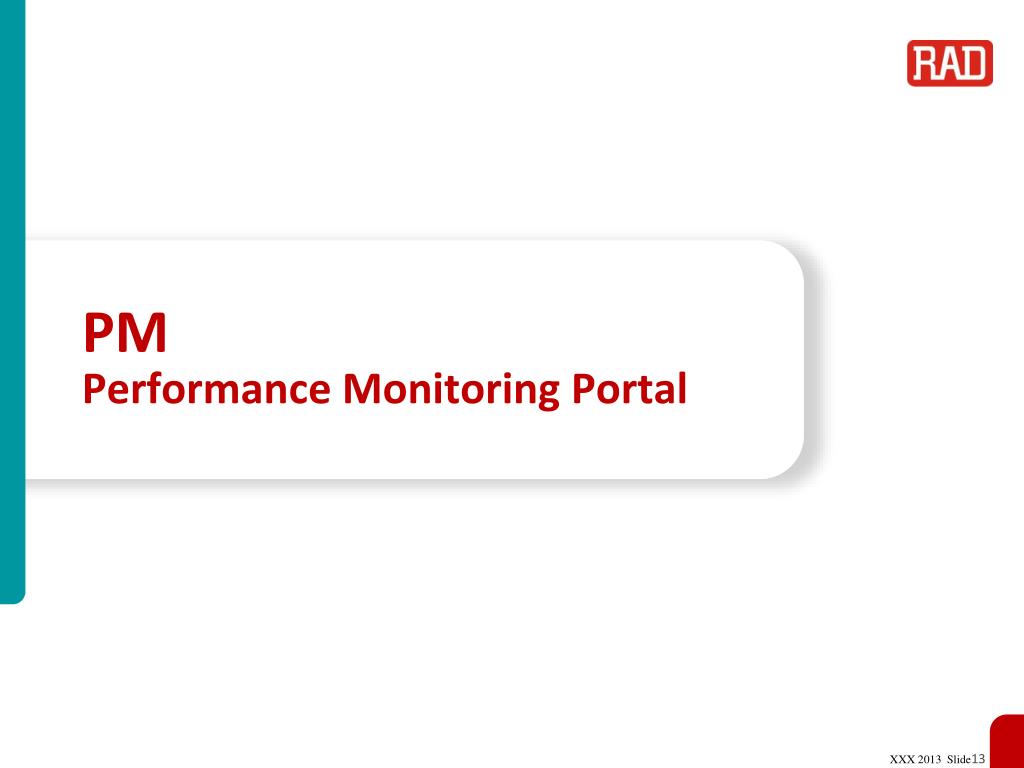

  13. PMPerformance Monitoring Portal

  14. Performance Monitoring Transition to Carrier Ethernet Stringent SLA guarantees Monitoring Tools One-Stop-Shop

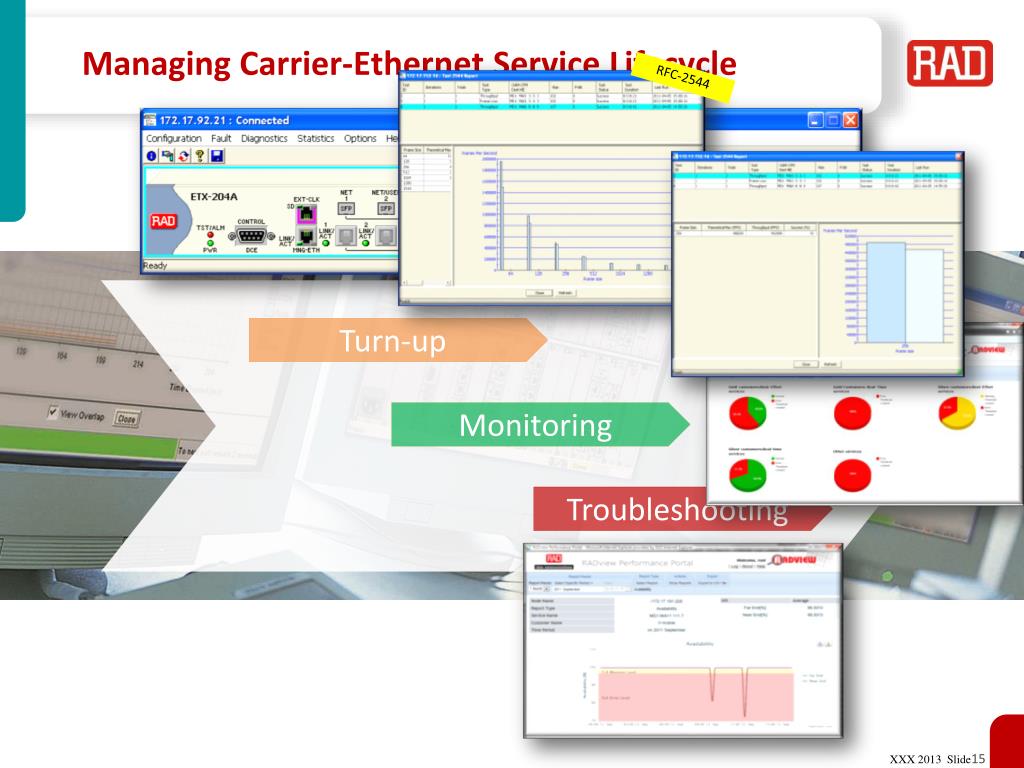

  15. Managing Carrier-Ethernet Service Lifecycle RFC-2544 Turn-up Monitoring • Troubleshooting

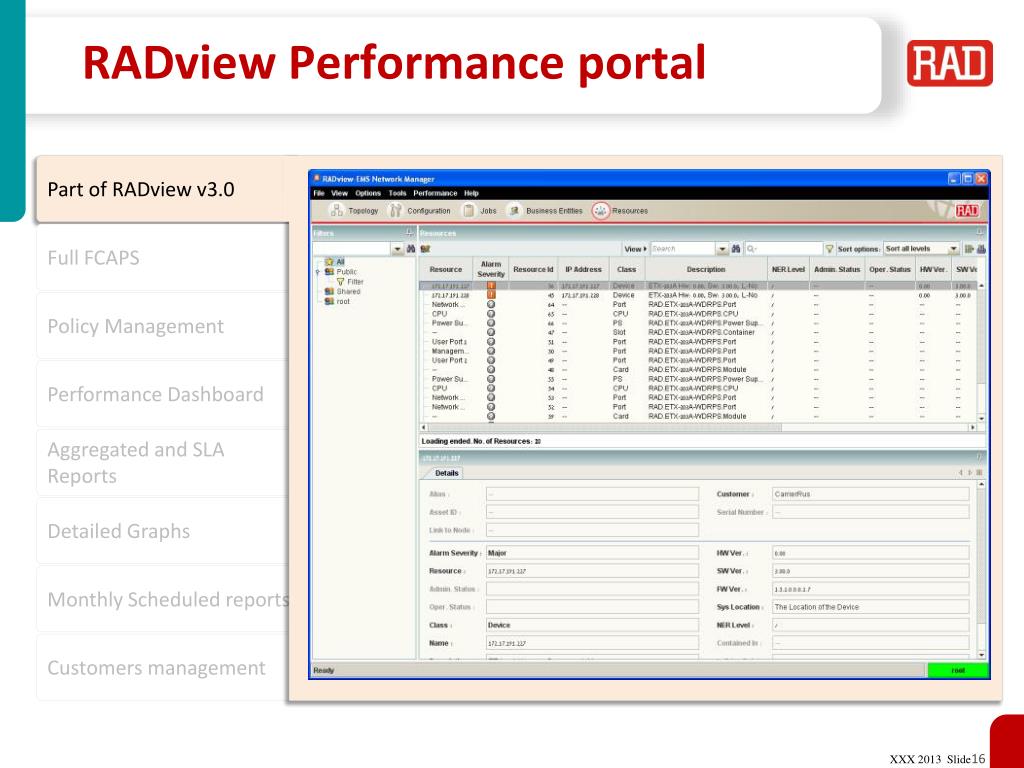

  16. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

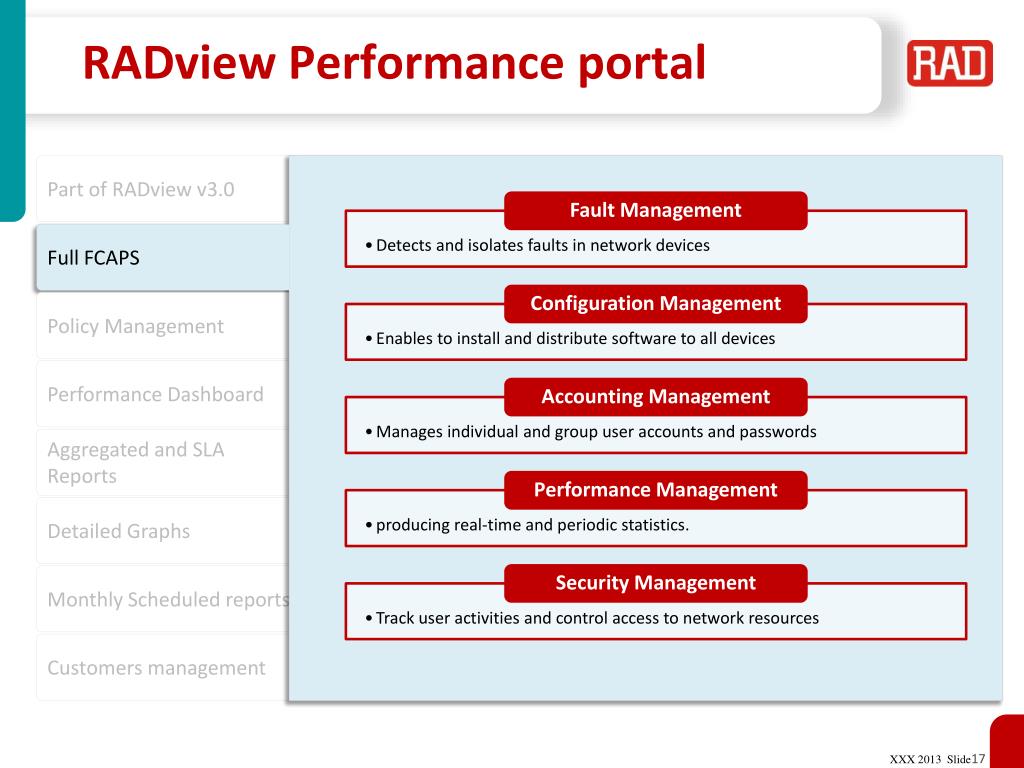

  17. Fault Management • Detects and isolates faults in network devices RADview Performance portal Configuration Management • Enables to install and distribute software to all devices Part of RADview v3.0 Accounting Management • Manages individual and group user accounts and passwords Full FCAPS Performance Management • producing real-time and periodic statistics. Policy Management Security Management • Track user activities and control access to network resources Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

  18. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

  19. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

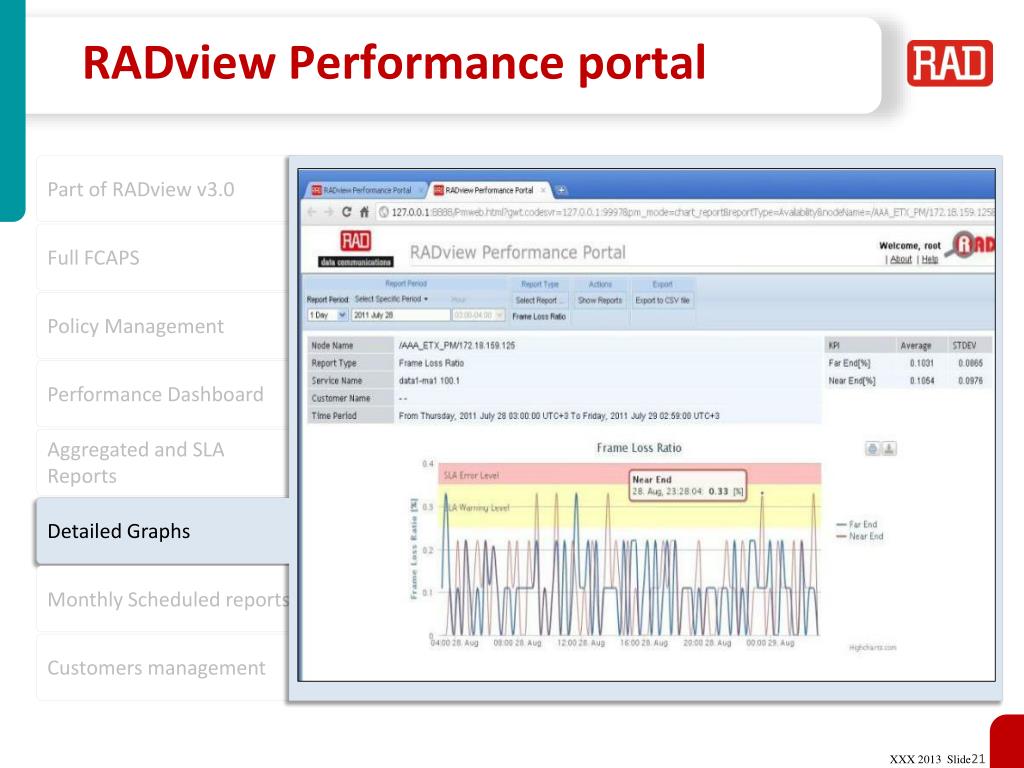

  20. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

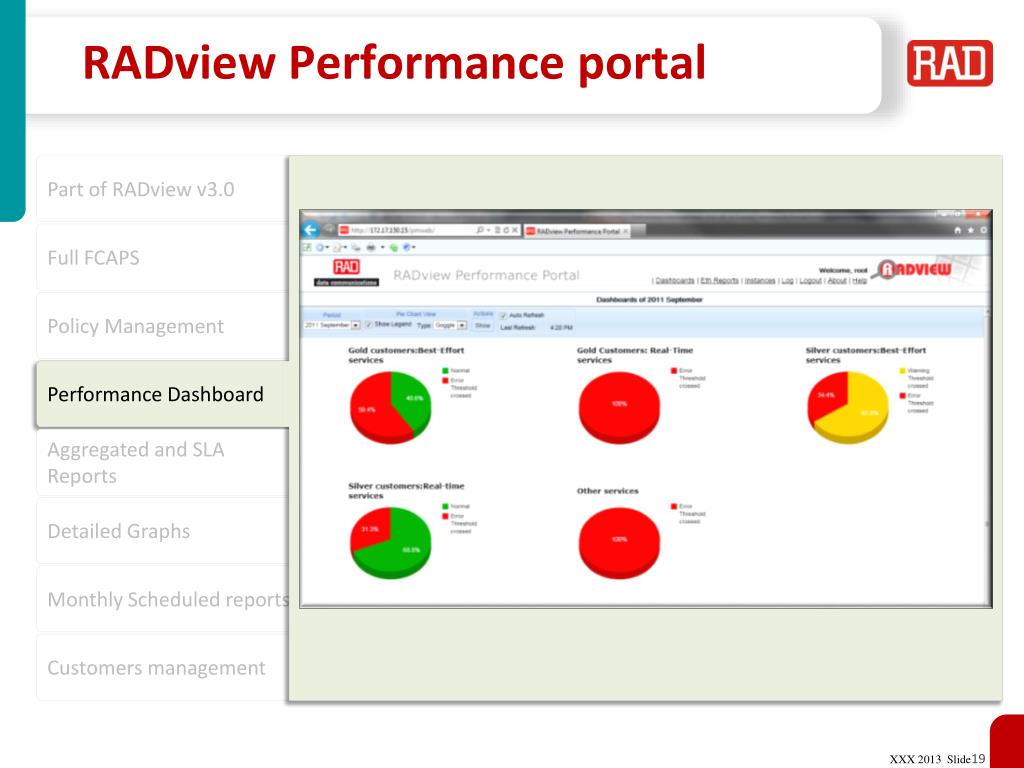

  21. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

  22. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

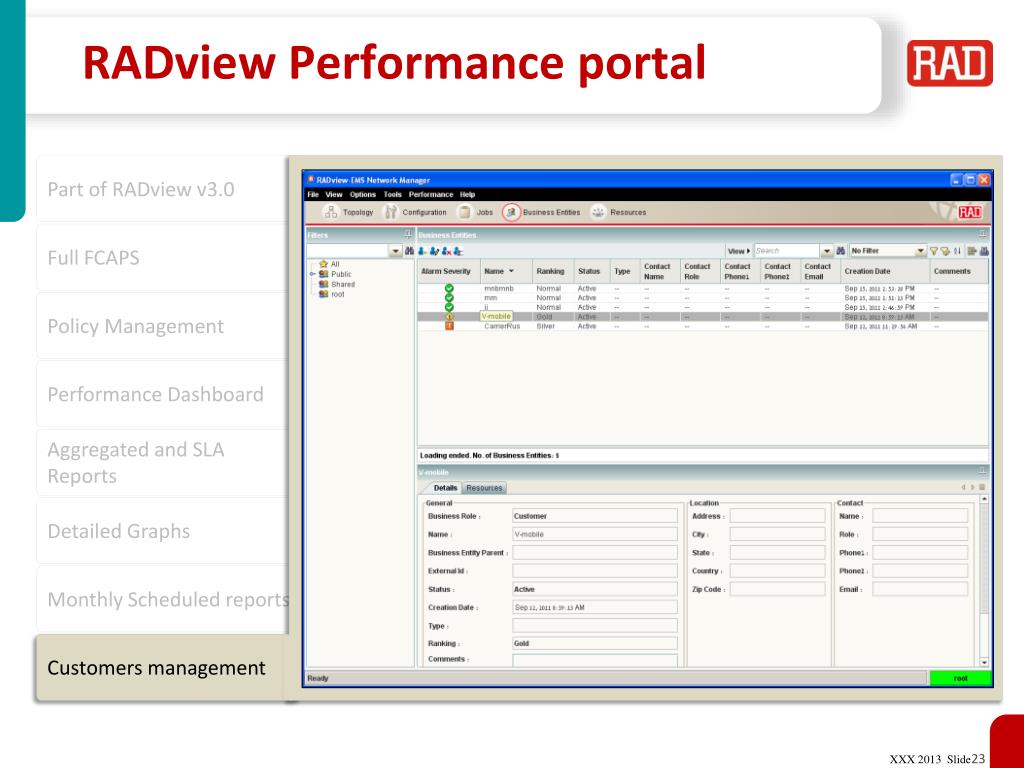

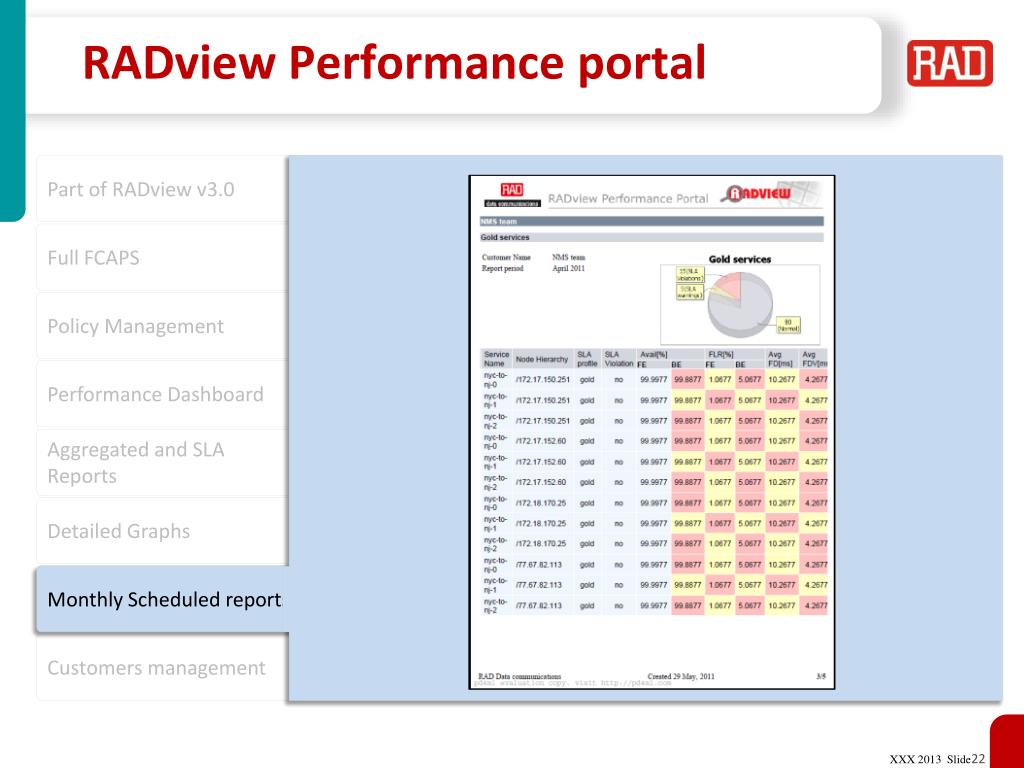

  23. RADview Performance portal Part of RADview v3.0 Full FCAPS Policy Management Performance Dashboard Aggregated and SLA Reports Detailed Graphs Monthly Scheduled reports Customers management

  24. Service Manager

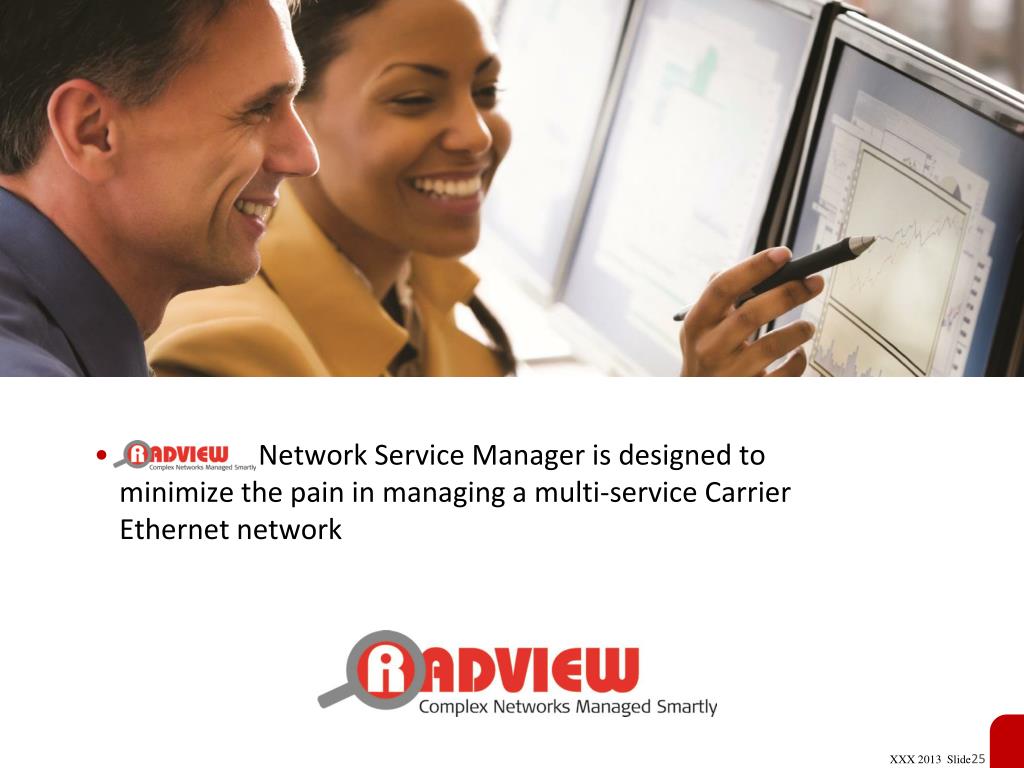

  25. Performance Monitoring • Network Service Manager is designed to minimize the pain in managing a multi-service Carrier Ethernet network

  26. Service Manager • Point-and-click end-to-end service provisioning • Minimized effort for Multi-Service creation using templates • Continuous Monitoring and SLA assurance for provisioned services • Association of service to customers - Every alarm in the network indicates the impacted service and customer • Easy integration with 3rd party OSS systems using standard TeleManagement-Forum MTOSI northbound interface

  27. New Ethernet Service Creation • Simple wizard for creating new service • Template defined by network architects Select two devices and define“new service”

  28. Service Management • Monitoring the network on a service level granularity • Enables SLA assurance

  29. Business-Continuity

  30. Business-Continuity Levels

  31. Business-Continuity Options Primary site Backup site Backup and Restore • Based on RADview/<Win&Unix>Pack1/R backup and restore tool • Backup file can be saved anywhere • Restore from backed-up files – RPO can be very long High Availability (HA) Cluster • Local clustering - RPO and RTO are short • Immediate recovery in the event of OS or HW failure in a single site • Automatic failover Disaster Recovery (DR) 1+1 • Geographically separated NMS servers that are replicated constantly • RPO and RTO are short • Manual switchover

  32. Based on RADview/<PC&Unix>Pack1/R backup and restore tool Cost effective – sold without hardware or additional software RPO is long – since last back-up Completely manual operation Backup and Restore (Cold standby) OSS EMS-Client X-Client Client Operators Primary Site DR site ActiveServer StandbyServer Run a backup process Run a restore process Transfer the file

  33. High Availability (HA) Cluster OSS EMS-Client X-Client Client Operators Local Clustering • Turnkey system including server hardware, Cluster and RADview software • RPO and RTO are short • Instant automatic failover • Clients can keep working after few seconds • Good for large NOC with dozens of clients connected to RADview simultaneously !

  34. Turnkey system including server hardware, replication and RADview software RPO and RTO are short – storage is being replicated constantly Semi automatic switchover by push button, good for disaster recovery scenarios Clients are being shifted to DR site upon activation Disaster Recovery (DR) 1+1 OSS EMS-Client X-Client Client Operators Primary Site DR site ActiveServer StandbyServer Network Outage ProductionData SecondaryData

  35. Integrations

  36. RADview Value Proposition • Unified Carrier-Class management platform for RAD devices • Reduce Total Cost of Ownership • SLA assurance • Service provisioning • Minimize Mean Time To Repair (MTTR) • Minimize the pain of complex network management • Smart configuration and provisioning tools • Service management system • Highly scalable in managing large and growing networks
