Extension of ECE Regulation for Dual-Fuel Hydrogen Engines

OICA proposes extending the ECE Regulation to include dual-fuel hydrogen engines, following an amendment for single hydrogen fuel engines. The scope of the amendment covers Type 1A engines with a diesel pilot fuel and includes provisions for corrected dry-based emission measurements using water content. Next steps involve adapting exhaust emission formulas, technology verification, and evaluating existing test methods. The proposed timeline aims for inclusion by October 2024.

vallalta
Télécharger la présentation

Extension of ECE Regulation for Dual-Fuel Hydrogen Engines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Informal document GRPE-90-18 90thGRPE, 10-12 January2024 Agenda item 4.(a) Type Approval of H2 Engines Extension of the ECE Regulation 49/07 to include dual-fuel hydrogen engines M. Hygrell, F. Rost, M. Schumacher / OICA GRPE Meeting 09th- 12thJanuary 2024

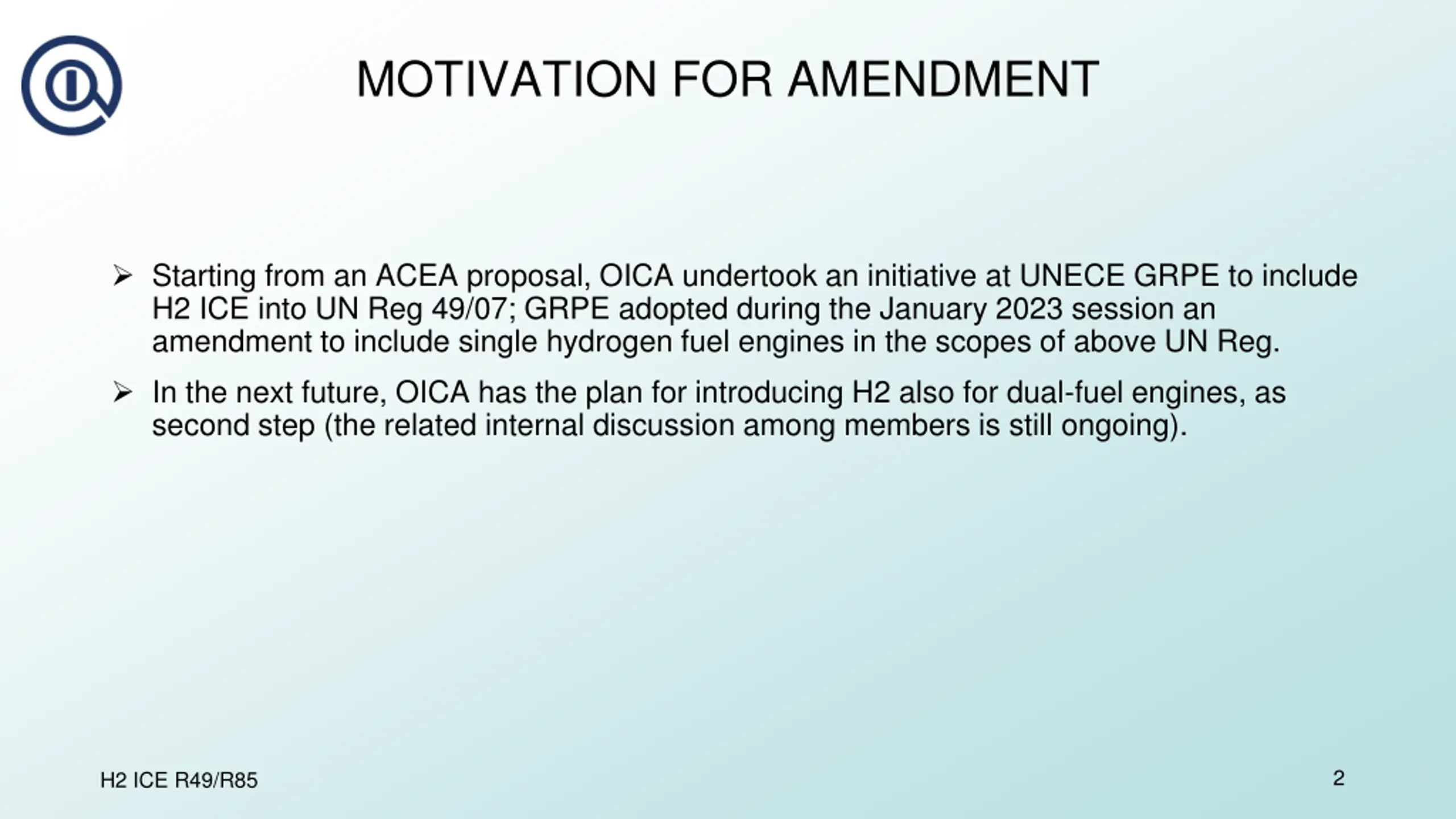

  2. MOTIVATION FOR AMENDMENT  Starting from an ACEA proposal, OICA undertook an initiative at UNECE GRPE to include H2 ICE into UN Reg 49/07; GRPE adopted during the January 2023 session an amendment to include single hydrogen fuel engines in the scopes of above UN Reg.  In the next future, OICA has the plan for introducing H2 also for dual-fuel engines, as second step (the related internal discussion among members is still ongoing). 2 H2 ICE R49/R85

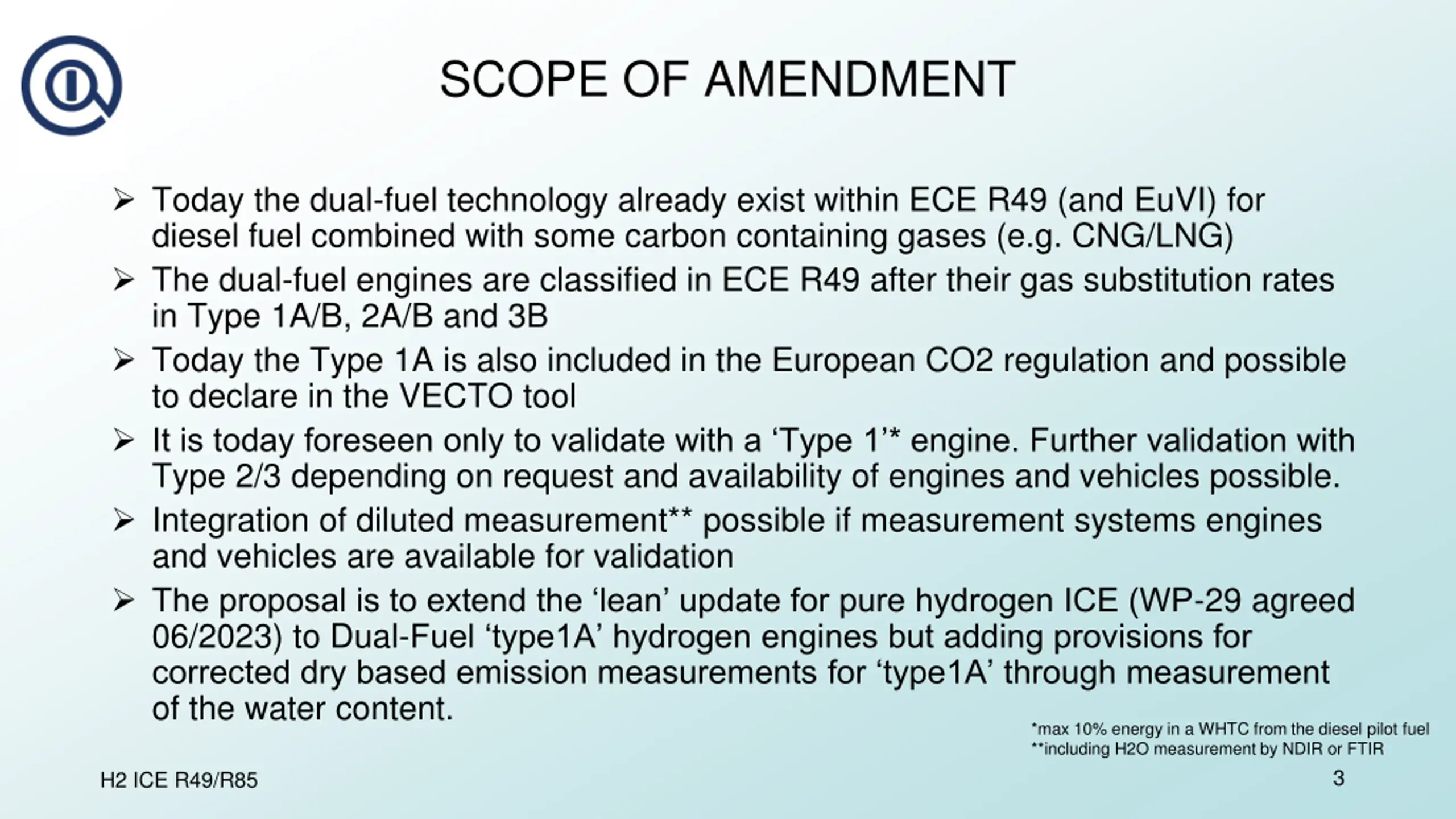

  3. SCOPE OF AMENDMENT  Today the dual-fuel technology already exist within ECE R49 (and EuVI) for diesel fuel combined with some carbon containing gases (e.g. CNG/LNG)  The dual-fuel engines are classified in ECE R49 after their gas substitution rates in Type 1A/B, 2A/B and 3B  Today the Type 1A is also included in the European CO2 regulation and possible to declare in the VECTO tool  It is today foreseen only to validate with a ‘Type 1’* engine. Further validation with Type 2/3 depending on request and availability of engines and vehicles possible.  Integration of diluted measurement** possible if measurement systems engines and vehicles are available for validation  The proposal is to extend the ‘lean’ update for pure hydrogen ICE (WP-29 agreed 06/2023) to Dual-Fuel ‘type1A’ hydrogen engines but adding provisions for corrected dry based emission measurements for ‘type1A’ through measurement of the water content. *max 10% energy in a WHTC from the diesel pilot fuel **including H2O measurement by NDIR or FTIR 3 H2 ICE R49/R85

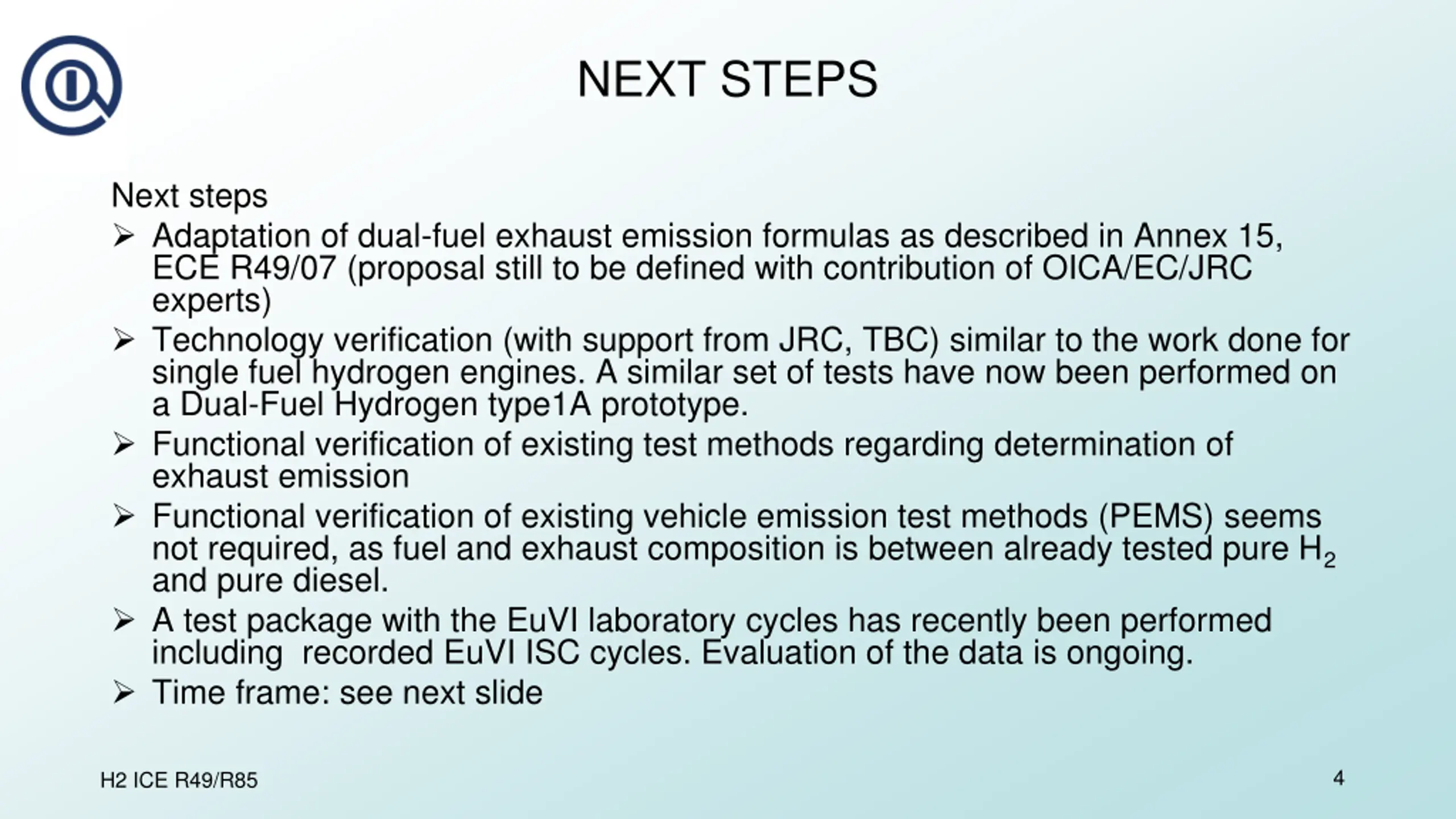

  4. NEXT STEPS Next steps  Adaptation of dual-fuel exhaust emission formulas as described in Annex 15, ECE R49/07 (proposal still to be defined with contribution of OICA/EC/JRC experts)  Technology verification (with support from JRC, TBC) similar to the work done for single fuel hydrogen engines. A similar set of tests have now been performed on a Dual-Fuel Hydrogen type1A prototype.  Functional verification of existing test methods regarding determination of exhaust emission  Functional verification of existing vehicle emission test methods (PEMS) seems not required, as fuel and exhaust composition is between already tested pure H2 and pure diesel.  A test package with the EuVI laboratory cycles has recently been performed including recorded EuVI ISC cycles. Evaluation of the data is ongoing.  Time frame: see next slide 4 H2 ICE R49/R85

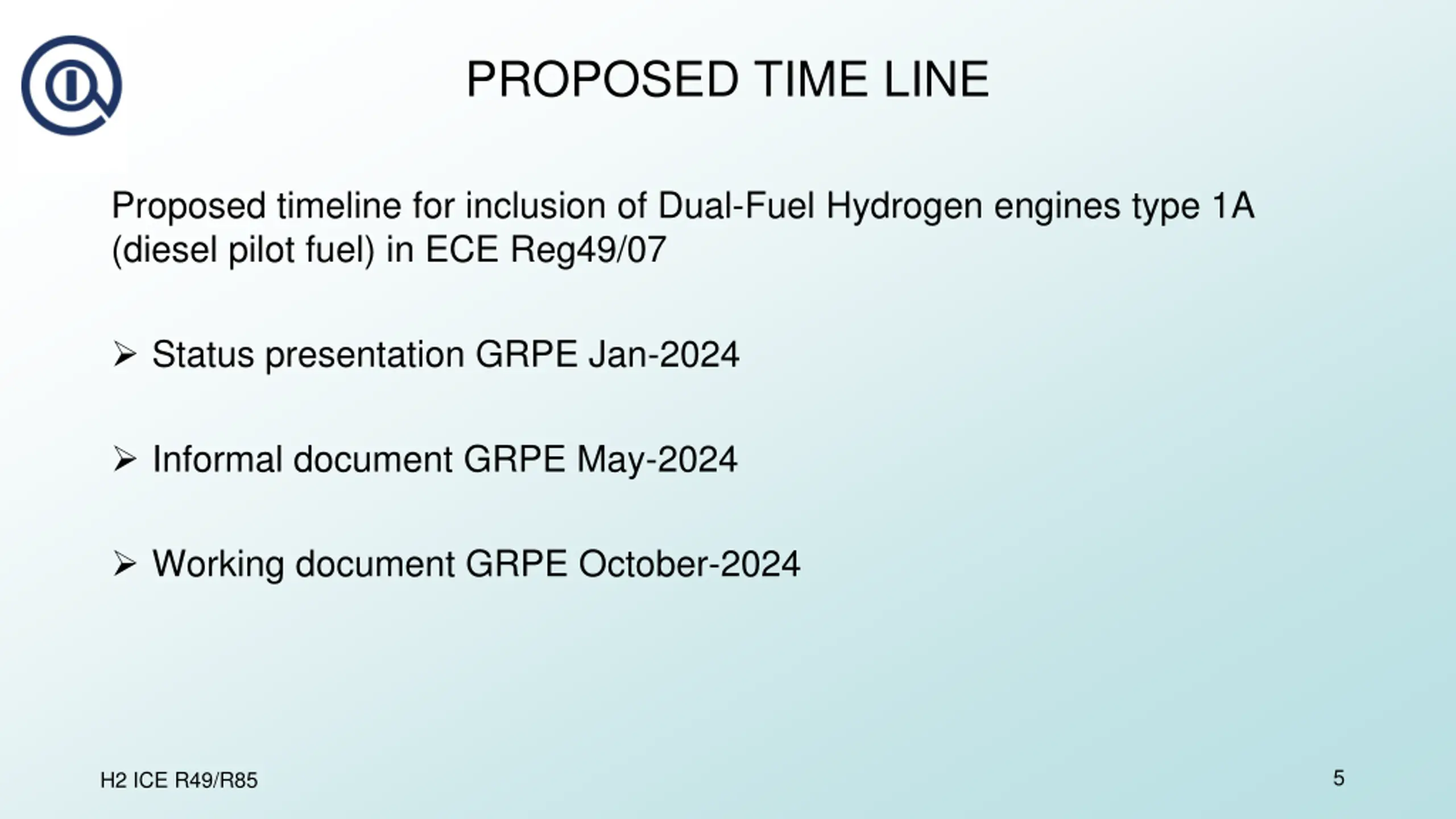

  5. PROPOSED TIME LINE Proposed timeline for inclusion of Dual-Fuel Hydrogen engines type 1A (diesel pilot fuel) in ECE Reg49/07  Status presentation GRPE Jan-2024  Informal document GRPE May-2024  Working document GRPE October-2024 5 H2 ICE R49/R85

  6. Thank you for your attention Are there any questions 6 H2 ICE R49/R85
