Engineering Solutions for Problem Sets 1-3
50 likes | 172 Vues
Calculate forces, work, power, and pressures for various exercises. Learn how to solve engineering problems step by step.
Télécharger la présentation
Engineering Solutions for Problem Sets 1-3
An Image/Link below is provided (as is) to download presentation
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.
E N D
Presentation Transcript

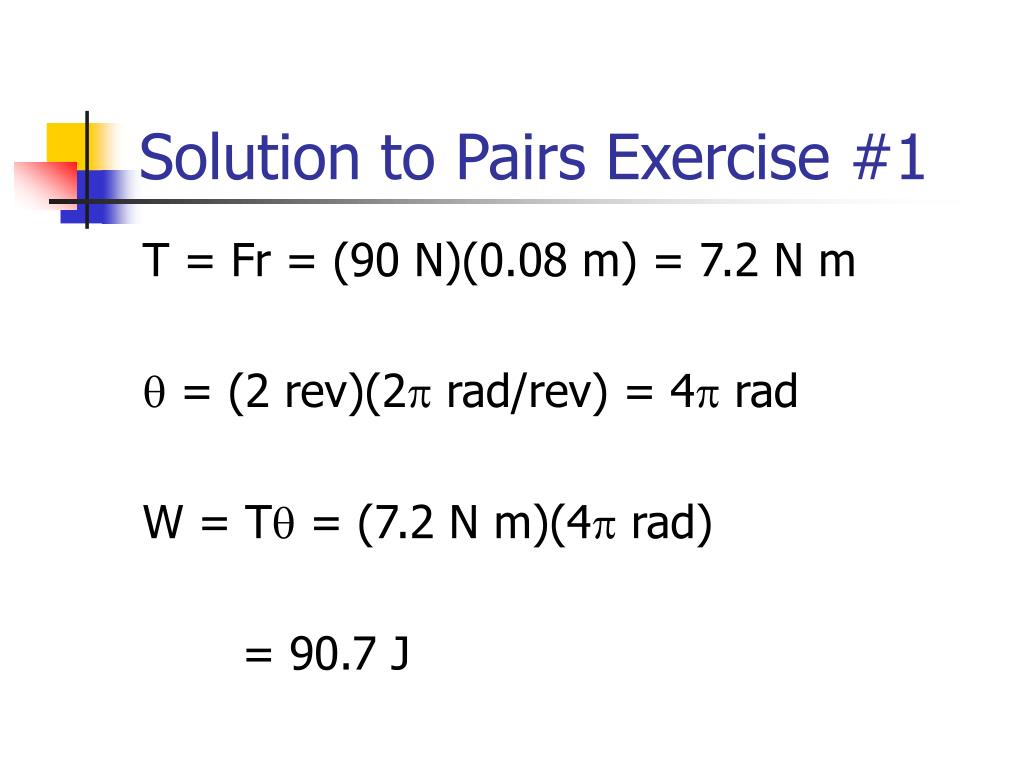

Solution to Pairs Exercise #1 T = Fr = (90 N)(0.08 m) = 7.2 N m q = (2 rev)(2p rad/rev) = 4p rad W = Tq = (7.2 N m)(4p rad) = 90.7 J

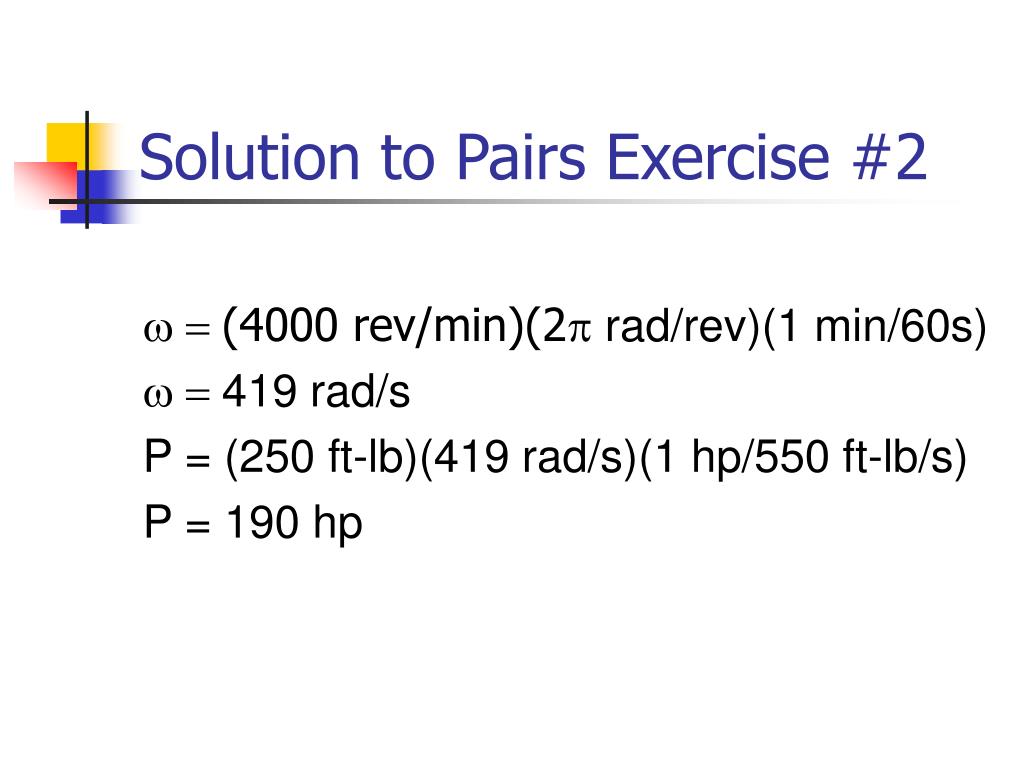

Solution to Pairs Exercise #2 w = (4000 rev/min)(2p rad/rev)(1 min/60s) w = 419 rad/s P = (250 ft-lb)(419 rad/s)(1 hp/550 ft-lb/s) P = 190 hp

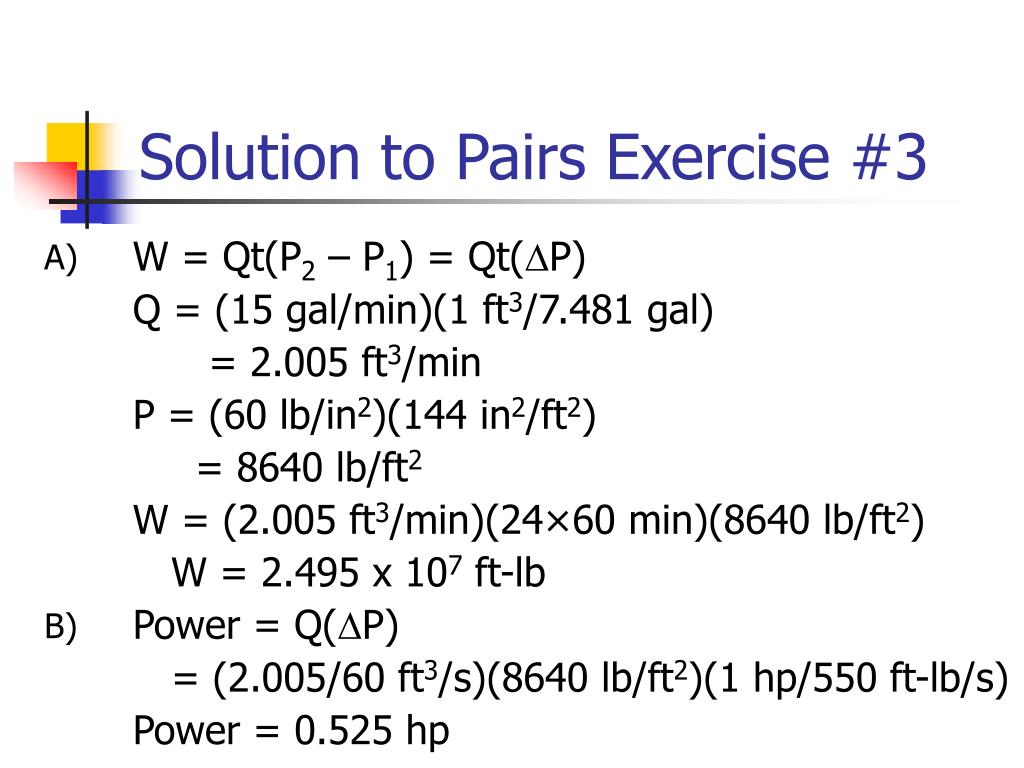

Solution to Pairs Exercise #3 W = Qt(P2 – P1) = Qt(DP) Q = (15 gal/min)(1 ft3/7.481 gal) = 2.005 ft3/min P = (60 lb/in2)(144 in2/ft2) = 8640 lb/ft2 W = (2.005 ft3/min)(24×60 min)(8640 lb/ft2) W = 2.495 x 107 ft-lb Power = Q(DP) = (2.005/60 ft3/s)(8640 lb/ft2)(1 hp/550 ft-lb/s) Power = 0.525 hp A) B)
