  1. CSE 636Data Integration Data Integration Approaches

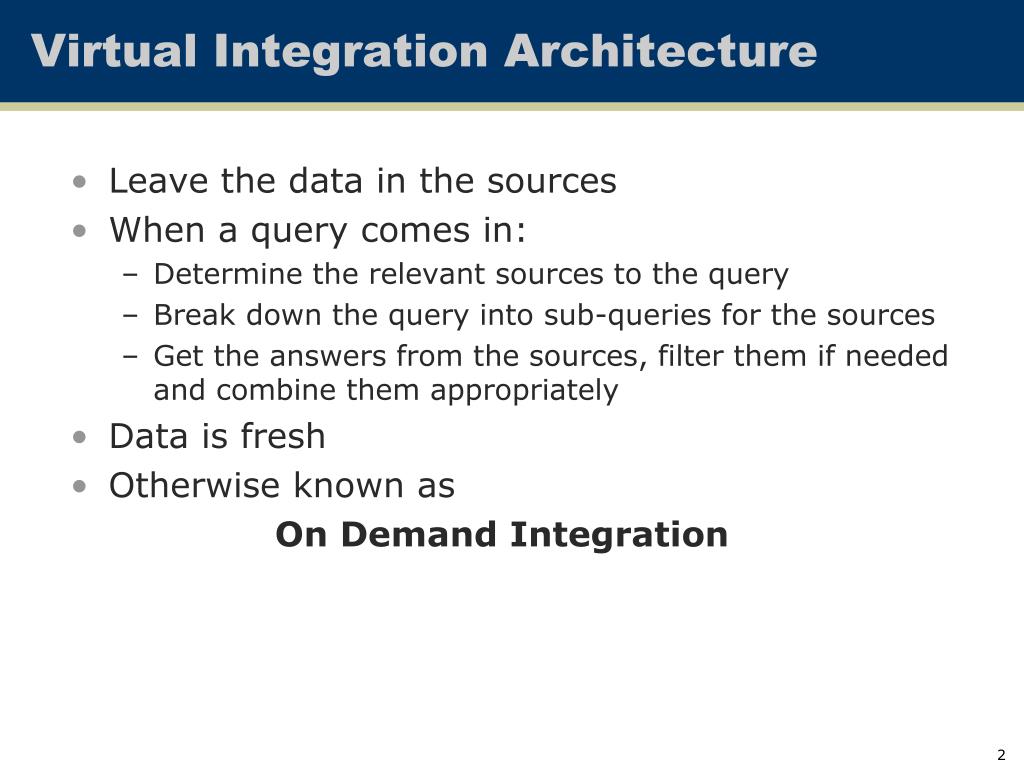

  2. Virtual Integration Architecture • Leave the data in the sources • When a query comes in: • Determine the relevant sources to the query • Break down the query into sub-queries for the sources • Get the answers from the sources, filter them if needed and combine them appropriately • Data is fresh • Otherwise known as On Demand Integration

  3. Virtual Integration Architecture Wrapper Wrapper Design-Time Run-Time  Mapping Tool Query Reformulation Query Result End User Mediation Language Optimization & Execution Mediator Global Schema Web Services XML 1 Data Source Data Source Local Schema Local Schema

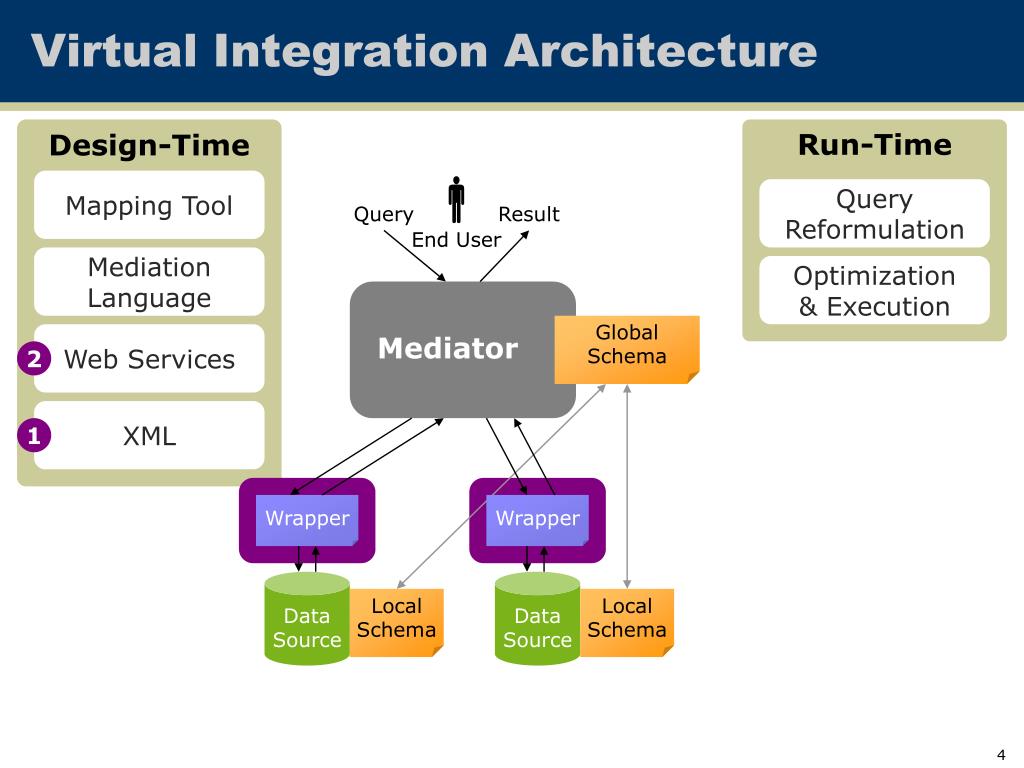

  4. Virtual Integration Architecture Wrapper Wrapper Design-Time Run-Time  Mapping Tool Query Reformulation Query Result End User Mediation Language Optimization & Execution Mediator Global Schema Web Services 2 XML 1 Data Source Data Source Local Schema Local Schema

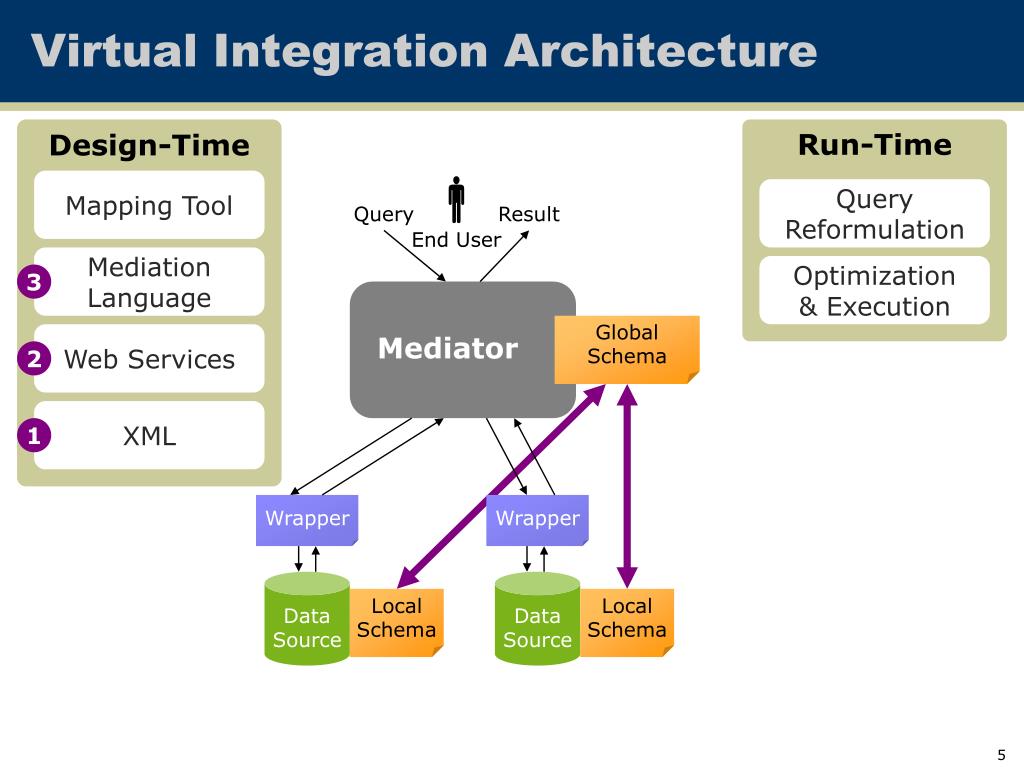

  5. Virtual Integration Architecture Wrapper Wrapper Design-Time Run-Time  Mapping Tool Query Reformulation Query Result End User Mediation Language Optimization & Execution 3 Mediator Global Schema Web Services 2 XML 1 Data Source Data Source Local Schema Local Schema

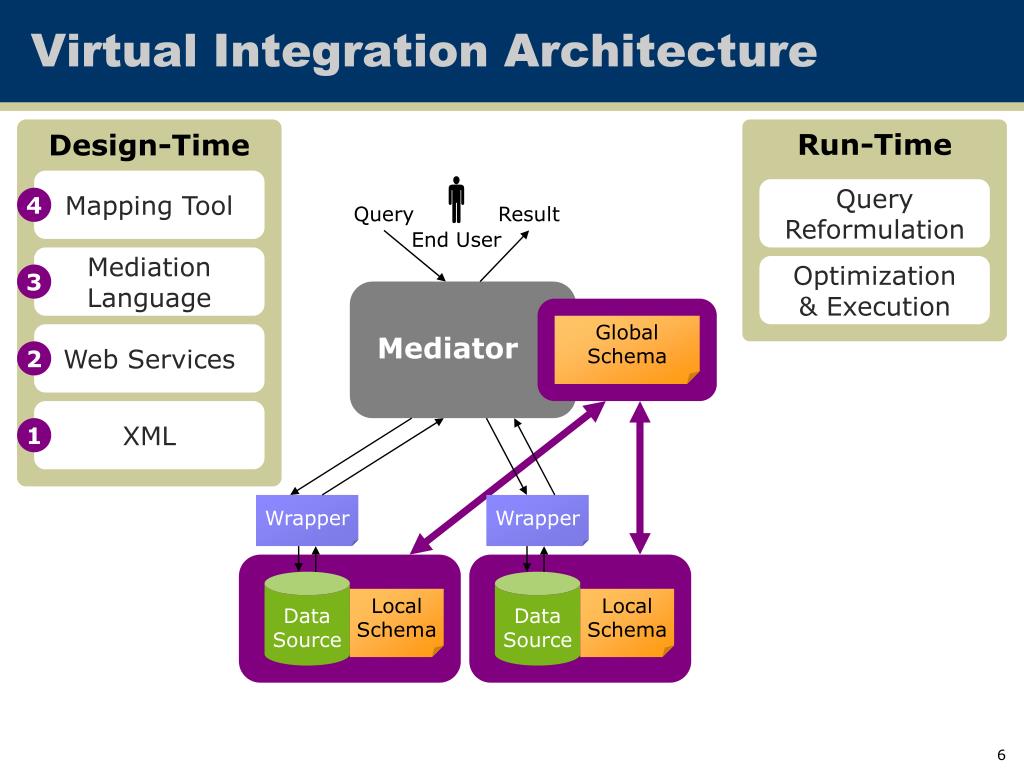

  6. Virtual Integration Architecture Wrapper Wrapper Design-Time Run-Time  Mapping Tool Query Reformulation 4 Query Result End User Mediation Language Optimization & Execution 3 Mediator Global Schema Web Services 2 XML 1 Data Source Data Source Local Schema Local Schema

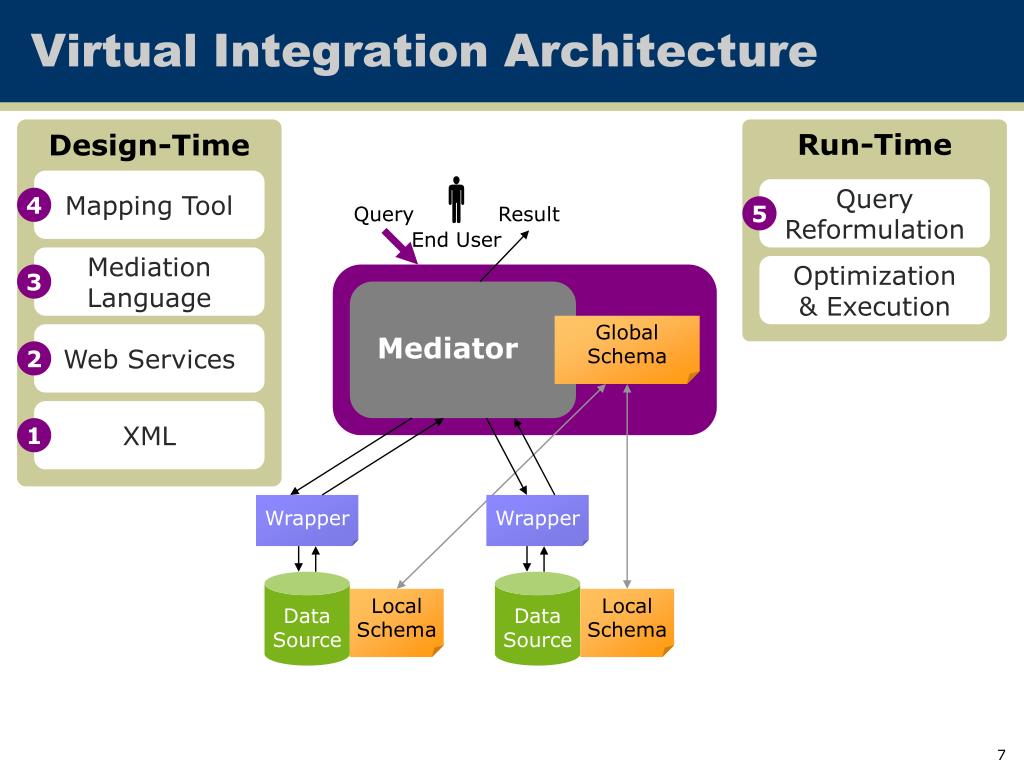

  7. Virtual Integration Architecture Wrapper Wrapper Design-Time Run-Time  Mapping Tool Query Reformulation 4 Query Result 5 End User Mediation Language Optimization & Execution 3 Mediator Global Schema Web Services 2 XML 1 Data Source Data Source Local Schema Local Schema

  8. Virtual Integration Architecture Design-Time Run-Time  Mapping Tool Query Reformulation 4 Query Result 5 End User Mediation Language Optimization & Execution 3 6 Mediator Global Schema Web Services 2 XML 1 Wrapper Wrapper Data Source Data Source Local Schema Local Schema

  9. Virtual Integration Approaches Dimensions to Consider: • How many sources are we accessing? • How autonomous are they? • Meta-data about sources? • Is the data structured? • Queries or also updates? • Requirements: accuracy, completeness, performance, handling inconsistencies. • Closed world assumption vs. open world?

  10. Mediation Languages Global Schema CD ASIN Title Genre … Artist ASIN Name … Logic CDs Album ASIN Price DiscountPrice Studio Books Title ISBN Price DiscountPrice Edition Authors ISBN FirstName LastName Artists ASIN ArtistName GroupName CDCategories ASIN Category BookCategories ISBN Category

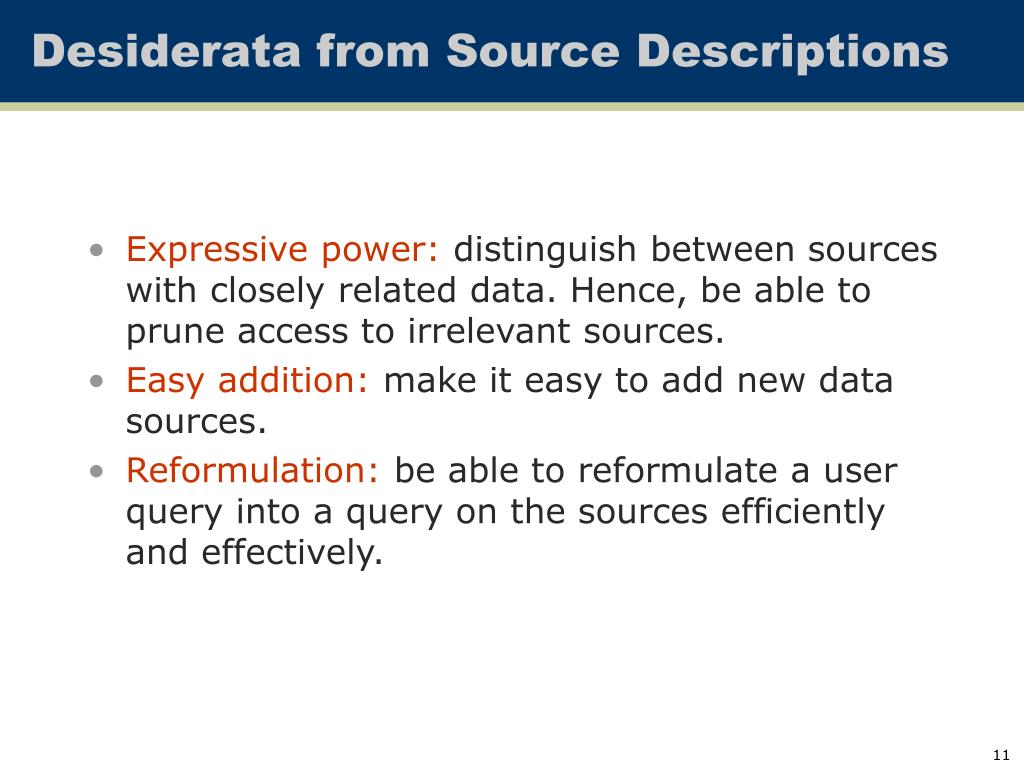

  11. Desiderata from Source Descriptions • Expressive power: distinguish between sources with closely related data. Hence, be able to prune access to irrelevant sources. • Easy addition: make it easy to add new data sources. • Reformulation: be able to reformulate a user query into a query on the sources efficiently and effectively.

  12. Reformulation Problem • Given: • A query Q posed over the global schema • Descriptions of the data sources • Find: • A query Q’ over the data source relations, such that: • Q’ provides only correct answers to Q, and • Q’ provides all possible answers from to Q given the sources.

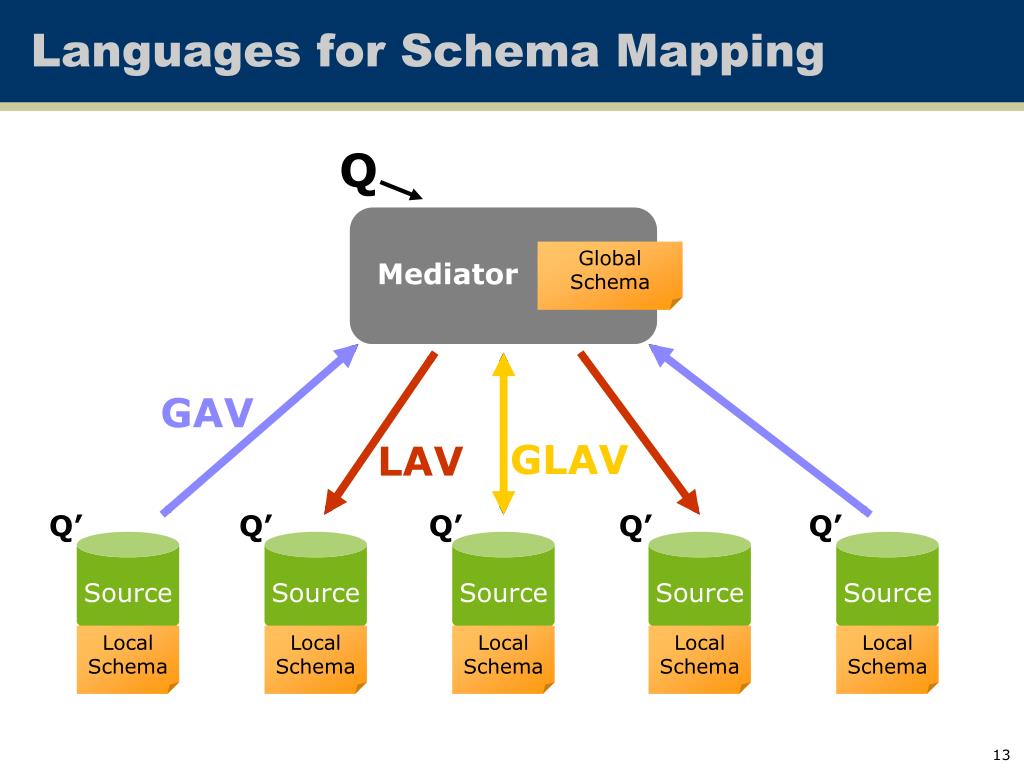

  13. Languages for Schema Mapping Q Q’ Q’ Q’ Q’ Q’ Mediator Global Schema Mediated Schema GAV GLAV LAV Source Source Source Source Source Local Schema Local Schema Local Schema Local Schema Local Schema

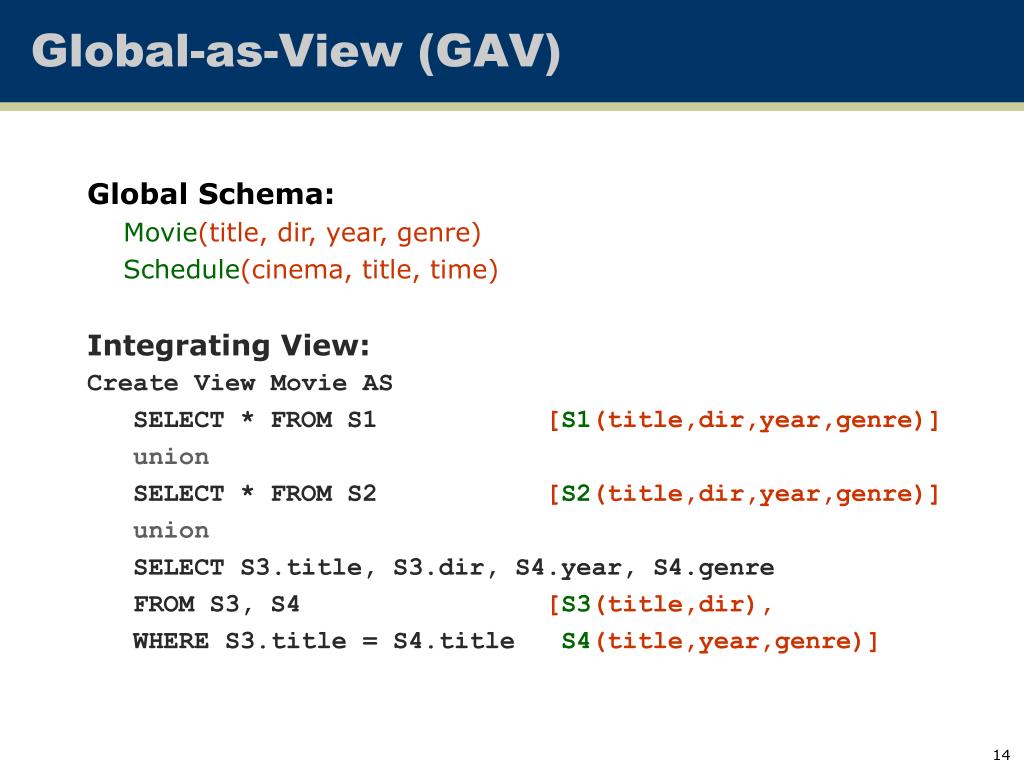

  14. Global-as-View (GAV) Global Schema: Movie(title, dir, year, genre) Schedule(cinema, title, time) Integrating View: Create View Movie AS SELECT * FROM S1 [S1(title,dir,year,genre)] union SELECT * FROM S2 [S2(title,dir,year,genre)] union SELECT S3.title, S3.dir, S4.year, S4.genre FROM S3, S4 [S3(title,dir), WHERE S3.title = S4.title S4(title,year,genre)]

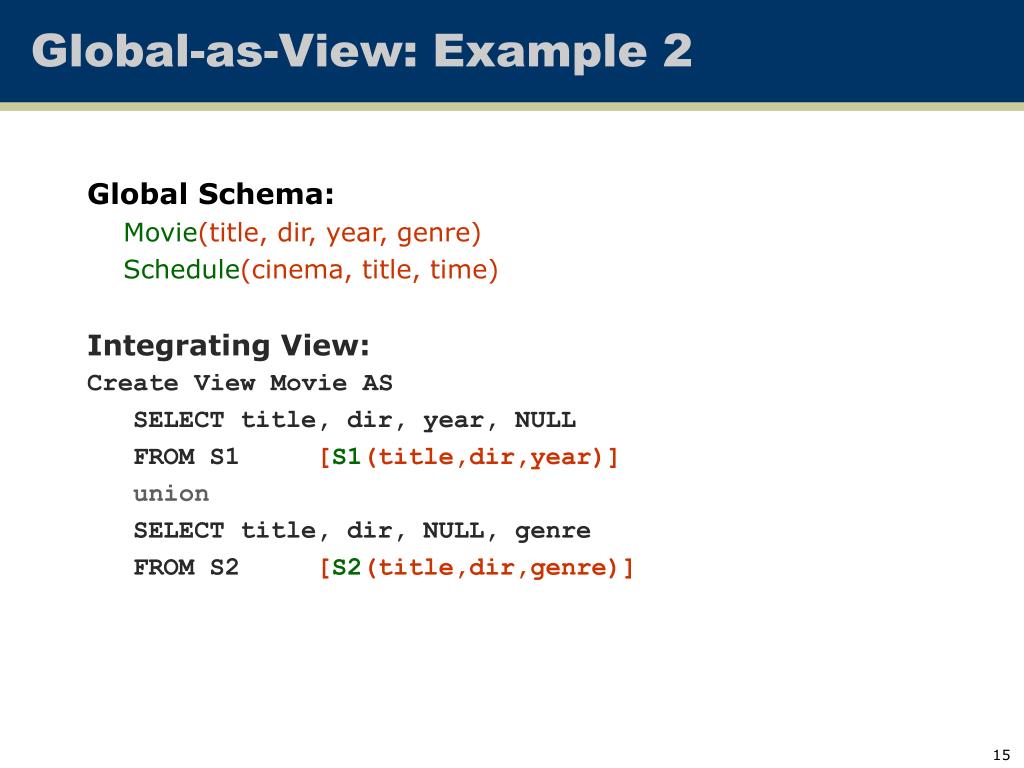

  15. Global-as-View: Example 2 Global Schema: Movie(title, dir, year, genre) Schedule(cinema, title, time) Integrating View: Create View Movie AS SELECT title, dir, year, NULL FROM S1 [S1(title,dir,year)] union SELECT title, dir, NULL, genre FROM S2 [S2(title,dir,genre)]

  16. Global-as-View: Example 3 Global Schema: Movie(title, dir, year, genre) Schedule(cinema, title, time) Integrating Views: Create View Movie AS SELECT NULL, NULL, NULL, genre FROM S4 [S4(cinema, genre)] Create View Schedule AS SELECT cinema, NULL, NULL FROM S4 [S4(cinema, genre)] But what if we want to find which cinemas are playing comedies?

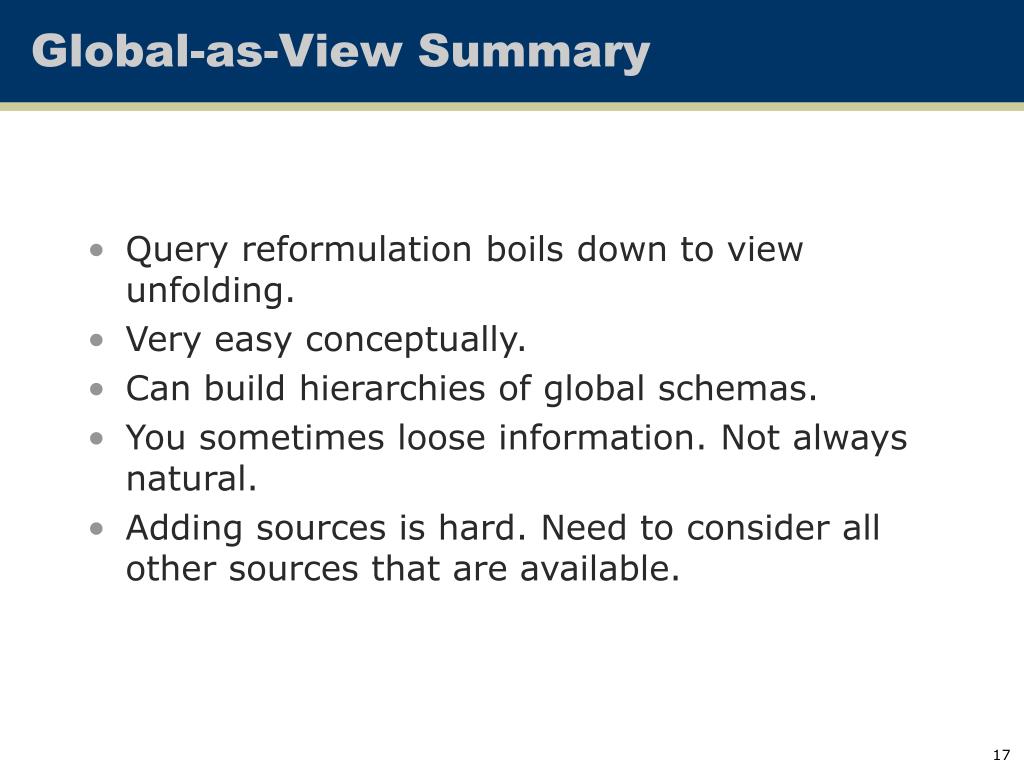

  17. Global-as-View Summary • Query reformulation boils down to view unfolding. • Very easy conceptually. • Can build hierarchies of global schemas. • You sometimes loose information. Not always natural. • Adding sources is hard. Need to consider all other sources that are available.

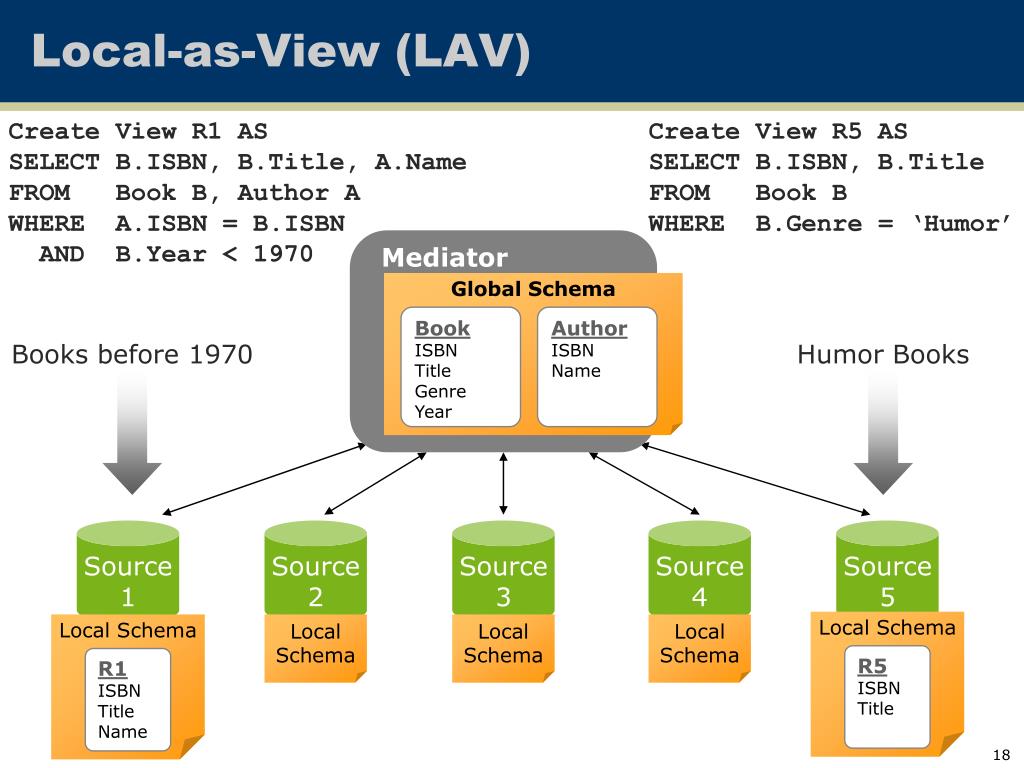

  18. Local-as-View (LAV) Create View R1 AS SELECT B.ISBN, B.Title, A.Name FROM Book B, Author A WHERE A.ISBN = B.ISBN AND B.Year < 1970 Create View R5 AS SELECT B.ISBN, B.Title FROM Book B WHERE B.Genre = ‘Humor’ Mediator Global Schema Book ISBN Title Genre Year Author ISBN Name Books before 1970 Humor Books Mediated Schema Source 1 Source 2 Source 3 Source 4 Source 5 Local Schema Local Schema Local Schema Local Schema Local Schema R5 ISBN Title R1 ISBN Title Name

  19. Query Reformulation Query: Find authors of humor books Plan: R1 Join R5 Mediator Global Schema Book ISBN Title Genre Year Author ISBN Name Books before 1970 Humor Books Mediated Schema Source 1 Source 2 Source 3 Source 4 Source 5 Local Schema Local Schema Local Schema Local Schema Local Schema R5 ISBN Title R1 ISBN Title Name

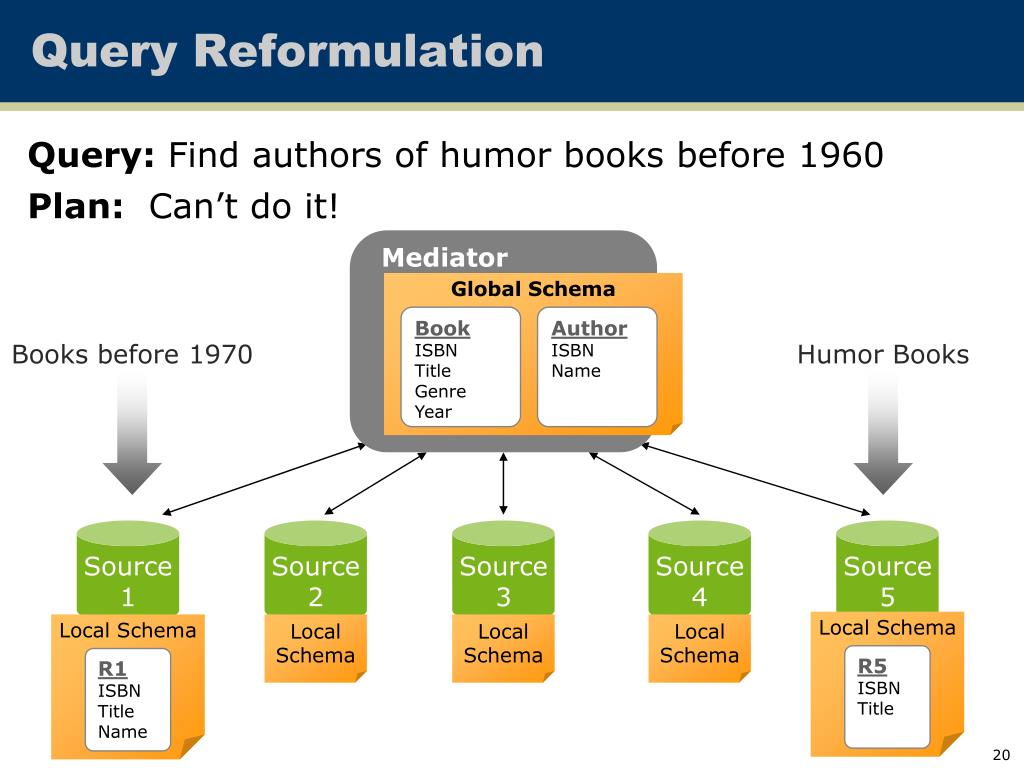

  20. Query Reformulation Query: Find authors of humor books before 1960 Plan: Can’t do it! Mediator Global Schema Book ISBN Title Genre Year Author ISBN Name Books before 1970 Humor Books Mediated Schema Source 1 Source 2 Source 3 Source 4 Source 5 Local Schema Local Schema Local Schema Local Schema Local Schema R5 ISBN Title R1 ISBN Title Name

  21. Local-as-View: Example 1 Global Schema: Movie(title, dir, year, genre) Schedule(cinema, title, time) Source Views: Create Source S1 AS [S1(title, dir, year, genre)] SELECT * FROM Movie Create Source S3 AS [S3(title, dir)] SELECT title, dir FROM Movie Create Source S5 AS [S5(title, dir, year)] SELECT title, dir, year FROM Movie WHERE year > 1960 AND genre=‘Comedy’

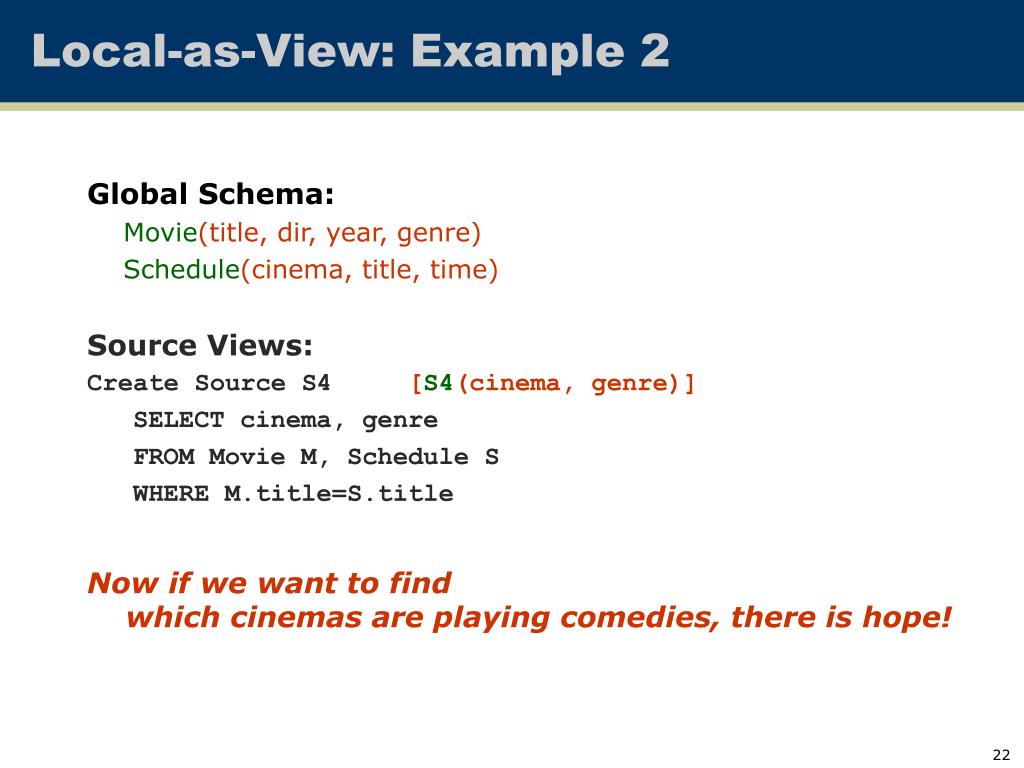

  22. Local-as-View: Example 2 Global Schema: Movie(title, dir, year, genre) Schedule(cinema, title, time) Source Views: Create Source S4 [S4(cinema, genre)] SELECT cinema, genre FROM Movie M, Schedule S WHERE M.title=S.title Now if we want to find which cinemas are playing comedies, there is hope!

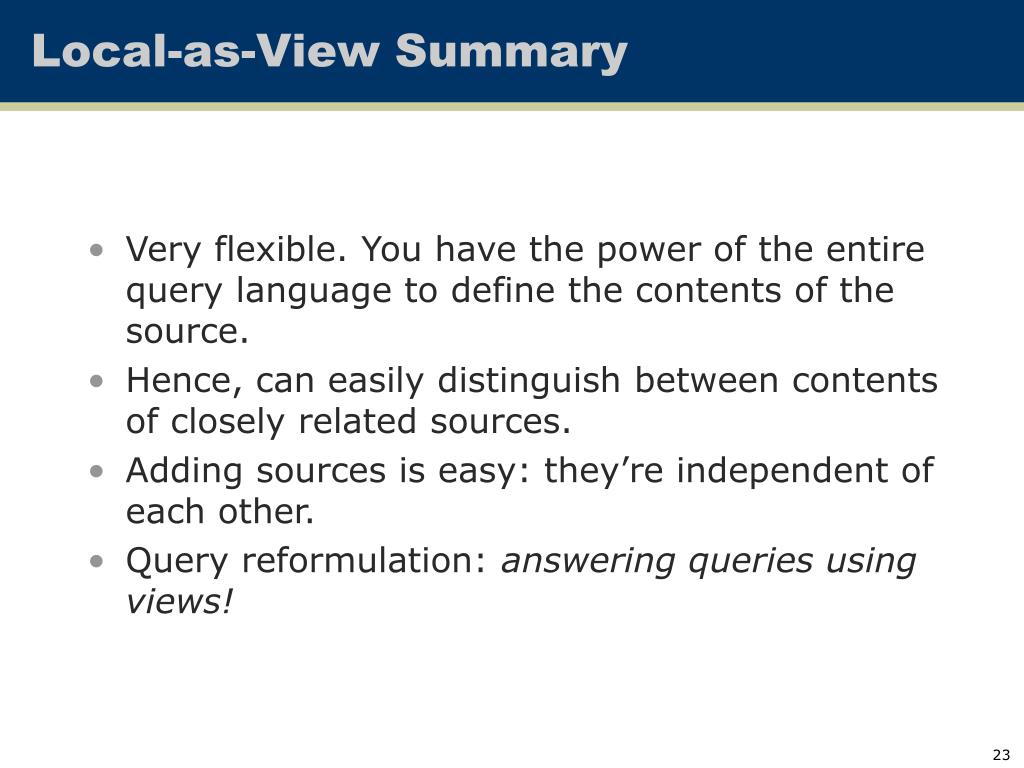

  23. Local-as-View Summary • Very flexible. You have the power of the entire query language to define the contents of the source. • Hence, can easily distinguish between contents of closely related sources. • Adding sources is easy: they’re independent of each other. • Query reformulation: answering queries using views!

  24. The General Problem • Given a set of views V1,…,Vn, and a query Q, can we answer Q using only the answers to V1,…,Vn? • Many, many papers on this problem • The best performing algorithm: The MiniCon Algorithm (Pottinger & Halevy, VLDB 2000)

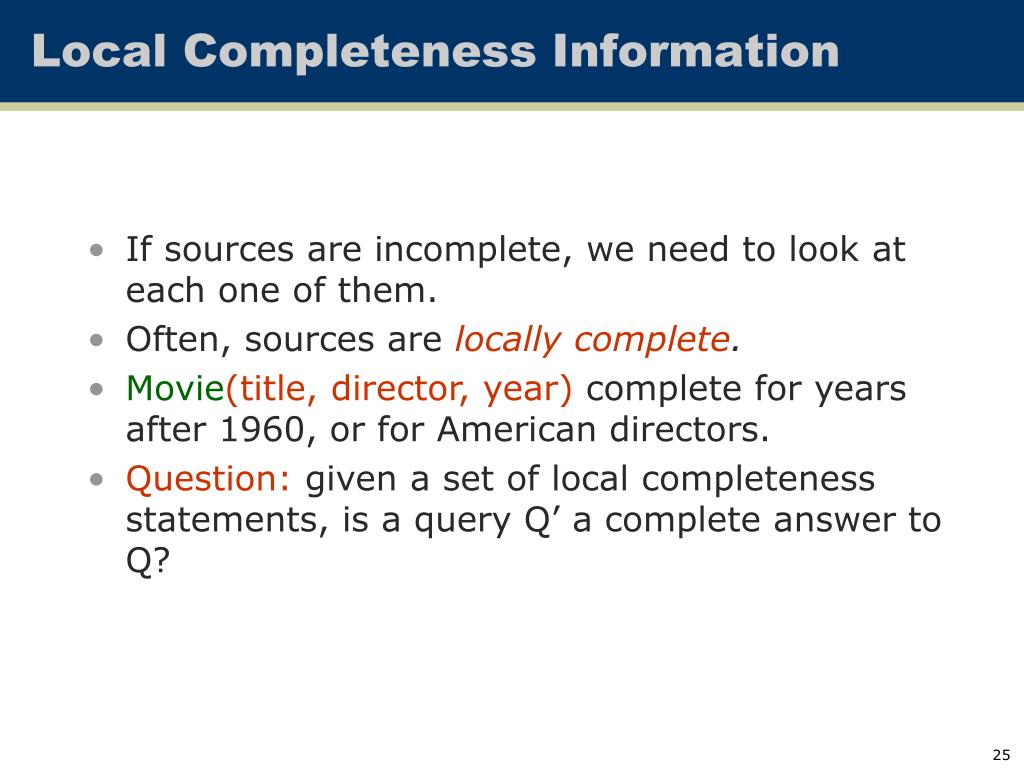

  25. Local Completeness Information • If sources are incomplete, we need to look at each one of them. • Often, sources are locally complete. • Movie(title, director, year) complete for years after 1960, or for American directors. • Question: given a set of local completeness statements, is a query Q’ a complete answer to Q?

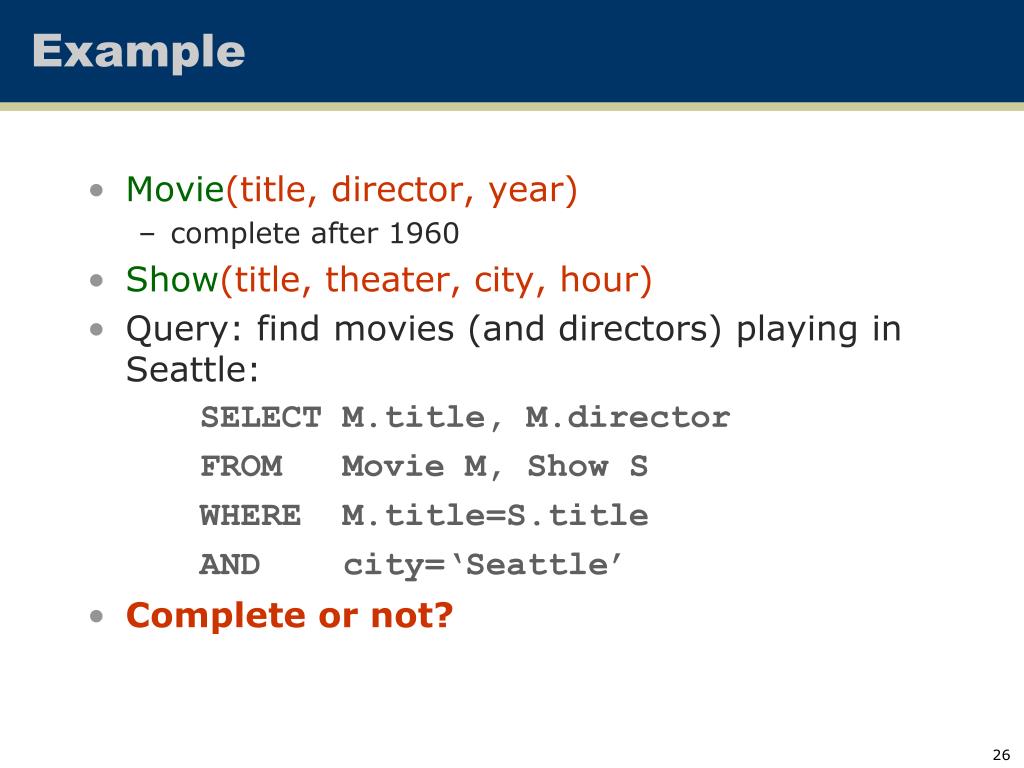

  26. Example • Movie(title, director, year) • complete after 1960 • Show(title, theater, city, hour) • Query: find movies (and directors) playing in Seattle: SELECT M.title, M.director FROM Movie M, Show S WHERE M.title=S.title AND city=‘Seattle’ • Complete or not?

  27. Example #2 • Movie(title, director, year), Oscar(title, year) • Query: find directors whose movies won Oscars after 1965: SELECT M.director FROM Movie M, Oscar O WHERE M.title=O.title AND M.year=O.year AND O.year > 1965 • Complete or not?

  28. References • Information integration • Maurizio Lenzerini • Eighteenth International Joint Conference on Artificial Intelligence, IJCAI 2003 • Invited Tutorial • Data Integration: a Status Report • Alon Halevy • German Database Conference (BTW), 2003 • Invited Talk
