  1. DU Wireless Networking Security Update Chad D. Burnham & Byron D. Early University Technology Services CCHE CIO Council Forum on Cybersecurity 3-12-03

  2. Wireless Acceptable Use Policy: • Institutional Support Needed from “Top Level” • Do you have a Wireless-AUP in place? • DU Wireless-AUP Link • Issues: • Security & Privacy • Authorization • Hardware & Installation • “Rouge” Access Points • User Support

  3. Securing Wireless Today: • Securing WLANs today: • Virtual Private Networks (VPNs) • 802.1X based authentication with WEP encryption (dynamic WEP) • WEP is still a good deterrent for “casual” snoopers • “Wi-Fi Protected Access” (WPA) will replace WEP as standard Wi-Fi security

  4. Security & Access…@ Which OSI Layer? • DU: Not Using Layer-2 WEP/WEP2 Key encryption • WEP2 (802.11i) not yet ratified • DU: Using VPN Layer-3 solution • Encryption & AAA

  5. DU Physical Network Topology: • DU Data Backbone • Wireless is several Internal VLANs / Subnets • DU: Cisco 3030 VPN “appliance” in each VTP “Core” Domain • (Cisco 6500s: VPN-blade now available)

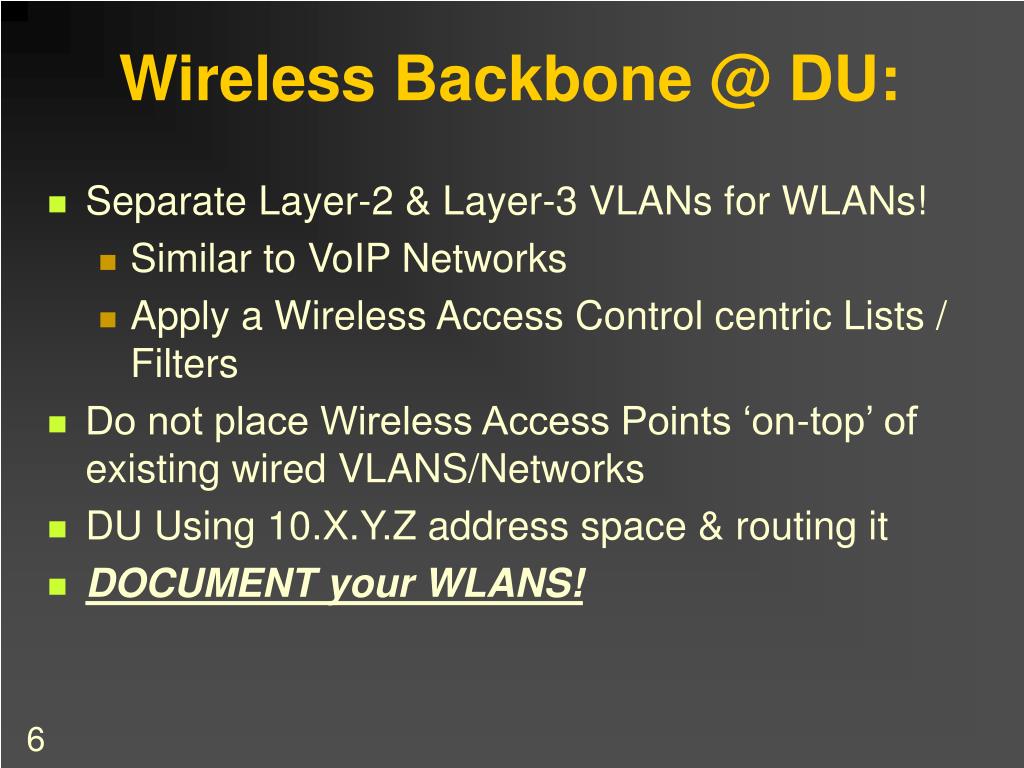

  6. Wireless Backbone @ DU: • Separate Layer-2 & Layer-3 VLANs for WLANs! • Similar to VoIP Networks • Apply a Wireless Access Control centric Lists / Filters • Do not place Wireless Access Points ‘on-top’ of existing wired VLANS/Networks • DU Using 10.X.Y.Z address space & routing it • DOCUMENT your WLANS!

  7. DU Encryption & Access - VPNs: • DU using Cisco 3030s for VPNs (IPSEC-3DES – 168Bit) • Authentication & Authorization: VPN Client software leverages DU’s ERP Directory: “Banner” database for AA functionality • RADIUS: Radiator on Solaris 8 fed by Banner (nightly) • Handles ACCOUNTING • DU “Branded” the Cisco VPN Client Software: • DU Logo, & configured .pcf file (similar to .ini) • DU Supports: WIN 2K & XP (98/ME/NT4 work). • OSs: Not yet branded (beta configured): • MAC OS 10.2, Solaris, Linux • Pocket PC: Movian Admit One software client – BETA Trial

  8. “Locking Down” Wireless LANs w/ ACLs – Key to Security: • Complex Router Access Control List Objectives: • # Allow IPsec to VPN Concentrators • # Allows MSFCs to see each other for HSRP • # Allow bootp on broadcast • # Allow bootp from DHCP clients • # Allow DNS to iVPN DNS server • # Allow download of client • # Allow MGMT station to ping router and AP's • # Allow these systems to be pinged • # Allow management station to snmp from APs • # Deny all else

  9. “Rogue” Access Points: • “Rogue” Access Points are not permitted • Department, Student & Contractor Incidents • Log incidents @ DU Network Security Office • Student Apple Airport DHCP Incident(s) • Ticketmaster & Bookstore Contractors (so far) • Performance Issues: • Speed/Duplex • RF Signal/Channel Overlay Issues • Use AUP as Leverage for Enforcement • Student Judicial Department • Dean’s Council

  10. Locating “Rouge” APs RF Analyzers / Tools:OSI Layer 1/2 : • Grasshopper & Yellowjacket Plus • OSI Layer 2/3: • Air Magnet–Handheld–iPAQ /Laptop - ~$3,600 • Fluke:Handheld-iPAQ(Linux)–WaveRunner ~$4K • Fluke:Tablet Add-on – OptiView Integrated Network Analyzer - $30k • Sniffer Wireless for PDA – 1 Year Software License

  11. Standards Watch: • DU: Standards-based solution

  12. 802.11: Security & Access(OSI Layers 1 & 2) • ESS (Network) ID: Text Constant Variable • DU: Using Single Standardized Name • Users can’t be expected to know multiple wireless names for different locations • Not a Valid Security Approach! • Common Name Signifies a “Supported Network” • MAC Address Registration (on APs) • Cumbersome & high management overhead • Must re-enter if card is swapped out • DU tried on 3 networks…...it’s over

  13. 802.11i - Layer 2 Encryption: • Enhanced WEP (a.k.a. WEP2) • Applies to 802.11a, 802.11b, 802.11g • New encryption & authentication methods • Temporal Key Integrity Protocol (TKIP) • AES (an iterated block cipher) and TKIP backwards compatibility - replaces RC4. • Best “on-track” approach to the wireless threats/model. • Ratification expected Q1 2003

  14. 802.1X - EAP VariantsLayer-2Authentication • EAP-TTLS • IETF draft jointly authored by Funk Software and Certicom, and is a working document of the PPP Extensions group. EAP-TTLS provides strong security, while supporting legacy password protocols, enabling easy deployment across the enterprise. • EAP-TLS • Follow-on to Secure Socket Layer (SSL). It provides strong security, but relies on client certificates for user authentication. • EAP-MD5 • Essentially duplicates CHAP password protection on a WLAN. EAP-MD5 represents a kind of base-level EAP support among 802.1x devices. • LEAP, PEAP, Etc • Vendor pushing ahead of standards efforts (de facto attempts) AKA “Cisco-Compatible” • Good Presentation @ 2003 WestNet by Dave Packham on problems with today’s 802.1X methods: • http://www.scd.ucar.edu/nets/projects/Westnet/prev-mtg/0103.meeting/presentations.0103/802.1x.ppt

  15. Introducing WPA • Wi-Fi Protected Access (WPA) is a proactive response by the industry to offer an immediate and strong security solution • Standards-based, interoperable security specification – N.I.S.T. Supported • Significantly increases the level of data protection and access control for existing and future wireless LAN systems • WPA is a subset of the 802.11i draft standard and will maintain forward compatibility

  16. WPA – When? • When properly installed, Wi-Fi Protected Access will provide • Strong over-the-air data protection • Strong network access control • The Wi-Fi Alliance expects formal certification of WPA to begin in first quarter of 2003 • Look for WPA software upgrades to start to appear in the next several months

  17. Other Good Articles & Links: • http://standards.ieee.org/ • http://www.wi-fi.com/ • http://www.80211-planet.com • http://csrc.nist.gov/wireless/S09_WPA%20Analyst%20Briefing%2005-part1-ff.pdf • This Presentation: • http://netserv.du.edu/data/presentations.asp
