  1. Aug 26, 2003 PPPL:CAD Development of Modular CoilsPhase 4

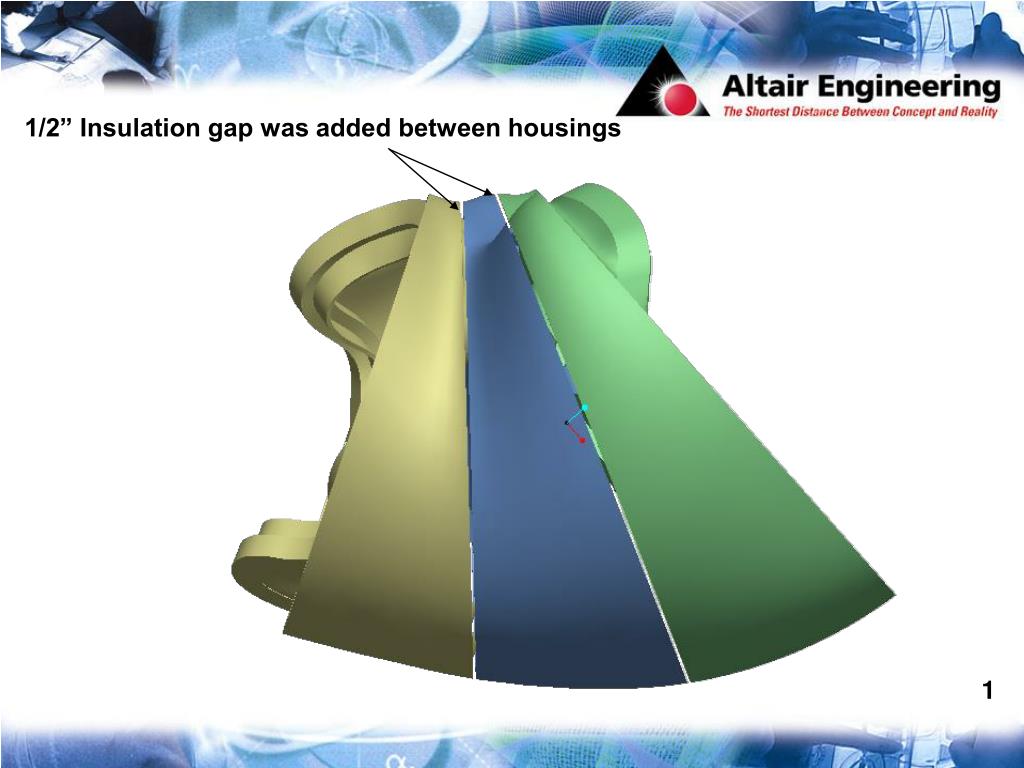

  2. 1/2” Insulation gap was added between housings 1

  3. 20 Degree segment view 2

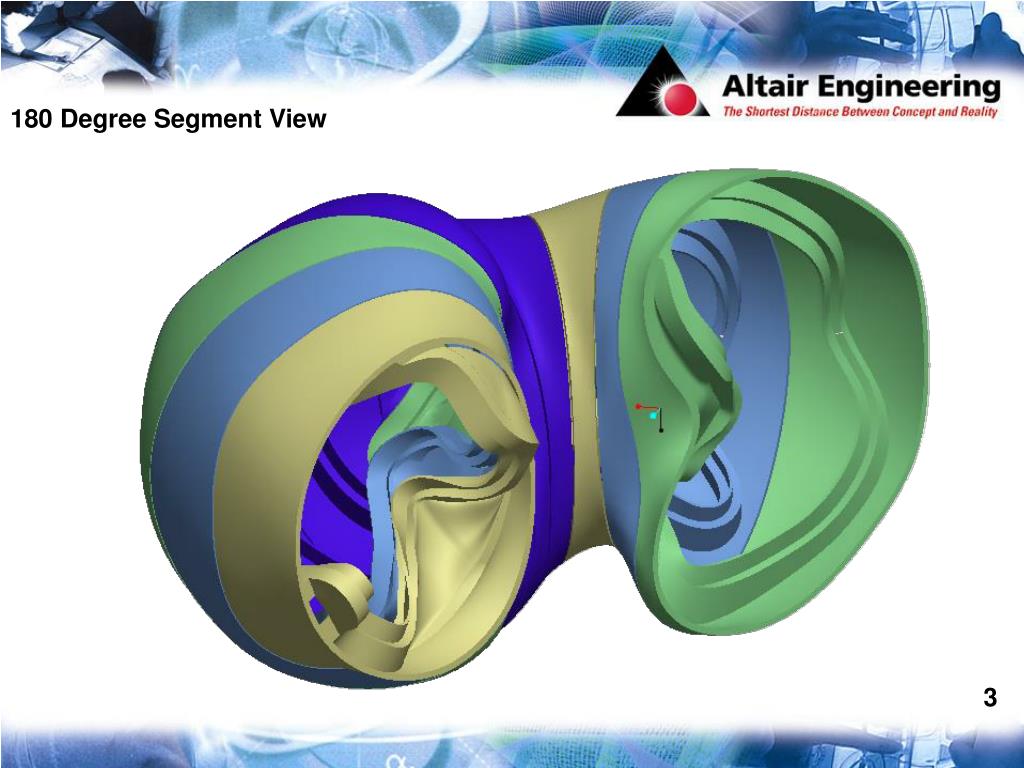

  4. 180 Degree Segment View 3

  5. Step-Up for connecting surfaces Coil-Housing surfaces need to be brought inward too aid in clearing the adjacent housing 4

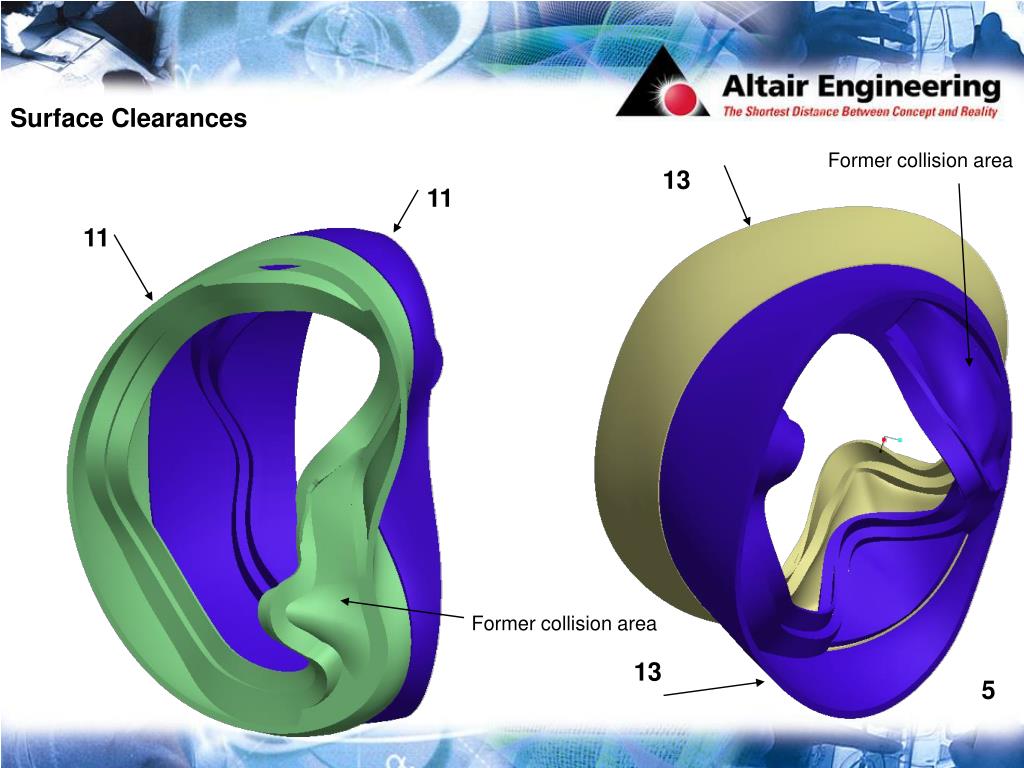

  6. Surface Clearances Former collision area 13 11 11 Former collision area 13 5

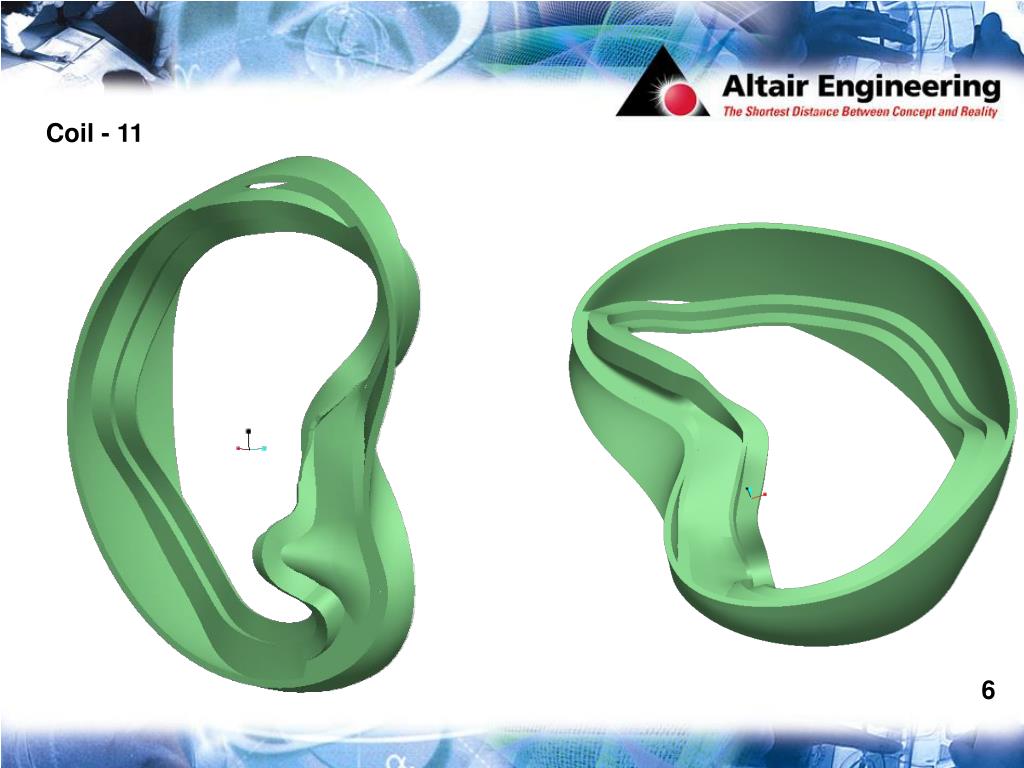

  7. Coil - 11 6

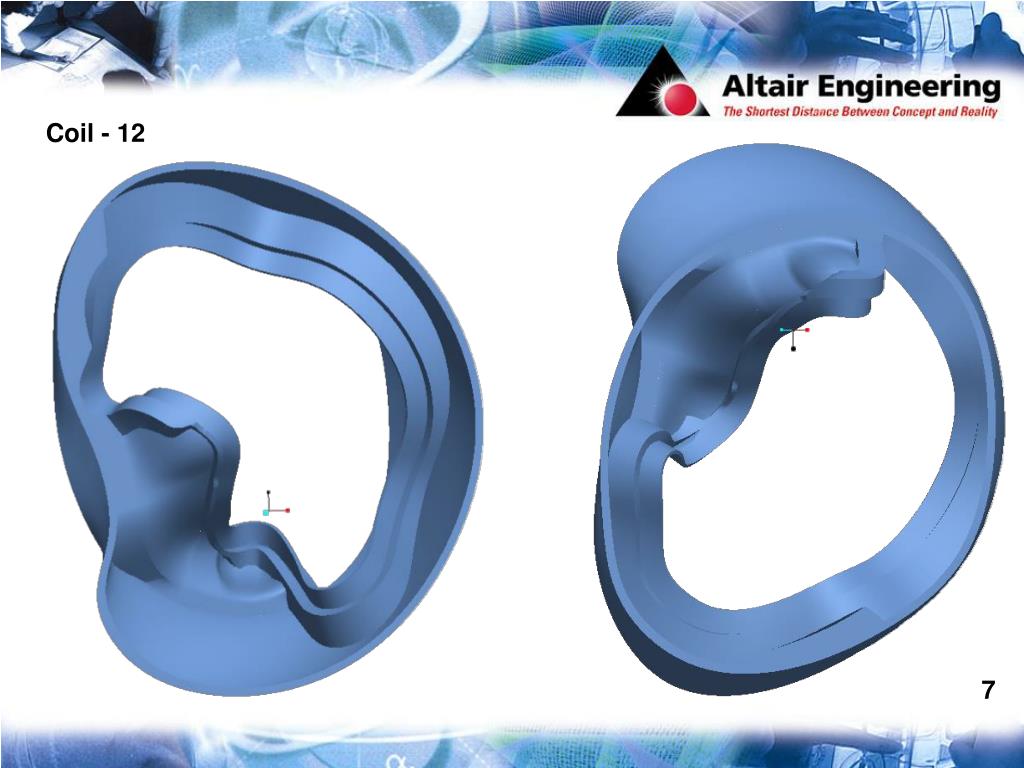

  8. Coil - 12 7

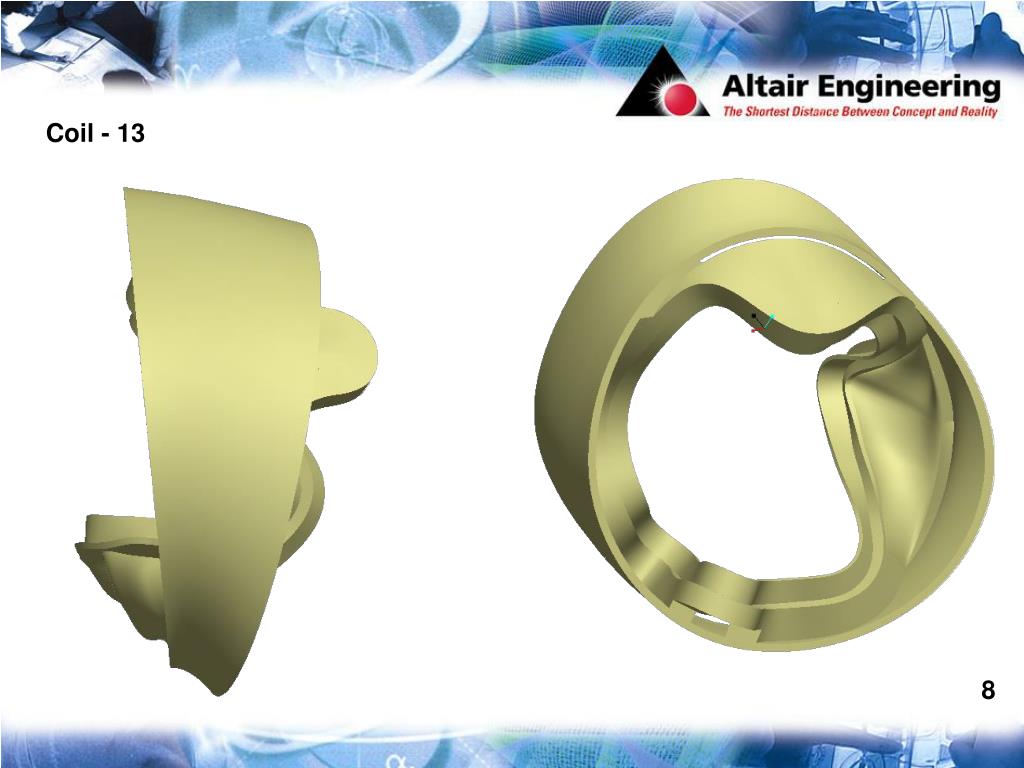

  9. Coil - 13 8

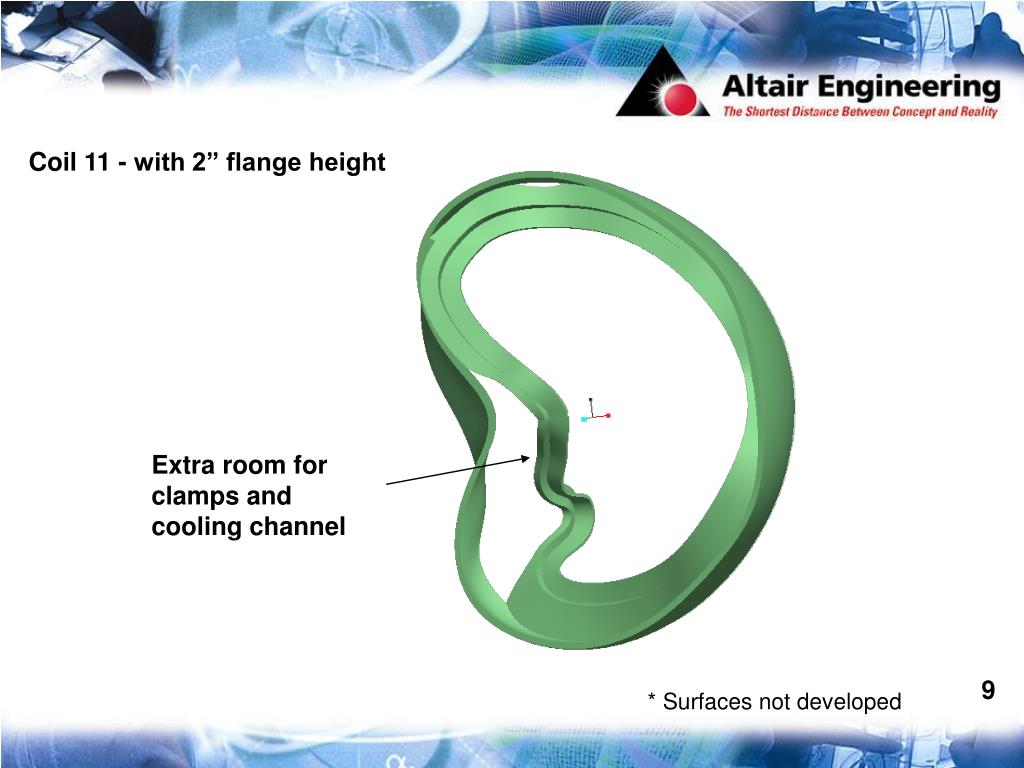

  10. Coil 11 - with 2” flange height Extra room for clamps and cooling channel 9 * Surfaces not developed

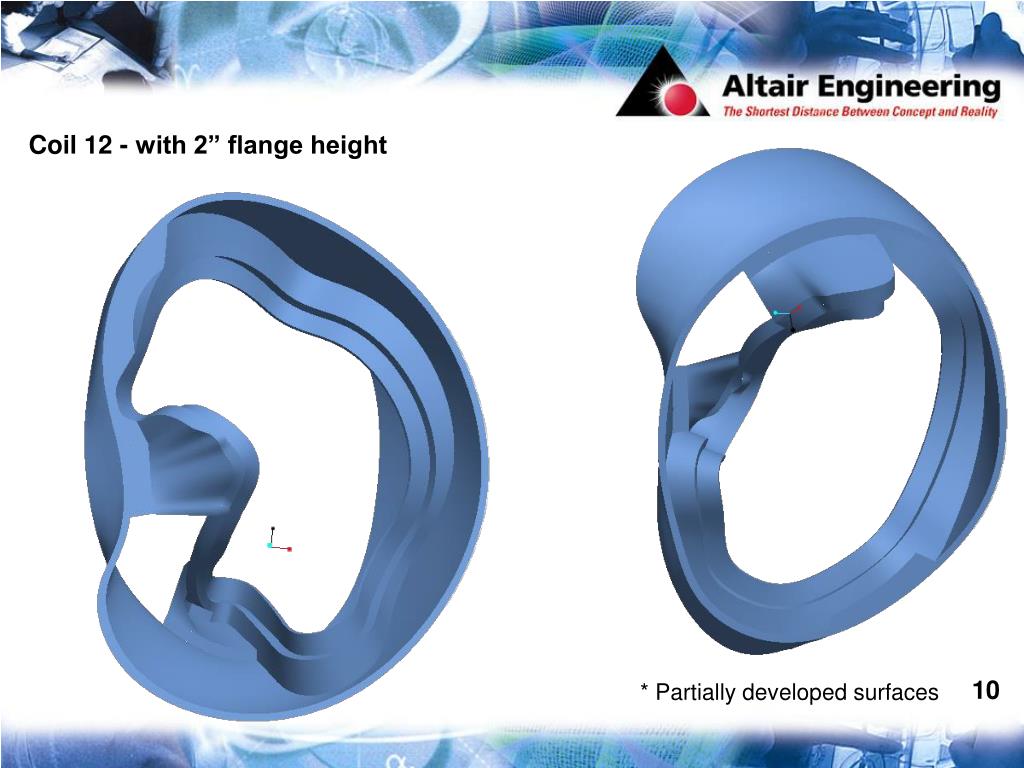

  11. Coil 12 - with 2” flange height 10 * Partially developed surfaces

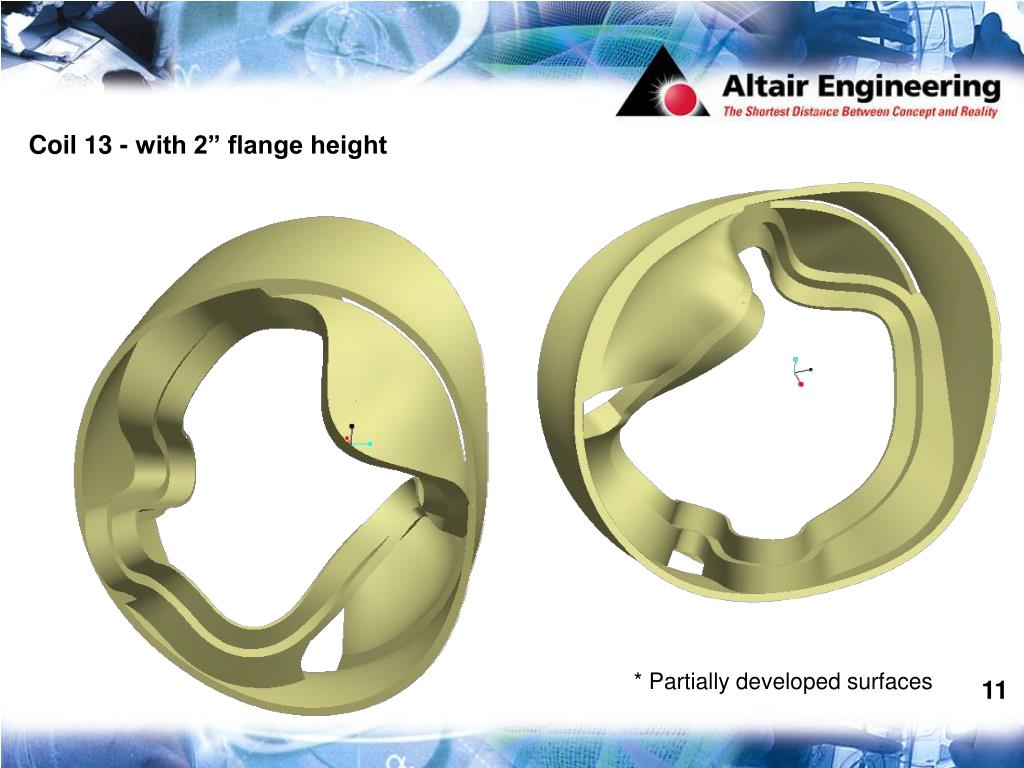

  12. Coil 13 - with 2” flange height * Partially developed surfaces 11

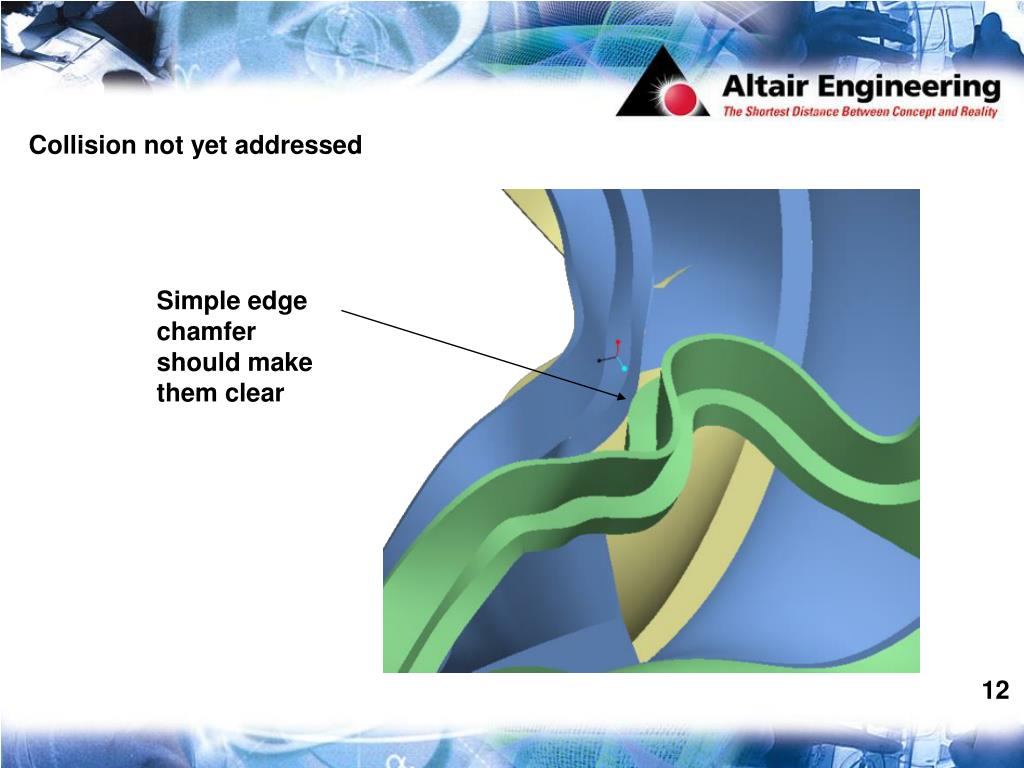

  13. Collision not yet addressed Simple edge chamfer should make them clear 12

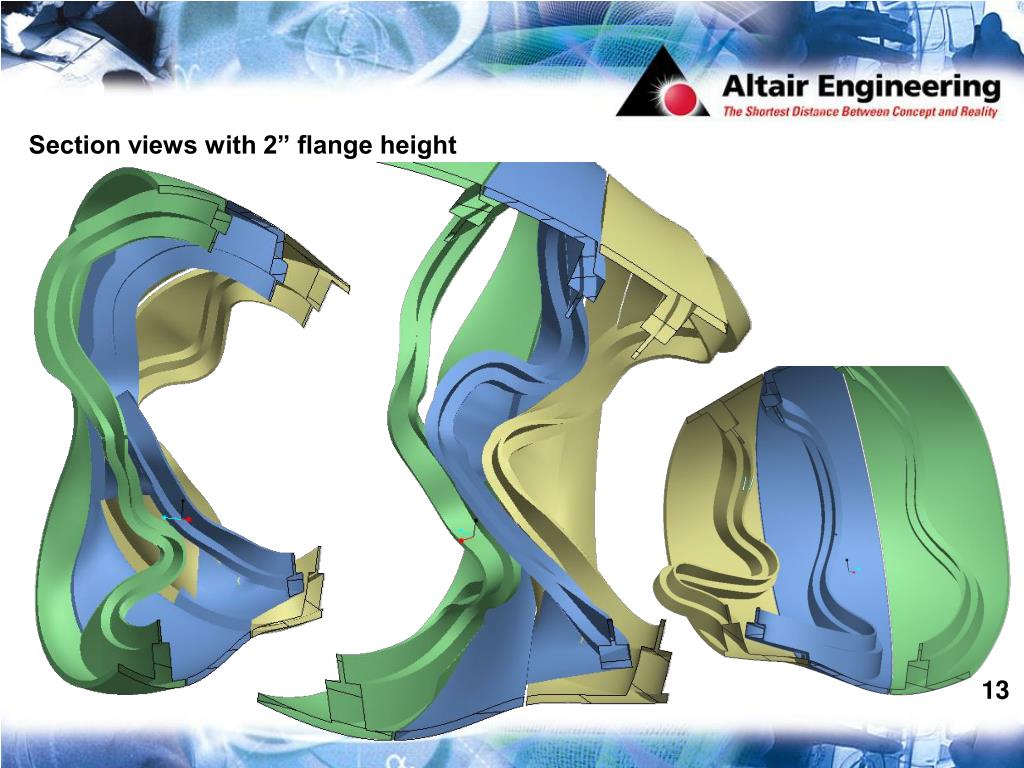

  14. Section views with 2” flange height 13
