  1. Solving ILP Problems in the EELA infrastructure Inês Dutra Departamento de Ciência de Computadores Universidade do Porto, Portugal

  2. Outline • Introduction • ILP • Examples • Motivation • Experiments • Conclusions • Future Work

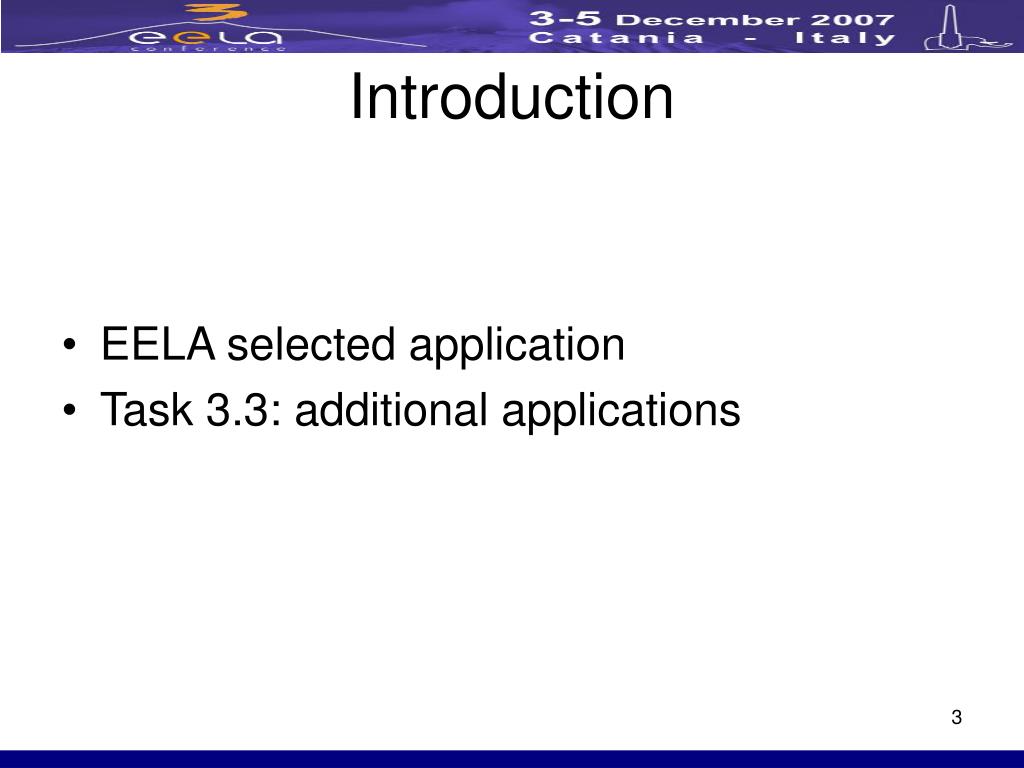

  3. Introduction • EELA selected application • Task 3.3: additional applications

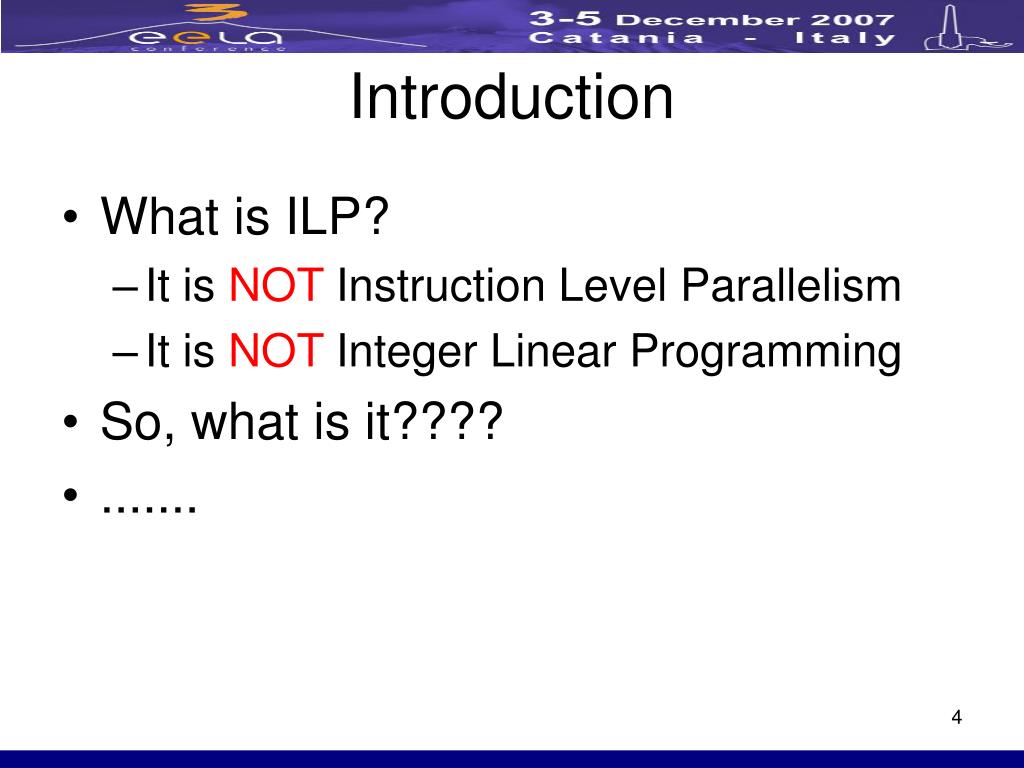

  4. Introduction • What is ILP? • It is NOT Instruction Level Parallelism • It is NOT Integer Linear Programming • So, what is it???? • .......

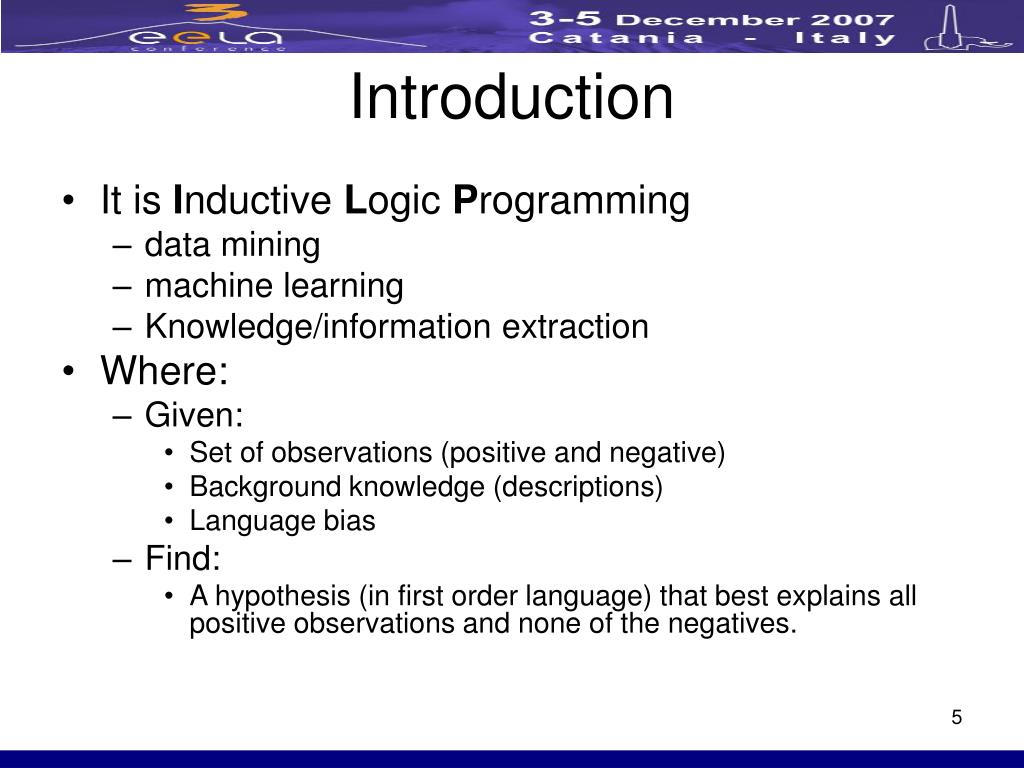

  5. Introduction • It is Inductive Logic Programming • data mining • machine learning • Knowledge/information extraction • Where: • Given: • Set of observations (positive and negative) • Background knowledge (descriptions) • Language bias • Find: • A hypothesis (in first order language) that best explains all positive observations and none of the negatives.

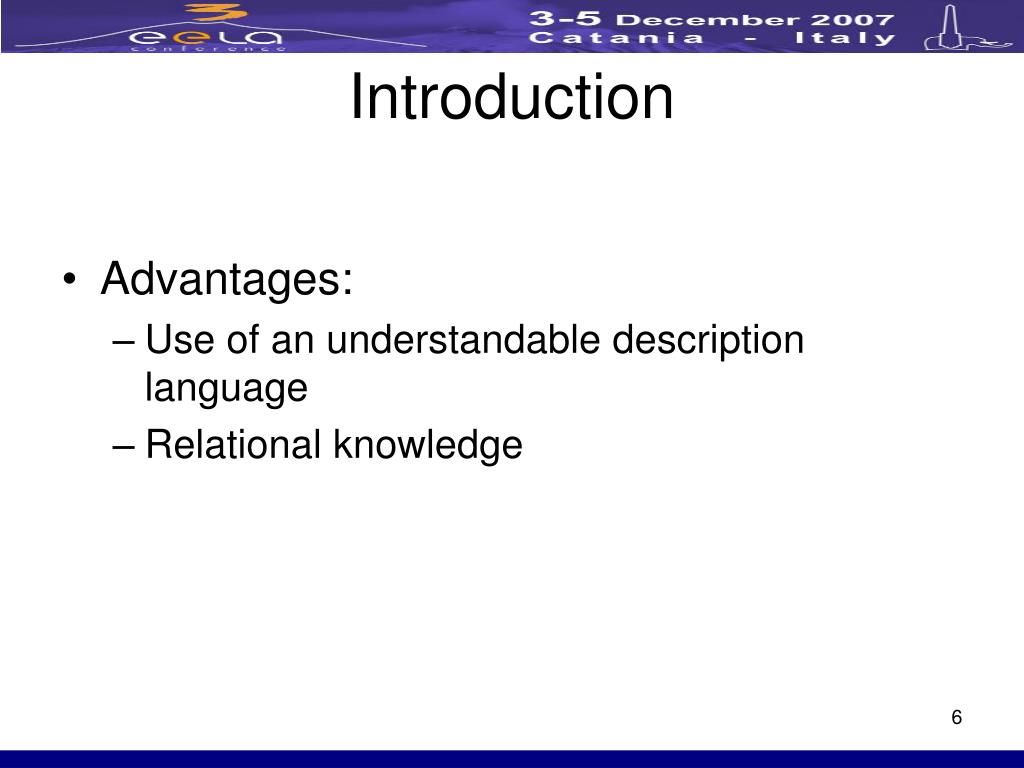

  6. Introduction • Advantages: • Use of an understandable description language • Relational knowledge

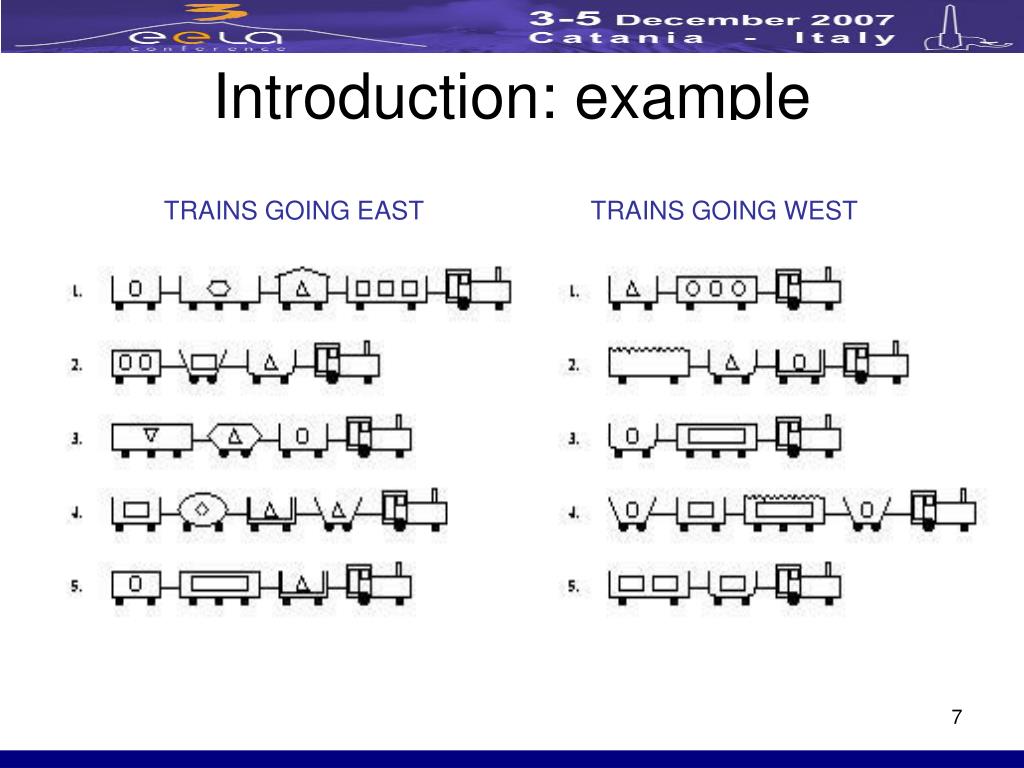

  7. Introduction: example TRAINS GOING EAST TRAINS GOING WEST

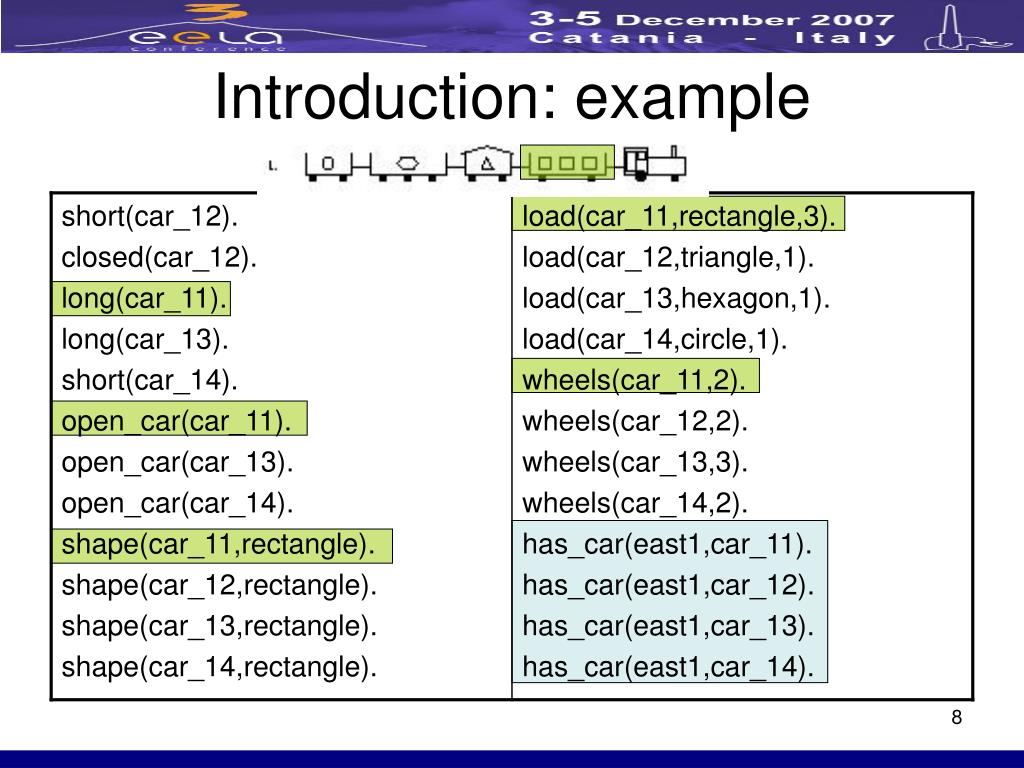

  8. Introduction: example

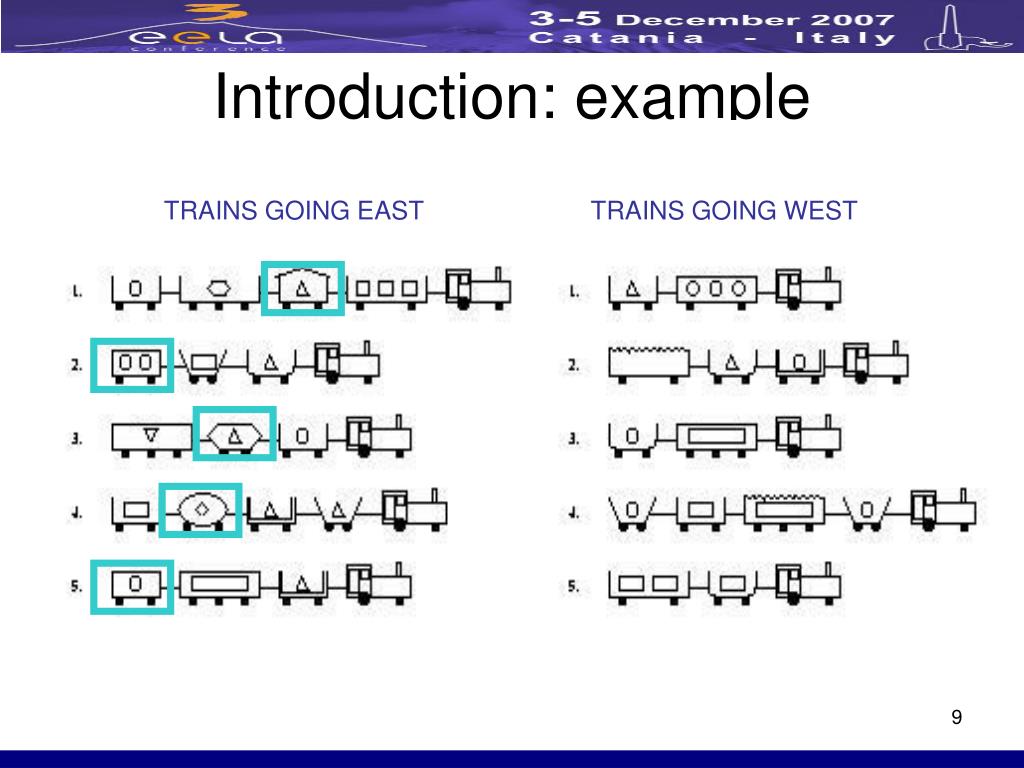

  9. Introduction: example TRAINS GOING EAST TRAINS GOING WEST

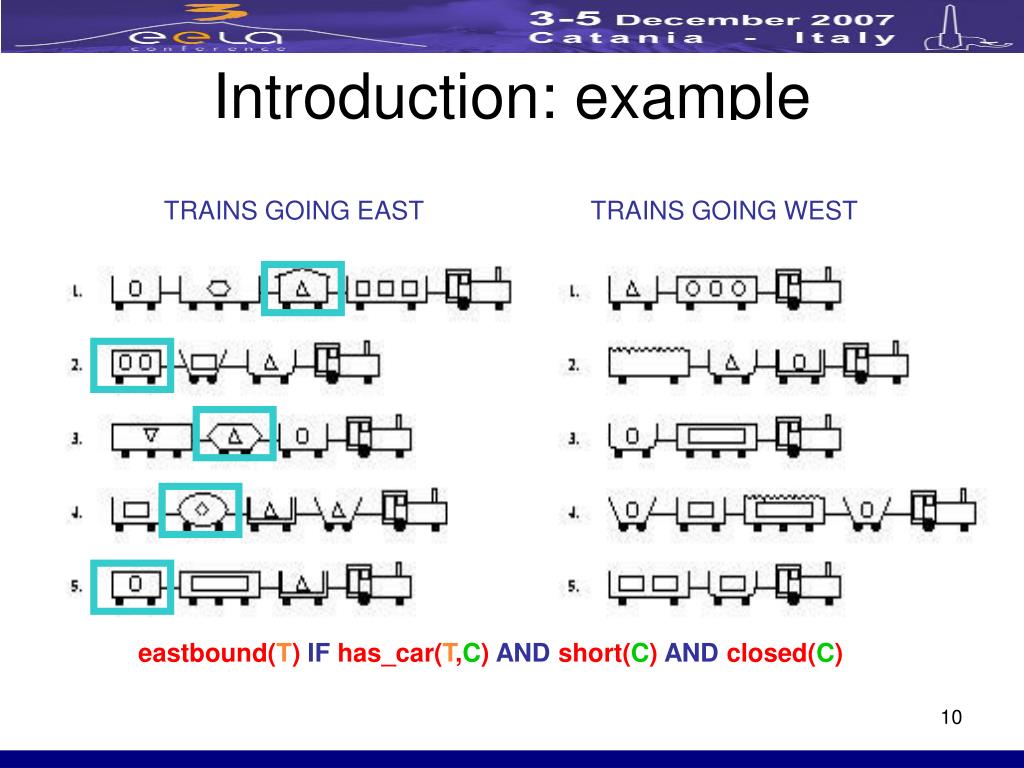

  10. Introduction: example TRAINS GOING EAST TRAINS GOING WEST eastbound(T) IF has_car(T,C) AND short(C) AND closed(C)

  11. Another less “toyish” example: extracting knowledge from mammograms is_malignant(A) if 'BIRADS_category'(A,b5), 'MassPAO'(A,present), 'Age'(A,age6570), previous_finding(A,B,C), 'MassesShape'(B,none), 'Calc_Punctate'(B,notPresent), previous_finding(A,C), 'BIRADS_category'(C,b3). This rule states that finding (A) IS malignant IF it is: classified as BI-RADS 5 AND had a mass present in a patient who: was between the ages of 65 and 70 had two prior mammograms (B, C) and prior mammogram (B): had no mass shape described had no punctate calcifications and prior mammogram (C) was classified as BI-RADS 3

  12. Introduction: Motivation • Applications: • Link discovery • Social Network Analysis • Equivalent identities • Drug design • Protein unfolding • Protein metabolism • Why not? Classifying grid failures () • And...many others!

  13. Introduction: Motivation • Why does ILP need a grid? • Search space can become large very quickly • Need many experiments to have statistical significant results • Cross-validation • Training, tuning, testing • Can combine classifiers: ensembles

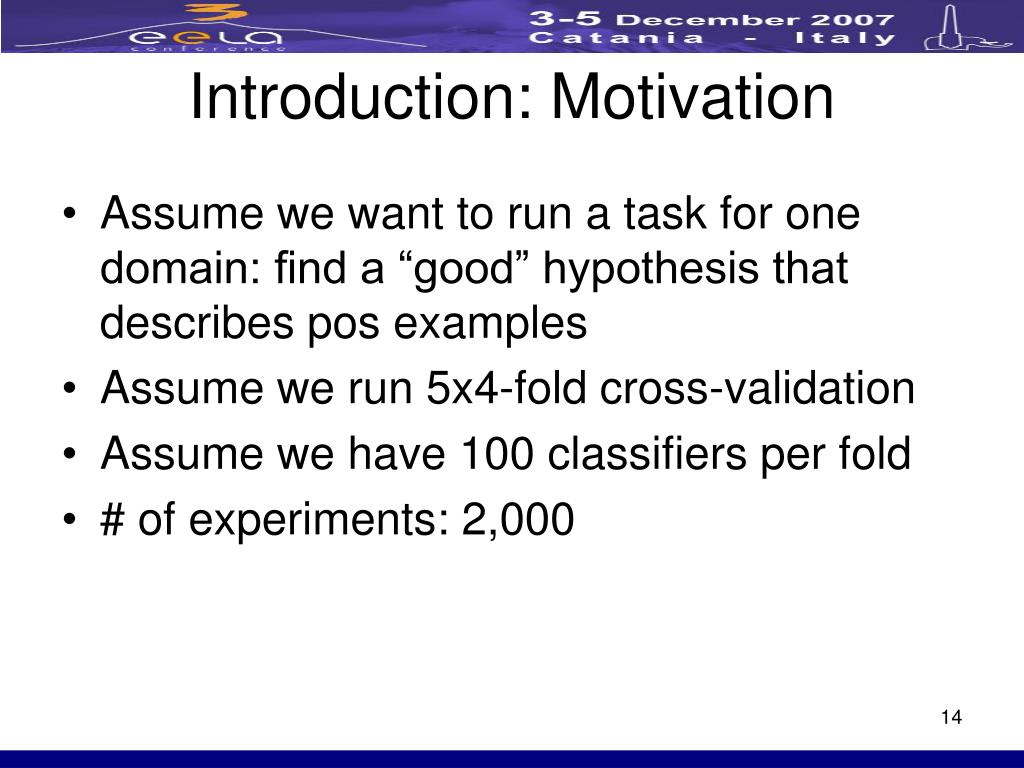

  14. Introduction: Motivation • Assume we want to run a task for one domain: find a “good” hypothesis that describes pos examples • Assume we run 5x4-fold cross-validation • Assume we have 100 classifiers per fold • # of experiments: 2,000

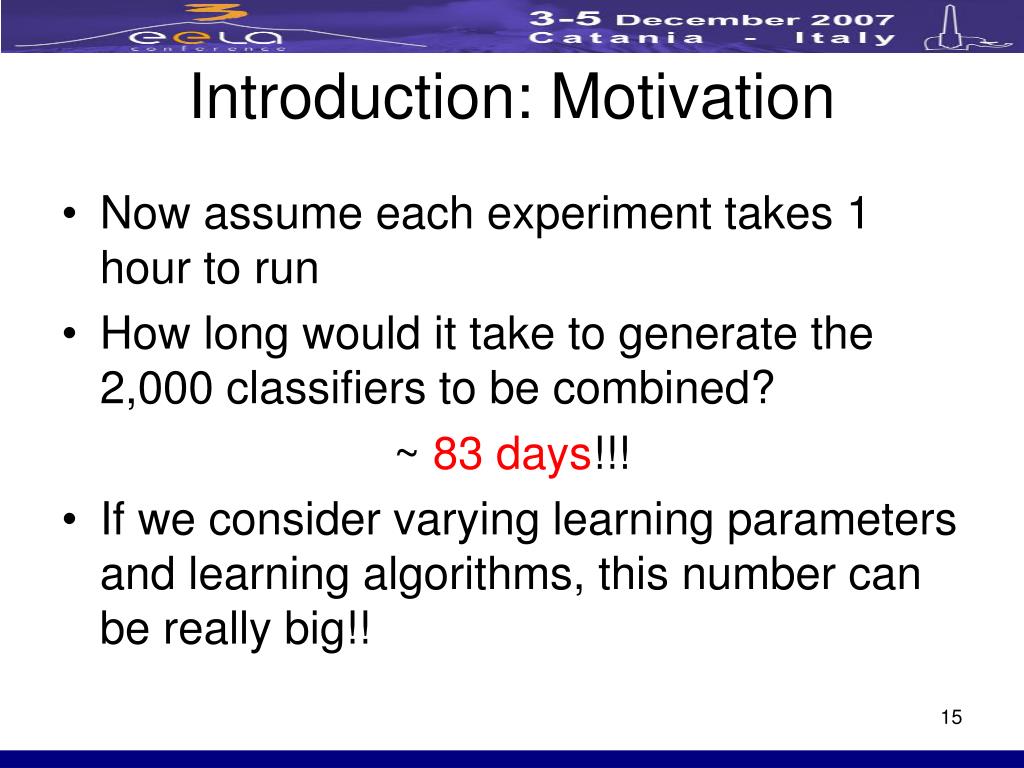

  15. Introduction: Motivation • Now assume each experiment takes 1 hour to run • How long would it take to generate the 2,000 classifiers to be combined? ~ 83 days!!! • If we consider varying learning parameters and learning algorithms, this number can be really big!!

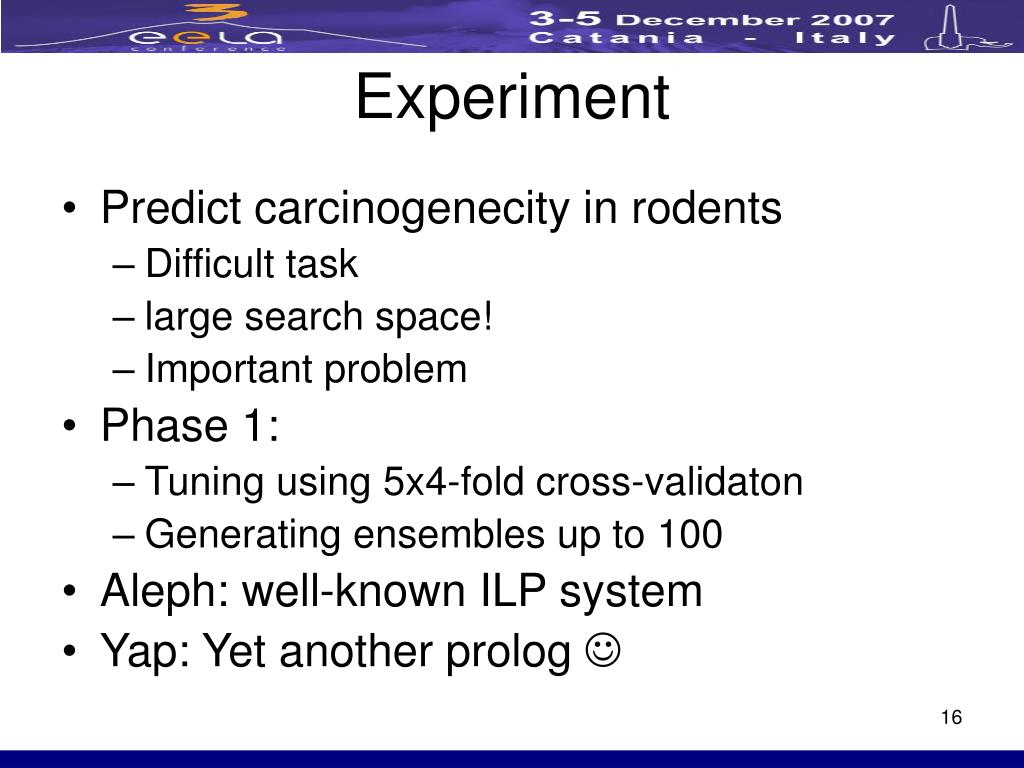

  16. Experiment • Predict carcinogenecity in rodents • Difficult task • large search space! • Important problem • Phase 1: • Tuning using 5x4-fold cross-validaton • Generating ensembles up to 100 • Aleph: well-known ILP system • Yap: Yet another prolog 

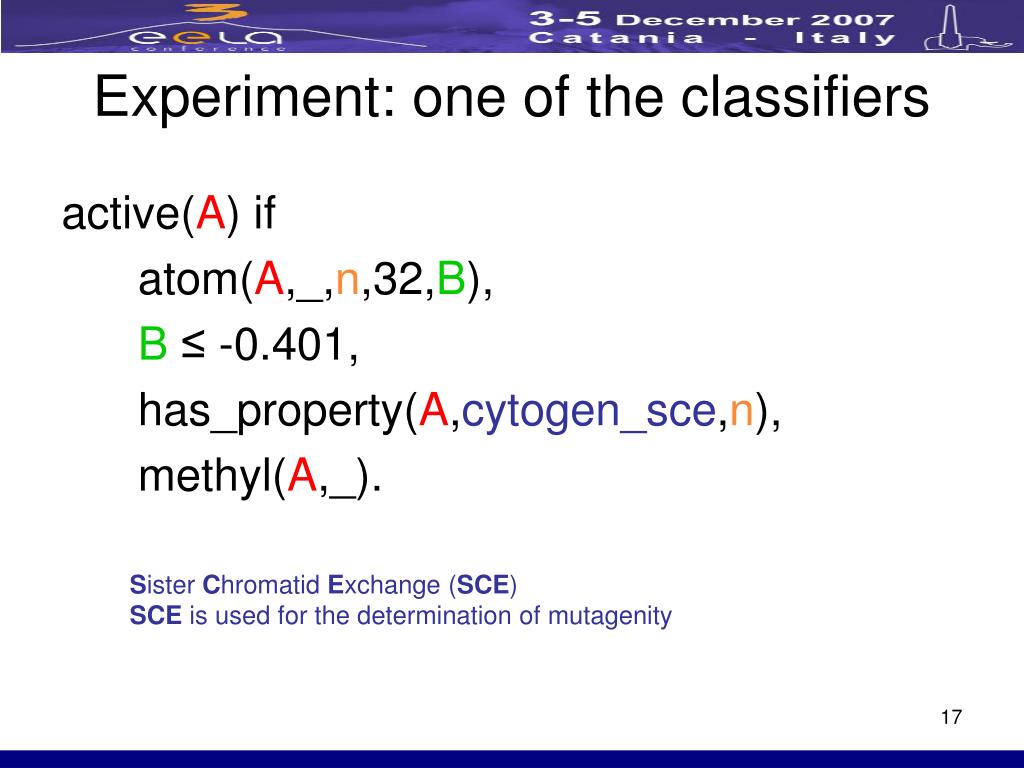

  17. Experiment: one of the classifiers active(A) if atom(A,_,n,32,B), B ≤-0.401, has_property(A,cytogen_sce,n), methyl(A,_). Sister Chromatid Exchange (SCE) SCE is used for the determination of mutagenity

  18. Experiment • 2 submissions: • From LA • From EU

  19. Submitting jobs from LA....

  20. Experiment EELA resources utilised ~ 300 resources in LA 211 jobs in LA

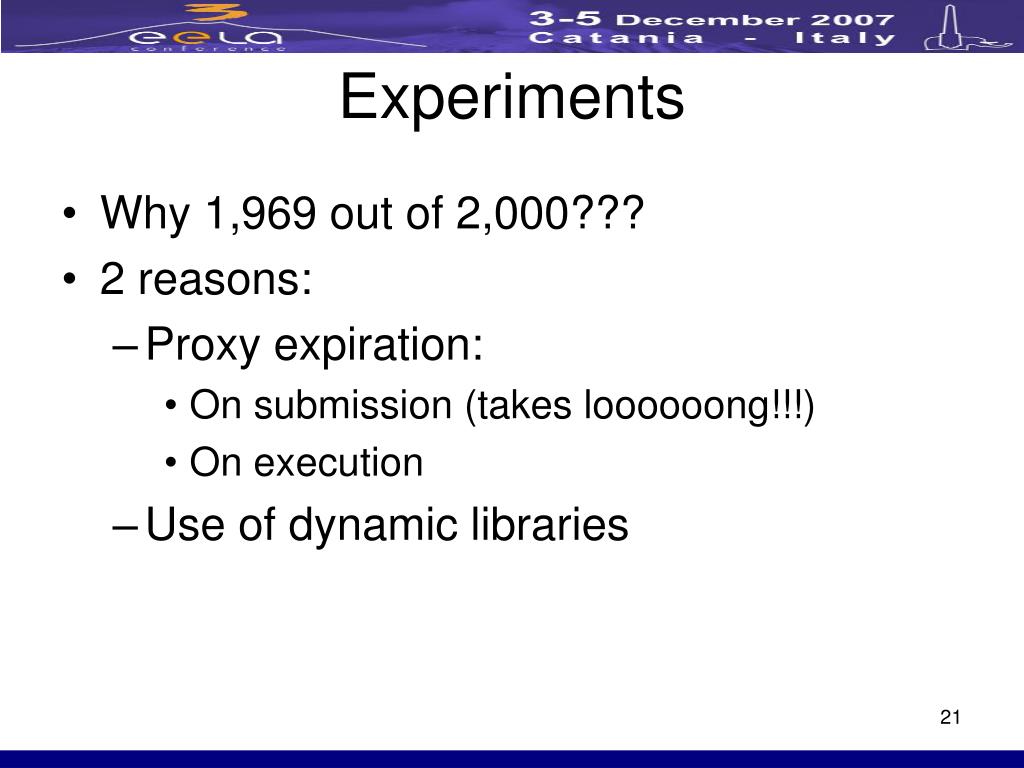

  21. Experiments • Why 1,969 out of 2,000??? • 2 reasons: • Proxy expiration: • On submission (takes loooooong!!!) • On execution • Use of dynamic libraries

  22. Submitting jobs from EU... • from a non-EELA site, BUT • Using the EELA VO: • Jobs run only on EU resources... • Reasons: • Misconfiguration? • Closer brokers with more machines?

  23. Conclusions • Happiness: EELA is working!!! • We can run thousands of experiments! • Frida is happy!!! (see Condor introductory tutorials, if you feel curious about Frida ) • Experiment showed good utilization of EELA resources in LA and EU • Low failure rate (1%) • Failures motivated by: • Dynamic libs not available in the remote machine • Proxy expiration

  24. Future work • More detailed analysis of jobs and logs • Full ILP experiment • More domains • Other kinds of experiments based on Statistical Relational Learning • And, do not forget: ILP can help to model and diagnose errors in the grid environment!

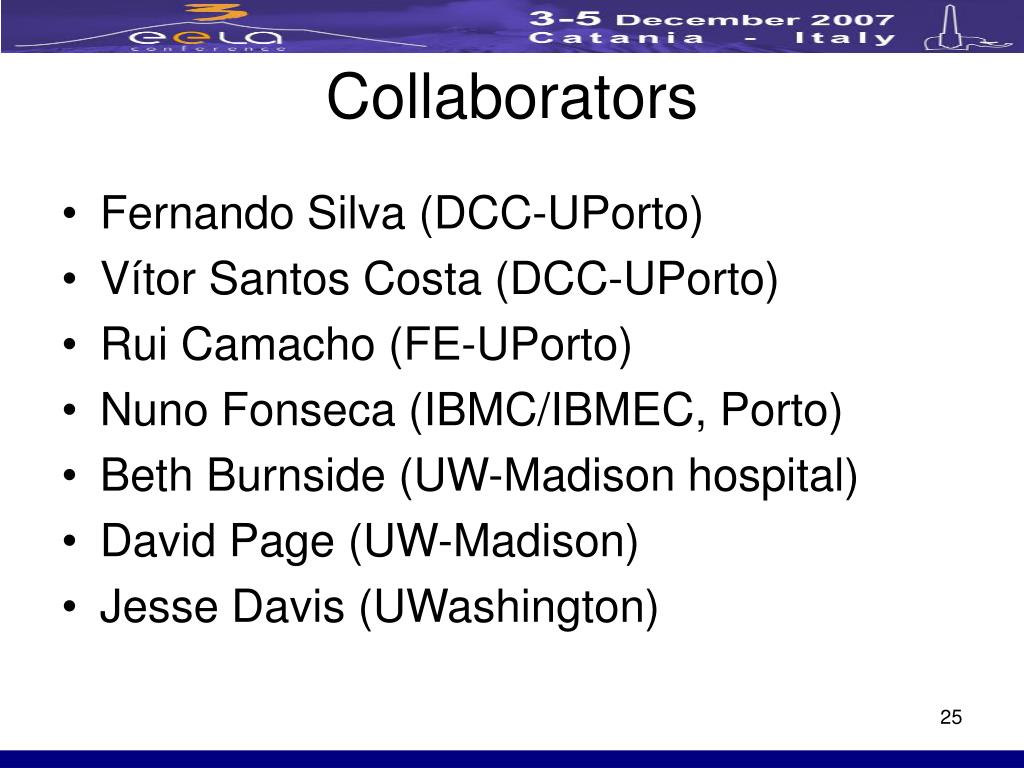

  25. Collaborators • Fernando Silva (DCC-UPorto) • Vítor Santos Costa (DCC-UPorto) • Rui Camacho (FE-UPorto) • Nuno Fonseca (IBMC/IBMEC, Porto) • Beth Burnside (UW-Madison hospital) • David Page (UW-Madison) • Jesse Davis (UWashington)

  26. Thanks!!! Questions??
