  1. Intelligent Integrated Systems Lonix System Training Lonix Automation Lonix Security Lonix Software

  2. Lonix Security

  3. Targets of Lecture • Lonix Security • Understanding the security system architecture • Introduction to Lonix Security products • Duration: 1-2 hours

  4. Lonix Security • Access control and intruder alarms • Complete and fully featured hardware/firmware infrastructure for access control systems • IP based solution • COBA compliant software • Digital video monitoring • DVR/NVR • Cameras • COBA compliant software

  5. Access Control and Intruder Alarms

  6. System Components • Network Controller • Network Controller LX-SEC-V1000 • Connects to the COBA BOS through TCP/IP • Receives and processes real time commands • Communicates with interface panels (max 32 units) • Interface Panels • Door Interface Panel LX-SEC-V100 • Input Monitor Interface Panel LX-SEC-V200 • Output Control Interface Panel LX-SEC-V300 • Single-Door Controller • Single-Door Controller LX-SEC-V-IP • Connects to the COBA BOS through TCP/IP

  7. System architecture Remote usage with different devices Service Layer Internet Firewall Local User Interfaces Intranet: TCP/IP LAN Management Layer COBA BOS Server TCP/IP Network Controller V1000 RS-485 Control Layer Interface panels ER40 V200 V300 V100 I/O Cabling Field Layer Readers, sensors, relays Interface: NC / NO, dry-contact Magnetic contacts Readers Tamper switches Occupancy sensors Magnetic contacts Siren Magnetic contacts Exit Button Flashlight Lock Exit Button Strike relays

  8. Network Controller LX-SEC-V1000 • Connects to the COBA BOS through TCP/IP • Receives and processes real time commands • Communicates with interface panels, max 32 units: • Door/Reader Interface Panel LX-SEC-V100 (2 Wiegand readers, 2+2+3 DI, 2+2 DO) • Input Monitor Interface Panel LX-SEC-V200 (16+3 DI, 2 DO) • Output Control Interface Panel LX-SEC-V300 (2+3 DI, 12 DO) • 44,000 cardholders with expansion capability up to 250,000 cardholders

  9. Door/Reader Interface Panel LX-SEC-V100 • Connects with two access control card readers via Wiegand protocol • E.g. HID iCLASS range of readers • Connects to LX-SEC-V1000 via RS-485 • Two different configurations: • Two doors with readers and exit buttons • One door with readers on both sides

  10. RS485 Addressing/Termination 0 (16) 0 V1000 1 (17) Max RS-485 bus length: 1220 m (Belden 3105A, 22AWG twisted pair, shielded 100Ω cable, or equivalent) 1 2 (18) 3 (19) 2 (#) is the Logical Address

  11. Input Monitor Interface Panel LX-SEC-V200 • Connects up to 16 supervised input circuits • Connects to LX-SEC-V1000 via RS-485 • Receives and processes real time commands from Network Controller LX-SEC-V1000 • Reports all activity to LX-SEC-V1000 • Allows complex input/output linking

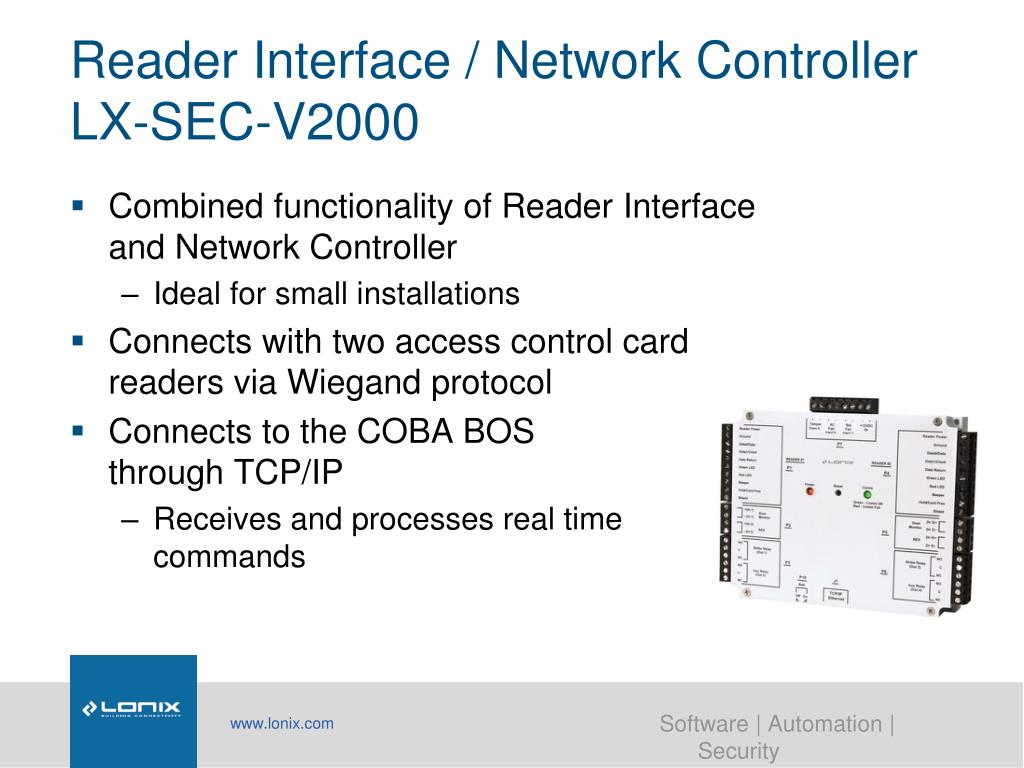

  12. Reader Interface / Network Controller LX-SEC-V2000 • Combined functionality of Reader Interface and Network Controller • Ideal for small installations • Connects with two access control card readers via Wiegand protocol • Connects to the COBA BOS through TCP/IP • Receives and processes real time commands

  13. Readers RK40 R10 • HID iCLASS range of readers (13.56 MHz) • R10 (up to 8.9 cm) • R30 (up to 10.2 cm) • R40 (up to 12 cm) • Keypad reader: RK40 • iPASS range of readers (125 kHz) • IP10, IP20 (up to10 cm) • IP30 (up to 30 cm) • IPK101 (up to10 cm) • By default, all access control card readers using Wiegand protocol are compatible IP10 IP20 IP30 IPK101

  14. Long Range Readers for Vehicles RF245 • RF245 series (2.45 GHz) • RF245-2 (up to 2 meters) • RF245-3 (up to 3 meters) • RF245-5 (up to 5 meters) • RF245-10 (up to 10 meters) • Active IDA245 cards RF245 + mounting bracket IDA245

  15. Video Surveillance

  16. Video Monitoring • Network Video Recording System (NVR) • From 4 to 256 IP cameras • Hybrid Recording System (DVR) • From 4 to 32 analog cameras + 32 IP cameras • Up to 400 analog frames/second • Analogue Recording System • Standalone analogue recording system, including hardware

  17. Lonix Cameras Analog Cameras • Indoor • Dome 540 TVL • Box 540 TVL • Outdoor • Bullet • Dome 540 TVL IP Cameras • Indoor • Dome D1 • Dome 1.3 Megapixel • Dome 2 Megapixel • Box D1, D-WDR • Box 1.3 Megapixel • Box 2 Megapixel • Mini Box VGA • Outdoor • Dome D1 • Dome 1.3 Megapixel • Dome 2 Megapixel • Bullet D1, 20m IR • Bullet D1, 30/40/50m IR • Video Transceiver

  18. System architecture Remote usage with different devices Service Layer Internet Local User Interfaces with COBA client and Video Monitoring client Firewall Intranet: TCP/IP LAN Management Layer COBA BOS Server SECURITY LAN TCP/IP Control Layer NVR/DVR WLAN COAX, CAT6, WLAN Interface: PAL, MPEG-4, H.264 Cameras Field Layer Fixed IP dome camera Fixed dome camera Fixed IP box camera IP Bulllet Camera Fixed box camera Bulllet Camera IP PTZ dome camera PTZ dome camera Fixed IP WLAN box camera IP Bulllet WLAN Camera

  19. Video Surveillance – IP cameras

  20. Fixed IP Dome Camera LX-SEC-CFD2-IP-D1 • MPEG-4/MJPEG/H.264 compression • Power over Ethernet • 3-Axis Gimbal Adjustment • Built-in 12M IR LED available (optional) • Mechanism IR Cut Filter (optional) • Triple Streaming (MPEG-4/MJPEG/H.264) • 2-way audio • Day/Night Function • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFD2-IP-D1 (Varifocallens + PoE) LX-SEC-CFD2-IP-D1-IR12 (Varifocallens + PoE + IR12m)

  21. Fixed Megapixel IP Dome Camera • True Day/Night Function • MegaPixel (1280x1024 Resolution) • MPEG-4/MJPEG compression • Power over Ethernet capable • SD Card backup • Support cell phone/PDA/3GPP • Dual Streaming LX-SEC-CFD-IP-1.3M Order code: LX-SEC-CFD-IP-1.3M-V (Varifocallens) LX-SEC-CFD-IP-1.3M-V-PoE (Varifocallens + PoE)

  22. 2 Megapixel Fixed IP Dome Camera LX-SEC-CFD2-IP-D1 • 2 Megapixel CMOS Sensor (1600x1200) • MPEG-4/MJPEG/H.264 compression • Power over Ethernet • 3-Axis Gimbal Adjustment • Built-in 12M IR LED available (optional) • Mechanism IR Cut Filter (optional) • Triple Streaming (MPEG-4/MJPEG/H.264) • Video out • 2-way audio • Day/Night Function • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFD2-IP-D1 (Varifocallens + PoE) LX-SEC-CFD2-IP-D1-IR12 (Varifocallens + PoE + IR12m)

  23. Fixed D-WDR IP Box Camera LX-SEC-CFB2-IP-D1 • D-WDR system • 3D Digital Noice Reduction (DNR) • MPEG-4/MJPEG/H.264 compression • Power over Ethernet • Triple Streaming (MPEG-4/MJPEG/H.264) • 2-way audio • Day/Night Function • Wireless available (optional) • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFB2-IP-D1 (PoE) LX-SEC-CFB2-IP-D1-W (PoE + Wireless LAN)

  24. Fixed Megapixel IP Box Camera LX-SEC-CFB2-IP-D1 • MegaPixel (1280x1024 Resolution) • MPEG-4/MJPEG Compression • 2-way audio • Power over Ethernet (optional) • Wireless available (optional) • SD Card backup • Support cell phone/PDA/3GPP • Dual Streaming Order code: LX-SEC-CFB2-IP-1.3M-F (Fixedlens) LX-SEC-CFB2-IP-1.3M-F-PoE (+Power overEthernet) LX-SEC-CFB2-IP-1.3M-F-W (+Wireless LAN)

  25. 2 Megapixel Fixed IP Box Camera LX-SEC-CFB2-IP-2M • 2 Megapixel CMOS Sensor (1600x1200) • MPEG-4/MJPEG/H.264 compression • Power over Ethernet • Triple Streaming (MPEG-4/MJPEG/H.264) • Video out • 2-way audio • Day/Night Function • Wireless available (optional) • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFB2-IP-2M (PoE) LX-SEC-CFB2-IP-2M-W (PoE + Wireless LAN)

  26. 5 Megapixel Fixed IP Box Camera, 5 Mpix LX-SEC-CFB2-IP-5M • 5 Mpix resolution (10 fps) • 2 Mpix resoltuion (25 fps) • MPEG-4/MJPEG /H.264 Compression • Triple Streaming • 2-way audio • Day/Night Function • Built-in Power over Ethernet • Wireless available (optional) • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFB2-IP-5M (PoE) LX-SEC-CFB2-IP-5M-W (PoE + Wireless LAN)

  27. Fixed IP Mini Box Camera LX-SEC-CFMB-IP-VGA • Small Compact Size • MPEG-4 Compression • 2-way audio • Wireless available (optional) • Support cell phone/PDA/3GPP • Dual Streaming Order code: LX-SEC-CFMB-IP-VGA (Ethernet) LX-SEC-CFMB-IP-VGA-W (Wireless LAN)

  28. Fixed Outdoor IP Dome Camera LX-SEC-CFD2-IP-D1-O • IP66 • Vandalproof up to 400 pounds • MPEG-4/MJPEG/H.264 compression • Power over Ethernet • 3-Axis Gimbal Adjustment • Built-in 12M IR LED available (optional) • Mechanism IR Cut Filter (optional) • Triple Streaming (MPEG-4/MJPEG/H.264) • 2-way audio • Day/Night function • SD Card backup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFD2-IP-D1-O (Varifocallens + PoE) LX-SEC-CFD2-IP-D1-O-IR (Varifocallens + PoE + 12m IR leds)

  29. Fixed Megapixel Outdoor IP Dome Camera LX-SEC-CFD2-IP-1.3M-O • IP66 • MegaPixel (1280x1024 Resolution) • Vandalproof up to 400 Pounds • MPEG-4/MJPEG Compression • Power over Ethernet capable • 2-way audio • SD Card backup • Support cell phone/PDA/3GPP • Dual Streaming Order code: LX-SEC-CFD2-IP-1.3M-O-V (Varifocallens) LX-SEC-CFD2-IP-1.3M-O-V-PoE (varifocallens + PoE)

  30. 2 Megapixel Fixed Outdoor IP Dome Camera LX-SEC-CFD2-IP-2M-O • IP66 • Vandalproofup to 400 pounds • 2 Megapixel CMOS Sensor (1600x1200) • MPEG-4/MJPEG/H.264 compression • Power overEthernet • 3-Axis GimbalAdjustment • Built-in 12M IR LED available (optional) • Mechanism IR CutFilter (optional) • TripleStreaming (MPEG-4/MJPEG/H.264) • 2-way audio • Video out • Day/Nightfunction • SD Cardbackup • Support 3GPP, JAVA, iPhone, Windows Mobile Order code: LX-SEC-CFD2-IP-2M-O (Varifocal lens + PoE) LX-SEC-CFD2-IP-2M-O-IR (Varifocallens + PoE + 12m IR leds)

  31. Fixed IP Bullet Camera LX-SEC-CFBU2-IP-D1-O-IR20 Features • IP66 • External varifocal lens adjustment • High resolution 540 TVL (720x576) • Weatherproof • True Day/Night function • Mechanism IR cut filter available • MPEG-4/MJPEG Compression • Power over Ethernet (optional) • Built in 20 m IR leds • Dual Streaming Order code: LX-SEC-CFBU2-IP-D1-O-IR20-V (Varifocallens) LX-SEC-CFBU2-IP-D1-O-IR20-V-PoE (+ PoE)

  32. Fixed IP Bullet Camera LX-SEC-CFBU2-IP-D1-O-IR30/40/50 Features • High resolution 540 TVL (720x576) • Weatherproof , IP66 • Fan Built-in • True Day/Night function • External varifocal lens adjustment • Mechanism IR cut filter available • MPEG-4/MJPEG Compression • Wireless LAN (optional) • Built in 30m/40m/50m IR leds • Dual Streaming Order code: LX-SEC-CFBU2-IP-D1-O-IR30-V (Varifocallens + 30m IR leds) LX-SEC-CFBU2-IP-D1-O-IR30-V-W ( + Wireless LAN) LX-SEC-CFBU2-IP-D1-O-IR40/50-V (Varifocallens + 40m or 50 m IR leds) LX-SEC-CFBU2-IP-D1-O-IR40/50-V-W (+ Wireless LAN)

  33. Video Surveillance – CCTV cameras

  34. Fixed Dome Camera LX-SEC-CFD-540 Features • High resolution, 540 TVL • Day/Night Function • Mechanical ICR • Line Lock Available Order code: LX-SEC-CFD-540-V (Varifocallens) LX-SEC-CFD-540-F (Fixed 3.6 mm lens)

  35. Fixed Box Camera LX-SEC-CFB-540 Features • High resolution, 540 TVL • Day/Night Function • Mechanical ICR • Line Lock Available Order code: LX-SEC-CFB-540-V (Varifocallens) LX-SEC-CFB-540-F (Fixedlens)

  36. Fixed IR Bullet Camera LX-SEC-CFBU-540V-O-IR25 Features • IR Distance 25 meters • High resolution, 540 TVL • Zoom /Focus external adjustment • Wheatherpoor, IP66 • Sun Visor design reduces temperature in direct sun light • Day/Night Function • Mechanical ICR • Built-in Aspherial D/N IR Lens • Double glass separates Lens & IR LEDs LX-SEC-CBR-19 (optional) Order code: LX-SEC-CFBU-540V-O-IR25 (varifocal) LX-SEC-CBR-19 (Mountingbracket)

  37. Fixed Outdoor Dome Camera LX-SEC-CFD-540-O Features • IR distance 12m • High resolution, 540 TVL • Vandalproof housing • Weatherproof, IP66 • Burglarproof screws • Mechanical ICR • Day/Night function • Built-in Aspherical D/N IR lens Order code: LX-SEC-CFD-540-V-O (Varifocallens) LX-SEC-CFD-540-F-O (Fixed 3.6 mm lens) LX-SEC-CFD-540-V-O-IR (Varifocallens + 12 m IR leds)
