  1. MelcotelTM The new and unique solution to hotel application

  2. Melcotel - Introduction • New features • Links with up to 250 room units • Settings reset • Automatic switch OFF • Setback control • Nighttimes OFF • Window open control • Outside temperature adjustment • Remote monitoring with M2M • Commissioning Tool • Live Status

  3. Melcotel – No key card • With NO key card • Settings reset • Every time the unit is switched ON, the settings are reset to for instance AUTO, 21C • Preset settings can be different for each bedroom, 21C, 22C… • Automatic switch off • When the unit has been switched ON by the customer, it will switch OFF after a pre defined time

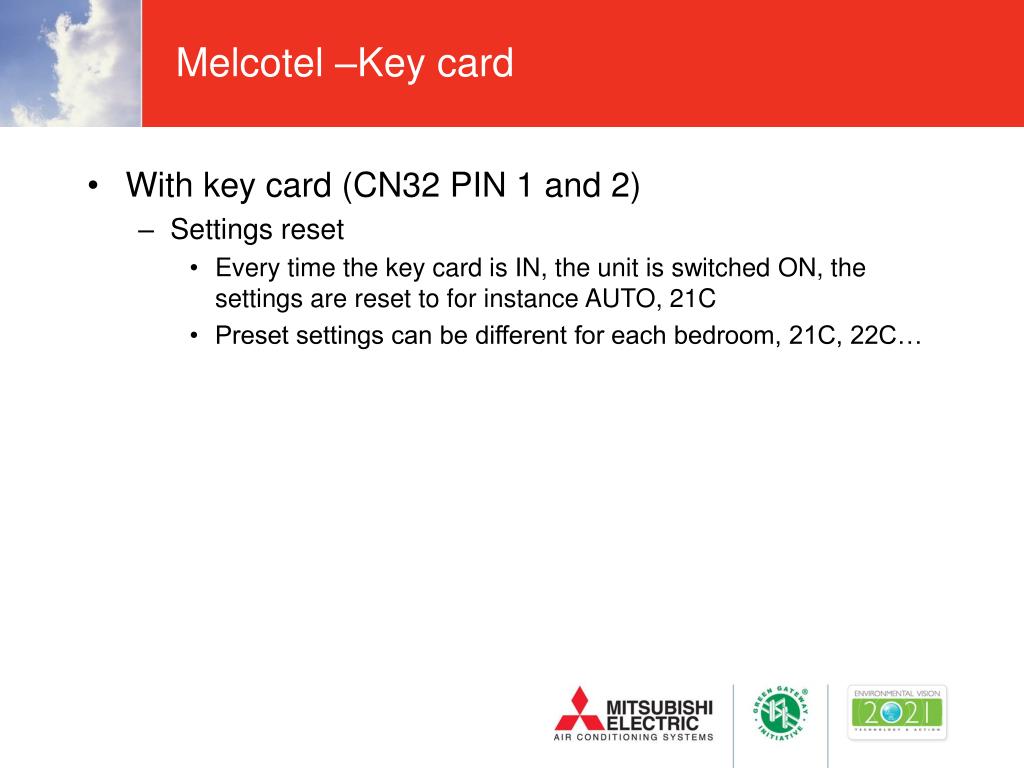

  4. Melcotel –Key card • With key card (CN32 PIN 1 and 2) • Settings reset • Every time the key card is IN, the unit is switched ON, the settings are reset to for instance AUTO, 21C • Preset settings can be different for each bedroom, 21C, 22C…

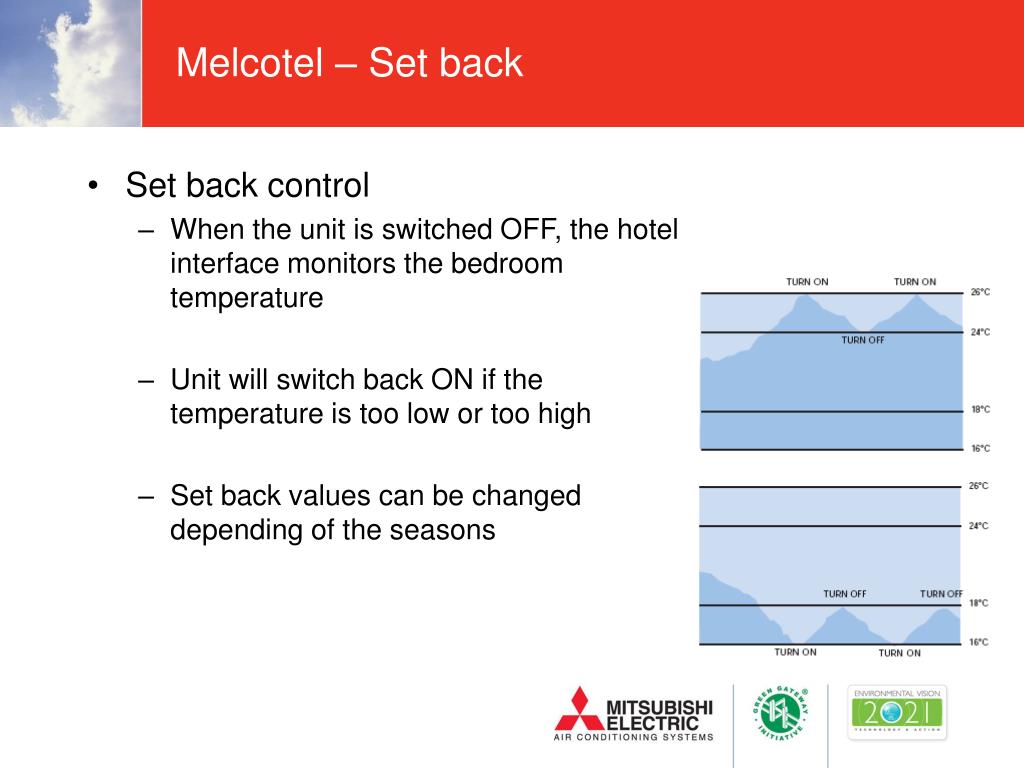

  5. Melcotel – Set back • Set back control • When the unit is switched OFF, the hotel interface monitors the bedroom temperature • Unit will switch back ON if the temperature is too low or too high • Set back values can be changed depending of the seasons

  6. Melcotel – Night time OFF • Night time OFF • During the night, when the client is sleeping, the unit can be either switched OFF or the setpoint can be adjusted

  7. Melcotel – Window contact • Window open control • Unit will be switched OFF and Centrally Controlled when the Window is opened (CN32 PIN 1 and 3)

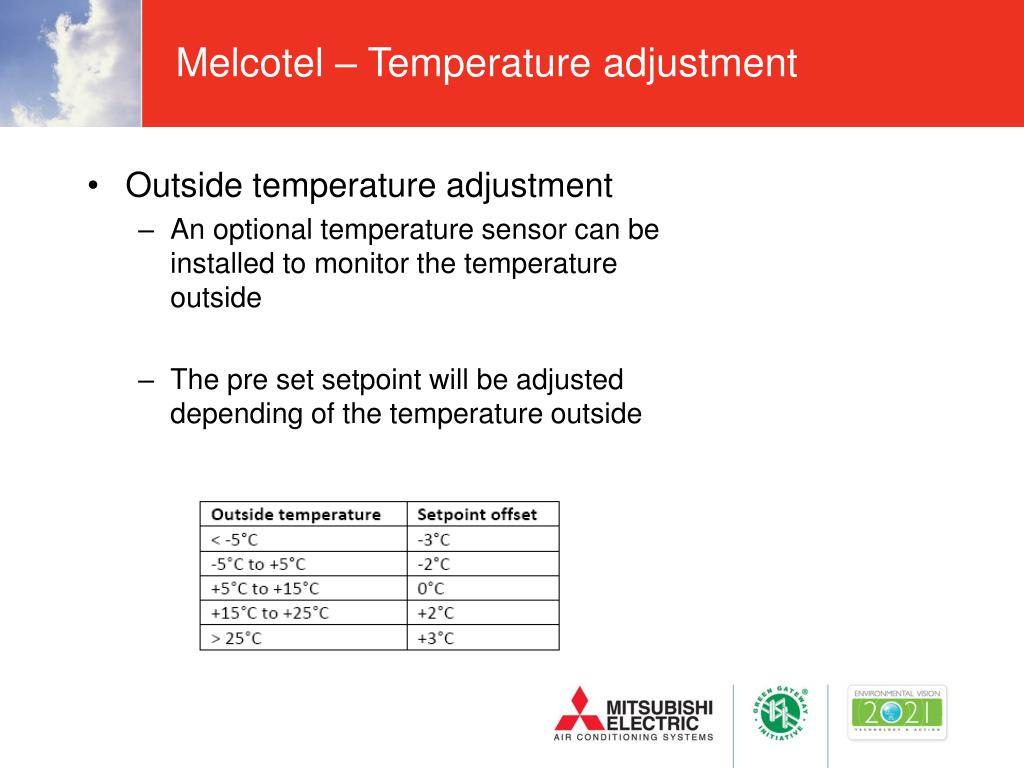

  8. Melcotel – Temperature adjustment • Outside temperature adjustment • An optional temperature sensor can be installed to monitor the temperature outside • The pre set setpoint will be adjusted depending of the temperature outside

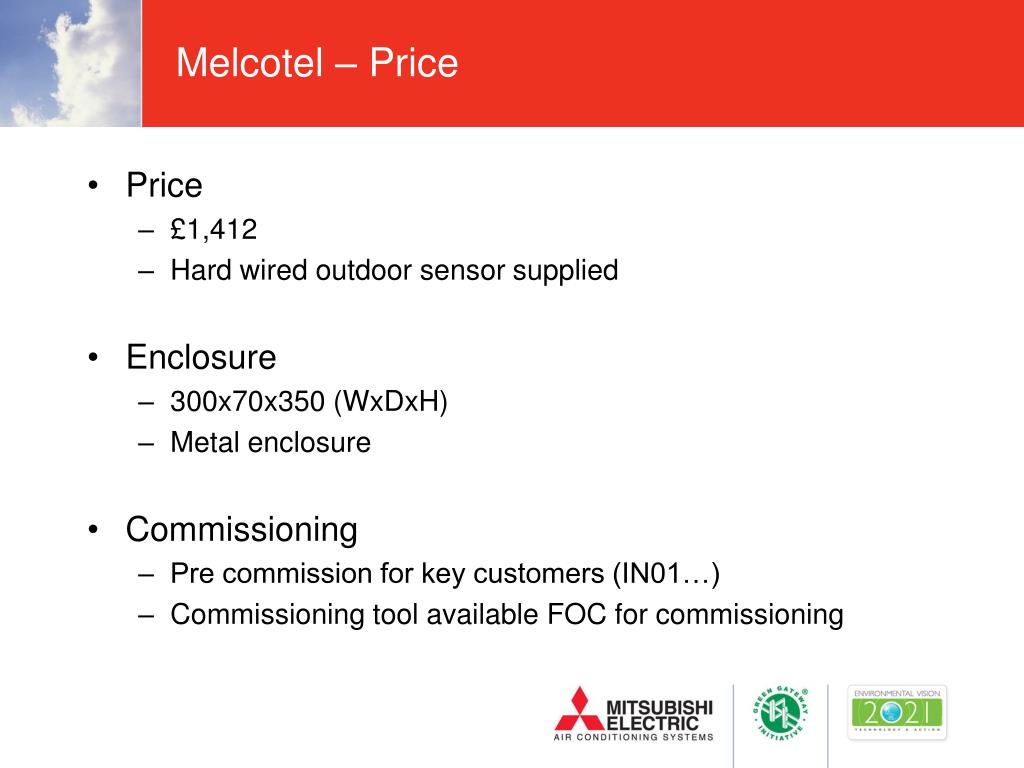

  9. Melcotel – Price • Price • £1,412 • Hard wired outdoor sensor supplied • Enclosure • 300x70x350 (WxDxH) • Metal enclosure • Commissioning • Pre commission for key customers (IN01…) • Commissioning tool available FOC for commissioning

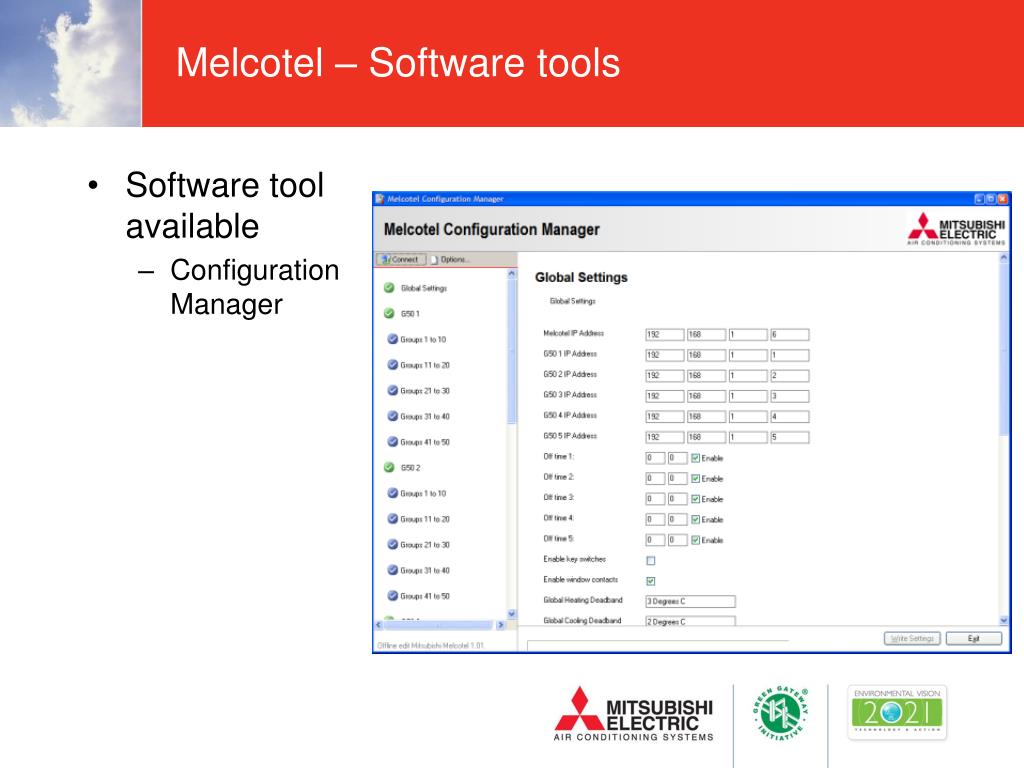

  10. Melcotel – Software tools • Software tool available • Configuration Manager

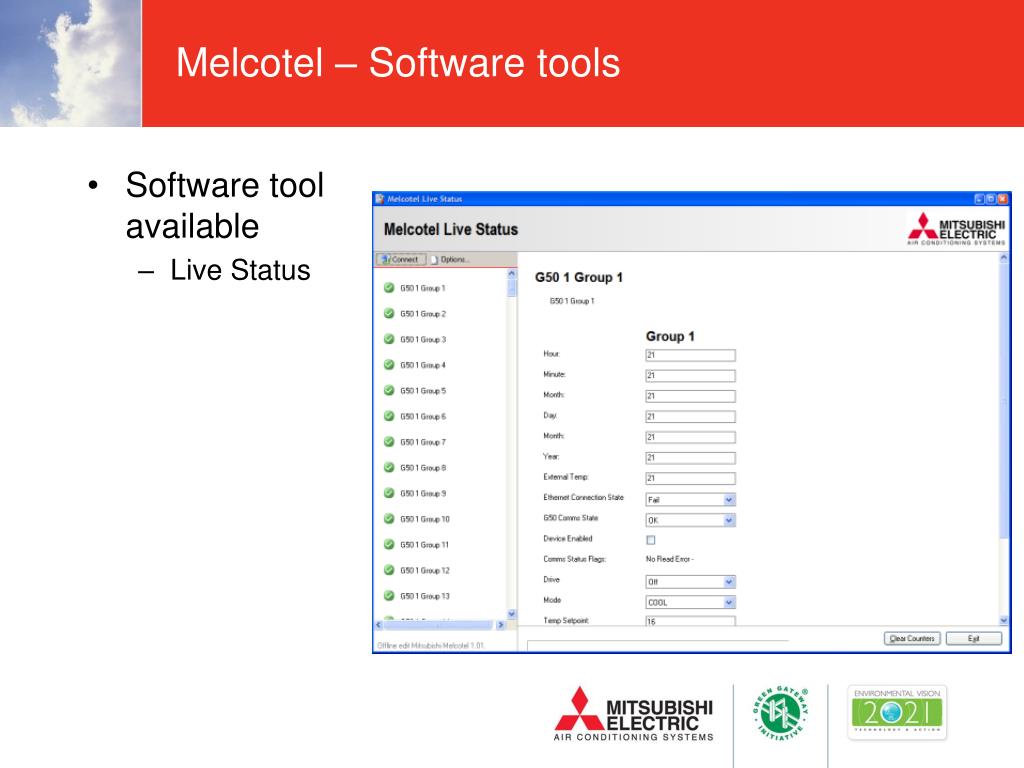

  11. Melcotel – Software tools • Software tool available • Live Status

  12. Melcotel – Mini M2M • Remote monitoring with Mini M2M

  13. Melcotel – Comparison with PLC PLC Melcotel Number of indoor units 200 250 Indoor unit scanning <60s <30s Key card integration Yes Yes NO Key card integration No Yes Windows contact No Yes Night set back Yes Yes Temperature adjustment No Yes Night time off/offset No Yes Day time off No Yes Commissioning tool No Yes Live status tool No Yes Contractor able to commissioning No Yes Pre commissioning settings (Corporate) No Yes Price £2,250 £1,412
