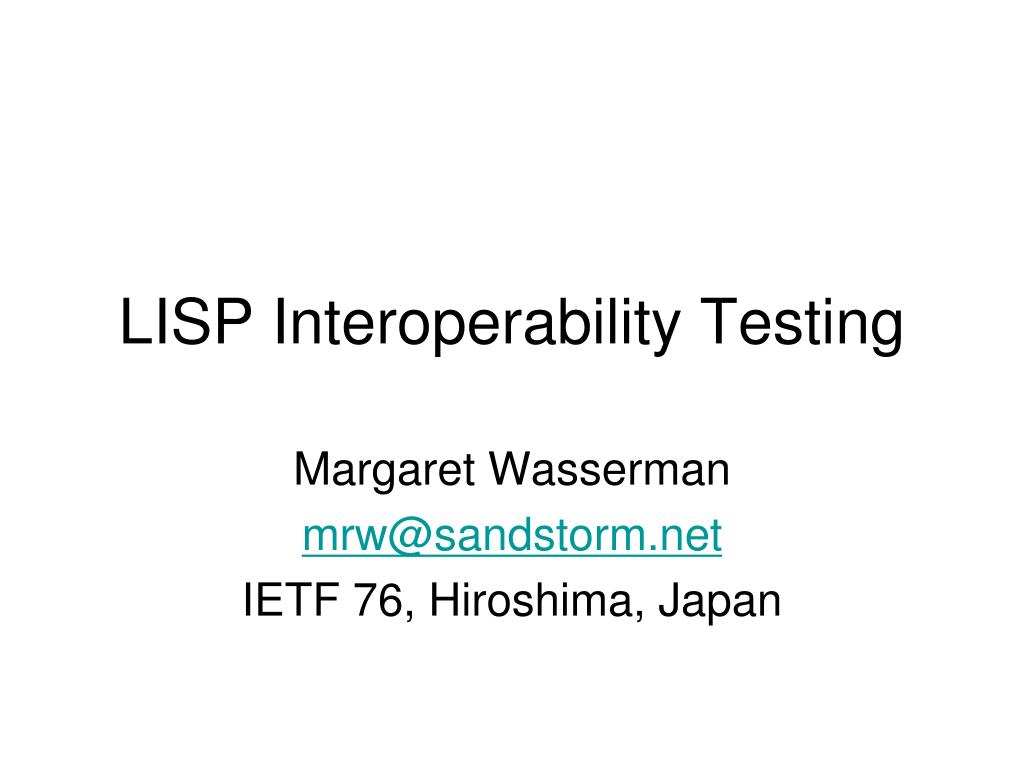

  1. LISP Interoperability Testing Margaret Wasserman mrw@sandstorm.net IETF 76, Hiroshima, Japan

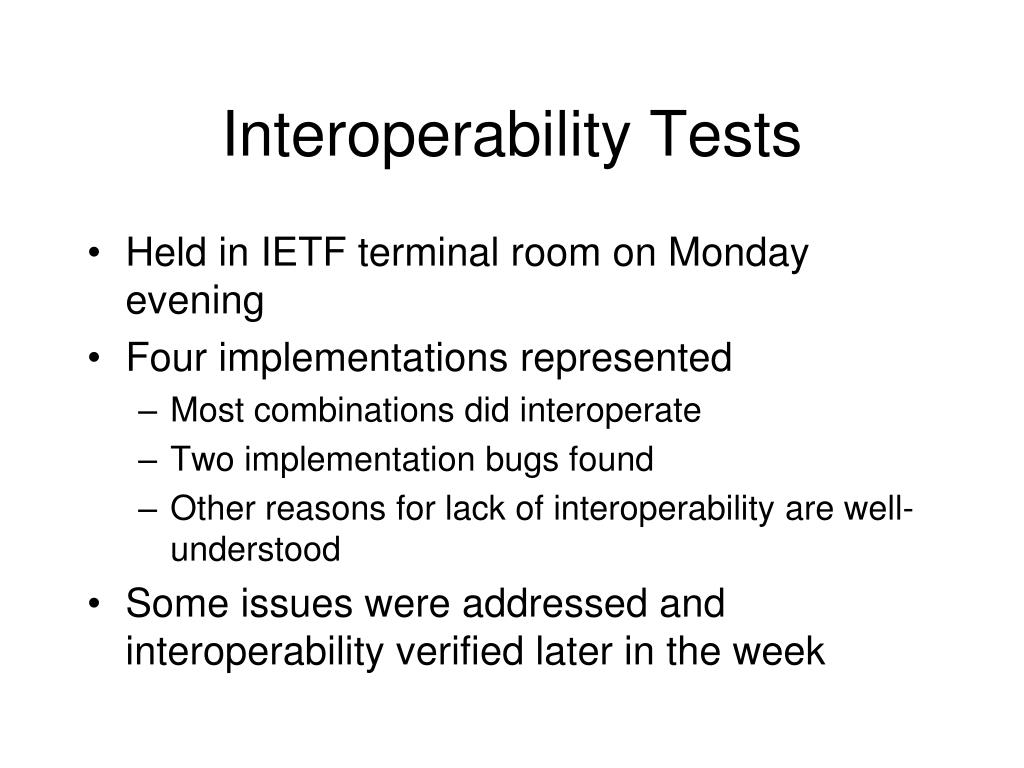

  2. Interoperability Tests • Held in IETF terminal room on Monday evening • Four implementations represented • Most combinations did interoperate • Two implementation bugs found • Other reasons for lack of interoperability are well-understood • Some issues were addressed and interoperability verified later in the week

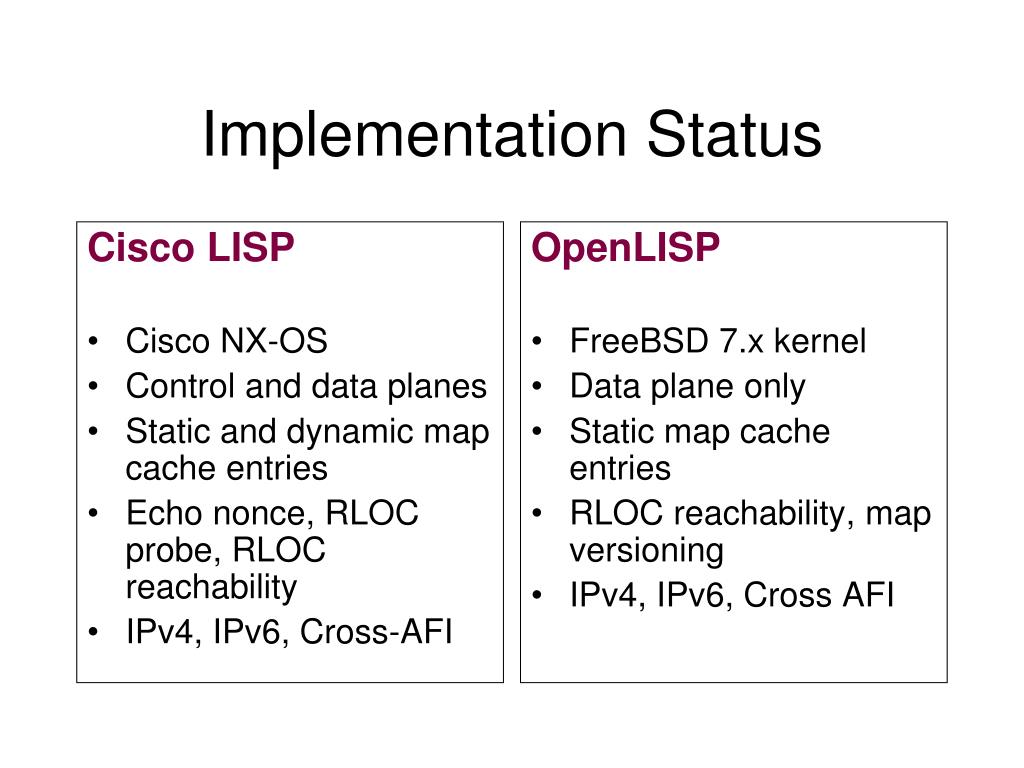

  3. Cisco LISP Cisco NX-OS Control and data planes Static and dynamic map cache entries Echo nonce, RLOC probe, RLOC reachability IPv4, IPv6, Cross-AFI OpenLISP FreeBSD 7.x kernel Data plane only Static map cache entries RLOC reachability, map versioning IPv4, IPv6, Cross AFI Implementation Status

  4. LISP-Click Click Java Framework Data plane only Static map cache entries Echo nonce, RLOC reachability IPv4 only ZLisp Portable C++ (Linux, FreeBSD, MacOS) Control and data planes Dynamic map cache entries Responds to RLOC probes IPv4, IPv6, Cross AFI Implementation Status

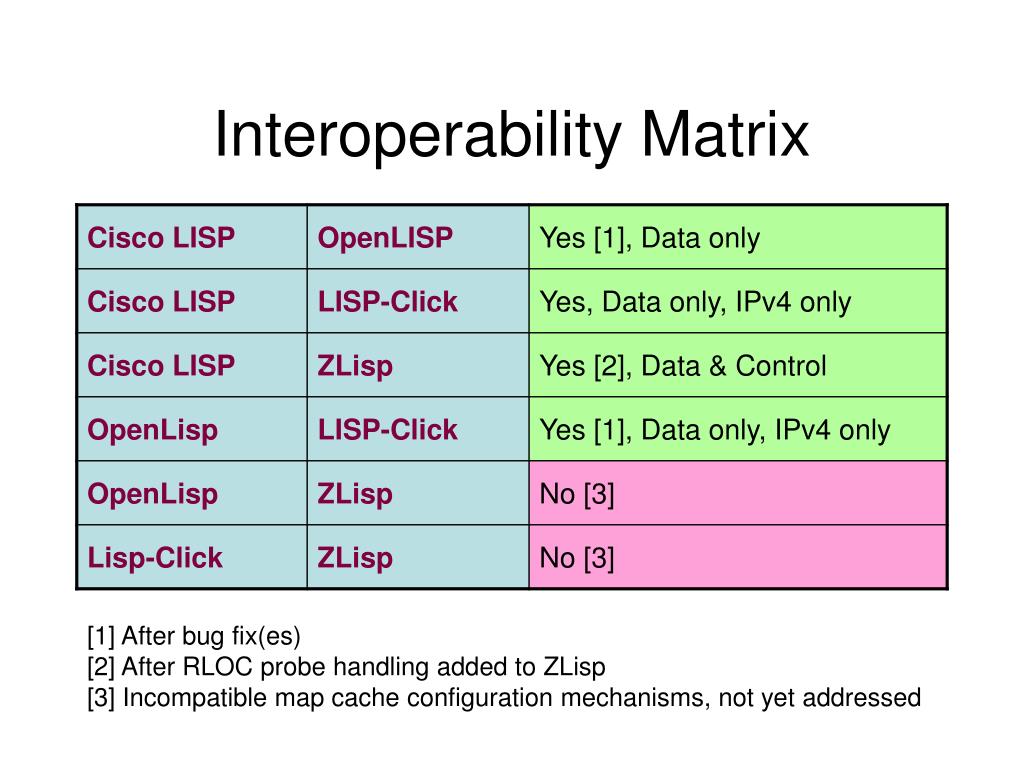

  5. Interoperability Matrix [1] After bug fix(es) [2] After RLOC probe handling added to ZLisp [3] Incompatible map cache configuration mechanisms, not yet addressed

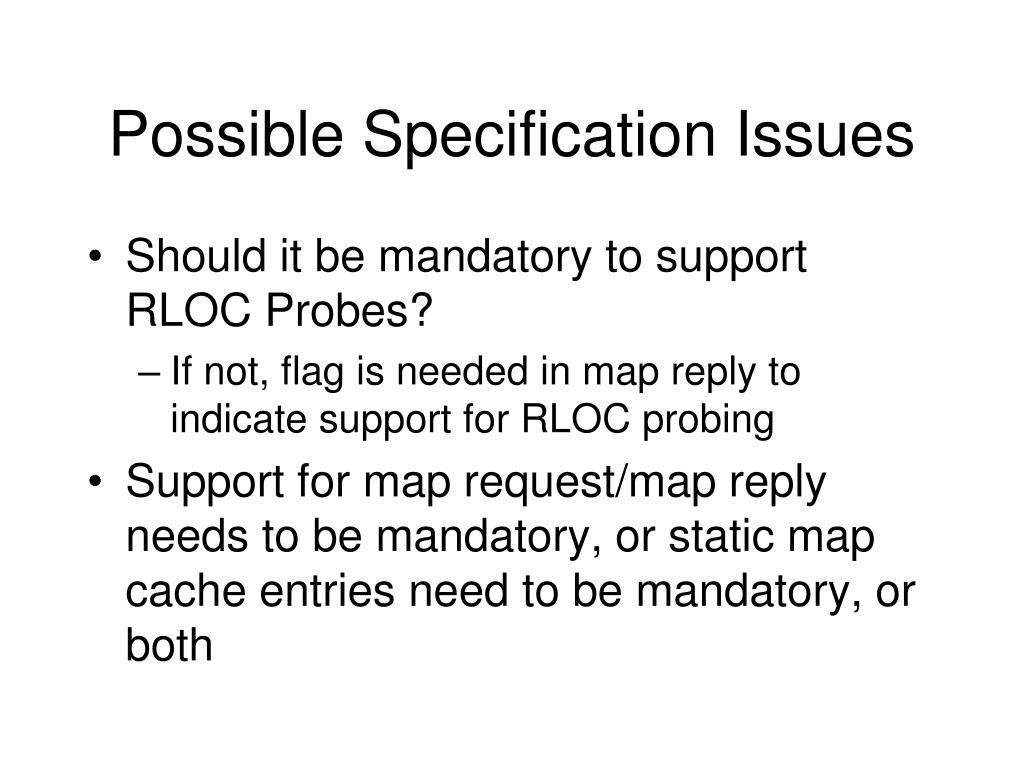

  6. Possible Specification Issues • Should it be mandatory to support RLOC Probes? • If not, flag is needed in map reply to indicate support for RLOC probing • Support for map request/map reply needs to be mandatory, or static map cache entries need to be mandatory, or both
