1 / 4

PRINTING OF POLYESTER

PRINTING OF POLYESTER. DYE CLASS : DISPERSE METHODS OF DYE FIXATION ATMOSPHERIC STEAMING PRESSURE STEAMIG DRY HEAT (THERMOSOL) HIGH TEMPERATURE STEAMING. THICKENER CHOICE. HIGH SOLID CONTENT THICKENER IS PREFERRED ESPECIALLY WHEN PRINTS ARE FIXED BYSTEAMING

veata
Télécharger la présentation

PRINTING OF POLYESTER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

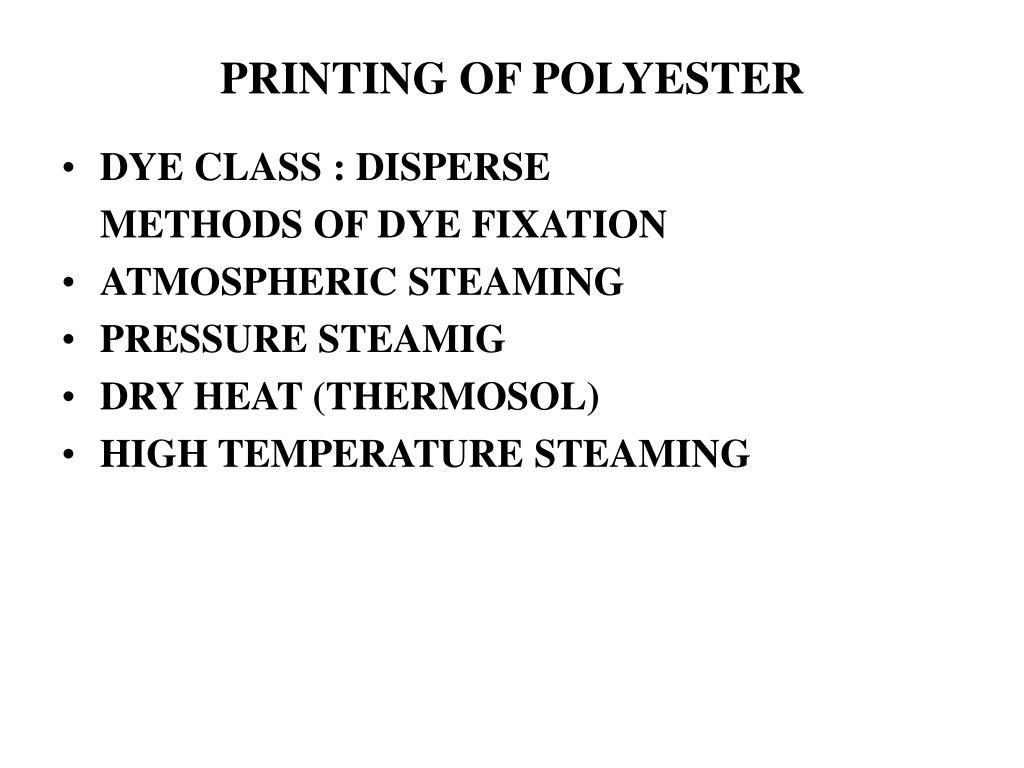

  1. PRINTING OF POLYESTER • DYE CLASS : DISPERSE METHODS OF DYE FIXATION • ATMOSPHERIC STEAMING • PRESSURE STEAMIG • DRY HEAT (THERMOSOL) • HIGH TEMPERATURE STEAMING

  2. THICKENER CHOICE • HIGH SOLID CONTENT THICKENER IS PREFERRED ESPECIALLY WHEN PRINTS ARE FIXED BYSTEAMING • THE THICKENER FILM SHOULD ADHARE WELL AND PRODUCE AN ELASTIC FILM TO PREVENT CRACKING AND FLAKING OFF • LOW SOLID CONTENT THICKENER GIVE BETTER COLOUR YIELD IN THERMOSOL PROCESS • MIXTURE OF NATURAL THICKENER AND EMULSION THICKENER IS USEFUL SINCE MINERL OIL GIVES WETTING OF HYDROPHOBIC POLYESTER FABRIC. THE MIXED THICKENER INCREASE LEVELNESS AND DYE PENETRATION IN THE FIBRE • THE THICKENER FILM SHOULD EASILY BE REMOVED DURING WASHING OPERATION • MODIFIED GUAR GUM (INDALCA AGBV) IS WIDELY USED

  3. PRINT PASTE COMPOSITION DISPERSE DYE 20-50 PARTS DISPERSING AGENT 20 PARTS WATER 150 PARTS SODIUM CHLORATE 5 PARTS THICKENER PASTE TO MAKE 1000 PARTS • SODIUM CHLORATE (MILD OXIDIZING AGENT) PROTECT THE BRIGHTNESS OF PRINTS AGAINST ANY POSSIBLE REDUCTION OF DYESTUFF UNDER PROLONGED STEAMING CONDITIONS SEQUENCE PRINT > DRY > FIXATION > WASH > SOAP (TEMP NOT TO EXCEED 600 C )> WASH > DRY

  4. DYE FIXATION • PRESSURE STEAMING AT 25 PSI, 1300 C FOR 30-45 MIN. • HIGH TEMPERATURE STEAMING (SUPER HEATED) AT 170-1800C FOR 5-7 MIN. • HOT AIR (THERMOSOL) AT 190-2000 C FOR 45-60 SEC. AFTER TREATMENT • COLD WATER RINSE > HOT WATER RISNSE > SOAPING 600 C > HOT AND COLD WATER RINSE
