  1. B737PerformanceTakeoff & Landing Last Rev: 02/06/2004

  2. Takeoff Performance • Takeoff Performance Basics • Definitions: Runway Takeoff Distances • Definitions: Takeoff Speeds • JAR 25 Requirements • Engine failure • Optimisation – improved climb • Reduced takeoff

  3. Takeoff Performance Basics What is the Gross Takeoff Flight Path ? • It is the vertical flight path that a new aircraft flown by test pilots under ideal conditions would achieve. It is adjusted for the Minimum Engine. It starts where the aircraft passes 35ft and ends at a minimum of 1500 ft What is the Net Takeoff Flight Path ? • This is the vertical flight path that could be expected in operation with used aircraft. It also starts at 35ft and ends at a minimum of 1500ft

  4. Takeoff Performance Basics • The Net Gradient would be calculated as follows: Gross Gradient p% x D Net Gradient Distance = D

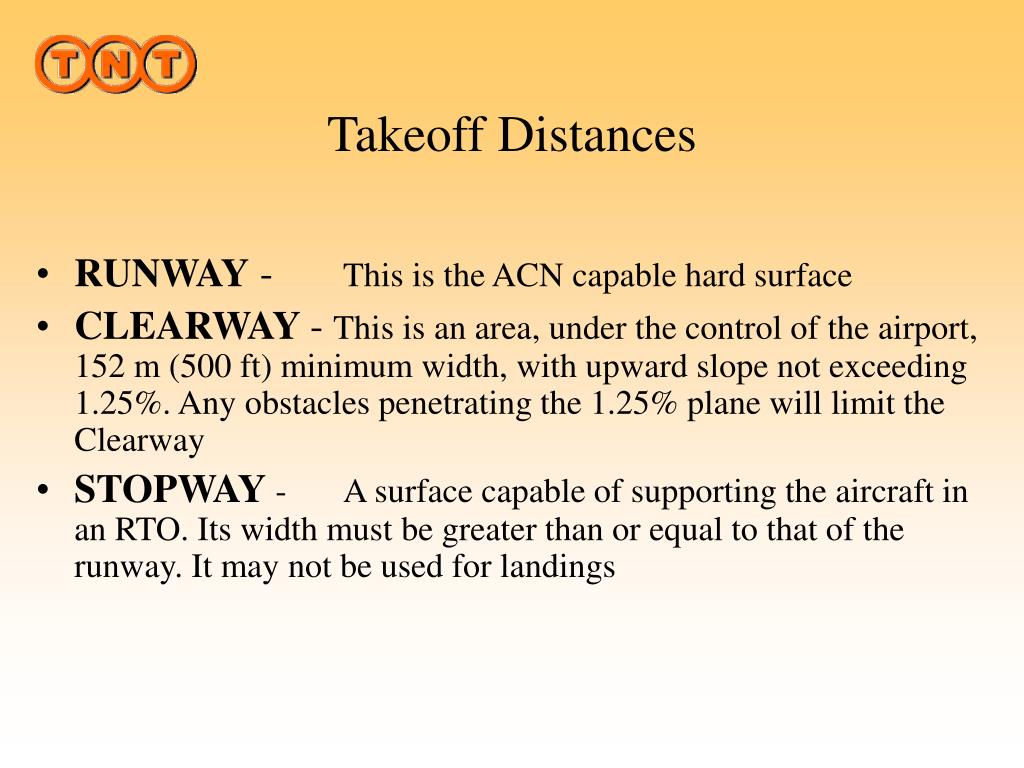

  5. Takeoff Distances • RUNWAY - This is the ACN capable hard surface • CLEARWAY- This is an area, under the control of the airport, 152 m (500 ft) minimum width, with upward slope not exceeding 1.25%. Any obstacles penetrating the 1.25% plane will limit the Clearway • STOPWAY - A surface capable of supporting the aircraft in an RTO. Its width must be greater than or equal to that of the runway. It may not be used for landings

  6. Takeoff Distances CLEARWAY RUNWAY STOPWAY TORA ASDA TODA MAX1.25%

  7. Takeoff Distances • TORA- TakeOff Run Available. This is the physical runway limited by obstacle free requirements • ASDA - Accelerate-Stop Distance Available. This is the distance available for accelerating to V1 and then stopping. It may include the physical runway and any stopway available • TODA - TakeOff Distance Available. This is the distance available to achieve V2 at the appropriate screen height. It may include physical runway, stopway and clearway • Note: Not more than ½ the Air Distance may be in the Clearway (Air Distance is distance from lift-off to 35 ft) • The Takeoff Run is defined as the distance from brake release to ½ the Air Distance • Wet Runway calculations do not allow use of Clearway

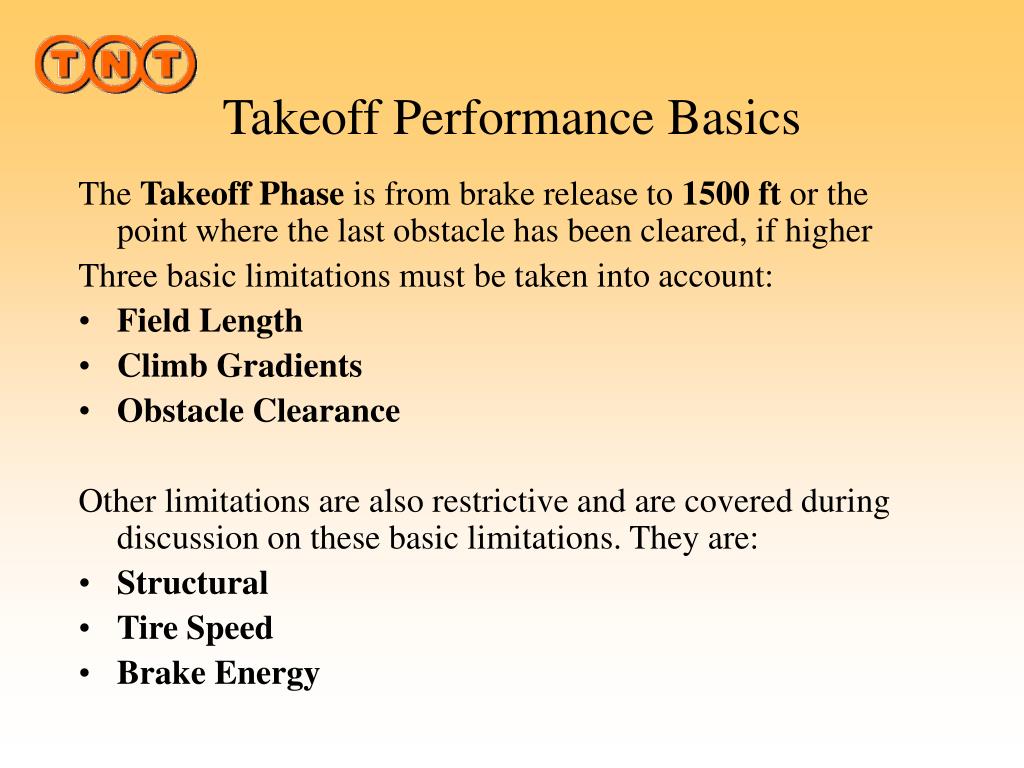

  8. Takeoff Performance Basics The Takeoff Phase is from brake release to 1500 ft or the point where the last obstacle has been cleared, if higher Three basic limitations must be taken into account: • Field Length • Climb Gradients • Obstacle Clearance Other limitations are also restrictive and are covered during discussion on these basic limitations. They are: • Structural • Tire Speed • Brake Energy

  9. Takeoff Speeds V1

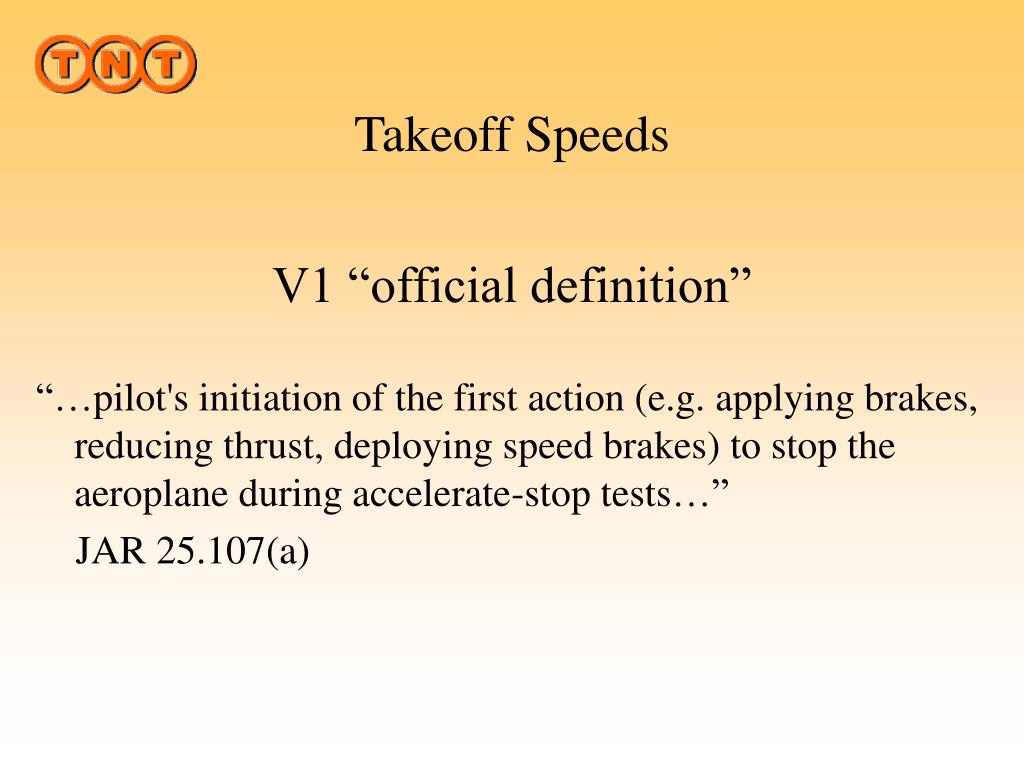

  10. Takeoff Speeds “…pilot's initiation of the first action (e.g. applying brakes, reducing thrust, deploying speed brakes) to stop the aeroplane during accelerate-stop tests…” JAR 25.107(a) V1 “official definition”

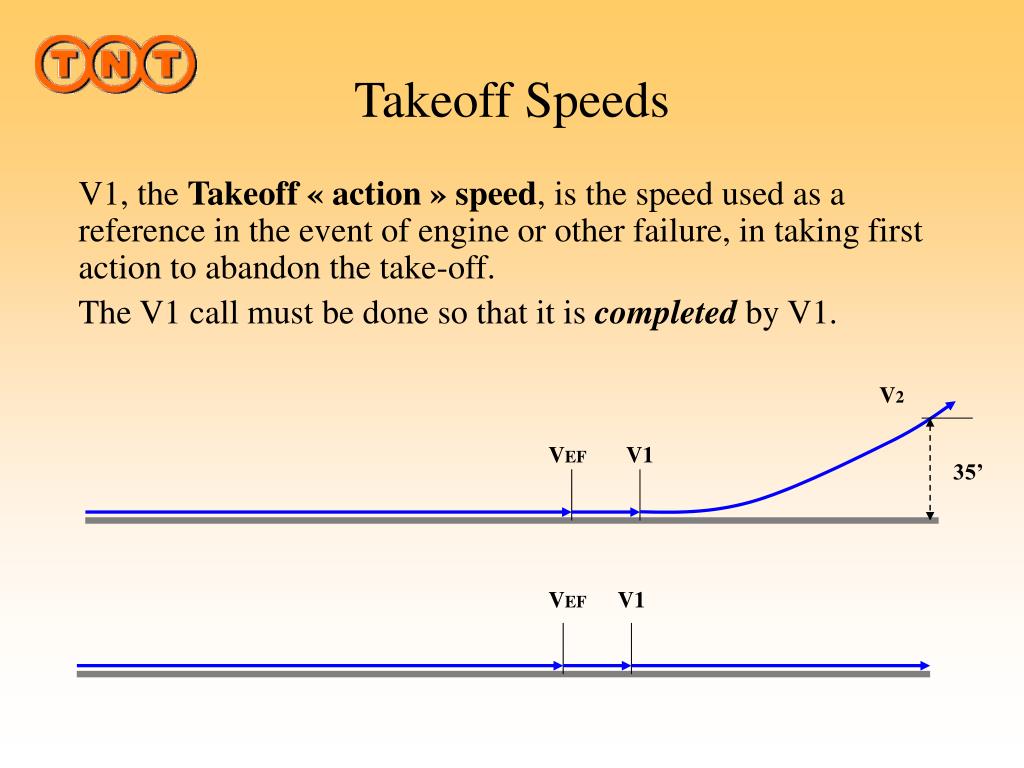

  11. Takeoff Speeds V1, the Takeoff « action » speed, is the speed used as a reference in the event of engine or other failure, in taking first action to abandon the take-off. The V1 call must be done so that it is completed by V1. V2 VEF V1 35’ VEF V1

  12. Takeoff Speeds VR • VR is the speed at which rotation is initiated, so that in the case of an engine failure, V2 will be reached at a height of 35 feet using a rotation rate of 2º-3º / second • Regulations prohibit a RTO after rotation has been initiated, thus VR must be greater than V1. VR  V1

  13. Takeoff Speeds • V2 is the takeoff safety speed. This speed will be reached at 35 feet with one engine inoperative. V2

  14. Takeoff Speeds • Effects on the screen height of continuing a takeoff with an engine failure prior to VEF 35 Ft HEIGHT AT END OF TODA 10 Ft 2 Engine 1 sec -16 -8 0 +4 +8 SPEED OF ENGINE FAILURE RELATIVE TO VEF

  15. Takeoff Speeds • V1(MCG) - The Minimum Ground Control Speed • This is the speed at which, in the case of a failure of the Critical Engine, it is possible to control the aeroplane by aerodynamic means only without deviating from the runway centreline by more than 30 ft, while maintaining takeoff thrust on the other engine(s). Maximum rudder force is restricted to 68 Kg (150 lbs) • In demonstrating V1(MCG), the most critical conditions of weight, configuration and CG will be taken into consideration • Crosswind is not considered in V1(MCG) determination • Obviously VEF must be greater than V1(MCG), or the aircraft would be uncontrollable on the ground with an engine inoperative: VEF V1(MCG)

  16. Takeoff Speeds • VMC - The Minimum Control Speed • This is the speed, when airborne, from which it is possible to control the aeroplane by aerodynamic means only with the Critical Engine Inoperative while maintaining takeoff thrust on the other engine(s) • The demonstration is made with not more than 5º Bank into the live engine, Gear retracted (as this reduces the directional stability) and the most Aft CG (as this reduces the Rudder Moment.) • (VMC may increase as much as 6 Kts. / º Bank from demonstration with wings level and Ball centred)

  17. Field Length Criteria • The Takeoff distance required for a given weight and given V1 is the greater of three different distances: Actual All-Engine Takeoff Distance x 1.15 Actual All-Engine Takeoff Distance (As Demonstrated in Tests) V > V2 35 ft V1 15% Safety Margin One Engine Inoperative Takeoff Distance V2 35 ft VEF V1 VEF V1 One Engine Inoperative Accelerate-Stop Distance

  18. Field Length Criteria • The greater of the 3 distances is the JAR Field Length required • If V1 is chosen such as the 1-Engine-Inoperative Accelerate-Go and Accelerate-Stop distances are equal, the necessary field length is called Balanced and the corresponding V1 is known as a Balanced V1 Balanced V1

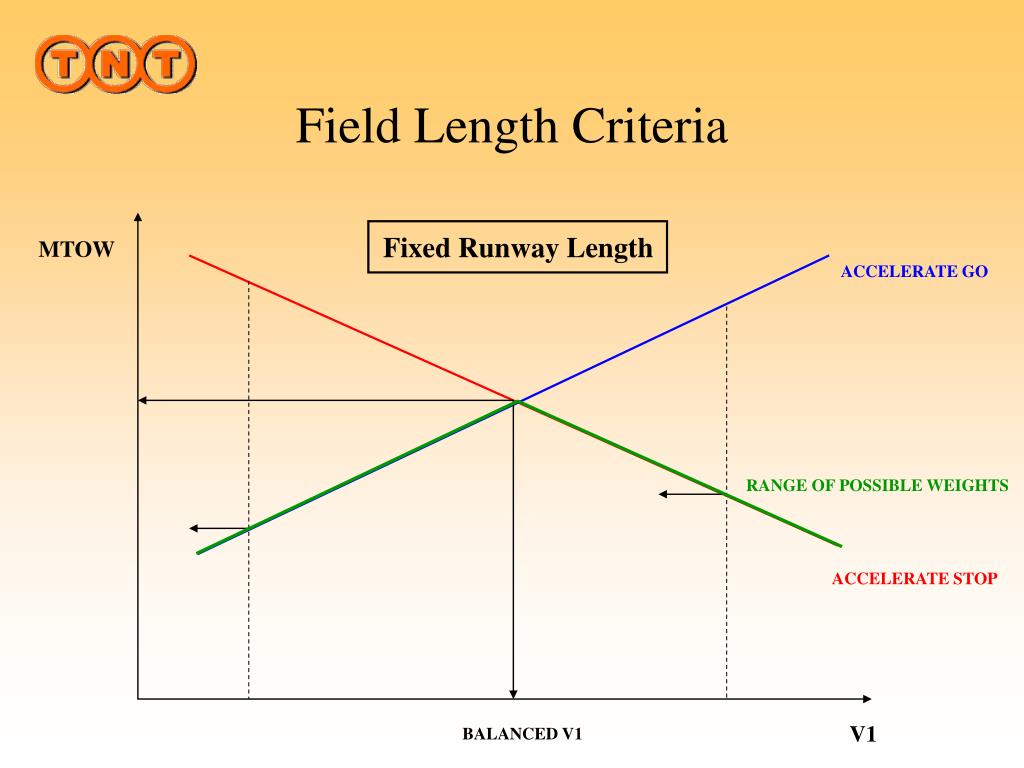

  19. Fixed Runway Length Field Length Criteria MTOW ACCELERATE GO RANGE OF POSSIBLE WEIGHTS ACCELERATE STOP V1 BALANCED V1

  20. TO ThrustMax 5 min MCT 1st Segment 2nd Segment 3rd Segment 4th Segment JAR 25 Takeoff Flight Path 1500 Ftor Clear of Obstacles Flap retraction400 Ft Min Gear Retracted Clean Lift-Off V2 V2 Acceleration Clean 35ft TWIN 2.4% acceleration or 1.2% avail. 1.2% >0

  21. Obstacle Clearance • For Obstacle Clearance a Net Takeoff Flight Path is considered • It is not demonstrated, but rather calculated from the Gross Flight Path by reducing the gradients by a safety margin: Twin 0.8% • It also will take wind into account, using 50% of the Headwind Component and 150% of the Tailwind Component, thus giving a further safety margin. • The Net Takeoff Flight Path must clear all obstacles by 35 Ft

  22. Obtacle Vs Climb 1st Segment 2nd Segment 3rd Segment 4th Segment Gross Flight Path V2 Net Flight Path 35 ft 35 ft 35 ft 35 ft

  23. Obstacle Clearance • The minimum height for flap retraction is 400ft AAL (gross) • TNT A B737 : we use 800 ft AAL minimum • If there is a high obstacle in the 3rd or 4th segment, we could extend the second segment to ensure that the obstacle was cleared by 35ft. Provided it still remains in the 3rd or 4th Segment • We now have a Minimum Gross and Minimum Net Acceleration Height which is then corrected for elevation and temperature to give a Minimum Gross Acceleration Altitude

  24. Obstacle Clearance Minimum Gross Acceleration Height Extended Second Segment Minimum Net Acceleration Height 35 Ft 400 Ft

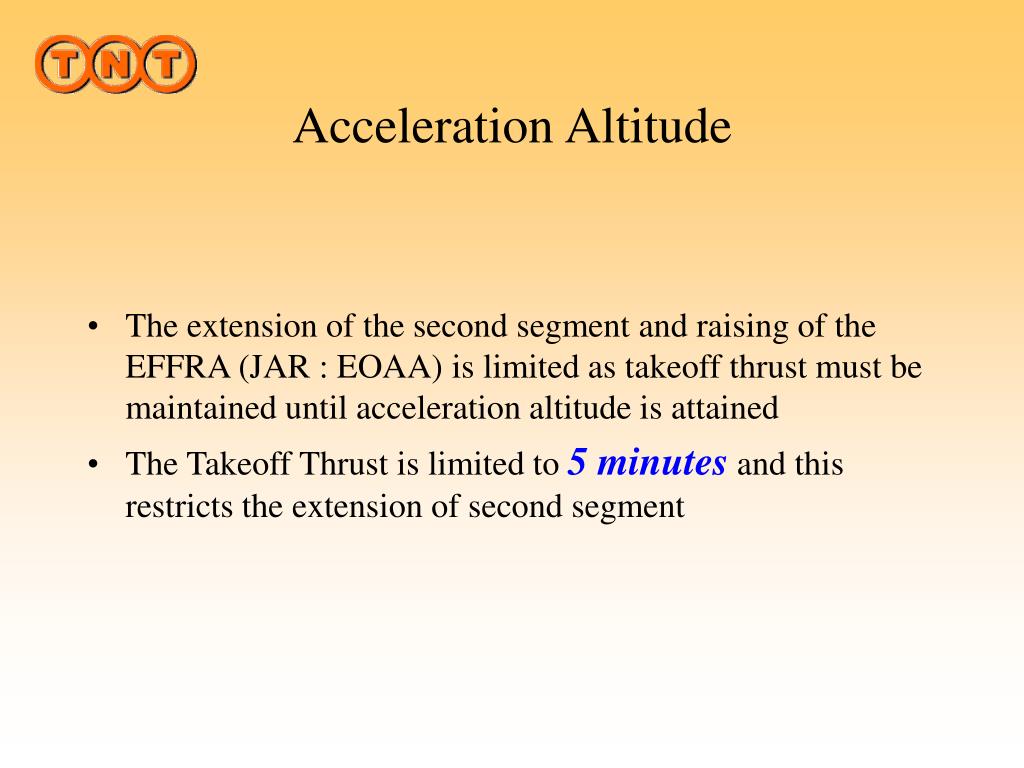

  25. Acceleration Altitude • The extension of the second segment and raising of the EFFRA (JAR : EOAA) is limited as takeoff thrust must be maintained until acceleration altitude is attained • The Takeoff Thrust is limited to 5 minutes and this restricts the extension of second segment

  26. Engine Failure Procedure The Standard Engine Out Procedure (EOP) is therefore: • Maintain Runway Track • Climb to the EFFRA at V2 • Accelerate and Retract Flaps • Set MCT (max 5 min after TO power setting) • Climb to the 1500 ft AGL at Flap up man. speed • And then???

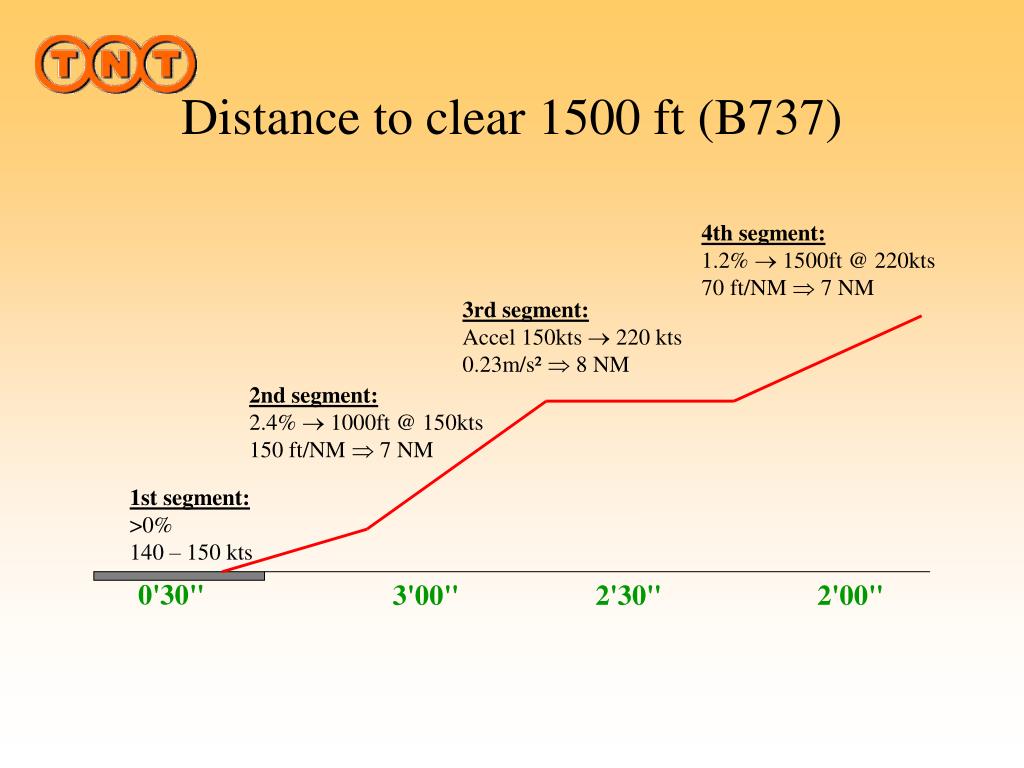

  27. Distance to clear 1500 ft (B737) 4th segment: 1.2%  1500ft @ 220kts70 ft/NM  7 NM 3rd segment: Accel 150kts  220 kts 0.23m/s²  8 NM 2nd segment: 2.4%  1000ft @ 150kts150 ft/NM  7 NM 1st segment: >0% 140 – 150 kts 0'30" 3'00" 2'30" 2'00"

  28. Obstacle Clearance • Only obstacles within a certain lateral distance of the flight path are taken into account in performance calculations • For each runway, Obstacle Cone is constructed for Straight Ahead or Turning Engine Out Procedures (EOP) • Wind is not considered therefore correct tracking is important • There is not a large margin for error for a jet airplane

  29. Obstacle Clearance Flight Path 3000 ft 300 ft width = 0.125 x D 21600 ft 3000 ft 3000 ft 300 ft

  30. Obstacle Clearance Flight Path

  31. Obstacle Clearance • Bank Angle has a large effect on the climb performance and therefore Obstacle Clearance GRADIENT 2.4% 0.6% 1.8% 0 15 30 BANK ANGLE

  32. Optimisation - Improved climb • Depending on the design of the aircraft and on the flap setting, the maximum climb angle speed is usually 15 to 30 kts higher than 1.13 VSR • However, the selection of a V2 higher than the minimum will increase TOD • The V2/VS optimisation is called « Improved Climb Method » • This method consists thus in increasing the climd limited TOW at the expense of the field limited TOW. It is only applicable if runway length permits • In order to obtain consistent field length, V1 and VR have to increase if V2 increases: if the runway allows an increase of V2, thus an increase in TOD, it will also allow an increase of the ASD, thus also of V1

  33. Optimisation - Improved climb Drag Drag Curve Given TOW TO Flaps Gear UP Depending on Flap Setting, the Max Angle Speed is typically 1.13 VS + 15 to 30 Kts EAS Vs 1.13Vs 1.28Vs

  34. Optimisation - Improved climb • In order to achieve the higher V2, the VR speed must be increased • The V1 speed must also be increased to ensure that there is sufficient runway to accelerate, lose and engine and be able to continue the takeoff at higher weight • As V1 is higher, the VMBE speed must be checked for brake energy limits as this may become limiting

  35. Reduced Thrust Takeoff • When the actual TOW is below the maximum allowable TOW for the actual OAT, it is desirable to reduce the engine thrust • This thrust reduction is a function of the difference between actual and maximum TOW • JAA requires that the reduced thrust may not be less than 75% of the full takeoff thrust. Specific figures may apply for different airplanes/engines

  36. Reduced Thrust Takeoff Assumed temperature If the actual TOW is lessthan the maximum weightfor the actual temperature,we can determine an assumedtemperature, at which theactual weight would be equalto the maximum allowed TOW MAXTOW Flat ratedthrust EGTlimited thrust Allowed TOW ActTOW Having determined thisassumed temperature, wecan compute the take-off thrust for that temperature OAT Assumedtemperature Temp

  37. Reduced Thrust Takeoff Limitations • Since thrust may not be reduced below 75% of the full thrust, a max assumed temp can be determined • The assumed temperature may not be less than the OAT • No reduced thrust on standing water, and on contaminated or slippery runways • No reduced thrust with antiskid inop or PMC OFF • No reduced thrust for windshear, low visibility takeoff

  38. Reduced Thrust Takeoff It’s safe OAT = 30°Cweight is MTOW V1 Margin at V1 OAT = 10°CASS. TEMP = 30°C weight is MTOW V1

  39. RTO execution operational margin

  40. Landing and Go-Around • Landing Distance • Approach Climb • Landing Climb • Procedure Design Missed Approach Gradient

  41. Landing Distance • JAR 25 defines the landing distance as the horizontal distance required to bring the airplane to a standstill from a point 50 ft above the Runway Threshold. • They are determined for Standard Temperatures as a function of: • Weight • Altitude • Wind (50% Headwind and 150% Tailwind) • Configuration (Flaps, Manual/Auto-Speedbrakes, Brakes) • They are determined from a Height of 50 ft at VREF on a Dry (or Wet), Smooth Runway using Max Brakes, full Antiskid and Speedbrakes but No Reversers

  42. Landing Distance • Boeing describes the braking technique as “Aggressive”. The Brakes are fully depressed at touchdown • Runway Slope is NOT accounted for • Non standard temperatures are NOT accounted for • Approach speed Additives are NOT accounted for • These are considered to be covered by the extra margins used to define certified landing distances

  43. Actual Landing Distance Required Landing Distance Wet Landing Distance = 1.15 x Required Landing Distance Landing Distance V = 1.23 VS1G Landing Distance  60% Runway Length 50 ft Dry Factor = 1.67 Wet Factor = 1.15

  44. Approach Climb What is Approach Climb ? 2.1%

  45. Approach Climb • Aircrafts are certified to conduct a missed approach and satisfy a Gradient of 2.1% - GROSS • The configuration is: One Engine Inoperative Gear Up Go Around Flaps (15 on 737) G/A Thrust • Speed must be  1.4 VSR (Strictly speaking, the Flap Setting must be an intermediate flap setting corresponding to normal procedures whose stalling speed is not more than 110% of the final flap stalling speed)

  46. Landing Climb What is Landing Climb ? 3.2%

  47. Landing Climb • Aircrafts are certified to conduct a missed approach and satisfy a Gradient of 3.2% - GROSS • The configuration is: All Engines Operating Gear Down Landing Flaps (30 or 40 on 737) G/A Thrust • The speed must be  1.13 VSR and VMCL • It is also a requirement that full G/A thrust must be available within 8 seconds of the thrust levers forward from idle
