  1. SharePoint 2013 Enterprise Search Topology Tyler Bithell B2B TECHNOLOGIES | PRESENTATION

  2. Who I am Tyler BithellChief Technical Architect of Portals at B2B Technologies. Worked with SharePoint since 2006. SharePoint Consultant since 2009. MCPD/MCITP – SharePoint 2010. MS in Computer Science.Blog…http://sharepointv15.wordpress.com B2B TECHNOLOGIES | PRESENTATION

  3. Tyler Bithell • Follow me on twitter @B2B_Tech_TB • Mention me on Twitter using the hashtag #SPSATL • Scan the QR code to fill out a survey and potentially win prizes Fill out surveys for big prizes SCAN QR CODES

  4. Session Topics Topics • Search Topology Overview • Plan for Your Search Deployment • Search Scaling • How to Add, Move and Delete Components • Demo • Questions? B2B TECHNOLOGIES | PRESENTATION

  5. Search Architecture Architecture B2B TECHNOLOGIES | PRESENTATION

  6. Search Topology Architecture Topology GUI B2B TECHNOLOGIES | PRESENTATION

  7. Crawl Component Crawl and content Crawl and Content Processes • Is responsible for crawling content sources. • Invokes connectors or protocol handlers that interact with content sources to retrieve data. • Uses one or more crawl databases to temporarily store information about crawled items and to track crawl history. • Extracts crawled properties and metadata to send to the content processing component B2B TECHNOLOGIES | PRESENTATION

  8. Crawl Database Crawl and content Crawl and Content Processes • Contains detailed tracking and historical information about crawled items • Holds information such as the last crawl time, the last crawl ID and the type of update during the last crawl • Can have one or more crawl components associated with it. B2B TECHNOLOGIES | PRESENTATION

  9. Content Processing Component Crawl and content Crawl and Content Processes • Lives between the Crawl and Index Components • Transforms crawled items into artifacts that can be included in the search index • Performs linguistics processing • Interacts with the analytics component • Writes information about links and URLs to the link database • Maps crawled properties to managed properties B2B TECHNOLOGIES | PRESENTATION

  10. Indexing Component Index and query Index and query processes • Logical representation of an index replica • One index component must be provisioned for each replica • Receives processed items from the content processing component and writes them to the index file • Receives queries from the query processing component and provides a result set in return B2B TECHNOLOGIES | PRESENTATION

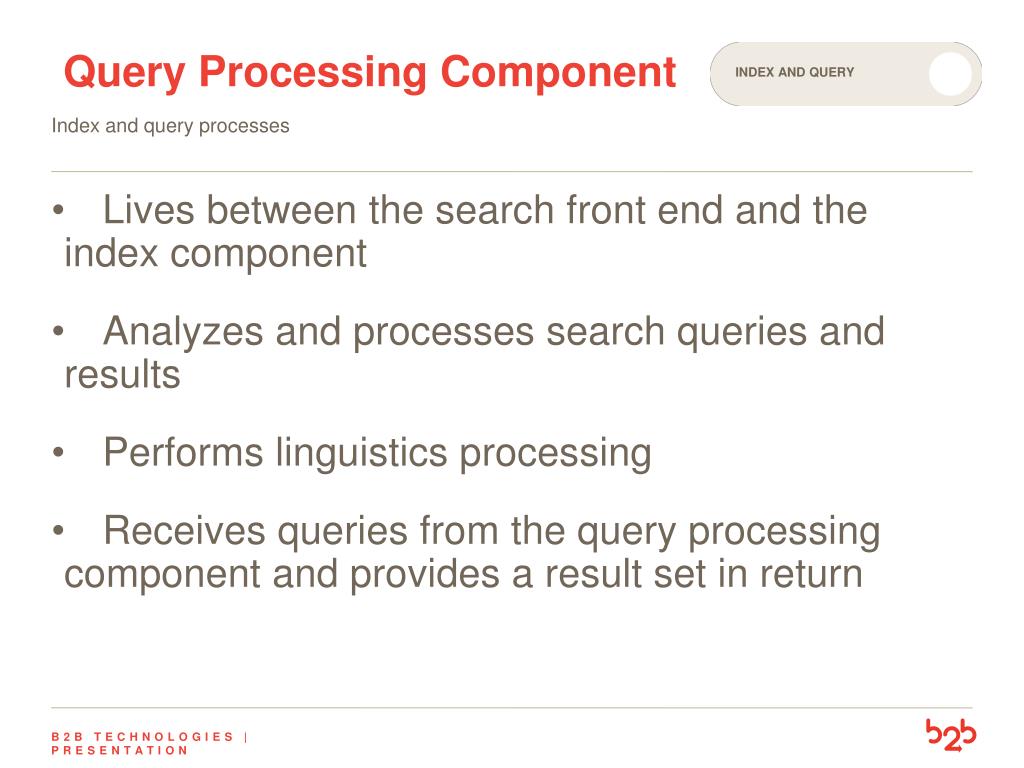

  11. Query Processing Component Index and query Index and query processes • Lives between the search front end and the index component • Analyzes and processes search queries and results • Performs linguistics processing • Receives queries from the query processing component and provides a result set in return B2B TECHNOLOGIES | PRESENTATION

  12. Search Administration administration Administration • Made up of the Search Administration Component and its Database • The Search Administration Component runs a number of system processes and carries out provisioning • The Search Administration Database stores search configuration data B2B TECHNOLOGIES | PRESENTATION

  13. Analytics Processing Component Analytics Analytics Processes • Performs search and usage analytics • The results from the analyses are added to the items in the search index • The results from the usage analytics are stored in the analytics reporting database B2B TECHNOLOGIES | PRESENTATION

  14. Link Database Analytics Analytics Processes • Stores information extracted by the content processing component • Stores information about search clicks B2B TECHNOLOGIES | PRESENTATION

  15. Analytics Reporting Database Analytics Analytics Processes • Stores the results of usage analytics • Stores statistics information from the analyses B2B TECHNOLOGIES | PRESENTATION

  16. Event Store Analytics Analytics Processes • Holds usage events that are captured on the front-end • The events are stored as log files on the application server that hosts the analytics processing component B2B TECHNOLOGIES | PRESENTATION

  17. Search Topology Small Farm Topology topology B2B TECHNOLOGIES | PRESENTATION

  18. Search Topology topology Medium Farm Topology B2B TECHNOLOGIES | PRESENTATION

  19. Search Topology Large Farm Topology topology B2B TECHNOLOGIES | PRESENTATION

  20. Content Volume Scaling Scaling Dimensions • Content volume scaling is just a matter of making sure you stay within the items limits that Microsoft has specified • 10 million items per index partition • 20 million items per query database B2B TECHNOLOGIES | PRESENTATION

  21. Query Load Search Scaling Scaling Dimensions • Query Processing Component Considerations • CPU Load • Queries per second • Query transformations • Network Load • Number of index partitions • Size of queries and results B2B TECHNOLOGIES | PRESENTATION

  22. Crawl Load Search Scaling Scaling Dimensions • Index Component Considerations • CPU Load • Queries per second • Item Count • Index Disk IOPS • Crawl Component Considerations • CPU Load • Document per second • Link Discovery • Crawl Management • Network Load • Disk Load B2B TECHNOLOGIES | PRESENTATION

  23. Crawl Load Continued Search Scaling Scaling Dimensions • Content Processing Component • CPU Load • Documents per second • Document size and complexity • Feature extraction • Network Load • Documents per second • Document Size B2B TECHNOLOGIES | PRESENTATION

  24. Analytics Load Search Scaling Scaling Dimensions • Analytics Processing Component • CPU Load • Number of items • Site activity • Network Load • Same as CPU load B2B TECHNOLOGIES | PRESENTATION

  25. Search Resources Resources B2B TECHNOLOGIES | PRESENTATION

  26. Making Topology Changes Topology modifications Changing Topology • Steps to make topology changes • Turn on the search service on all servers that will house search components • Clone the existing search topology • Add or delete search components • Promote the cloned topology to active B2B TECHNOLOGIES | PRESENTATION

  27. Demo Demo Search Demonstration B2B TECHNOLOGIES | PRESENTATION
