  1. Web X.0, NoSQL DBsand the Semantic Web Directions…

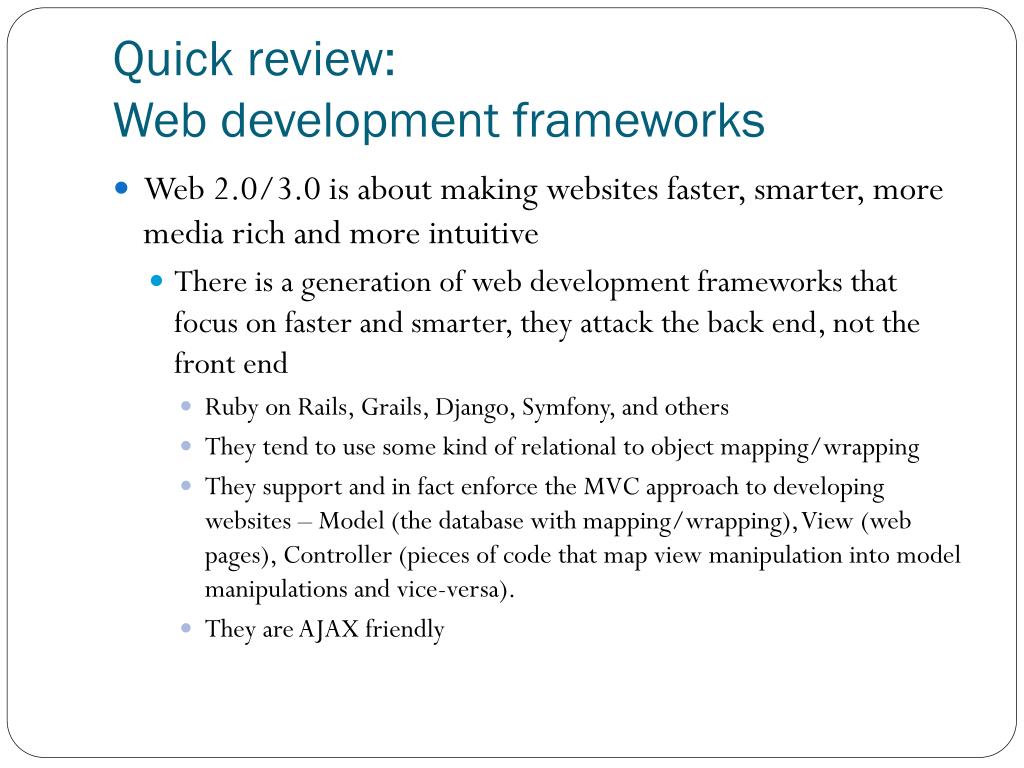

  2. Quick review: Web development frameworks • Web 2.0/3.0 is about making websites faster, smarter, more media rich and more intuitive • There is a generation of web development frameworks that focus on faster and smarter, they attack the back end, not the front end • Ruby on Rails, Grails, Django, Symfony, and others • They tend to use some kind of relational to object mapping/wrapping • They support and in fact enforce the MVC approach to developing websites – Model (the database with mapping/wrapping), View (web pages), Controller (pieces of code that map view manipulation into model manipulations and vice-versa). • They are AJAX friendly

  3. MVC

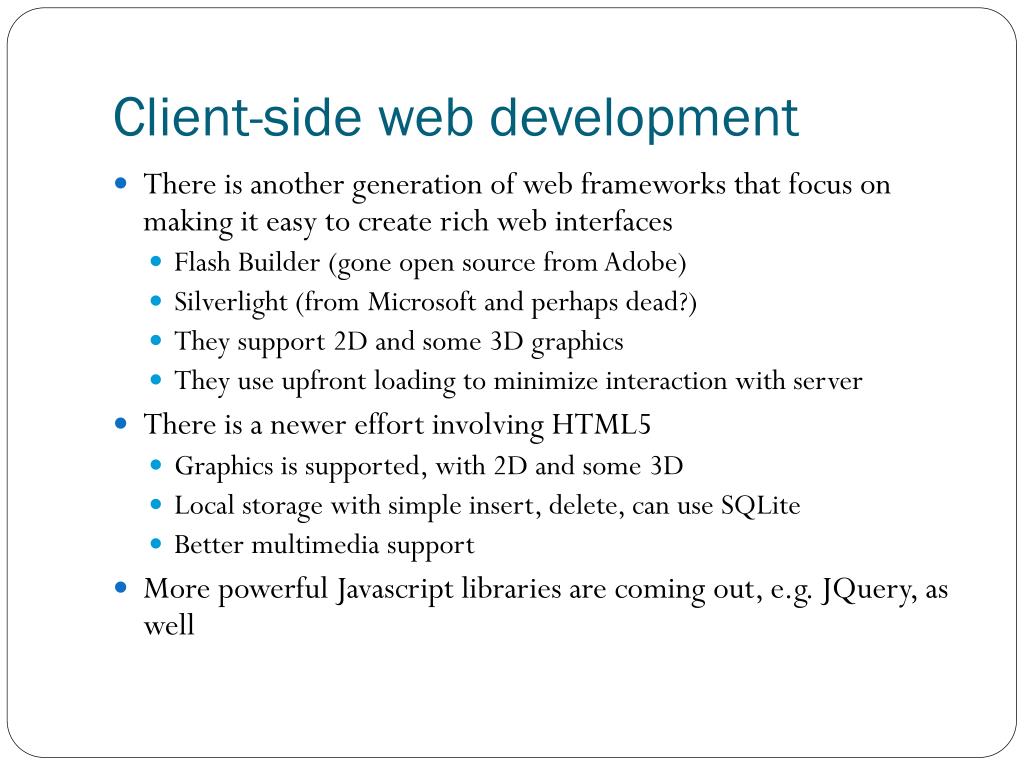

  4. Client-side web development • There is another generation of web frameworks that focus on making it easy to create rich web interfaces • Flash Builder (gone open source from Adobe) • Silverlight (from Microsoft and perhaps dead?) • They support 2D and some 3D graphics • They use upfront loading to minimize interaction with server • There is a newer effort involving HTML5 • Graphics is supported, with 2D and some 3D • Local storage with simple insert, delete, can use SQLite • Better multimedia support • More powerful Javascript libraries are coming out, e.g. JQuery, as well

  5. Important to note • Web X.0 efforts try to make use of graphics in interfaces, as well as provide better displaying of media • But supporting blob and continuous data access is still very rudimentary (images, video, audio, etc.) • Problem: we cannot screen media in real time • Problem: it is very difficult to capture the semantics of media • The solution: We tend to build accompanying meta databases with tag sets (one per piece of media) assigned by experts using specialized namespaces. • To enhance accuracy, there is sometimes a feedback loop where users can train the search facility

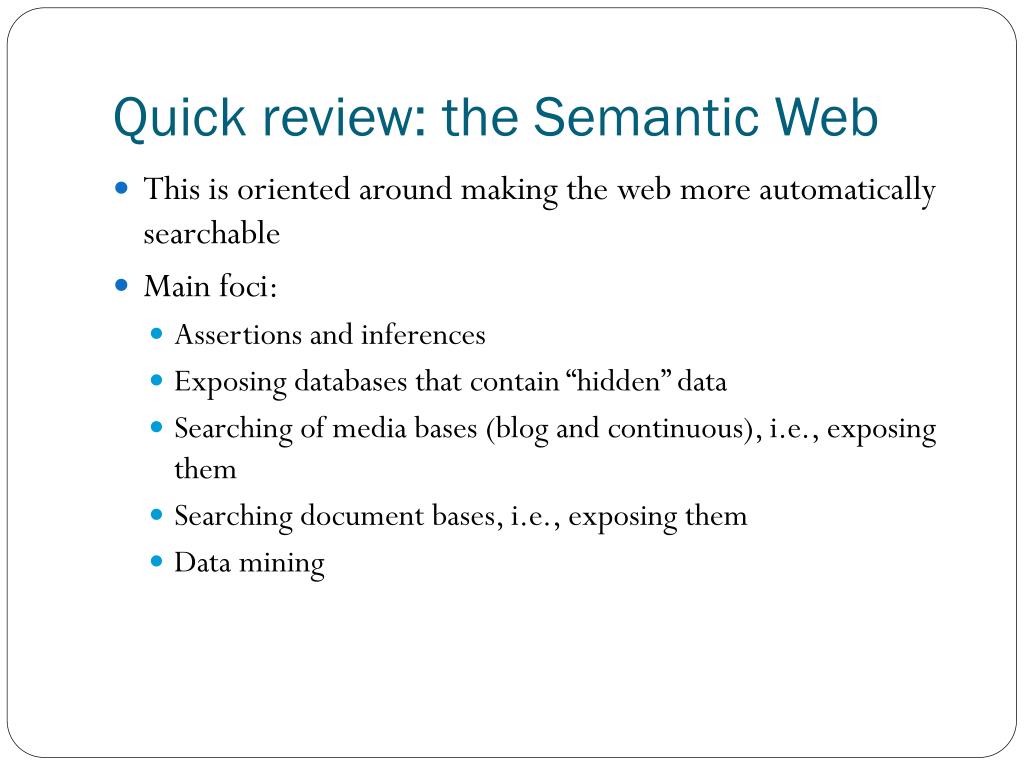

  6. Quick review: the Semantic Web • This is oriented around making the web more automatically searchable • Main foci: • Assertions and inferences • Exposing databases that contain “hidden” data • Searching of media bases (blog and continuous), i.e., exposing them • Searching document bases, i.e., exposing them • Data mining

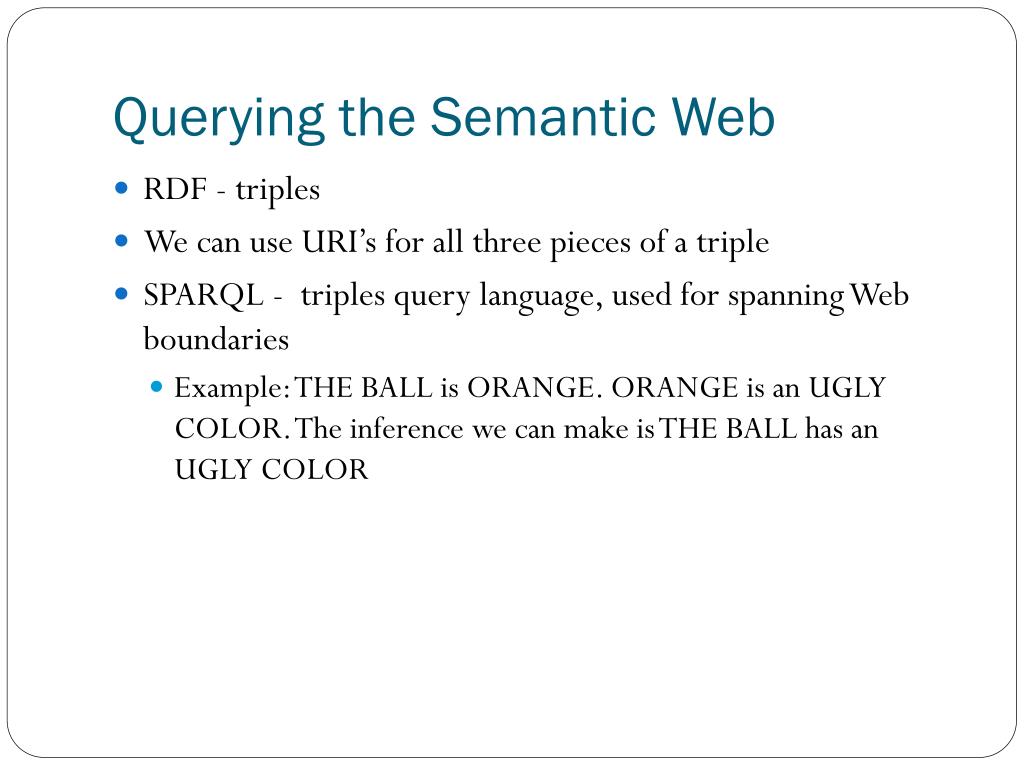

  7. Querying the Semantic Web • RDF - triples • We can use URI’s for all three pieces of a triple • SPARQL - triples query language, used for spanning Web boundaries • Example: THE BALL is ORANGE. ORANGE is an UGLY COLOR. The inference we can make is THE BALL has an UGLY COLOR

  8. An RDF Example xmls:rdf=””>
xmls:zx=””> <rdf:Description rdf:about=””>
<zx:topic>funstuff</zx:topic> </rdf:Description> <rdf:Description <zx:created-by></zx:created-by> </rdf:Description> <rdf:Description rdf:about=””> <zx:is></zx:Is> </rdf:Description>

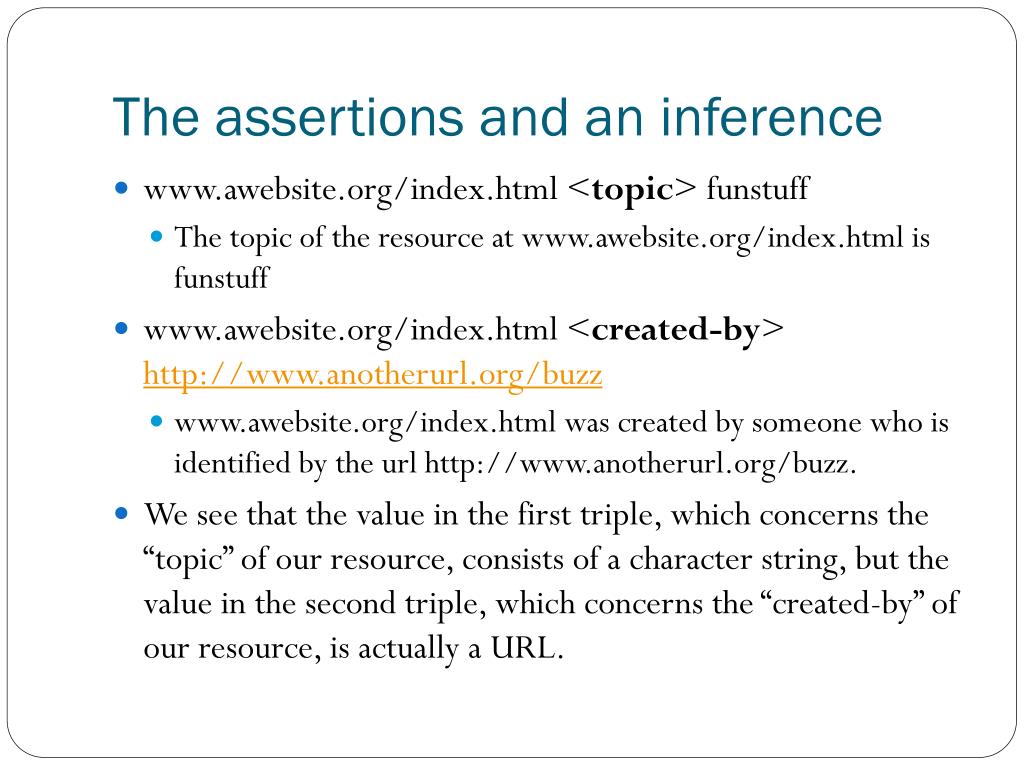

  9. The assertions and an inference • <topic> funstuff • The topic of the resource at is funstuff • <created-by> • was created by someone who is identified by the url • We see that the value in the first triple, which concerns the “topic” of our resource, consists of a character string, but the value in the second triple, which concerns the “created-by” of our resource, is actually a URL.

  10. SPARQL • SPARQL stands for Protocol And RDF Query Language, with an S tossed into the beginning so we can say it as “sparkle”. • It is a language that can be used to traverse graphs that consist of RDF triples that are chained together into an object network. • prefix website1: < >
{ website1:was-created-by ?x } • This code will find the creators of • It will search through all of these triples and find the ones of interest to us, and then pluck off the names of the creators. • These triples could be distributed all around the Web

  11. The Semantic Web, continued • Main tools • Namespaces posted on web and shared • XML • Ontologies of assertions • Tall people play basketball – Joe is tall (note both schema and instance based) • Walking paths linked by assertions with languages like SPARQL • Forming inferences from assertions along the way • XML extensions to accommodate complex data and non-string data and querying of large datasets • Support pointers to namespaces • Support complex, non-textual documents, along with object IDs, keys and foreign keys

  12. XML

  13. Continued…

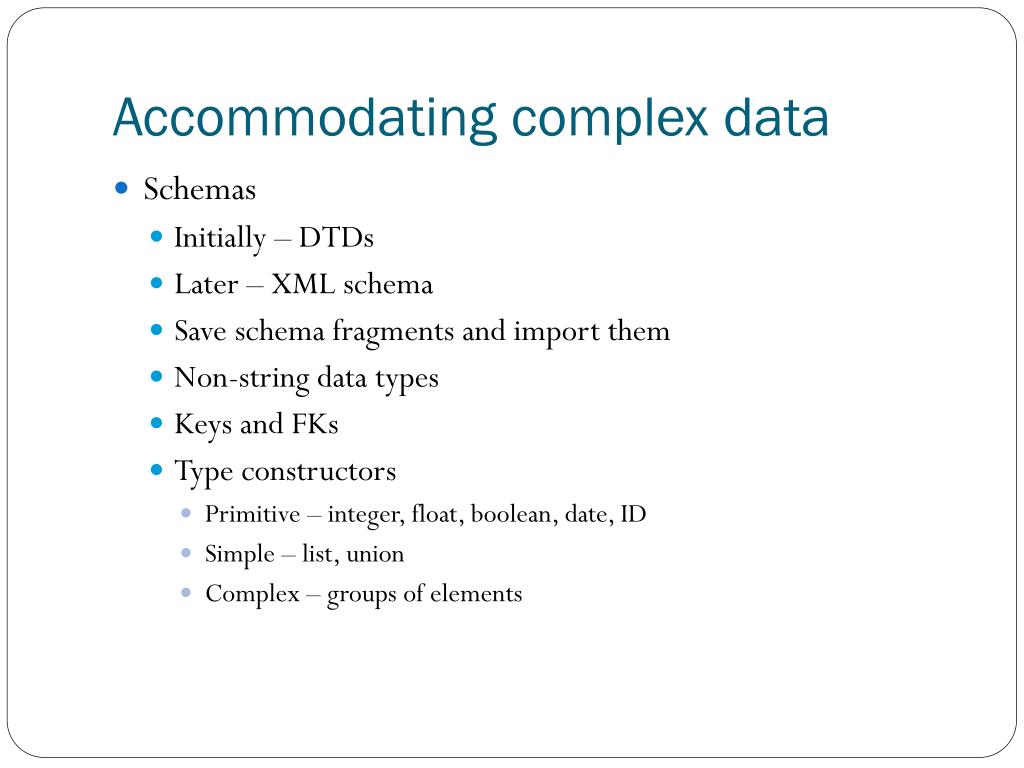

  14. Accommodating complex data • Schemas • Initially – DTDs • Later – XML schema • Save schema fragments and import them • Non-string data types • Keys and FKs • Type constructors • Primitive – integer, float, boolean, date, ID • Simple – list, union • Complex – groups of elements

  15. Data types in XML Schema

  16. Continued…

  17. DTDs

  18. XML schema and namespaces

  19. XPATH – for searching XML schemas hierarchically • An XPath expression takes a document tree as input and returns a multi-set of nodes of the tree • Expressions that start with / are absolute path expressions • Expression / – returns root node of XPath tree • /Students/Student – returns all Student-elements that are children of Students elements, which in turn must be children of the root • /Student – returns empty set (no such children at root

  20. XPATH continued • Current (or context node) – exists during the evaluation of XPath expressions (and in other XML query languages) • . – denotes the current node; .. – denotes the parent • foo/bar – returns all bar-elements that are children of foo nodes, which in turn are children of the current node • ./foo/bar – same • ../abc/cde – all cde e-children of abc e-children of the parent of the current node • Expressions that don’t start with / are relative (to the current node)

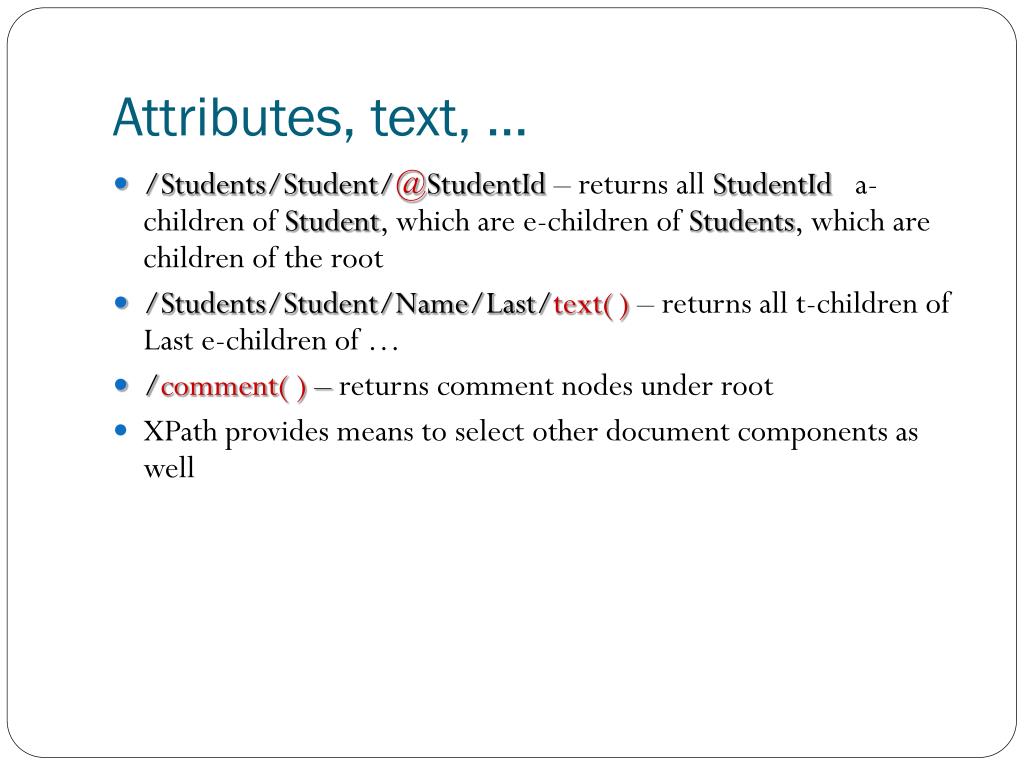

  21. Attributes, text, … • /Students/Student/@StudentId – returns all StudentId a-children of Student, which are e-children of Students, which are children of the root • /Students/Student/Name/Last/text() – returns all t-children of Last e-children of … • /comment( ) – returnscomment nodes under root • XPath provides means to select other document components as well

  22. XQuery • General structure: FOR variable declarations WHERE condition RETURN document • Example: (: students who took MAT123 :) FOR $t IN doc(“”)//Transcript WHERE $t/CrsTaken/@CrsCode = “MAT123” RETURN $t/Student • Result: <Student StudId=“111111111” Name=“John Doe” /> <Student StudId=“123454321” Name=“Joe Blow” />

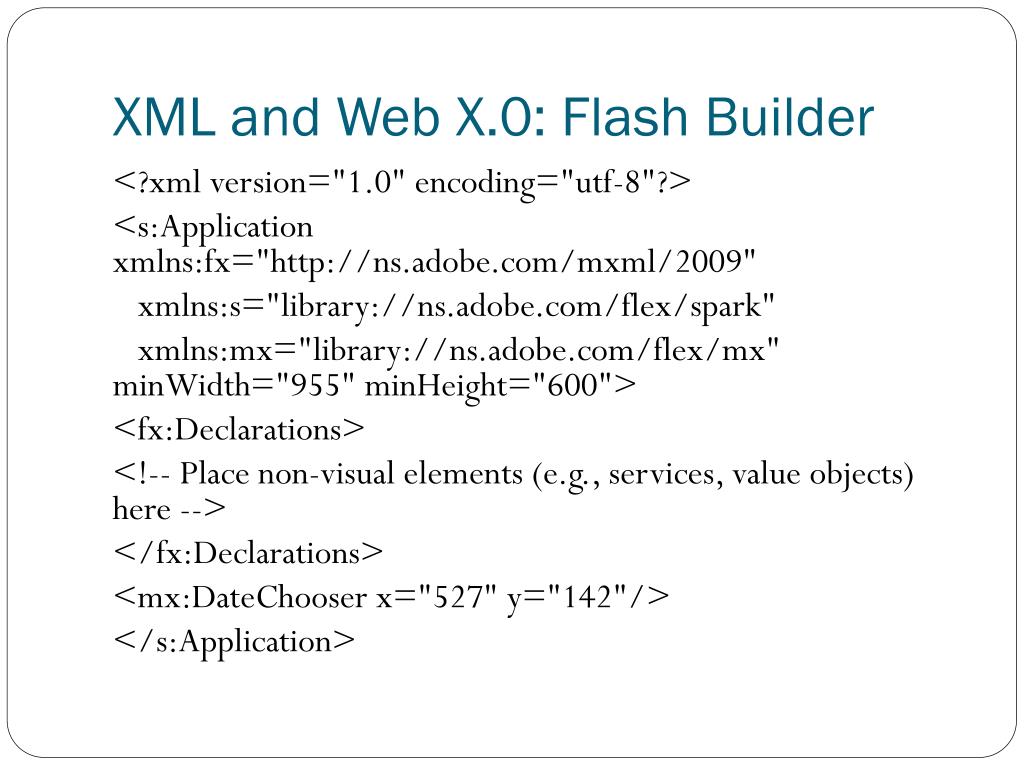

  23. XML and Web X.0: Flash Builder <?xml version="1.0" encoding="utf-8"?> <s:Applicationxmlns:fx="" xmlns:s="library://" xmlns:mx="library://" minWidth="955" minHeight="600"> <fx:Declarations> <!-- Place non-visual elements (e.g., services, value objects) here --> </fx:Declarations> <mx:DateChooser x="527" y="142"/> </s:Application>

  24. Results in

  25. Semantic Web big problems • Massive reengineering effort to make use of Semantic Web technology • Assertions that span nodes can be extremely time consuming to traverse • Making media accessible • Easy enough to generate low level assertions automatically • Very time consuming to add assertions manually by experts • Our main tools are tagging and image/sound processing packages that are very complex and very heuristic driven • XML Schema, the big XML extension, is unwieldy

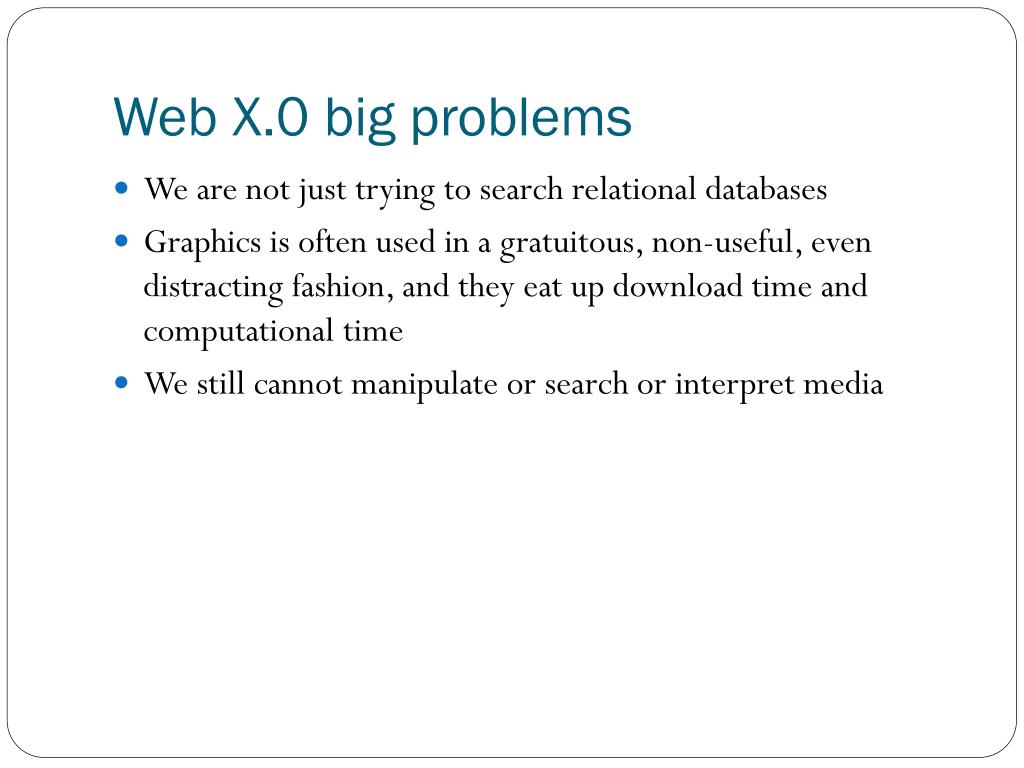

  26. Web X.0 big problems • We are not just trying to search relational databases • Graphics is often used in a gratuitous, non-useful, even distracting fashion, and they eat up download time and computational time • We still cannot manipulate or search or interpret media

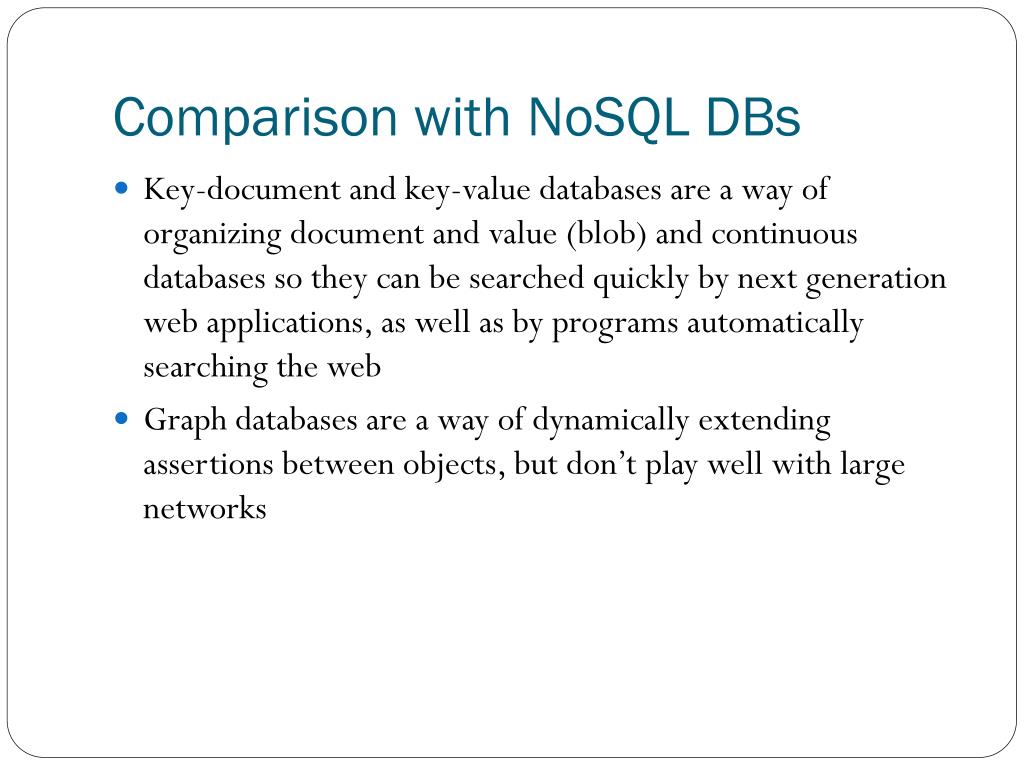

  27. Comparison with NoSQL DBs • Key-document and key-value databases are a way of organizing document and value (blob) and continuous databases so they can be searched quickly by next generation web applications, as well as by programs automatically searching the web • Graph databases are a way of dynamically extending assertions between objects, but don’t play well with large networks

  28. Nice things about NOSQL DBS andthe Semantic Web and Web X.0 • NoSQL DBs are minimalistic in just the right way • Much easier to plug in than complex XML Schema front ends to databases and can work with existing relational dbs • Documents are natural to both efforts • Media blogs are natural to both efforts • Graphs are natural to the Semantic Web

  29. Web services • Supports non-interactive database access • Uses XML, HTTP, etc. • Examples are Google and Amazon • Universal Description, Discovery, and Integration (UUID) for creating distributed registries of web services • Web Services Description Language (WSDL) • Simple Object Access Protocol (SOAP) is XML based and is a protocol that allows apps to send messages to each other over the Internet

  30. Security • The complexity of server-side technology, along with its heterogeneity • The need to allow dynamic web page support, email, ftp, etc. • The need to support services • Access to databases from multiple sources on either side of the firewall

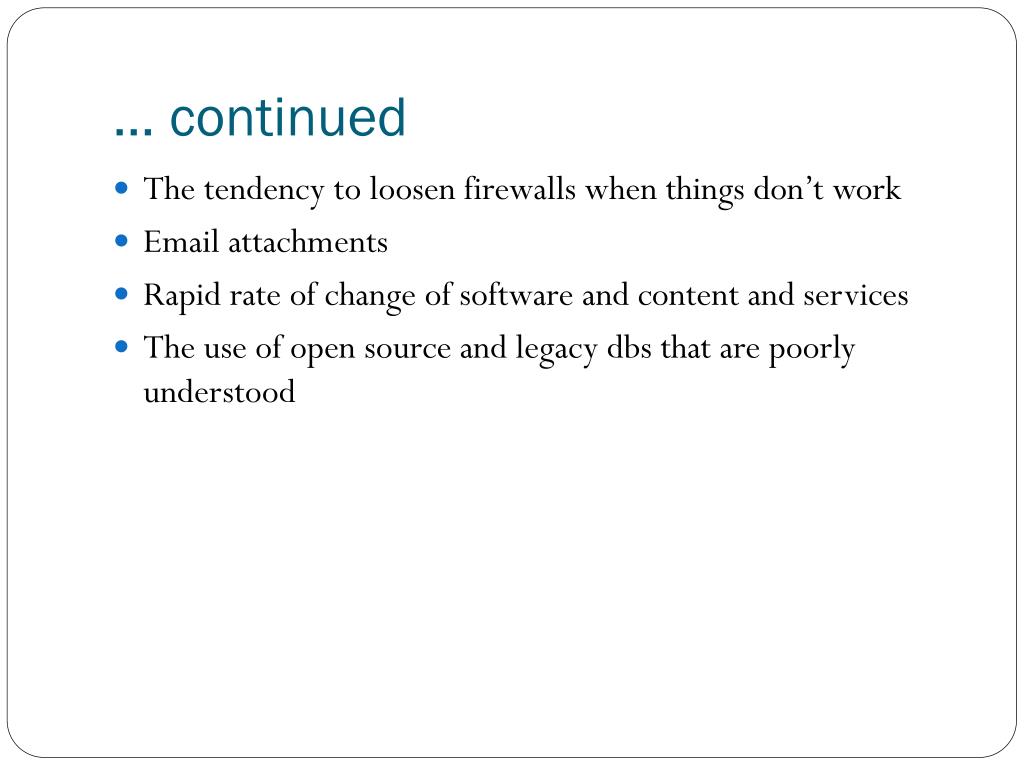

  31. … continued • The tendency to loosen firewalls when things don’t work • Email attachments • Rapid rate of change of software and content and services • The use of open source and legacy dbs that are poorly understood

  32. Another security issue • Web and database servers are used to support newer sorts of data and service access • Warehousing data (usually, but not always inside the firewall) • Mining data, which is often outside the firewall • Specialized document retrieval systems • Specialized advanced media retrieval systems • Integration of heterogeneous data • Sharing of namespaces, schema fragments, and query code (often in XML technologies)

  33. … continued • All of these can be layered and span multiple sites • Such as hierarchical data marts • Mediator based integration hierarchies • A wide class of people, inside and outside of the organization must have access to data (such as content taggers)

  34. Data Privacy • HIPAA • Authorization of users and applications • Passwords • Two factor (like a password or code and a physical code) • Mediated (using a third party) • Encryption • Storage • Transmission
