  1. AMM-2 Coverage Vexcel 27 April 2000

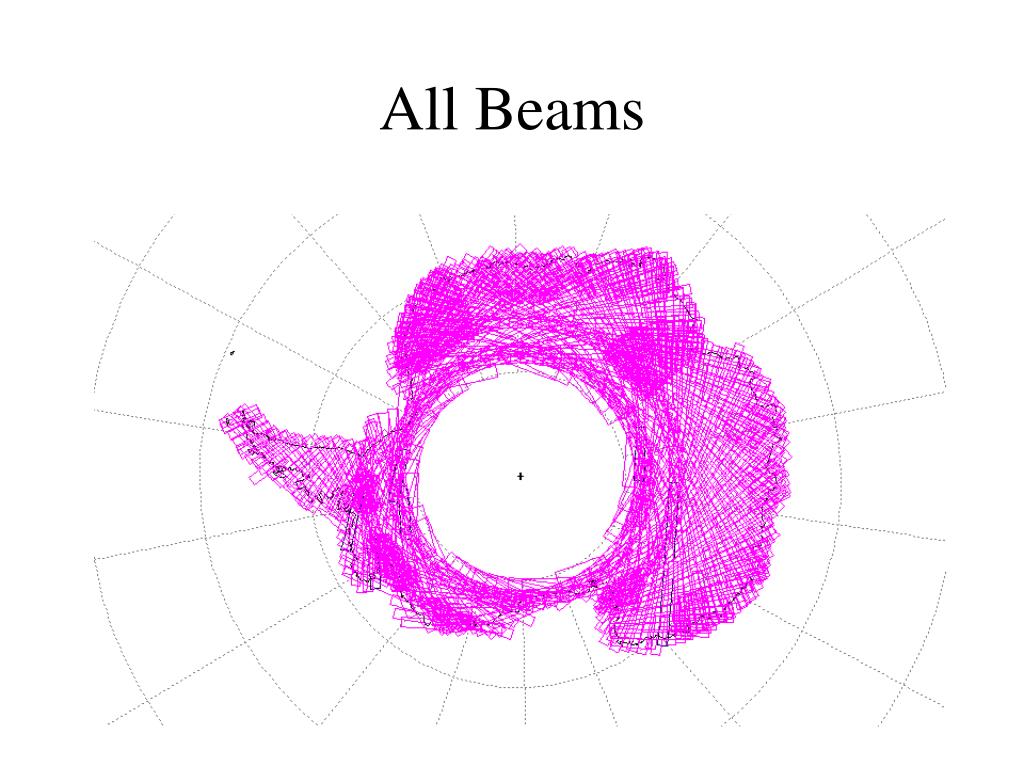

  2. All Beams

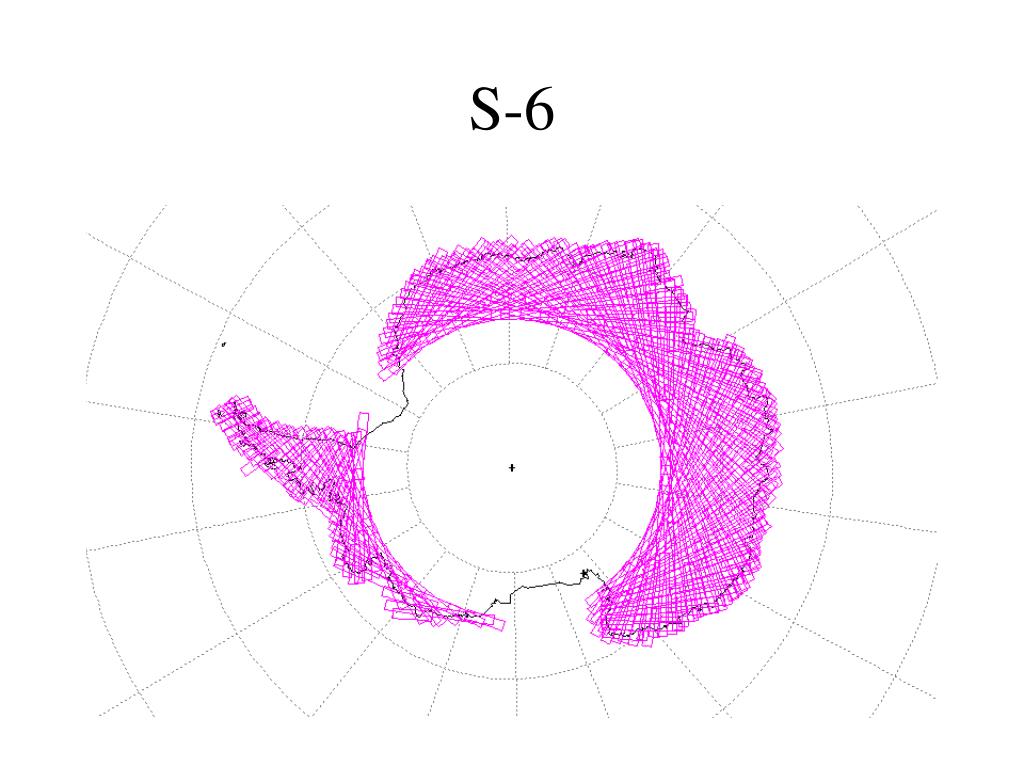

  3. S-6

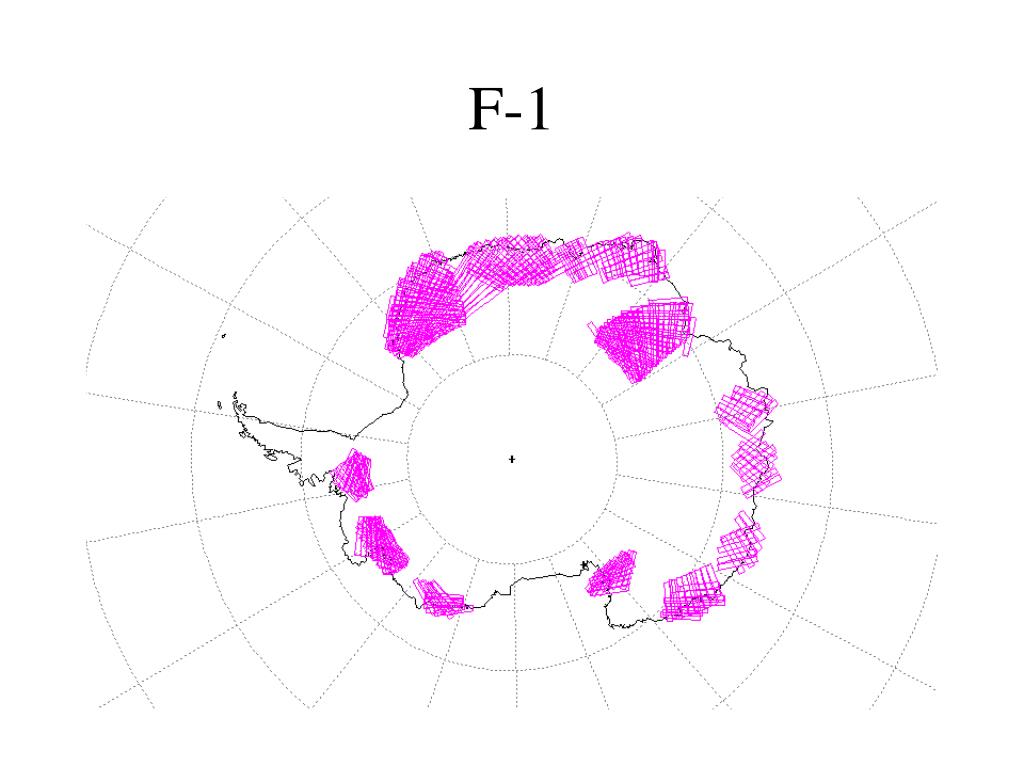

  4. F-1

  5. S-2

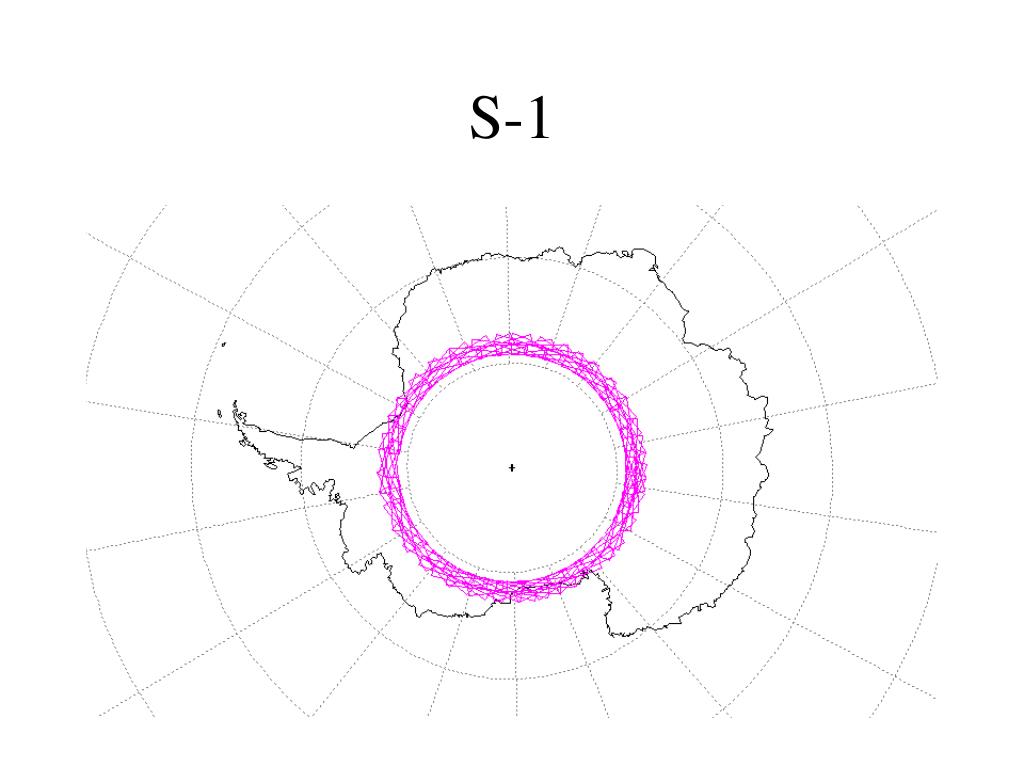

  6. S-1

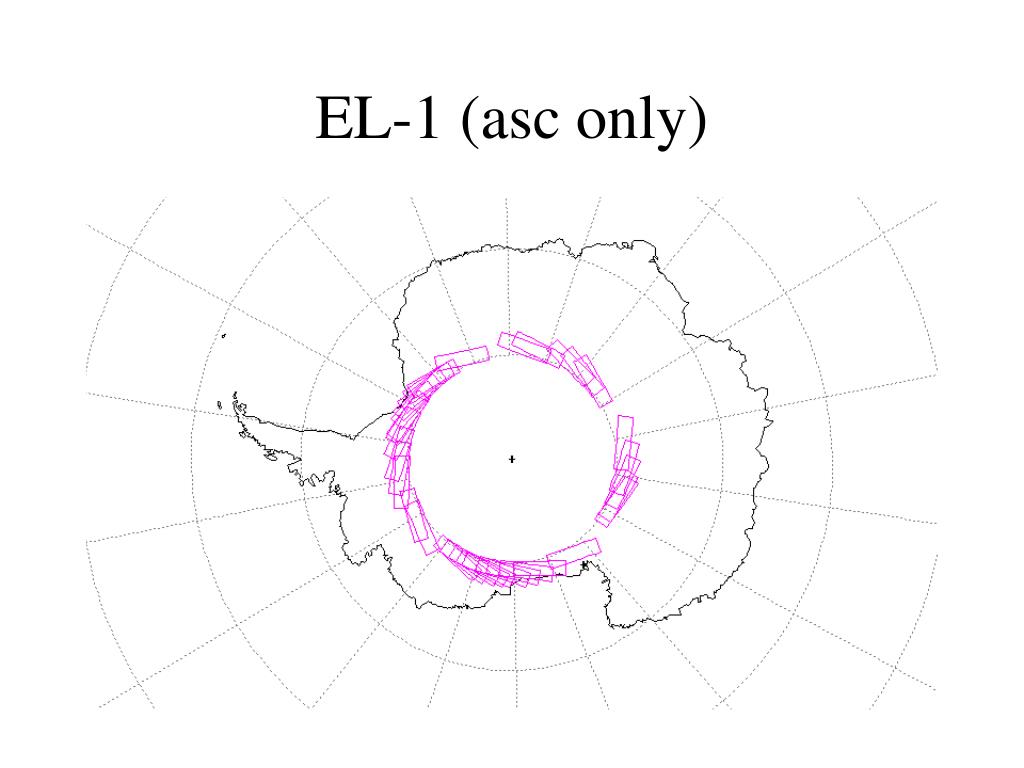

  7. EL-1 (asc only)

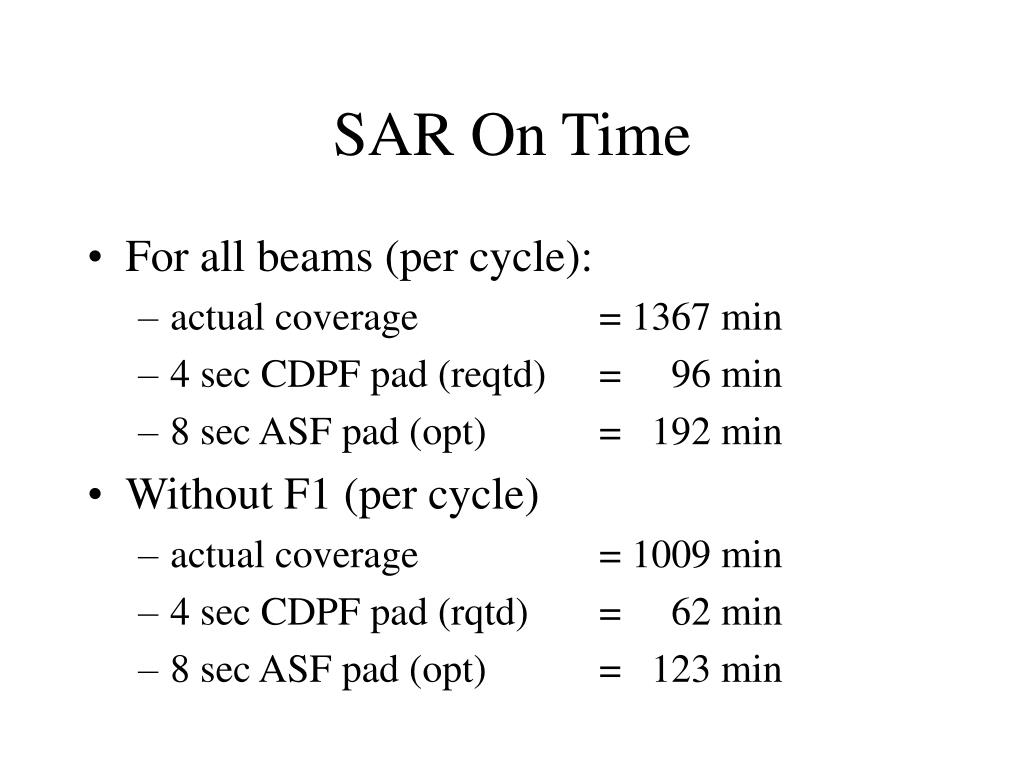

  8. SAR On Time • For all beams (per cycle): • actual coverage = 1367 min • 4 sec CDPF pad (reqtd) = 96 min • 8 sec ASF pad (opt) = 192 min • Without F1 (per cycle) • actual coverage = 1009 min • 4 sec CDPF pad (rqtd) = 62 min • 8 sec ASF pad (opt) = 123 min
