  1. Power over Ethernet (PoE) Solution

  2. Full Range of PoE Products • Power Sourcing Equipment 15W → 30W → 60W • Powered Device

  3. Intelligent PoE Management 802.3af 15.4-watt Standard Power 802.3at 30-watt / 60-watt High Power • PoE System Management • PoE Budget Overloading Protection • PoE Temperature Threshold • PoE Power Usage Threshold • Power Feeding Status Monitoring • PoE Port Configuration • 802.3af mode control • Power feeding On/Off/schedulable and priority configuration • Power Limit function for PoE power management • Auto detect powered device and consumption levels • Classify connected powered devices • PD (Powered Device) Alive Check • Schedule PoE Power Recycle

  4. PoE Schedule • Per Port / Per Profile / Per day, Schedulable PoE ON/OFF Control Per Hour & Min Setting 4 Profiles Daily Work Off-Business Hours Per Week Day Setting Off-Business Power Saving Daily Work Power Consumption

  5. PoE PD Alive Check …… PD Status Good !! PoE Switch Alarm Notification PD Alive !!

  6. Schedule PoE Power Recycle Allows each of the connected PoE powered device to reboot at a specified time each week Reduce the chance of powered device crash resulting from buffer overflow PoE Off 0:00 ~ 24:00 0:00 ~ 24:00 0:00 ~ 24:00 0:00 ~ 24:00 0:00 ~ 24:00 0:00 ~ 24:00 0:00 ~ 24:00 PoE On PoE On PoE On PoE On PoE On PoE On PoE On 0:00 Sun Mon Tue Wed Thu Fri Sat Buffer Utilization: 30% Buffer Utilization: 45% Buffer Utilization: 60% Buffer Utilization: 75% Buffer Utilization: 10% Buffer Utilization: 15% Buffer Utilization: 90% PoE Power Recycleseach Friday at midnight

  7. Product FeaturesPoE Switch

  8. PoE Switch Overview • IEEE 802.3at/af compliant • Full PoE port: 8, 16, 24, 48 • PoE budget from 55W to 600W • Intelligent PoE Management • Fiber-Optical Link Capability • Home, SOHO, SMB, Enterprise to Industrial grade applications 48-Port PoE+ (Total 600W) 24-Port PoE+ 16-Port PoE+ 8-Port PoE+

  9. 48-Port Managed PoE Switch • 30W IEEE 802.3at PoEsupport • Total 600WPoE budget • Hardware-based IPv6/IPv4 Layer 3 Static Routing • Layer 2 /4 IPv6 Managed Gigabit Switch • 4 SFP slots, flexible forGigabit Fiber-Opticnetwork extension • SSH / SSLSecure Management • Integrate Security and QoS for PoE PD operating • PoE Power management • PoE Port power limit / Total limit to ensure stable system operating • Monitor power usage, current usage, power consumption on Powered Devices WGSW-48040HP

  10. 24-Port Managed PoE Switch • 24-Port Gigabit 802.3at/af PoE • 4-Port Gigabit TP/SFP combo Managed • 380-watt PoE Budget • IPv6/IPv4 Web / Telnet / SNMP v1, v2c / SSH / SSL Management • IEEE 802.1Q VLAN / Voice VLAN / 802.1w Spanning Tree Protocol • Bandwidth Control / Storm Control • Layer 3 / 4 Access Control List / Port Security / 802.1x WGSW-28044HP4

  11. 24-Port Stackable PoE Switch • 30W IEEE 802.3at PoEsupport • Total 360WPoE budget • Layer 2 /4 IPv6Stackable / Gigabit Switch • 4 SFP slots, flexible forGigabit Fiber-Opticnetwork extension • SSH / SSLSecure Management • 2 HDMI-Like 5Gbps Stacking interfaces • Up to 20Gbps stacking bus, Full-duplex • Ring topology • Single IPmanagement • Up to 384 Gigabit PDs managed via one IP address • Integrate Security and QoS for PoE PD operating • PoE Power management • PoE Port power limit / Total limit to ensure stable system operating • Monitor power usage, current usage, power consumption on Powered Devices SGSW-24040HP

  12. SGSW-24040HP Application Gigabit Data speed + Power Single IP Management

  13. Stackable Gigabit PoE Switch Family

  14. Industrial High Power PoE SwitchIGS-10020HPT • IPv6 IP Address / NTP / DNS management • PoE Power up to 30.8 Watts for each PoE ports • Auto detect powered device (PD) • VLAN, Spanning Tree Protocol • ERPS (Ethernet Ring Protection Switching) • IEEE 802.1x Port-Based / MAC-Based network access authentication

  15. Industrial PoE Fiber SwitchIGS-624HPT • Fiber-Optical Link Capability • 802.3af/at PoE injector • 48V DC to 52V DC PoE+ power boost • High Power Budget for PoE Extension • Intelligent LED Indicator for Real-time PoE Usage • Redundant power system • -40~75oC Operating Temperature • IP30 Rugged Case IGS-624HPT

  16. Industrial PoE Fiber Switch Application 240km

  17. Product FeaturesPoE Injector Hub

  18. PoE Injector Hub Family IEEE 802.3at (Up to 60W) IEEE 802.3af (Up to 15.4W) HPOE-2400G (24-Port Gigabit PoE) HPOE-800G (8-Port Gigabit PoE) POE-2400G (24-Port Gigabit PoE) Gigabit Ethernet HPOE-1200G (12-Port Gigabit PoE) HPOE-460 (4-Port Gigabit PoE) POE-1200G (12-Port Gigabit PoE) POE-2400(24-Port PoE) POE-2400P4(24-Port PoE, 400 Watts full power) POE-400 (4-Port PoE) Fast Ethernet POE-1200(12-Port PoE) POE-1200P2(12-Port PoE, 200 Watts full power)

  19. 802.3at 60-watt PoE Injector Hub • IEEE 802.3at PoE Plus / Mid-Span PSE • 8 x 30-watt PoE+ ports, full powered • 4 x 60-watt Ultra PoE ports • 2 DI / 2 DO • Full Management (WEB / SNMP v1, v2c) • PoE Schedule / Schedule Power Recycle / PD Alive Check • Email and SNMP Trap for alarm notification of events HPOE-800G

  20. 802.3at PoE Injector Hub • Gigabit Mid-SpanPower over Ethernet Injector Hub • 24 ports on the upper stack are data and power ports • 24 ports on the lower stack are data ports • 1-Port 10/100Mbps management port • Complies withIEEE 802.3at 52VDC per port maximum30.8watts • 720-watt PoE power budget • PoEPower Scheduleto save ‏power • Automatically detects powered device and consumption level • Remote PoE Power management by WEB • PoE per port power feeding limit and priority • Temperature over protection to prevent device damage • SNMP and SNMP trap • 19-inch rack mountable; 1U height HPOE-2400G

  21. HPOE-2400G Application IEEE 802.3at 30 watts IEEE 802.3af 15.4 watts

  22. Product FeaturesPoE Injector / Splitter

  23. Ultra PoE Injector / Splitter • 56V DCpower input (PoE-171) • 50V DCpower input (PoE-173) • 12V/19V/24V DC output (POE-171S) • 0 to 50oCoperating temperature • Compact size metal case protection • IEEE 802.3at / 802.3afEnd-span and Mid-spanmode • Supports 15.4W, 30W or60WIEEE 802.3at/af standard PoE device • Plug and play • Remote power feeding up to 100 meters POE-171 60W PoE Injector POE-173 60W PoE Injector POE-171S 60W PoE Splitter

  24. Ultra PoE Injector / Splitter Ultra PoE providesDouble Power, better than conventional 802.3at PoE

  25. 30W PoE Injector • IEEE 802.3at / 802.3af Mid-span PSE • Supports 15.4W or 30W IEEE 802.3at/af standard PoE device • 100~240V AC power input, 53V DC PoE output • 0 to 50oC operating temperature • Compact size metal case protection • 1 Ethernet copper port with built-in PoE injector • Plug and play • Remote power feeding up to 100 meters POE-163 Gigabit 30W PoE Injector POE-164 30W PoE Injector

  26. Product FeaturesPoE Converter / Extender

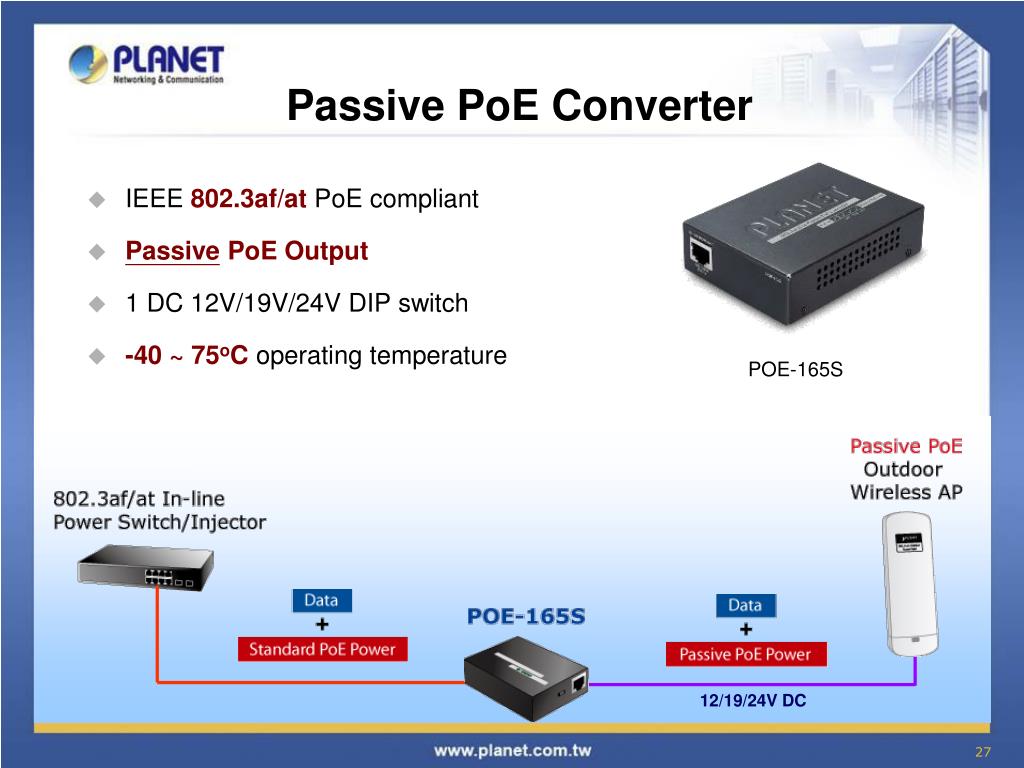

  27. Passive PoE Converter • IEEE 802.3af/at PoE compliant • Passive PoE Output • 1 DC 12V/19V/24V DIP switch • -40 ~ 75oC operating temperature POE-165S 12/19/24V DC

  28. PoE over Coaxial Extender • Advantages of PoE over Coaxial • No need to find power outlet in every location • Saves time and money • Provides power to the receiver up to 1000m in distance VC-203PR Receiver VC-203PT Transmitter PoE over Coaxial RG6 Coaxial Cable

  29. PoE over Coaxial Extender

  30. PoE Extender • Complies withIEEE 802.3at / 802.3afPoE • Extends the range of PoE anadditional 100 meters(328ft.) • Automatically detects and protects PoE equipments from being damaged by incorrect installation • 4 units, daisy-chaininstallation with500 metersdistance support • Plug and Play • -10~60oCoperating temperature POE-E201

  31. POE-E201 Multi-unit Installation 500m

  32. Industrial Media ConverterIGTP-80x series • LC Fiber Interface • Multi / Single Mode SFP module • Distance up to 120km max. (Vary on SFP module, 100/1000 dual mode support) IGTP-805AT • SC Fiber Interface with Single-mode • Distance up to 10km IGTP-802TS • SC Fiber Interface with Multi-mode • Distance up to 220m / 550m IGTP-802T

  33. Industrial Media ConverterIGTP-80x series • IEEE 802.3at / 802.3af standard • PoE Power up to 30 Watts for PoEport • 24V / 48V DC redundant power • DC 52Vpower over RJ-45 Ethernet Cable to devices with Ethernet port • Real-Time Power Fault Relay Alarm • -40 to 75oC operating temperature • IP30metal case / DIN-Rail and Wall-mountable design • 6KV DC EFT protection for power line / 6KV DC Ethernet ESD protection

  34. Product FeaturesSolar PoE Switch

  35. Features BSP-300 • Battery charging and discharging The BSP-300 empowers the connected PoE devices in the day and night time from charging and discharging. Discharging Charging 36 / 15

  36. BSP-300 Application BSP-300 Site: Desert in Chile 37/45

  37. BSP-300 Application 38/45

  38. POE Tester • Quickly tests RJ-45 outlet for Power over Ethernet existence • Two LEDs indicate the types of PSE (power source equipment) • End-span PoE switch • Mid-span PoE injector / injector hub • 4-pair, 60-watt ultra PoE injector • IEEE 802.3at/af PoE compliant • Compact size, Plug and Play design

  39. View PLANET PoE solution online
