  1. Use Case Model Operation Contracts Prepared By: Sumit Sharma and Sravanthi Gillala

  2. Objectives • Create contracts for system operations.

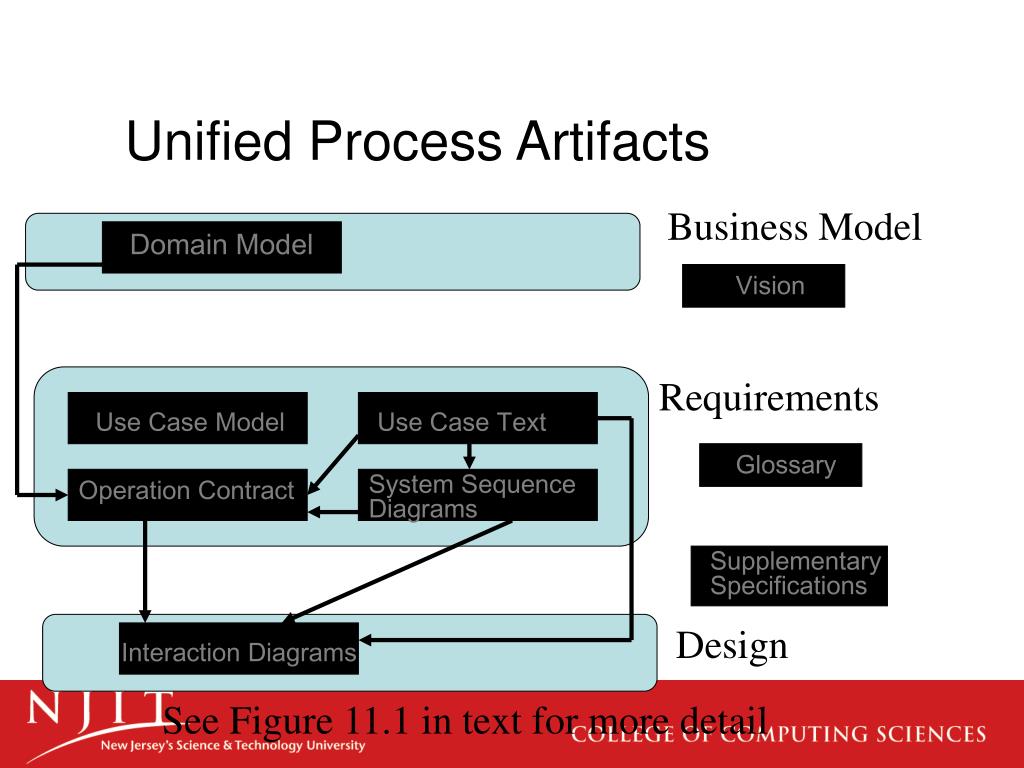

  3. Domain Model Vision Use Case Model Use Case Text Glossary Operation Contract System Sequence Diagrams Supplementary Specifications Interaction Diagrams Unified Process Artifacts Business Model Requirements Design See Figure 11.1 in text for more detail

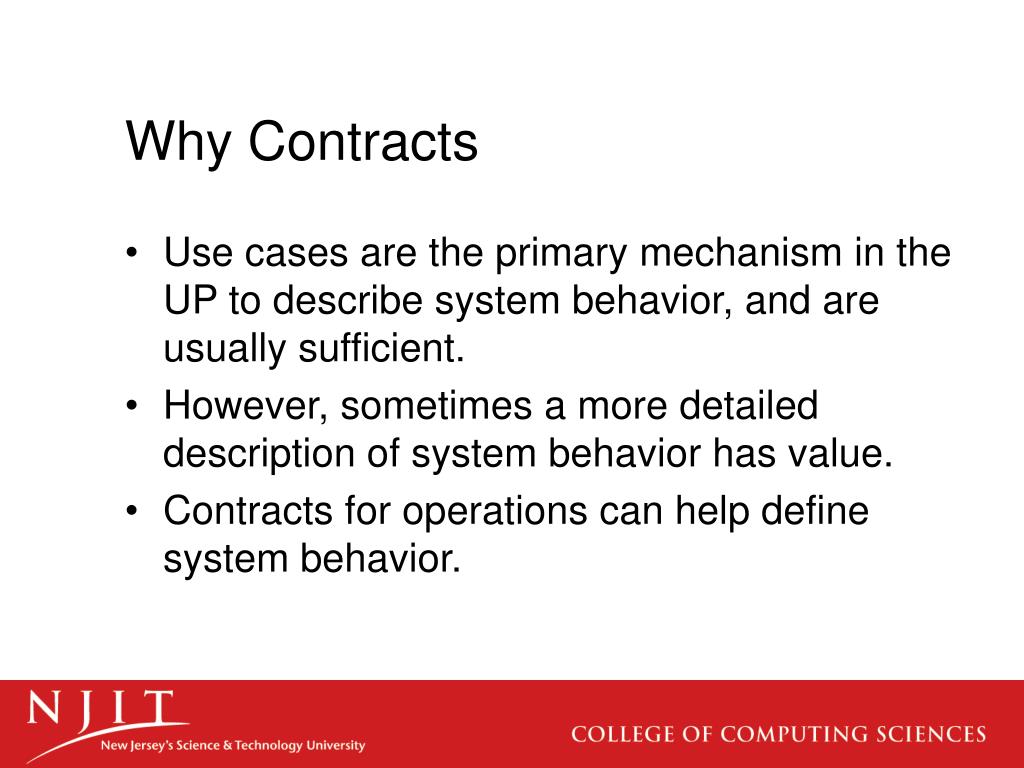

  4. Why Contracts • Use cases are the primary mechanism in the UP to describe system behavior, and are usually sufficient. • However, sometimes a more detailed description of system behavior has value. • Contracts for operations can help define system behavior.

  5. Domain Model And Contracts • A Domain Model is a visual representation of conceptual classes or real-world objects in a domain of interest. • Contracts describe detailed system behavior in terms of state changes to objects in the Domain Model, after a system operation has executed.

  6. Keep it Agile • In many, or even most software development projects, operation contracts may be unnecessary. For an agile process, use them only when necessary to add additional detail and understanding.

  7. System Operations andthe System Interface • Contracts may be defined for system operations – operations that the system as a black box offers in its public interface to handle incoming system events. System operations can be identified by discovering these system events. • The entire set of system operations, across all use cases, defines the public system interface, viewing the system as a single component or class.

  8. Example Contract: enterItem Contract CO2: enterItem Operation: enterItem(itemID : ItemID, quantity : integer) Cross References: Use Cases: Process Sale Preconditions: There is a Sale Underway. Postconditions: -A SalesLineItem instance sli was created (instance creation) -sli was associated with the current Sale (association formed) -sli.quantity became quantity (attribute modification) -sli was associated with a ProductSpecification, based on itemID match (association formed)

  9. Contract Sections Operation: Name Of operation, and parameters. Cross References: (optional) Use cases this can occur within. Preconditions: Noteworthy assumptions about the state of the system or objects in the Domain Model before execution of the operation. Postconditions: -The state of objects in the Domain Model after completion of the operation.

  10. Postconditions • The postconditions describe changes in the state of objects in the Domain Model. Domain Model state changes include instances created, associations formed or broken, and attributes changed. • Postconditions are not actions to be performed, during the operation; rather, they are declarations about the Domain Model objects that are true when the operation has finished.

  11. The Spirit of Postconditions: The Stage and Curtain • Express postconditions in the past tense, to emphasize they are declarations about a state change in the past. • (better) A SalesLineItem was created. • (worse) Create a SalesLineItem.

  12. The Spirit of Postconditions: The Stage and Curtain • Think about postconditions using the following image:The system and it’s objects are presented on a theatre stage. • Before the operation, take a picture of the stage. • Close the curtains on the stage, and apply the system operation • Open the curtains and take a second picture. • Compare the before and after pictures, and express as postconditions the changes in the state of the stage (A SalesLineItem was created…).

  13. Writing Contracts Leads to Domain Model Updates • New conceptual classes, attributes, or associations in the Domain Model are often discovered during contract writing. • Enhance the Domain Model as you make new discoveries while thinking through the operation contracts.

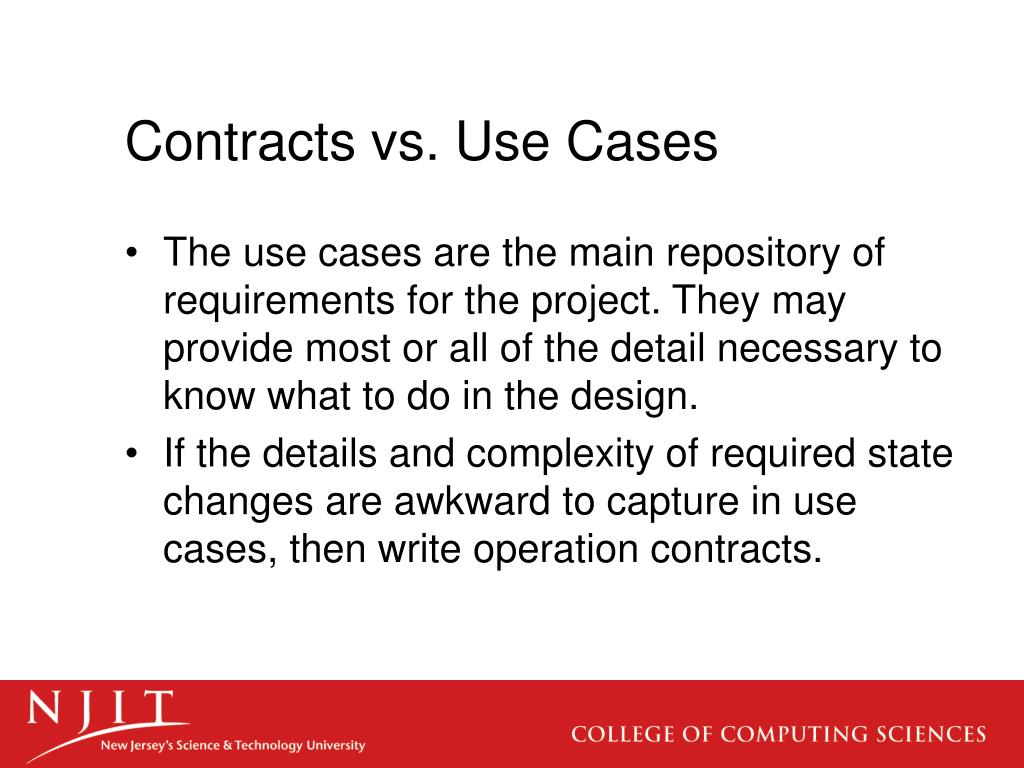

  14. Contracts vs. Use Cases • The use cases are the main repository of requirements for the project. They may provide most or all of the detail necessary to know what to do in the design. • If the details and complexity of required state changes are awkward to capture in use cases, then write operation contracts.

  15. Contracts vs. Use Cases contd… • If developers can understand what to do based on the use cases and ongoing (verbal) collaboration with a subject matter expert, avoid writing contracts. • Operation contracts are uncommon. If a team is making contracts for every system operation: • the use cases are poorly done, or • there is not enough collaboration or access to a subject matter expert, or • the team is doing too much unnecessary documentation.

  16. Guidelines: Contracts • To make contracts: • Identify system operations from the SSDs. • For system operations that are complex and perhaps subtle in their own results, or which are not clear in the use case, construct a contract. • To describe the postconditions, use: - instance creation and deletion - attribute modification - associations formed and broken

  17. The Most Common Mistake In Creating Contracts • The most common problem in creating contracts is forgetting to include the forming of associations. Particularly, when new instances are created, it is very likely that associations to several objects need be established. Don’t forget to include all the associations formed and broken.

  18. Contracts, Operations, and the UML • The UML formally defines operations. To quote: • An operation is a specification of a transformation or query that an object may be called to execute [RJB99] • An operation is an abstraction, not an implementation. By contrast, a method (in the UML) is an implementation of an operation.

  19. Contracts, Operations,and the UML • A UML operation has a signature (name and parameters), and also an operation specification, which describes the effects produced by executing the operation; the postconditions. • A UML operation specification may not show an algorithm or solution, but only the state changes or effects of the operation.

  20. Operation ContractsExpressed with the OCL • Associated with the UML is a formal language called the Object Constraint Language (OCL) [WK99], which can be used to express constraints in models. • The OCL defines an official format for specifying pre- and postconditions for operations, as demonstrated here:System::makeNewSale() pre: <statements in OCL> post: …

  21. Programming LanguageSupport for Contracts • Some languages, such as Eiffel, have first-class support for invariants and pre- and postconditions. • There are pre-processors that provide similar support in Java.

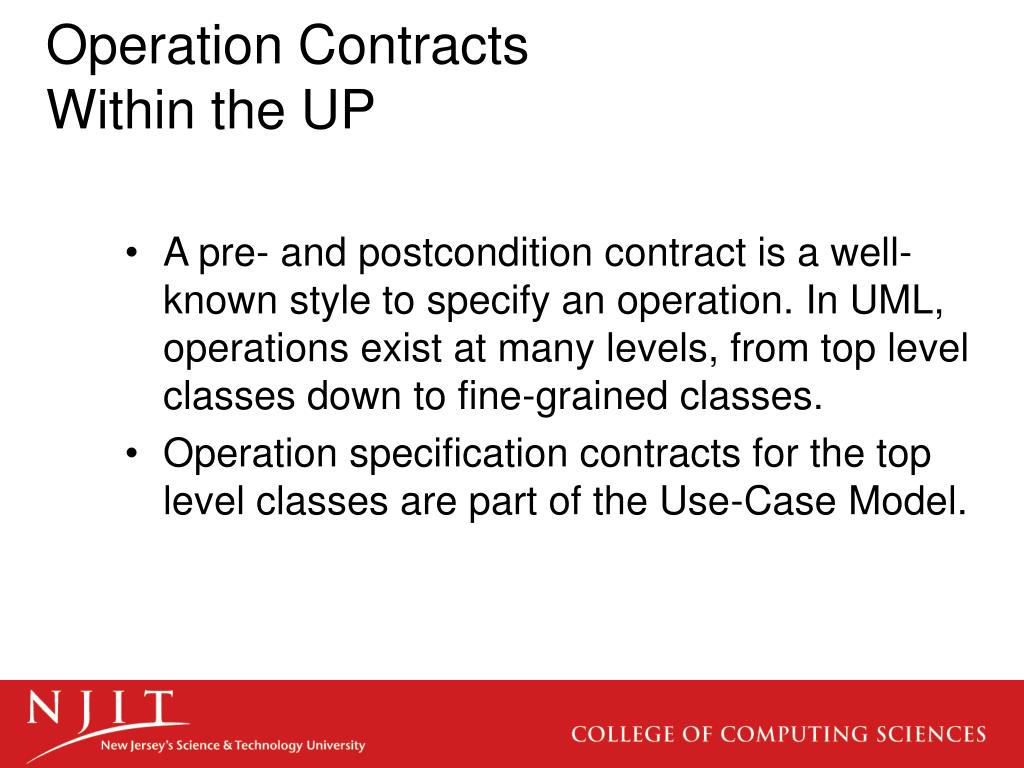

  22. Operation ContractsWithin the UP • A pre- and postcondition contract is a well-known style to specify an operation. In UML, operations exist at many levels, from top level classes down to fine-grained classes. • Operation specification contracts for the top level classes are part of the Use-Case Model.

  23. Operation ContractsWithin the UP • Phases • Inception – Contracts are not needed during inception – they are too detailed. • Elaboration – If used at all, most contracts will be written during elaboration, when most use cases are written. Only write contracts for the most complex and subtle system operations.

  24. New Systems Operations • Let us create new system operations for a Point of Sale system to handle different forms of payment: • makeCreditPayment • makeCheckPayment

  25. New System Operations (2) • The system event and operation for cash payment in an earlier iteration was simply makePayment. • As the payments are of different types the operation is renamed as makeCashPayment.

  26. New System Operation Contracts • System operation contracts are an optional requirements artifact that adds fine detail regarding the results of a system operation. • The use case text itself is sufficient, at times. • The contracts are not necessary.

  27. New System Operation Contracts (2) • The contracts bring value, on occasion, by their precise and detailed approach to identifying what happens when a complex operation is invoked on the system, in terms of state changes to objects defined in the Domain Model.

  28. Contract: makeCreditPayment • Operation: makeCreditPayment (creditAccountNumber, expiryDate) • Cross References: Use Cases: Process Sale • Preconditions: An underway sale exists and all items have been entered.

  29. Contract: makeCreditPayment (2) • Postconditions: • A credit payment pmt was created • pmt was associated with the current Sale sale a CreditCard cc was created. cc.number = creditAccountNumber, cc.expiryDate = expiryDate • cc was associated with pmt

  30. Contract: makeCreditPayment (3) • a CreditPaymentRequest cpr was created • pmt was associated with cpr • a ReceivableEntry re was created • re was associated with the external AccountsReceivable • Sale was associated with the Store as a complete sale

  31. makeCreditPayment • There exists a postcondition indicating the association of a new receivable entry in accounts receivable. • Although, this responsibility is outside the bounds of the NextGen system, the accounts receivable system is within the control of the business.

  32. makeCreditPayment (2) • The statement has thus been added as a correctness check. • During testing, it is clear from this post-condition that the accounts receivable system should be tested for the presence of a new receivable entry.

  33. Contract: makeCheckPayment • Operation: makeCheckPayment (driversLicenseNumber) • Cross References: Use Cases: Process Sale • Preconditions: An underway sale exists and all items have been entered

  34. Contract: makeCheckPayment (2) • Postconditions: • a CheckPayment pmt was created • pmt was associated with the current Sale sale • a DriversLicense dl was created, dl.number = driversLicenseNumber • dl was associated with pmt

  35. Contract: makeCheckPayment (3) • a CheckPaymentRequest cpr was created • pmt was associated with cpr • sale was associated with the Store as a completed sale

  36. Summary • Contracts describe detailed system behavior in terms of state changes to objects in the Domain Model after a system operation. • Contracts have sections of Operations, Cross references, Preconditions and Postconditions. Postconditions are the most important section. • Postconditions describe changes in the state of objects in the Domain Model. • Domain Model state changes include instances created, associations formed or broken, and attributes changed.

  37. Summary • Writing Contracts leads to Domain Model updates. • In UML, an operation is a specification of a transformation or query that an object may be called to execute. • Most contracts will be written during elaboration, when most use cases are written. Only write contracts for the most difficult to understand or complicated system operations.

  38. Bibliography • Craig Larman, Applying UML and Patterns, 3rd Edition, Prentice Hall, 2002, ISBN 0-13-148906-2
