  1. NTPV3 – Time Synchronization Service Siddharth (Siddharth Jagtiani)

  2. Highlights • Why Time Synchronization ? • How Time Synchronization ? • NTPv3 Utilities and LAB • Authentication Options • Backward Compatibility options Why and How © 2002 Novell Inc, Confidential & Proprietary

  3. WHY Time Synchronization ? 11:01 11:00 11:00 11:01 UPDATE SYNC © 2002 Novell Inc, Confidential & Proprietary

  4. How Time Synchronization ? t2 t1 Time Request t3 Time Reply t4 t5 t6 Time Request t7 Time Reply t8 Time Consumer Time Provider © 2002 Novell Inc, Confidential & Proprietary

  5. How Time Synchronization ? Time Exchange © 2002 Novell Inc, Confidential & Proprietary

  6. How Time Synchronization ? Time Exchange - Eg Offset = ((t2-t1) + (t3-t4)) /2 = 1 min Delay = (t4-t1) - (t3-t2) = 20 sec t3-t2 = Zero NetWare OS Non-preemptive scheduling. Time taken for Request = Time taken for Reply= 10 sec Time taken to process packet at Time Server = 5 sec © 2002 Novell Inc, Confidential & Proprietary

  7. OS Clock - Interface Time Provider Time Exchange Time Consumer Timesync/ NTPv3 Applications Write Correction Registers Read Write Time CLOCK Status Timer Interrupt Write © 2002 Novell Inc, Confidential & Proprietary

  8. OS Clock - How © 2002 Novell Inc, Confidential & Proprietary

  9. Time Correction on OS ? • Slam - Correct the clock (NOW !!) • Local Clock = Local Clock + Offset • Slew - Slowly correct the clock (I am in no hurry !!) • Slewed Offset = Offset/Duration of Slew • For (Every second until Duration of Slew) • Local Clock = Local Clock + 1 second + Slewed Offset © 2002 Novell Inc, Confidential & Proprietary

  10. Get Time From Time Source First Time ? No Yes Slew Slam In Sync Timesync Slam Vs Slew NOT in Sync © 2002 Novell Inc, Confidential & Proprietary

  11. Get Time From Time Source Get Time From Time Source Slam Slew NTPv3 Slam Vs Slew XNTPD NTPDate Filter/Selection Algorithm OS Clock Nearly In Sync OS Clock In Sync © 2002 Novell Inc, Confidential & Proprietary

  12. Value of NTPv3 • Open Source port. RFC 1305 • Uniformity between other platforms • NetWare 6.5 includes • Time Synchronization Daemon : xntpd.nlm • Utilities : ntpdate, ntpq, ntptrace and xntpdc • Browser based configuration through NORM • Backward compatibility to service NCP time requests © 2002 Novell Inc, Confidential & Proprietary

  13. NTPv3 Tools in NetWare 6.5 - NTPDATE • NTPDate • Used to slam the time provider’s time on the server. • Helps to achieve synchronization faster. • Similar to timesync’s “Set Clock to first network time” Time Consumer Time Provider Request 123 NtpDate Server B XNTPD Reply OS Clock © 2002 Novell Inc, Confidential & Proprietary

  14. NTPDATE - Options • Usage : [-bBdqsv] [-a key#] [-e delay] [-k file] [-p samples] [-o version#] [-r rate] [-t timeo] server • -b : Step the time without limits • -u : Don’t use port 123 • -d -q : only display the time offset • -s : Log actions to file © 2002 Novell Inc, Confidential & Proprietary

  15. NTPDATE - LAB • Tasks • Use NTPDATE to set the time of the server to NTP.NOVELL.COM • Use NTPDATE to set the time to a Timesync Single Server • Load XNTPD and then try to use NTPDATE to set time to NTP.NOVELL.COM • Load Timesync and then try to use NTPDATE to set time to NTP.NOVELL.COM • Use NTPDATE to find out how far you are from NTP.NOVELL.COM, but do NOT set the system time. • Log NTPDATE screen info to file © 2002 Novell Inc, Confidential & Proprietary

  16. NTPv3 Tools in NetWare 6.5 - XNTPD • XNTPD • Maintains synchronized time as long as the server is running • Used to slew the clock with the time provider’s clock • Sys:\etc\ntp.cfg is the default configuration file • Ntp.cfg comes with a lot of examples for helping configuration • -T options help migrate/provide backward compatibility for NCP clients • Ntp configuration on NORM • Health Monitor on NORM © 2002 Novell Inc, Confidential & Proprietary

  17. Sample XNTPD Progress Screen © 2002 Novell Inc, Confidential & Proprietary

  18. XNTPD Manual Configuration • Manual Configuration • This configuration is similar to “Timesync Configured Sources=ON” • Server can be self synchronized • Time Provider – LOCAL Clock • Server can rely on another server for time. • Time Provider – Another NTP server • Advertise its service (broadcast mode) • Listen to advertisements (broadcastlisten mode) © 2002 Novell Inc, Confidential & Proprietary

  19. Manual Configuration – NTP.Cfg Commands Local Clock Setup • server 127.127.1.0 [minpoll <4-16>] – Local Clock • fudge 127.127.1.0 stratum <0-15> - Stratum Time Provider – Another NTP Server • server <ipa/dns name> [minpoll <4-16>] – Time Provider Poll Delay • minpoll <4-16> - Poll Delay = 2minpoll • 5 successful poll’s gets the server to synchronized state © 2002 Novell Inc, Confidential & Proprietary

  20. Manual Configuration – Example • Self Synchronized • IP Address for identifying the local clock – 127.127.1.0 • Used along with the fudge, minpoll and stratum command • Eg : • server 127.127.1.0 minpoll 4 • fudge 127.127.1.0 stratum 2 • Configure to Take time from another server • IP Address/DNS name of the time provider • Can be used along with minpoll command to increase speed of configuration • Eg : • server <ipa/dns name> minpoll 4 © 2002 Novell Inc, Confidential & Proprietary

  21. NTPv3 Tools in NetWare 6.5 - NTPQ • NTPQ • Query tool to monitor the status and quality of time • Delay • Offset • Error • Progress of synchronization • filt values • Ability to query other NTPv3 servers from a central place • host • Ability to check the status of all your time providers • peers © 2002 Novell Inc, Confidential & Proprietary

  22. NTPQ – Monitoring Commands • Monitoring • associations (as) – List all the associations. • peers (pe) – List the status of each peer • rv <assocID> - List all the variables for the association <assocID> • rvi <index> - List all the variables for the association number <index> • host <ipa>|<dns name> - Change the query server. • showipconf – Show the ipa and broadcast address of this server. (does not work in host mode). • Authentication – Query requests should be encrypted • authenticate [yes|no] – enable/disable authentication • keyid – identity of the client • keytype – type of authentication © 2002 Novell Inc, Confidential & Proprietary

  23. XNTPD / NTPQ - LAB • Tasks • Use XNTPD to configure to use NTP.NOVELL.COM as the time source • Check synchronization status at regular interval’s • Experiences ???? • Configure XNTPD to use the server next to you as the time source • Check the synchronization status at regular interval’s • Experiences ???? © 2002 Novell Inc, Confidential & Proprietary

  24. Manual Configuration - LAB • Tasks • Configure with multiple time provider using DNS/IP Address • Experiences ????? • Configure a time consumer to synchronize within a minute • Experiences ????? • Configure NTPDATE to run automatically before XNTPD • Set the Time provider’s time ahead by a hour. • Set the Time provider’s time behind by a hour • Experiences ????? © 2002 Novell Inc, Confidential & Proprietary

  25. Manual Configuration LAB – For Experts • Tasks • Use XNTPD to configure to use a NetWare box with Timesync loaded as the time source • Configure XNTPD to help ensure that only “authenticated” clients make time requests • AUTHENTICATION • Configure XNTPD to use Timesync SINGLE server in the tree as your time source. • Configure Timesync to take time from XNTPD in NTP/NCP mode © 2002 Novell Inc, Confidential & Proprietary

  26. NTPQ – LAB – For Experts • NTPQ • Configure XNTPD to take time from multiple time providers. • Check the status of all time providers in list at regular interval’s • Experiences ???? • Send authenticated requests to the server next to you and monitor the status • Comment on the time providers of the server next to you © 2002 Novell Inc, Confidential & Proprietary

  27. NTPQ Reference How to Configure Time Synchronization Service on Unix ? • 8) Some of the important outputs of the “peers” command is detailed as below. • A) First character - • ‘+’ ,‘*’ or ‘o’ means - Selected for Synchronization. • ‘-’, ‘SPACE’ or ‘#’ means - Discarded. • B) IPA of the Time Source • C) Type or Source - E.g GPS or some other type of Time Source. • D) Stratum • E) Type of peer - Unicast, Multicast, Broadcast or Local. • F) Delay - Round trip delay • G) Offset - Time difference. • E.g for NTPQ-Peers Cmd: • remote refid st t when poll reach delay offset disp • =================================================================== • 137.65.30.250 .GPS. 1 u 2 64 1 954.77 -6645.1 15875.0 © 2002 Novell Inc, Confidential & Proprietary

  28. XNTPD Auto Configuration • Auto Configuration • This configuration is similar to “Timesync Auto Discovery” • Configure the Time Provider to Broadcast its service on the network • Configure the Time Consumers to listen to the broadcast service and synchronize. • Time Provider • broadcast <broadcast address> • Time Consumers • broadcastclient © 2002 Novell Inc, Confidential & Proprietary

  29. Auto Configuration - LAB • Tasks • Configure your server to broadcast its service to the other servers on the network. • Configure your server to accept broadcast’s and listen • Configure your server with authentication to broadcast its service • Configure your server to accept broadcast’s only in authenticated mode © 2002 Novell Inc, Confidential & Proprietary

  30. XNTPD - Authentication ProcessRequest Process Time Consumer Time Request Encrypt Time Request + Encrypted [Time Request] Send Time Provider Split Time Request Encrypted [Time Request] Discard Unauthentic Encrypt Process Reply Not Equal Equal Compare © 2002 Novell Inc, Confidential & Proprietary

  31. XNTPD - Authentication ProcessReply Process Time Provider Time Reply Encrypt Time Reply + Encrypted [Time Reply] Send Time Consumer Split Time Reply Encrypted [Time Reply] Discard Unauthentic Encrypt Step/Slew Not Equal Equal Compare © 2002 Novell Inc, Confidential & Proprietary

  32. XNTPD – Authentication Setup • Need • Time Consumers need to know if they are contacting the Time Provider they intend to (XNTPD.NLM) • Queries between hosts, need encryption (NTPQ.NLM) • Remote Configuration commands need to come from authenticated clients (XNTPDC.NLM) • NTP.CFG • Key file • Trusted Key - XNTPD.NLM • Request Key – NTPQ.NLM • Control Key – XNTPDC.NLM • server, peer, broadcast – command use the key ID • NTP.KEY • Key ID – Key Identifier • Key Value – Password • Key Type – Encryption method MD5/DES © 2002 Novell Inc, Confidential & Proprietary

  33. XNTPD – Authentication Setup Time Provider • Share common symmetric key’s between NTP server and NTP client • Eg NTP.KEY • # Key ID Key Type Key Value • 420 M netware_is_the_best • Enable the 420 key as a trusted • Eg : NTP.CFG • keys sys:\etc\ntp.key • trustedkey 420 © 2002 Novell Inc, Confidential & Proprietary

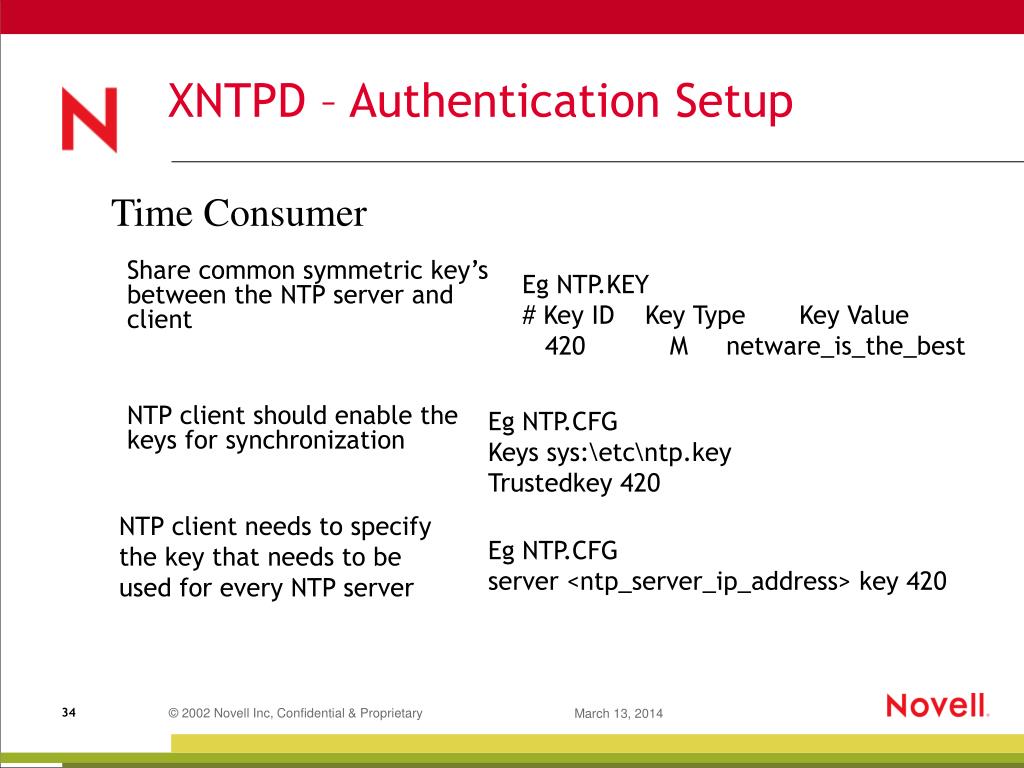

  34. XNTPD – Authentication Setup Time Consumer Share common symmetric key’s between the NTP server and client • Eg NTP.KEY • # Key ID Key Type Key Value • 420 M netware_is_the_best NTP client should enable the keys for synchronization • Eg NTP.CFG • Keys sys:\etc\ntp.key • Trustedkey 420 NTP client needs to specify the key that needs to be used for every NTP server • Eg NTP.CFG • server <ntp_server_ip_address> key 420 © 2002 Novell Inc, Confidential & Proprietary

  35. XNTPD - Authentication - LAB • Tasks • Configure your server as a time consumer to the server on your right hand side only with authentication • Configure your server as a time provider to the server on your left hand side and provide authentication options • Experiences ??? © 2002 Novell Inc, Confidential & Proprietary

  36. XNTPDC Authentication • Need • XNTPDC client needs to have authentic access to modify configuration on the remote server. • Remote server should be able to able to deny access • How • XNTPDC client need to provide the correct keyID, keyValue (password) • Remote server should be able to authenticate a configuration request. © 2002 Novell Inc, Confidential & Proprietary

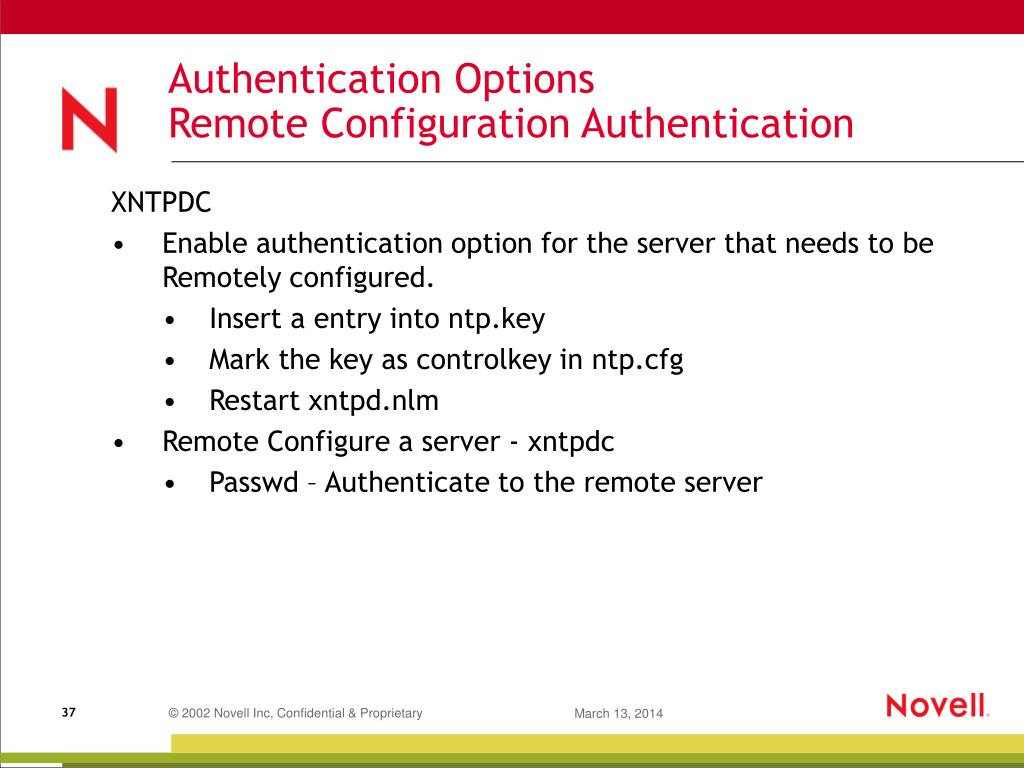

  37. Authentication OptionsRemote Configuration Authentication • XNTPDC • Enable authentication option for the server that needs to be Remotely configured. • Insert a entry into ntp.key • Mark the key as controlkey in ntp.cfg • Restart xntpd.nlm • Remote Configure a server - xntpdc • Passwd – Authenticate to the remote server © 2002 Novell Inc, Confidential & Proprietary

  38. NTPQ Authentication Options • Setup the host server • Insert a entry into ntp.key • Mark the key as requestkey in ntp.cfg • Restart xntpd.nlm • Configure Query Client • Insert the key of the time provider in ntp.key • Mark the key as trustedkey in ntp.cfg • Add option “key <keyid>” in ntp.cfg “server” command line • Eg : server <ipaddress> minpoll <vlaue> key <keyid> © 2002 Novell Inc, Confidential & Proprietary

  39. Advanced Configuration Minimize Traffic • Select servers across geographic locations to be peers to each other – Similar to “Timesync Primary Servers” – This helps in minimizing traffic across WAN’s Fault Tolerance • Have all these servers use a reference clock (external) as a master server – This helps in fault tolerance. COMMON - Time Consumer Setup • Have all Time Consumers use one of the above peer servers as a Time provider for itself. © 2002 Novell Inc, Confidential & Proprietary

  40. Advanced Configuration – LabMinimize Traffic Self Synchronized Stratum 10 External NTP Source Self Synchronized Stratum 10 Provo India Peer Synchronized © 2002 Novell Inc, Confidential & Proprietary

  41. Advanced Configuration – LabFault Tolerance External NTP Source External NTP Source Self Synchronized Stratum 10 Provo Self Synchronized Stratum 10 India Peer Synchronized © 2002 Novell Inc, Confidential & Proprietary

  42. NTPTrace - LAB • NTPTrace • Query all servers in the stratum thread to the root (startum 1) • LAB • Query your stratum thread • Experiences ????? © 2002 Novell Inc, Confidential & Proprietary

  43. Extra features for NetWare 6.5 • Browser Based configuration (Embedded in xntpd.nlm) • On NORM scroll down to NTP Configuration and click “Manual Configuration” • Modify NTP Configuration file’s, Save, Restart and Apply (save and restart xntpd to reflect new changes) • NTP Version independence • Timesync Migration/Backward Compatibility options • Xntpd –T noncp : Will disable the ncp engine on xntpd. XNTPD will not serve ncp time request’s from NetWare 4.x and Novell Clients • Xntpd –T slp : Will look up SLP for a Timesync SINGLE server on the network, add the Timesync SINGLE server’s IP Address in the ntp.cfg as a time provider © 2002 Novell Inc, Confidential & Proprietary

  44. NTP State Machine NOT Loaded/Not Synchronized Load XNTPD Loaded/Not Synchronized Loaded/Nearly Synchronized Step Clock is Enabled No Yes Slew NTPDATE –u –b <server list from ntp.cfg> Loaded/Synchronized NTPDATE Success Yes No © 2002 Novell Inc, Confidential & Proprietary

  45. Migration Timesync to NTPv3 • Reference – Primary • Primary - Secondary • Reference – Secondary • Secondary – Secondary • Client – Server Manual Configuration Single – Secondary Broadcast/Multicast – Broadcastlisten Configuration Primary – Primary Peer Configuration © 2002 Novell Inc, Confidential & Proprietary

  46. Backward Compatibility - Problem NCP Request NCP Request BOOM BOOM NCP Reply NCP Reply © 2002 Novell Inc, Confidential & Proprietary

  47. Backward Compatibility – Solution With NTPv3 and NCP Server NCP Request NCP Request NCP Reply NCP Reply © 2002 Novell Inc, Confidential & Proprietary

  48. Backward Compatibility – LABNORM - Lab • Task • Configure NetWare 4.x server to use NetWare 6.5 as a time source • Tasks • Configure your server using NORM, using any configuration mode • Monitor its synchronization status using “Health Monitor” © 2002 Novell Inc, Confidential & Proprietary

  49. Browser based administration - NORM • NTP Configuration • Click on “NTP Configuration” link under “Manage Applications” • Click on the set of servers that you want to configure • Edit the configuration file • Save – saves the contents of the ntp.cfg • Restart – reload xnptd.nlm • Apply – save and restart • NTP Monitoring • Click on “Health Monitor” • Click on “NTP Monitoring Service” • Click on the set of servers that you want to monitor • peers : output same as ntpq • associations : output same as as command on ntpq • variables : output same as “rv <assId>” © 2002 Novell Inc, Confidential & Proprietary

  50. Future for NTPv3 • Simplifying NTP/Timesync configuration • More on integrating Timesync backward compatibility with NTPv3 configuration • Cross platform solution – OS Independent • Extending features for helping debugging of time synchronization problems © 2002 Novell Inc, Confidential & Proprietary
