  1. The Path through Upgrade and Beyond Brian Caauwe – Senior SharePoint Consultant September 28th, 2013

  2. Session Agenda • Upgrade Planning • Upgrade Overview • Upgrade Cycle

  3. Who am I? • Brian Caauwe • SharePoint Consultant & Speaker • Email: bcaauwe@avtex.com • Twitter: @bcaauwe • Blog: http://blog.avtex.com/author/bcaauwe • Technical Editor • Professional SharePoint 2013 Administration • Certifications • MCM: SharePoint Server 2010

  4. Thank You! For Sponsoring the IT Pro/Admin Track

  5. Quick Poll • SharePoint Version • 2007 – WSS, MOSS • 2010 – SPF, Server, FAST • 2013 • Work Roles • SharePoint Administrator • SharePoint Developer • Business User • Other

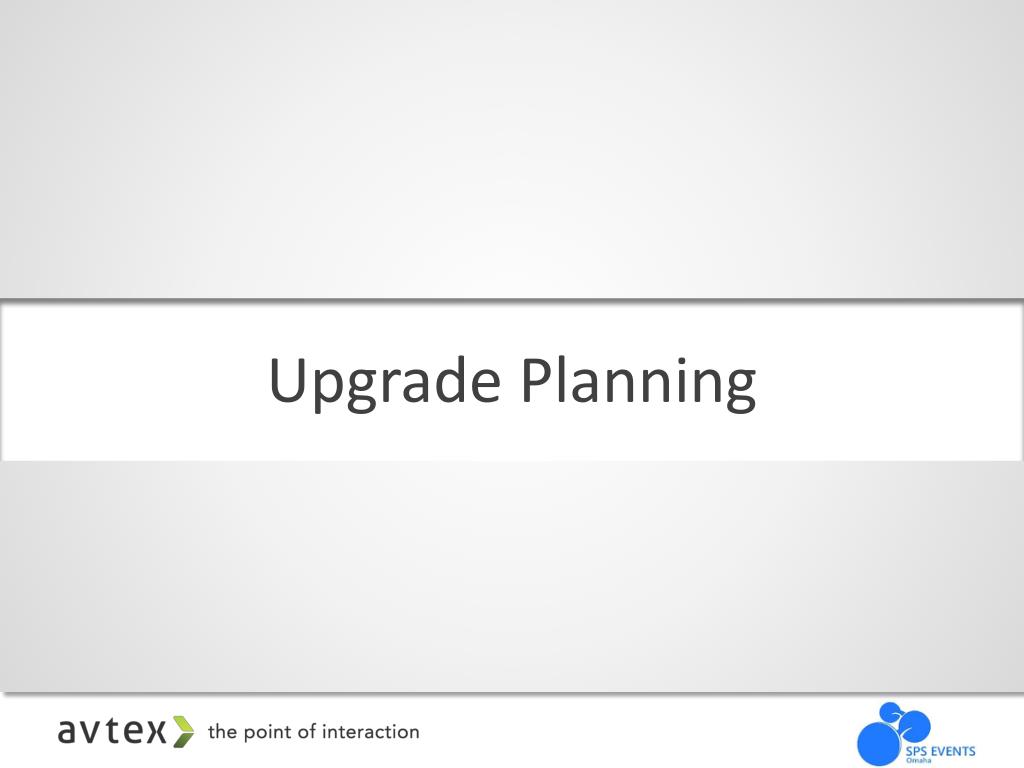

  6. Upgrade Planning

  7. Upgrade Planning General Definitions Upgrade • “to improve or replace especially software or a device for increased usefulness” Migration • “to move from one country, place, or locality to another” Source http://www.Merriam-Webster.com

  8. Upgrade Planning SharePoint Definitions Upgrade • Enhancing the core system to enable new functionality • Version to Version • 2010 to 2013 (and beyond) • Build to Build • Cumulative Updates • Service Packs Migration • Moving content from between SharePoint objects or between environments • Making an SPWeb an SPSite • Moving a document library to another location • Moving a file between libraries

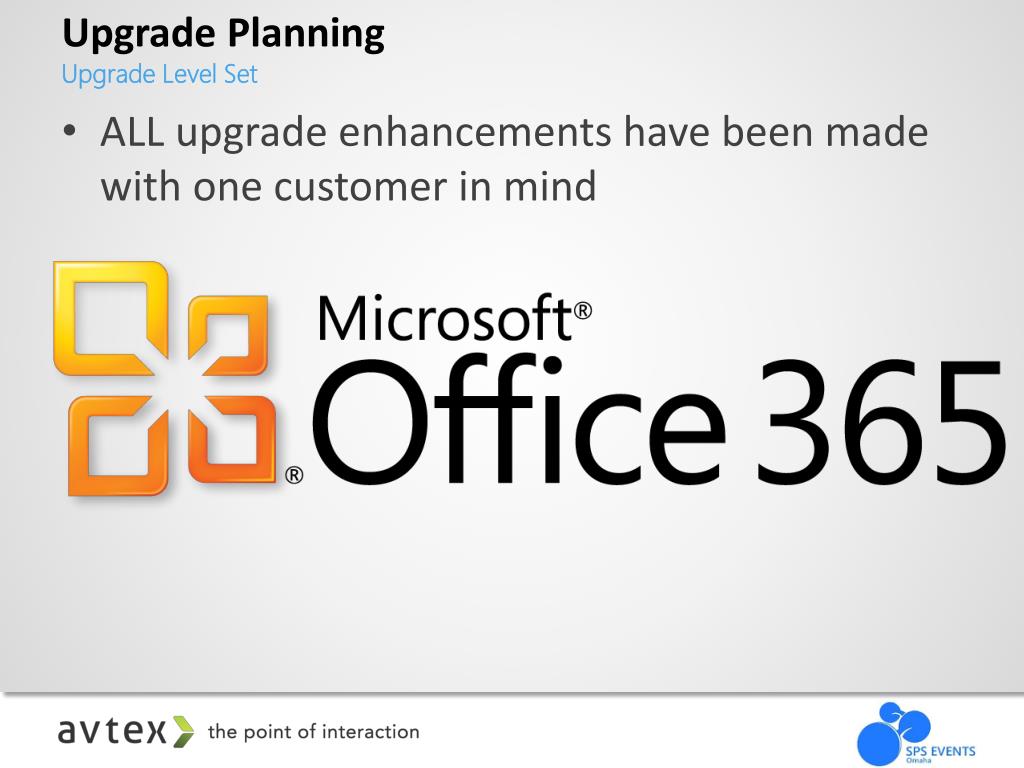

  9. Upgrade Planning Upgrade Level Set • ALL upgrade enhancements have been made with one customer in mind

  10. Upgrade Planning Managing a complex process • Customer Communication • Farm / Customization Surveys • Upgrade / Customization Testing • Environment Cleanup • Environment Build-out • Customizations Deployment • Operations Scheduling • Rollback Plan • Post-Upgrade Activities • Ongoing Support Calls

  11. Upgrade Overview

  12. Upgrade Overview Typical Issues • Customizations • Available Disk Space • Customizations • Resource Constraints (I/O, Memory, Time) • Customizations • Testing (or lack thereof) • Customizations • Knowledge • Customizations

  13. Upgrade Overview OOB Upgrade Scenarios Supported • MOSS 2007 / WSS 3.0 SP2  SharePoint 2010 RTM  SharePoint 2013 • Need to force site version from 12 to 14 • SharePoint 2010 RTM+  SharePoint 2013 • Database Attach Upgrade • Service Applications (some) • Content Databases • Swing Upgrade • AAM Redirection (DO NOT USE) Unsupported • In Place • SharePoint 2007 (or previous)  SharePoint 2013

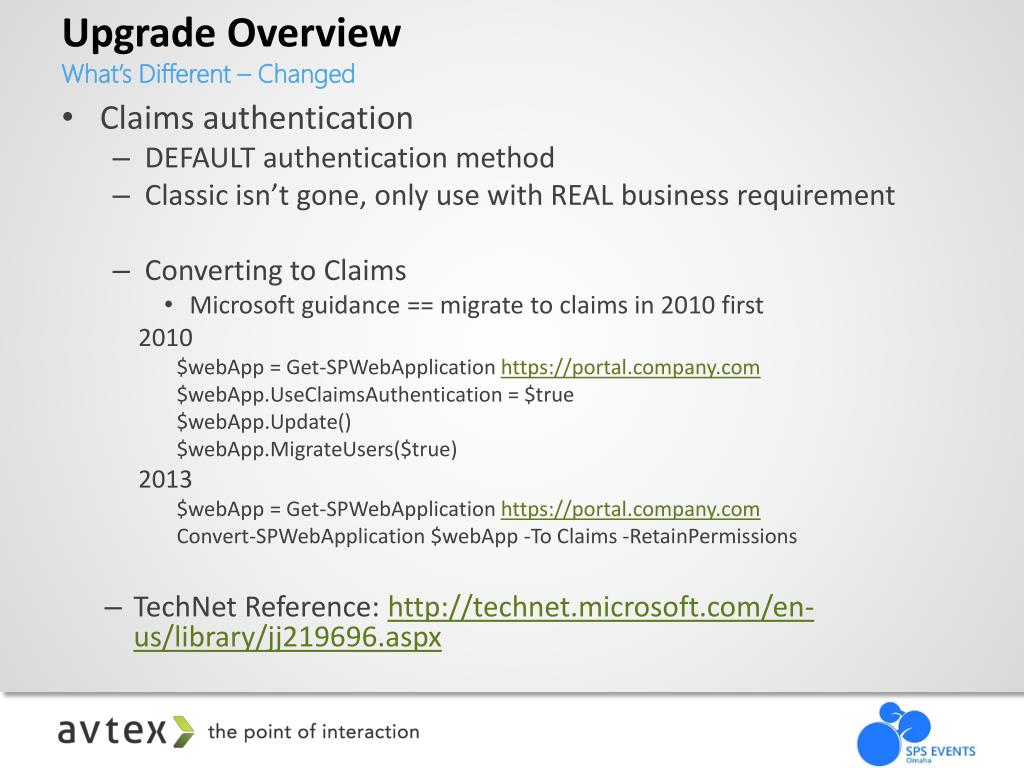

  14. Upgrade Overview What’s Different – Changed • Claims authentication • DEFAULT authentication method • Classic isn’t gone, only use with REAL business requirement • Converting to Claims • Microsoft guidance == migrate to claims in 2010 first 2010 $webApp = Get-SPWebApplicationhttps://portal.company.com $webApp.UseClaimsAuthentication = $true $webApp.Update() $webApp.MigrateUsers($true) 2013 $webApp = Get-SPWebApplicationhttps://portal.company.com Convert-SPWebApplication $webApp -To Claims -RetainPermissions • TechNet Reference: http://technet.microsoft.com/en-us/library/jj219696.aspx

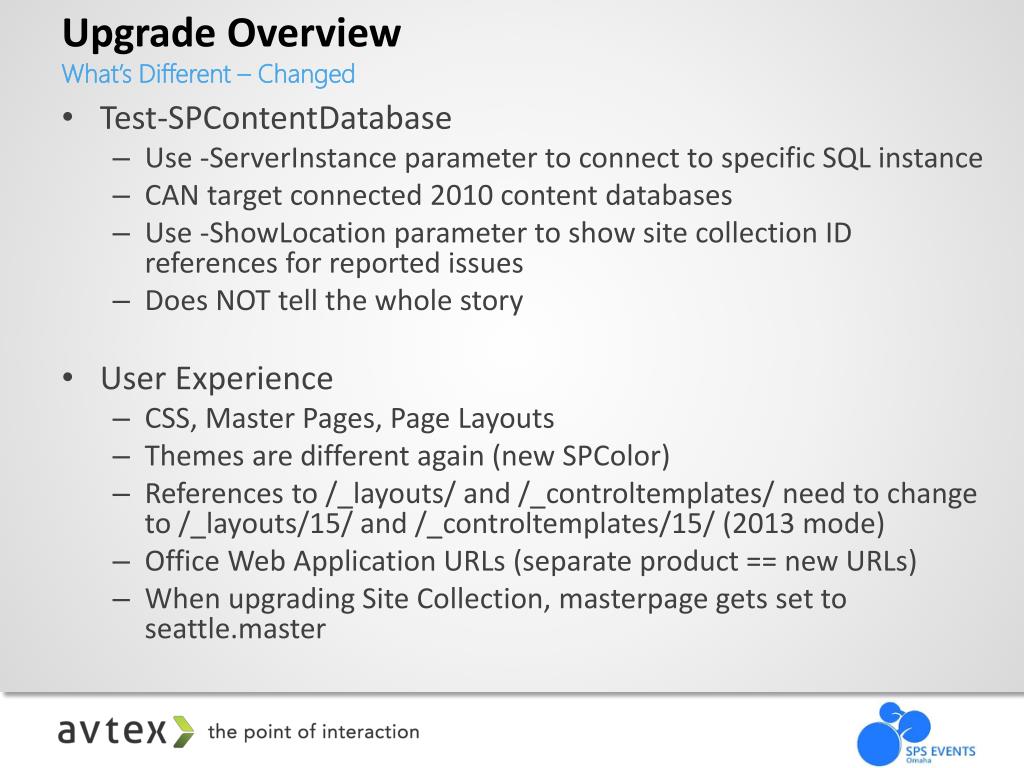

  15. Upgrade Overview What’s Different – Changed • Test-SPContentDatabase • Use -ServerInstance parameter to connect to specific SQL instance • CAN target connected 2010 content databases • Use -ShowLocation parameter to show site collection ID references for reported issues • Does NOT tell the whole story • User Experience • CSS, Master Pages, Page Layouts • Themes are different again (new SPColor) • References to /_layouts/ and /_controltemplates/ need to change to /_layouts/15/ and /_controltemplates/15/ (2013 mode) • Office Web Application URLs (separate product == new URLs) • When upgrading Site Collection, masterpage gets set to seattle.master

  16. Upgrade Overview What’s Different – Changed • Site Collection / Web Upgrade • Webs can only be in the same compatibility level as Site Collection • Cannot swap between UIVersions for “preview” • Evaluation sites will ALWAYS have a shelf life • Upgrade Ownership • Farm Administrators make site collection upgrade “available” • Site Collection Administrators initiate / evaluate upgrade • Site Collection Administrators NOTIFIED of upgrade process

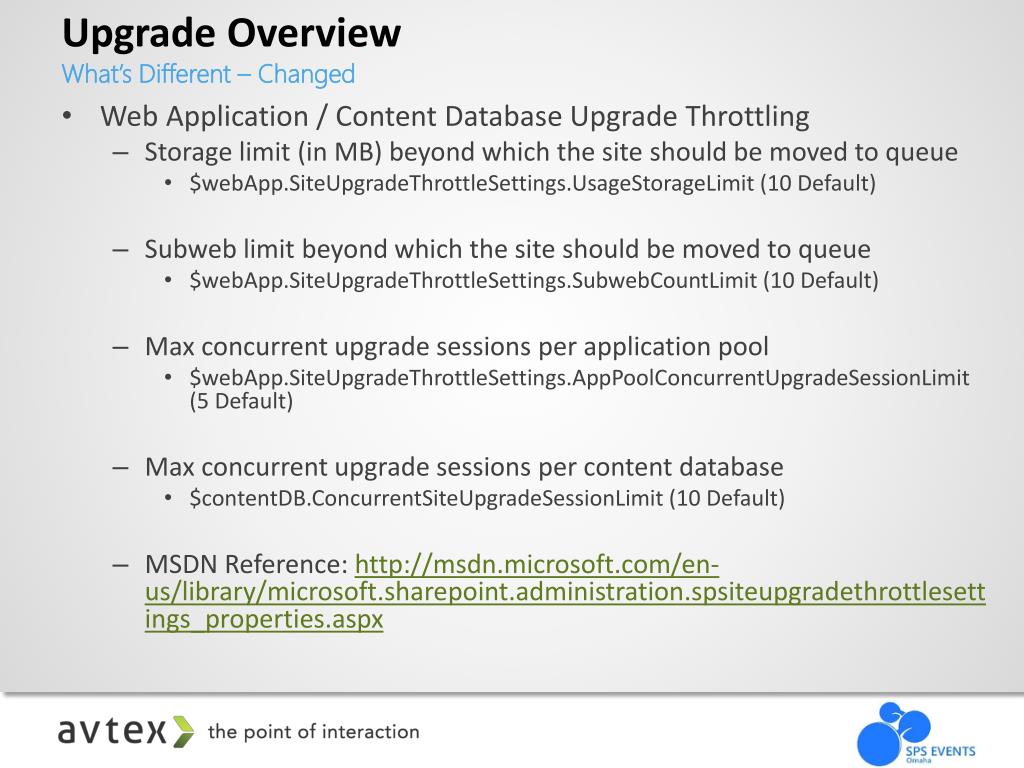

  17. Upgrade Overview What’s Different – Changed • Web Application / Content Database Upgrade Throttling • Storage limit (in MB) beyond which the site should be moved to queue • $webApp.SiteUpgradeThrottleSettings.UsageStorageLimit (10 Default) • Subweb limit beyond which the site should be moved to queue • $webApp.SiteUpgradeThrottleSettings.SubwebCountLimit (10 Default) • Max concurrent upgrade sessions per application pool • $webApp.SiteUpgradeThrottleSettings.AppPoolConcurrentUpgradeSessionLimit (5 Default) • Max concurrent upgrade sessions per content database • $contentDB.ConcurrentSiteUpgradeSessionLimit (10 Default) • MSDN Reference: http://msdn.microsoft.com/en-us/library/microsoft.sharepoint.administration.spsiteupgradethrottlesettings_properties.aspx

  18. Upgrade Overview What’s Different – Improved • Upgrade Logging • Server: Individual consolidated Upgrade-[DATE]-[TIME]-[ID]-error.log files • Site collection maintenance logs available through UI • Formatted like ULS logs • Placed in folder in a special gallery • ~site/_catalogs/MaintenanceLogs/[DATE]-[TIME]-[ID].txt • Service Application Upgrade • 2010 environment CAN consume 2013 service applications • Will not utilize new features until web applications are in 2013 mode

  19. Upgrade Overview What’s Different – Improved • Service Application Upgrade (continued…) • Secure Store • New-SPSecureStoreApplication (Upgrades SSS) • Update-SPSecureStoreApplicationServerKey (Requires Passphrase from 2010) • Business Connectivity Services • New-SPBusinessDataCatalogServiceApplication (Upgrades BCS) • Managed Metadata • New-SPMetadataServiceApplication (Upgrades MMS) • Search • Restore-SPEnterpriseSearchServiceApplication (Upgrades Search Admin DB) • Does NOT retain index • Auto-generates other search database names … GUIDS

  20. Upgrade Overview What’s Different – Improved • Service Application Upgrade (finally…) • User Profile • New-SPProfileServiceApplication (Upgrades Profile, Social and / or Sync DB) • Can upgrade ALL or SOME User Profile Databases • User Profile • Social • Sync (requires additional FIM certificate “fun”) • PerformancePoint • New-SPPerformancePointServiceApplication (Upgrades PerformancePoint) • Project • New-SPProjectServiceApplication (Creates Project Service App) • Mount-SPProjectDatabase (Mounts singled merged project DB OR merges four prior DB’s into one)

  21. Service Application Upgrade Demo

  22. Upgrade Overview What’s Different – Removed • Methods • In Place Upgrade • AAM Redirection • OK it’s still there… but DO NOT USE • stsadm -o preupgradecheck • Manual / OM methods • Test-SPContentDatabase can help a good amount • SPWeb.UIVersion & SPWeb.UIVersionConfigurationEnabled • Evaluation Sites are the “replacement” • Content Databases no longer flip to SIMPLE recovery during upgrade

  23. Upgrade Overview What’s New – Compatibility Ranges / Compatibility Levels • CompatibilityRange • Determines what VERSION of site collections can be created in Central Administration AND impacts Self-Service upgrade options • Configurable on Web Application • $webApp.CompatibilityRange • Features / Solutions now deployed based on CompatibilityRange (14, 15, All) • Install-SPSolution uses parameter name -CompatibilityLevel • TechNet Reference: http://technet.microsoft.com/en-us/library/ff607534.aspx • CompatibilityLevel • Site Collection Determines user experience • Replacement for UIVersion • Located on the Site Collection object NOT Web object • Cannot be directly set • Set as part of the Upgrade-SPSite process ONLY • $site.CompatibilityLevel

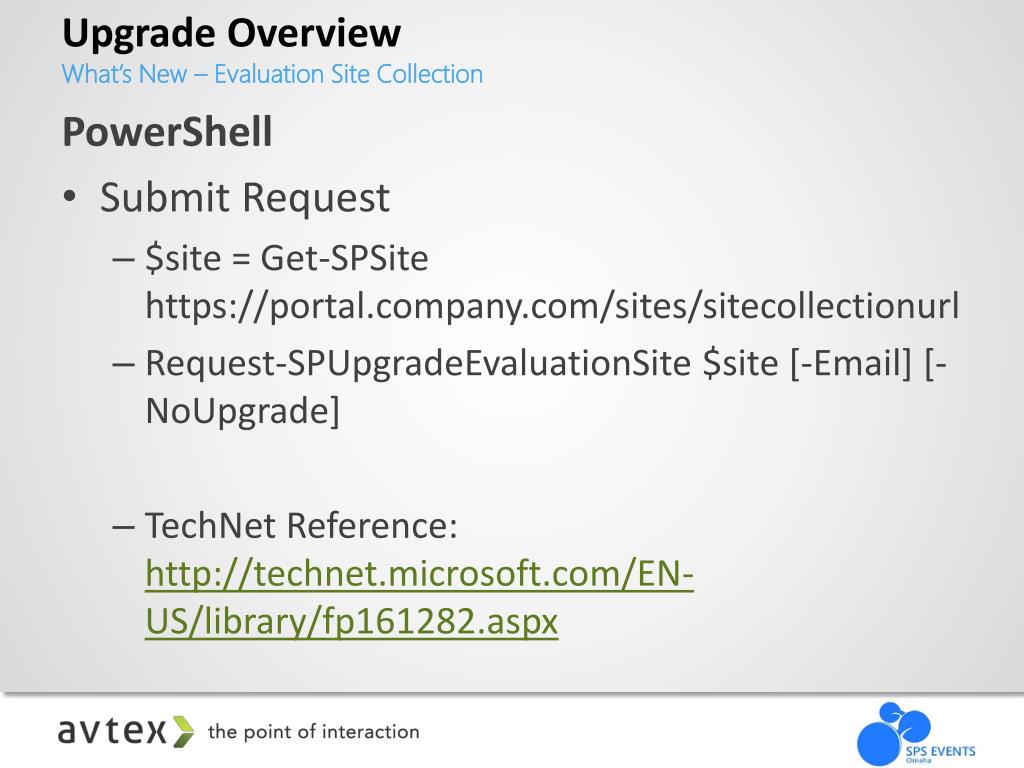

  24. Upgrade Overview What’s New – Evaluation Site Collection PowerShell • Submit Request • $site = Get-SPSite https://portal.company.com/sites/sitecollectionurl • Request-SPUpgradeEvaluationSite $site [-Email] [-NoUpgrade] • TechNet Reference: http://technet.microsoft.com/EN-US/library/fp161282.aspx

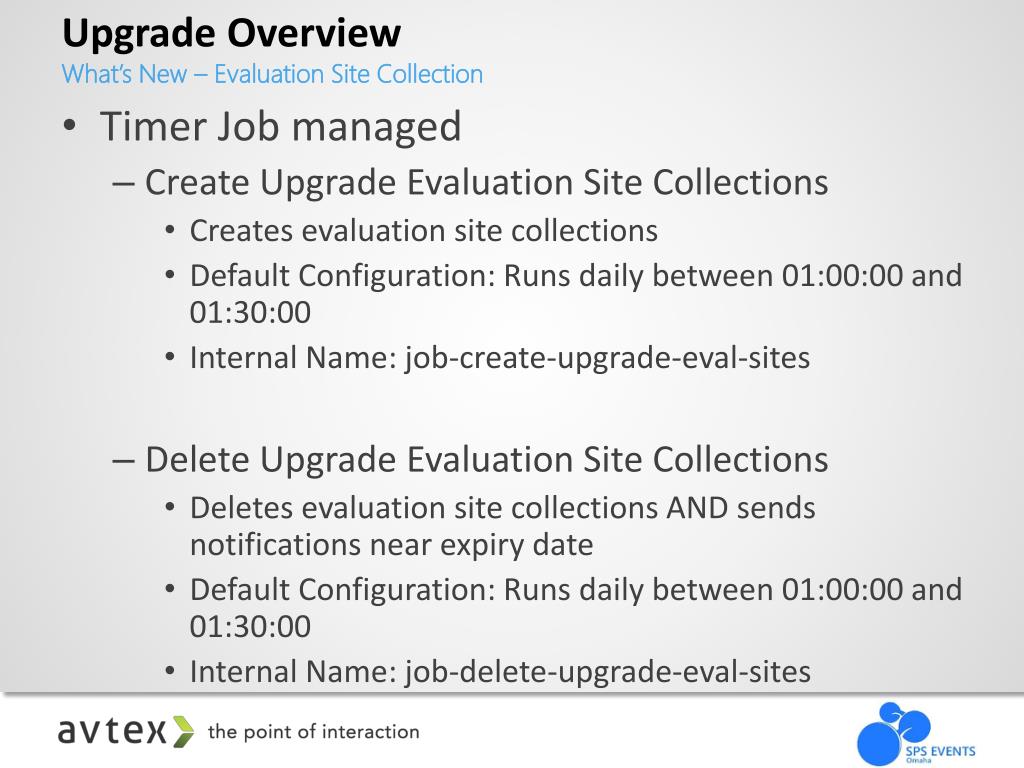

  25. Upgrade Overview What’s New – Evaluation Site Collection • Timer Job managed • Create Upgrade Evaluation Site Collections • Creates evaluation site collections • Default Configuration: Runs daily between 01:00:00 and 01:30:00 • Internal Name: job-create-upgrade-eval-sites • Delete Upgrade Evaluation Site Collections • Deletes evaluation site collections AND sends notifications near expiry date • Default Configuration: Runs daily between 01:00:00 and 01:30:00 • Internal Name: job-delete-upgrade-eval-sites

  26. Upgrade Overview What’s New – Evaluation Site Collection • Web Application Properties • Allows Site Collection Administrators Self-Service Evaluation • $webApp = Get-SPWebApplicationhttps://portal.company.com • $webApp.AllowSelfServiceUpgradeEvaluation = $true (Default) • Can postpone upgrade available notification for site collection administrators • $webApp.UpgradeReminderDelay = 30 (Default) • E-mail notifications • $webApp.SendSiteUpgradeEmails = $true (Default) • Max Size for Evaluation Sites • $webApp.MaxSizeForSelfServiceEvalSiteCreationMB = 102400 (Default – in MB) • Evaluation site retention • $webApp.UpgradeEvalSitesRetentionDays = 30 (Default – in days)

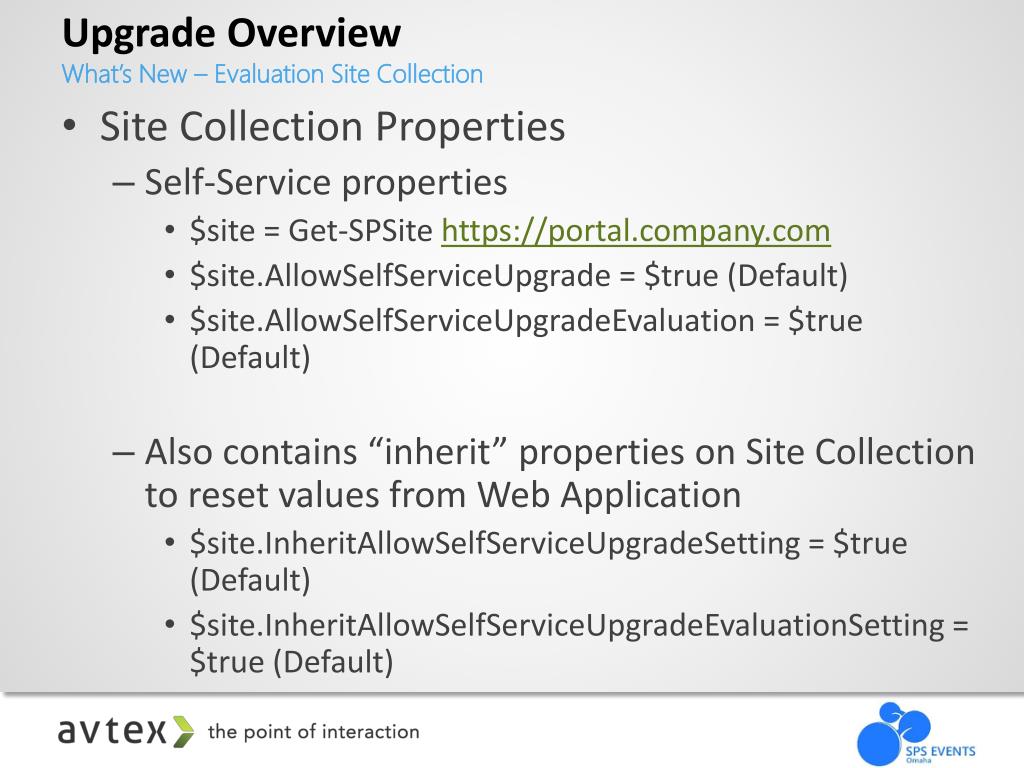

  27. Upgrade Overview What’s New – Evaluation Site Collection • Site Collection Properties • Self-Service properties • $site = Get-SPSitehttps://portal.company.com • $site.AllowSelfServiceUpgrade = $true (Default) • $site.AllowSelfServiceUpgradeEvaluation = $true (Default) • Also contains “inherit” properties on Site Collection to reset values from Web Application • $site.InheritAllowSelfServiceUpgradeSetting = $true (Default) • $site.InheritAllowSelfServiceUpgradeEvaluationSetting = $true (Default)

  28. Evaluation Site Collection Demo

  29. Upgrade Overview What’s New – Site Collection Upgrade PowerShell • Start Site Upgrade • $site = Get-SPSite https://portal.company.com/sites/sitecollectionurl • Upgrade-SPSite $site [-VersionUpgrade] [-Email] [-QueueOnly] [-Unthrottled] • TechNet Reference: http://technet.microsoft.com/EN-US/library/fp161257.aspx • Monitor Upgrade Queue • $db = Get-SPContentDatabaseWSS_Content • Get-SPUpgradeSessionInfo -ContentDatabase $db [-HideWaiting] [-ShowFailed] [-ShowInProgress] • $site = Get-SPSite https://portal.company.com/sites/sitecollectionurl • Get-SPUpgradeSessionInfo -Site $site • TechNet Reference: http://technet.microsoft.com/EN-US/library/fp161278.aspx

  30. Upgrade Overview What’s New – Site Collection Upgrade • Deferred Site Collection Upgrade • Allows site collection administrators to determine WHEN they go to 2013 • Timer Job managed • Upgrade Site Collections job • Default Configuration: Runs every 1 minute • Internal Name: job-create-sites

  31. Site Collection Upgrade Demo

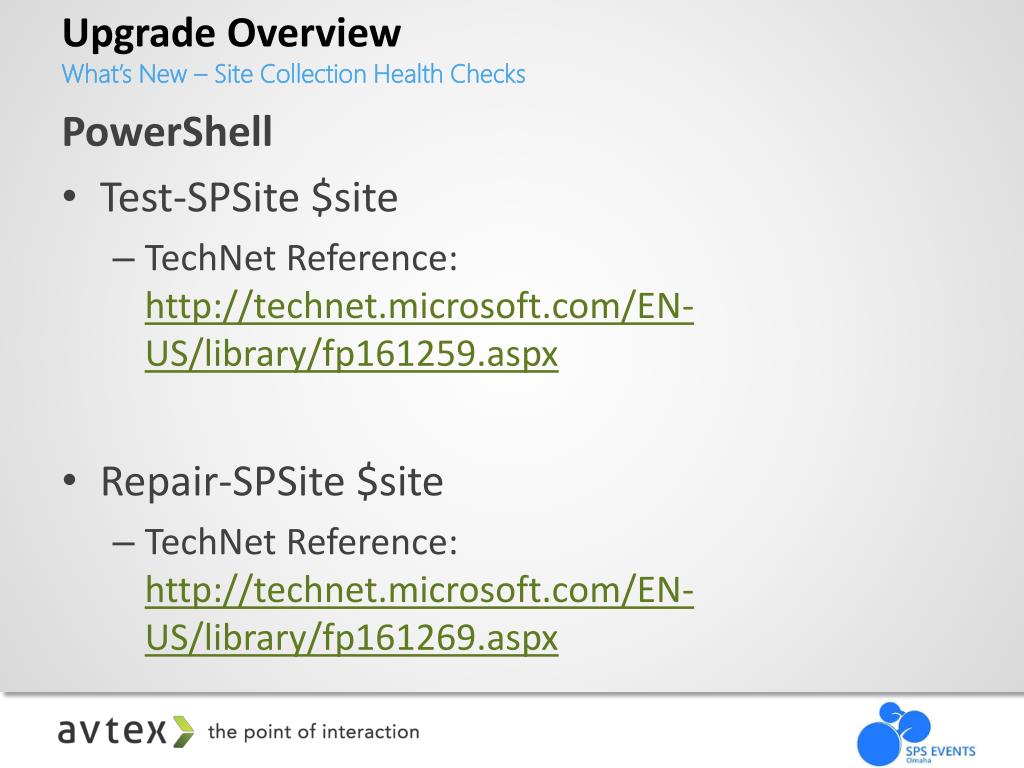

  32. Upgrade Overview What’s New – Site Collection Health Checks PowerShell • Test-SPSite$site • TechNet Reference: http://technet.microsoft.com/EN-US/library/fp161259.aspx • Repair-SPSite $site • TechNet Reference: http://technet.microsoft.com/EN-US/library/fp161269.aspx

  33. Upgrade Overview What’s New – Site Collection Health Checks • Health Checks are forcibly run before any site collection upgrade • Rule based • Conflicting Content Types • Customized Files • Missing Galleries • Missing Parent Content Types • Missing Site Templates • Unsupported Language Pack References • Unsupported MUI References • WILL prevent upgrade if upgrade blocking errors occur • Can be run manually through UI or PowerShell • Can / should be used OUTSIDE of the upgrade process to identify issues • TechNet Reference: http://technet.microsoft.com/en-us/library/jj219720.aspx

  34. Upgrade Overview What’s New – System Notifications / Email Templates • Status message bar is NOT customizable • Additional “Maintenance Link” property to direct users to pre-determined pages • $webApp.ReadOnlyMaintenanceLink • $webApp.UpgradeMaintenanceLink • Email Templates provided by Web Application feature • Feature Name: EmailTemplates • Only deployed to 14 Hive

  35. Upgrade Cycle

  36. Upgrade Cycle

  37. Upgrade Cycle Learn About YOUR environment • Customizations (Solutions / Features / Cowboy) • Your code • Branding • 3rd party • Authentication Provider • Classic vs. Claims • FBA • Custom STS • Hardware Requirements (YOU NEED MORE) • Disk Requirements (include backup and restore sizing) • Resource Requirements • TechNet Reference: http://technet.microsoft.com/en-us/library/cc262485.aspx Upgrade Methods • Services Application (FIRST) • Point in time migration • Swing migration • Content Database • Read-only outage acceptable to reduce “downtime”

  38. Upgrade Cycle Learn Web Browser Requirements • IE 8+ • Google Chrome (latest version) • Mozilla Firefox (latest version) • Apple Safari (latest version) • What about mobile? Office Requirements • 2010 or 2013 • SharePoint Designer “Deprecated” Features • Sandbox Solutions • code == bad • XML == OK • SharePoint Designer – Design View (Removed) • PowerPoint Broadcast site collection (Removed) • Meeting Workspaces • Web Analytics  Moved to Search Service Application • Office Web Applications  Separate application

  39. Upgrade Cycle Prepare Reconnect with users • Ask your users how they are using your solutions • Determine dead sites • Remove data clutter • Prioritize items that are fixed in 2013 • Re-visit information architecture • Build internal buzz • Start communication early!!

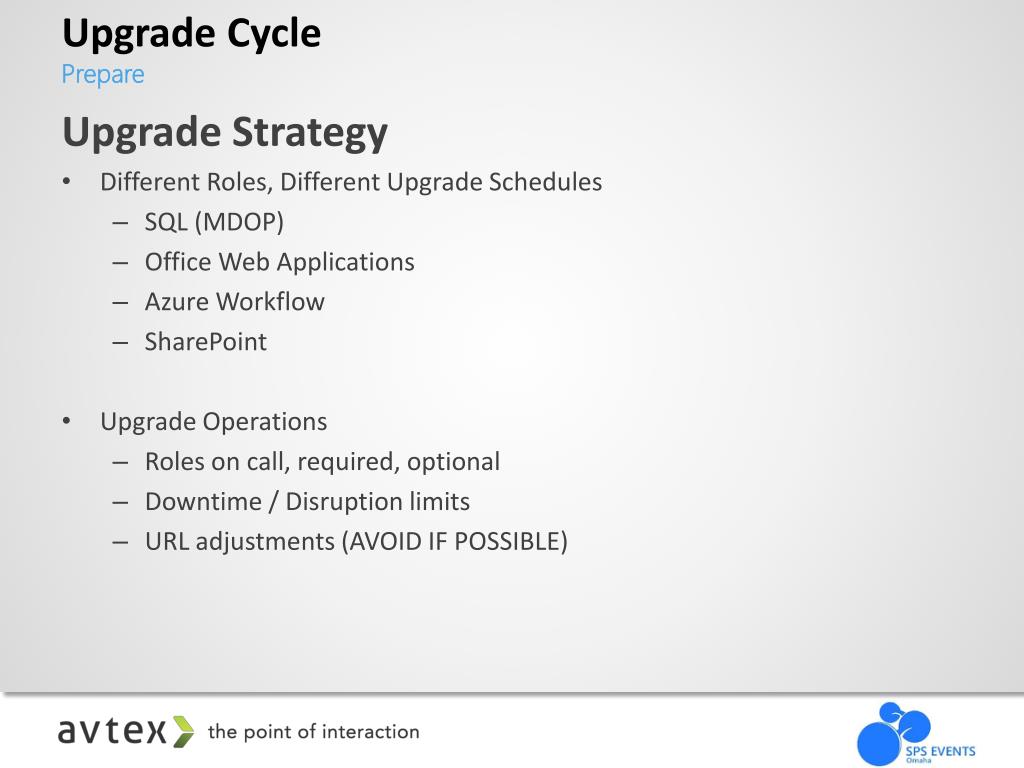

  40. Upgrade Cycle Prepare Upgrade Strategy • Different Roles, Different Upgrade Schedules • SQL (MDOP) • Office Web Applications • Azure Workflow • SharePoint • Upgrade Operations • Roles on call, required, optional • Downtime / Disruption limits • URL adjustments (AVOID IF POSSIBLE)

  41. Upgrade Cycle Prepare SharePoint 2010 Environment • Validate / Complete Visual Upgrade • Cleanup sites, webs, versions • Isolate customized site collections into separate databases • Isolate ROOT (/) site collections into separate databases • Prepare site and list “templates” for migration • Service Applications • Swing Upgrade: Prepare Farm for Service Application consumption

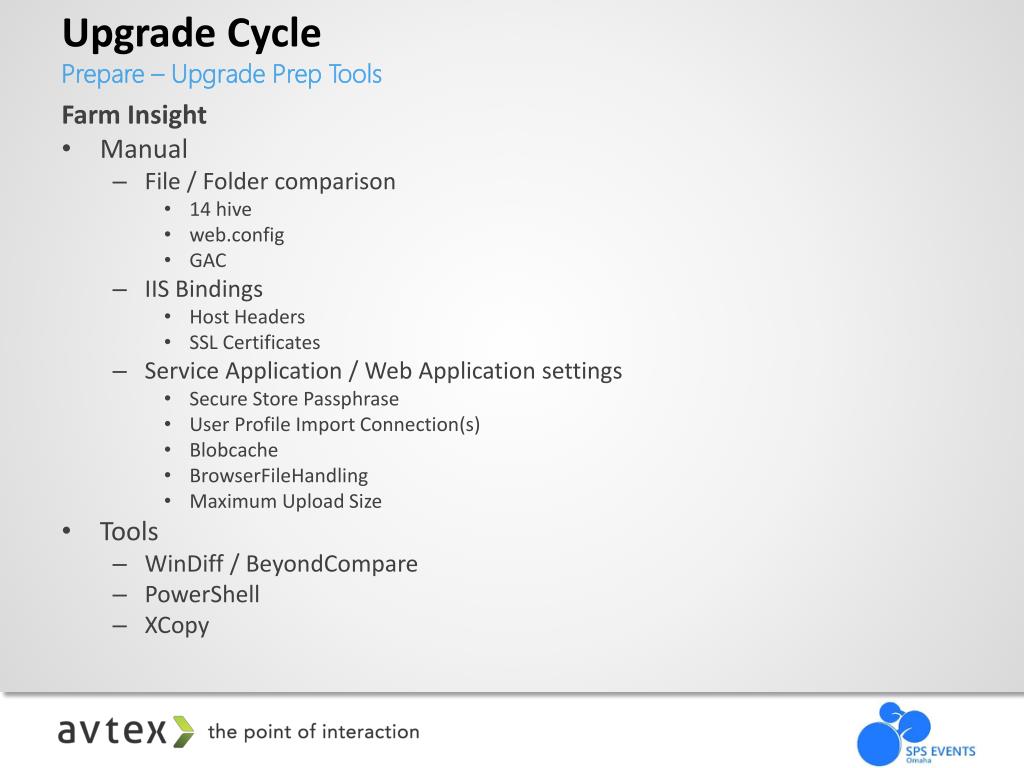

  42. Upgrade Cycle Prepare – Upgrade Prep Tools Farm Insight • Manual • File / Folder comparison • 14 hive • web.config • GAC • IIS Bindings • Host Headers • SSL Certificates • Service Application / Web Application settings • Secure Store Passphrase • User Profile Import Connection(s) • Blobcache • BrowserFileHandling • Maximum Upload Size • Tools • WinDiff / BeyondCompare • PowerShell • XCopy

  43. Upgrade Cycle Prepare – Upgrade Prep Tools Farm Insight (Continued) • PowerShell • Get-SPServer • Get-SPWebApplication / Get-SPSite / Get-SPWeb • Get-SPFeature • Get-SPWebTemplates • Test-SPContentDatabase • Get-SPContentDatabase | %{$_.Repair([bool])} • $true = fix issues • $false = list issues • MANY, MANY MORE… • STSADM • stsadm -o enumsites • stsadm -o enumallwebs • stsadm -o databaserepair

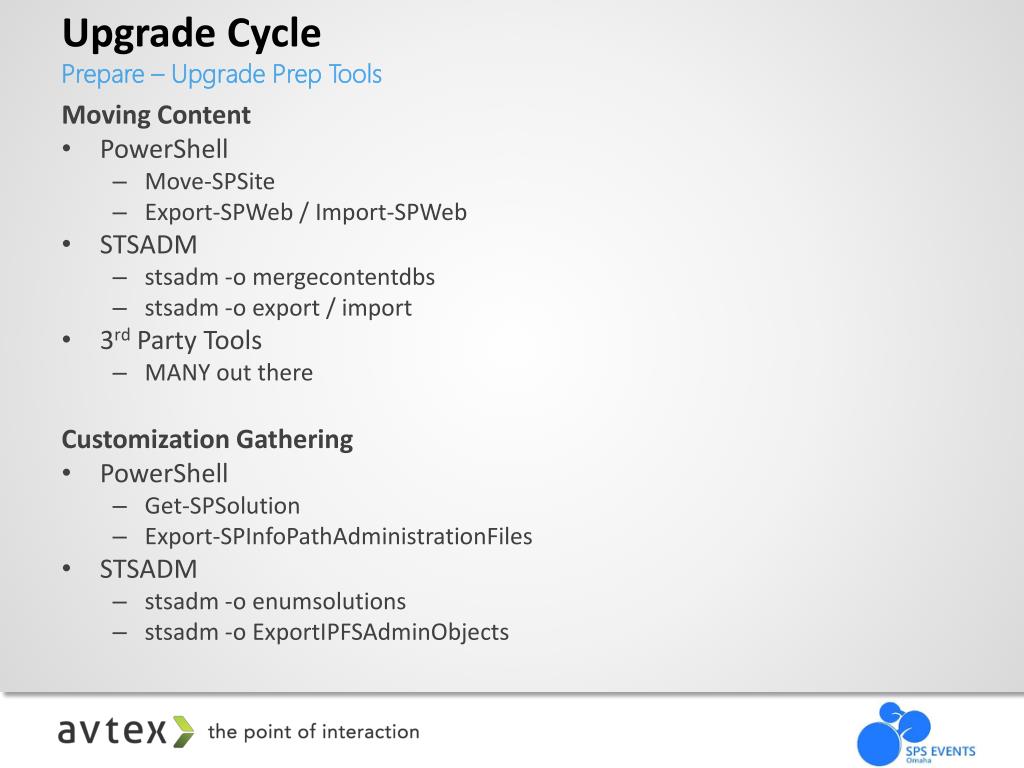

  44. Upgrade Cycle Prepare – Upgrade Prep Tools Moving Content • PowerShell • Move-SPSite • Export-SPWeb / Import-SPWeb • STSADM • stsadm -o mergecontentdbs • stsadm -o export / import • 3rd Party Tools • MANY out there Customization Gathering • PowerShell • Get-SPSolution • Export-SPInfoPathAdministrationFiles • STSADM • stsadm -o enumsolutions • stsadm -o ExportIPFSAdminObjects

  45. Upgrade Cycle Test SharePoint 2013 Environment • Build / Prepare SQL environment • Ensure Max Degree of Parallelism • Build Associated Services • Office Web Applications • Azure Workflow Manager • Build SharePoint environment • Use YOUR real data • Use similar hardware as production • Know what you are trying to test • Web Applications • Set CompatibilityRange • Create Managed Paths • Manual web.config changes • Service Applications • Build out new service applications NOT being migrated • Swing Upgrade: Prepare Farm for Service Application publishing (2013) / consumption (2010) • Apps configuration

  46. Upgrade Cycle Test Service Applications • Test service applications to upgrade • User Profile: Create Import Connections • Search: Perform crawl to populate index • Swing Upgrade: Publish service applications and consume for validation Content • Run Test-SPContentDatabase prior to Mount-SPContentDatabase • Run Test-SPSite and Repair-SPSite before site upgrades

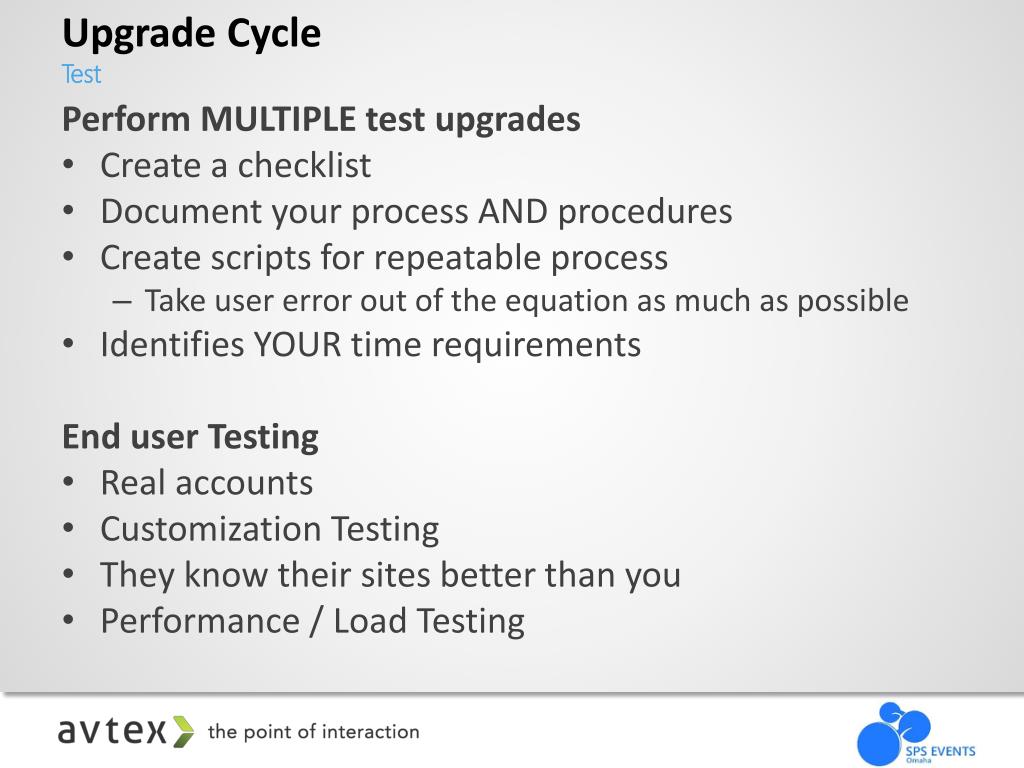

  47. Upgrade Cycle Test Perform MULTIPLE test upgrades • Create a checklist • Document your process AND procedures • Create scripts for repeatable process • Take user error out of the equation as much as possible • Identifies YOUR time requirements End user Testing • Real accounts • Customization Testing • They know their sites better than you • Performance / Load Testing

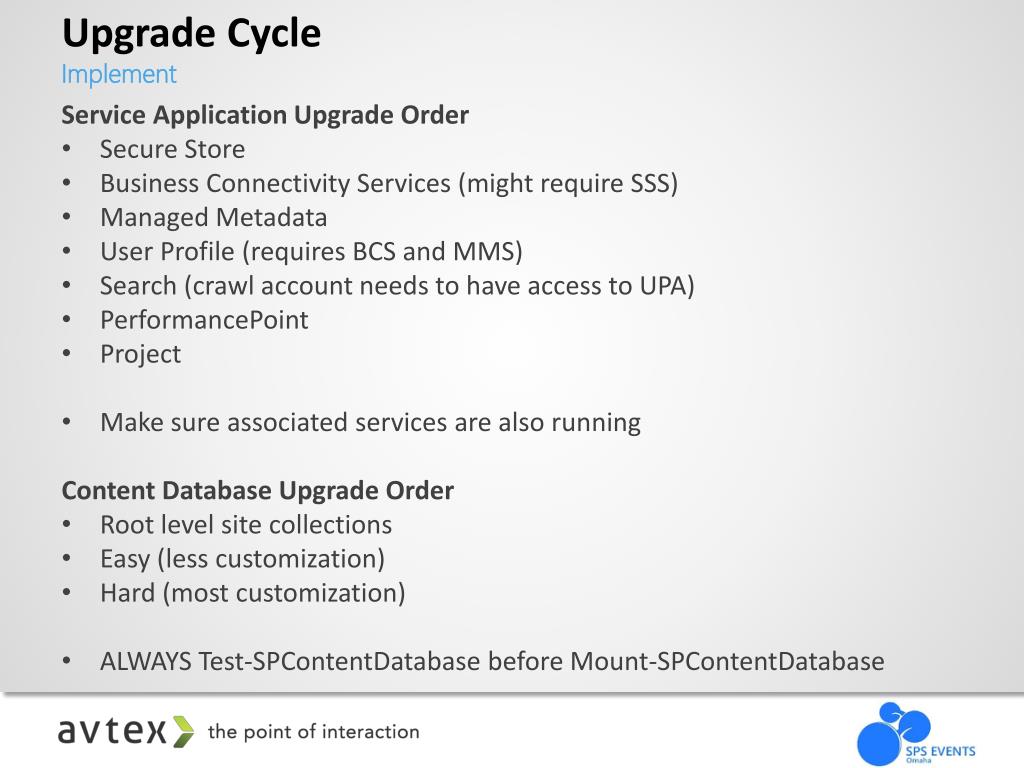

  48. Upgrade Cycle Implement Service Application Upgrade Order • Secure Store • Business Connectivity Services (might require SSS) • Managed Metadata • User Profile (requires BCS and MMS) • Search (crawl account needs to have access to UPA) • PerformancePoint • Project • Make sure associated services are also running Content Database Upgrade Order • Root level site collections • Easy (less customization) • Hard (most customization) • ALWAYS Test-SPContentDatabase before Mount-SPContentDatabase

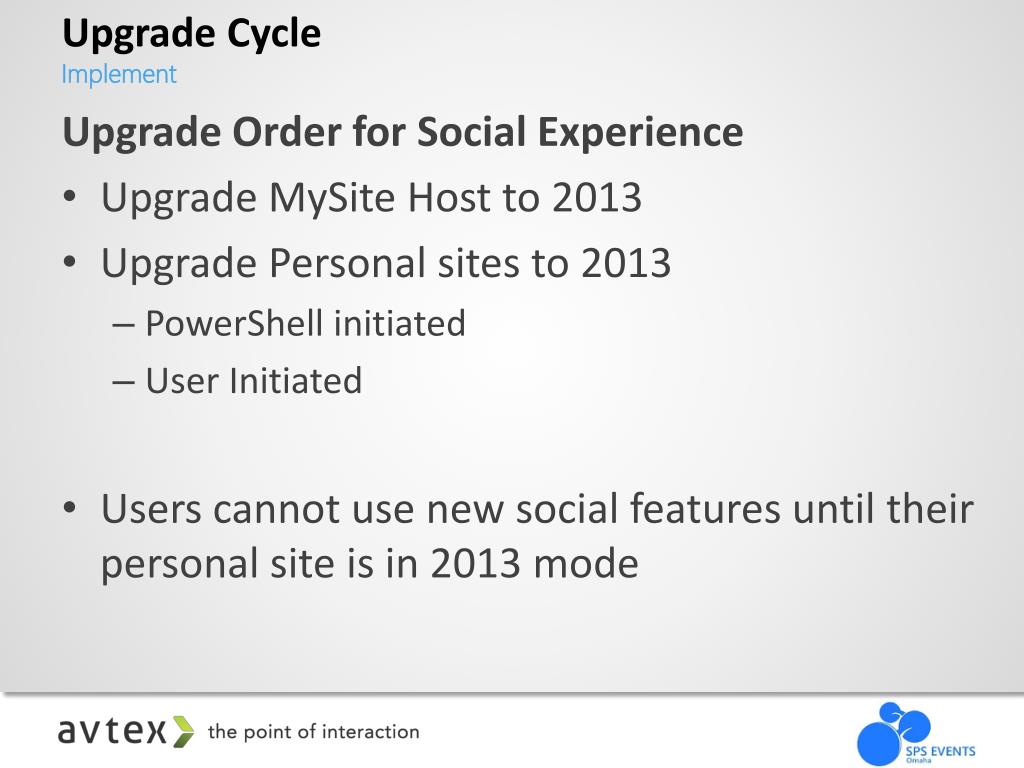

  49. Upgrade Cycle Implement Upgrade Order for Social Experience • Upgrade MySite Host to 2013 • Upgrade Personal sites to 2013 • PowerShell initiated • User Initiated • Users cannot use new social features until their personal site is in 2013 mode

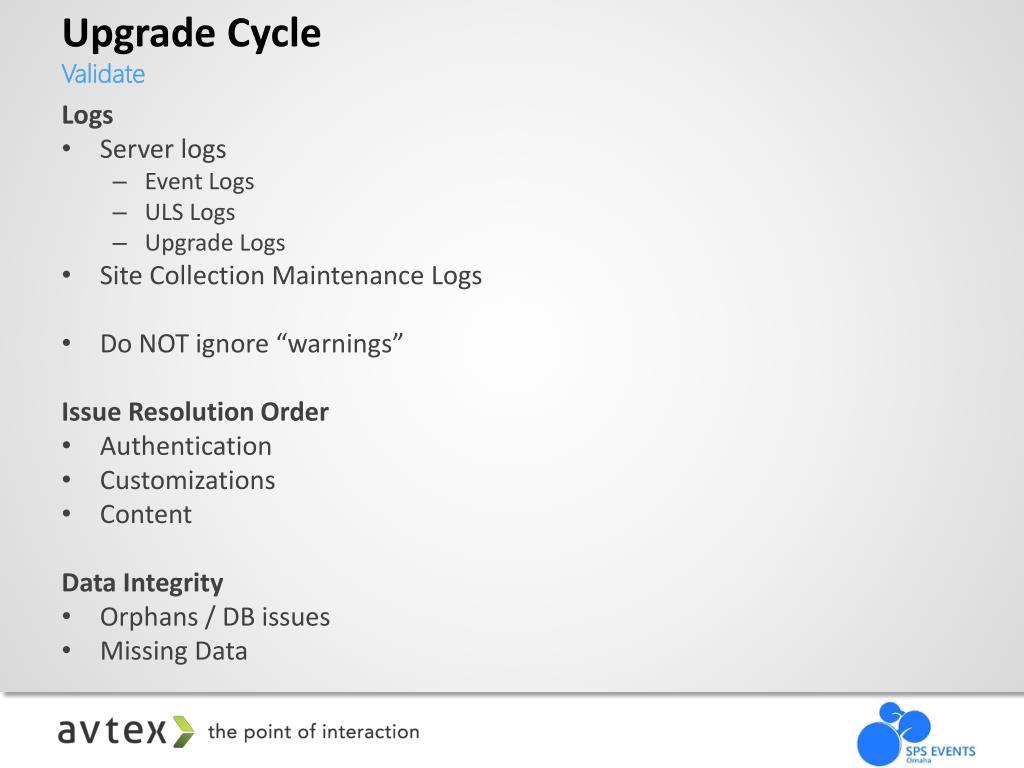

  50. Upgrade Cycle Validate Logs • Server logs • Event Logs • ULS Logs • Upgrade Logs • Site Collection Maintenance Logs • Do NOT ignore “warnings” Issue Resolution Order • Authentication • Customizations • Content Data Integrity • Orphans / DB issues • Missing Data
