  1. Deploying Softswitch Network

  2. Agenda • Our View on Network Evolution • ZTE NGN Total Solution • Effort & Achievement of ZTE

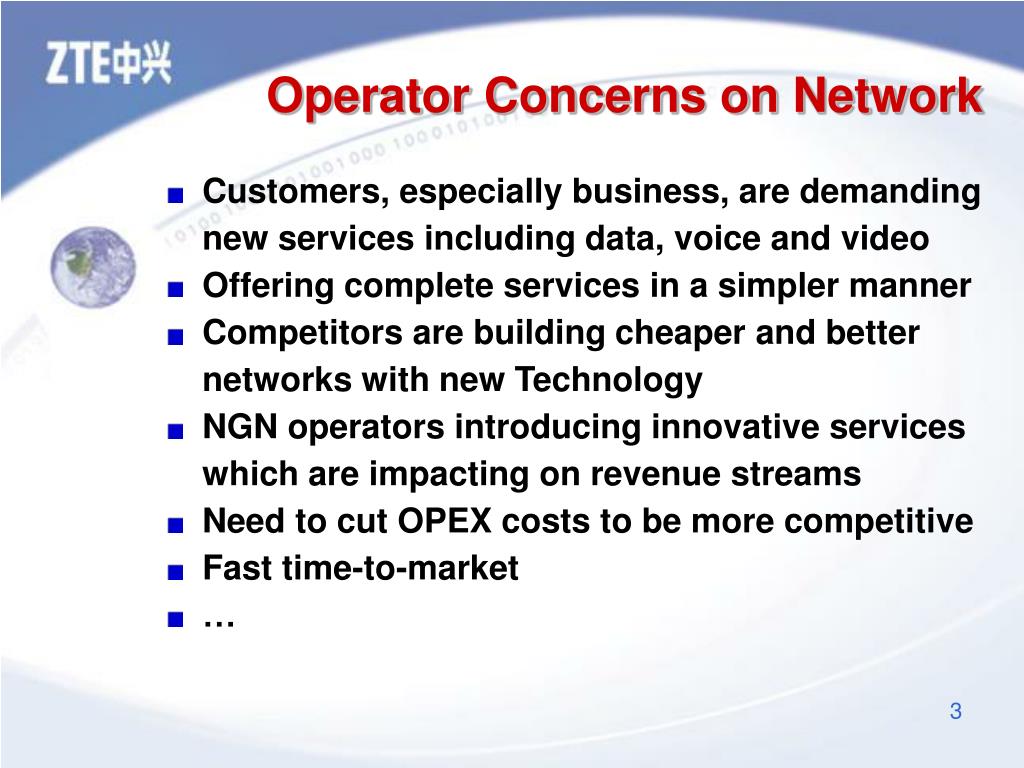

  3. Operator Concerns on Network • Customers, especially business, are demanding new services including data, voice and video • Offering complete services in a simpler manner • Competitors are building cheaper and better networks with new Technology • NGN operators introducing innovative services which are impacting on revenue streams • Need to cut OPEX costs to be more competitive • Fast time-to-market • …

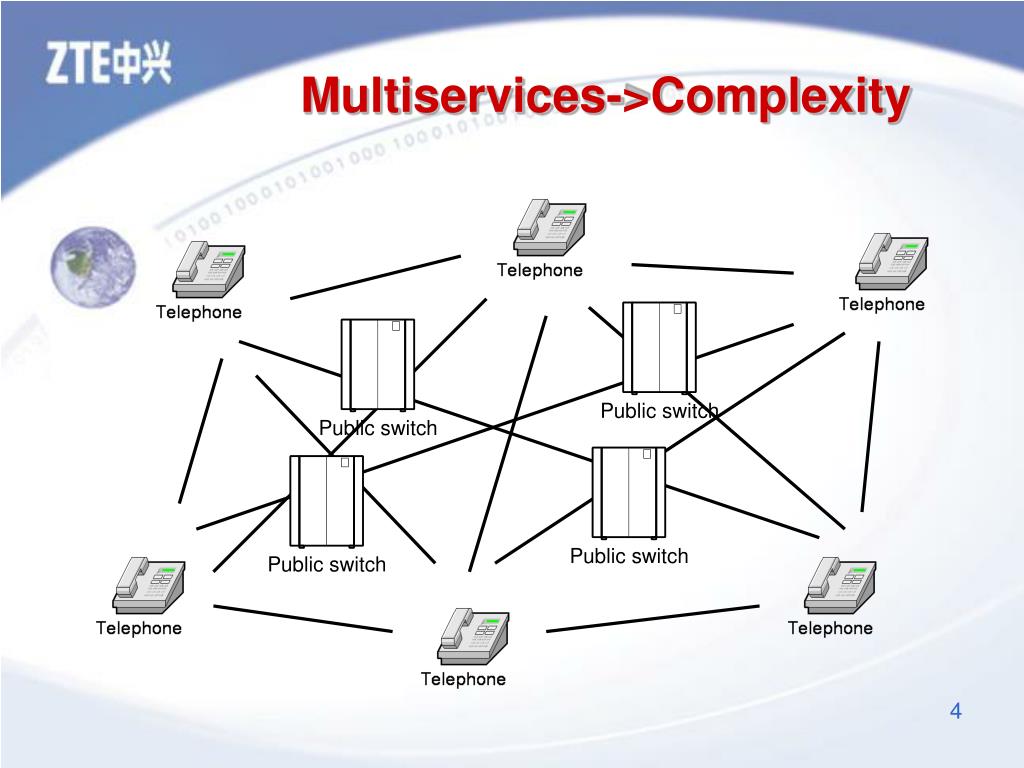

  4. Multiservices->Complexity

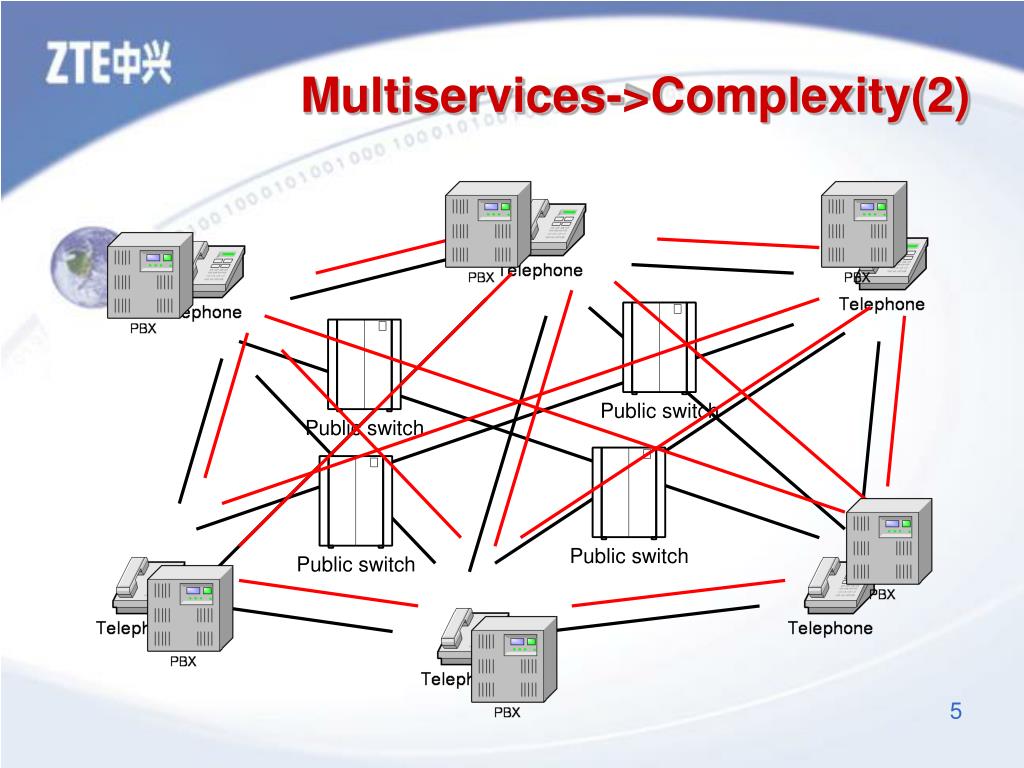

  5. Multiservices->Complexity(2)

  6. Multiservices->Complexity(3)

  7. Multiservices->Complexity(4)

  8. What We End Up With Multiservices?

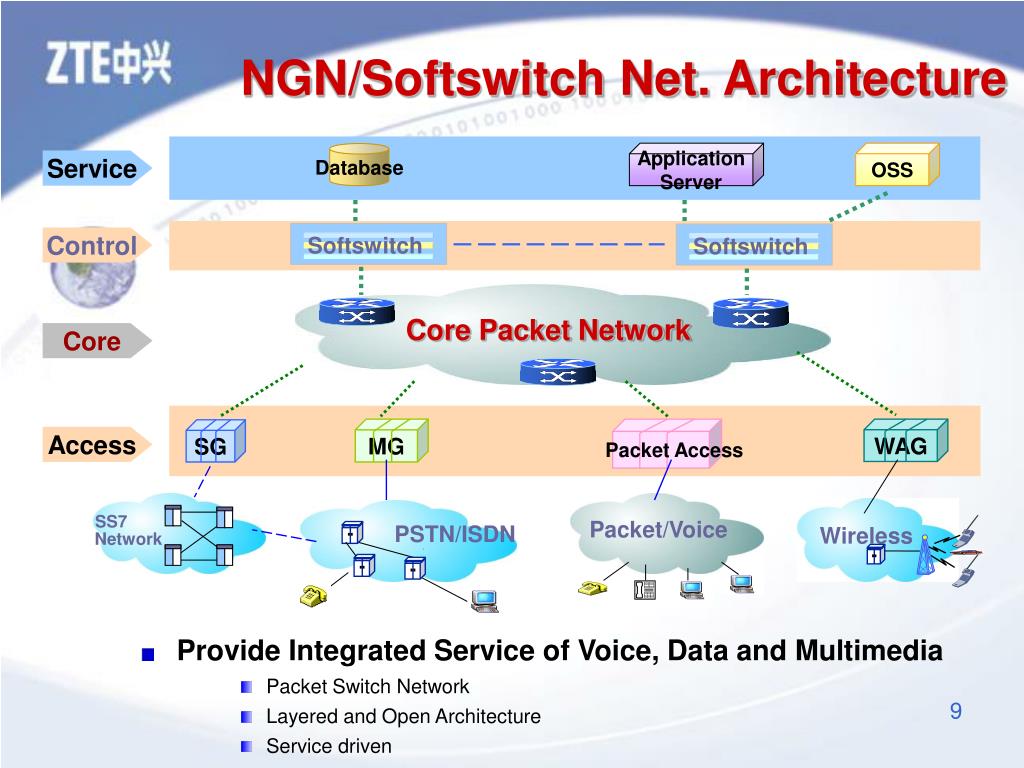

  9. Application Server OSS Database Service Control Softswitch Softswitch Core Packet Network Core Access Packet Access Packet/Voice Wireless SS7 Network PSTN/ISDN SG WAG MG NGN/Softswitch Net. Architecture • Provide Integrated Service of Voice, Data and Multimedia • Packet Switch Network • Layered and Open Architecture • Service driven

  10. Wireless Wireless Service&Mang OAM&P PLMN OAM&P signal Softswitch Softswitch OAM&P PSTN PSTN PSTN OAM&P PSTN ALL IP SS7 Network SS7 Network Cable & DSL Cable & DSL Existing Net. Evolution Strategy • Convergence on access layer and interoperability on control layer • Service share at Application Server • Voice/Video/Data services uniformly provided on packet switch network basis

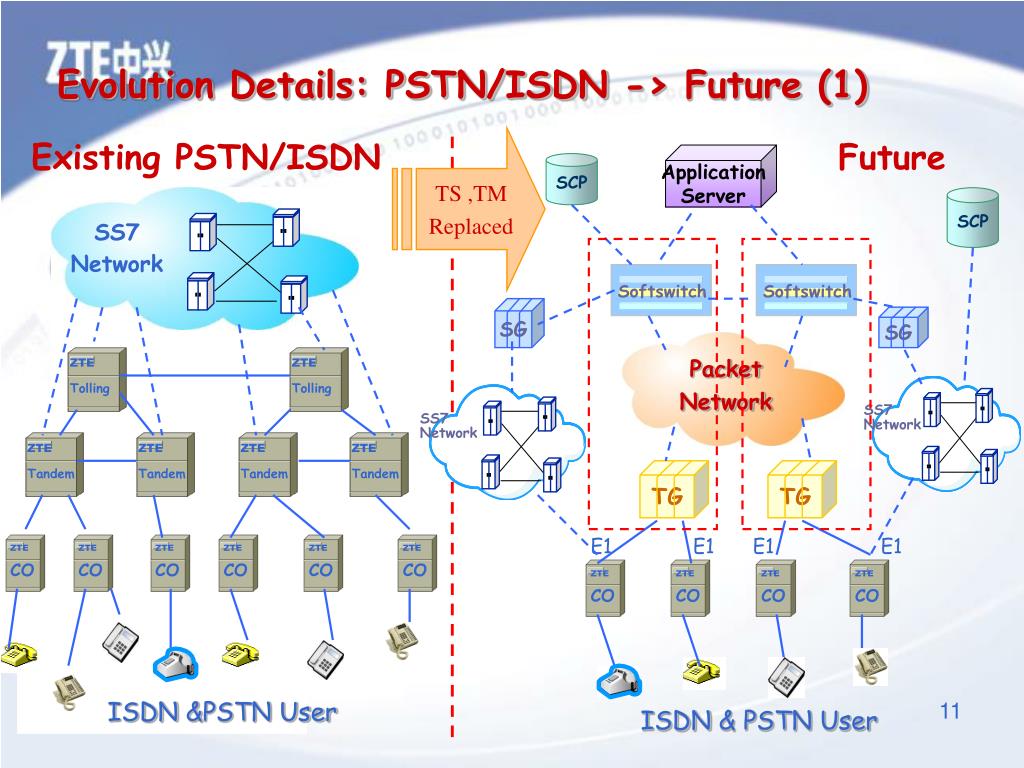

  11. Application Server SCP SCP SS7 Network Softswitch Softswitch Packet Network 长途 Tandem Tandem Tolling Tolling Tandem Tandem ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE E1 E1 E1 E1 CO CO CO CO CO CO CO CO CO CO SS7 Network SS7 Network TG SG SG TG ISDN &PSTN User ISDN & PSTN User Evolution Details: PSTN/ISDN -> Future (1) TS ,TM Replaced Existing PSTN/ISDN Future

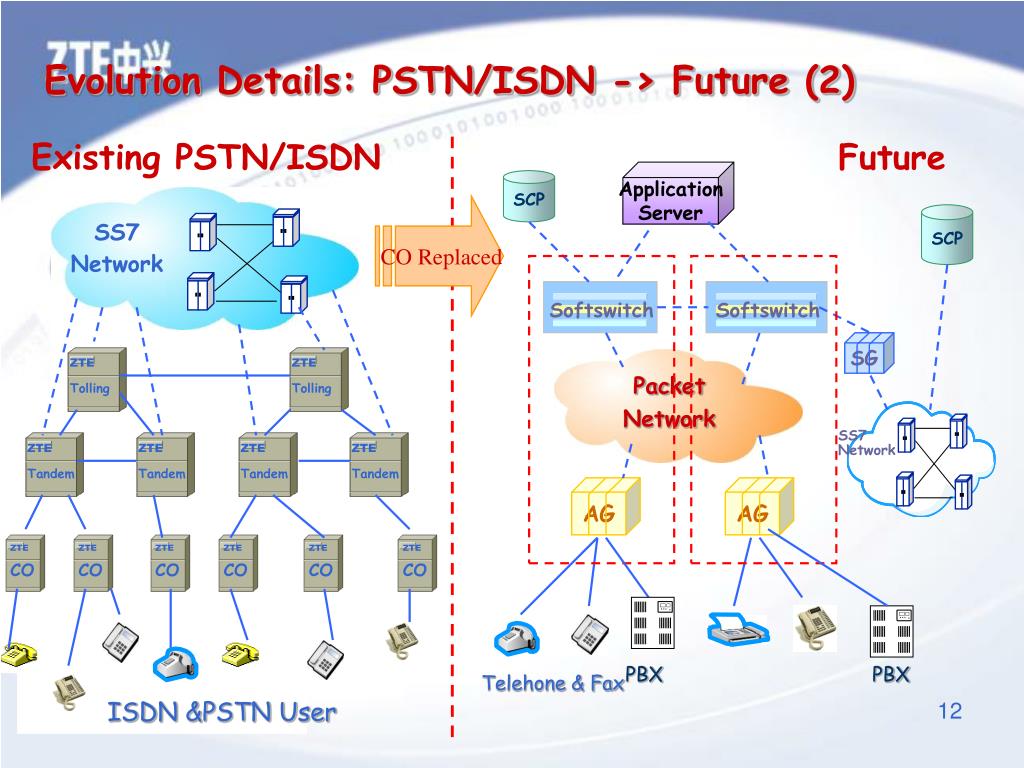

  12. Application Server SCP SCP SS7 Network Softswitch Softswitch Packet Network 长途 Tandem Tolling Tandem Tandem Tandem Tolling ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE CO CO CO CO CO CO SS7 Network PBX PBX Telehone & Fax AG SG AG ISDN &PSTN User Evolution Details: PSTN/ISDN -> Future (2) Existing PSTN/ISDN Future CO Replaced

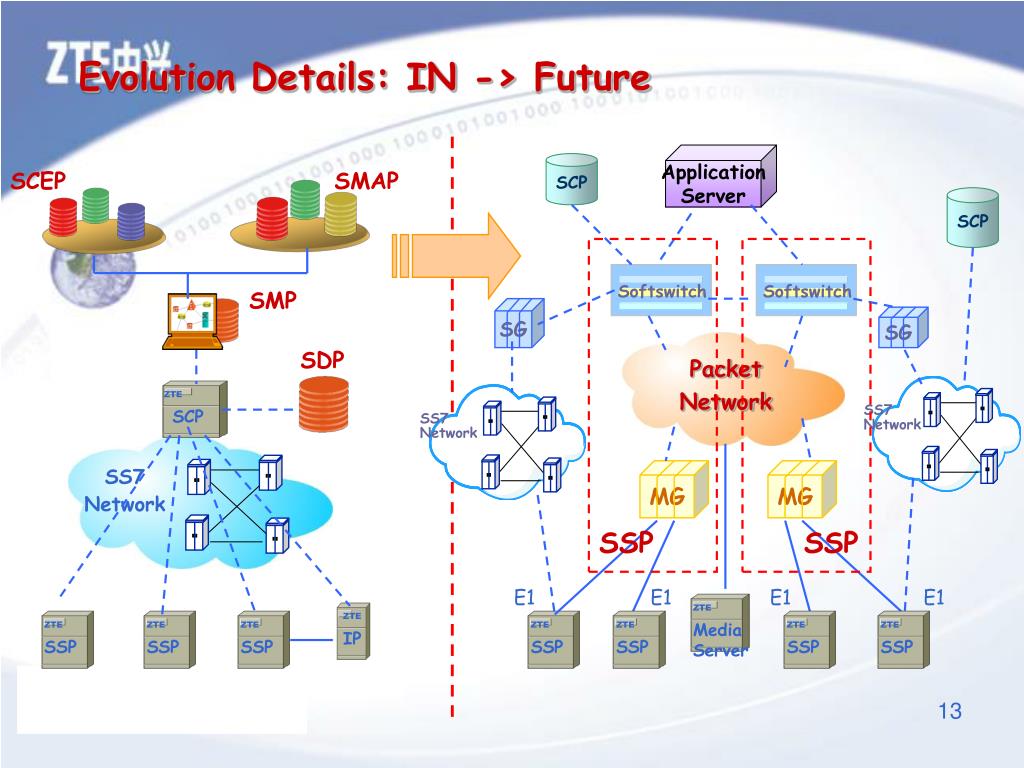

  13. Application Server SCP SCP SS7 Network SMP Softswitch Softswitch Packet Network SDP SSP SSP ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE ZTE Media Server SSP SSP SSP SSP IP SSP SSP SSP E1 E1 E1 SMAP E1 SS7 Network SS7 Network SCEP SCP MG SG MG SG Evolution Details: IN -> Future

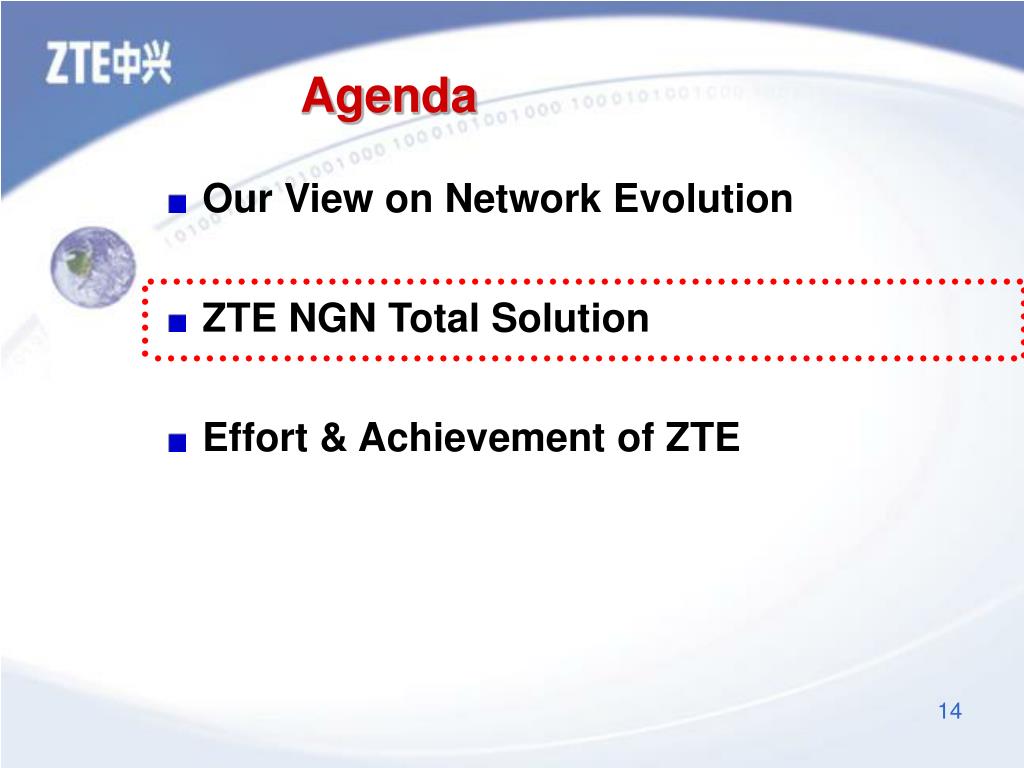

  14. Agenda • Our View on Network Evolution • ZTE NGN Total Solution • Effort & Achievement of ZTE

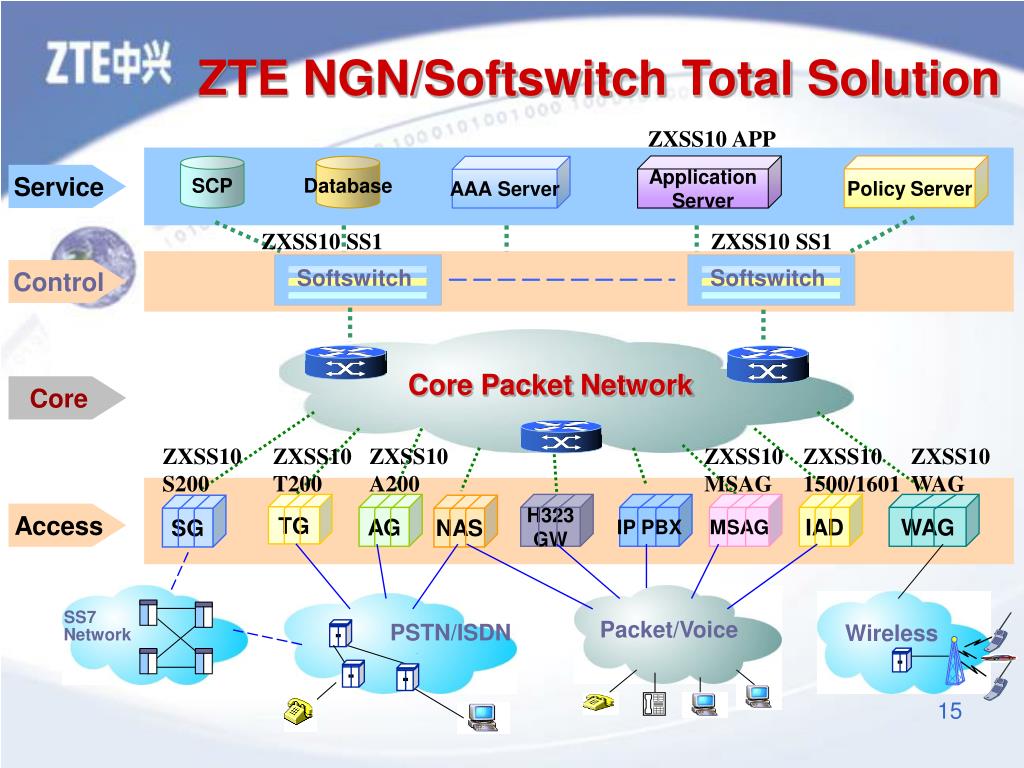

  15. ZXSS10 APP Application Server PolicyServer SCP Database AAAServer Service ZXSS10 SS1 ZXSS10 SS1 Control Softswitch Softswitch Core Packet Network Core ZXSS10 S200 ZXSS10 T200 ZXSS10 A200 ZXSS10 MSAG ZXSS10 1500/1601 ZXSS10 WAG Access IP PBX Packet/Voice Wireless SS7 Network PSTN/ISDN SG WAG TG MSAG IAD NAS H323 GW AG ZTE NGN/Softswitch Total Solution

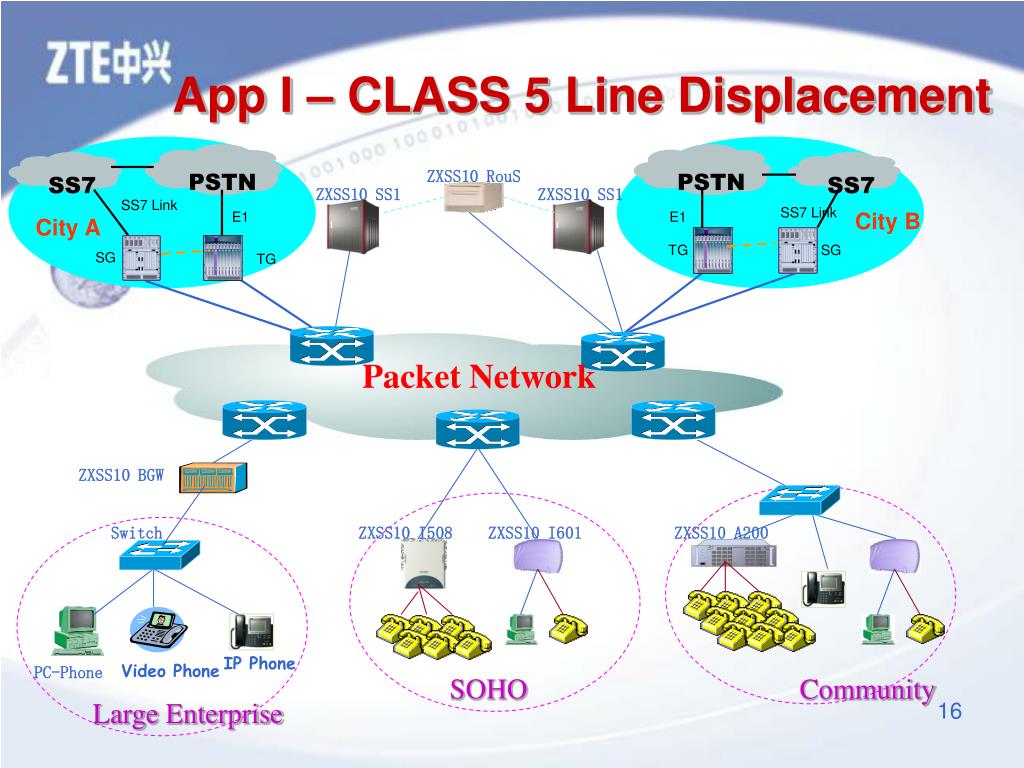

  16. SG TG PSTN PSTN SS7 SS7 App I – CLASS 5 Line Displacement ZXSS10 RouS ZXSS10 SS1 ZXSS10 SS1 SS7 Link SS7 Link City B City A E1 E1 TG SG Packet Network ZXSS10 BGW Switch ZXSS10 I508 ZXSS10 I601 ZXSS10 A200 IP Phone PC-Phone Video Phone SOHO Community Large Enterprise

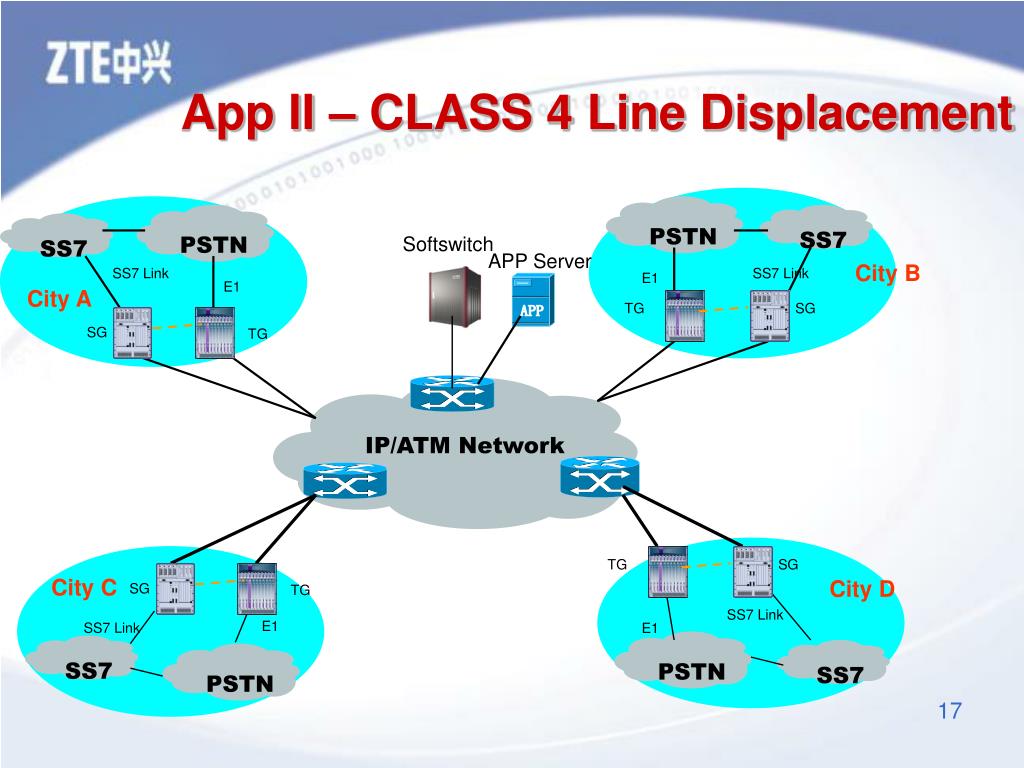

  17. TG TG SG SG SG SG TG TG APP PSTN PSTN PSTN PSTN SS7 SS7 SS7 SS7 App II – CLASS 4 Line Displacement Softswitch APP Server City B SS7 Link SS7 Link E1 City A E1 IP/ATM Network City C City D SS7 Link SS7 Link E1 E1

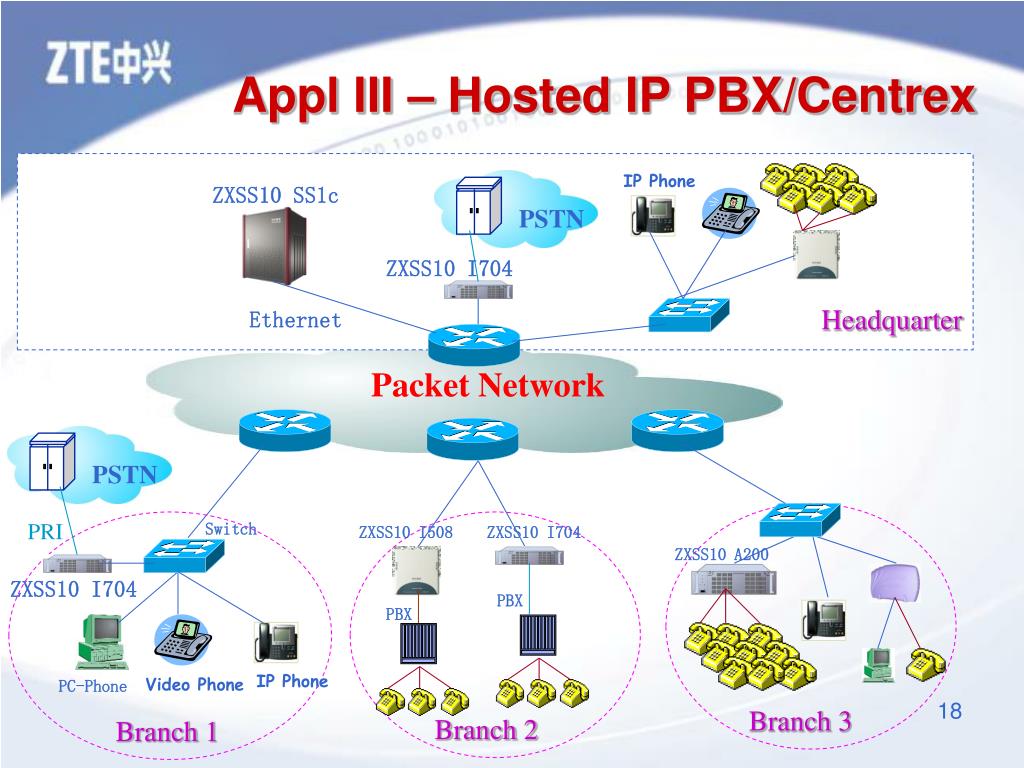

  18. PSTN PSTN ZXSS10 A200 Branch 3 Appl III – Hosted IP PBX/Centrex IP Phone ZXSS10 SS1c ZXSS10 I704 ZXSS10 S100 Headquarter Ethernet Packet Network PRI Switch ZXSS10 I508 ZXSS10 I704 ZXSS10 I704 PBX PBX IP Phone PC-Phone Video Phone Branch 2 Branch 1

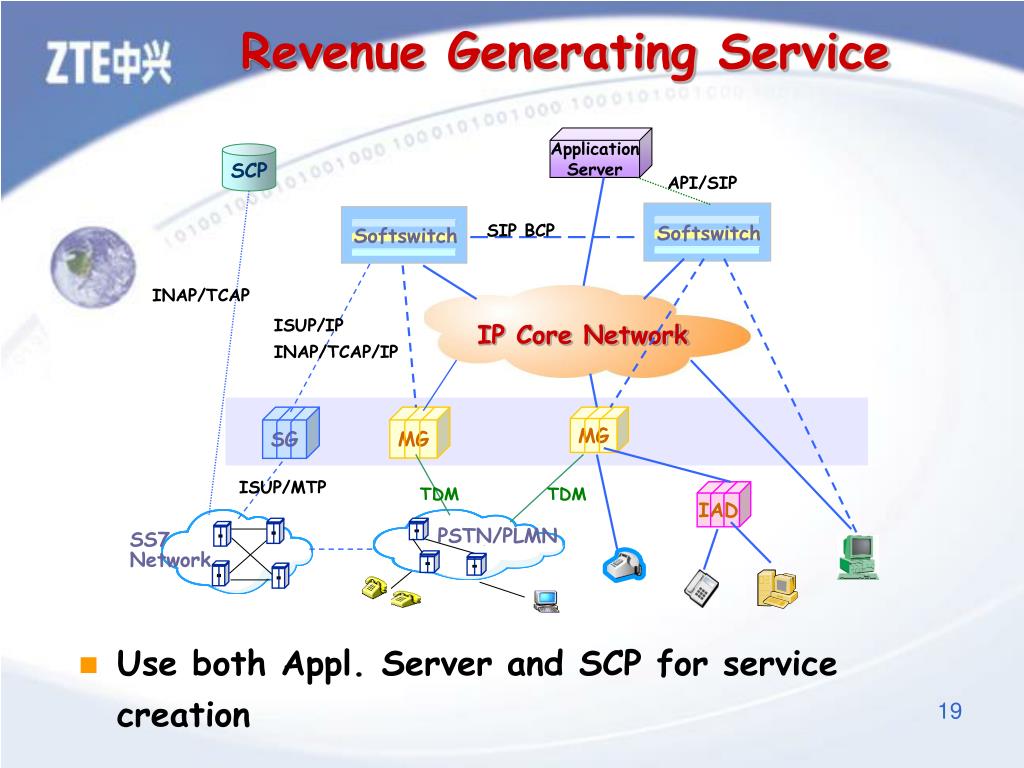

  19. Application Server SCP API/SIP SIP BCP INAP/TCAP Softswitch Softswitch ISUP/IP INAP/TCAP/IP IP Core Network ISUP/MTP TDM TDM SS7 Network PSTN/PLMN IAD MG SG MG Revenue Generating Service • Use both Appl. Server and SCP for service creation

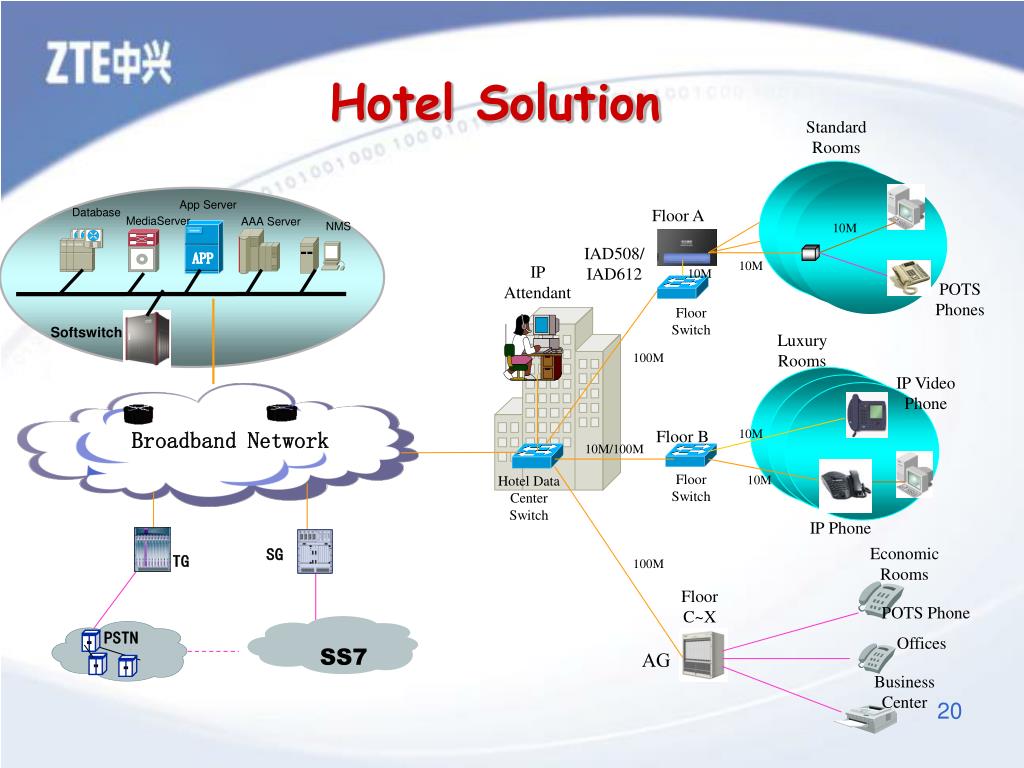

  20. Broadband Network APP SS7 Hotel Solution Standard Rooms App Server Floor A Database MediaServer AAA Server 10M NMS IAD508/IAD612 10M IP Attendant 10M POTS Phones Floor Switch Softswitch Luxury Rooms 100M IP Video Phone Floor B 10M 10M/100M Floor Switch Hotel Data Center Switch 10M IPPhone SG Economic Rooms TG 100M Floor C~X POTS Phone PSTN Offices AG Business Center

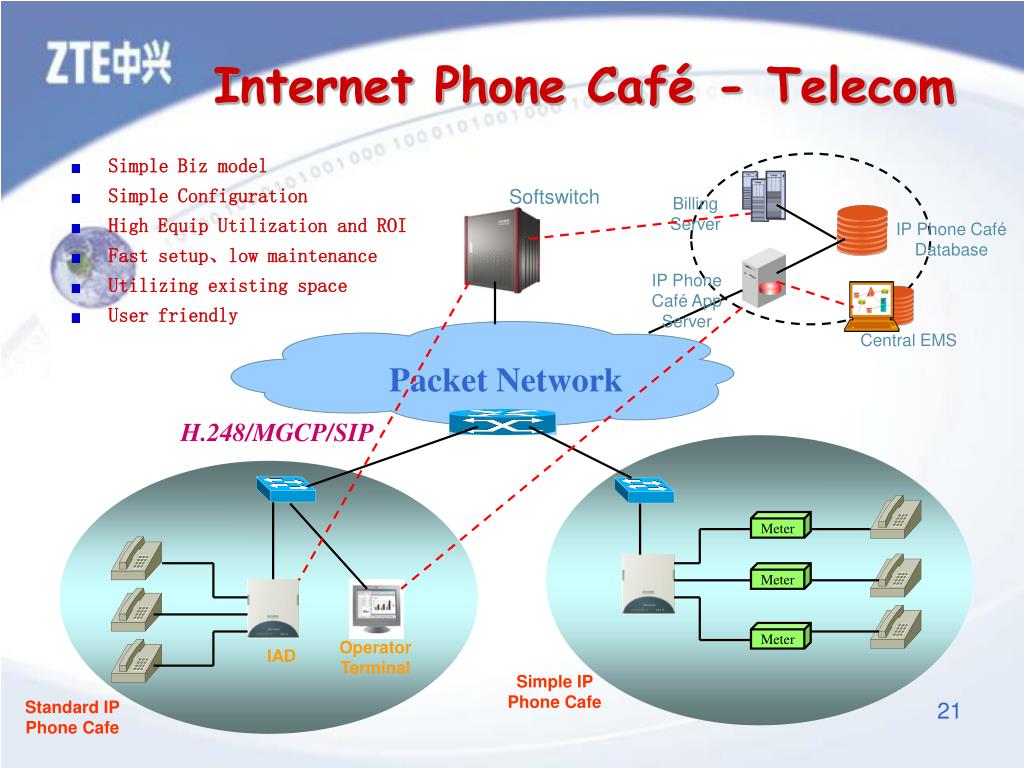

  21. Internet Phone Café - Telecom • Simple Biz model • Simple Configuration • High Equip Utilization and ROI • Fast setup、low maintenance • Utilizing existing space • User friendly Softswitch Billing Server IP Phone Café Database IP Phone Café App Server Central EMS Packet Network H.248/MGCP/SIP Meter Meter Meter Operator Terminal IAD Simple IP Phone Cafe Standard IP Phone Cafe

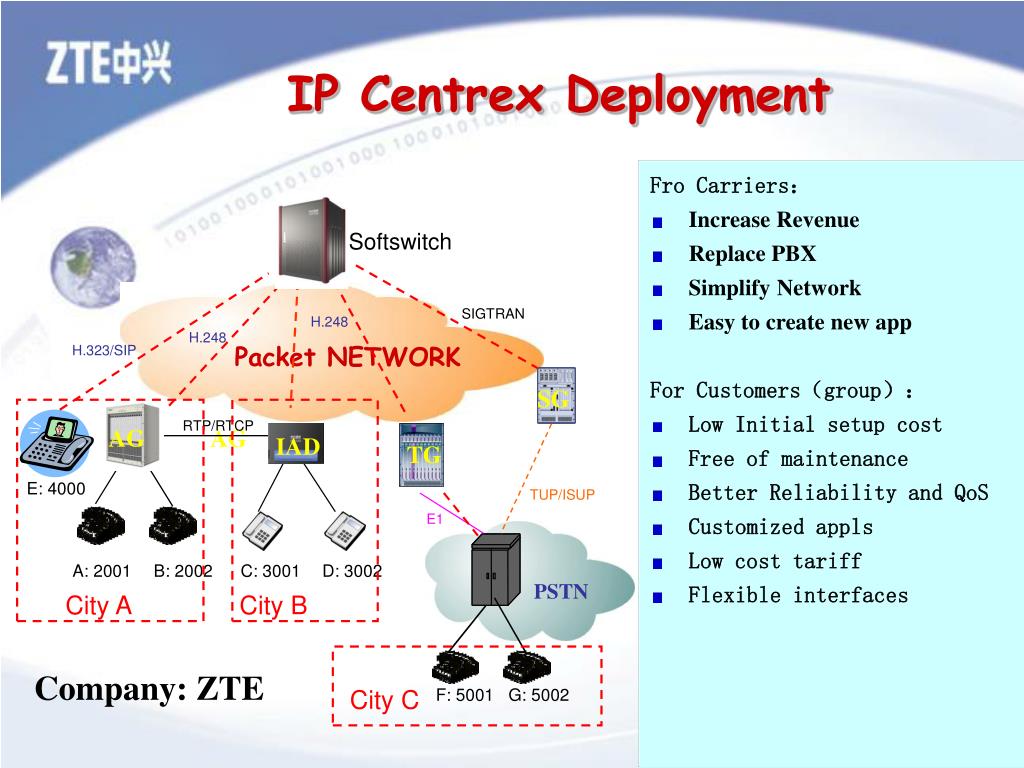

  22. SG AG AG IAD TG IP Centrex Deployment Fro Carriers： • Increase Revenue • Replace PBX • Simplify Network • Easy to create new app For Customers（group）： • Low Initial setup cost • Free of maintenance • Better Reliability and QoS • Customized appls • Low cost tariff • Flexible interfaces Softswitch SIGTRAN H.248 H.248 H.323/SIP Packet NETWORK RTP/RTCP E: 4000 TUP/ISUP E1 A: 2001 B: 2002 C: 3001 D: 3002 PSTN City A City B Company: ZTE City C F: 5001 G: 5002

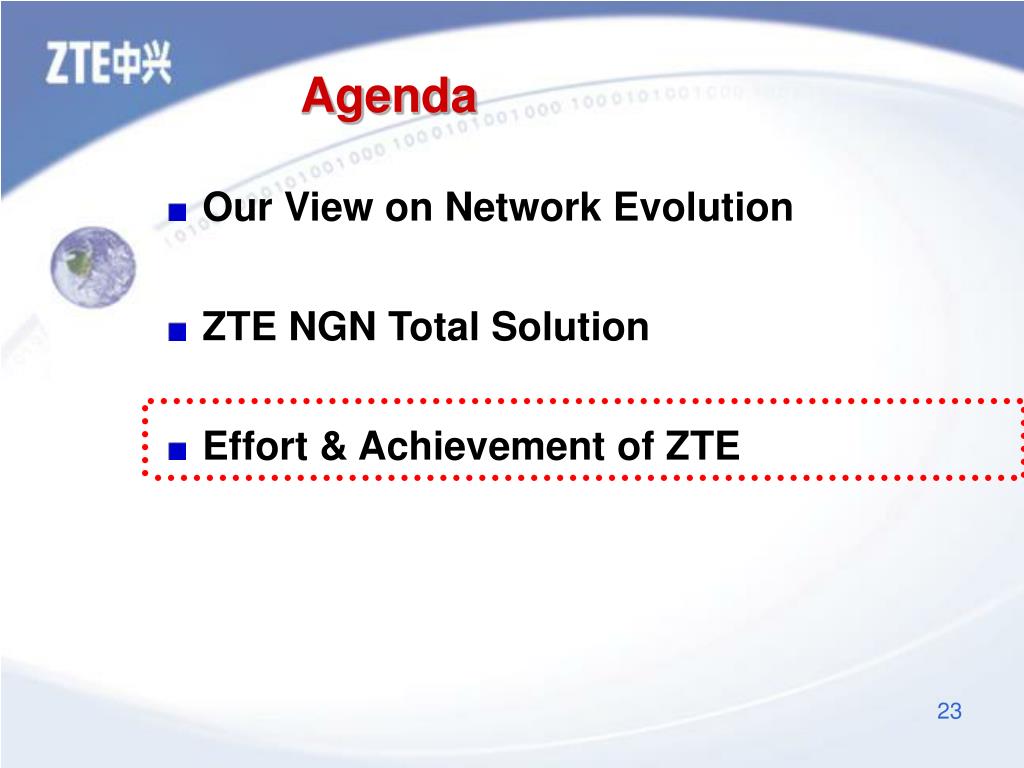

  23. Agenda • Our View on Network Evolution • ZTE NGN Total Solution • Effort & Achievement of ZTE

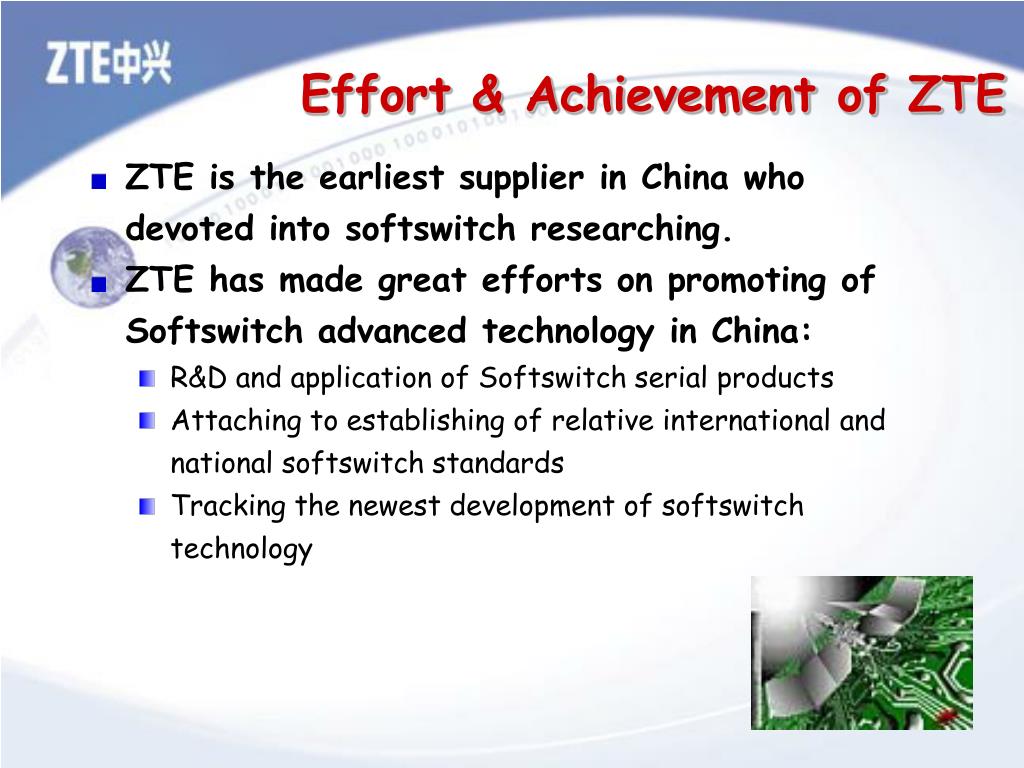

  24. Effort & Achievement of ZTE • ZTE is the earliest supplier in China who devoted into softswitch researching. • ZTE has made great efforts on promoting of Softswitch advanced technology in China: • R&D and application of Softswitch serial products • Attaching to establishing of relative international and national softswitch standards • Tracking the newest development of softswitch technology

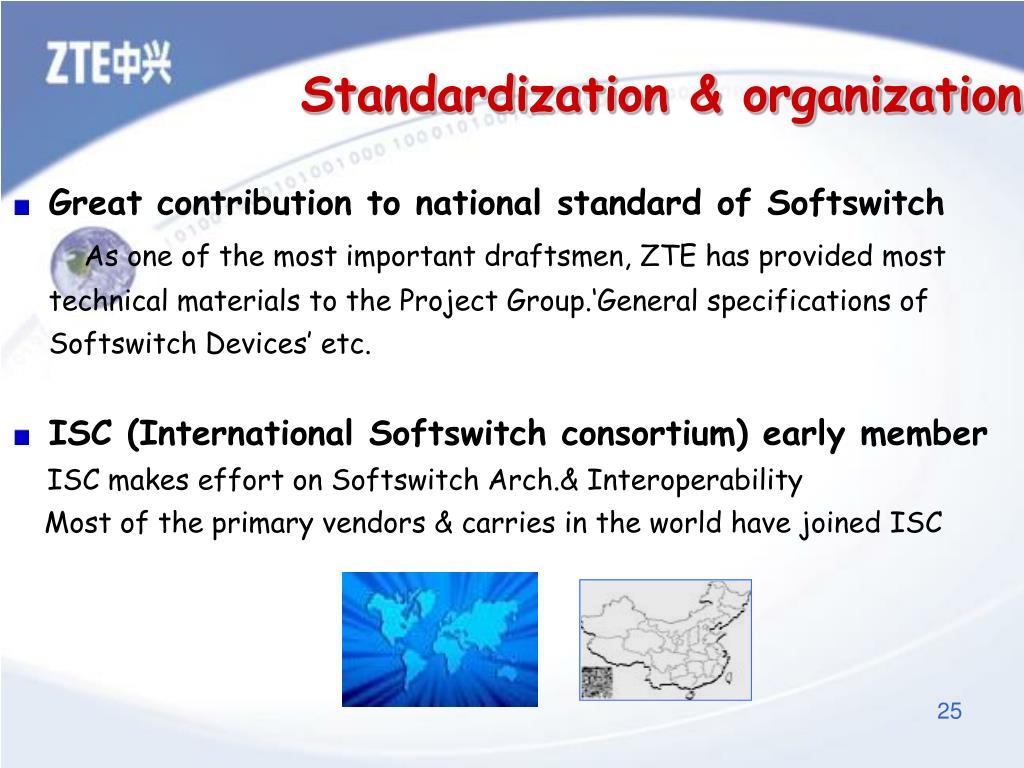

  25. Standardization & organization • Great contribution to national standard of Softswitch As one of the most important draftsmen, ZTE has provided most technical materials to the Project Group.‘General specifications of Softswitch Devices’ etc. • ISC (International Softswitch consortium) early member ISC makes effort on Softswitch Arch.& Interoperability Most of the primary vendors & carries in the world have joined ISC

  26. ZTE Softswitch Network Access License • ZTE Corporation is the first vendor with softswitch product certified Network Access License by China Ministry of Information Industry(MII)

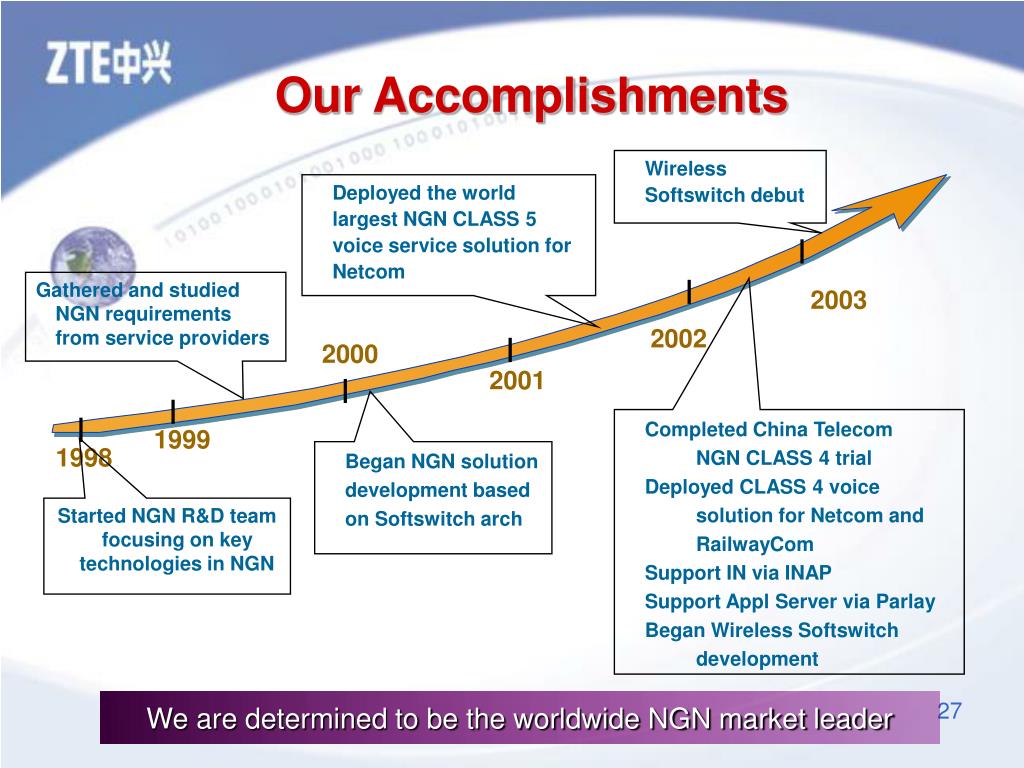

  27. Our Accomplishments Wireless Softswitch debut Deployed the world largest NGN CLASS 5 voice service solution for Netcom Gathered and studied NGN requirements from service providers 2003 2002 2000 2001 Completed China Telecom NGN CLASS 4 trial Deployed CLASS 4 voice solution for Netcom and RailwayCom Support IN via INAP Support Appl Server via Parlay Began Wireless Softswitch development 1999 1998 Began NGN solution development based on Softswitch arch Started NGN R&D team focusing on key technologies in NGN We are determined to be the worldwide NGN market leader

  28. We Are the Market Leader ZTE is the only vendor who has product deployments in all NGN projects for carriers in China ZTE has 40% NGN market share in China

  29. ZTE NGN Deployments in China Dalian Zibo ZTE Softswitch deployed node Wuxi/Suzhou Hefei Ningbo Quanzhou Xiamen Shenzhen

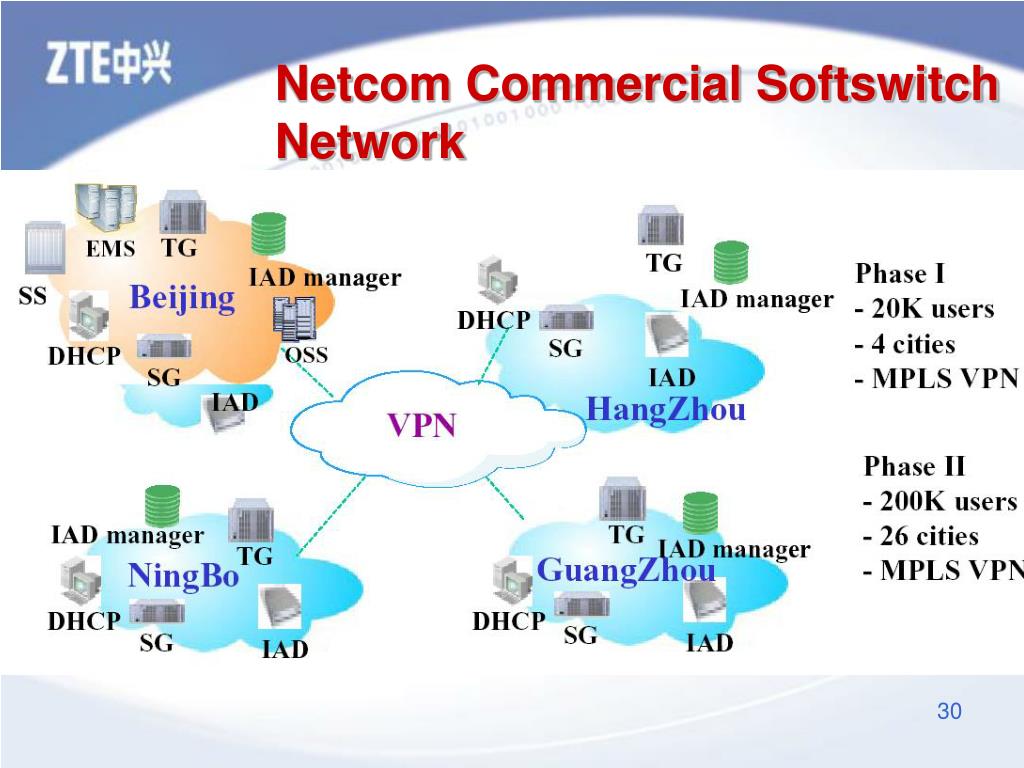

  30. Netcom Commercial Softswitch Network

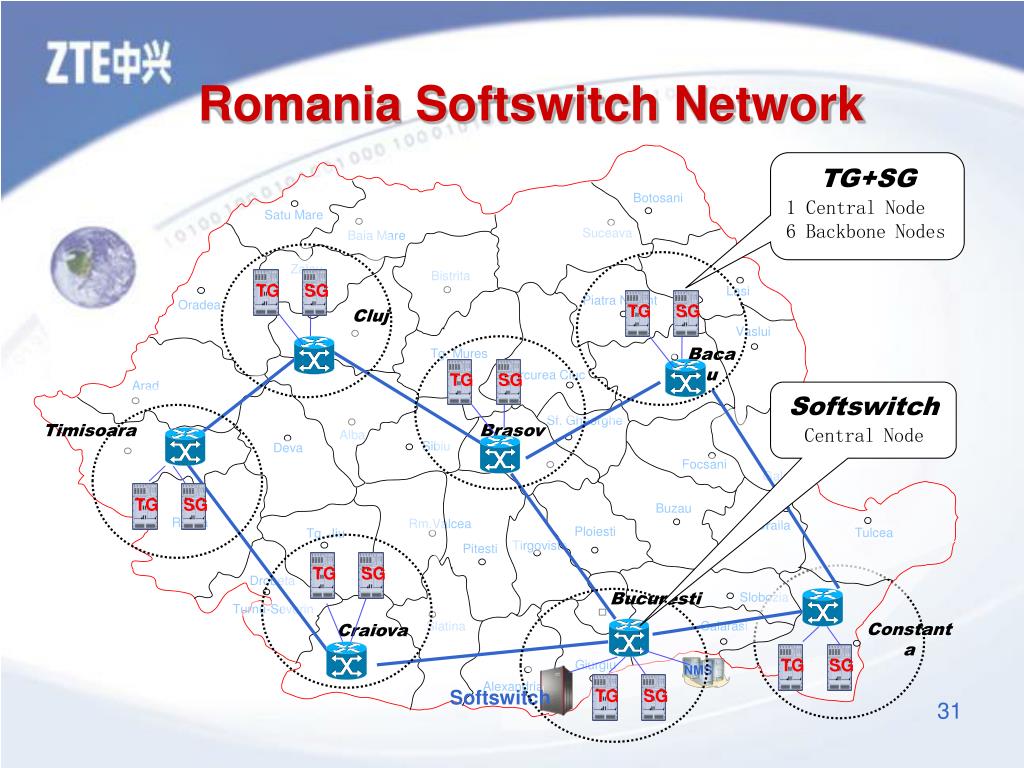

  31. Romania Softswitch Network TG+SG 1 Central Node 6 Backbone Nodes Botosani Satu Mare Suceava Baia Mare Zalau Bistrita TG SG Lasi Piatra Neamt TG SG Oradea Cluj Vaslui Bacau Tg. Mures TG SG Mircurea Ciuc Arad Softswitch Central Node Sf. Gheorghe Timisoara Brasov Alba Sibiu Deva Focsani Galati TG SG Buzau Resita Rm.Valcea Braila Ploiesti Tulcea Tg. Jiu Tirgoviste Pitesti TG SG Drobeta Bucuresti Slobozia Turnu-Severin Slatina Calarasi Constanta Craiova TG SG Giurgiu NMS Alexandria Softswitch TG SG

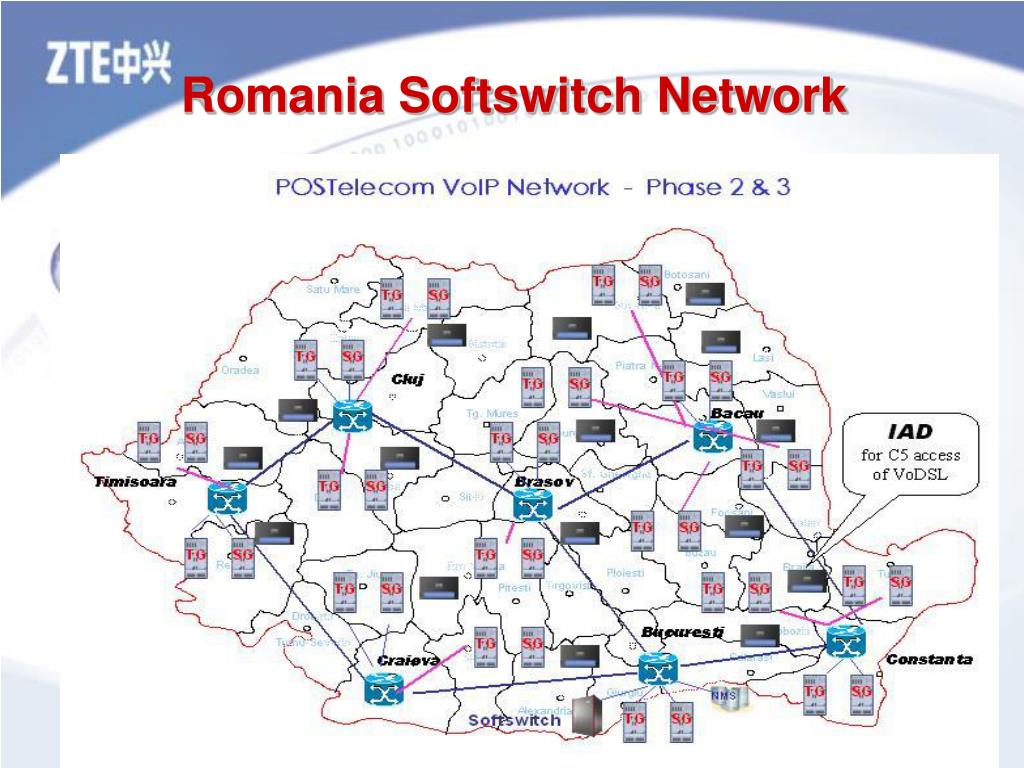

  32. Romania Softswitch Network

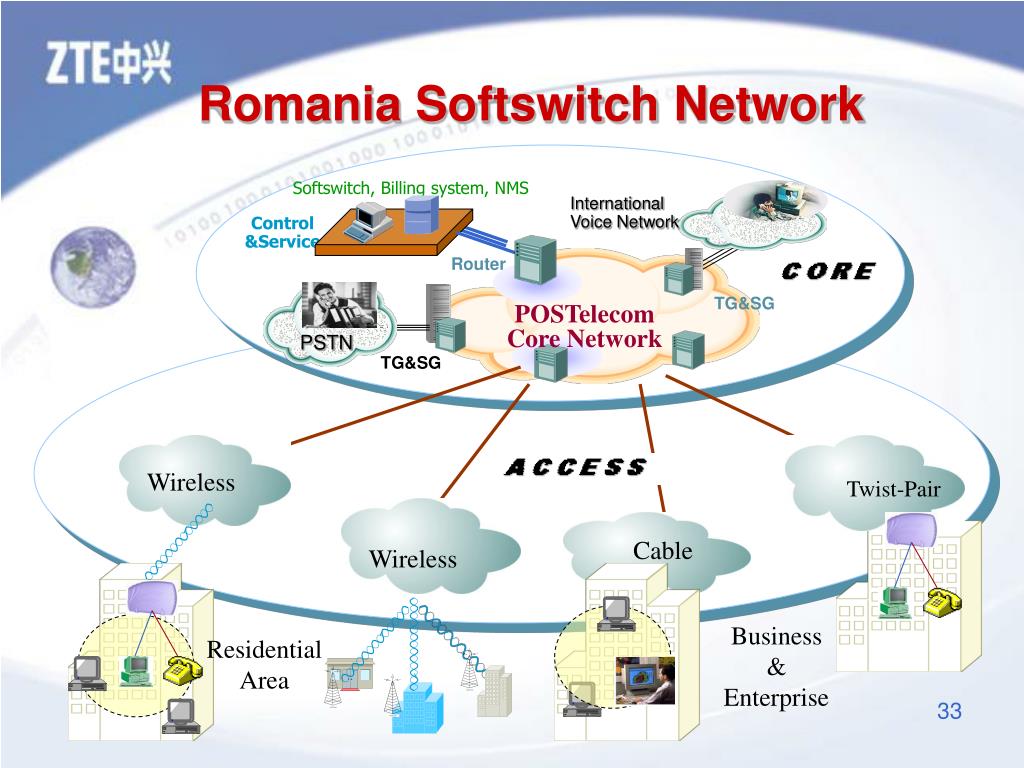

  33. Radio tower Radio tower Radio tower Romania Softswitch Network Softswitch, Billing system, NMS International Voice Network Control &Service Router TG&SG POSTelecom Core Network PSTN TG&SG Wireless Twist-Pair Cable Wireless Business & Enterprise Residential Area

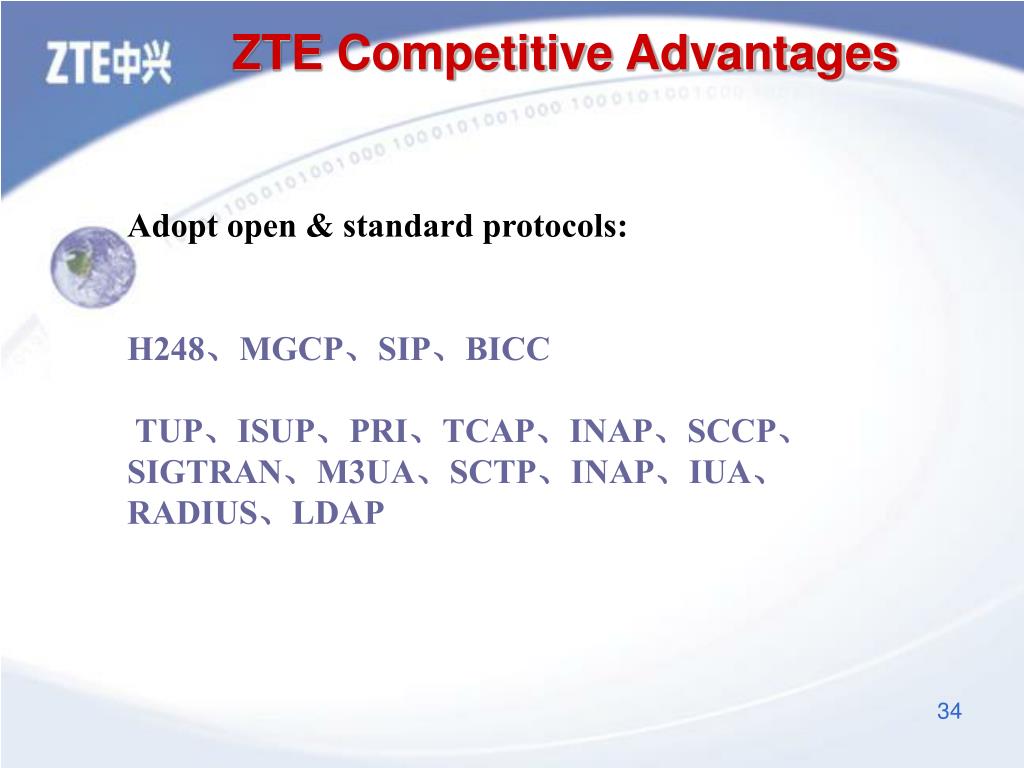

  34. ZTE Competitive Advantages Adopt open & standard protocols: H248、MGCP、SIP、BICC TUP、ISUP、PRI、TCAP、INAP、SCCP、 SIGTRAN、M3UA、SCTP、INAP、IUA、RADIUS、LDAP

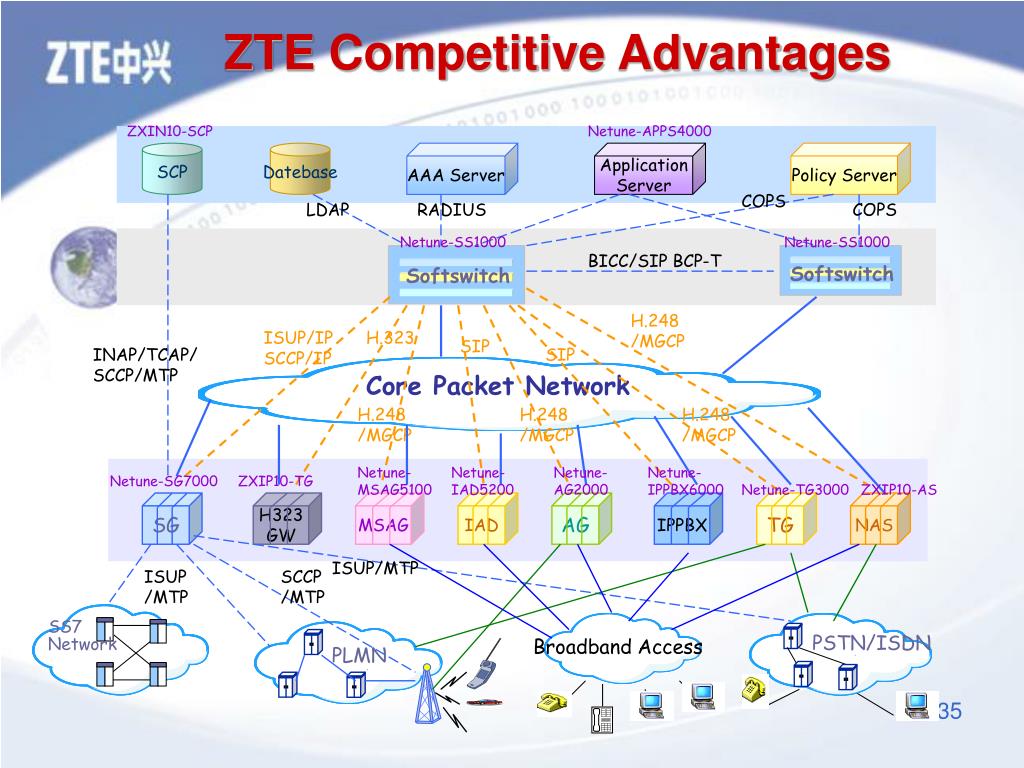

  35. ZTE Competitive Advantages Softswitch Softswitch SS7 Network Broadband Access H323 GW AG MSAG NAS SG IPPBX IAD TG ZXIN10-SCP Netune-APPS4000 SCP Datebase AAA Server Application Server Policy Server COPS LDAP RADIUS COPS Netune-SS1000 Netune-SS1000 BICC/SIP BCP-T H.248 /MGCP ISUP/IP SCCP/IP H.323 SIP INAP/TCAP/ SCCP/MTP SIP Core Packet Network H.248 /MGCP H.248 /MGCP H.248 /MGCP Netune- MSAG5100 Netune- IAD5200 Netune- AG2000 Netune- IPPBX6000 Netune-SG7000 ZXIP10-TG Netune-TG3000 ZXIP10-AS ISUP/MTP ISUP /MTP SCCP /MTP PSTN/ISDN PLMN

  36. ZTE Competitive Advantages Strong capability to interconnect with various networks: • PSTN & SS7； • IN； • Alien Softswitch system； • H.323 network； • SIP network ； • Interconnection between different types of terminals such as H.323、SIP、MGCP、H.248；

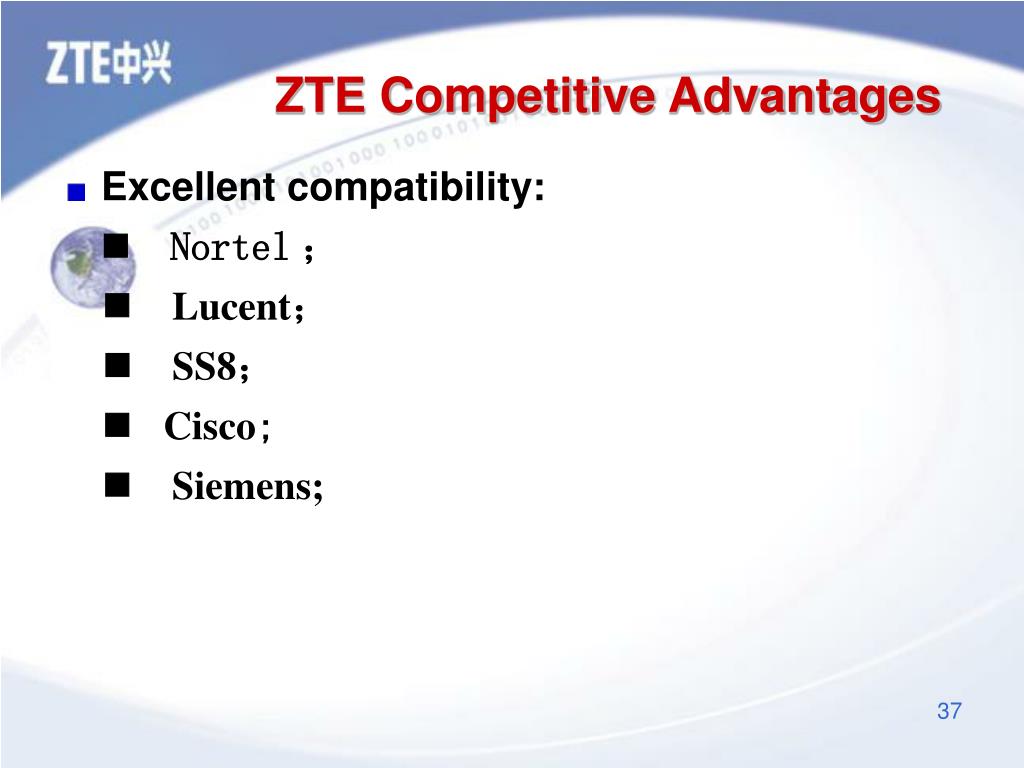

  37. ZTE Competitive Advantages • Excellent compatibility: n Nortel； n Lucent； n SS8； nCisco; n Siemens;

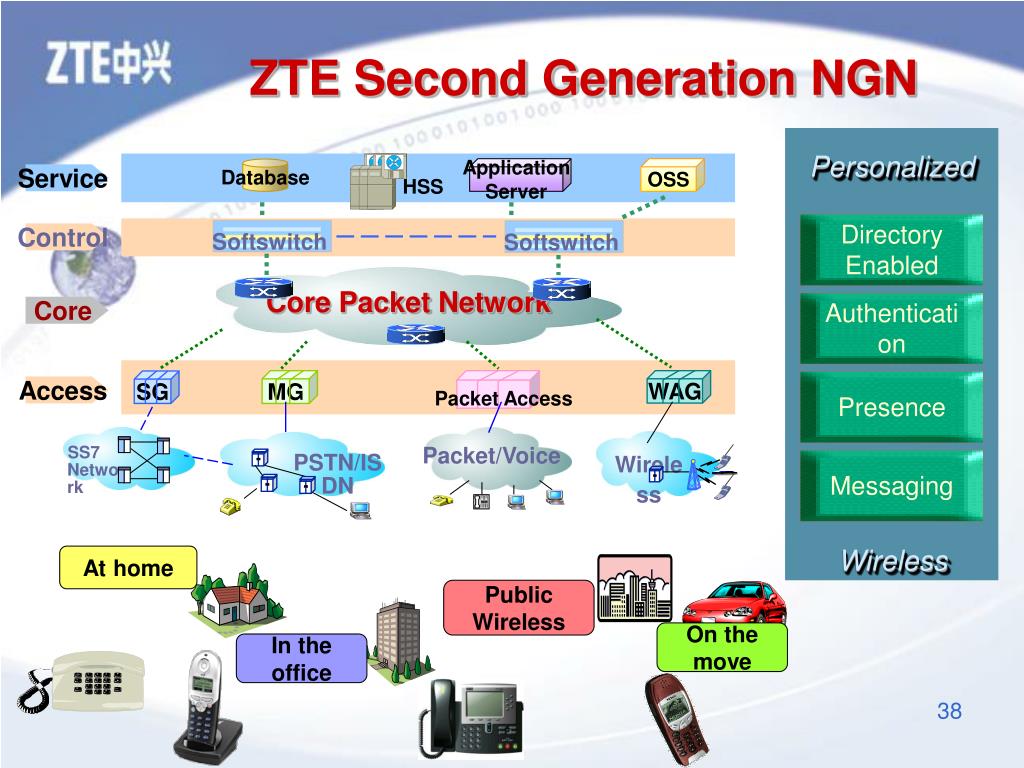

  38. Application Server OSS Database Service Control Softswitch Softswitch Core Packet Network Core Access Packet Access Packet/Voice Wireless SS7 Network PSTN/ISDN MG WAG SG ZTE Second Generation NGN Personalized HSS Directory Enabled Authentication Presence Messaging Wireless At home Public Wireless On the move In the office

  39. Thank You!
