PCR Amplification and Digestion of SRK Class I Gene in Rapid Cycle B. oleracea

PCR amplification and digestion of SRK class I gene in B. oleracea 'TO1000DH3' using KD5 and KD8 primers. Visualization of alignment of kinase domains of TO1000DH3 and BoS-7.

violet-best
Télécharger la présentation

PCR Amplification and Digestion of SRK Class I Gene in Rapid Cycle B. oleracea

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

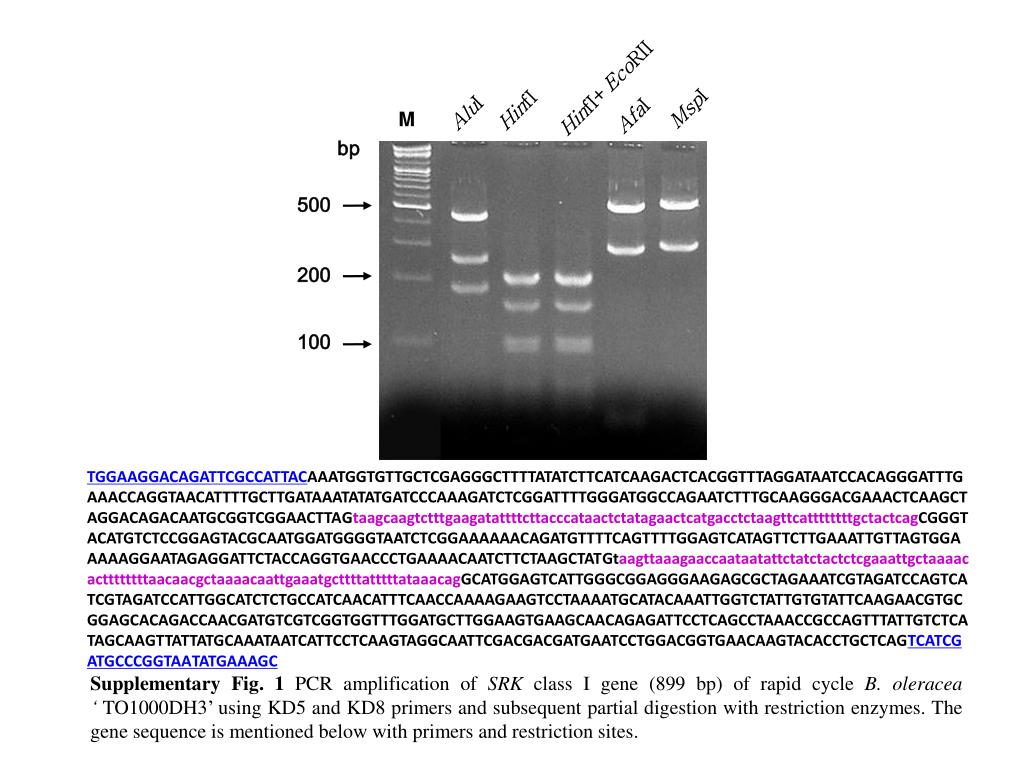

  1. HinfI+EcoRII MspI HinfI AluI AfaI M bp 500 200 100 TGGAAGGACAGATTCGCCATTACAAATGGTGTTGCTCGAGGGCTTTTATATCTTCATCAAGACTCACGGTTTAGGATAATCCACAGGGATTTGAAACCAGGTAACATTTTGCTTGATAAATATATGATCCCAAAGATCTCGGATTTTGGGATGGCCAGAATCTTTGCAAGGGACGAAACTCAAGCTAGGACAGACAATGCGGTCGGAACTTA‍Gtaagcaagtctttgaagatattttcttacccataactctatagaactcatgacctctaagttcattttttttgctactcag‍CGGGTACATGTCTCCGGAGTACGCAATGGATGGGGTAATCTCGGAAAAAACAGATGTTTTCAGTTTTGGAGTCATAGTTCTTGAAATTGTTAGTGGAAAAAGGAATAGAGGATTCTACCAGGTGAACCCTGAAAACAATCTTCTAAGCTAT‍Gtaagttaaagaaccaataatattctatctactctcgaaattgctaaaacacttttttttaacaacgctaaaacaattgaaatgcttttatttttataaacag‍GCATGGAGTCATTGGGCGGAGGGAAGAGCGCTAGAAATCGTAGATCCAGTCATCGTAGATCCATTGGCATCTCTGCCATCAACATTTCAACCAAAAGAAGTCCTAAAATGCATACAAATTGGTCTATTGTGTATTCAAGAACGTGCGGAGCACAGACCAACGATGTCGTCGGTGGTTTGGATGCTTGGAAGTGAAGCAACAGAGATTCCTCAGCCTAAACCGCCAGTTTATTGTCTCATAGCAAGTTATTATGCAAATAATCATTCCTCAAGTAGGCAATTCGACGACGATGAATCCTGGACGGTGAACAAGTACACCTGCTCAGTCATCGATGCCCGGTAA‍TATGAAAGC Supplementary Fig. 1 PCR amplification of SRK class I gene (899 bp) of rapid cycle B. oleracea ‘ TO1000DH3’ using KD5 and KD8 primers and subsequent partial digestion with restriction enzymes. The gene sequence is mentioned below with primers and restriction sites.

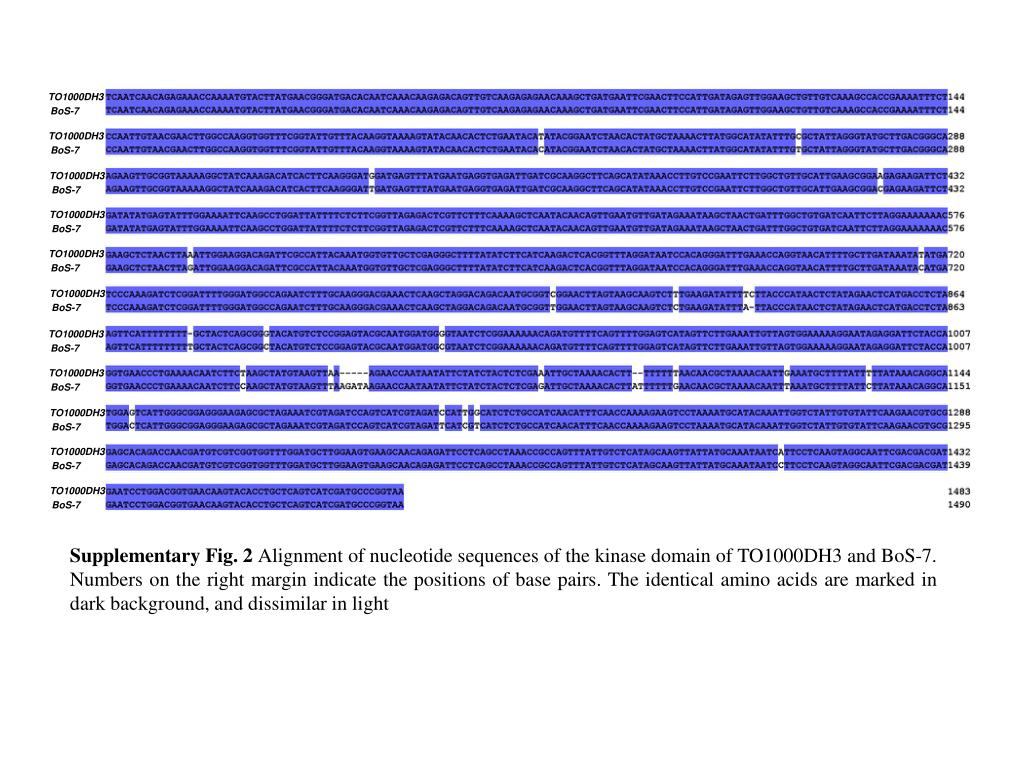

  2. TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 TO1000DH3 BoS-7 Supplementary Fig. 2 Alignment of nucleotide sequences of the kinase domain of TO1000DH3 and BoS-7. Numbers on the right margin indicate the positions of base pairs. The identical amino acids are marked in dark background, and dissimilar in light
