3.5: The Triangle Sum Theorem

3.5: The Triangle Sum Theorem. Expectations: G1.2.1: Prove that the angle sum of a triangle is 180 and that an exterior angle has measure equal to the sum of its remote interior angles. m. m is the only line through P parallel to l. The Parallel Postulate.

violet-jones
Télécharger la présentation

3.5: The Triangle Sum Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3.5: The Triangle Sum Theorem Expectations: G1.2.1: Prove that the angle sum of a triangle is 180 and that an exterior angle has measure equal to the sum of its remote interior angles. 3.5: The Triangle Sum Theorem

  2. m m is the only line through P parallel to l. The Parallel Postulate • Given a line and a point not on the line, there is exactly one line through the point that is parallel to the given line. P l 3.5: The Triangle Sum Theorem

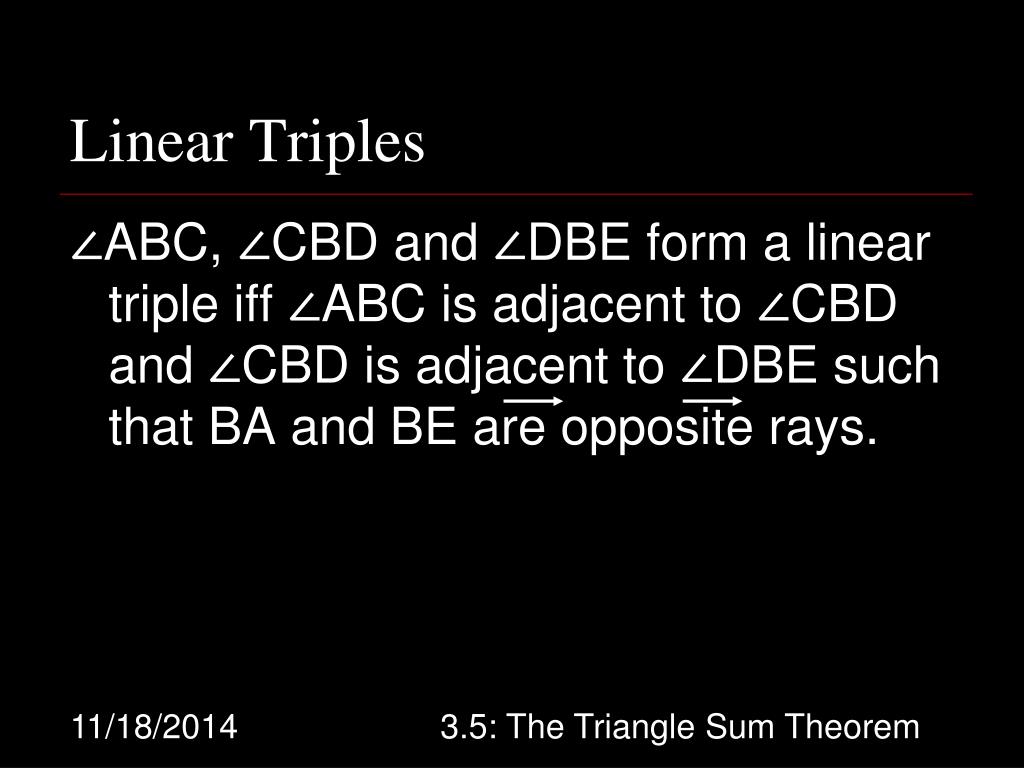

  3. Linear Triples • ∠ABC, ∠CBD and ∠DBE form a linear triple iff ∠ABC is adjacent to ∠CBD and ∠CBD is adjacent to ∠DBE such that BA and BE are opposite rays. 3.5: The Triangle Sum Theorem

  4. Linear Triples • ∠ABC, ∠CBD and ∠DBE form a linear triple C D A B E 3.5: The Triangle Sum Theorem

  5. Linear Triple Postulate • If three angles form a linear triple, then the sum of their measures is ______. 3.5: The Triangle Sum Theorem

  6. Triangle Sum Theorem • The sum of the measures of the angles of a triangle is _______. 3.5: The Triangle Sum Theorem

  7. Hint: Draw BD such that BD || AC. • Given: Triangle ABC with angles A, B and C. • Prove: m∠A + m∠B + m∠C = 180. 3.5: The Triangle Sum Theorem

  8. 3.5: The Triangle Sum Theorem

  9. 3.5: The Triangle Sum Theorem

  10. In triangle ABC, the measures of the angles satisfy the extended ratio 1:2:3. What are the measures of the angles? 3.5: The Triangle Sum Theorem

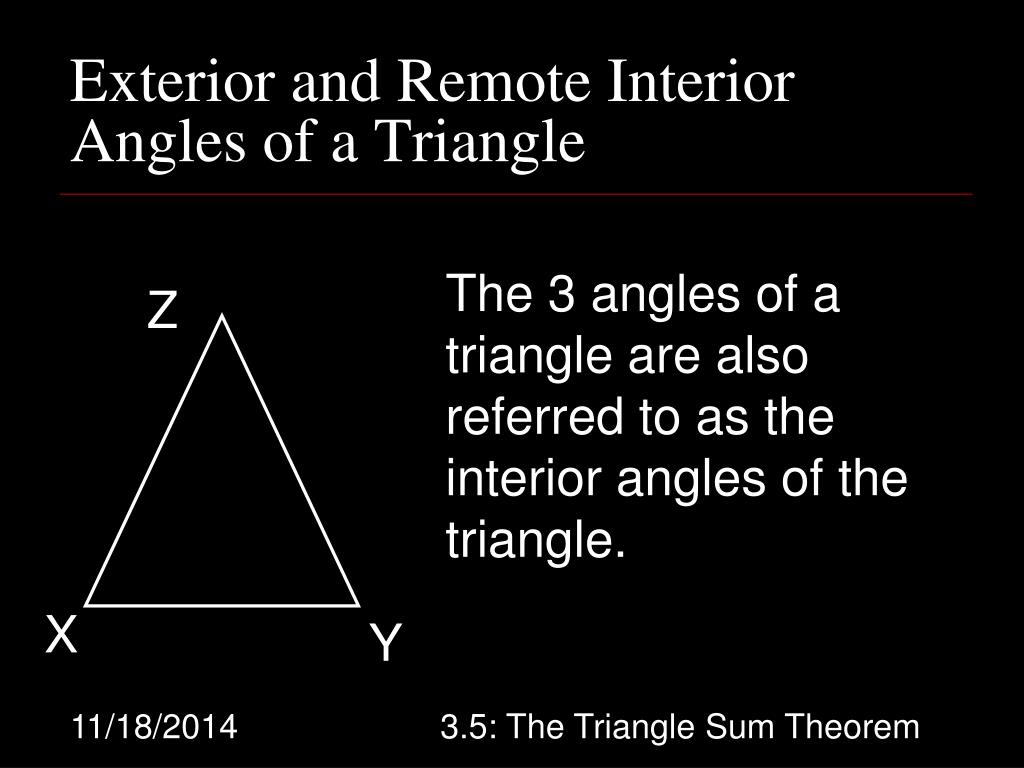

  11. Exterior and Remote Interior Angles of a Triangle The 3 angles of a triangle are also referred to as the interior angles of the triangle. Z X Y 3.5: The Triangle Sum Theorem

  12. Exterior and Remote Interior Angles of a Triangle If a side of the triangle is extended, an exterior angle is formed. Z ∠WYZ is an exterior angle for triangle XYZ X Y W 3.5: The Triangle Sum Theorem

  13. Exterior and Remote Interior Angles of a Triangle ∠X and ∠Z are remote interior angles with respect to ∠WYZ. Z X Y W 3.5: The Triangle Sum Theorem

  14. Exterior Angle Theorem • The measure of an exterior angle of a triangle is equal to the • Proof is a part of the assignment. 3.5: The Triangle Sum Theorem

  15. Assignment • pages 173-175, # 8 - 44 (all ≠ 40). 3.5: The Triangle Sum Theorem
