  1. SIP Security Henning Schulzrinne Dept. of Computer Science Columbia University July 2002

  2. Overview • System model • Threats and promises • Approaches • lower-layer (L3, L4) • application-layer • borrowed and modified  HTTP Digest • new, SIP-specific • short-term vs. long-term • Agreeing on security mechanism • Denial-of-service attacks • Privacy

  3. System model outbound proxy SIP trapezoid a@foo.com: 128.59.16.1 registrar

  4. Threats • Bogus requests (e.g., fake From) • Modification of content • REGISTER Contact • SDP to redirect media • Insertion of requests into existing dialogs: BYE, re-INVITE • Denial of service (DoS) attacks • Privacy • Inside vs. outside threats • Trust domains – can proxies be trusted?

  5. Threats • third-party • not on path • can generate requests • passive man-in-middle (MIM) • listen, but not modify • active man-in-middle • replay • cut-and-paste

  6. Protection • e-e: UA to UA • h-h: hop-by-hop (UA to proxy, proxy-to proxy) • e-m: UA-to-middle (proxy) • m-m: proxy-to-proxy

  7. L3/L4 security options • IPsec • Provides keying mechanism • but IKE is complex and has interop problems • works for all transport protocol (TCP, SCTP, UDP, …) • no credential-fetching API • TLS • provides keying mechanism • good credential binding mechanism • no support for UDP; SCTP in progress • subject to DOS by faking RST

  8. Hop-by-hop security: TLS • Server certificates well-established for web servers • Per-user certificates less so • email return-address (class 1) certificate not difficult (Thawte, Verisign) • only useful for positive filtering • Server can challenge client for certificate  last-hop challenge

  9. TLS security: SIPS URI • SIPS scheme added in RFC 3261 • sips:alice@example.com • All requests must use TLS, except in callee's domain • does not guarantee that every proxy checks bonafides of next hop

  10. Authentication: User password • INVITE sip:alice:secret@example.com • Can appear in To, From, Request-URI • Treated as part of user name • Obviously, not secure unless e2e path encryption • Can be easily included on web page or in Contact header • But (mildly) useful for spam prevention: • users with password get to talk directly • others have to go through auto-attendant (“press 39 if you’re a human being’’)

  11. Authentication: HTTP-derived mechanisms • RFC 2617 for HTTP/1.1 • HTTP Basic authentication: • in RFC 2543 • plain-text password:  401 Authentication Required WWW-Authenticate: Basic realm="WallyWorld“ Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ= • Removed from RFC 3261 as insecure • Also avoids some downgrade attacks

  12. HTTP Digest authentication • Challenge-response: hash nonce  SIP/2.0 401 Unauthorized WWW-Authenticate: Digest realm=“biloxi.com", qop="auth,auth-int", nonce="dcd98b7102dd2f0e8b11d0f600bfb0c093", opaque="5ccc069c403ebaf9f0171e9517f40e41“  Authorization: Digest username=“bob", realm=“biloxi.com", nonce="dcd98b7102dd2f0e8b11d0f600bfb0c093", uri=“sip:alice@atlanta.com", qop=auth, nc=00000001, cnonce="0a4f113b", response="6629fae49393a05397450978507c4ef1", opaque="5ccc069c403ebaf9f0171e9517f40e41"

  13. HTTP Digest authentication • Allows user-to-user (registrar) authentication • mostly client-to-server • but also server-to-client (Authentication-Info) • Also, Proxy-Authenticate and Proxy-Authorization • May be stacked for multiple proxies on path

  14. HTTP Digest authentication

  15. HTTP Digest authentication REGISTER To: sip:alice@example.com 401 Unauthorized WWW-Authenticate: Digest realm="alice@example.com", qop=auth, nonce="dcd9" REGISTER To: sip:alice@example.com Authorization: Digest username="alice", nc=00000001, cnonce="defg", response="9f01" REGISTER To: sip:alice@example.com Authorization: Digest username="alice", nc=00000002, cnonce="abcd", response="6629"

  16. HTTP Digest authentication • response = H(H(A1):nonce:nc:cnonce:qop:H(A2)) • A1 = username:realm:password • A2 = method:URI or method:URI:H(body) • where H(x) = MD5(x)

  17. HTTP Authentication-Info • Included in 200 response • Can be used to authenticate response • Provides next nonce (challenge) Authentication-Info: nextnonce="abcde", qop=auth-int, rspauth="3974" • For qop=auth-int: A2=uri:H(body)

  18. Problems with Digest Authentication • Replay attacks • Masquerade attacks: fool client into providing credentials • Some man-in-middle attacks: • downgrade security (modify or remove qop) • chosen plaintext attacks  use cnonce • Does not protect SIP request or response headers • particularly bad for REGISTER: modify Contact header to redirect calls

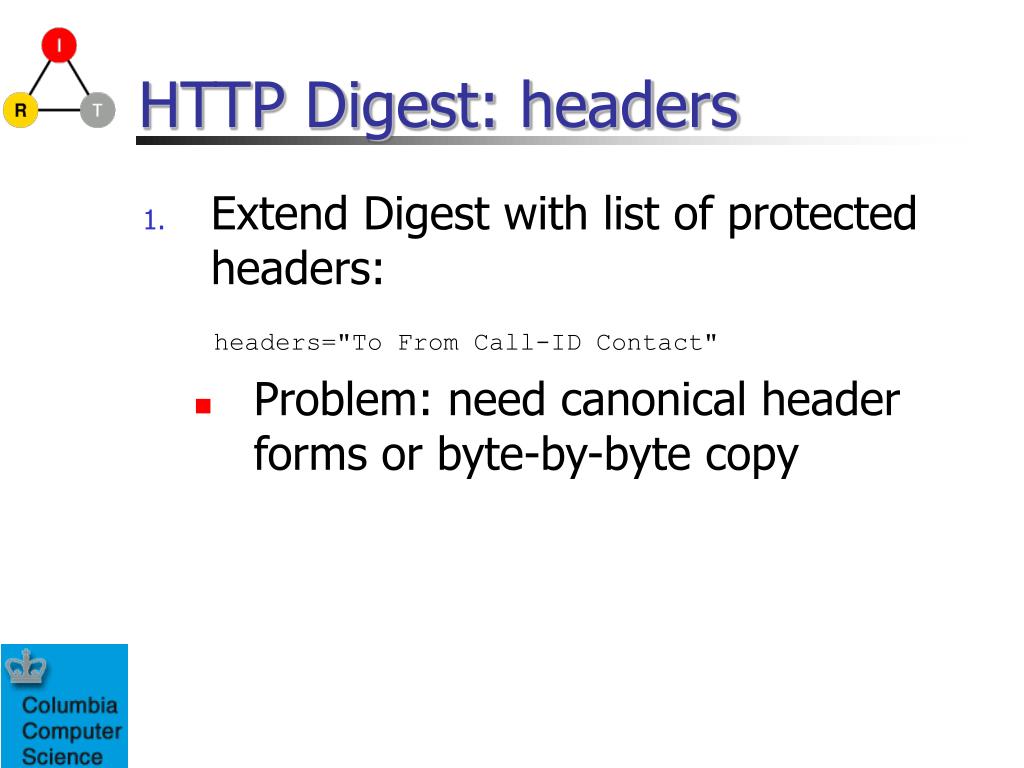

  19. HTTP Digest: headers • Extend Digest with list of protected headers: headers="To From Call-ID Contact" • Problem: need canonical header forms or byte-by-byte copy

  20. HTTP Digest: tunneling • Tunneling: use entity body protection REGISTER sip:example.com SIP/2.0 To: sip:alice@example.com From: sip:alice@example.com Authorization: Digest qop=auth-int, response="284e", … Content-Length: 123 Content-Type: message/sip REGISTER sip:example.com SIP/2.0 Contact: sip:alice@128.59.16.1 To: sip:alice@example.com From: sip:alice@example.com Content-Length: 0

  21. HTTP Digest: tunneling • No need for canonical form • No extensions of RFC 2617 needed • Backward-compatible – old proxies can't mess up requests • Header duplication: To, From, Call-ID, Content-Length, Content-Type

  22. Extensions to Digest • draft-undery-sip-auth-01 • Authentication-Info header • added "realm" parameter • inserted by UAS to protect responses • future nonces • Proxy-Authentication-Info • inserted by proxy to protect response • future nonces • message/sip and message/sipfrag for protecting headers using qop=auth-int

  23. Enhanced SIP Digest: nonce computation • nonce algorithm not specified in RFC 2617 • nonce="(alg,type) time-stamp "-" H(time-stamp ":" request-uri ":" private-key)" • Client compares alg,type to those in nonce  complain if different • Server also checks nonce

  24. Agreeing on security procedures • draft-ietf-sip-sec-agree-04 • discovery and negotiation of security mechanism: HTTP Digest, Digest with integrity, IPsec, S/MIME, TLS, EAP, ... • avoid bid-down attacks • Security-Client, Security-Server, Security-Verify

  25. Security discovery: message flow proxy UAC OPTIONS sip:proxy.example.com SIP/2.0 Security-Client: tls Security-Client: digest-integrity Require: sec-agree Proxy-Require: sec-agree SIP/2.0 494 Security Agreement Required Security-Server: ipsec-ike;q=0.1 Security-Server: tls;q=0.2 INVITE sip:proxy.example.com SIP/2.0 Security-Verify: ipsec-ike;q=0.1 Security-Verify: tls;q=0.2 Route: sip:callee@domain.com Require: sec-agree Proxy-Require: sec-agree

  26. Security discovery • Relies on verification and that even weakest mechanism offers integrity protection • attacker can remove strong crypto from client or server capability indication! • detected during verification • Does not prevent denial-of-service attacks • e.g., make client and server incompatible

  27. Last hop authentication • UAS may want to ascertain identity of last proxy • last proxy implements call filtering – did the call really go through there? • Proposals • 401 challenge with limited Via • HMAC (H(shared secret,request)) • proxy must know to do this (but unavoidable) • replay and cut-and-paste prevention? • multiple proxies?

  28. End-to-end authentication • What do we need to prove? • Person sending BYE is same as sending INVITE • Person calling today is same as yesterday • Person is indeed "Alice Wonder, working for Deutsche Bank" • Person is somebody with account at MCI Worldcom

  29. End-to-end authentication • Why end-to-end authentication? • prevent phone/IM spam • nuisance callers • trust: is this really somebody from my company asking about the new widget? • Problem: generic identities are cheap • filtering bozo@aol.com doesn't prevent calls from jerk@yahoo.com (new day, sam person)

  30. End-to-end authentication and confidentiality • Shared secrets • only scales (N2) to very small groups • OpenPGP chain of trust • S/MIME-like encapsulation • CA-signed (Verisign, Thawte) • every end point needs to have list of Cas • need CRL checking • ssh-style

  31. Ssh-style authentication • Self-signed (or unsigned) certificate • Allows active man-in-middle to replace with own certificate • always need secure (against modification) way to convey public key • However, safe once established

  32. S/MIME example INVITE sip:UserB@there.com SIP/2.0 Via: SIP/2.0/UDP here.com:5060 From: BigGuy <sip:UserA@here.com> To: LittleGuy <sip:UserB@there.com> Call-ID: 12345601@here.com CSeq: 1 INVITE Content-Type: multipart/signed; protocol="application/pkcs7-signature"; micalg=sha1; boundary=boundary42 --boundary42 Content-Type: message/sip

  33. S/MIME example (2) INVITE sip:UserB@there.com SIP/2.0 Via: SIP/2.0/UDP here.com:5060 From: BigGuy <sip:UserA@here.com> To: LittleGuy <sip:UserB@there.com> Call-ID: 12345601@here.com CSeq: 1 INVITE Contact: <sip:UserA@100.101.102.103> Content-Type: application/sdp Content-Length: 147 v=0 … --boundary42 Content-Type: application/pkcs7-signature; name=smime.p7s Content-Transfer-Encoding: base64 Content-Disposition: attachment; filename=smime.p7s ghyHhHUujhJhjH77n8HHGTrfvbnj756tbB9HG4VQpfyF467GhIGfHfYT6 … 7GhIGfHfYT64VQbnj756 --boundary42--

  34. Other SIP security issues • REFER security • authenticate Referred-By header content • Proxy trust • proxies have to see To, From, Call-ID and URI • prevent outgoing branch to be unprotected • indication • can't enforce

  35. DOS attacks • CPU complexity: get SIP entity to perform work • Memory exhaustion: SIP entity keeps state (TCP SYN flood) • Amplification: single message triggers group of message to target • even easier in SIP, since Via not subject to address filtering

  36. DOS attacks: amplification • Normal SIP UDP operation: • one INVITE with fake Via • retransmit 401/407 (to target) 8 times • Modified procedure: • only send one 401/407 for each INVITE • Suggestion: have null authentication • prevents amplification of other responses • E.g., user "anonymous", password empty

  37. DOS attacks: memory • SIP vulnerable if state kept after INVITE • Same solution: challenge with 401 • Server does not need to keep challenge nonce, but needs to check nonce freshness

  38. Privacy and User Identity • More sophisticated version of caller-ID debate • Caller wants privacy, callee (and network) wants assured identity • Caller has several identities: • billing identity (often, Digest identity) •  1 recognizable identities

  39. Asserted identity • Similar to • Calling Identity Delivery (CLID) • Calling Identity Delivery Blocking • call trace • From hiding does not distinguish network & end user • Hiding From may prevent call-trace • Trusted network: • identities valid within trust domain • authenticates users • spec(T) describes procedures

  40. Asserted identity • Add header P-Asserted-Identity: "Alice" <sip:alice@example.com> • Inserted by proxy, after authentication

  41. Asserted identity: privacy • Privacy: id • requests no delivery of asserted identity outside trust domain • default behavior depends on spec(T)

  42. Generalized privacy • Primarily, address-of-records (AORs) • AOR domains may be operated by • employers (sip:Werner.Siemens@siemens.de) • traditional service providers (sip:alice@telekom.de) • user itself (sip:henning@schulzrinne.org) • thus, network may be untrusted! • "..., privacy entails the restriction of the distribution of a specific identity and related personal information from some particular party or parties that are potentially recipients of the message." (draft-sip-privacy-general)

  43. Generalized privacy • Several facets:

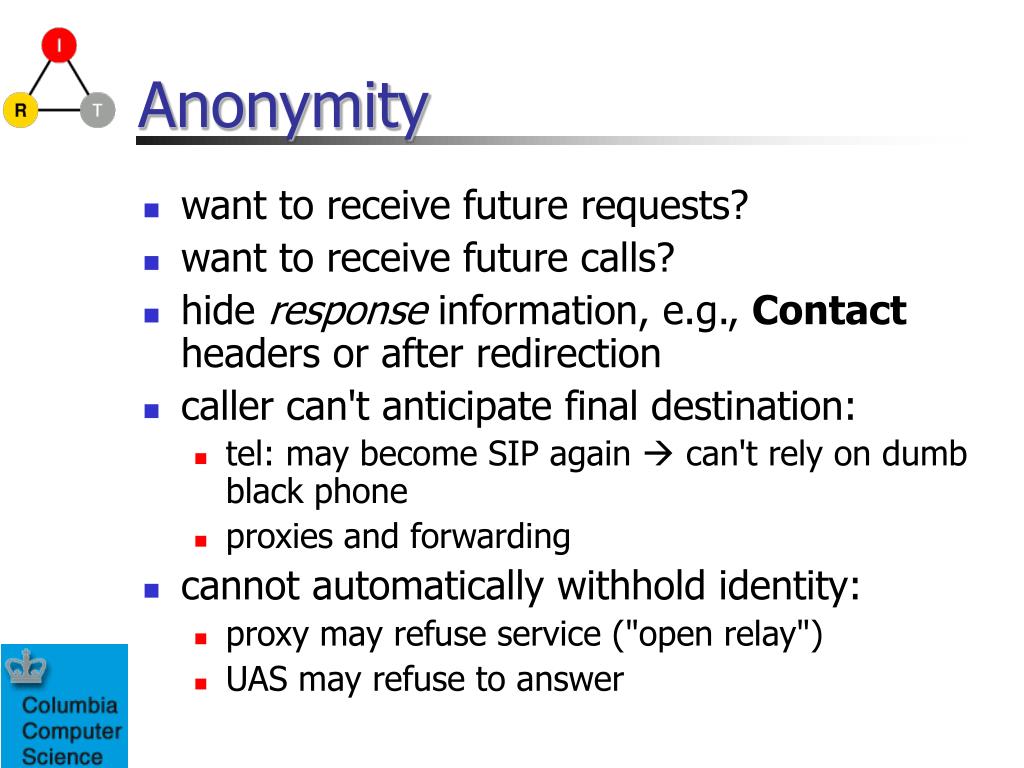

  44. Anonymity • want to receive future requests? • want to receive future calls? • hide response information, e.g., Contact headers or after redirection • caller can't anticipate final destination: • tel: may become SIP again  can't rely on dumb black phone • proxies and forwarding • cannot automatically withhold identity: • proxy may refuse service ("open relay") • UAS may refuse to answer

  45. User-provided privacy • From header as Anonymous <sip:anonymous@anonymous.invalid> • RFC 3261: Tag as identifier, so can be changed and does not have to be unique • Use tag as domain part of Call-ID • Don't use user name in Contact for single-user hosts • message/sip encrypted as S/MIME • hide from intermediaries only • direct encrypted connection

  46. Headers with privacy implications

  47. Privacy header

  48. Privacy services • Outbound proxy • third-party service via pre-loaded route • use Proxy-Require: privacy

  49. Authentication and privacy • Selective revealing of information (e.g., user name) • Careful: bogus challengers! •  require TLS server authentication before responding to challenge • doesn't work (well) for multi-hop challenges • cannot know whether and how downstream hop authenticated identity of proxy • SIPS URI?

  50. Conclusion • SIP security more difficult than email or web • intermediaries (proxies) • theft of service (REGISTER) • peer-to-peer, not client-server • authenticate proxy to user • privacy • Try to re-use existing mechanisms: • IPsec and TLS • Digest authentication • S/MIME for end-to-end • HTTP EAP?
