  1. Query Optimizer (Chapter 9.0 - 9.6)

  2. Optimization • Minimizes uses of resources by choosing best set of alternative query access plans • considers  I/O cost, CPU cost • gathers statistics - may become out of date (DB2 - RUNSTATS) • selectivity of values - 1/domain - used to determine number of tuples of each values

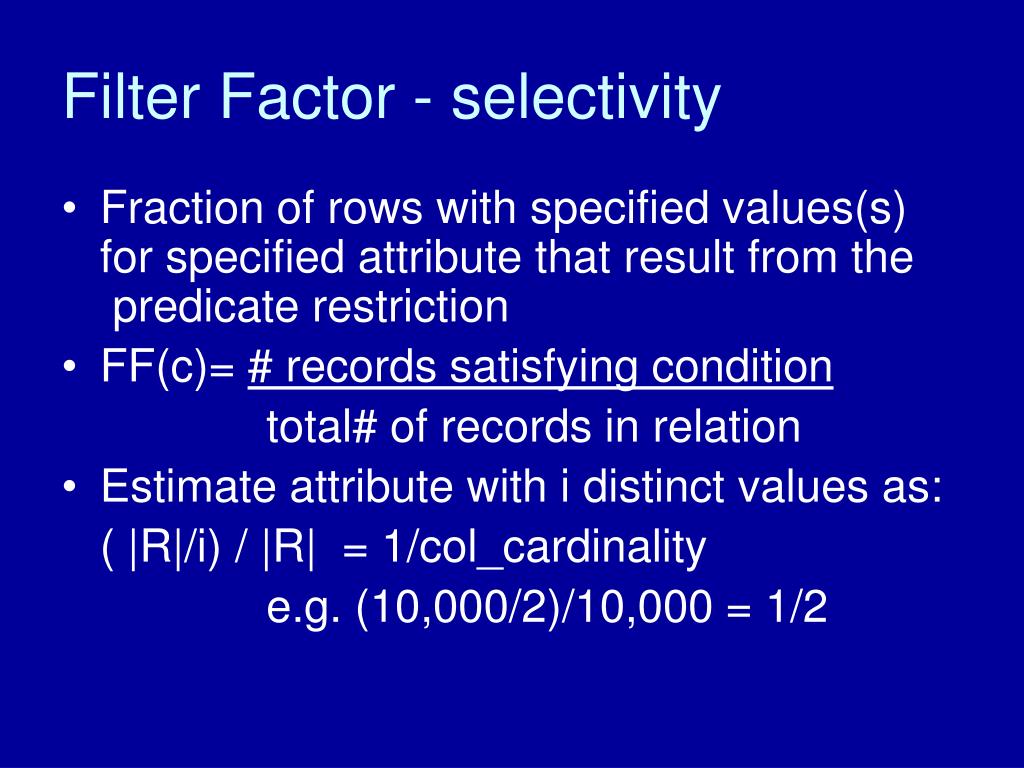

  3. Filter Factor - selectivity • Fraction of rows with specified values(s) for specified attribute that result from the predicate restriction • FF(c)= # records satisfying condition total# of records in relation • Estimate attribute with i distinct values as: ( |R|/i) / |R|  = 1/col_cardinality e.g. (10,000/2)/10,000 = 1/2

  4. Filter Factor FF • FF tells how many tuples satisfy predicate - hopefully only need to access those tuples + index • Statistical assumptions - uniform distribution of column values, independent join distribution of values from any 2 columns

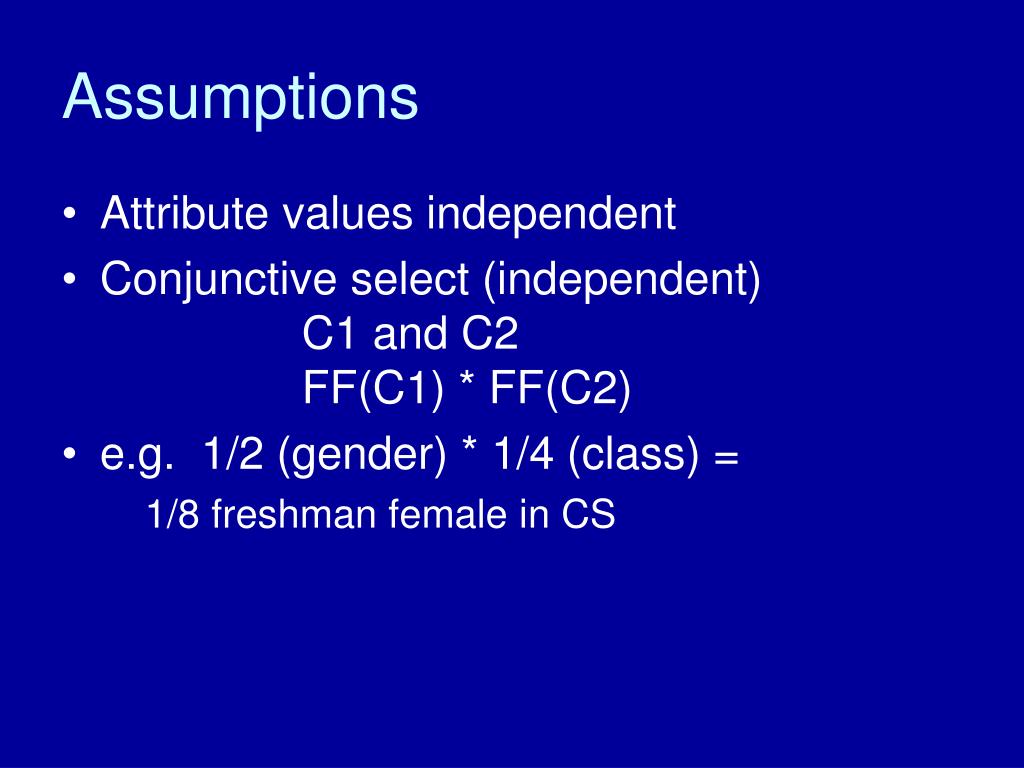

  5. Assumptions • Attribute values independent • Conjunctive select (independent)                 C1 and C2                 FF(C1) * FF(C2)    • e.g.  1/2 (gender) * 1/4 (class) = 1/8 freshman female in CS

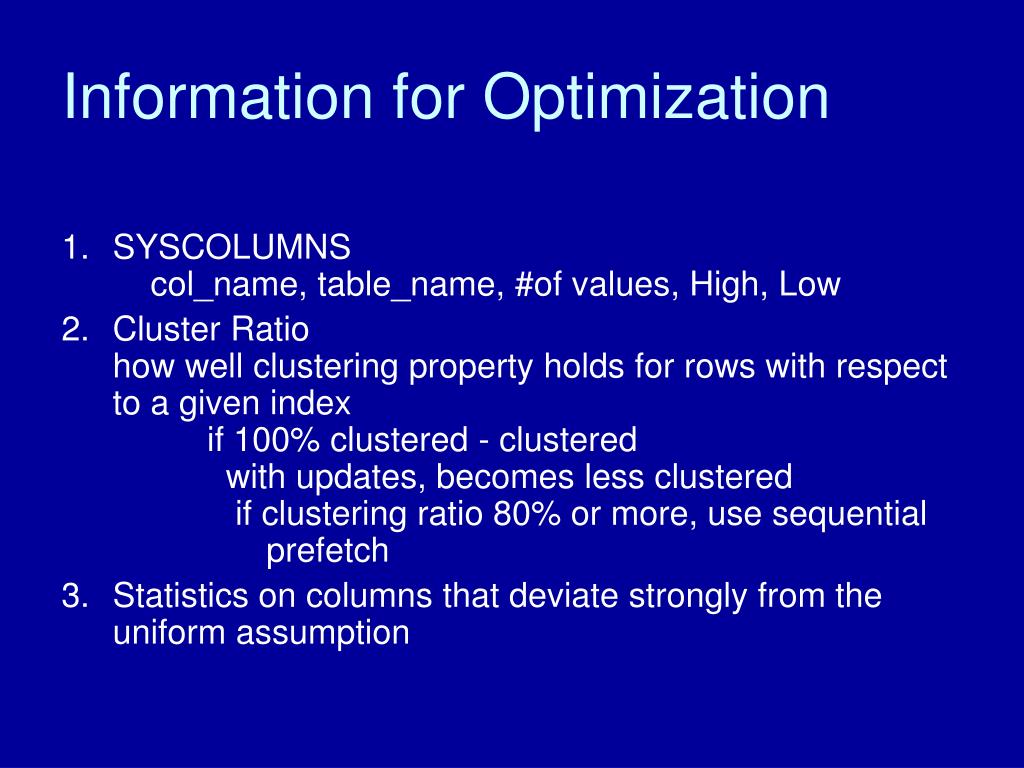

  6. Information for Optimization • SYSCOLUMNS     col_name, table_name, #of values, High, Low • Cluster Ratio how well clustering property holds for rows with respect to a given index           if 100% clustered - clustered             with updates, becomes less clustered              if clustering ratio 80% or more, use sequential prefetch • Statistics on columns that deviate strongly from the uniform assumption

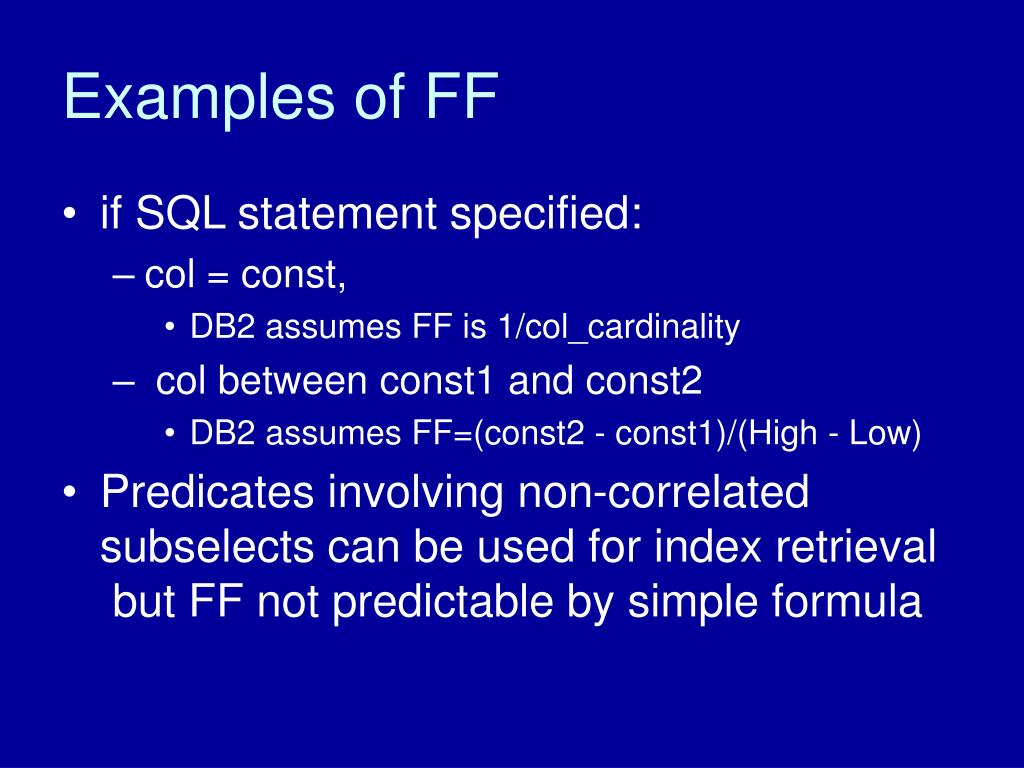

  7. Examples of FF • if SQL statement specified: • col = const, • DB2 assumes FF is 1/col_cardinality • col between const1 and const2 • DB2 assumes FF=(const2 - const1)/(High - Low) • Predicates involving non-correlated subselects can be used for index retrieval but FF not predictable by simple formula

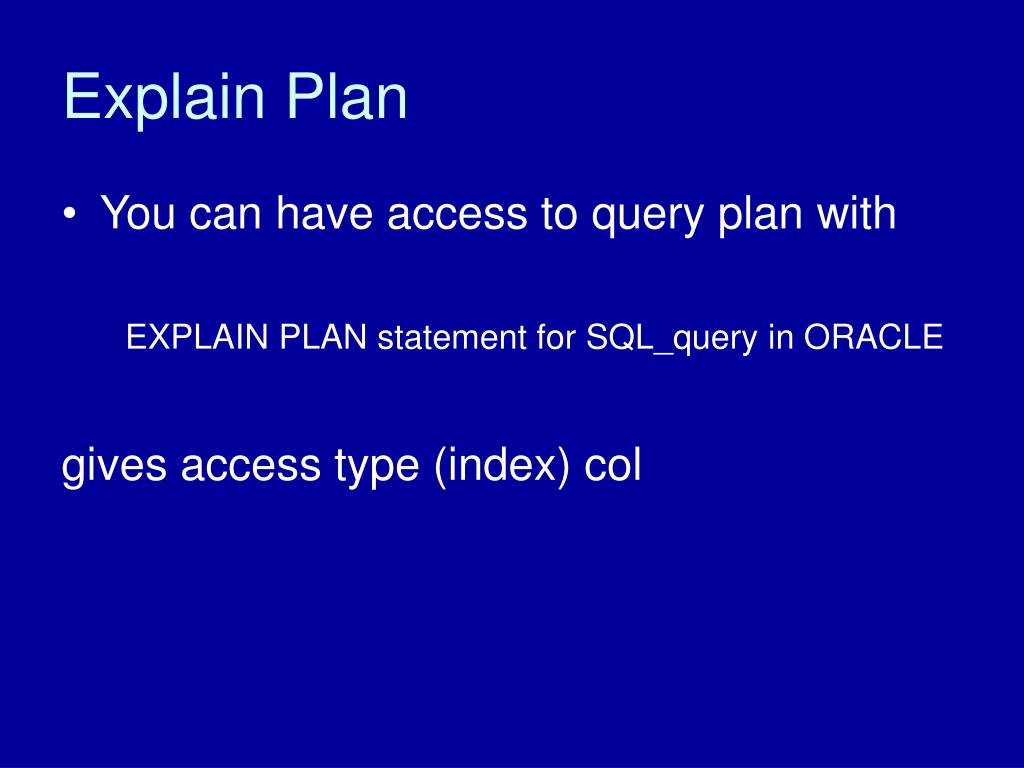

  8. Explain Plan • You can have access to query plan with EXPLAIN PLAN statement for SQL_query in ORACLE gives access type (index) col

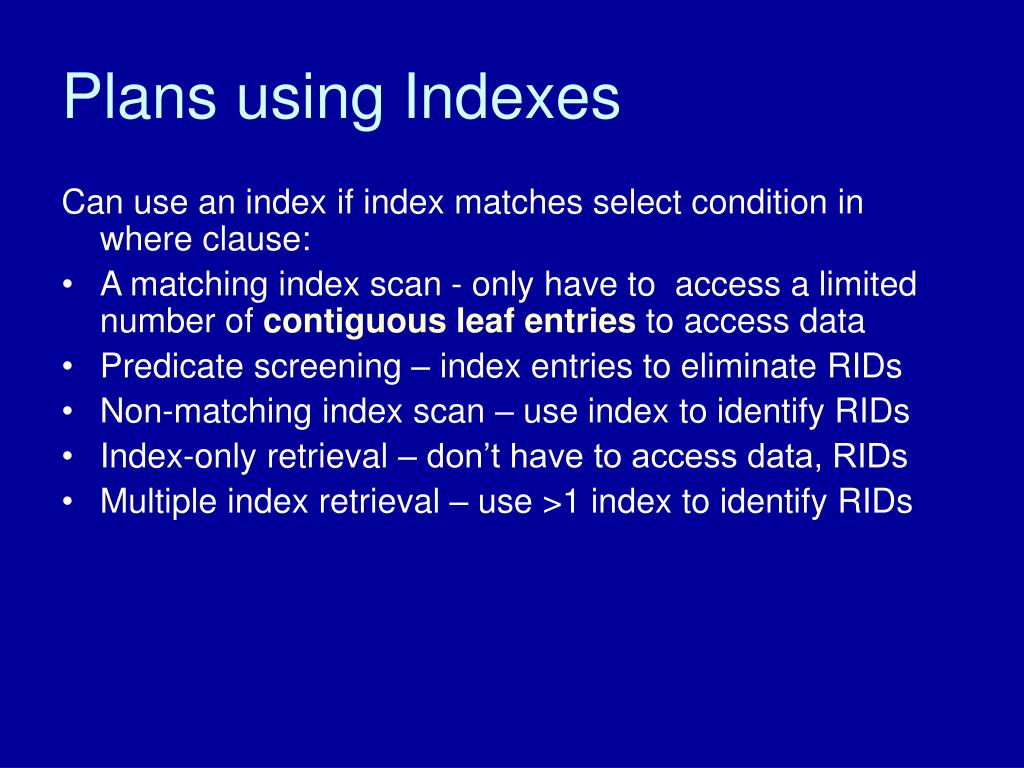

  9. Plans using Indexes Can use an index if index matches select condition in where clause: • A matching index scan - only have to access a limited number of contiguous leaf entries to access data • Predicate screening – index entries to eliminate RIDs • Non-matching index scan – use index to identify RIDs • Index-only retrieval – don’t have to access data, RIDs • Multiple index retrieval – use >1 index to identify RIDs

  10. Matching index scan When is a matching index scan used? Assume a table T1 with multiple indexes on columns C1, C2 and C3 • Single where clause and (one) index matches Select * from T1 where C1=10 search B+-tree to leaf level for leftmost entry having specified values useful for =, between

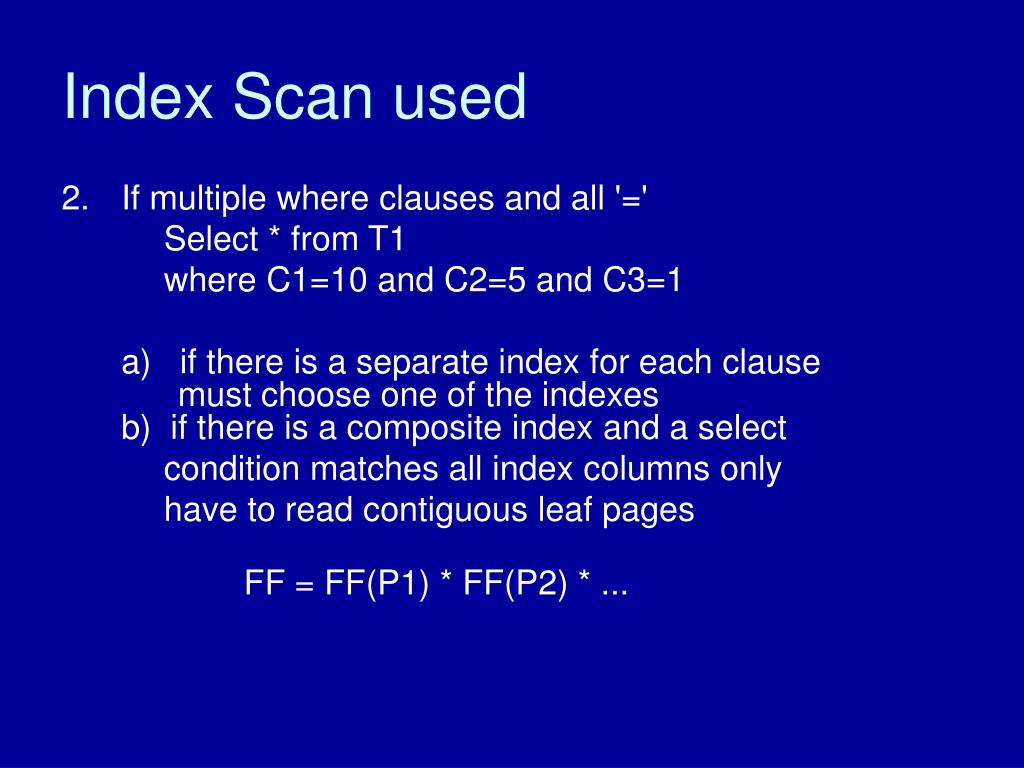

  11. Index Scan used • If multiple where clauses and all '=' Select * from T1 where C1=10 and C2=5 and C3=1   a)   if there is a separate index for each clause       must choose one of the indexes b)  if there is a composite index and a select condition matches all index columns only have to read contiguous leaf pages              FF = FF(P1) * FF(P2) * ...

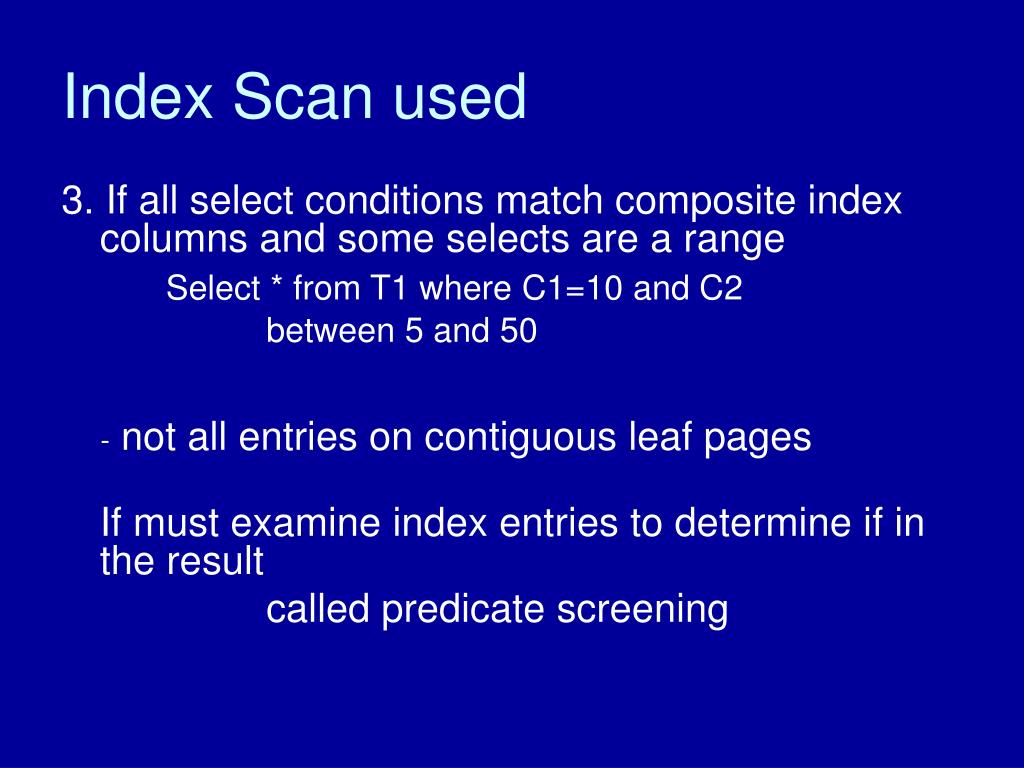

  12. Index Scan used 3. If all select conditions match composite index columns and some selects are a range Select * from T1 where C1=10 and C2 between 5 and 50 - not all entries on contiguous leaf pages If must examine index entries to determine if in the result called predicate screening

  13. Predicate screening • discard RIDs based on values (for index) • will access fewer tuples because RIDs used instead to eliminate potential tuples

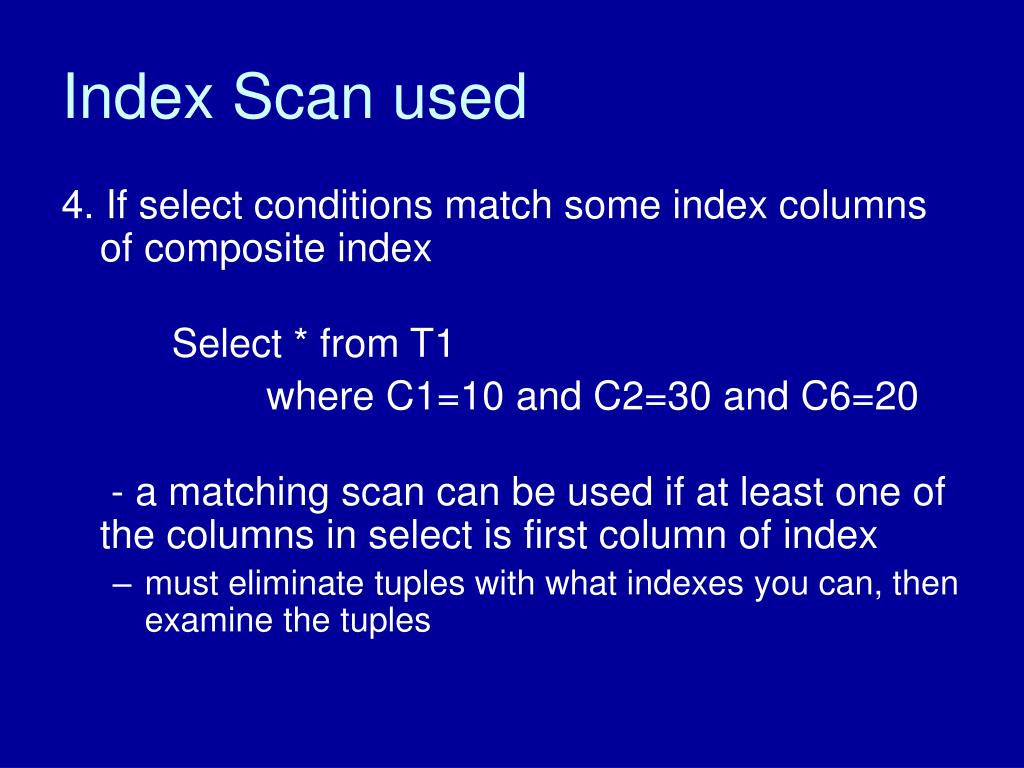

  14. Index Scan used 4. If select conditions match some index columns of composite index           Select * from T1 where C1=10 and C2=30 and C6=20 - a matching scan can be used if at least one of the columns in select is first column of index • must eliminate tuples with what indexes you can, then examine the tuples

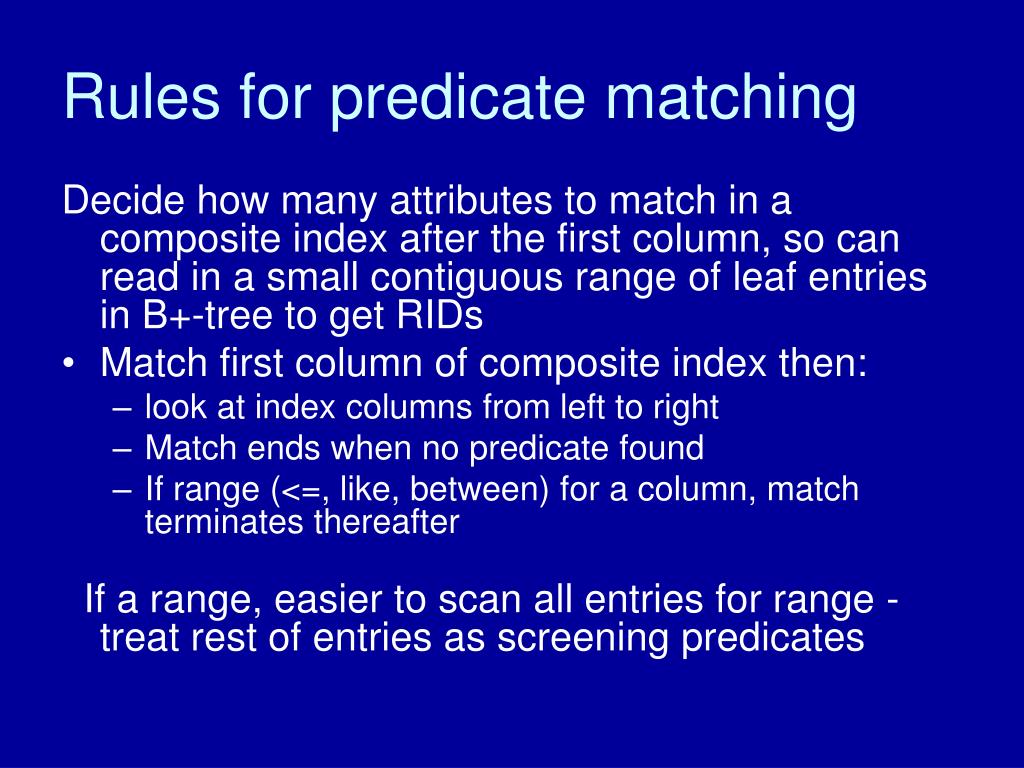

  15. Rules for predicate matching Decide how many attributes to match in a composite index after the first column, so can read in a small contiguous range of leaf entries in B+-tree to get RIDs • Match first column of composite index then: • look at index columns from left to right • Match ends when no predicate found • If range (<=, like, between) for a column, match terminates thereafter   If a range, easier to scan all entries for range - treat rest of entries as screening predicates

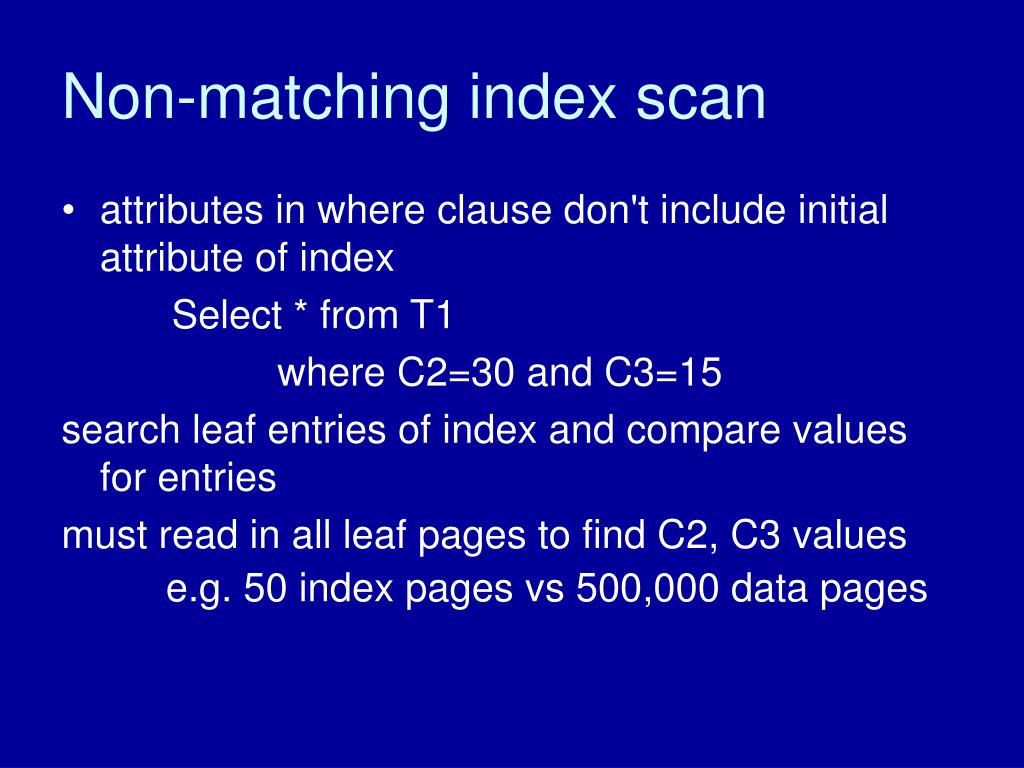

  16. Non-matching index scan • attributes in where clause don't include initial attribute of index           Select * from T1 where C2=30 and C3=15 search leaf entries of index and compare values for entries must read in all leaf pages to find C2, C3 values       e.g. 50 index pages vs 500,000 data pages

  17. Index only retrieval • elements retrieved in select clause are attributes of compose index • don't need to access rows (actual data)     Select C1, C3 from T1 where C1=5 and C3 between 2 and 5        Select count(*) from T1

  18. Multiple Index Access • If conjunctive conditions in where clause (and), can use >1 index • Extract RIDs from each index satisfying matching predicate • Intersect lists of RIDs (and them) from each index • Final list - satisfies all predicates indexed

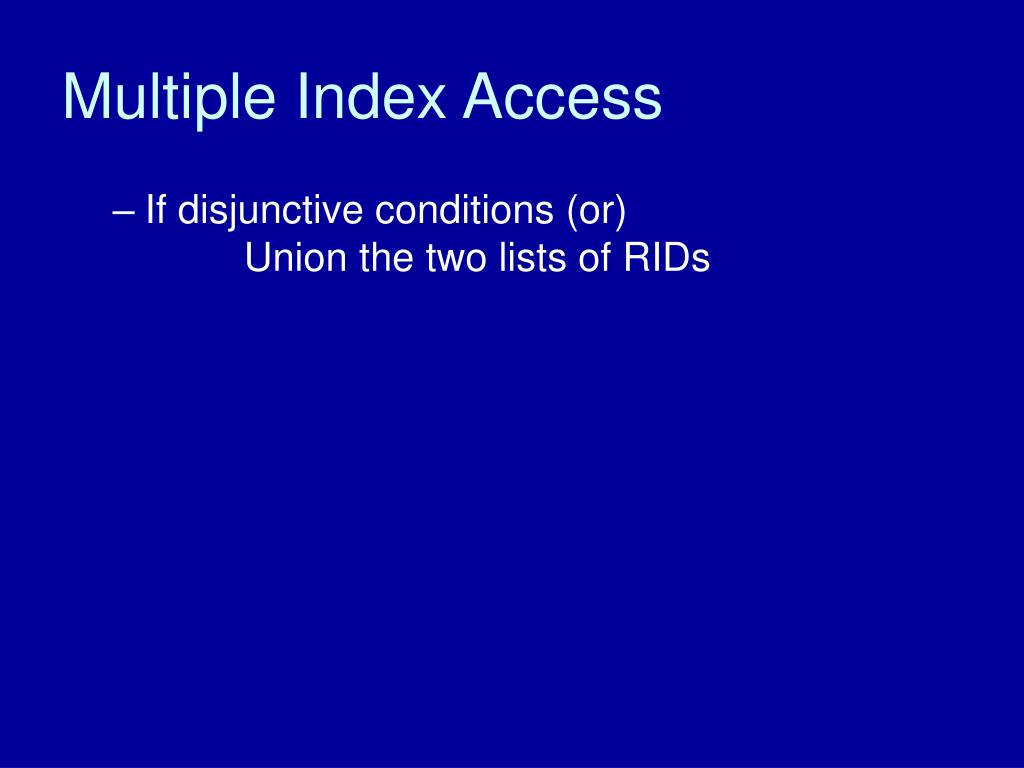

  19. Multiple Index Access • If disjunctive conditions (or)          Union the two lists of RIDs

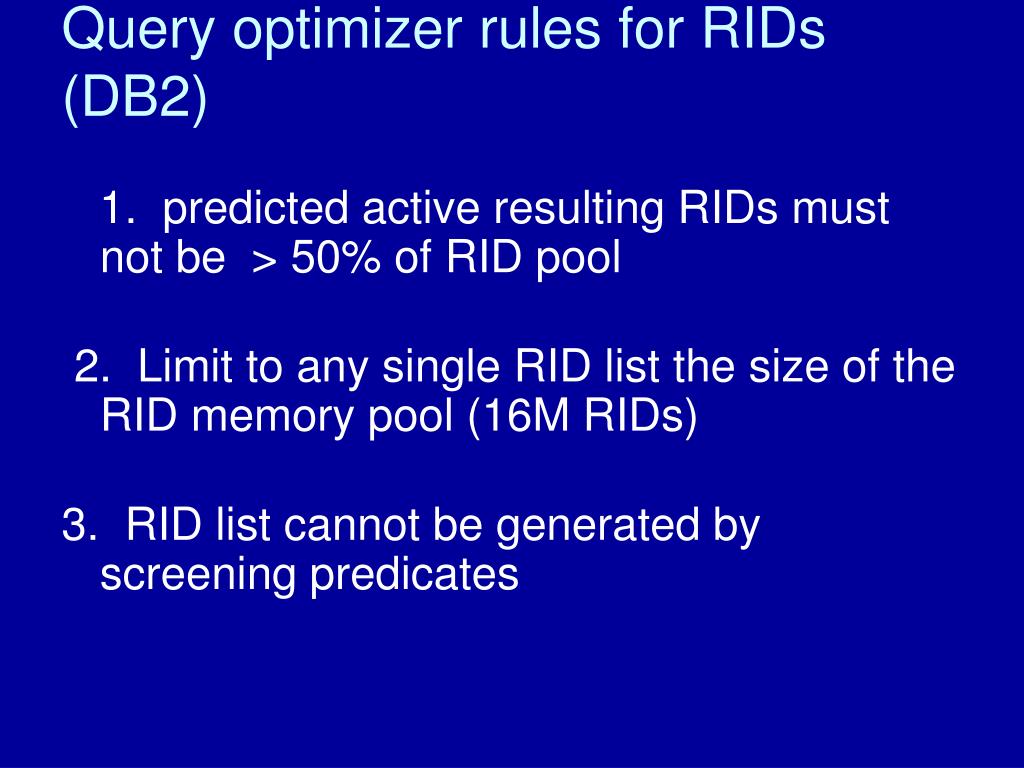

  20. Query optimizer rules for RIDs (DB2)    1.  predicted active resulting RIDs must not be  > 50% of RID pool 2.  Limit to any single RID list the size of the RID memory pool (16M RIDs) 3.  RID list cannot be generated by screening predicates

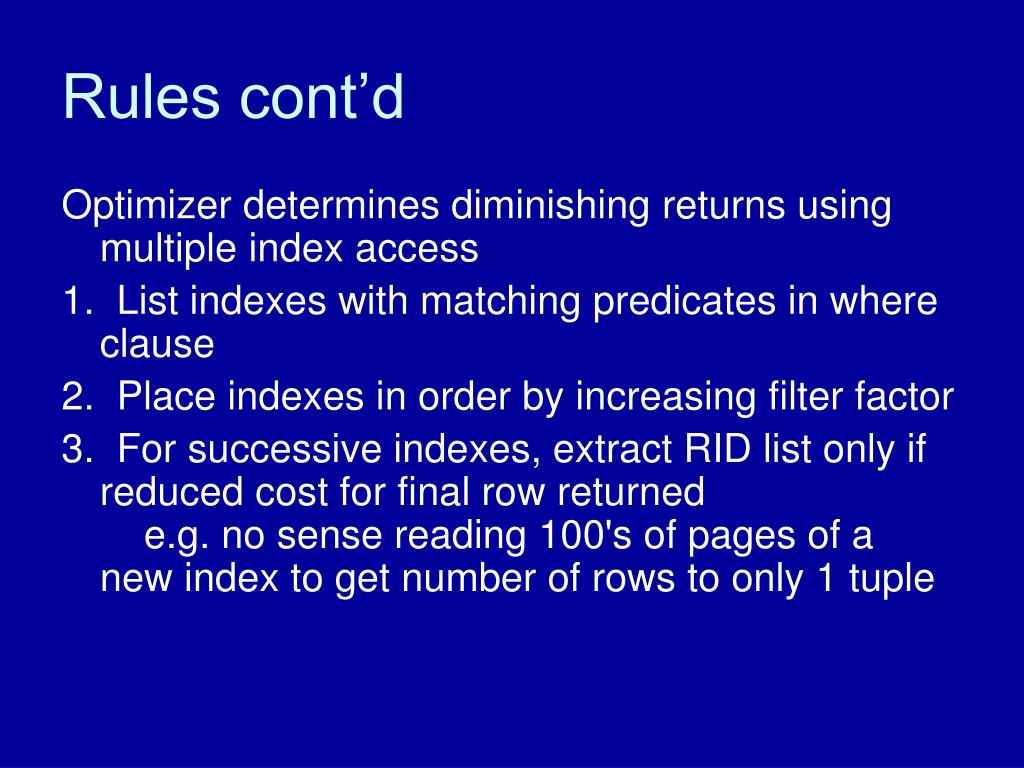

  21. Rules cont’d Optimizer determines diminishing returns using multiple index access 1.  List indexes with matching predicates in where clause 2.  Place indexes in order by increasing filter factor 3.  For successive indexes, extract RID list only if reduced cost for final row returned     e.g. no sense reading 100's of pages of a new index to get number of rows to only 1 tuple

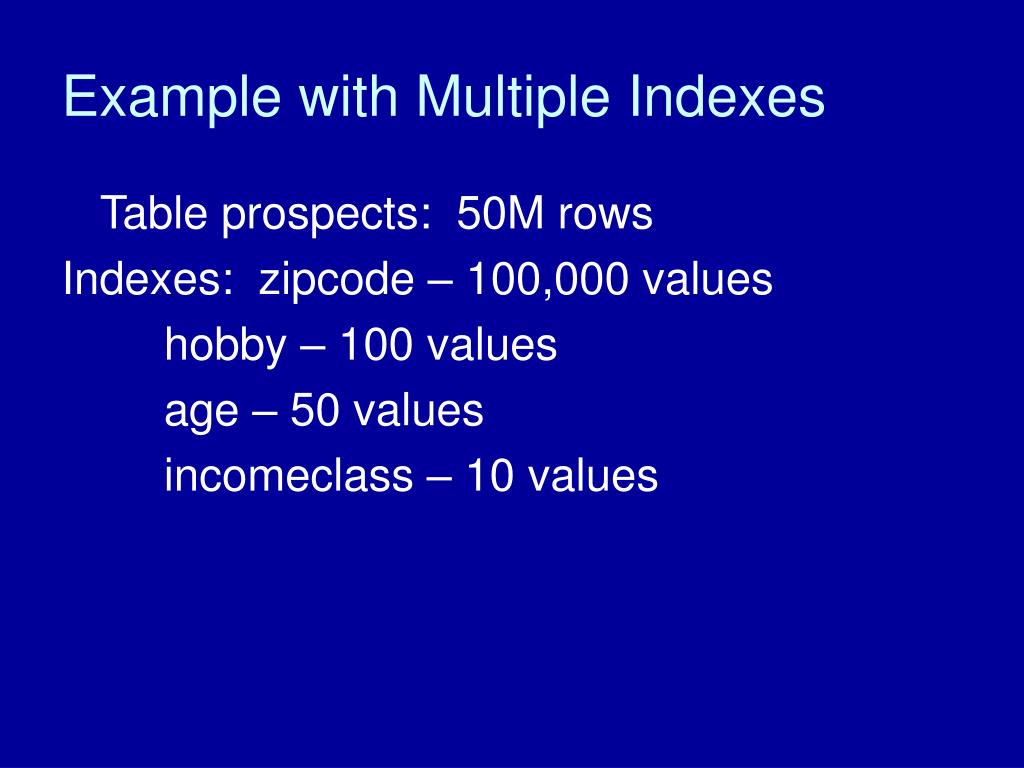

  22. Example with Multiple Indexes Table prospects: 50M rows Indexes: zipcode – 100,000 values hobby – 100 values age – 50 values incomeclass – 10 values

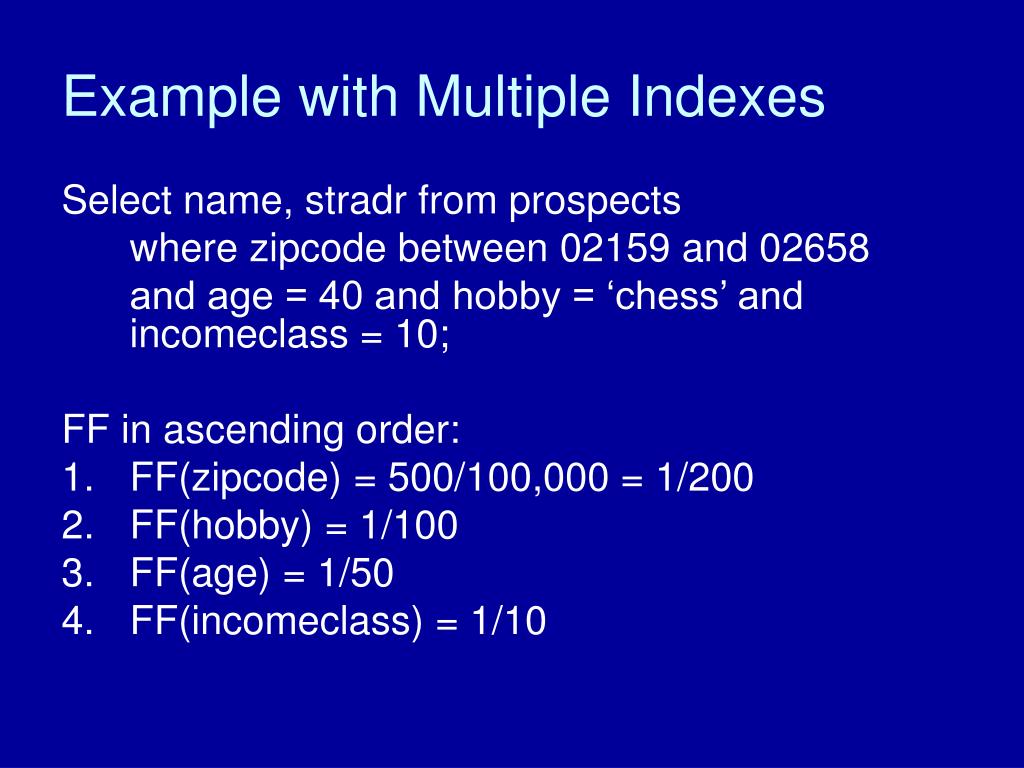

  23. Example with Multiple Indexes Select name, stradr from prospects where zipcode between 02159 and 02658 and age = 40 and hobby = ‘chess’ and incomeclass = 10; FF in ascending order: • FF(zipcode) = 500/100,000 = 1/200 • FF(hobby) = 1/100 • FF(age) = 1/50 • FF(incomeclass) = 1/10

  24. Example (1) 50,000,000/200 = 250,000 (2) 250,000/100 = 2500 (3) 2500/50 = 50 (4) 50/10 = 5 How much time will this take? Is it cost effective to use all of these indexes? see textbook Pg. 579
