  1. Fundamentals of Programming SM1204 Semester A 2011

  2. Assignment 2 Due date 24 Nov Collection via ACS

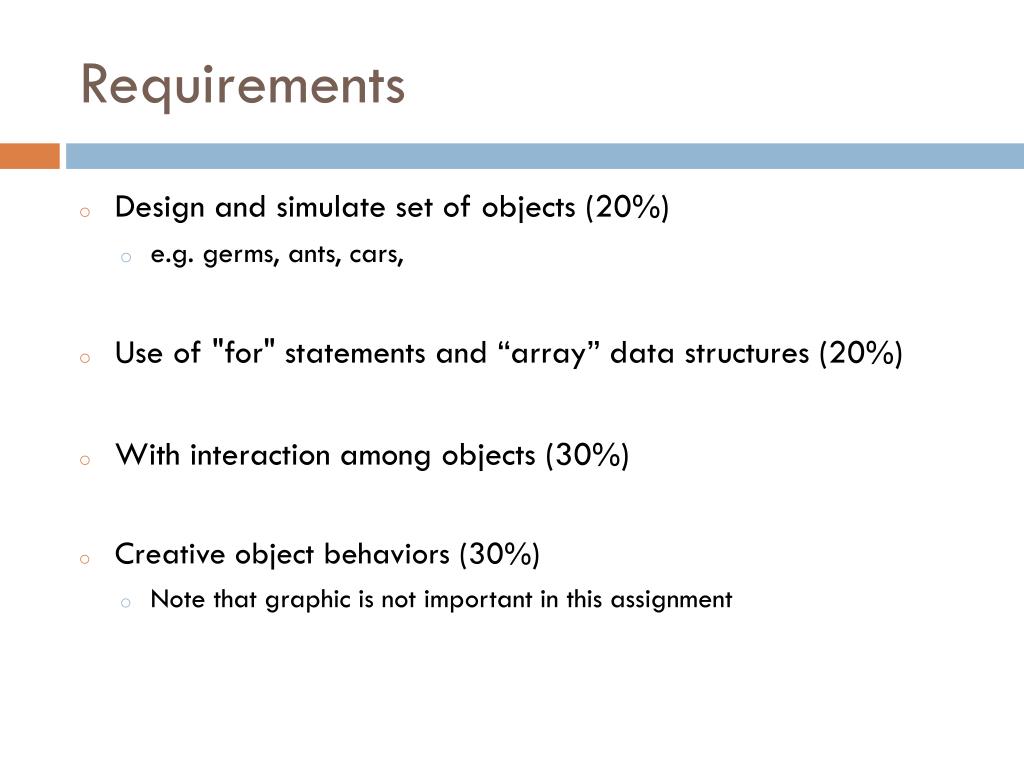

  3. Requirements • Design and simulate set of objects (20%) • e.g. germs, ants, cars, • Use of "for" statements and “array” data structures (20%) • With interaction among objects (30%) • Creative object behaviors (30%) • Note that graphic is not important in this assignment

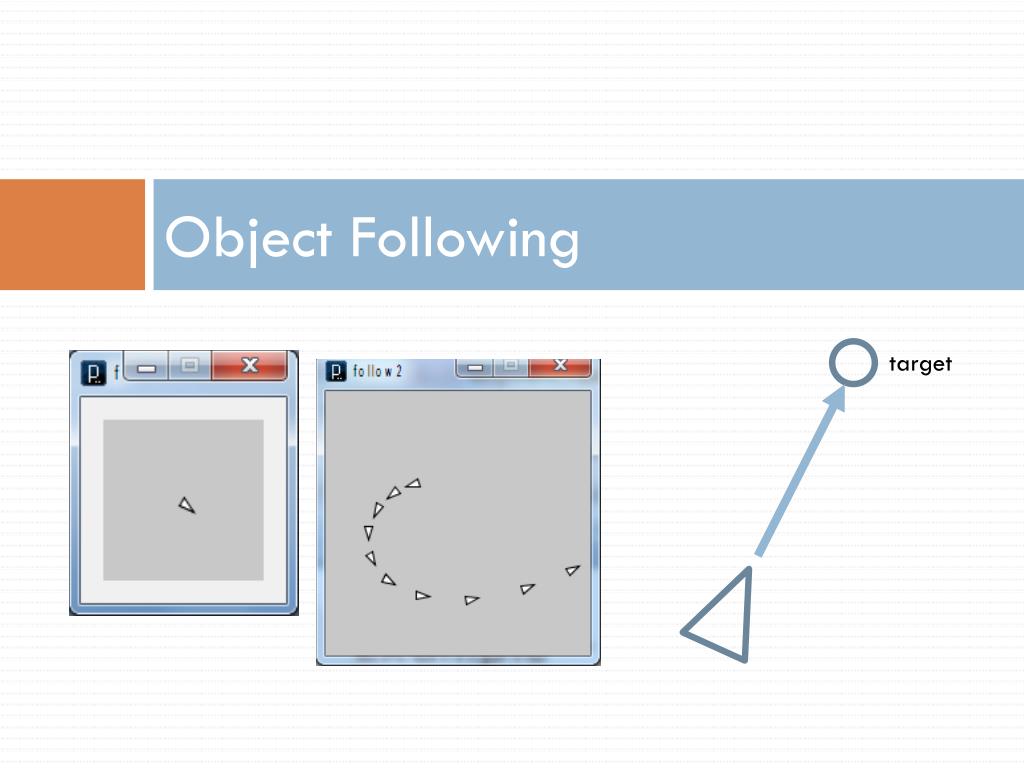

  4. Object Following target

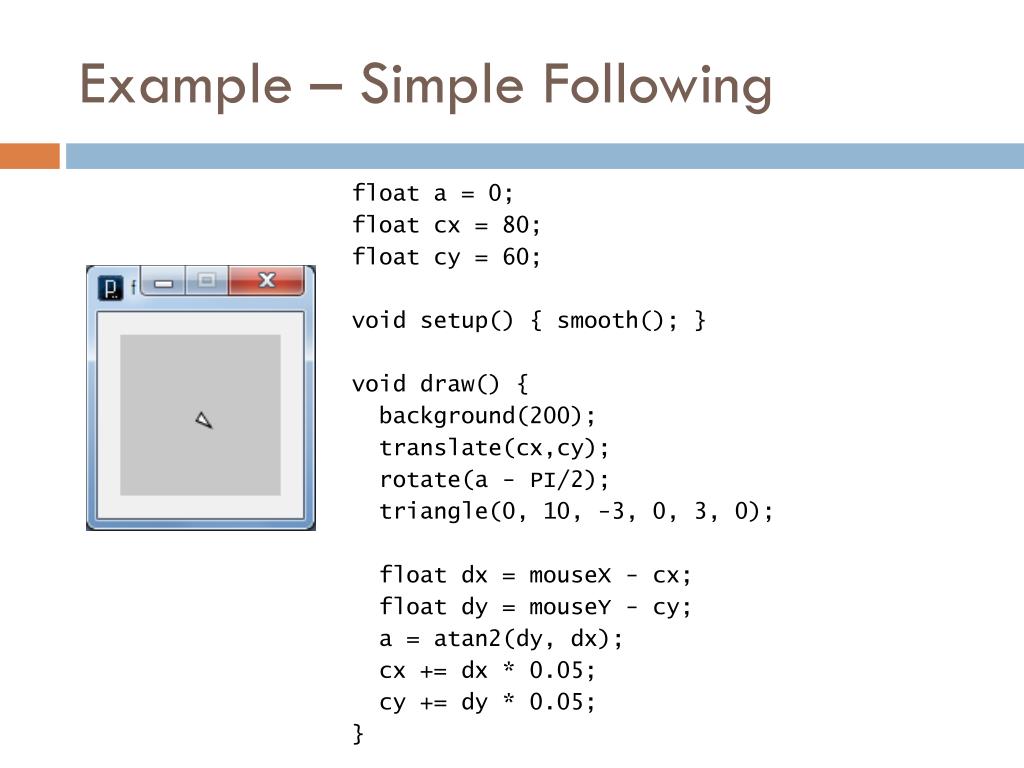

  5. Example – Simple Following float a = 0; float cx = 80; float cy = 60; void setup() { smooth(); } void draw() { background(200); translate(cx,cy); rotate(a - PI/2); triangle(0, 10, -3, 0, 3, 0); float dx = mouseX - cx; float dy = mouseY - cy; a = atan2(dy, dx); cx += dx * 0.05; cy += dy * 0.05; }

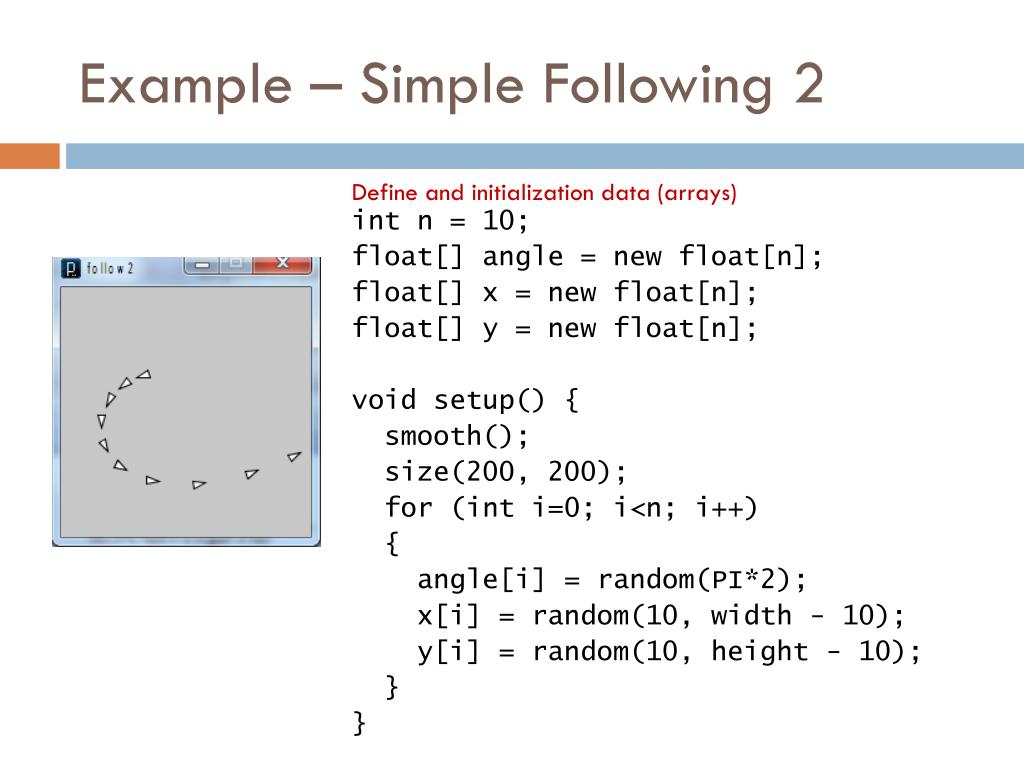

  6. Example – Simple Following 2 Define and initialization data (arrays) int n = 10; float[] angle = new float[n]; float[] x = new float[n]; float[] y = new float[n]; void setup() { smooth(); size(200, 200); for (inti=0; i<n; i++) { angle[i] = random(PI*2); x[i] = random(10, width - 10); y[i] = random(10, height - 10); } }

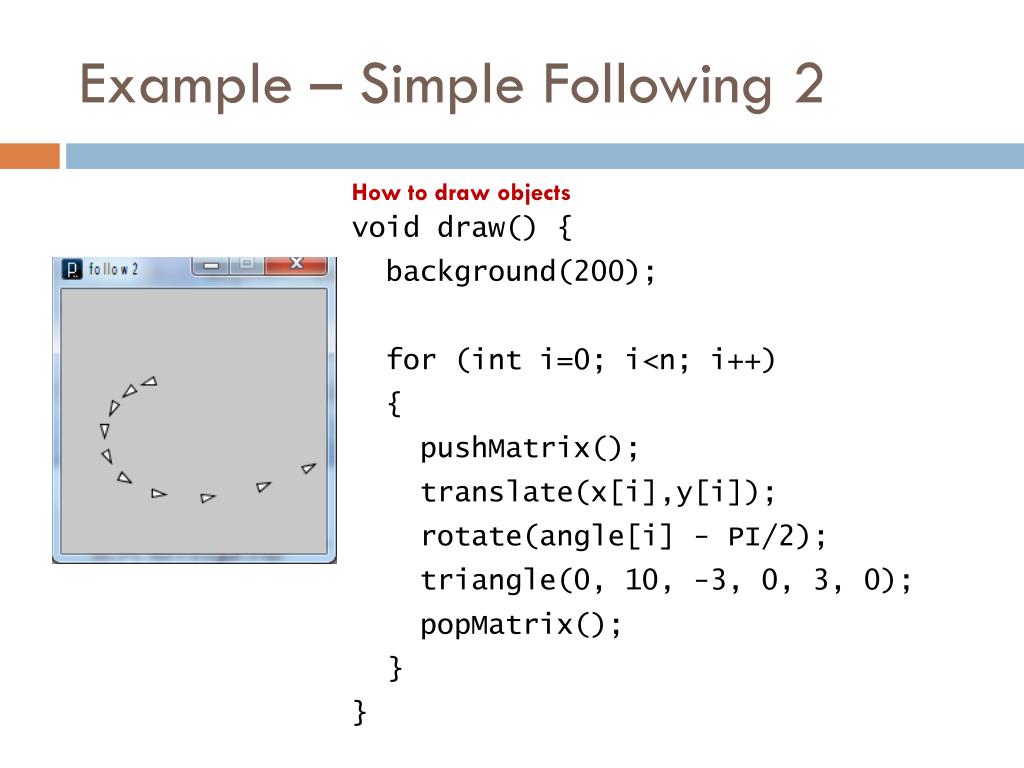

  7. Example – Simple Following 2 How to draw objects void draw() { background(200); for (inti=0; i<n; i++) { pushMatrix(); translate(x[i],y[i]); rotate(angle[i] - PI/2); triangle(0, 10, -3, 0, 3, 0); popMatrix(); } }

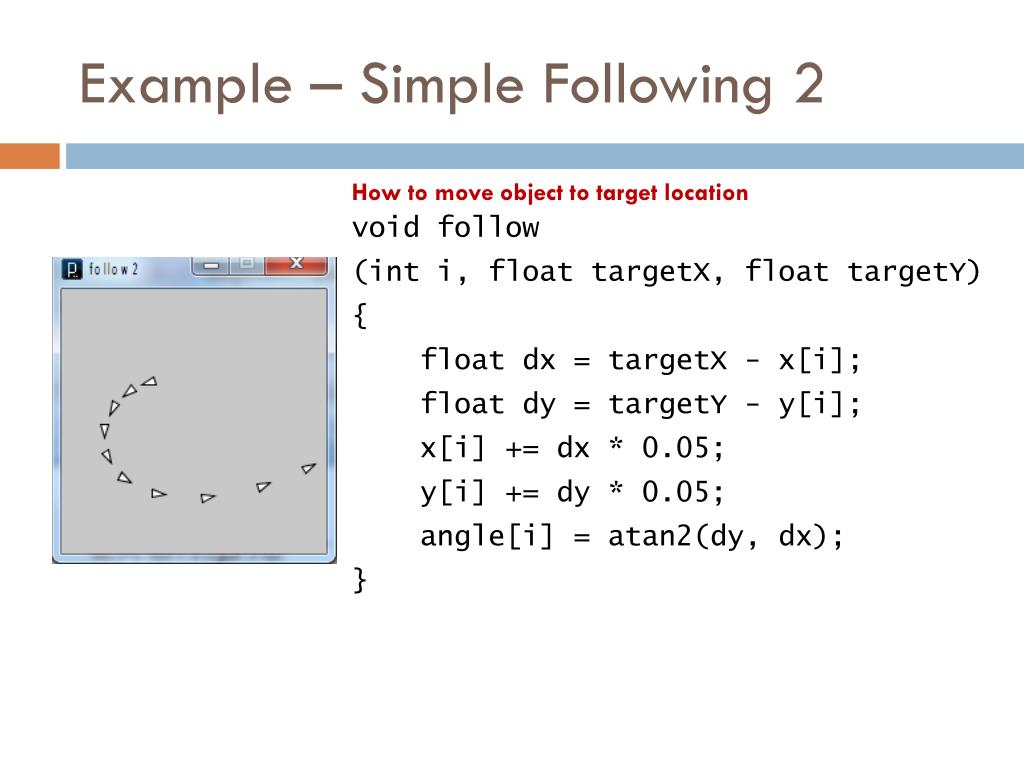

  8. Example – Simple Following 2 How to move object to target location void follow (inti, float targetX, float targetY) { float dx = targetX - x[i]; float dy = targetY - y[i]; x[i] += dx * 0.05; y[i] += dy * 0.05; angle[i] = atan2(dy, dx); }

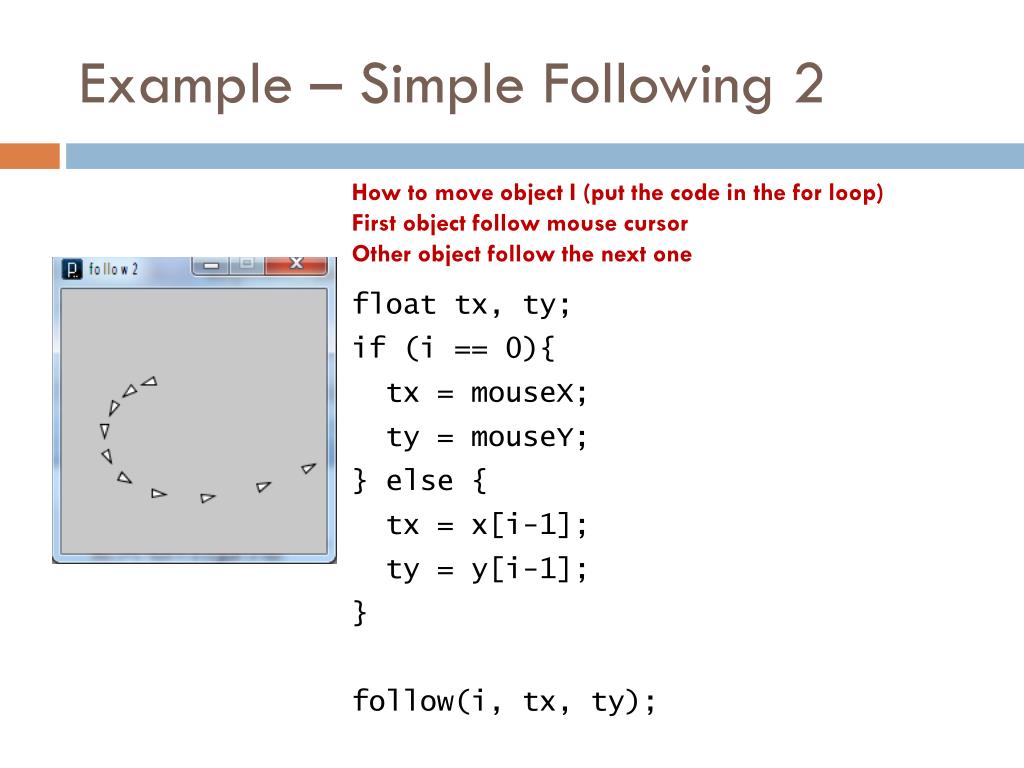

  9. Example – Simple Following 2 How to move object I (put the code in the for loop) First object follow mouse cursor Other object follow the next one float tx, ty; if (i == 0){ tx = mouseX; ty = mouseY; } else { tx = x[i-1]; ty = y[i-1]; } follow(i, tx, ty);

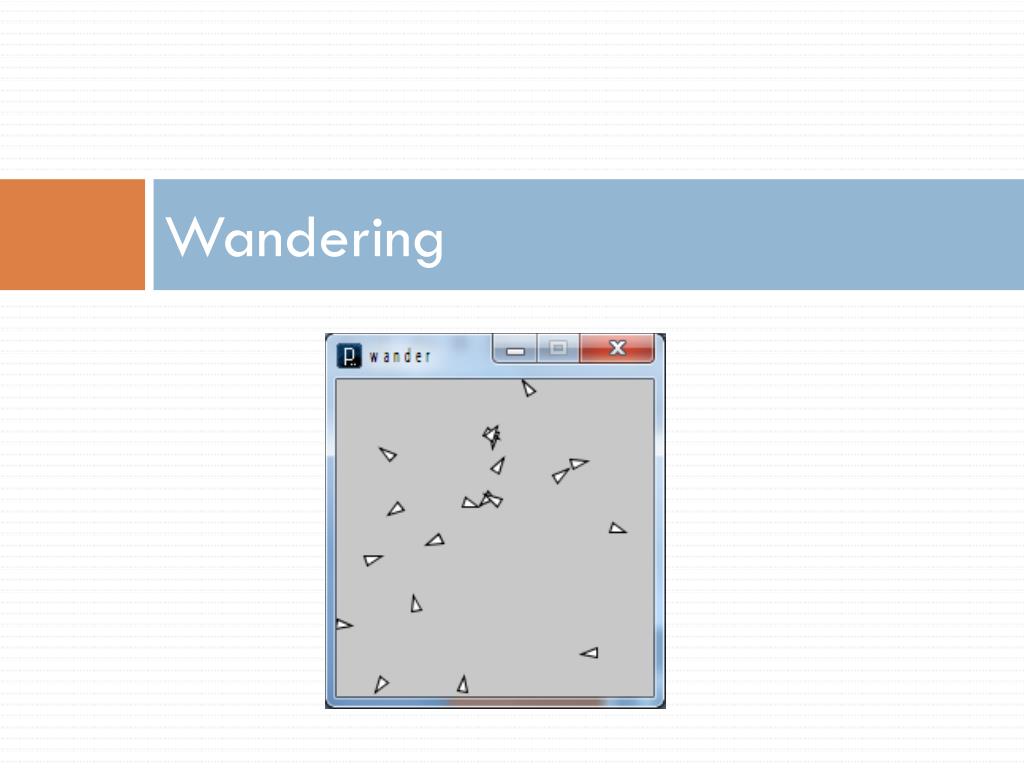

  10. Wandering

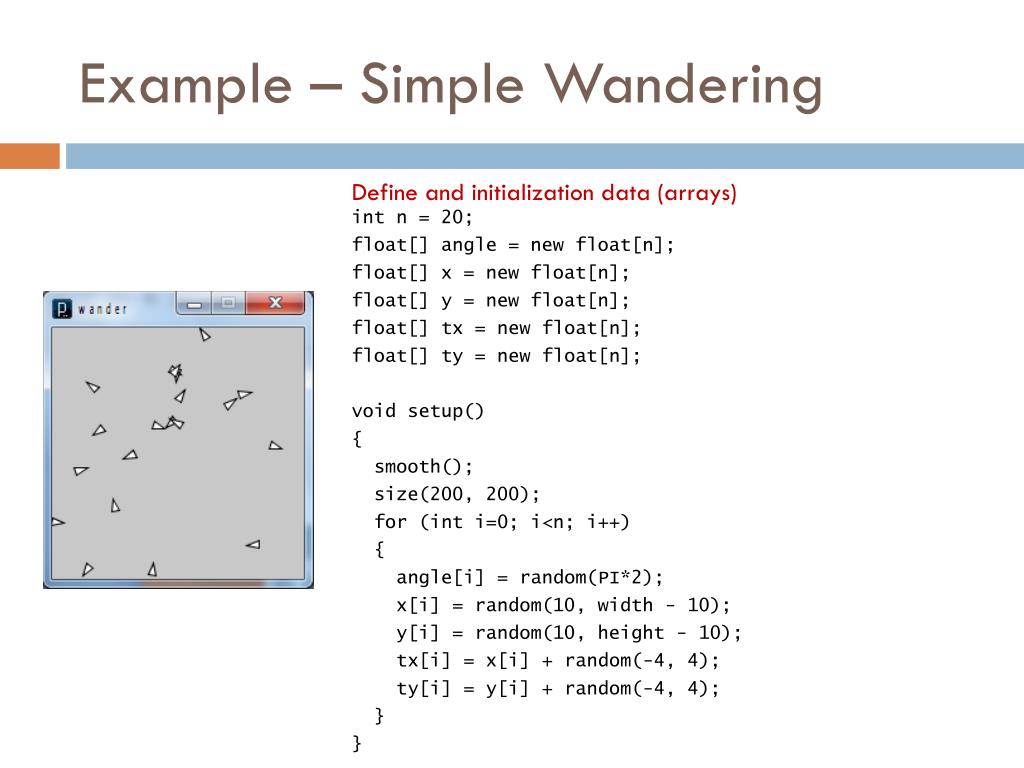

  11. Example – Simple Wandering Define and initialization data (arrays) int n = 20; float[] angle = new float[n]; float[] x = new float[n]; float[] y = new float[n]; float[] tx = new float[n]; float[] ty = new float[n]; void setup() { smooth(); size(200, 200); for (inti=0; i<n; i++) { angle[i] = random(PI*2); x[i] = random(10, width - 10); y[i] = random(10, height - 10); tx[i] = x[i] + random(-4, 4); ty[i] = y[i] + random(-4, 4); } }

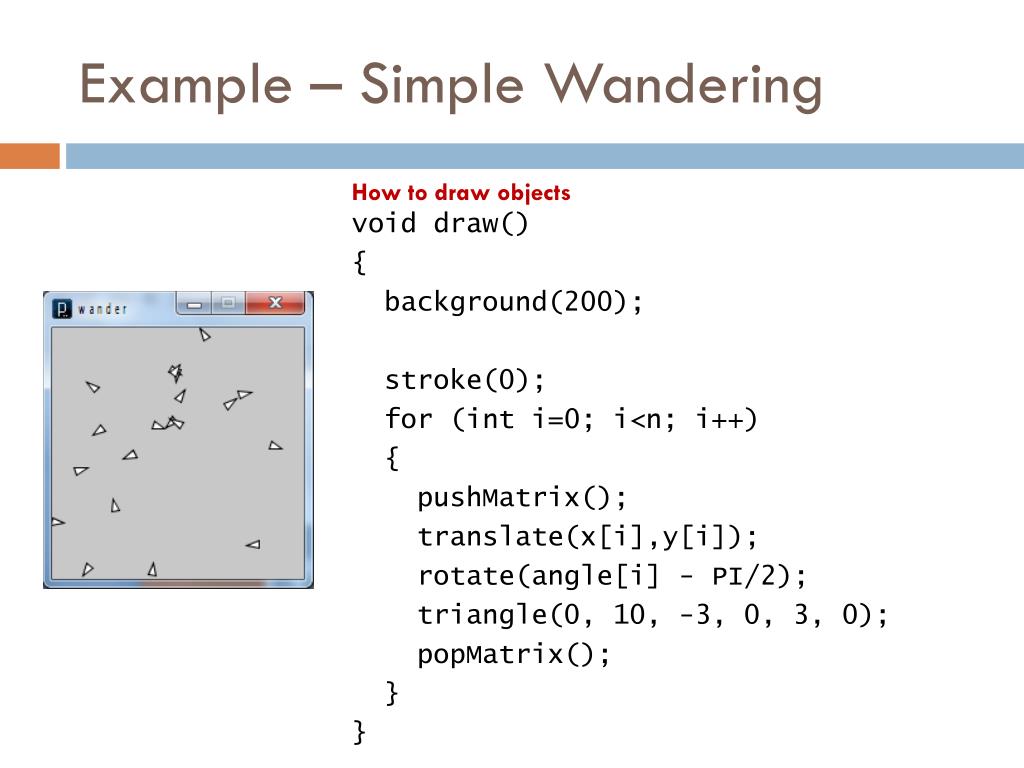

  12. Example – Simple Wandering How to draw objects void draw() { background(200); stroke(0); for (inti=0; i<n; i++) { pushMatrix(); translate(x[i],y[i]); rotate(angle[i] - PI/2); triangle(0, 10, -3, 0, 3, 0); popMatrix(); } }

  13. Example – Simple Wandering How to move object to target location void follow (inti, float targetX, float targetY, float ratio) { float dx = targetX - x[i]; float dy = targetY - y[i]; angle[i] = atan2(dy, dx); x[i] += dx * ratio; y[i] += dy * ratio; if (x[i] < 0) { x[i] = width; } if (x[i] > width) { x[i] = 0; } if (y[i] < 0) { y[i] = height; } if (y[i] > height) { y[i] = 0; } }

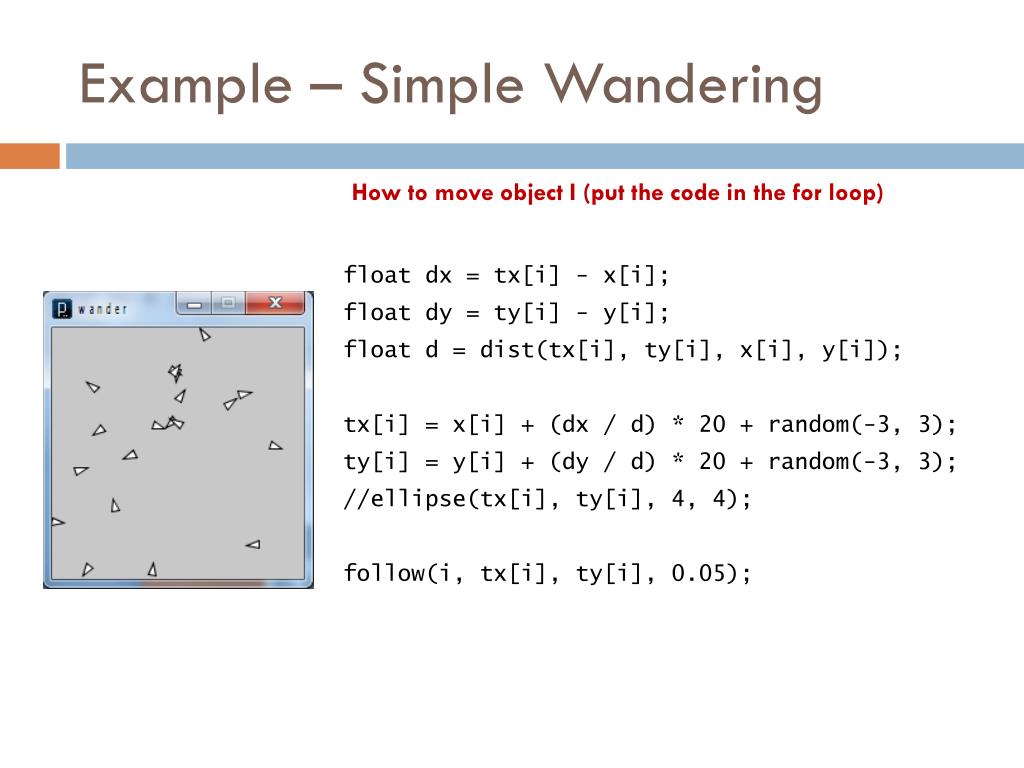

  14. Example – Simple Wandering How to move object I (put the code in the for loop) float dx = tx[i] - x[i]; float dy = ty[i] - y[i]; float d = dist(tx[i], ty[i], x[i], y[i]); tx[i] = x[i] + (dx / d) * 20 + random(-3, 3); ty[i] = y[i] + (dy / d) * 20 + random(-3, 3); //ellipse(tx[i], ty[i], 4, 4); follow(i, tx[i], ty[i], 0.05);

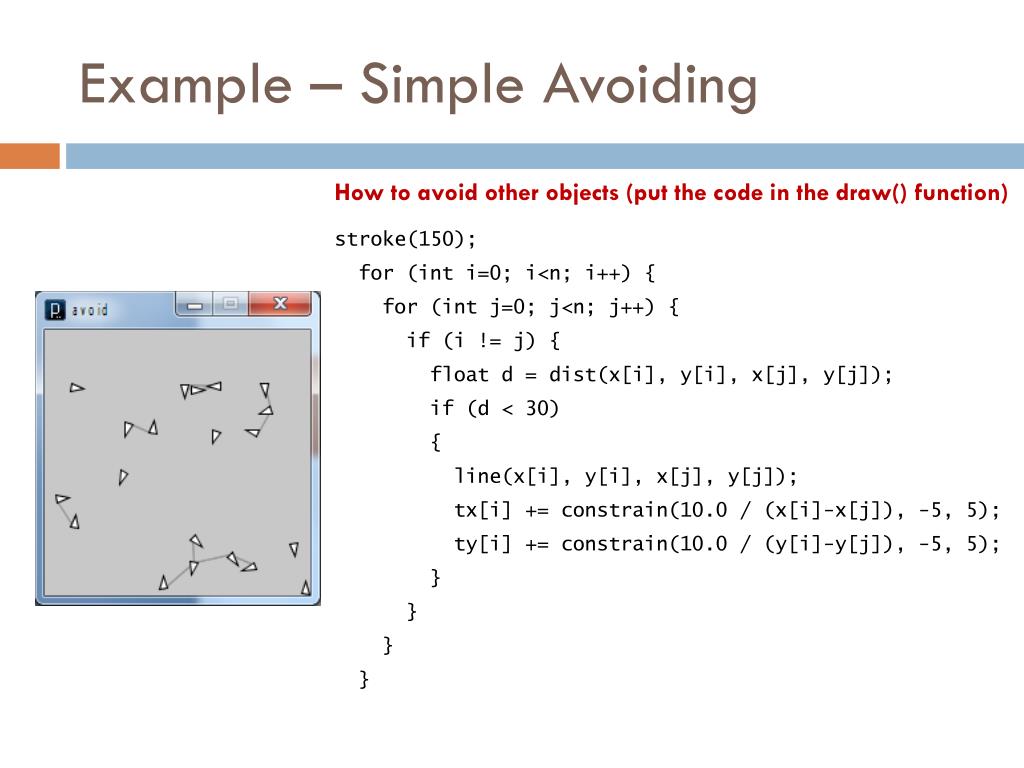

  15. Avoiding

  16. Example – Simple Avoiding How to avoid other objects (put the code in the draw() function) stroke(150); for (inti=0; i<n; i++) { for (int j=0; j<n; j++) { if (i != j) { float d = dist(x[i], y[i], x[j], y[j]); if (d < 30) { line(x[i], y[i], x[j], y[j]); tx[i] += constrain(10.0 / (x[i]-x[j]), -5, 5); ty[i] += constrain(10.0 / (y[i]-y[j]), -5, 5); } } } }

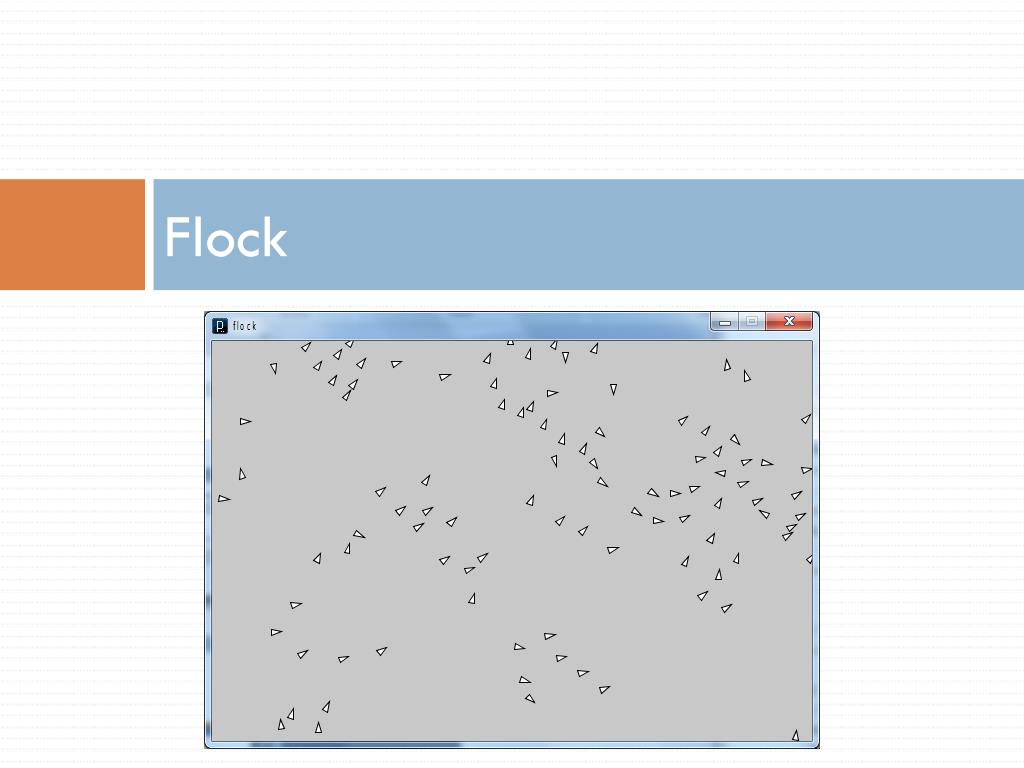

  17. Flock

  18. Example – Simple Flock How to simulate flocks (put the code in the draw() function) stroke(150); for (inti=0; i<n; i++) { for (int j=0; j<n; j++) { if (i != j) { float d = dist(tx[i], ty[i], tx[j], ty[j]); if (d < 20) // if close enough { line(tx[i], ty[i], tx[j], ty[j]); tx[i] += constrain(10.0 / (tx[i]-tx[j]), -5, 5); ty[i] += constrain(10.0 / (ty[i]-ty[j]), -5, 5); } } } }
