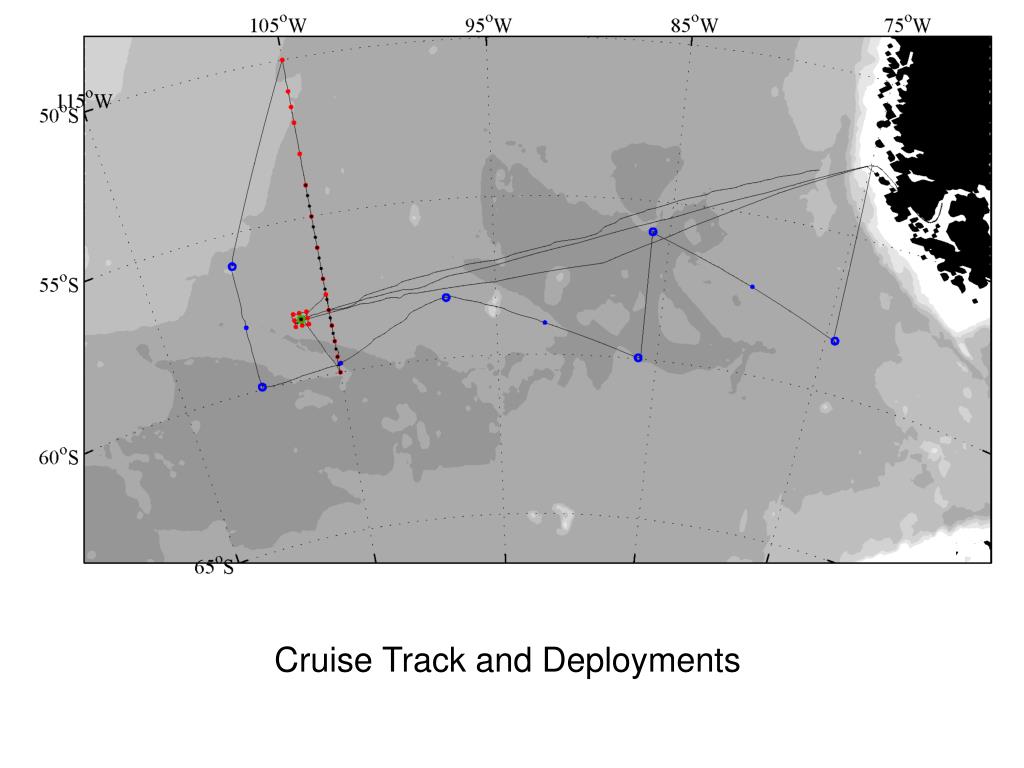

  1. Cruise Track and Deployments

  2. Typical Weather

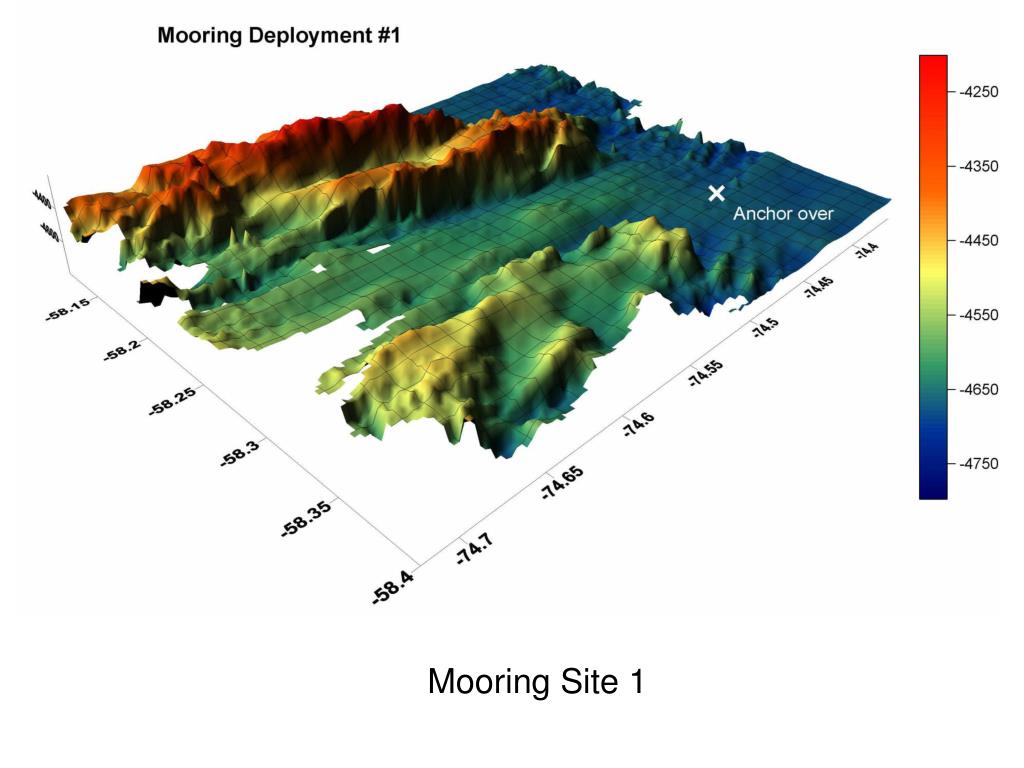

  3. Mooring Site 1

  4. Sound Source

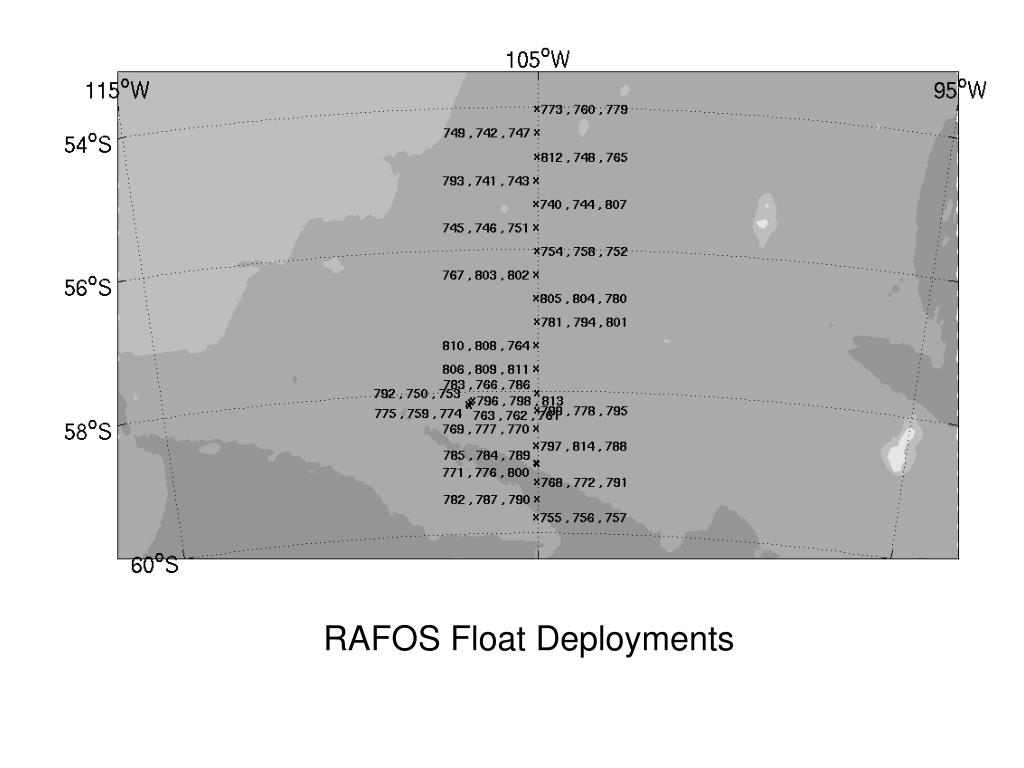

  5. RAFOS Float Deployments

  6. Drifter Deployments

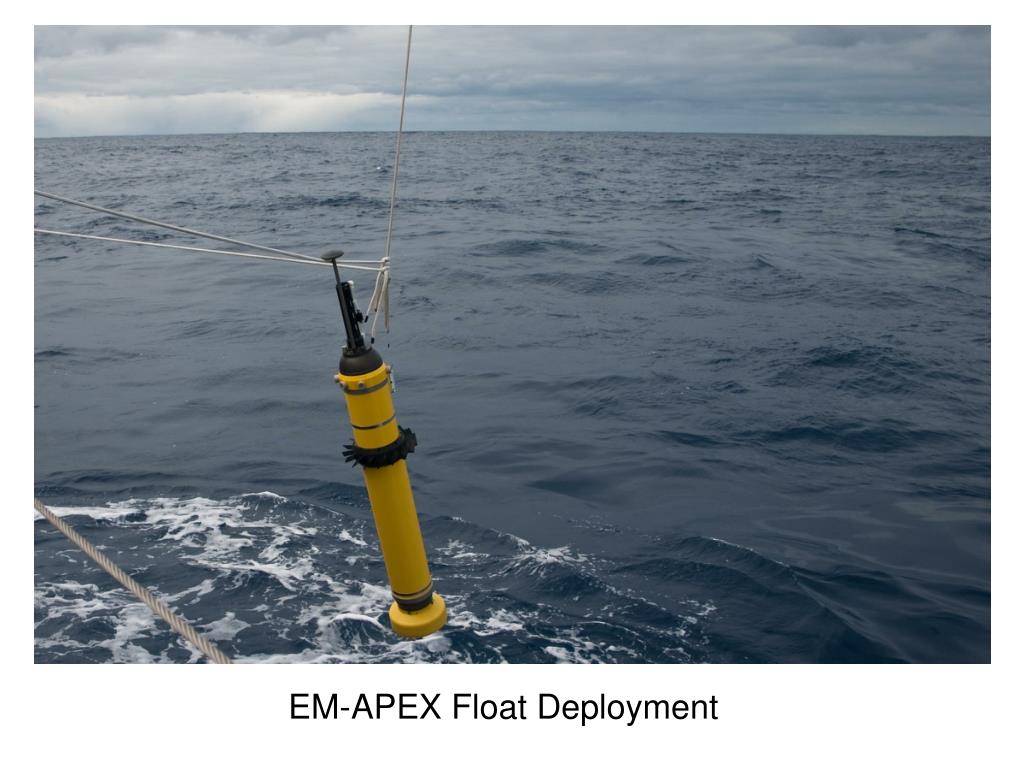

  7. EM-APEX Float Deployment

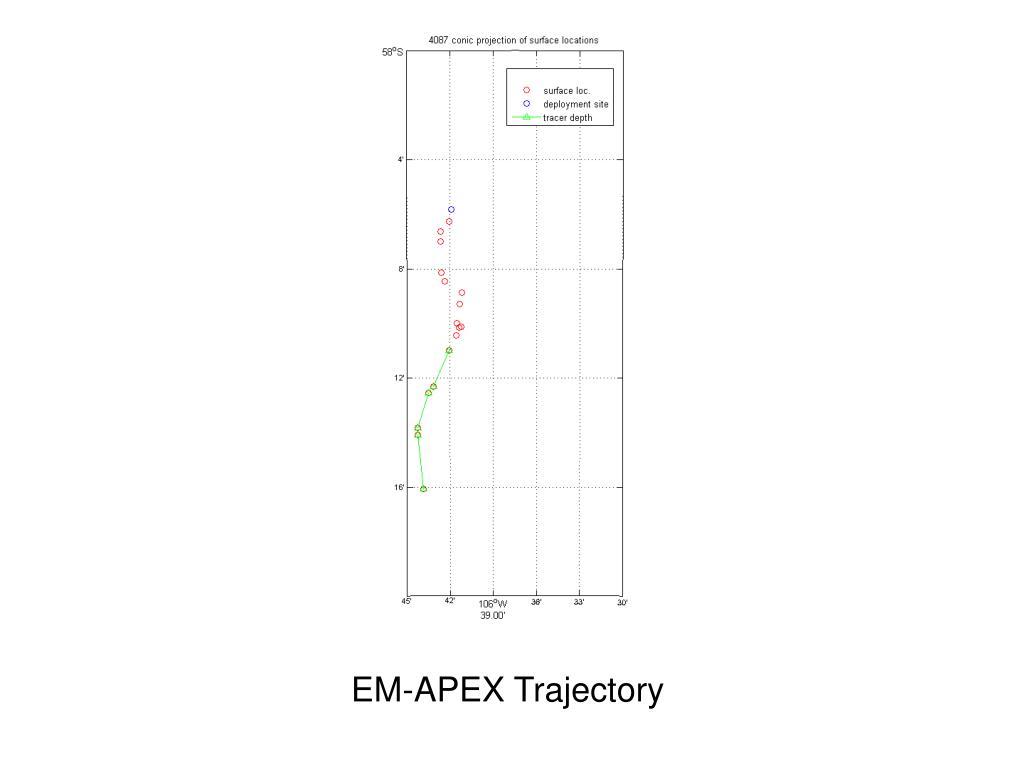

  8. EM-APEX Trajectory

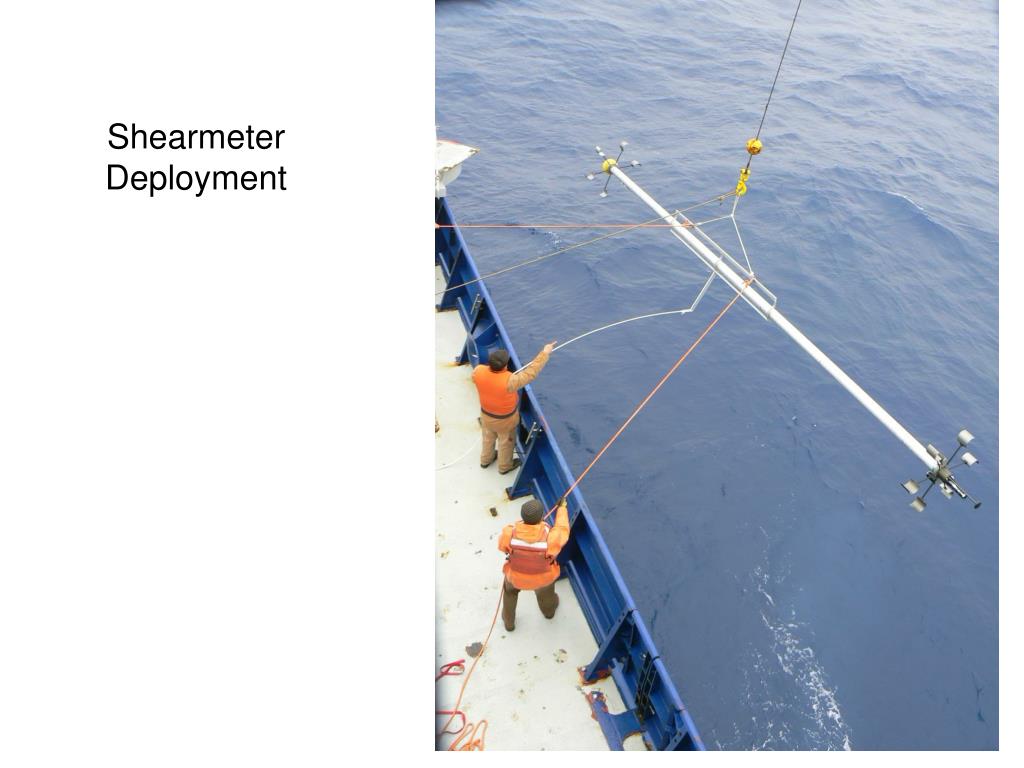

  9. Shearmeter Deployment

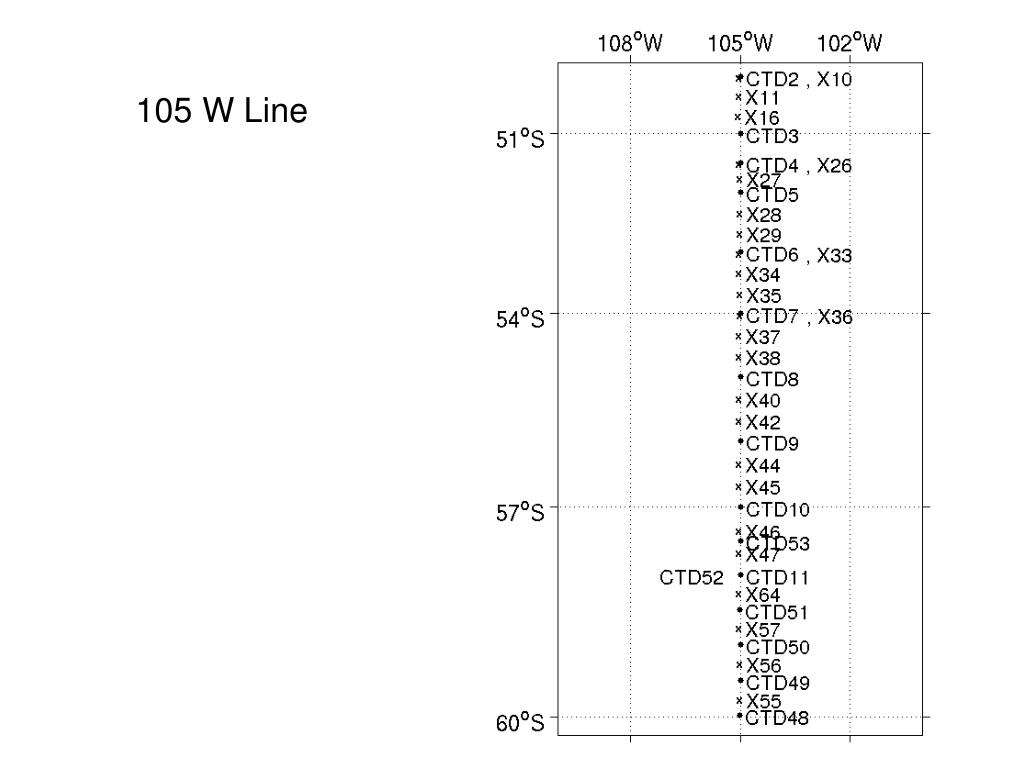

  10. 105 W Line

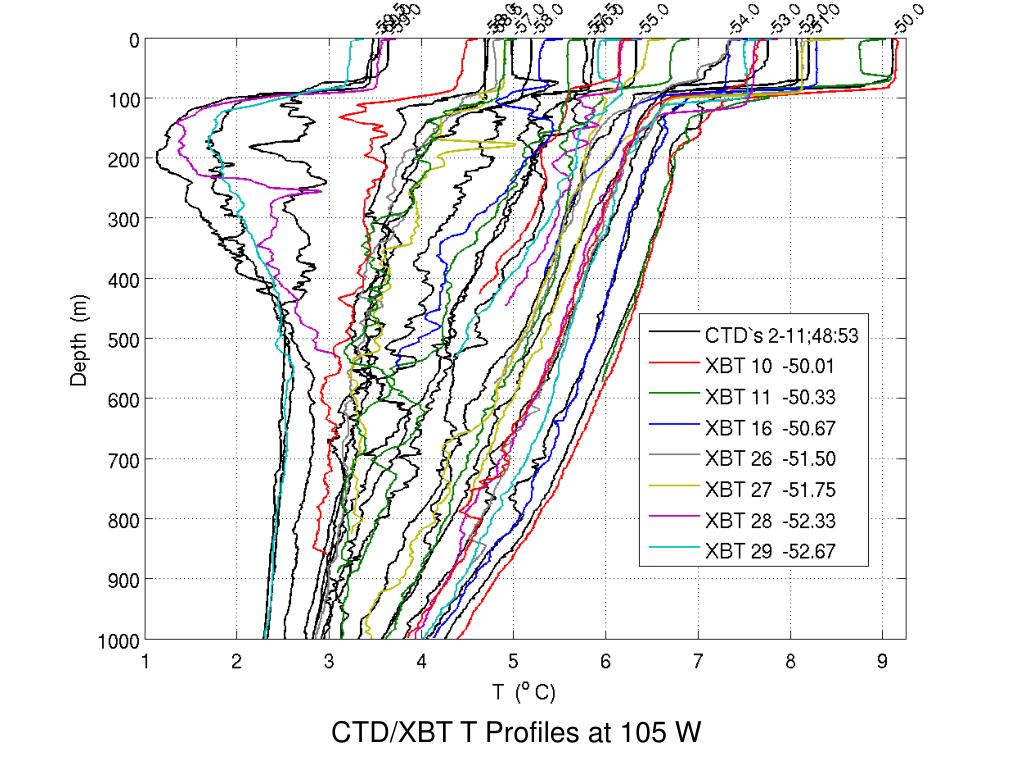

  11. CTD/XBT T Profiles at 105 W

  12. LADCP Profile Red: E-W velocity, u Green: N-S velocity, v -5 0 5 cm/s

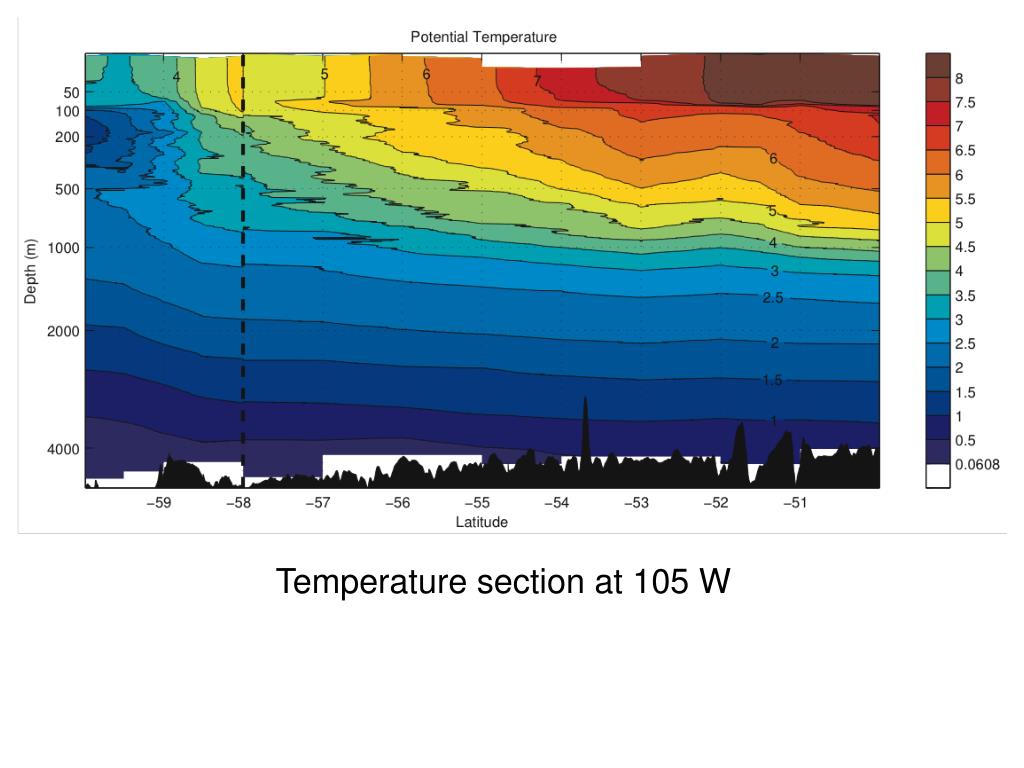

  13. Temperature section at 105 W

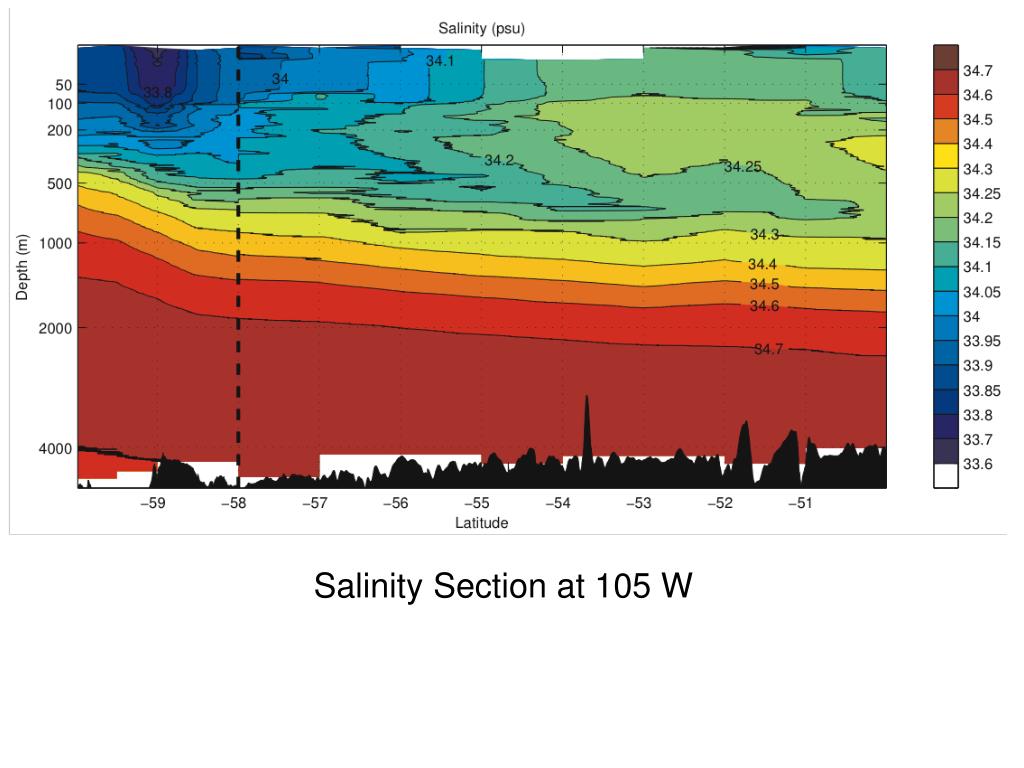

  14. Salinity Section at 105 W

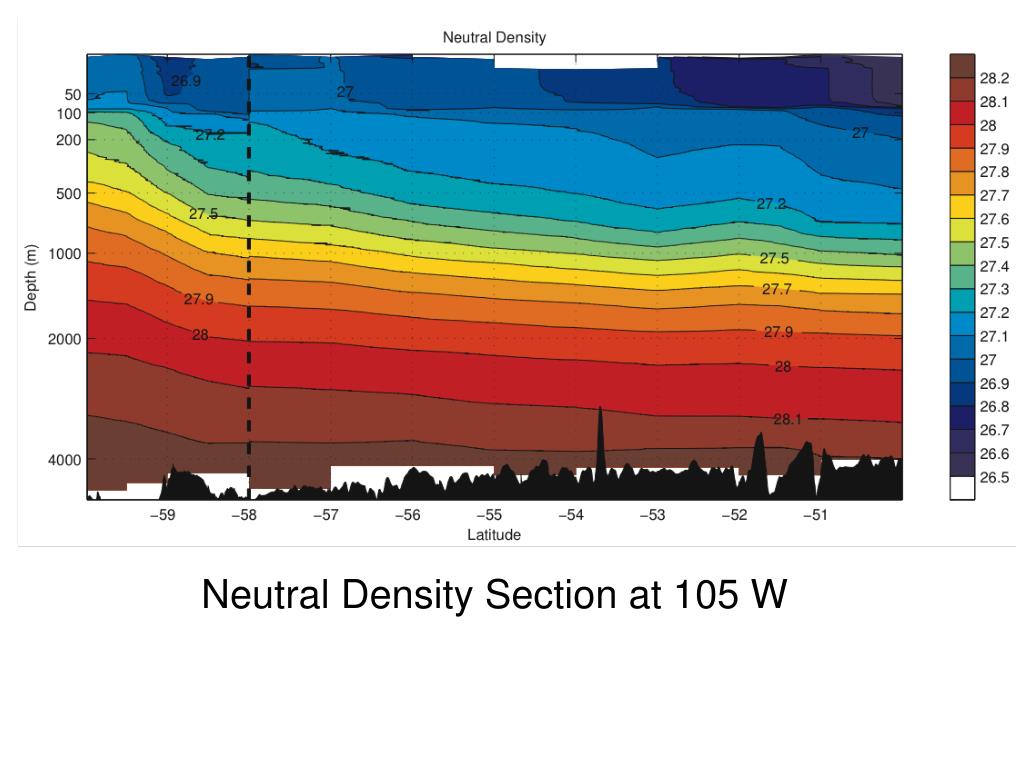

  15. Neutral Density Section at 105 W

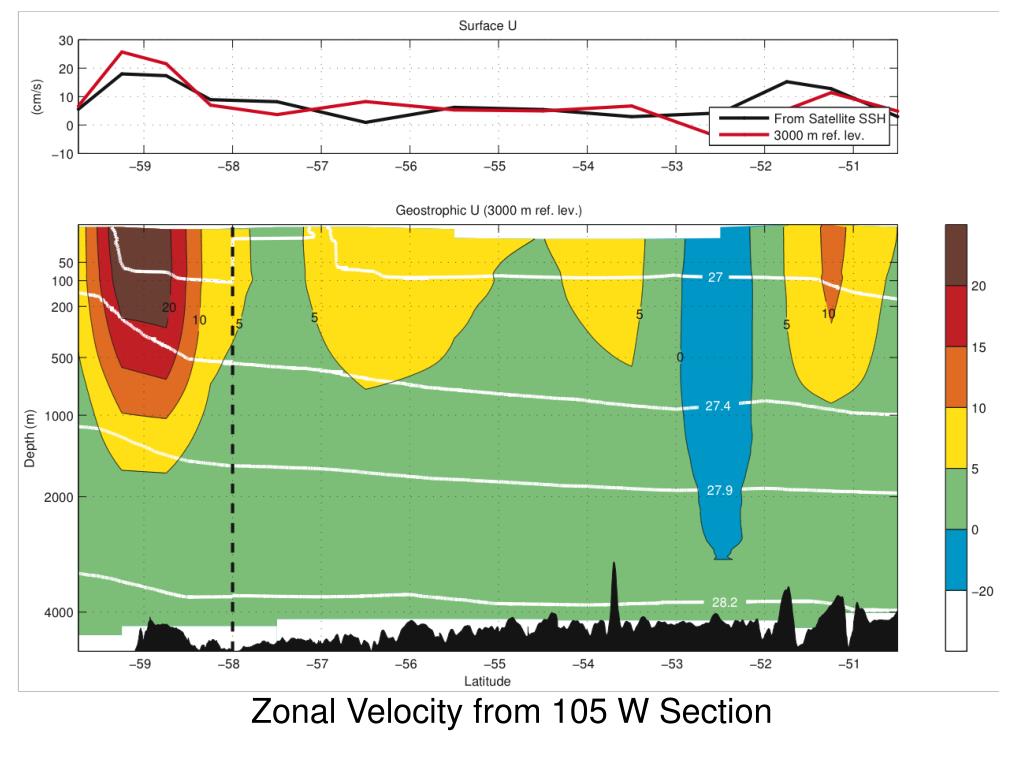

  16. Zonal Velocity from 105 W Section

  17. Sea Surface Height, 8 Feb 2009

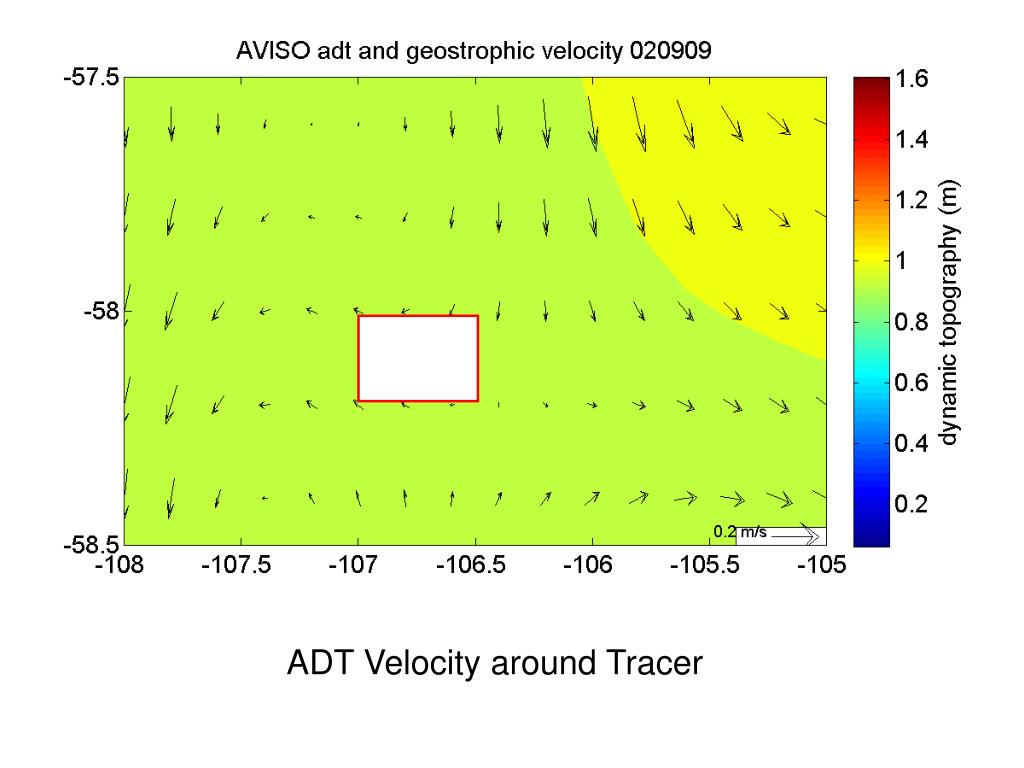

  18. ADT Velocity around Tracer

  19. ADCP/Satellite comparison 1

  20. ADCP/Satellite Comparison 2

  21. Velocity Estimates from CTD Box Survey

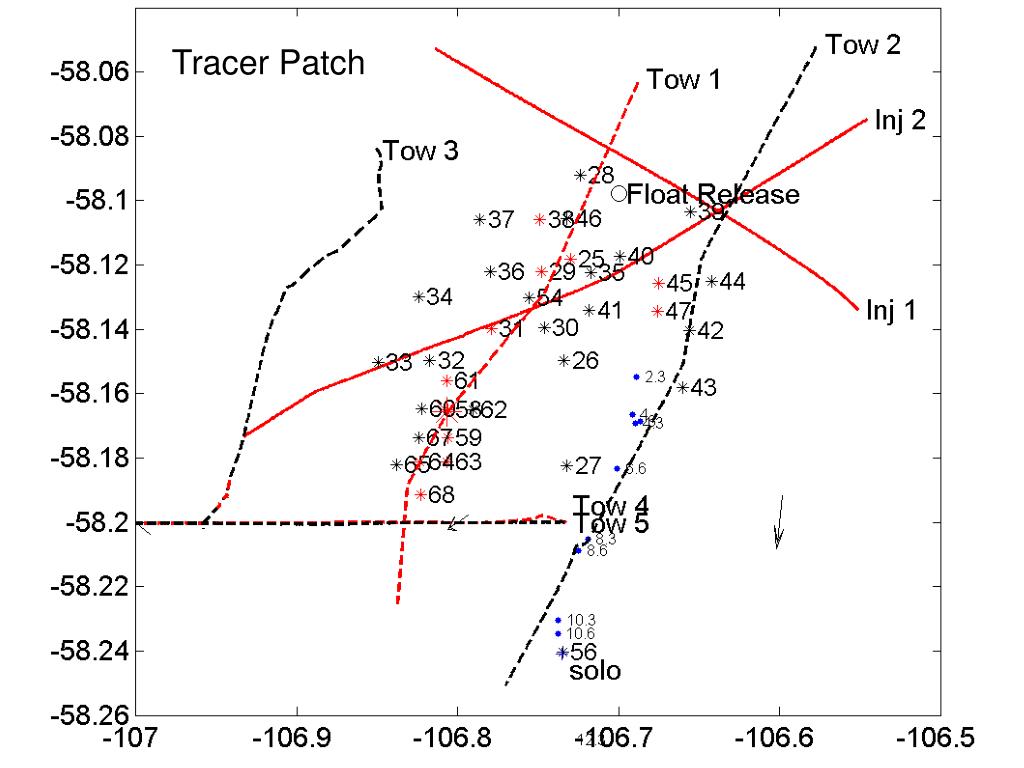

  22. Tracer Patch

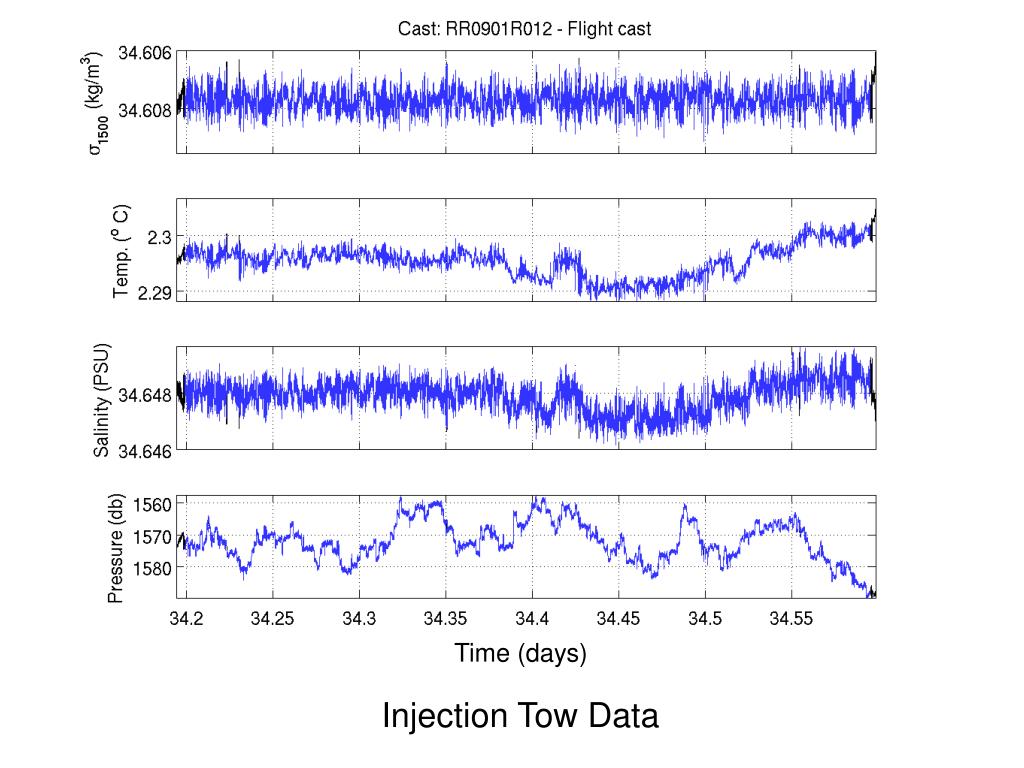

  23. Time (days)‏ Injection Tow Data

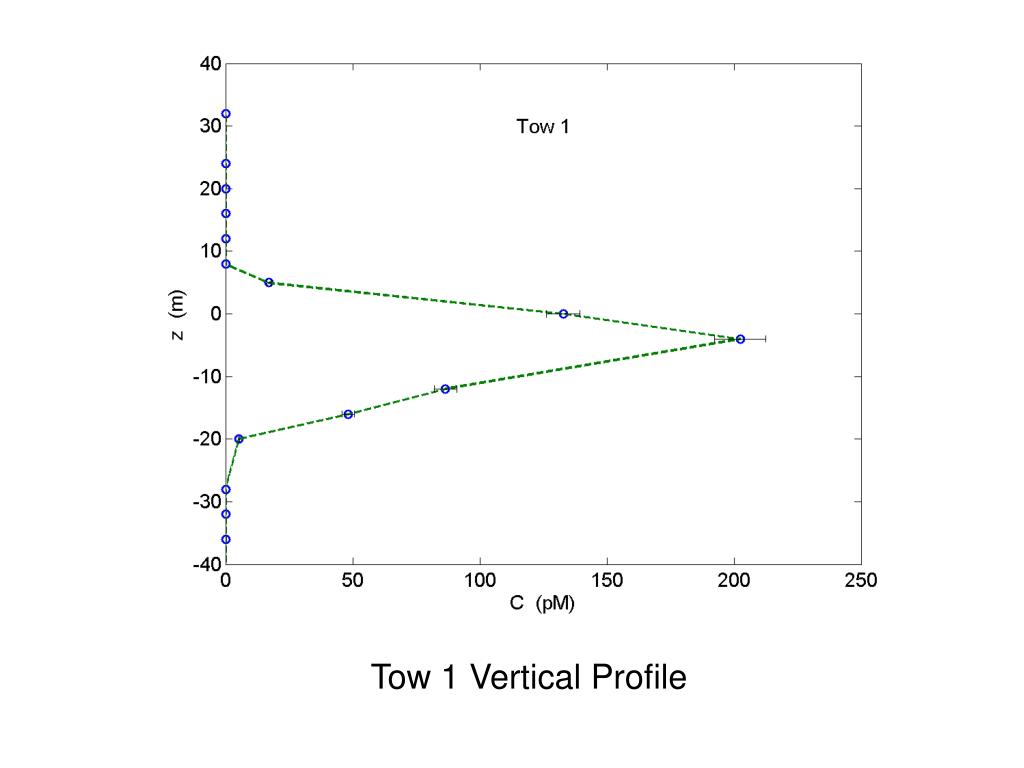

  24. Tow 1 Vertical Profile

  25. Tow 2 Vertical Profile

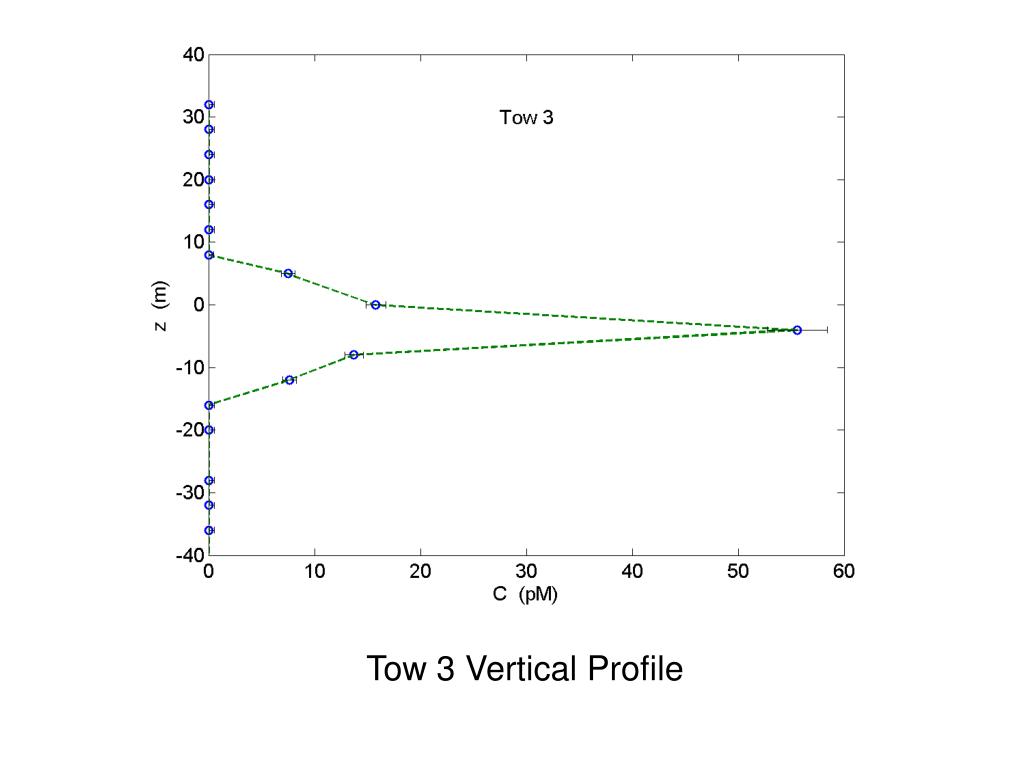

  26. Tow 3 Vertical Profile

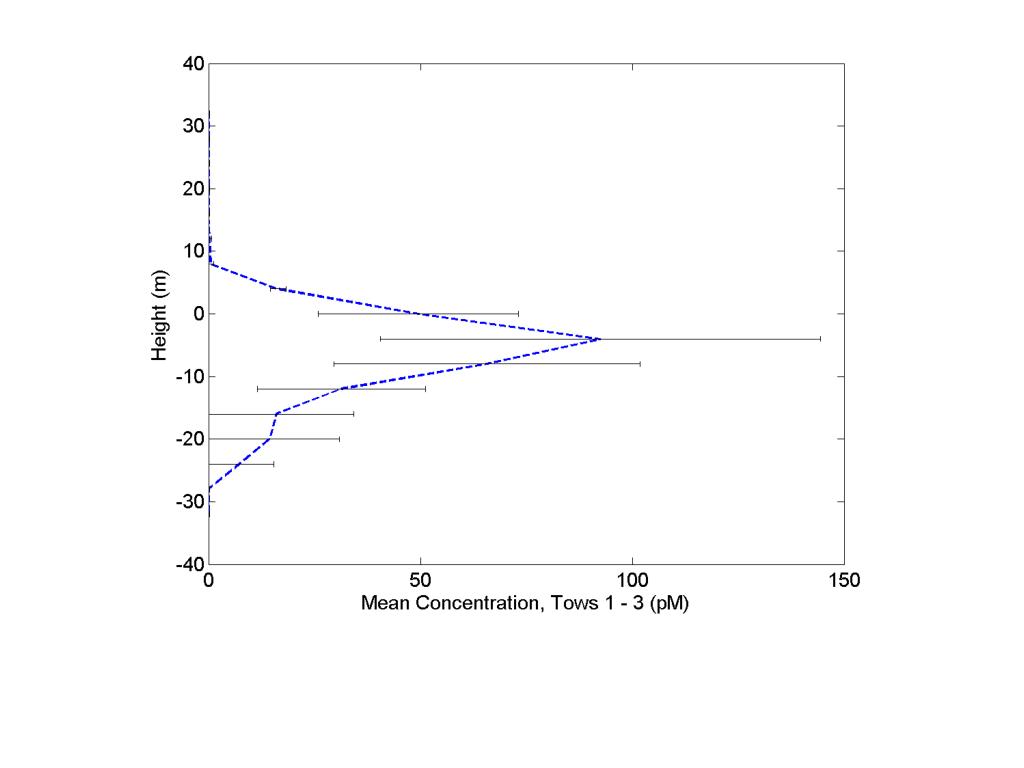

  27. Mean Tow Profile

  28. CTD Cast 29 Profile

  29. CTD Cast 38 Profile

  30. CTD Cast 47 Profile

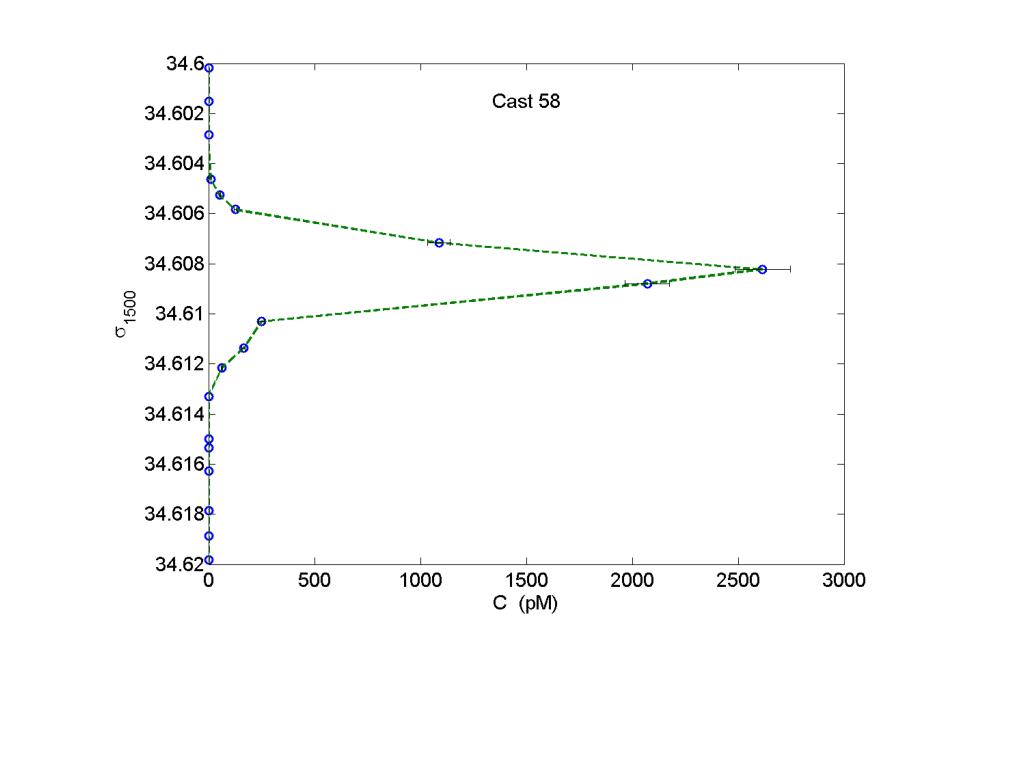

  31. CTD Cast 58 Profile

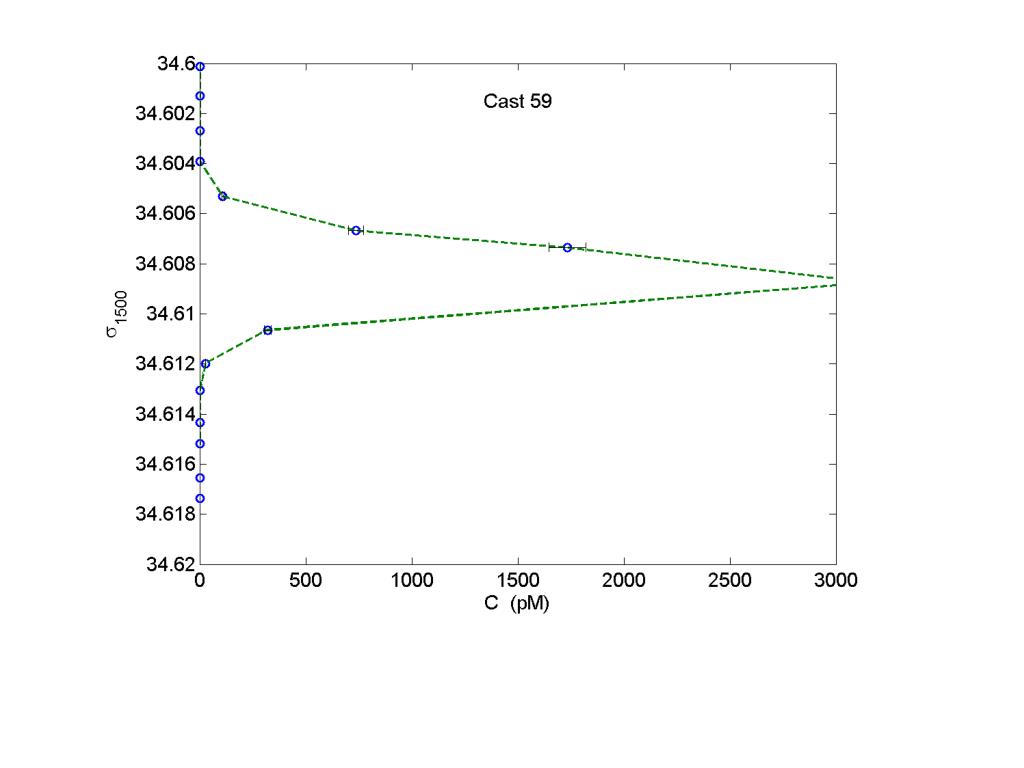

  32. CTD Cast 59 Profile

  33. CTD Cast 61 Profile

  34. CTD Cast 63 Profile

  35. CTD Cast 64 Profile

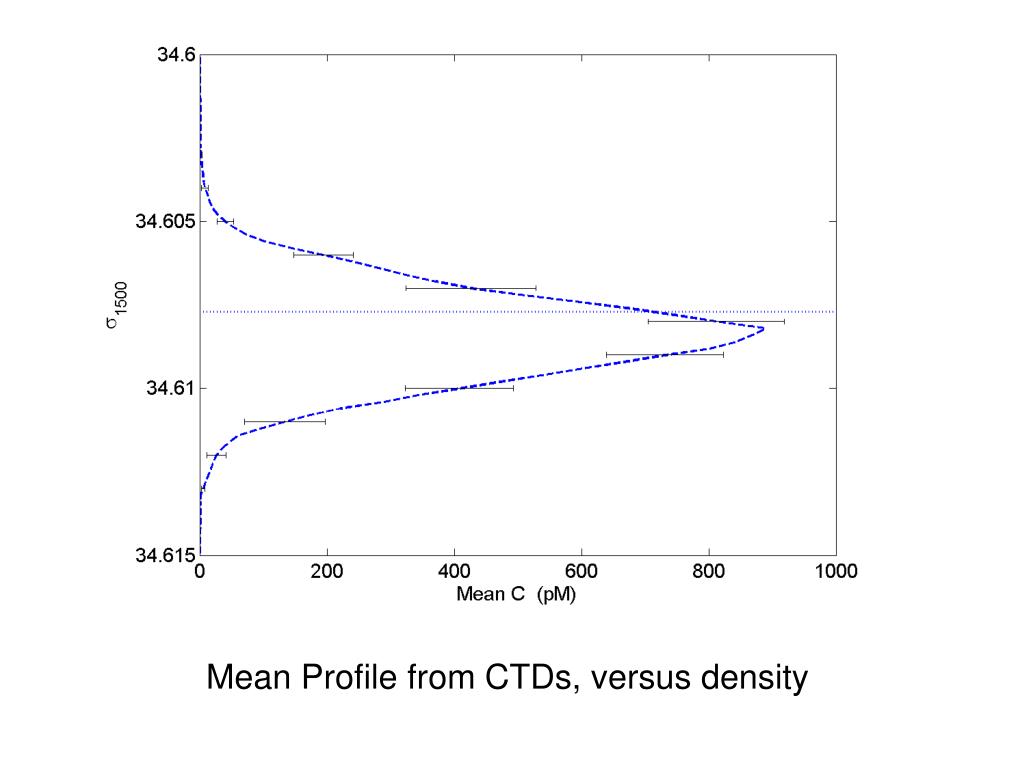

  36. Mean Profile from CTDs, versus density

  37. Mean density versus depth

  38. Mean Tracer Profile versus Depth
