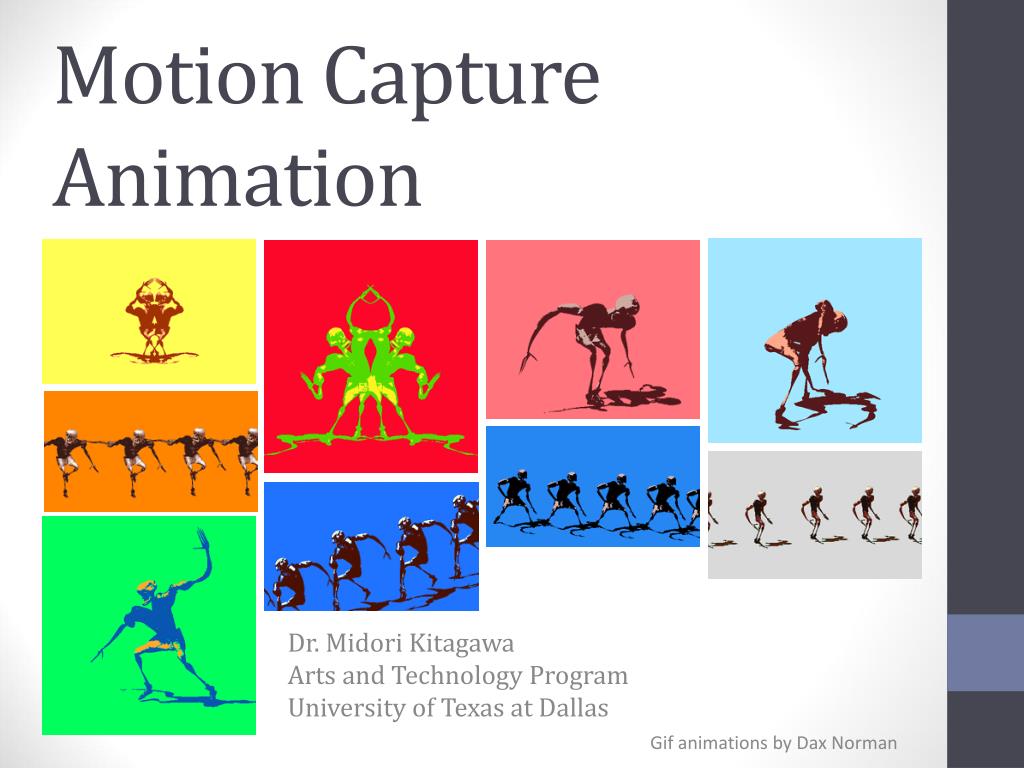

  1. Motion Capture Animation Dr. Midori Kitagawa Arts and Technology Program University of Texas at Dallas Gif animations by Dax Norman

  2. What is Mocap? • Motion capture (mocap) is sampling and recording motion of humans, animals, and inanimate objects as 3D data. • The data can be used to study motion or to give an illusion of life to 3D computer models.

  3. Applications • Entertainment • Medicine / Sports • Arts / Education • Science / Engineering

  4. Entertainment: Live Action Films

  5. Entertainment: 3D computer animations

  6. Entertainment: Video Games

  7. Medicine / Sports • Medicine (e.g., gait analysis, rehabilitation) • Sports (e.g. injury prevention, performance analyses, performance enhancement)

  8. Arts / Education • Dance and theatrical performances • Archiving (e.g., Marcel Marceau) OSU/ACCAD

  9. Science / Engineering • Engineering (e.g., biped robot developments) • Computer Science (e.g., human motion database, indexing, recognitions) • Design (e.g., ergonomic product design) • Military (e.g., field exercises, virtual instructors, and role-playing games)

  10. Mocap animation • Motion capture animation is different from keyframe animation in terms of how motion is created. • Same principles of animations apply to mocap animation & keyframe animation! • Combination of motion capture animation and keyframe animation is often used.

  11. Keyframe animation • Keyframe is a drawing of a key moment in an animated sequence, where the motion is at its extreme. • Inbetweens fill the gaps between keyframes. • Every motion is created by animators.

  12. Advantages of mocap animation • Faster to create (only if an established production pipeline exists.) • Secondary motions and all the subtle motions are captured. -> more realism • Physical interactions between performers and props can be captured. -> more realism

  13. Disadvantages of mocap animation • Cost. • Manipulating mocap data is often difficult -> Re-capturing or key framing a shot with bad data is often easier. • Mapping mocap data of a performer to a 3D character with a different proportion may cause issues.

  14. Popular types of mocap equipment • Magnetic systems • Mechanical systems • Optical systems

  15. Magnetic systems • Utilize sensors placed on the body to measure the magnetic field generated by a transmitter source.

  16. Magnetic systems •  Require no special lighting condition. •  Sensors are never occluded. • X Affected by electromagnetic force.

  17. Mechanical systems • Exoskeleton with angle sensors.

  18. Mechanical systems •  Measure joint angles (no marker ID problems). •  Sensors are never occluded. • X Breakable! • X Configuration of sensors is fixed. • X Constrains on joints.

  19. Optical systems • The cameras are equipped with infrared LED's and filters. • The cameras see reflector markers.

  20. Optical systems •  Higher sampling rate. •  Larger capture space. • X Markers are sometimes occluded -> marker ID problems. • X Provide only positional data -> joint angles need to be computed.

  21. Mocap system at UTD • Vicon optical system • 8 high-speed MX 13 (up to 10,000 fps) and 8 high-resolution MX 40 (4 megapixels) cameras. • Capture up to 5 performers at once.

  22. Mocap animation courses Graduate level: ATEC 6352 & UG level: ATEC 4345 • Group project based • Group of 3 to 5 members • Semester long project Pre-requisite: • ATEC 3317 Modeling and texturing OR • ATEC 3327 Lighting and composition Recommended: • ATEC 3328 Rigging I • ATEC 4337 Computer Animation

  23. Mocap animation pipeline Preproduction Capture -> data cleaning -> retargeting Modeling -> rigging ----------------------------- mocap animation Keyframe animation Effect animation Sound design Texturing/lighting -> Rendering -> Composition Post-production * Tasks that everyone should be involved. * Tasks that can be designated to a member or members.

  24. 2D Image -> 2D Camera Data -> 3D Markers Positions -> Trajectories -> Recon Skeleton -> Solver Skeleton System Calibration and Capturing and Processing Data FBX Reconstruction Triangulation Circle fitting Skeleton with subject’s size & proportion and motion data BLADE Subject Calibration VSK MOTION BUILDER VST(subject template) • Capture Range of Motion (ROM) • Reconstruct trajectories of ROM • Label markers Skeleton with subject’s size & proportion Mocap Pipeline Flow Chart Character Setup The processes that you go through for each character • Correlate : • Character • & • Character • (FBX) • Edit motion • Bake motion data to the skeleton FBX Character Setup • Create a skeleton • Bind skin to the skeleton • Rig the character Skeleton with 3D character’s size & proportion (and skin) MAYA The processes that you repeat for each shot Rendering FBX • Marge the rigged character (MB) and the skeleton with motion data (FBX) • Edit motion (IK/FK blend, Trax) • Render MB Skeleton with motion data & 3D character’s size & proportion Maya Scene File

  25. Dr. Midori Kitagawa midori@utdallas.edu ATEC 1.909
