1. Consensus Fold Recognition Methods Dongbo Bu School of Computer Science University of Waterloo Joint work with S.C. Li, X. Gao, L. Yu, J. Xu, M. Li Nov. 2006

2. Outline • Background • Consensus Prediction Methods • ACE7: consensus method by identifying latent servers • Experimental Results • Future Work

3. Background

4. From sequence to structure • The Rate Gap • gene prediction is fast, • but experimental structure determination is slow • The First Principle • Sequence almost determine structure • CASP Competition • A fair and objective examination motivation Computational Methods possibility benchmark

5. Homologous Modeling --- sequence-sequence alignment

6. Threading---sequence-structure alignment

7. Ab initio--- database independent

8. Why Consensus? • Observation: • no single server can reliably predict the best models for all the targets. • a particular structure prediction server may perform well on some targets, but badly on others. • A natural idea to solve this issue: • to combine the strengths of different prediction methods to obtain better structural models.

9. What is Consensus Method?

10. Formal Description • Notations: • Target: the query protein sequence • Server: implementation of a prediction method • Model: a predicted structure

11. Classical Consensus Methods

12. Research History • Early exploration of consensus idea: • Consensus many methods in one server. • INBGU (SHGU) D. Fischer 2000 • 3D-PSSM (Phyre) L. Kelly 2000 • The first consensus server • CAFASP-CONSENS: D. Fischer 2001 • Successors: • Pcons/Pmodeller J. Lundstrom, A. Elofsson 2001 • 3D-Jury K. Ginalski, A. Elofsson 2003 • 3D-Shotgun D. Fischer 2003 • ACE L. Yu, J. Xu, M. Li 2004

13. Three-step Process • Step1: Model Comparison • determine model similarities • Step2: Feature Extraction • formal description of a model • Step3: Model Selection • select a model, or part of it. • Many machine learning techniques were introduced in the 3rd step.

14. 3D-Shotgun: Majority Voting • Basic Idea: • Reminiscent of “cooperative algorithms” • Five Input Servers: • GONP, GONPM, PRFSEQ, SEQPPRF, SEQPMPRF • Step 1. Model Comparison • For each initial model, to find models with LOCAL similarity.

15. 3D-Shotgun (cont) • Step 2. Feature Extraction • For each model M, superimpose similar models upon M, • Using the shared similarity to compute transformation • Build a multiple structure alignment A(M) as a result, • Feature: • the number of models share structural element with A(M).

16. 3D-Shotgun (cont) • Step 3. Selection • Majority Voting • Choose the structural element with the highest count. • The underlying rationale: • The recurring structural elements are most likely to be correct.

17. Confidence Assignment • For each assembled model M’, a confidence score S’ is given as follows: • Here, • k,l run over all the input models • S_{k,l} is the confidence score given by the individual server • Sim() adopts MaxSub.

18. Performance of 3D-Shotgun

19. CAFASP-Consensus and Pcons: Neutral Network • Step 1. Model Comparison • CAFASP-Consensus: check SCOP id, or run MaxSub • Pcons: LGScore2 to detect similarity • Step 2: Feature Extraction • CAFASP-Consensus: number of similar models • Pcons: ratio of the similar models weighted f1 ratio of the similar 1st model

20. CAFASP-Consensus and Pcons: (cont) • Step 3. Model Selection • Formulated into a machine learning problem • Attribute: • Log(LGScore2), significantly better than LGScore2.

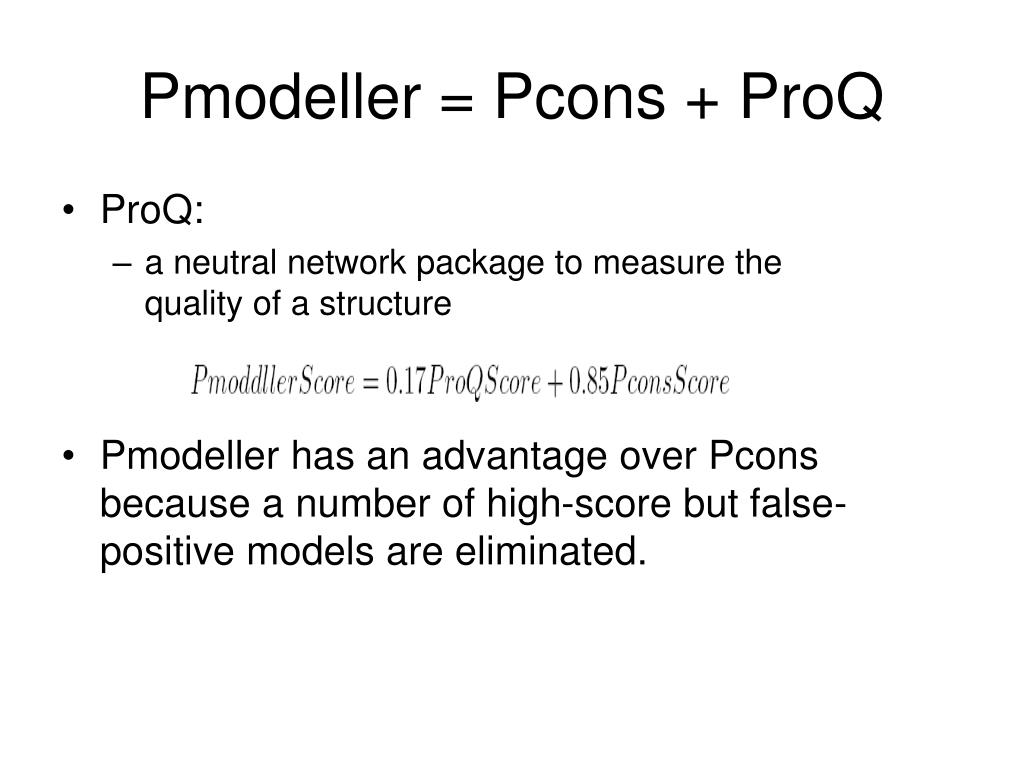

21. Pmodeller = Pcons + ProQ • ProQ: • a neutral network package to measure the quality of a structure • Pmodeller has an advantage over Pcons because a number of high-score but false-positive models are eliminated.

22. Performance of Pcons/Pmod

23. ACE: SVM Regression • Step 1. Model Comparison • MaxSub • Step 2. Feature Extraction • f1: the normalized similarity with all the other models • f2: the normalized similarity with the most similar one • f3: for each target, to measure the divergence of server predictions.

24. ACE (cont) • Step 3: Selection • SVM Regression: to predict the model quality • Attribute: • MaxSub with the native structure

25. Performance of ACE • In CASP6, ACE was ranked 2nd among 87 automatic servers. • On LiveBench test set:

26. Other techniques • 3D-Jury: • Rationale: the average of lower energy conformation is similar to the native structure. • Basic Idea: Mimic the average step by the following scoring function:

27. Other techniques (cont) • Robetta: • For each fragment, choose a local structure from a set, and assemble them to minimize an energy funtion. • BPROMPT: • Bayesian Belief Network • JPred: • Decision Tree

28. CASP7 Performance

29. ACE7: A Consensus Method by Identifying Latent Servers

30. Motivation • Server Correlation: • Although consensus servers assume that each individual server is independent of others, it is observed from CASP6 results that correlation exists between different servers to some degree. • Negative Effect: • this kind of correlation sometimes makes a native-like model receive less support than the incorrect models.

31. Examination of ACE on CASP6 Dataset • Observation: • If a native-like model receives support from only 1or 2 server, it is difficult to select it.

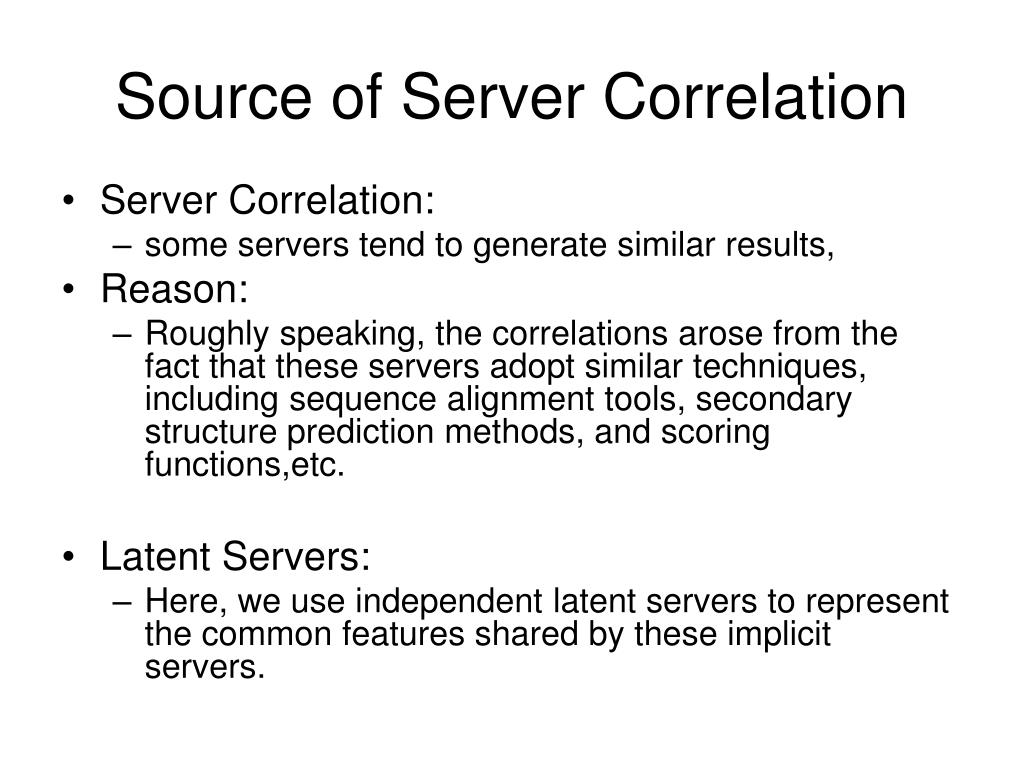

32. Source of Server Correlation • Server Correlation: • some servers tend to generate similar results, • Reason: • Roughly speaking, the correlations arose from the fact that these servers adopt similar techniques, including sequence alignment tools, secondary structure prediction methods, and scoring functions,etc. • Latent Servers: • Here, we use independent latent servers to represent the common features shared by these implicit servers.

33. ACE7: to reduce the server correlation • Step 1. Adopting Maximum Likelihood to estimate the server correlation. • Step 2. Employing Principle Component Analysis technique to derive the latent servers. • Step 3. Using an ILP model to weigh the latent servers.

34. Two Assumptions of ACE7 • Assumption 1: • Here, we approximate Ci,m by: • Assumption 2:

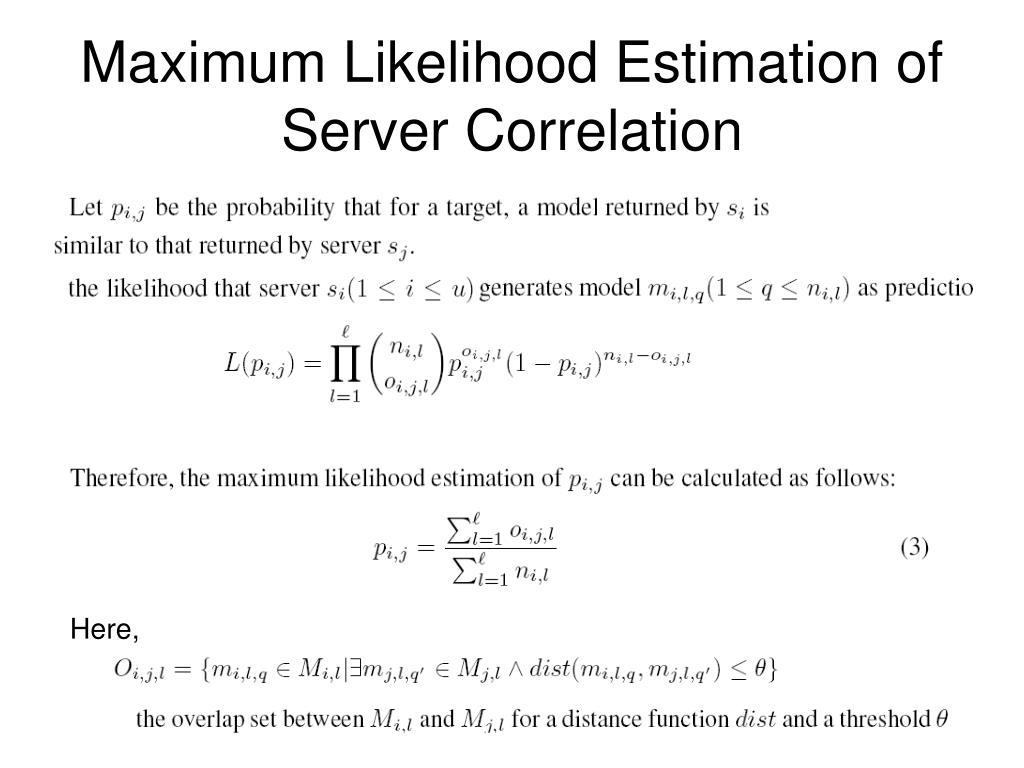

35. Maximum Likelihood Estimation of Server Correlation Here,

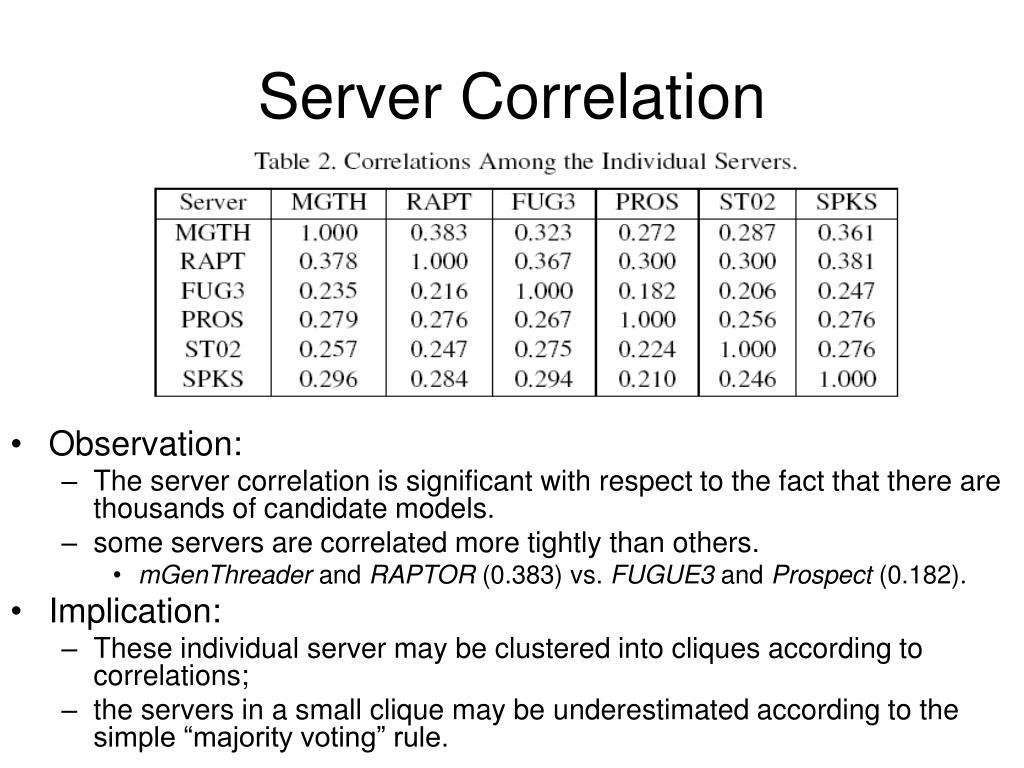

36. Server Correlation • Observation: • The server correlation is significant with respect to the fact that there are thousands of candidate models. • some servers are correlated more tightly than others. • mGenThreader and RAPTOR (0.383) vs. FUGUE3 and Prospect (0.182). • Implication: • These individual server may be clustered into cliques according to correlations; • the servers in a small clique may be underestimated according to the simple “majority voting” rule.

37. Uncovering the Latent Server

38. Uncovering the Latent Servers (cont) • Using the PCA technique, the latent severs can be estimated as:

39. Explanation of Latent Servers • Observation: • H1: represents MGTH and RAPT • H2: SPKS • H3: FUG3 • H4: ST02 • H5: PROS • H6: no preference

40. Construct a More Accurate Server • Since latent servers are mutually independent, it is reasonable to assume: • Key Point: • How to set the weight of each latent server? • An ILP model: • To maximize the gap between the scores of the native-like models and incorrect models.

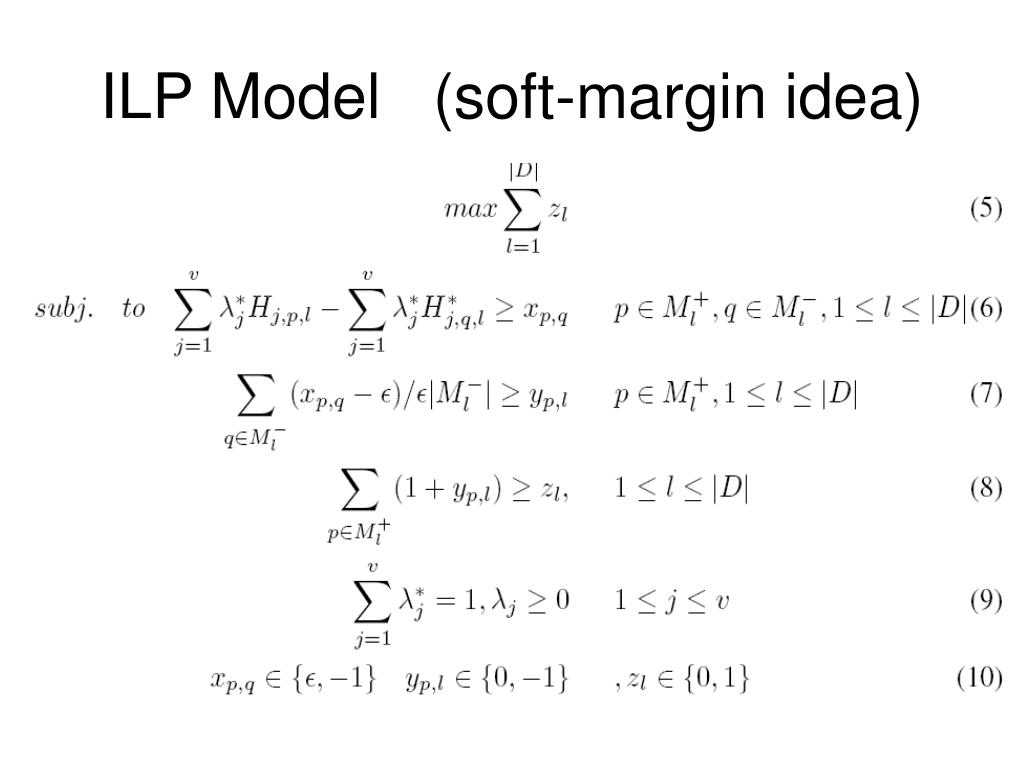

41. ILP Model (soft-margin idea)

42. Experiment on CASP7 Dataset • Observation: • For T0363, ACE7 succeeds even only one server votes the native-like model.

43. Sensitivity of ACE7 • Observation: • ACE7 has a higher sensitivity than any individual server.

44. Future Work

45. Conclusion • Though consensus methods rely on structure clustering property, the server correlation also bring negative effect.

46. Future Work • To find a better approximation of Ci,m. • Using MaxSub instead of GDT. • RAPTOR has a good performance in choosing the top 5 models, but always be puzzled to choose the top 1 model. • We try to help to choose the best from the top 5 models remains an open problem.
