Introduction to JavaServer Faces (JSF) Framework

1. JavaServer Faces Jeff Schmitt October 5, 2006

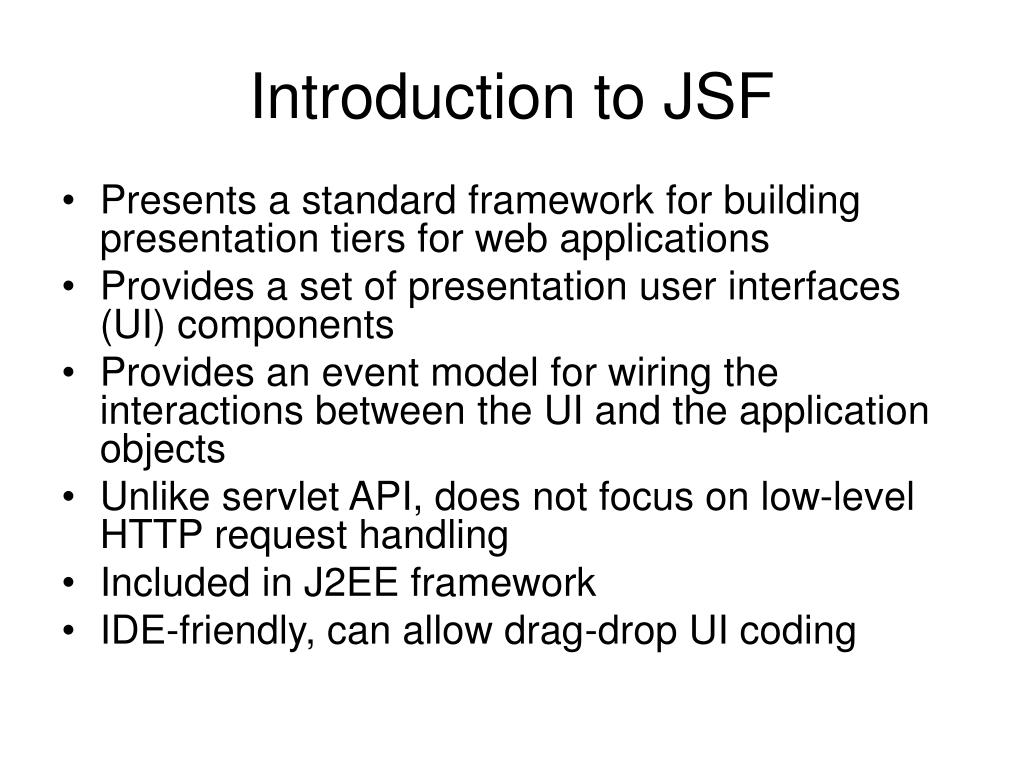

2. Introduction to JSF • Presents a standard framework for building presentation tiers for web applications • Provides a set of presentation user interfaces (UI) components • Provides an event model for wiring the interactions between the UI and the application objects • Unlike servlet API, does not focus on low-level HTTP request handling • Included in J2EE framework • IDE-friendly, can allow drag-drop UI coding

3. JSF Advantages • Custom UI controls to create complex interfaces • Event handling – events are invoked when forms are submitted. Events can respond to particular buttons, changes in values, user selections, etc. • Managed beans • In JSP, you can use <jsp:setProperty property="*"> to automatically save request parameters in a bean. • JSF extends this capability and adds in several utilities, which greatly simplifies processing of request parameters • JSF Expression Language for accessing bean properties and collection elements

4. JSF Advantages • Form field validation and conversion • insure form values are in correct format • Convert from string to various other types • XML and property file-based configuration allows changes to application without changing Java code • Encourages consistent use of MVC throughout the application

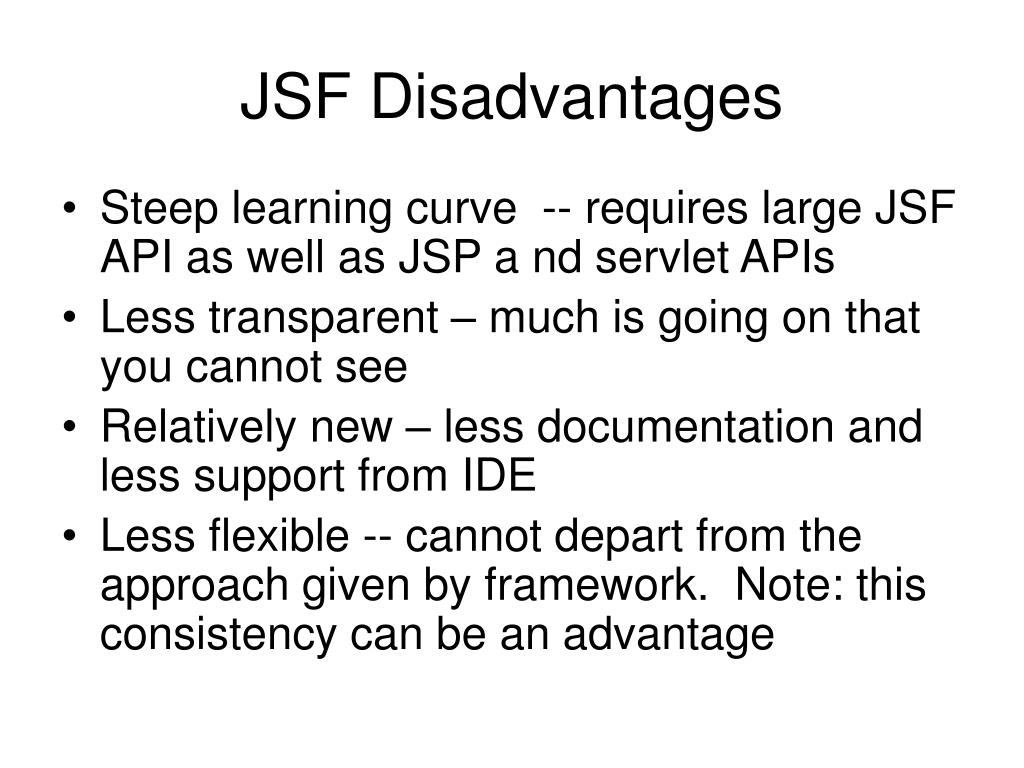

5. JSF Disadvantages • Steep learning curve -- requires large JSF API as well as JSP a nd servlet APIs • Less transparent – much is going on that you cannot see • Relatively new – less documentation and less support from IDE • Less flexible -- cannot depart from the approach given by framework. Note: this consistency can be an advantage

6. JSF Sample Application • Library book management system • User login (borrower or librarian privileges) • Librarian • Add a book • Check in a book • Borrower and Librarian • View all available books • Review all books • Check out a book

7. Faces Servlet • Configured in web.xml • URL pattern: *.faces (typically) • Servlet Intercepts request, processes request parameters, creates events that call user code • XML configuration file: faces-config.xml • I18n • Navigation rules • Bean definitions • Implements JSF Lifecycle (next slide)

8. JSF Lifecycle JSF creates “component tree” • Each element corresponds to a UI value • Steps in processing request • 1 Restore view • 2 Apply request values • 3 Process validations • 4 Update model values • 5 Invoke application • 6 Render response

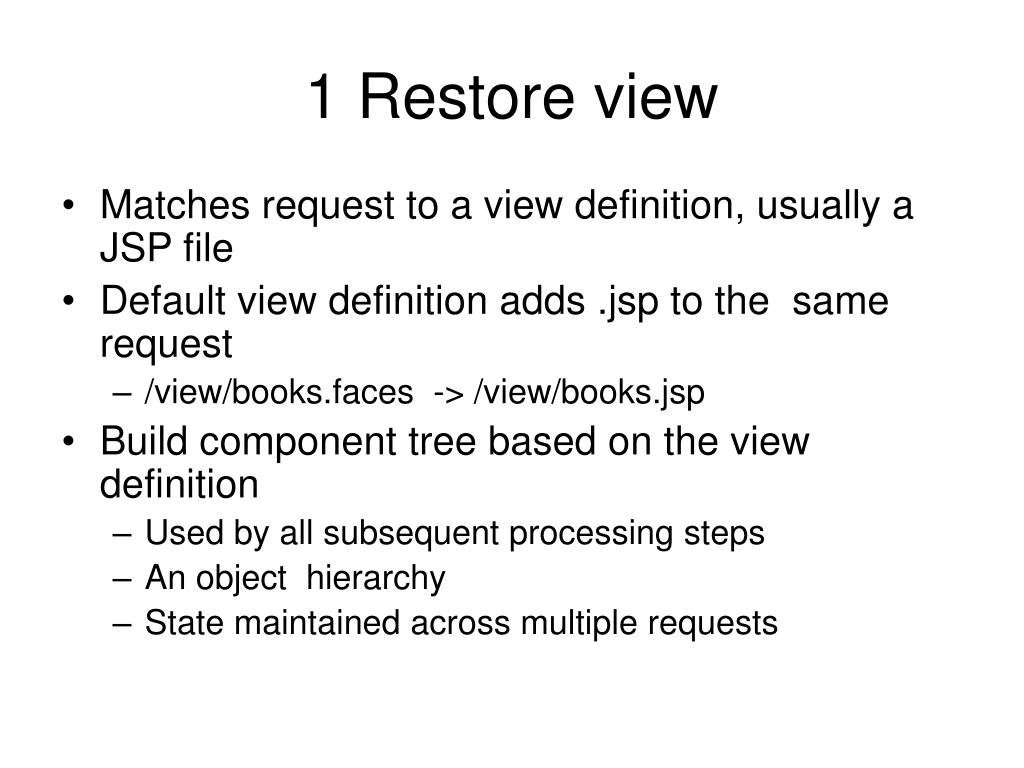

9. 1 Restore view • Matches request to a view definition, usually a JSP file • Default view definition adds .jsp to the same request • /view/books.faces -> /view/books.jsp • Build component tree based on the view definition • Used by all subsequent processing steps • An object hierarchy • State maintained across multiple requests

10. 2 Apply request values • Analyze HTTP parameters • Map parameters to specific UI components on the page • If no parameters, skip to step 6 Render request

11. 3 Process validations • Cycle through all of the input validations for the components • If any validations fail • render page with original data • Warning messages may be displayed

12. 4 Update model values • If the validation process succeeds • Underlying Java beans associated with each UI component are updated

13. 5 Invoke application • After the model has been updated • Invoke any business-logic acions requested by the user • Determine a result code to be used in 6 Render response

14. 6 Render response • Render a response for the user • Depending on result code returned in 5 Invoke Application, • view the page that was originally requested • or render a different page

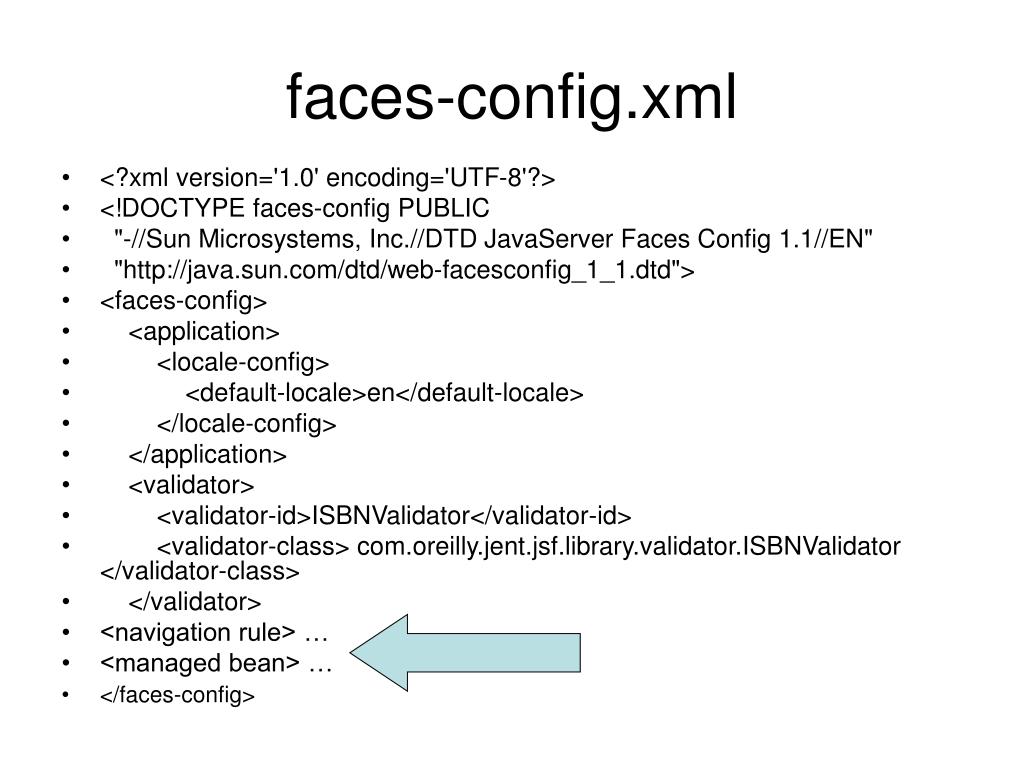

15. faces-config.xml • <?xml version='1.0' encoding='UTF-8'?> • <!DOCTYPE faces-config PUBLIC • "-//Sun Microsystems, Inc.//DTD JavaServer Faces Config 1.1//EN" • "http://java.sun.com/dtd/web-facesconfig_1_1.dtd"> • <faces-config> • <application> • <locale-config> • <default-locale>en</default-locale> • </locale-config> • </application> • <validator> • <validator-id>ISBNValidator</validator-id> • <validator-class> com.oreilly.jent.jsf.library.validator.ISBNValidator </validator-class> • </validator> • <navigation rule> … • <managed bean> … • </faces-config>

16. Navigation rules • First major part of faces-config.xml • Second major part is Managed beans • If faces-config.xml gets too big • Split it into parts • Add an initialization parameter in web.xml javax.faces.CONFIG_FILES • Good for large projects with multiple developers where each module has separate settings

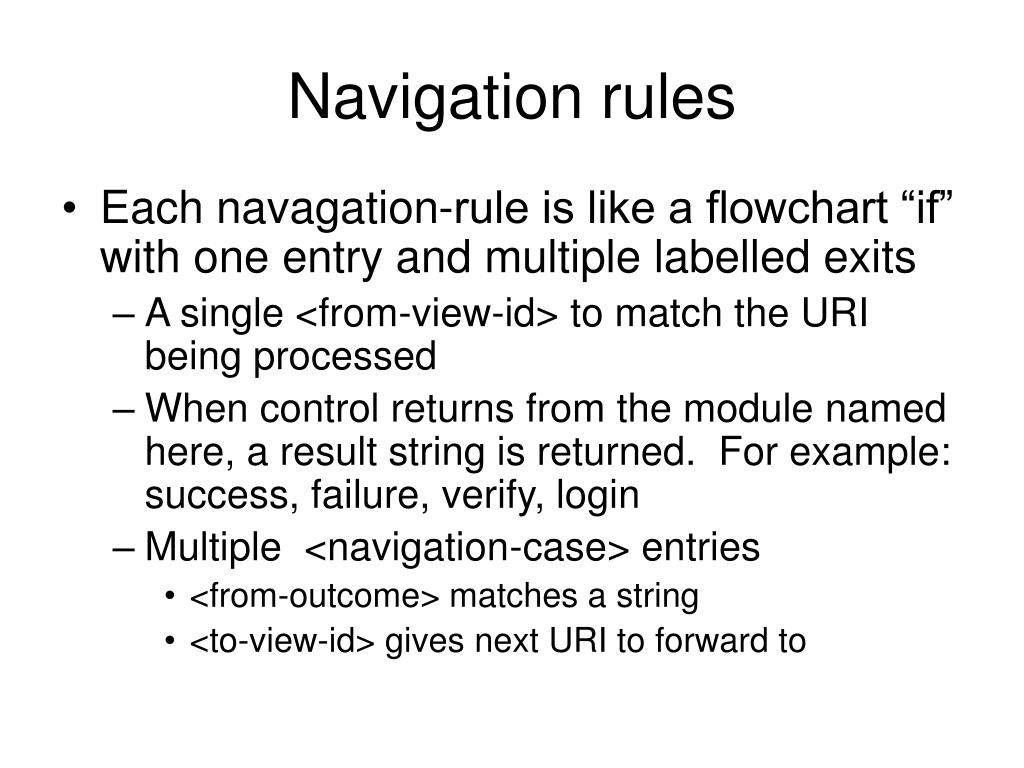

17. Navigation rules • Each navagation-rule is like a flowchart “if” with one entry and multiple labelled exits • A single <from-view-id> to match the URI being processed • When control returns from the module named here, a result string is returned. For example: success, failure, verify, login • Multiple <navigation-case> entries • <from-outcome> matches a string • <to-view-id> gives next URI to forward to

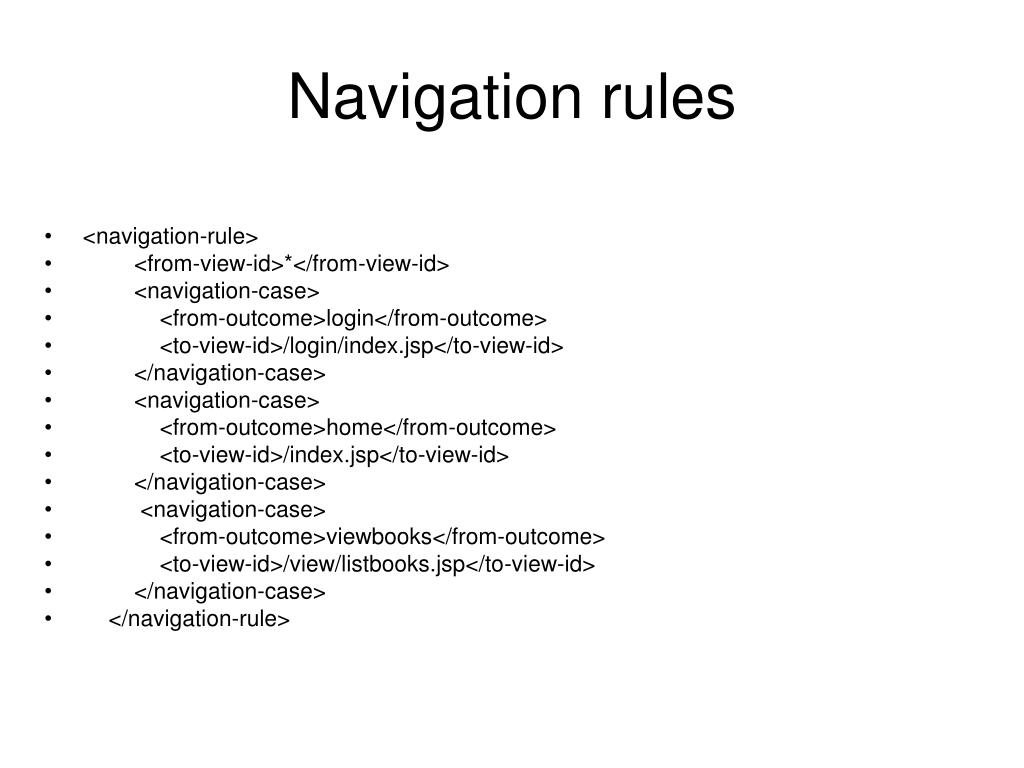

18. Navigation rules • <navigation-rule> • <from-view-id>*</from-view-id> • <navigation-case> • <from-outcome>login</from-outcome> • <to-view-id>/login/index.jsp</to-view-id> • </navigation-case> • <navigation-case> • <from-outcome>home</from-outcome> • <to-view-id>/index.jsp</to-view-id> • </navigation-case> • <navigation-case> • <from-outcome>viewbooks</from-outcome> • <to-view-id>/view/listbooks.jsp</to-view-id> • </navigation-case> • </navigation-rule>

19. Navigation rules • <navigation-rule> • <from-view-id>/index.jsp</from-view-id> • <navigation-case> • <from-outcome>addbook</from-outcome> • <to-view-id>/view/addbook.jsp</to-view-id> • </navigation-case> • <navigation-case> • <from-outcome>adminbooks</from-outcome> • <to-view-id>/view/adminbooks.jsp</to-view-id> • </navigation-case> • </navigation-rule>

20. Navigation rules • <navigation-rule> • <from-view-id>/login/index.jsp</from-view-id> • <navigation-case> • <from-outcome>success</from-outcome> • <to-view-id>/login/success.jsp</to-view-id> • </navigation-case> • <navigation-case> • <from-outcome>failure</from-outcome> • <to-view-id>/login/index.jsp</to-view-id> • </navigation-case> • </navigation-rule>

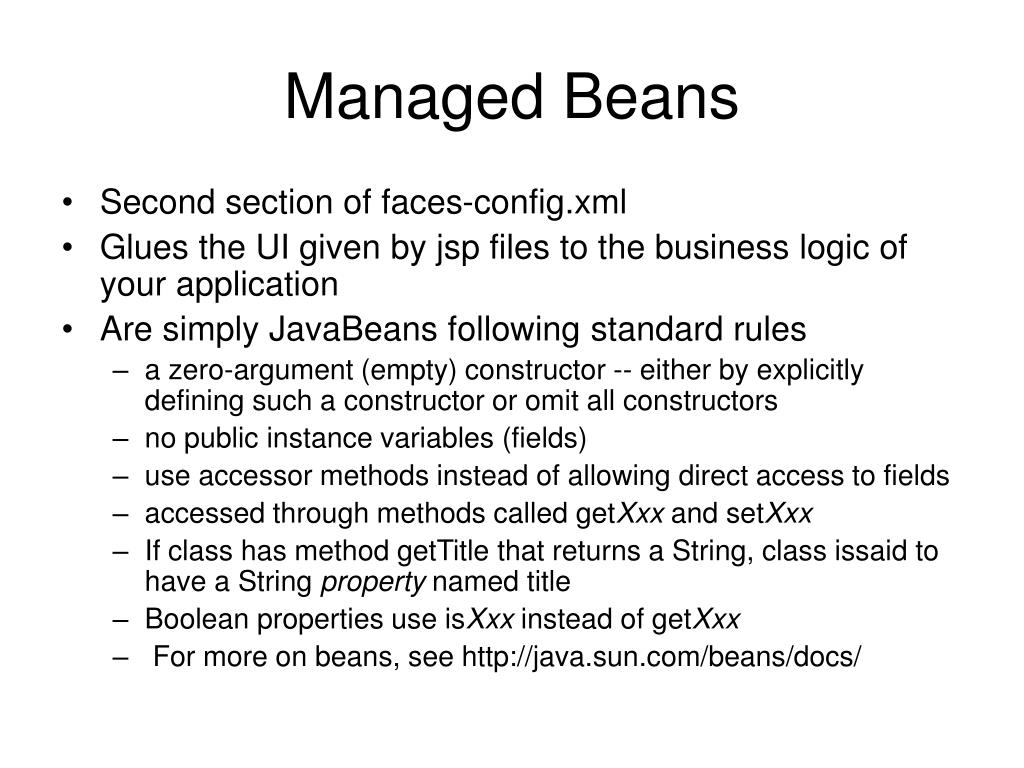

21. Managed Beans • Second section of faces-config.xml • Glues the UI given by jsp files to the business logic of your application • Are simply JavaBeans following standard rules • a zero-argument (empty) constructor -- either by explicitly defining such a constructor or omit all constructors • no public instance variables (fields) • use accessor methods instead of allowing direct access to fields • accessed through methods called getXxx and setXxx • If class has method getTitle that returns a String, class issaid to have a String property named title • Boolean properties use isXxx instead of getXxx • For more on beans, see http://java.sun.com/beans/docs/

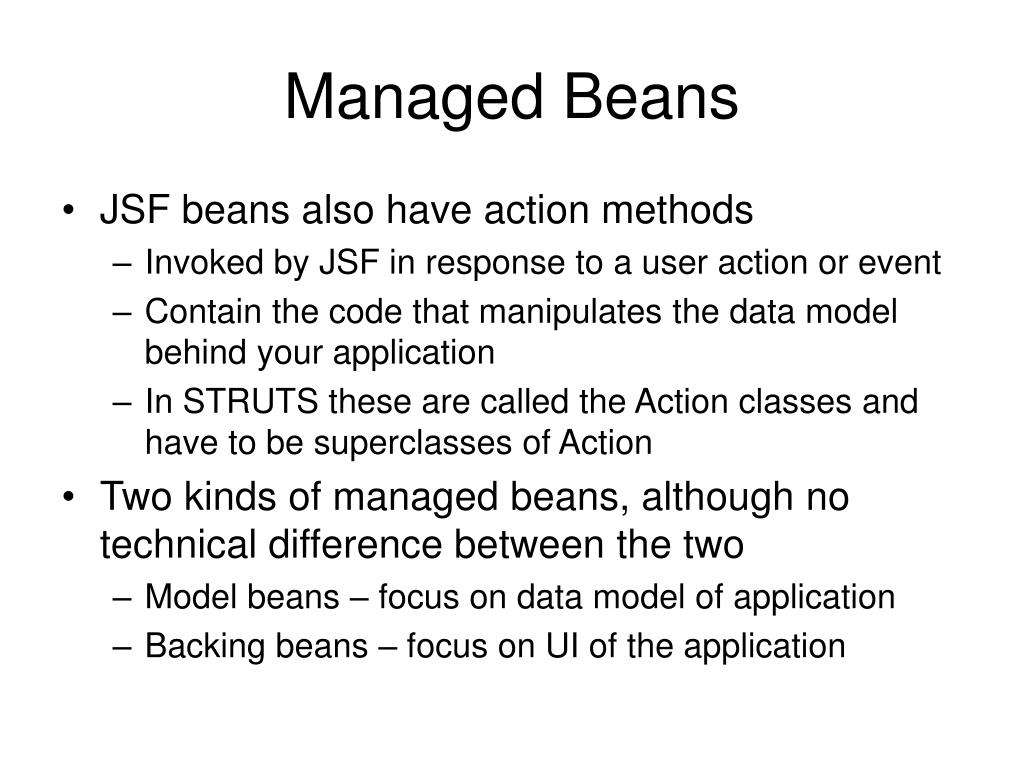

22. Managed Beans • JSF beans also have action methods • Invoked by JSF in response to a user action or event • Contain the code that manipulates the data model behind your application • In STRUTS these are called the Action classes and have to be superclasses of Action • Two kinds of managed beans, although no technical difference between the two • Model beans – focus on data model of application • Backing beans – focus on UI of the application

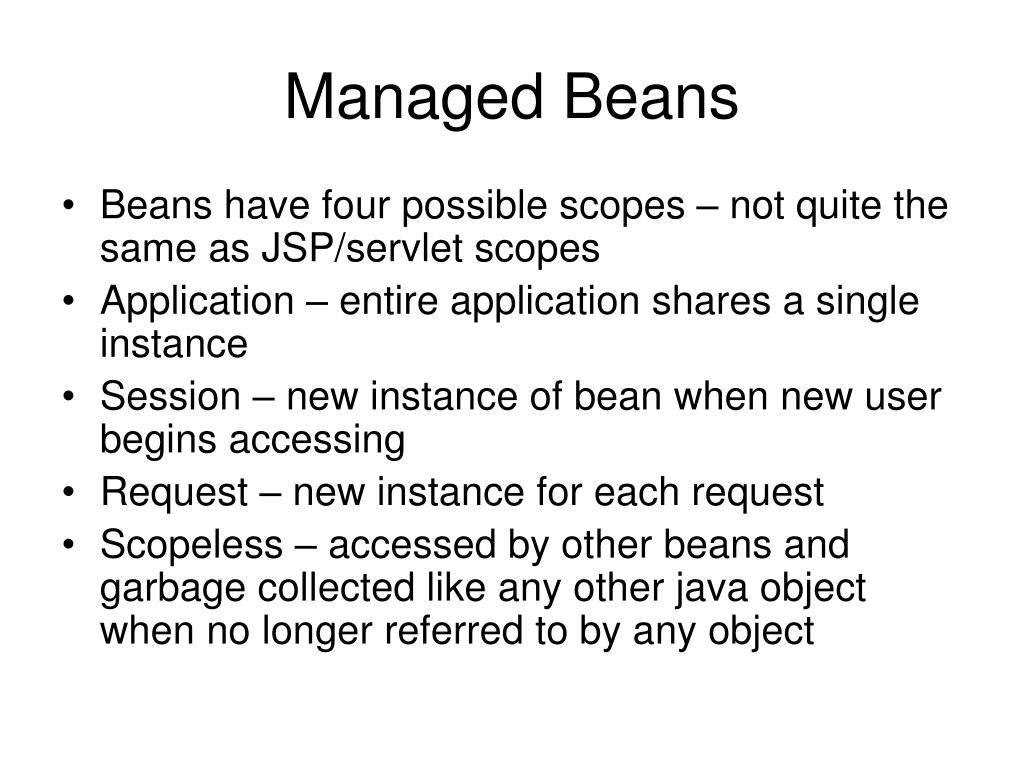

23. Managed Beans • Beans have four possible scopes – not quite the same as JSP/servlet scopes • Application – entire application shares a single instance • Session – new instance of bean when new user begins accessing • Request – new instance for each request • Scopeless – accessed by other beans and garbage collected like any other java object when no longer referred to by any object

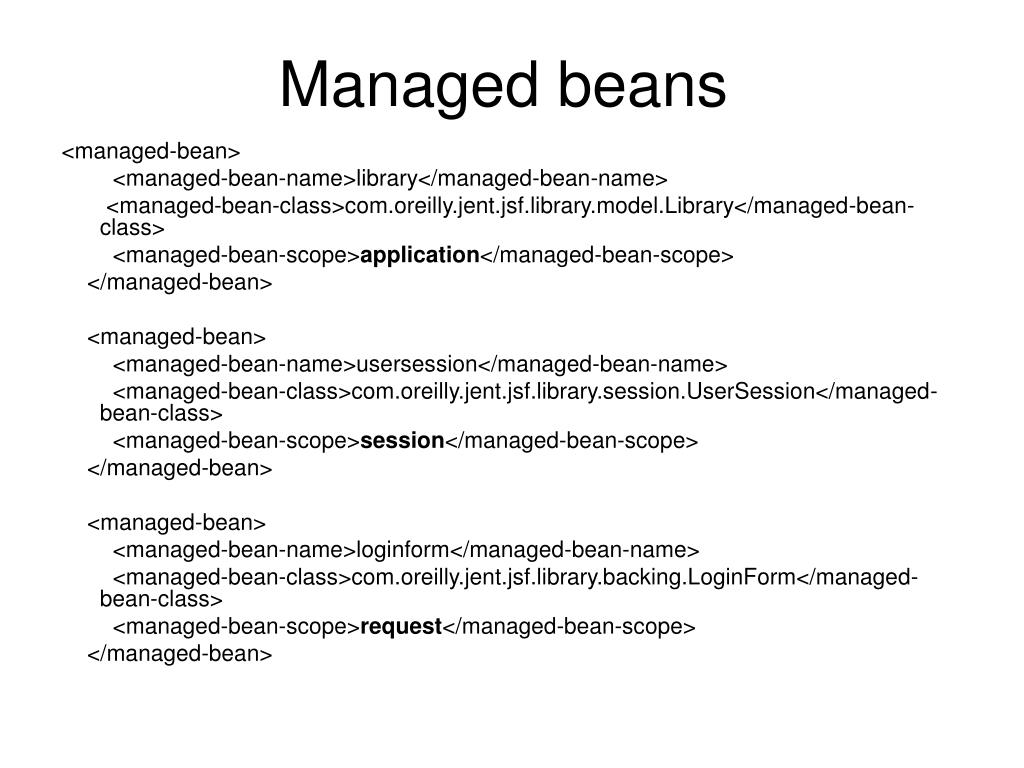

24. Managed beans <managed-bean> <managed-bean-name>library</managed-bean-name> <managed-bean-class>com.oreilly.jent.jsf.library.model.Library</managed-bean-class> <managed-bean-scope>application</managed-bean-scope> </managed-bean> <managed-bean> <managed-bean-name>usersession</managed-bean-name> <managed-bean-class>com.oreilly.jent.jsf.library.session.UserSession</managed-bean-class> <managed-bean-scope>session</managed-bean-scope> </managed-bean> <managed-bean> <managed-bean-name>loginform</managed-bean-name> <managed-bean-class>com.oreilly.jent.jsf.library.backing.LoginForm</managed-bean-class> <managed-bean-scope>request</managed-bean-scope> </managed-bean>

25. Managed beans <managed-bean> <managed-bean-name>addbookform</managed-bean-name> <managed-bean-class>com.oreilly.jent.jsf.library.backing.AddBookForm</managed-bean-class> <managed-bean-scope>request</managed-bean-scope> </managed-bean> <managed-bean> <managed-bean-name>bookdisplayform</managed-bean-name> <managed-beanclass> com.oreilly.jent.jsf.library.backing.BookDisplayForm</managed-bean-class> <managed-bean-scope>session</managed-bean-scope> <managed-property> <property-name>library</property-name> <value>#{library}</value> </managed-property> </managed-bean>

26. JSF Expression language • Similar but not identical to JSP EL • Allow reference to the managed beans • Retrieving values from beans • Telling JSF components which bean properties to update • In some cases, same expression does both • General syntax: #{identifiers and modifiers} • Example: • uses a JSF HTML-writing tag <h: • Same expression both retrieves value from bean and • Tells JSF where to store submitted value from form • Uses two beans <h:inputText value=“#{usersession.currentUser.username}”/>

27. JSF EL – built-in objects • applicationScope - containing all application-scope managed beans • Cookie • facesContext - the FacesContext instance associated with the current request • header - a map with HTTP request headers, one value per name • headerValues - a map with HTTP request headers, containing all values • initParam - a map with HTTP request parameters, containing all values • param - a map with HTTP request parameters, one value per name • paramValues - a map with HTTP request parameters • requestScope - a map containing all request-scope managed beans • sessionScope - a map containing all session-scope managed beans • view - the UIViewRoot object associated with the current request

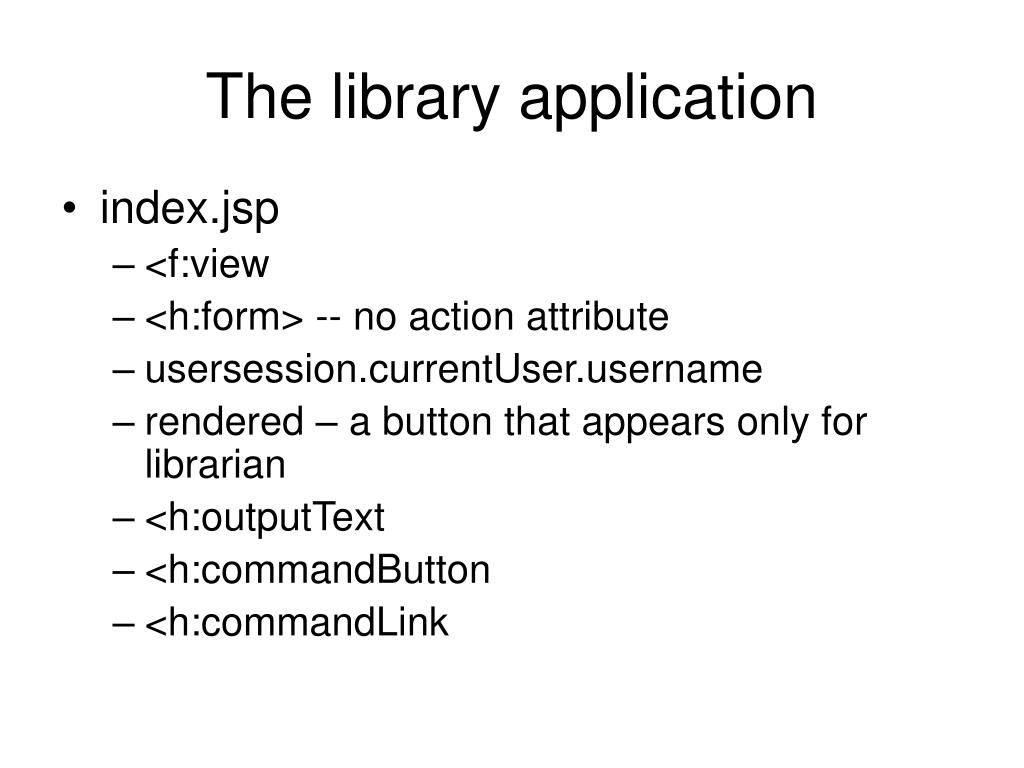

28. The library application • index.jsp • <f:view • <h:form> -- no action attribute • usersession.currentUser.username • rendered – a button that appears only for librarian • <h:outputText • <h:commandButton • <h:commandLink

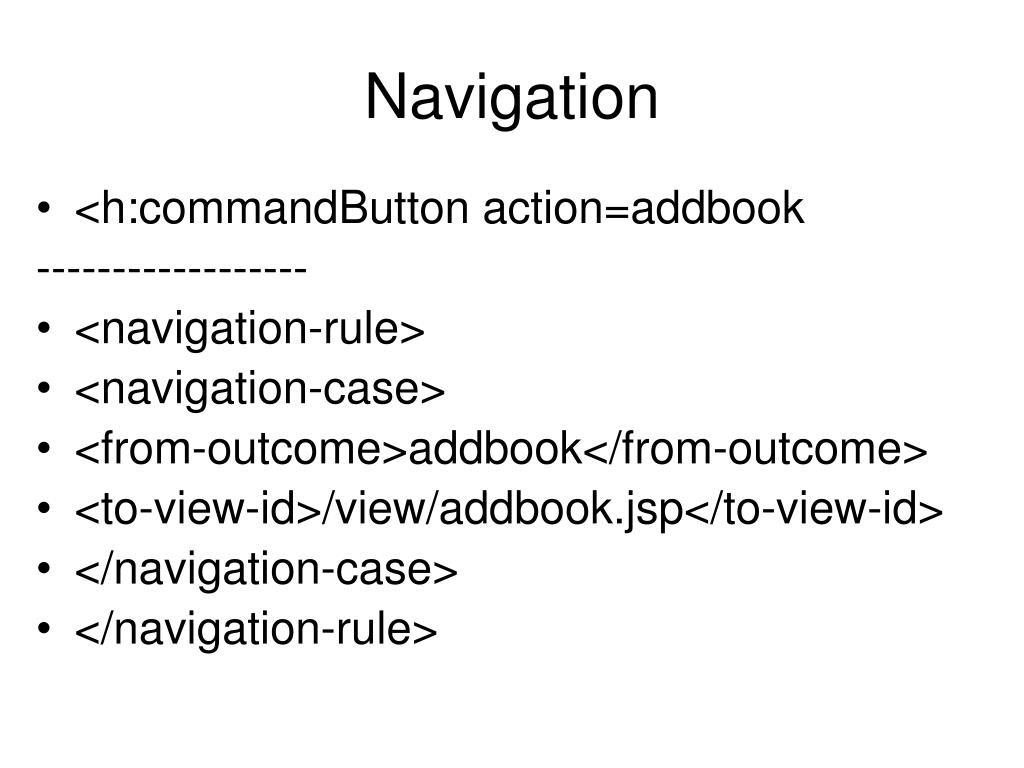

29. Navigation • <h:commandButton action=addbook ------------------ • <navigation-rule> • <navigation-case> • <from-outcome>addbook</from-outcome> • <to-view-id>/view/addbook.jsp</to-view-id> • </navigation-case> • </navigation-rule>

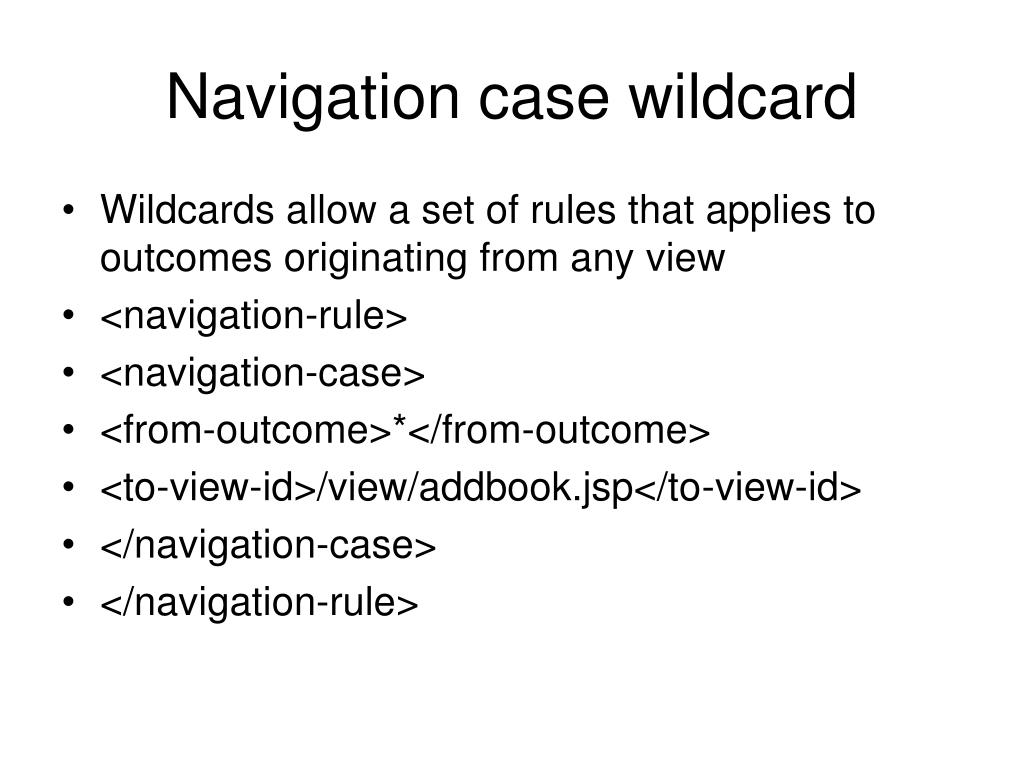

30. Navigation case wildcard • Wildcards allow a set of rules that applies to outcomes originating from any view • <navigation-rule> • <navigation-case> • <from-outcome>*</from-outcome> • <to-view-id>/view/addbook.jsp</to-view-id> • </navigation-case> • </navigation-rule>

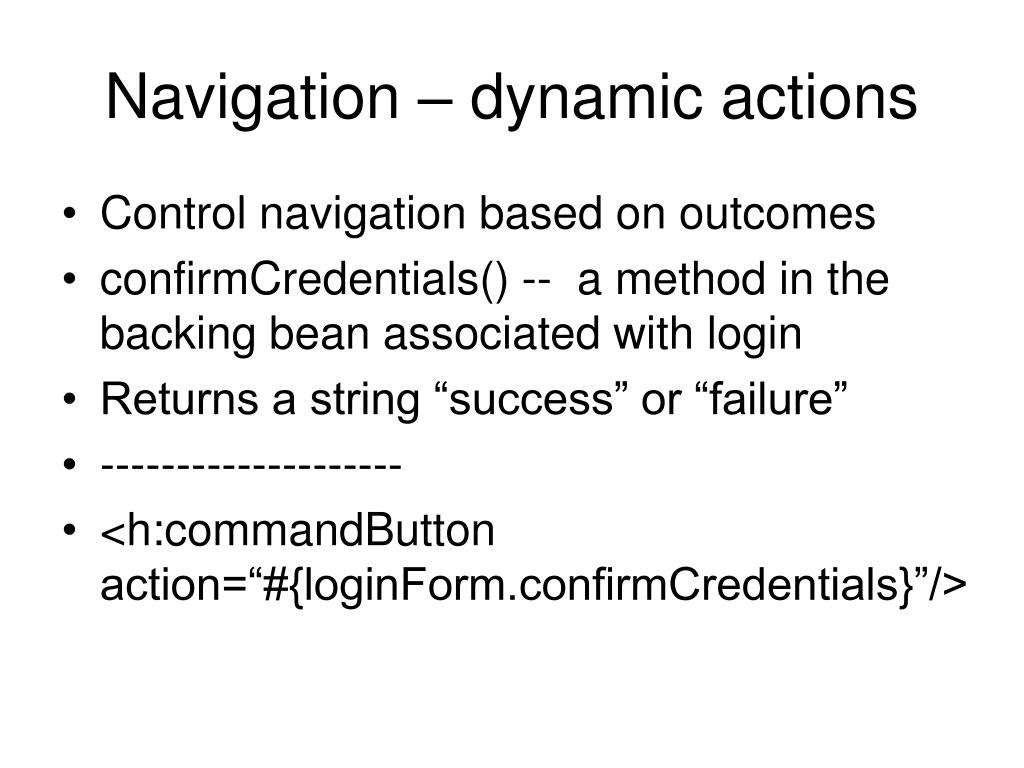

31. Navigation – dynamic actions • Control navigation based on outcomes • confirmCredentials() -- a method in the backing bean associated with login • Returns a string “success” or “failure” • -------------------- • <h:commandButton action=“#{loginForm.confirmCredentials}”/>
