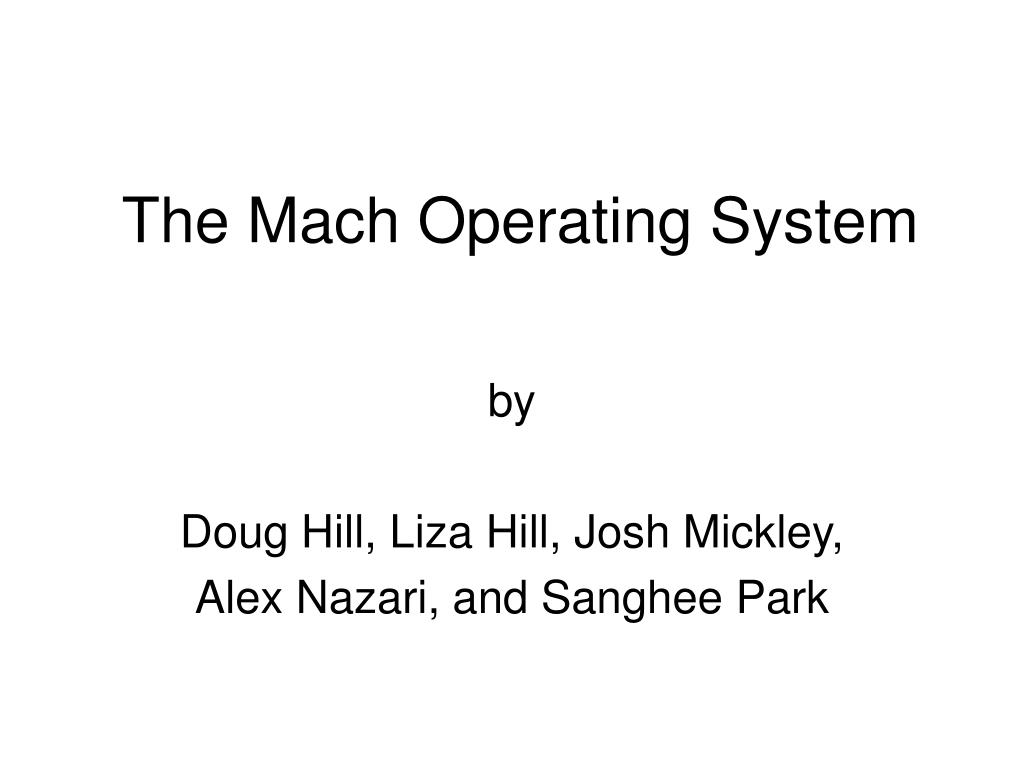

  1. The Mach Operating System by Doug Hill, Liza Hill, Josh Mickley, Alex Nazari, and Sanghee Park

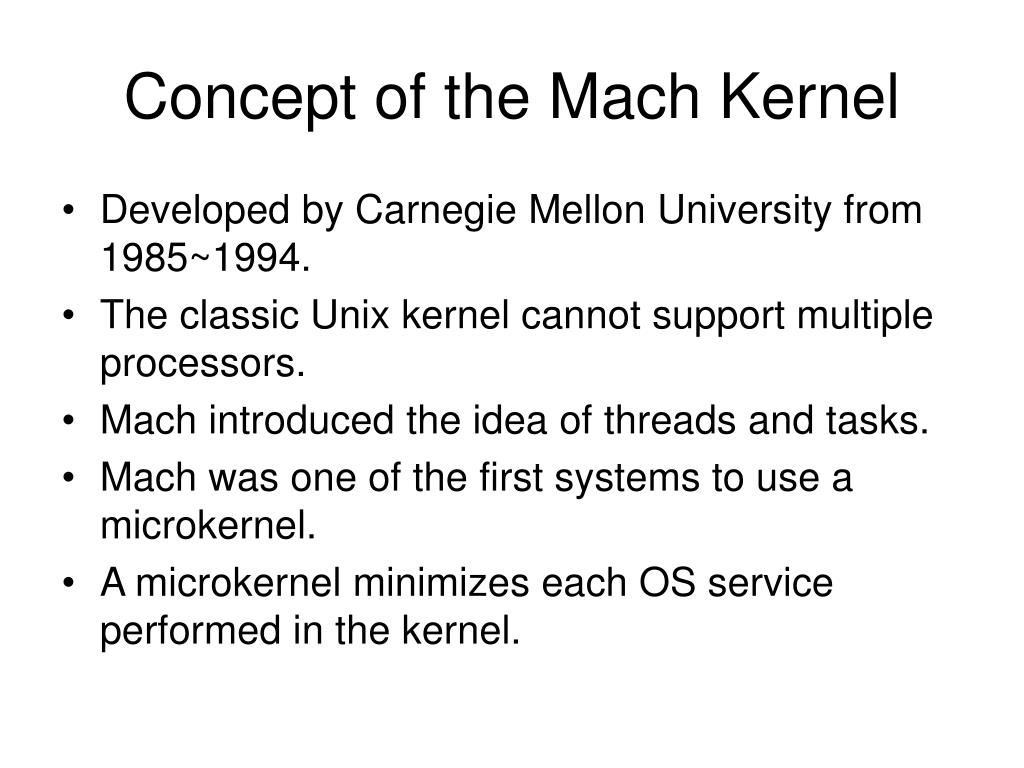

  2. Concept of the Mach Kernel • Developed by Carnegie Mellon University from 1985~1994. • The classic Unix kernel cannot support multiple processors. • Mach introduced the idea of threads and tasks. • Mach was one of the first systems to use a microkernel. • A microkernel minimizes each OS service performed in the kernel.

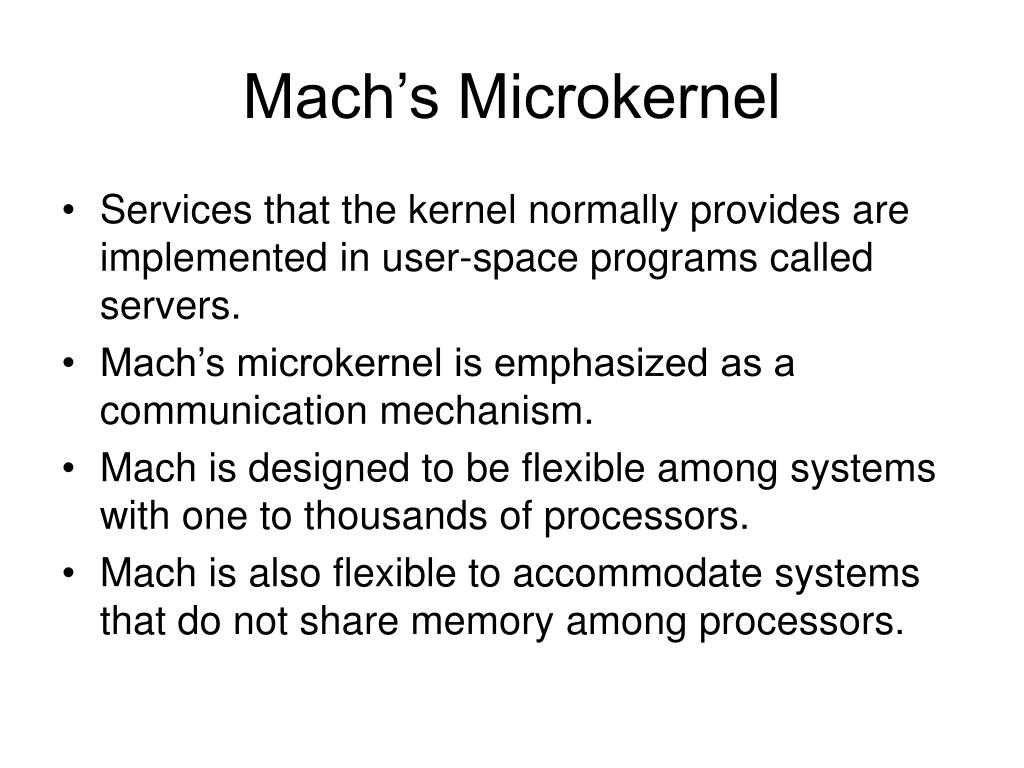

  3. Mach’s Microkernel • Services that the kernel normally provides are implemented in user-space programs called servers. • Mach’s microkernel is emphasized as a communication mechanism. • Mach is designed to be flexible among systems with one to thousands of processors. • Mach is also flexible to accommodate systems that do not share memory among processors.

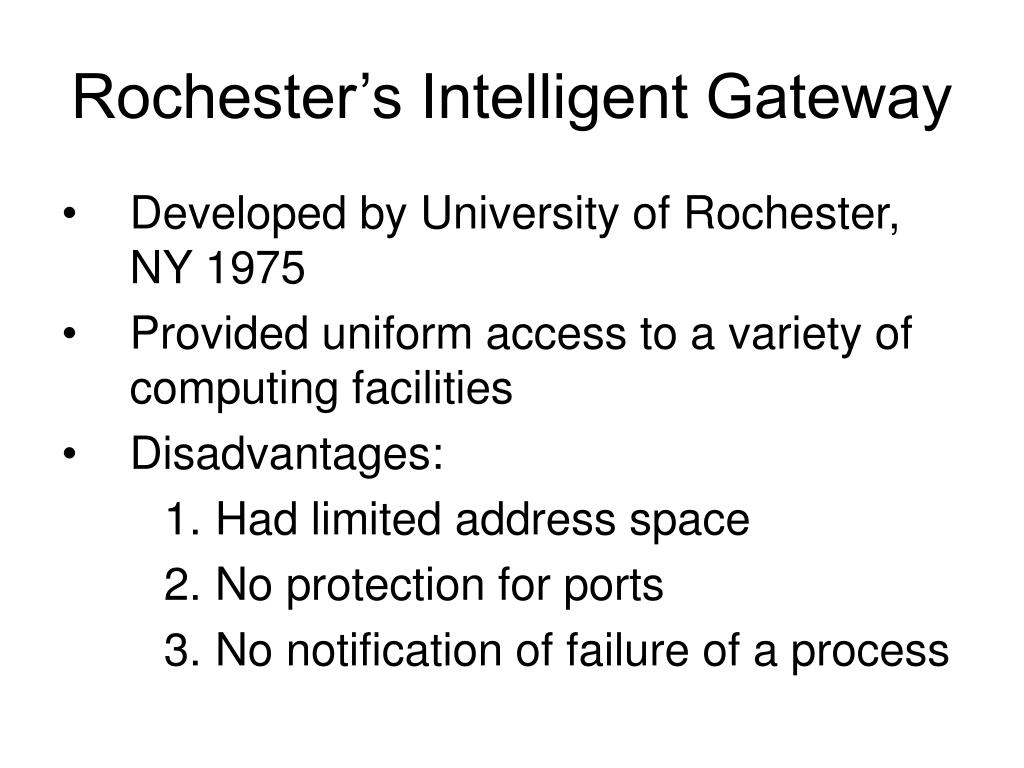

  4. Rochester’s Intelligent Gateway • Developed by University of Rochester, NY 1975 • Provided uniform access to a variety of computing facilities • Disadvantages: • Had limited address space • No protection for ports • No notification of failure of a process

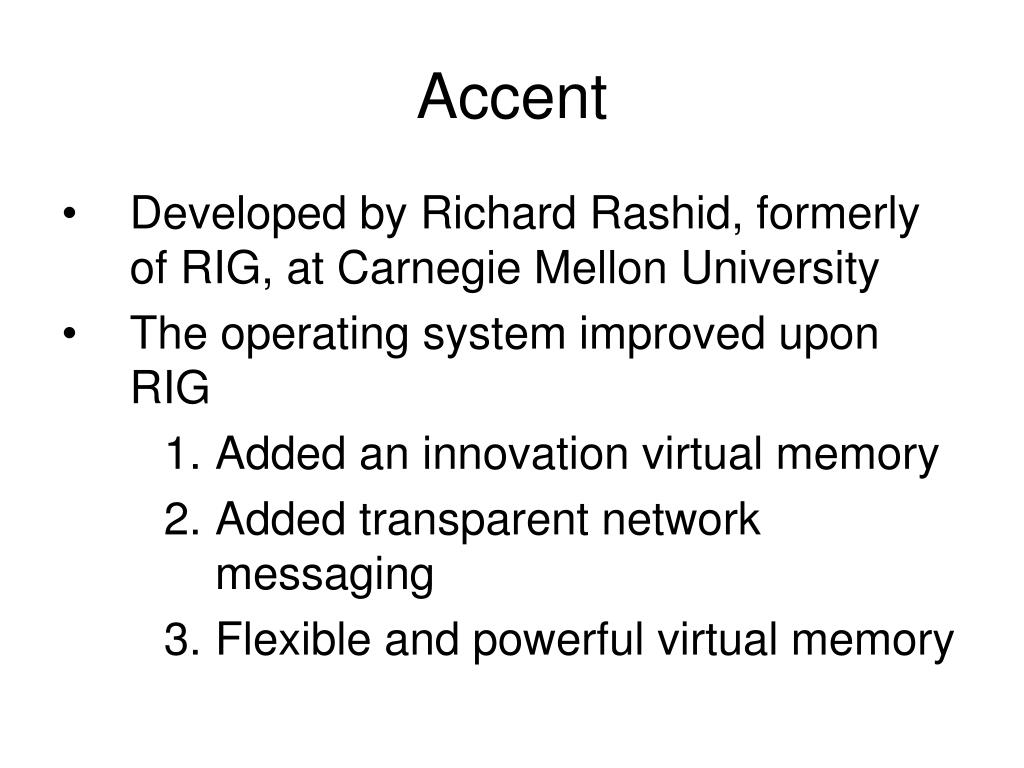

  5. Accent • Developed by Richard Rashid, formerly of RIG, at Carnegie Mellon University • The operating system improved upon RIG • Added an innovation virtual memory • Added transparent network messaging • Flexible and powerful virtual memory

  6. History of Mach • Developed at Carnegie Mellon University • 1987 – Mach release 0 and release 1 included task and thread support • 1988 – release 2 • 1989 – Mach 3.0 released with a smaller microkernel and a complex multiprocess system

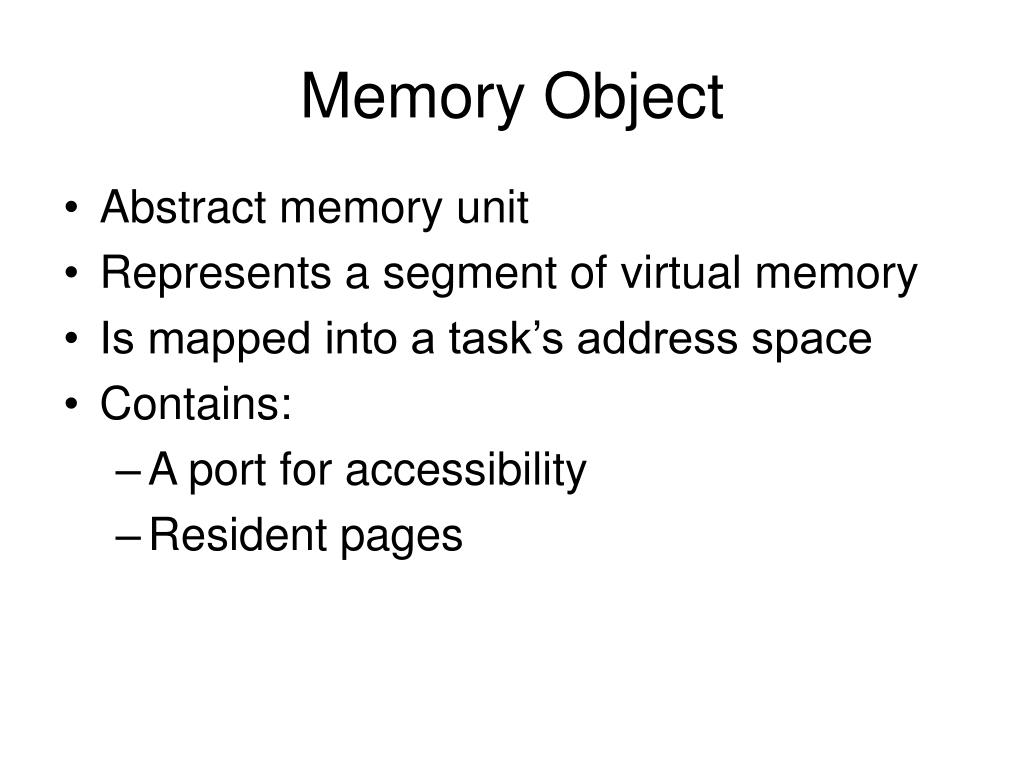

  7. Memory Object • Abstract memory unit • Represents a segment of virtual memory • Is mapped into a task’s address space • Contains: • A port for accessibility • Resident pages

  8. Scheduling States

  9. Hints • Discouragement Hints - current thread would give up the processor by lowering its priority • Handoff Hints – suggest that a specific thread should run instead of the current one

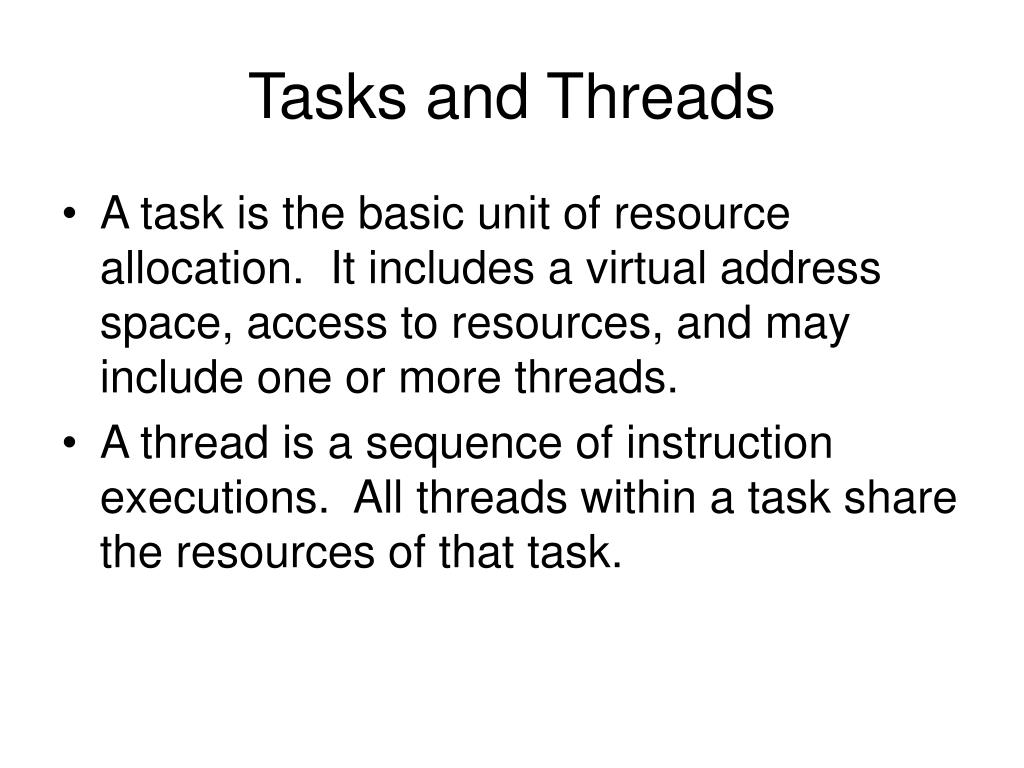

  10. Tasks and Threads • A task is the basic unit of resource allocation. It includes a virtual address space, access to resources, and may include one or more threads. • A thread is a sequence of instruction executions. All threads within a task share the resources of that task.

  11. Tasks and Threads (cont.) • All communication among threads is done by sending messages between ports. • When a task is created, it is assigned several ports by the kernel • The kernel manages all communication among ports by assigning send and receive permissions.

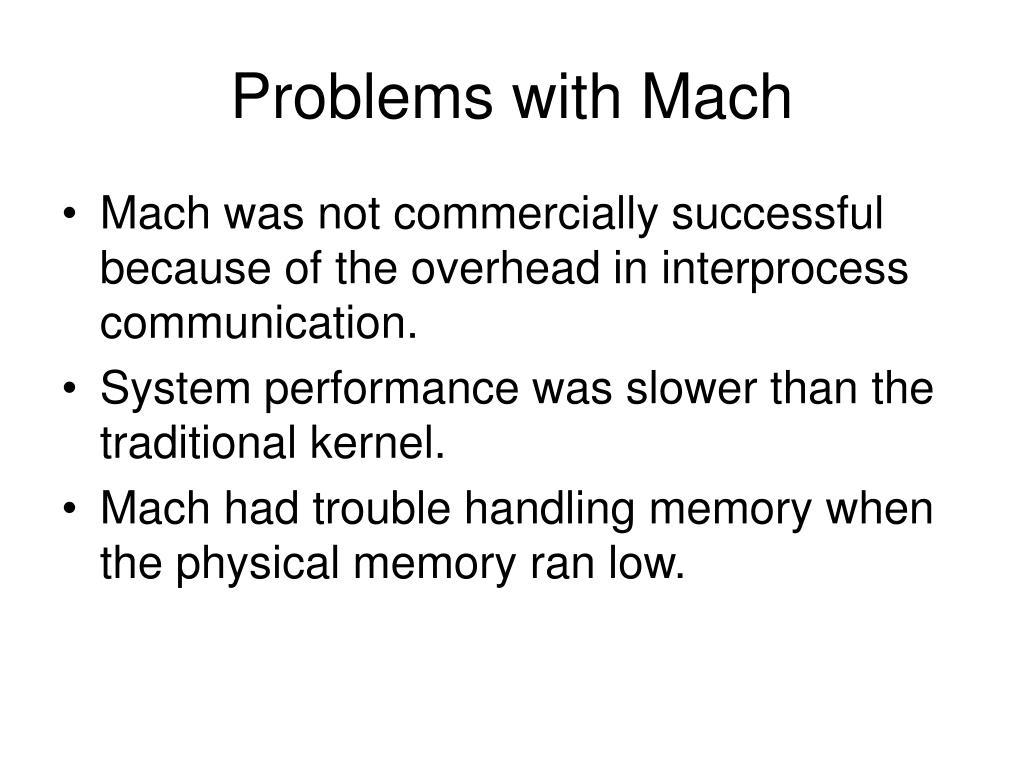

  12. Problems with Mach • Mach was not commercially successful because of the overhead in interprocess communication. • System performance was slower than the traditional kernel. • Mach had trouble handling memory when the physical memory ran low.

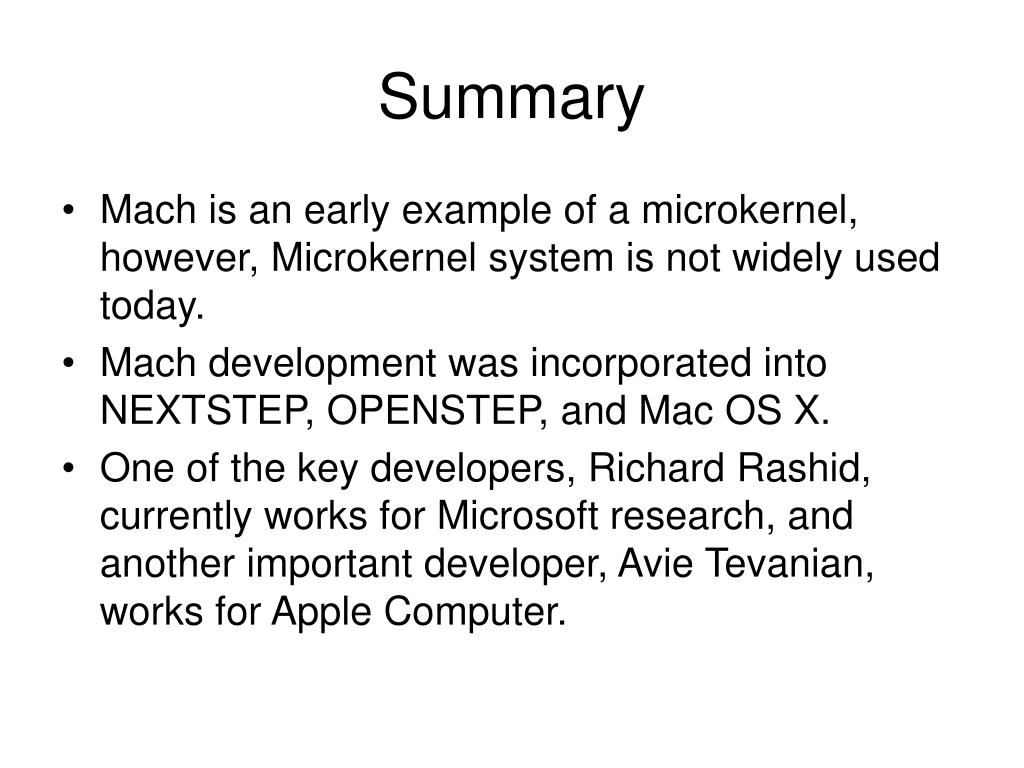

  13. Summary • Mach is an early example of a microkernel, however, Microkernel system is not widely used today. • Mach development was incorporated into NEXTSTEP, OPENSTEP, and Mac OS X. • One of the key developers, Richard Rashid, currently works for Microsoft research, and another important developer, Avie Tevanian, works for Apple Computer.
