Presentation Transcript

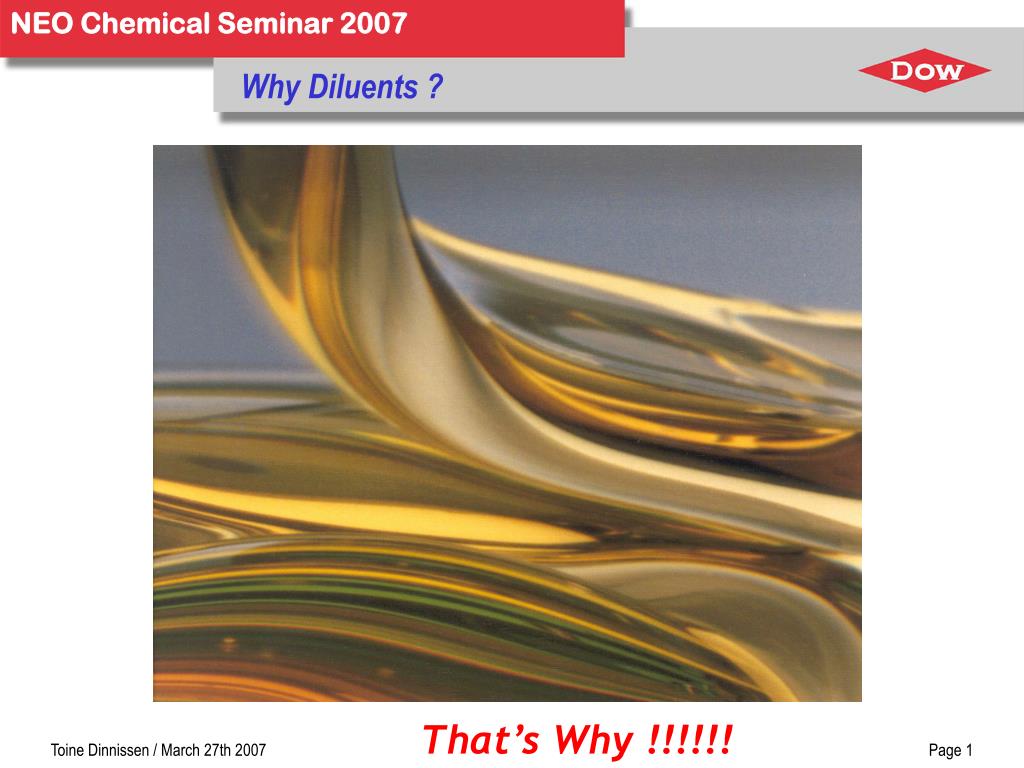

  1. Why Diluents ? That’s Why !!!!!!

  2. Why Diluents ?? • High processing viscosities of unmodified liquid epoxy resin systems • Impregnating and wetting properties are favourably influenced by reducing the viscosity • Larger filler amounts may be used • cheaper formulation • reduce the possible development of heat and shrinkage upon cure • Possible Disadvantages; • May sweat out of the binder system • Reduced flexibility • Influence the properties of the binder system • Hardness • Rate of cure • Adhesion, Intercoat adhesion • Chemical resistance

  3. CH2-OH OH Non-Reactive Diluents • Alcohols • Benzylalcohol • Furfurylalcohol • Nonyl phenol • Acceleration effect • Phthalates • Dibutylphthalate • Hydrocarbon Resins • Necirez-products • Epodil-L • Pine-oil

  4. O O O = O O C Reactive Diluents • Polypropylene glycol diepoxides • D.E.R.™ 732P liquid epoxy resin • D.E.R. 736P liquid epoxy resin • Alcoholglycidylethers & esters [ mono- or multi-functional ] • EMS [ Grilonit ] • Prümmer [ Polypox ] • Resolution [ Heloxy, Cardura E-10] • Air Products [ Epodil ] • Etc… ™ Trademark of The Dow Chemical Company

  5. Reactive Diluents

  6. Viscosity Cutting Powder p-tert. BP GE = R 7 BDDGE, o-CGE, HDDGE = R 3, 6, 18 C12-C14 AGE = R 24 2-EH GE = R 17

  7. General Observations • The addition of reactive diluents might have the following effects: • reduced viscosity, • changed surface tension [ wetting, air-release etc. ], • changed reactivity, especially for the mono-functional reactive diluents, • changed solvent resistance, • changed physical strength, • changed linear coefficient of expansion, • changed flexibility / impact resistance, • changed abrasion resistance • ......

  8. Reactive Diluents used by Dow o-Cresyl Glycidyl ether C12 - C14 alkyl Glycidyl ether Hexane diol di Glycidyl ether Compromise between Environmental, Hygiene & Safety aspects and performance.

  9. o-Cresyl Glycidyl ether Typical properties EEW 180 g/eq Viscosity 7 mPa.s @ 25 °C

  10. Hexane Diol Di Glycidyl ether Typical properties EEW 142 g/eq Viscosity 14 mPa.s @ 25 °C Total Chlorine ca 4 wt%

  11. C12 - C14 Alkyl Glycidyl Ether Typical properties EEW 280 g/eq Viscosity 7 mPa.s @ 25 °C Total Chlorine ca 3 wt% Remark : FDA approved for food contact applications

  12. Viscosity Cutting Power ™ Trademark of The Dow Chemical Company

  13. Influence on the chemical resistance

  14. Aromatic IPD-adduct DETA-adduct Polyamide D.E.R.™321 Dist. Water + 1.3 + 2.1 + 1.2 + 2.5 10 wt% HCl + 1.1 + 1.7 + 1.1 + 6.5 10 wt% NaOH + 1.1 + 1.7 + 1.0 + 2.0 10 wt% HAc + 1.4 + 5.4 + 20 Destroyed Xylene + 1.4 + 9.8 + 4.9 Destroyed Gasoline - 0.1 0 + 0.2 + 23 D.E.R.™330 Dist. Water + 1.4 + 1.4 10 wt% HCl + 1.1 + 1.3 10 wt% NaOH + 1.1 + 1.0 10 wt% HAc + 1.3 + 5.1 Xylene + 0.1 + 0.1 Gasoline + 0.1 0 Chemical Resistance ™ Trademark of The Dow Chemical Company

  15. Enough Chemistry !
