  1. Extensible Security Services on the CROSS/Linux Programmable Router David K. Y. Yau Department of Computer Sciences Purdue University yau@cs.purdue.edu

  2. Motivations • Internet is an open and democratic environment • increasingly used for mission-critical work • Many security threats are present or appearing • need effective and flexible defenses to detect/trace/counter attacks • protect innocent users, prosecute criminals

  3. Routing Infrastructure • Router software critical to network health • patches for security bugs • new defenses against new attacks • Scalable distribution of router software to many routing points • minimal disruptions to existing services • little human intervention • Exploit software-programmable router technology (CROSS platform)

  4. Existing Networks ISP server router: simple forwarding client

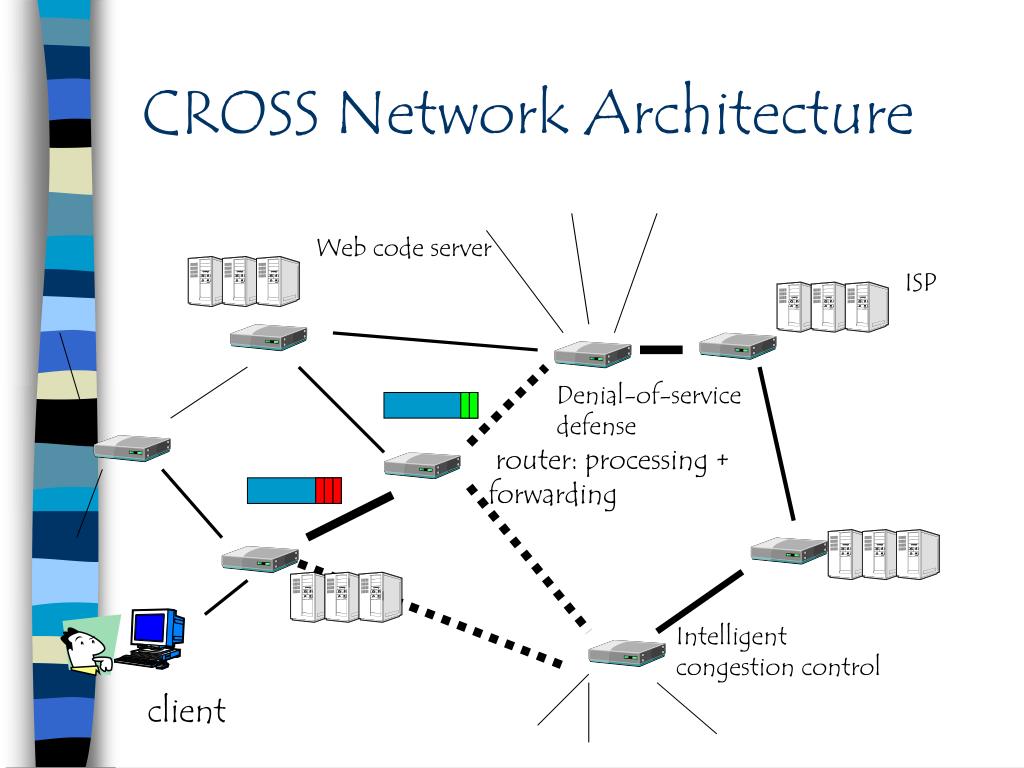

  5. Denial-of-service defense router: processing + forwarding Intelligent congestion control CROSS Network Architecture Web code server ISP client

  6. dispatch send subscribe Cut- through Per-flow processing Active packet Cross Forwarding Paths Function dispatcher Input queues Resource allocation manager Output network queues Packet classifier

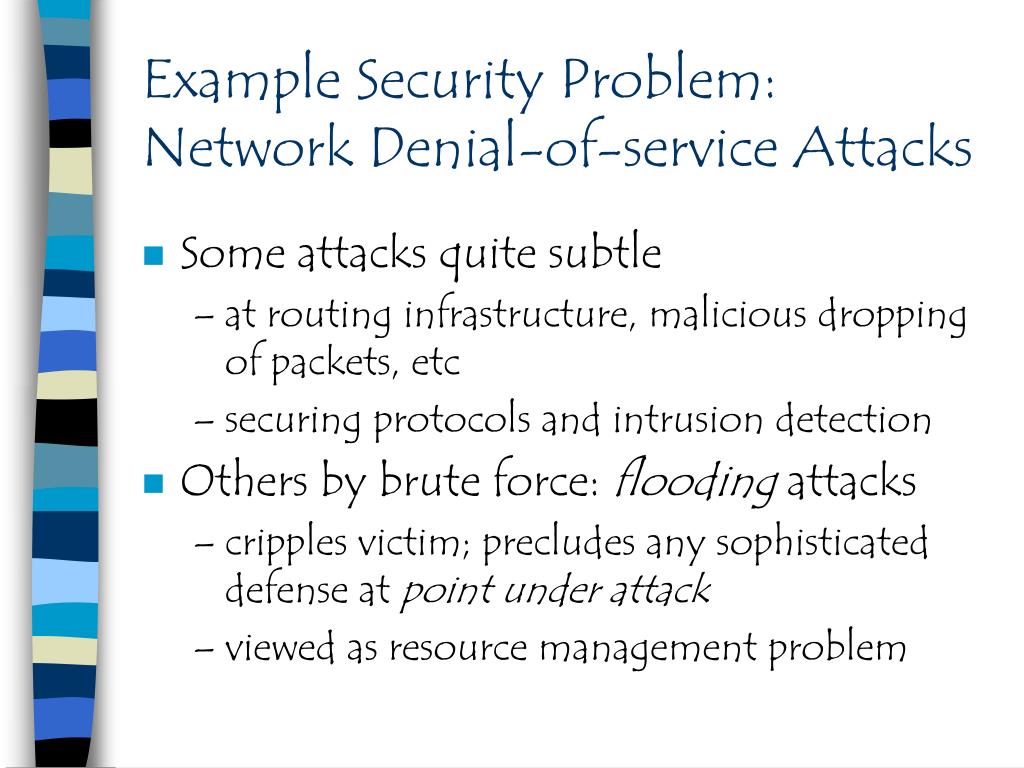

  7. Example Security Problem: Network Denial-of-service Attacks • Some attacks quite subtle • at routing infrastructure, malicious dropping of packets, etc • securing protocols and intrusion detection • Others by brute force: flooding attacks • cripples victim; precludes any sophisticated defense at point under attack • viewed as resource management problem

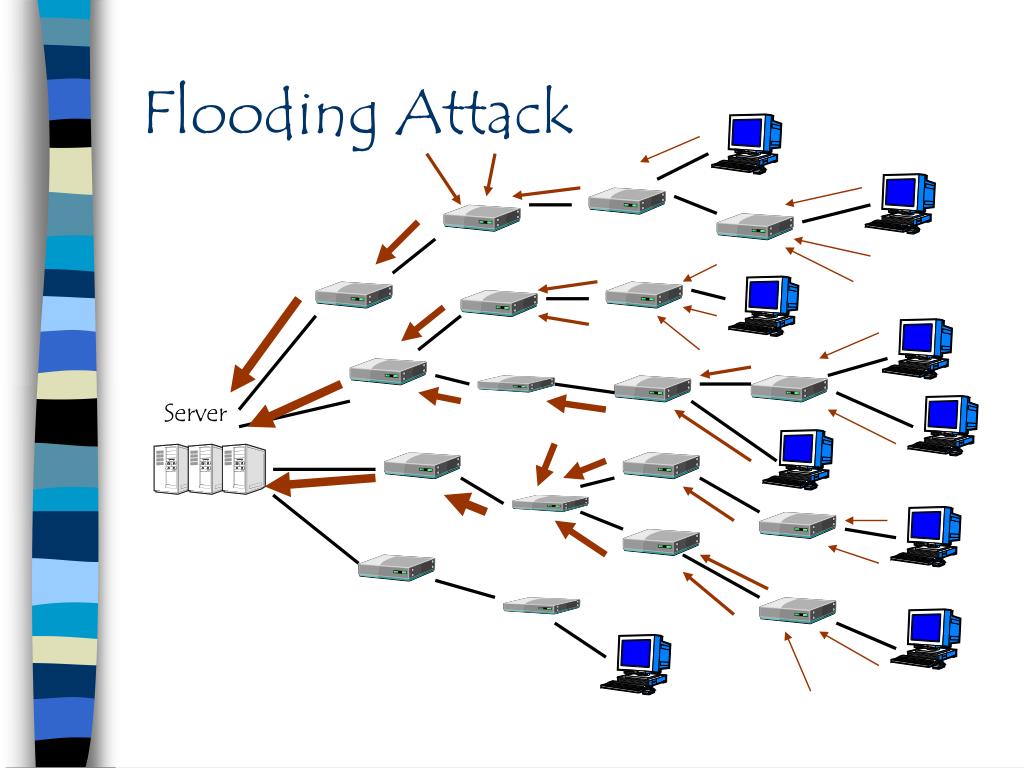

  8. Flooding Attack Server

  9. Server-centric Router Throttle • Installed by server when under stress, at a set deployment routers • can be sent by multicast • Specifies leaky bucket rate at which router can forward traffic to the server • aggressive traffic for server dropped before reaching server • rate determined by a control algorithm

  10. Securely installed by S Throttle for S Throttle for S’ To S’ Router Throttle Aggressive flow To S Deployment router

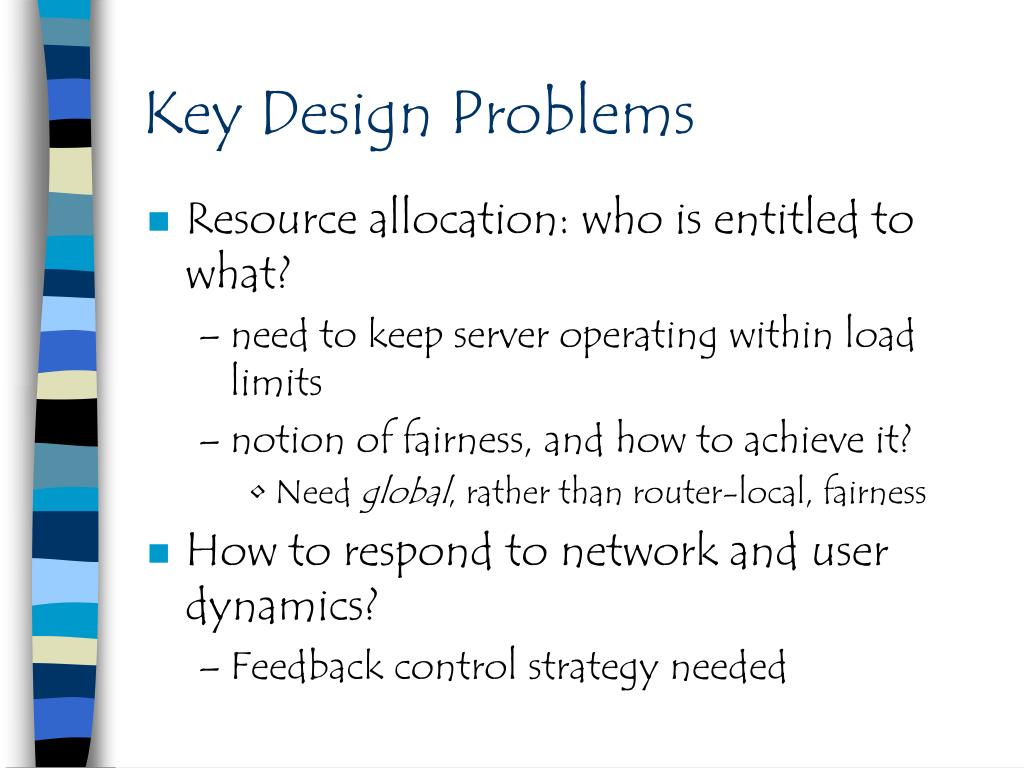

  11. Key Design Problems • Resource allocation: who is entitled to what? • need to keep server operating within load limits • notion of fairness, and how to achieve it? • Need global, rather than router-local, fairness • How to respond to network and user dynamics? • Feedback control strategy needed

  12. What is being fair? • Baseline approach of dropping a fraction f of traffic for each flow won’t work well • a flow can cause more damage to other flows simply by being more aggressive! • Rather, no flow should get a higher rate than another flow that has unmet demands • this way, we penalize aggressive flows only, but protect the well-behaving ones

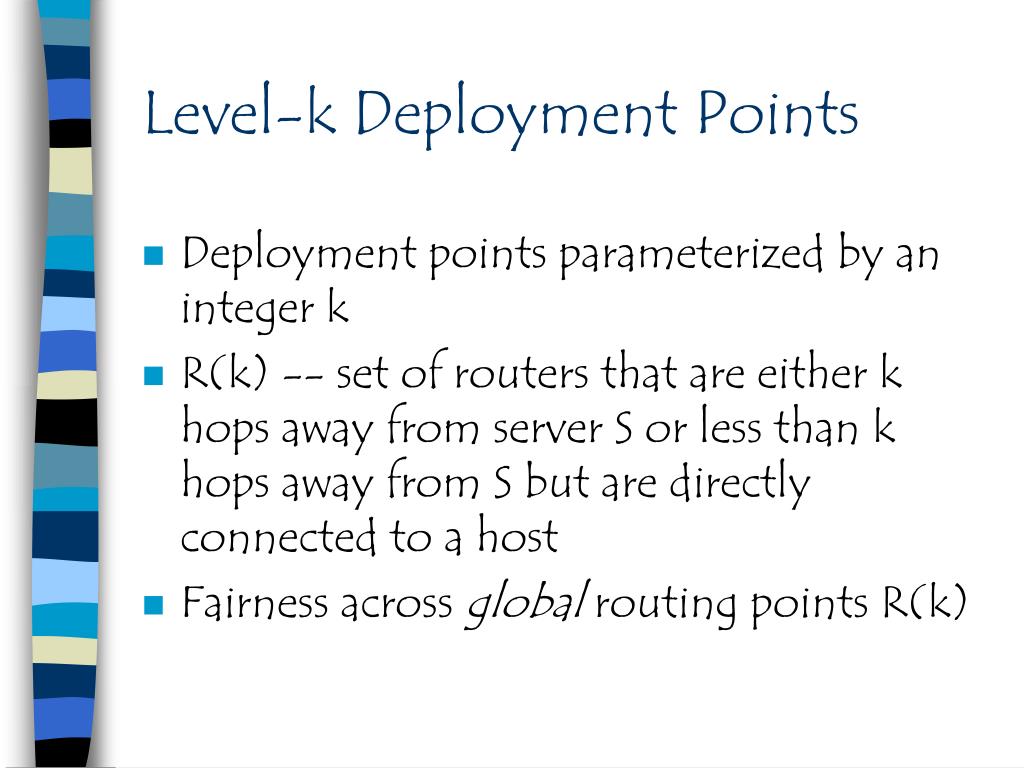

  13. Level-k Deployment Points • Deployment points parameterized by an integer k • R(k) -- set of routers that are either k hops away from server S or less than k hops away from S but are directly connected to a host • Fairness across global routing points R(k)

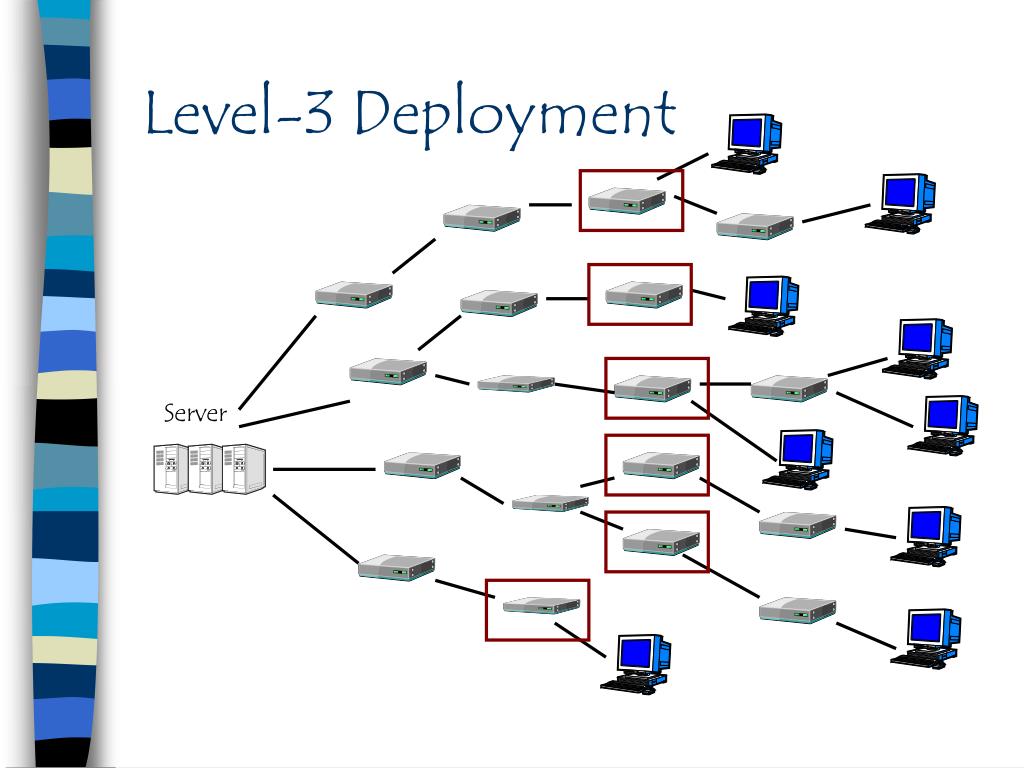

  14. Level-3 Deployment Server

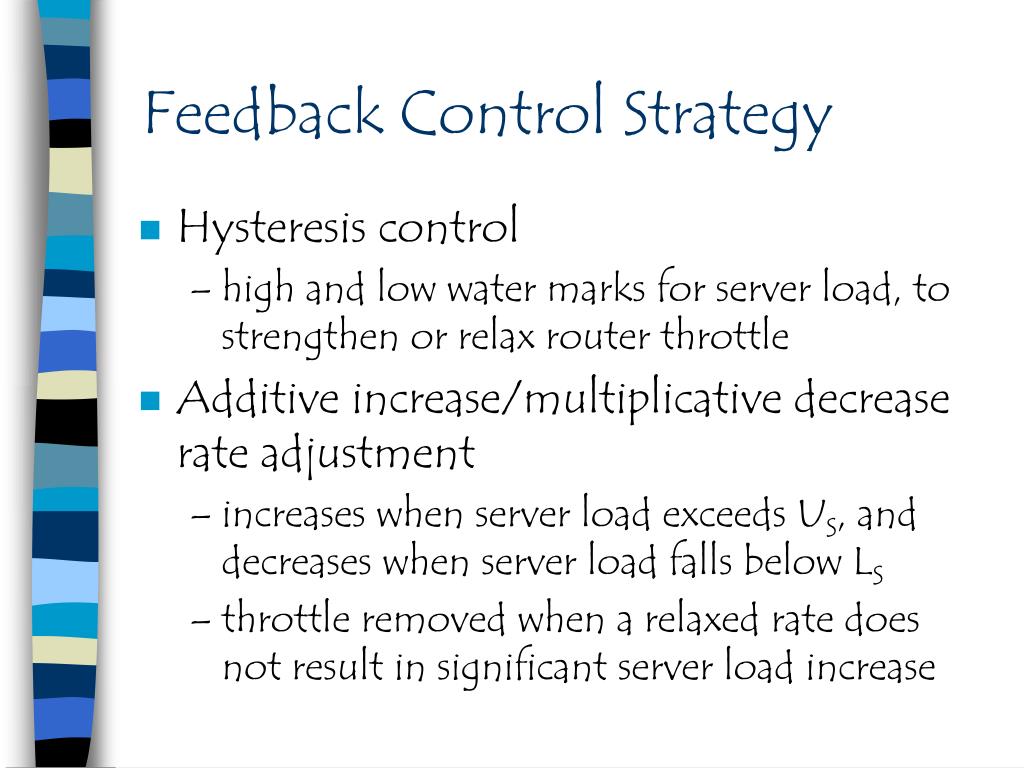

  15. Feedback Control Strategy • Hysteresis control • high and low water marks for server load, to strengthen or relax router throttle • Additive increase/multiplicative decrease rate adjustment • increases when server load exceeds US, and decreases when server load falls below LS • throttle removed when a relaxed rate does not result in significant server load increase

  16. Fairness Definition • A resource control algorithm achieves level-k max-min fairness among the routers R(k) if the allowed forwarding rate of traffic for S at each router is the router’s max-min fair share of some rate r satisfying LS r US

  17. Fair Throttle Algorithm

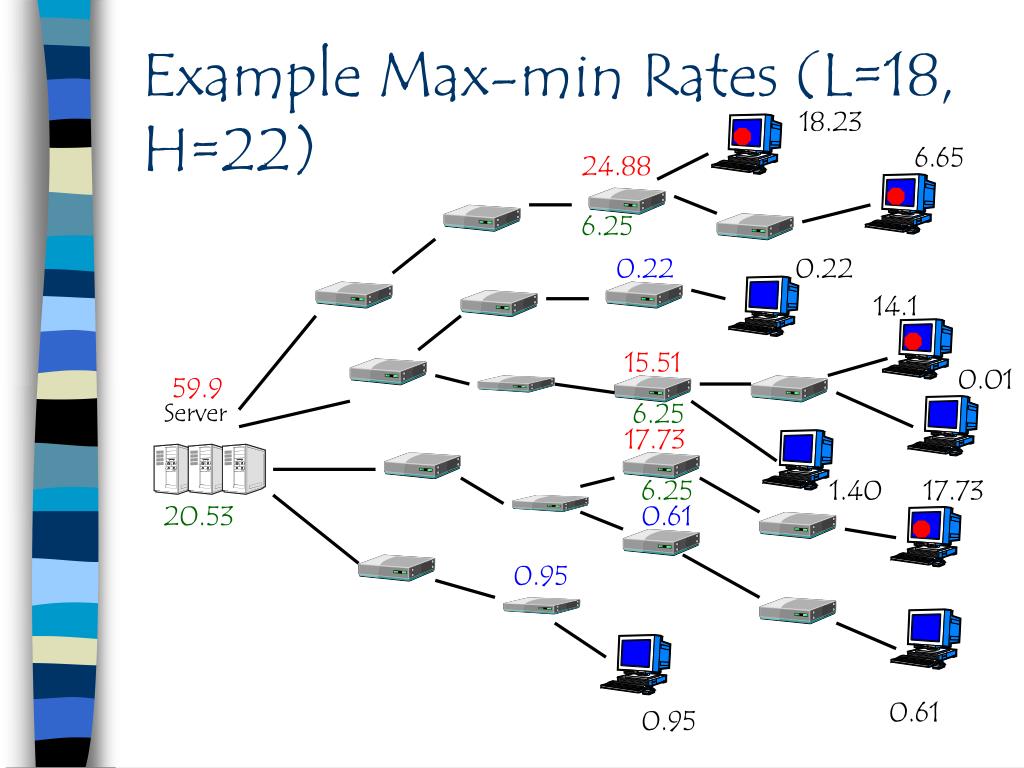

  18. 18.23 6.65 24.88 6.25 0.22 0.22 14.1 15.51 0.01 59.9 6.25 17.73 6.25 1.40 17.73 20.53 0.61 0.95 0.61 0.95 Example Max-min Rates (L=18, H=22) Server

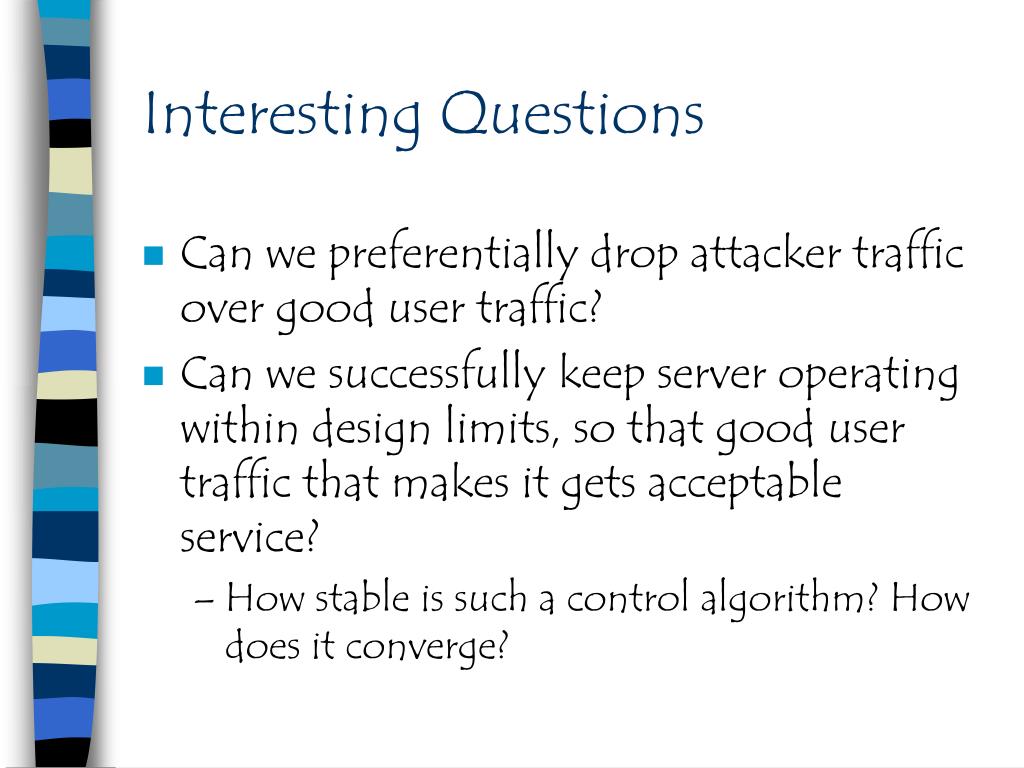

  19. Interesting Questions • Can we preferentially drop attacker traffic over good user traffic? • Can we successfully keep server operating within design limits, so that good user traffic that makes it gets acceptable service? • How stable is such a control algorithm? How does it converge?

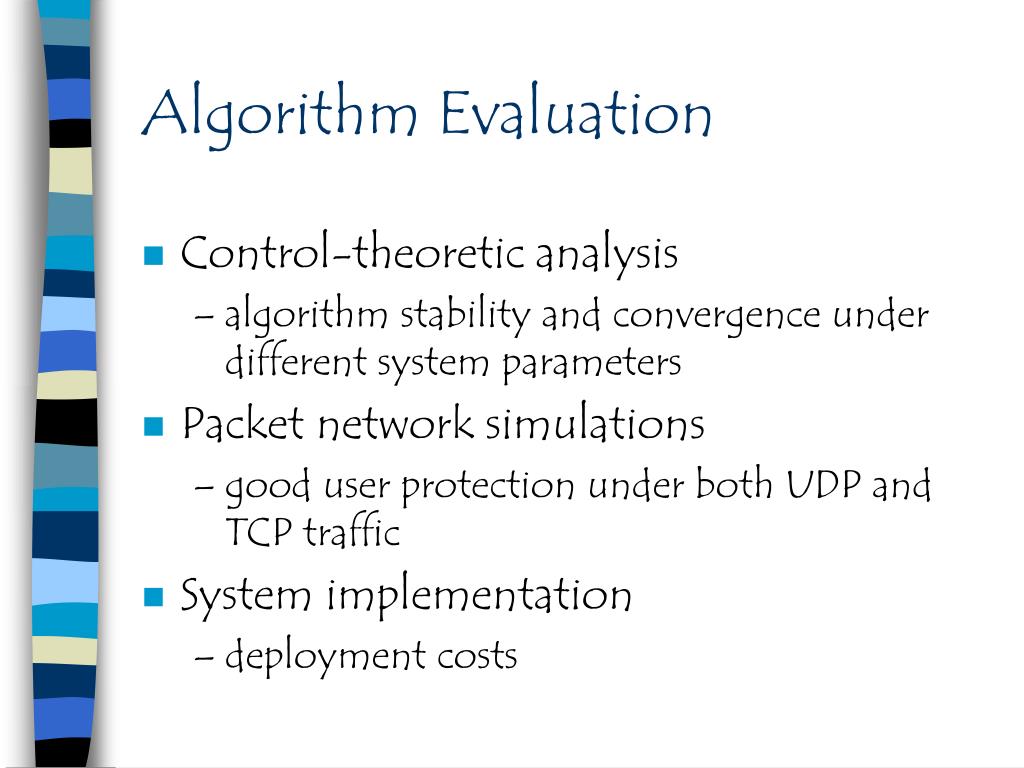

  20. Algorithm Evaluation • Control-theoretic analysis • algorithm stability and convergence under different system parameters • Packet network simulations • good user protection under both UDP and TCP traffic • System implementation • deployment costs

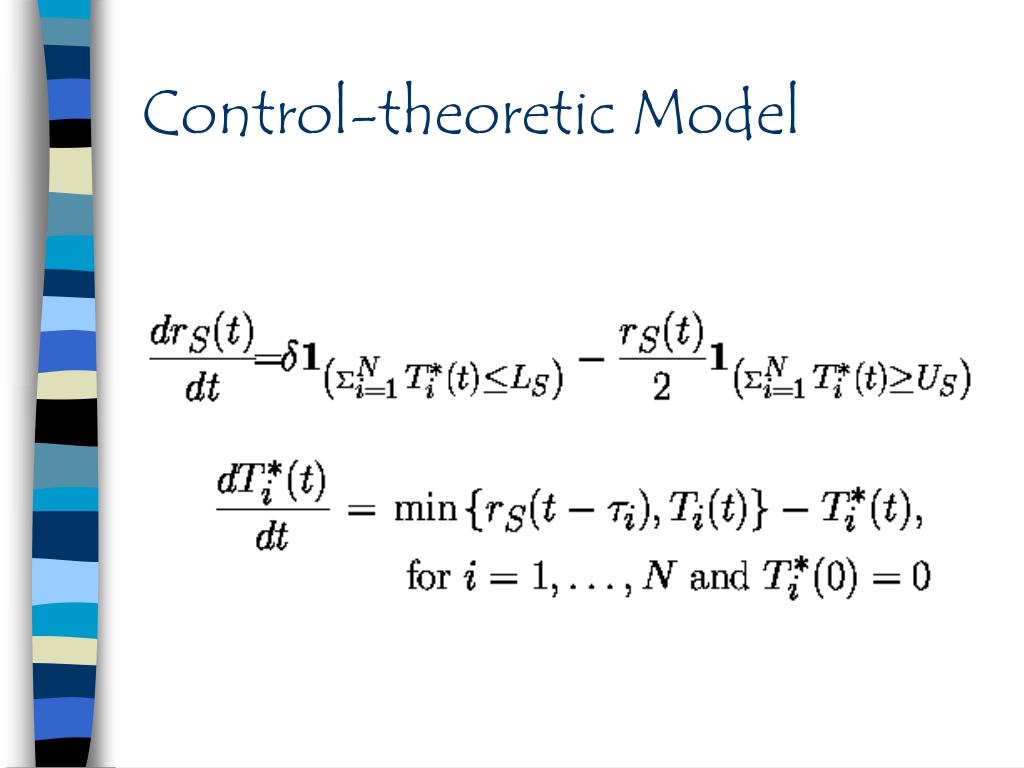

  21. Control-theoretic Model

  22. Throttle Rate (L=900; U=1100)

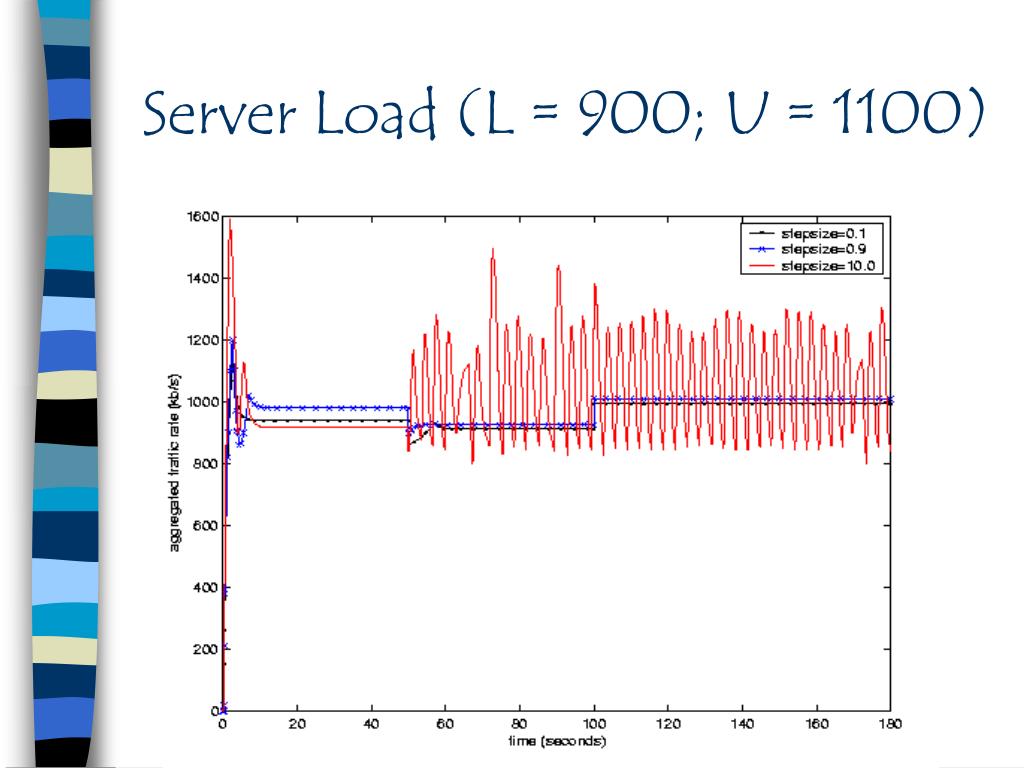

  23. Server Load (L = 900; U = 1100)

  24. Throttle Rate (U = 1100)

  25. Server Load (U = 1100)

  26. Throttle Rate (L=1050;U=1100)

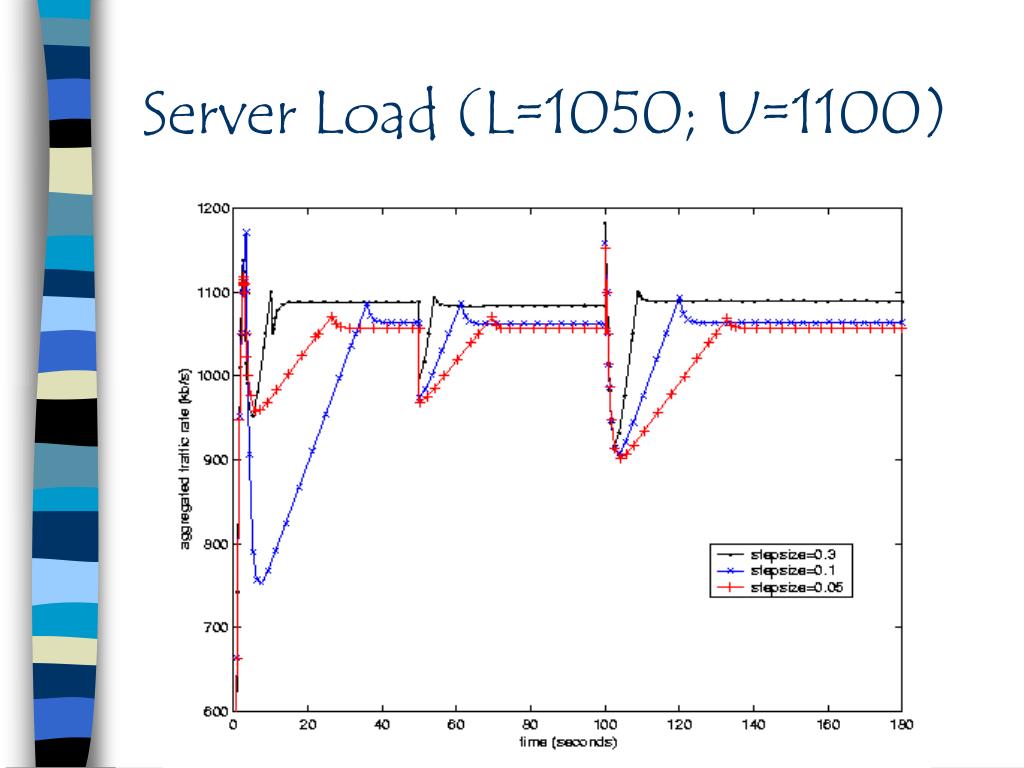

  27. Server Load (L=1050; U=1100)

  28. UDP Simulation Experiments • Global network topology reconstructed from real traceroute data • AT&T Internet mapping project: 709,310 traceroute paths, single source to 103,402 other destinations • randomly select 5,000 paths, with 135,821 nodes of which 3879 are hosts • Randomly select x% of hosts to be attackers • good users send at rate [0,r], attackers at rate [0,R]

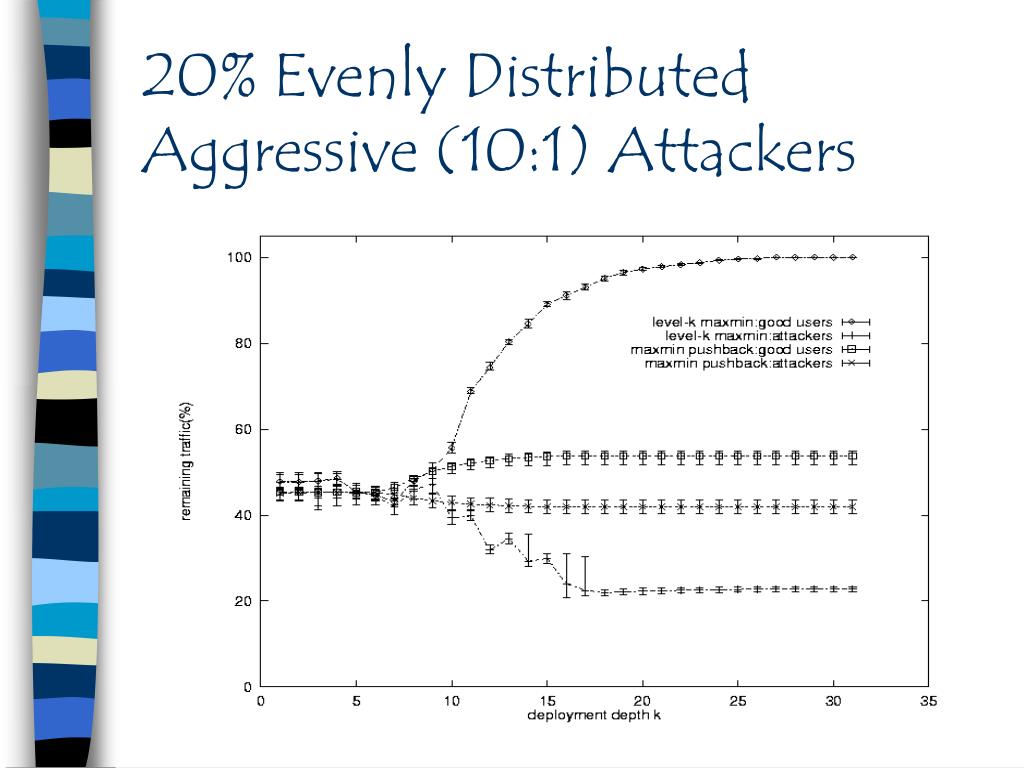

  29. 20% Evenly Distributed Aggressive (10:1) Attackers

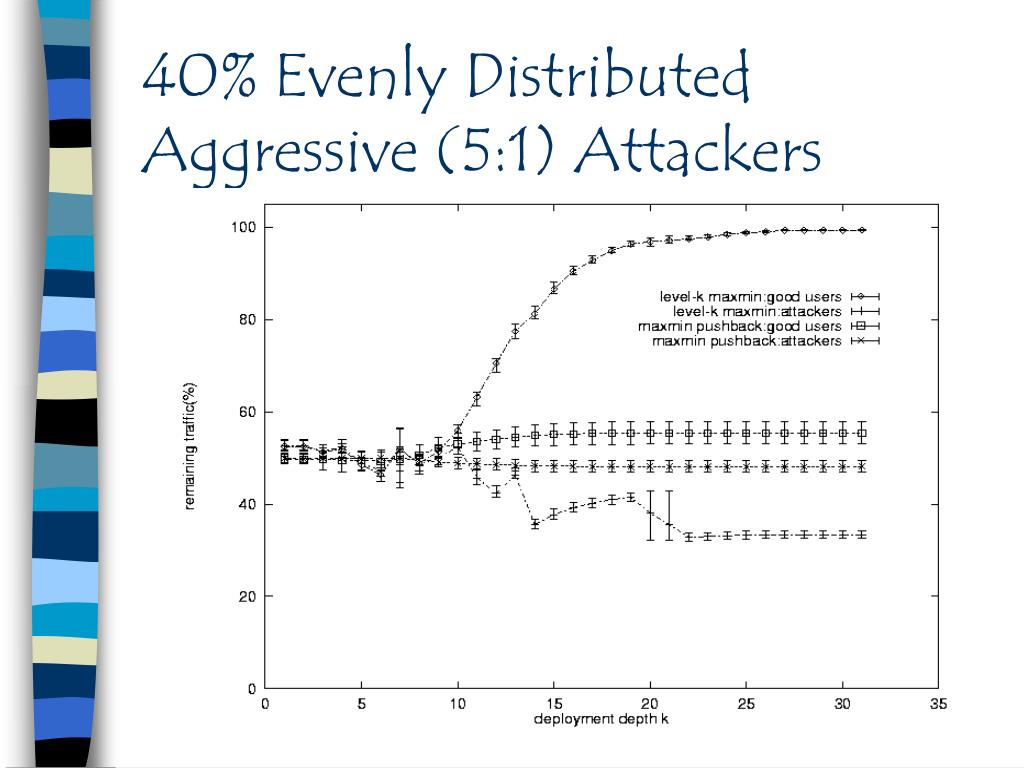

  30. 40% Evenly Distributed Aggressive (5:1) Attackers

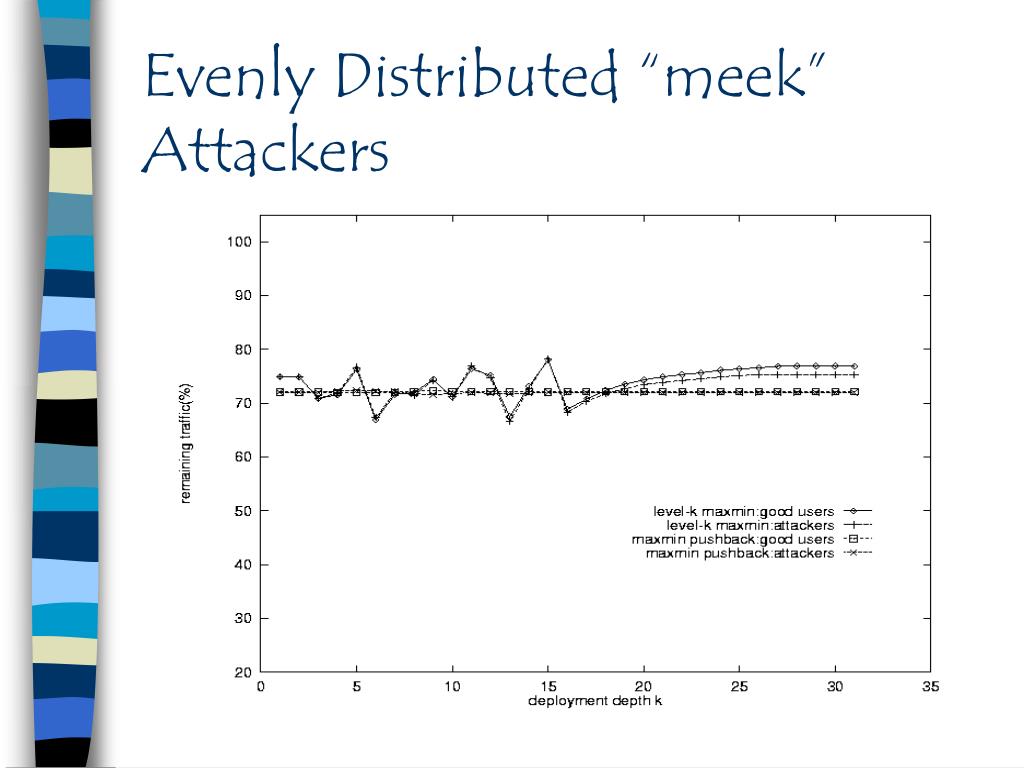

  31. Evenly Distributed “meek” Attackers

  32. Deployment Extent

  33. TCP Simulation Experiment • Clients access web server via HTTP 1.0 over TCP Reno • Simulated network subset of AT&T traceroute topology • 85 hosts, 20% attackers • Web clients make request probabilistically with empirical document size and inter-request time distributions

  34. Web Server Protection

  35. Web Server Traffic Control

  36. System Implementation • On CROSS/Linux router • as Click element kernel service (loadable kernel module) • code can be remotely downloaded through anetd daemon • Deployment platform • Pentium III/864 MHz PC • multiple 10/100 Mb/s ethernet interfaces

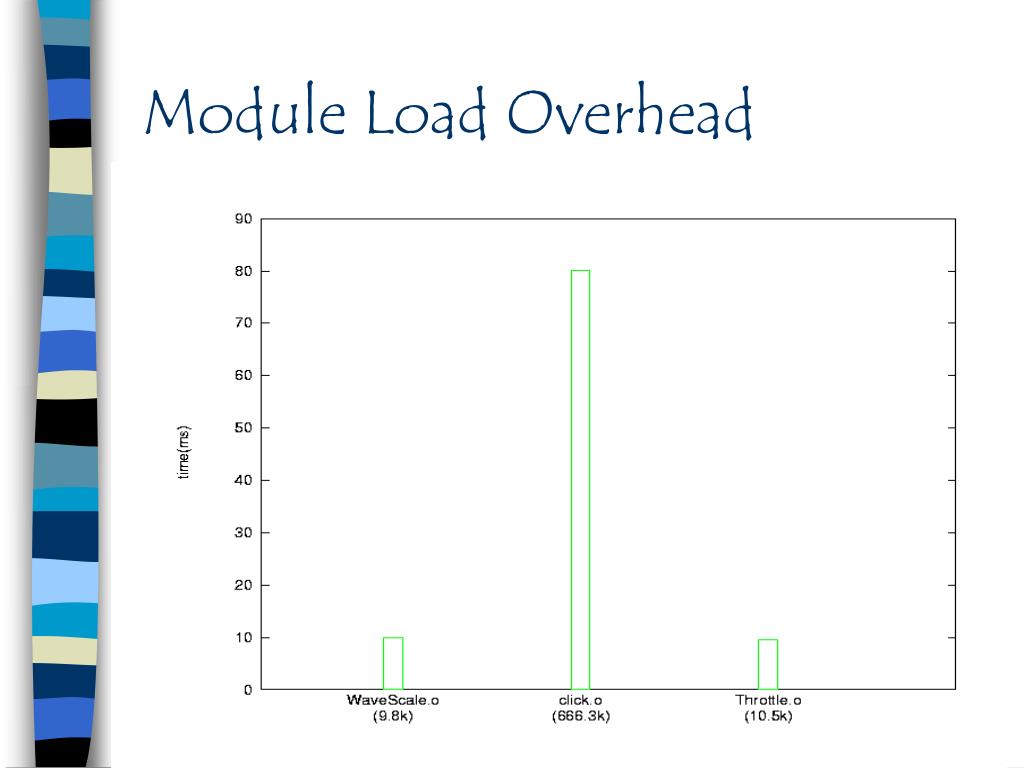

  37. Module Load Overhead

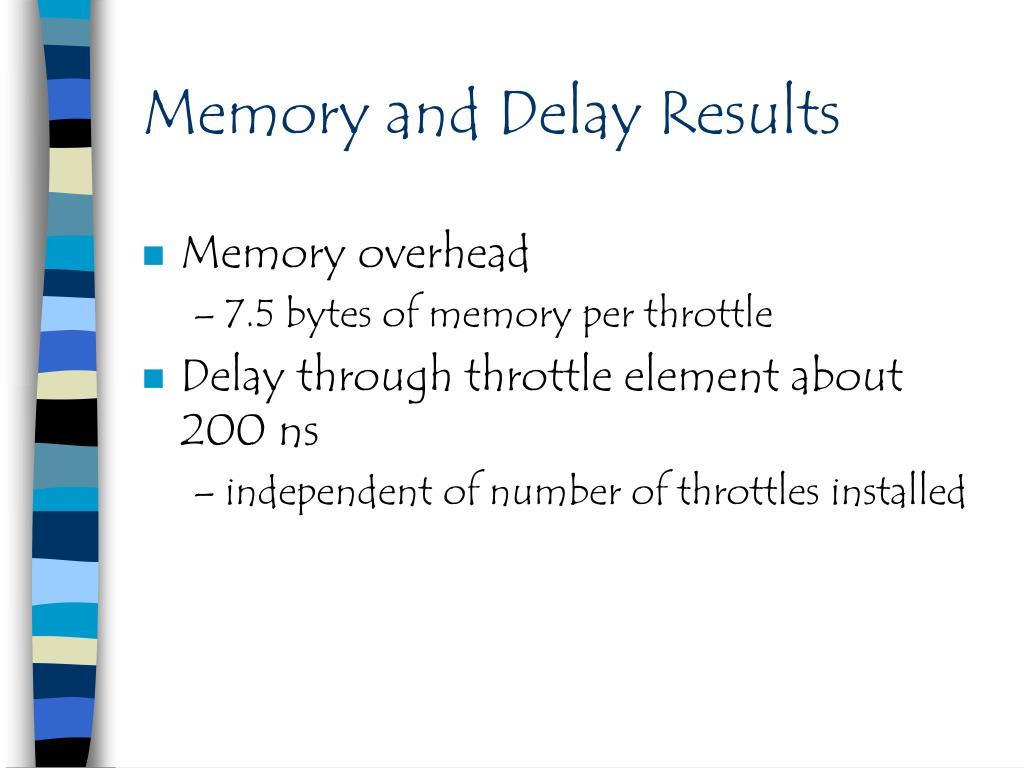

  38. Memory and Delay Results • Memory overhead • 7.5 bytes of memory per throttle • Delay through throttle element about 200 ns • independent of number of throttles installed

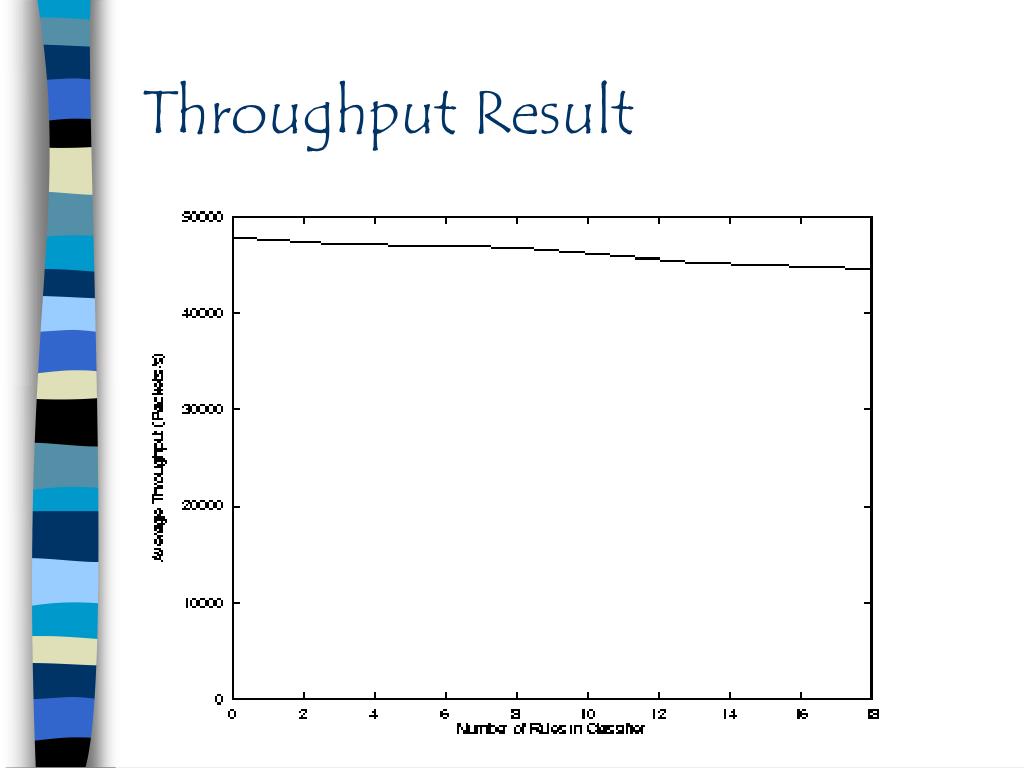

  39. Throughput Result

  40. Future Work • Offered load-aware control algorithm for computing throttle rate • impact on convergence and stability • Policy-based notion of fairness • heterogeneous network regions, by size, susceptibility to attacks, tariff payment • Selective deployment issues • Impact on real user applications

  41. Conclusions • Extensible routers can help improve network health • Presented a server-centric router throttle mechanism for DDoS flooding attacks • can better protect good user traffic from aggressive attacker traffic • can keep server operational under an ongoing attack • has efficient implementation

  42. Acknowledgements • CROSS Implementation • Prem Gopalan, Seung Chul Han, Xuxian Jiang, Puneet Zaroo • Funding has been provided by • NSF, CERIAS, Purdue Research Foundation
