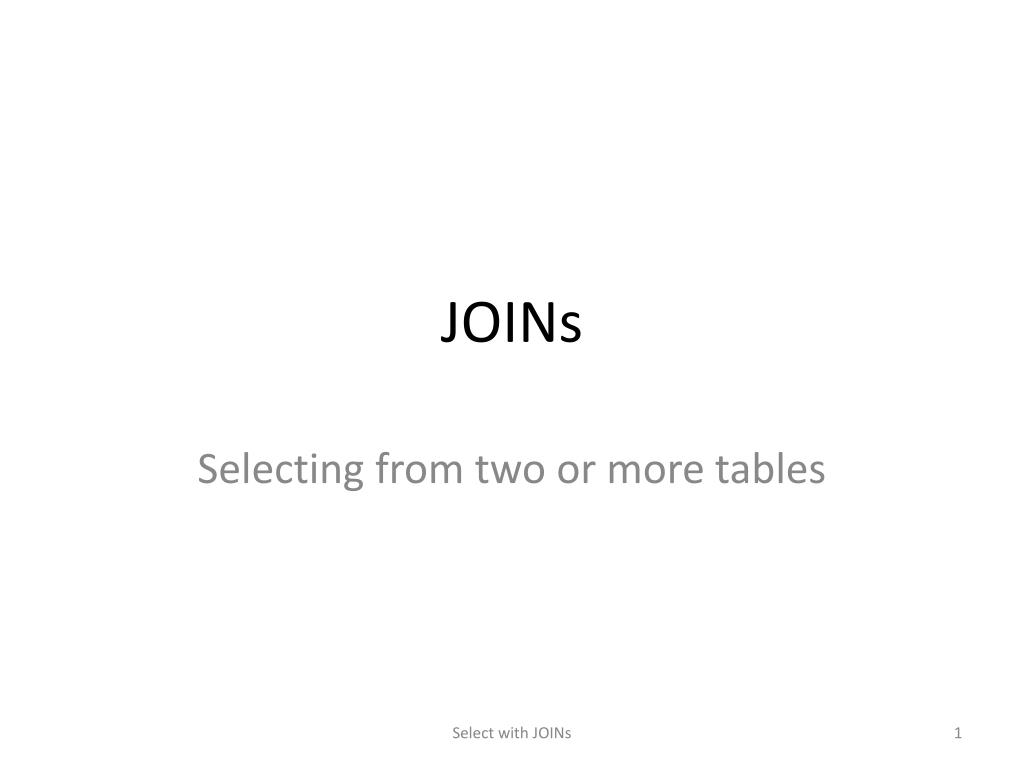

  1. JOINs Selecting from two or more tables Select with JOINs

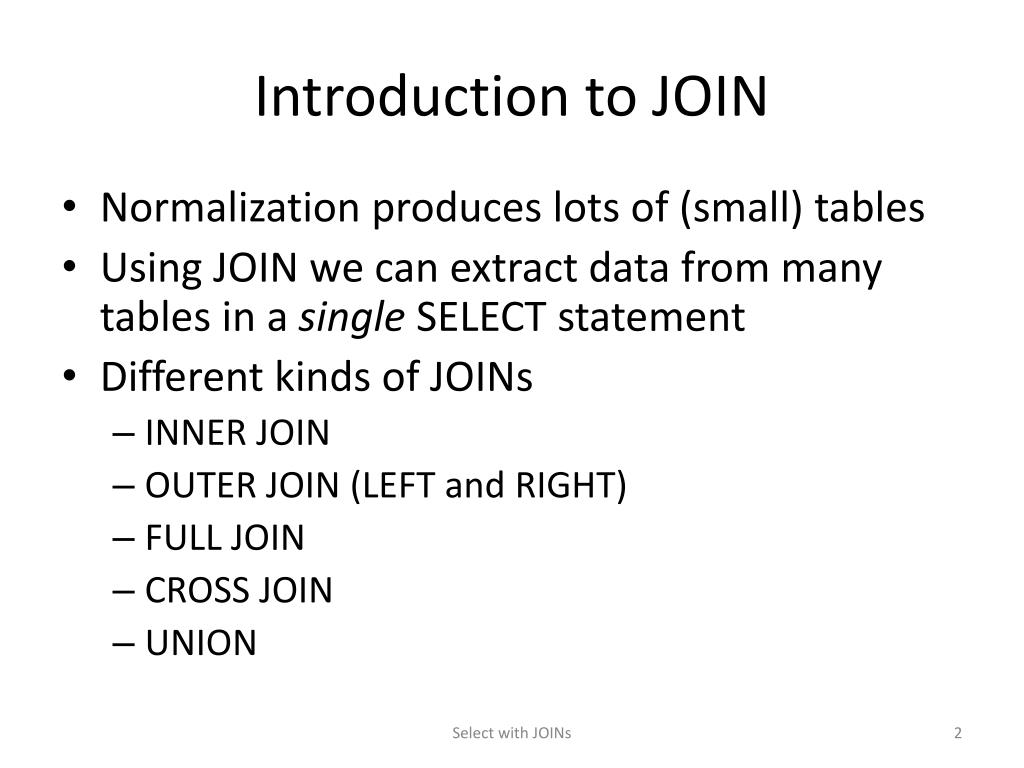

  2. Introduction to JOIN • Normalization produces lots of (small) tables • Using JOIN we can extract data from many tables in a single SELECT statement • Different kinds of JOINs • INNER JOIN • OUTER JOIN (LEFT and RIGHT) • FULL JOIN • CROSS JOIN • UNION Select with JOINs

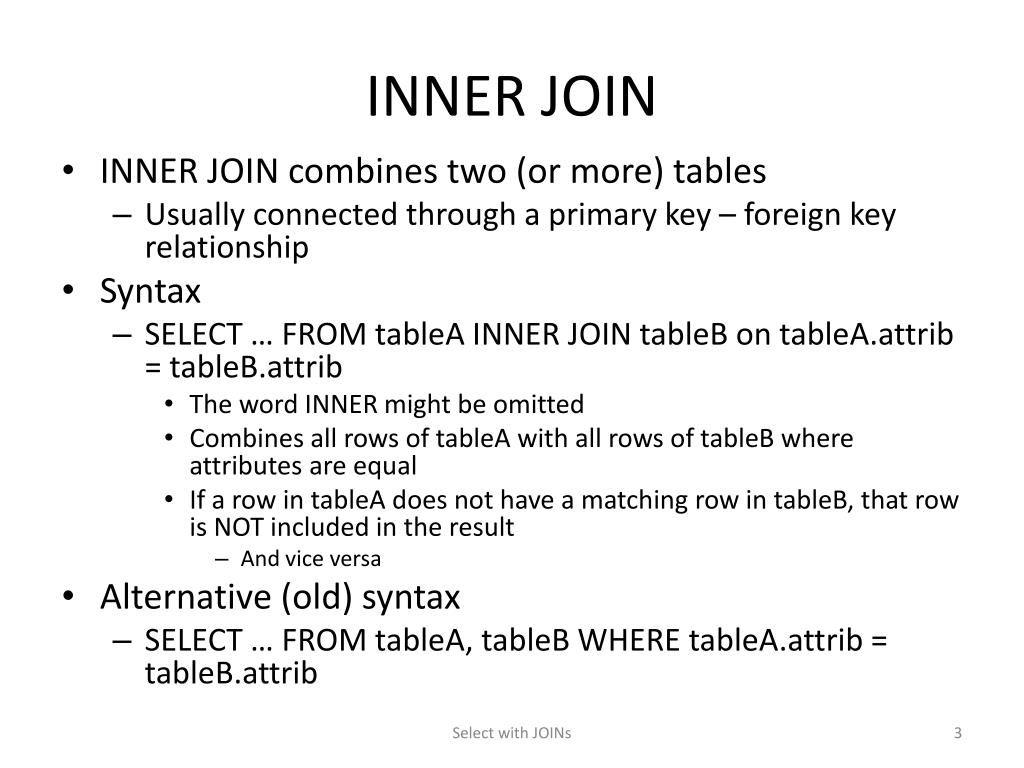

  3. INNER JOIN • INNER JOIN combines two (or more) tables • Usually connected through a primary key – foreign key relationship • Syntax • SELECT … FROM tableA INNER JOIN tableB on tableA.attrib = tableB.attrib • The word INNER might be omitted • Combines all rows of tableA with all rows of tableB where attributes are equal • If a row in tableA does not have a matching row in tableB, that row is NOT included in the result • And vice versa • Alternative (old) syntax • SELECT … FROM tableA, tableB WHERE tableA.attrib = tableB.attrib Select with JOINs

  4. OUTER JOINs • Sometimes we want rows without matching rows included in the result • Syntax • SELECT … FROM tableA LEFT OUTER JOIN tableB ON tableA.attrib = tableB.attrib • Rows from tableA without matching rows in tableB, will be included in the result. • RIGHT OUTER JOIN • Vice versa Select with JOINs

  5. FULL JOIN • LEFT + RIGHT OUTER JOIN • Syntax • SELECT … FROM tableA FULL OUTER JOIN tableB ON tableA.attrib = tableB.attrib • Rows from tableA and tableB are included in the result, no matter if they have a matching row in the other table • Not used very often Select with JOINs

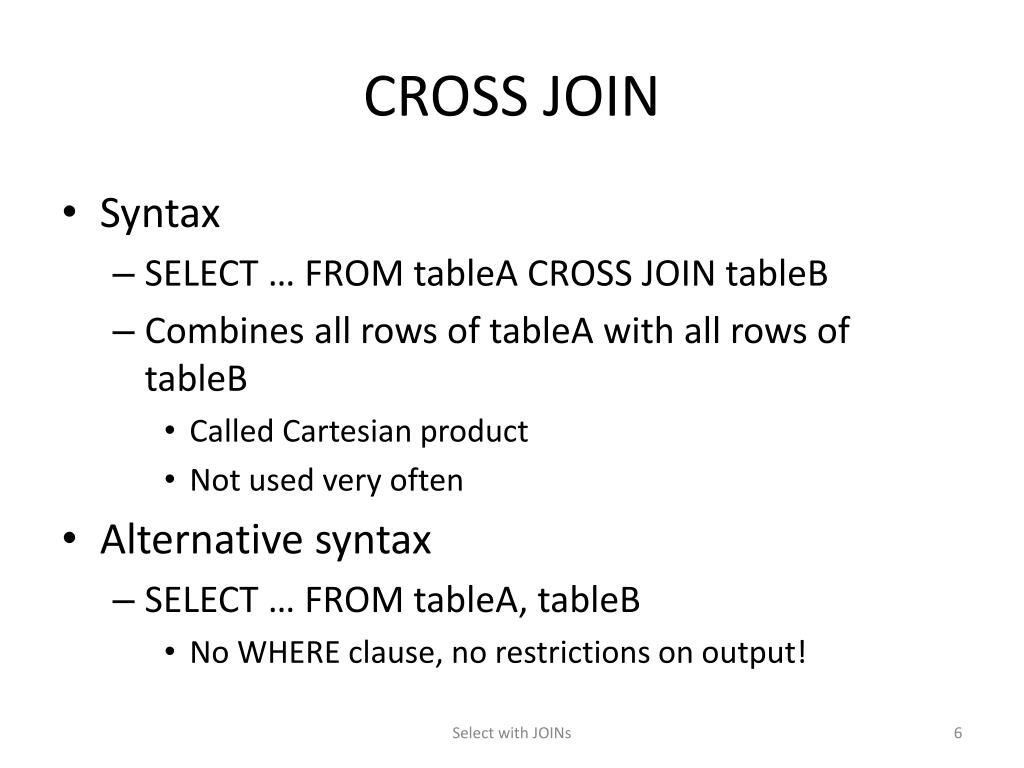

  6. CROSS JOIN • Syntax • SELECT … FROM tableA CROSS JOIN tableB • Combines all rows of tableA with all rows of tableB • Called Cartesian product • Not used very often • Alternative syntax • SELECT … FROM tableA, tableB • No WHERE clause, no restrictions on output! Select with JOINs

  7. UNION • Combines the results of two SELECTs • Syntax • SELECT … UNION SELECT … • The two result must be UNION compatible • Same number of columns • Data type of attributes must be compatible • For each column • Not used very often Select with JOINs
