  1. Electric Fields and Potential

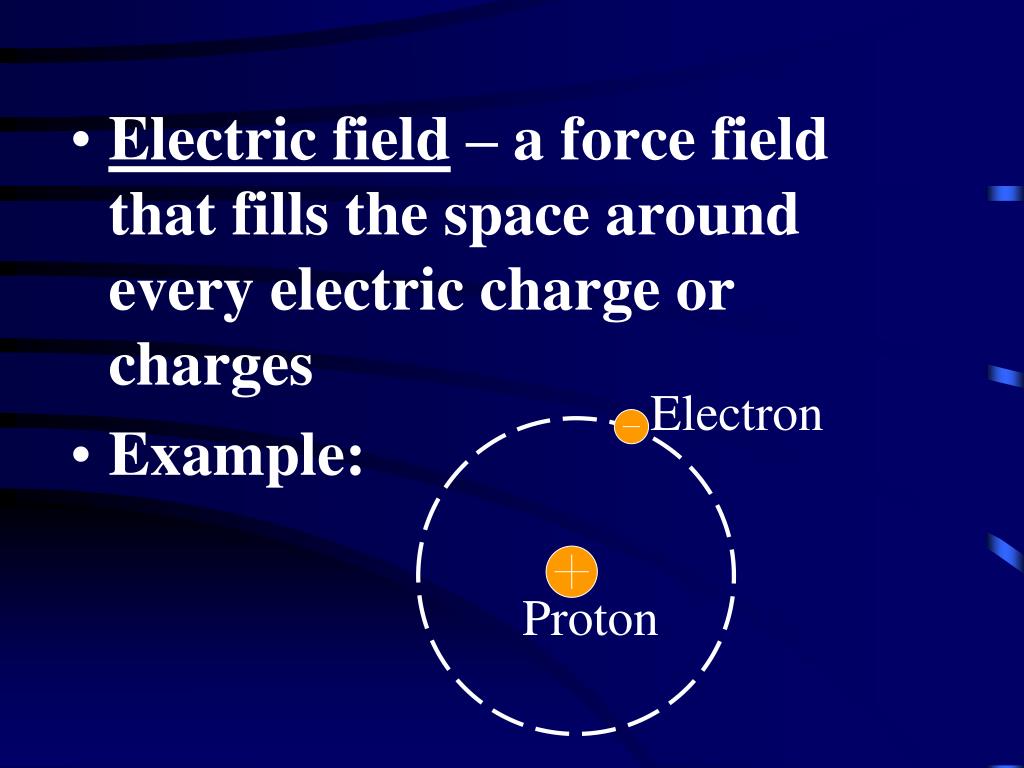

  2. Electric field – a force field that fills the space around every electric charge or charges • Example: Electron Proton

  3. An electric field has both magnitude and direction • Therefore, an electric field can be represented using… VECTORS!!!

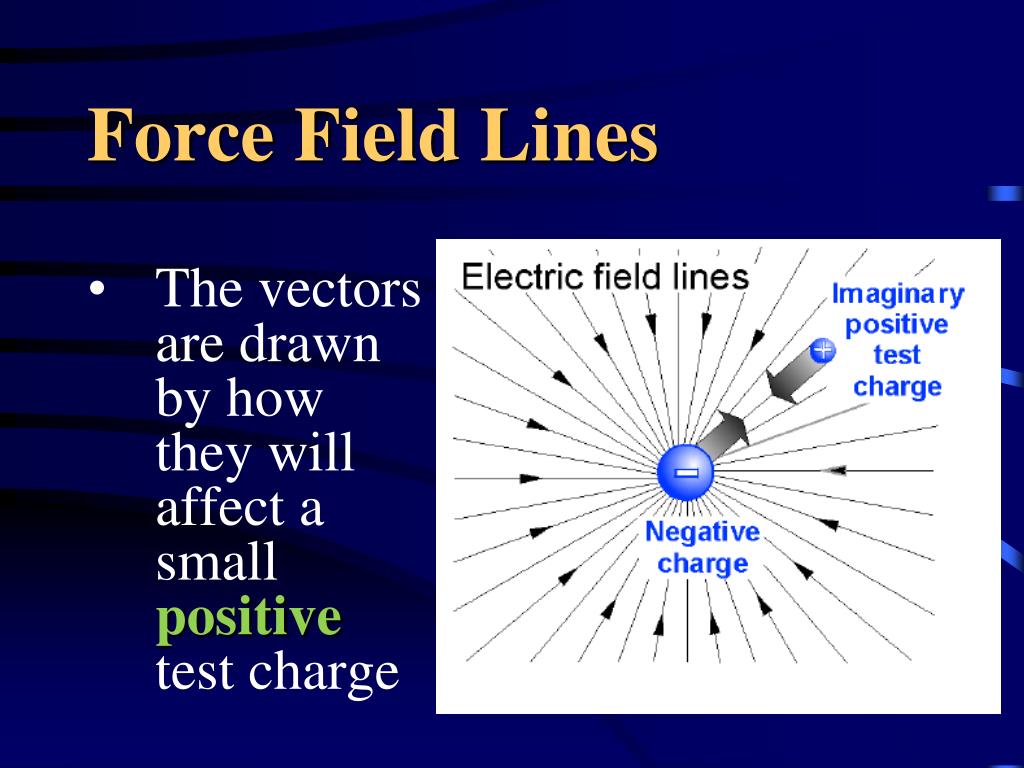

  4. Force Field Lines • The vectors are drawn by how they will affect a small positive test charge

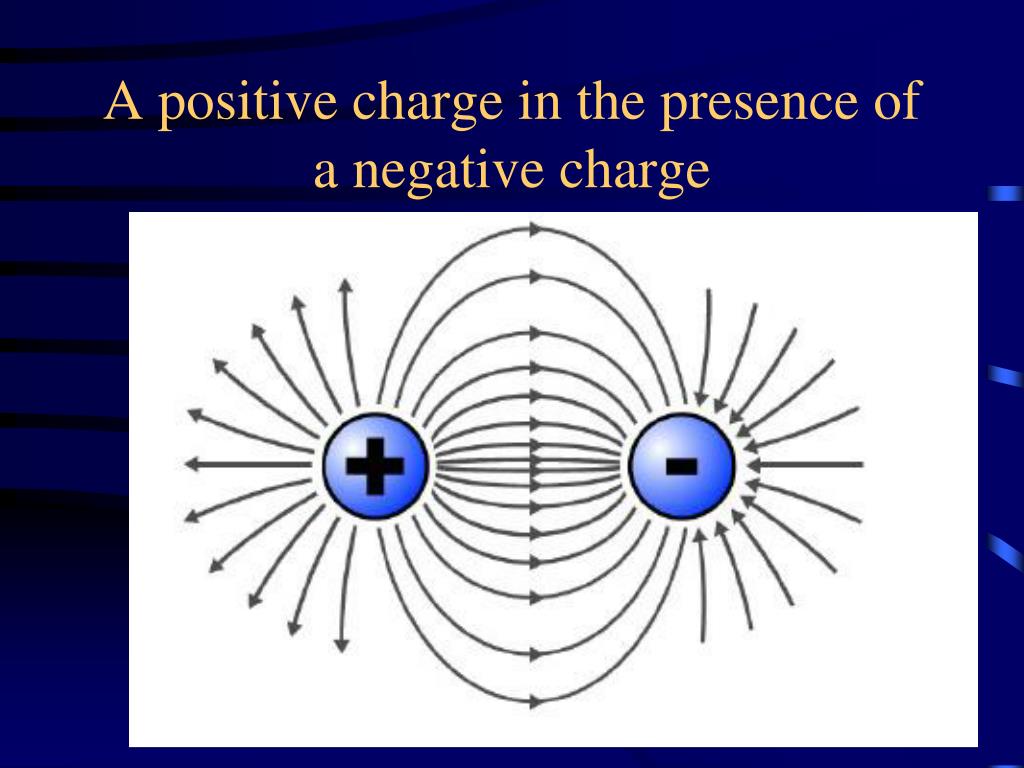

  5. A positive charge in the presence of a negative charge

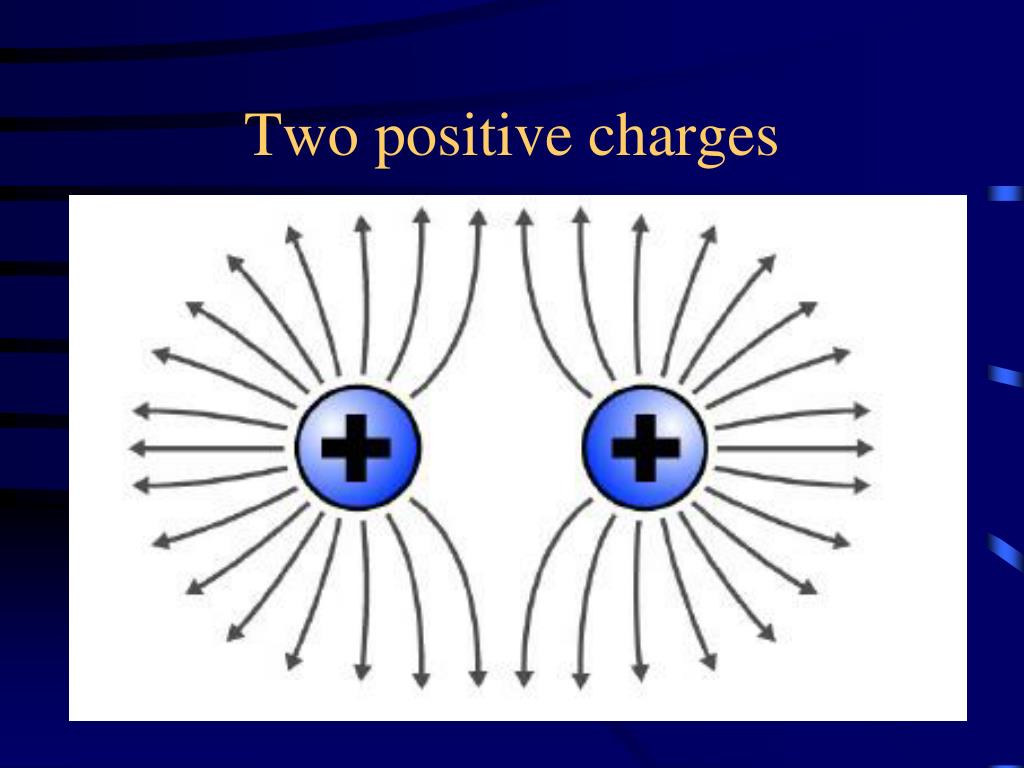

  6. Two positive charges

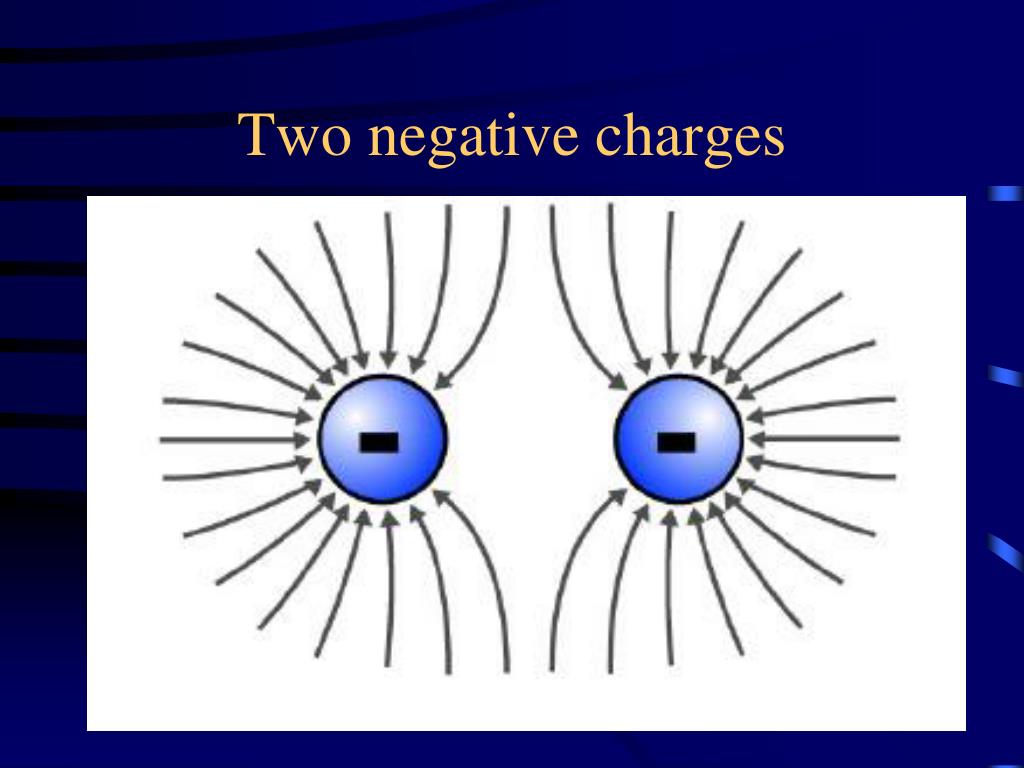

  7. Two negative charges

  8. Field is strongest where the force is the strongest – where the lines are the most concentrated (closest together)

  9. Electric field lines indicate strength A

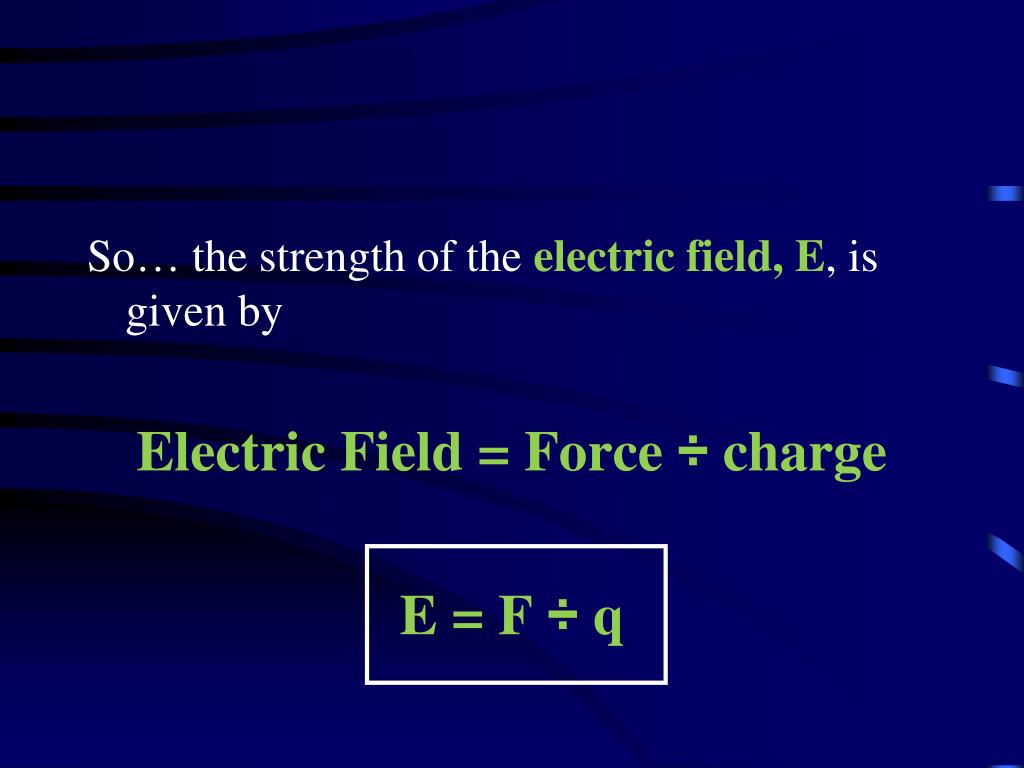

  10. So… the strength of the electric field, E, is given by Electric Field = Force ÷ charge E = F ÷ q

  11. For example: A 0.5 C charge experiences a force of 20 N when placed in an electric field. What is the strength of the electric field, E? E = F ÷ q = 20 N ÷ 0.5 C = 40 N/C

  12. The electric field near a charged piece of plastic or styrofoam is around 1000 N/C. The electric field in a television picture tube is around 10,000 N/C. The electric field at the location of the electron in a Hydrogen atom is 500,000,000,000 N/C! The further you go from an electric charge, the weaker the field becomes.

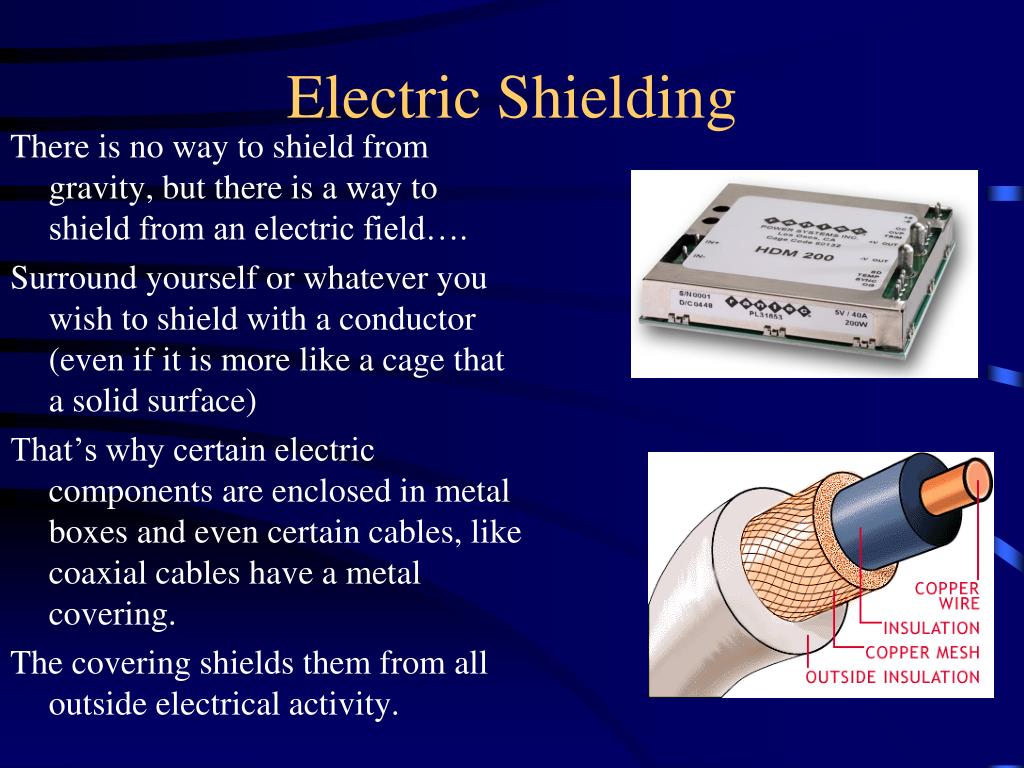

  13. Electric Shielding There is no way to shield from gravity, but there is a way to shield from an electric field…. Surround yourself or whatever you wish to shield with a conductor (even if it is more like a cage that a solid surface) That’s why certain electric components are enclosed in metal boxes and even certain cables, like coaxial cables have a metal covering. The covering shields them from all outside electrical activity.

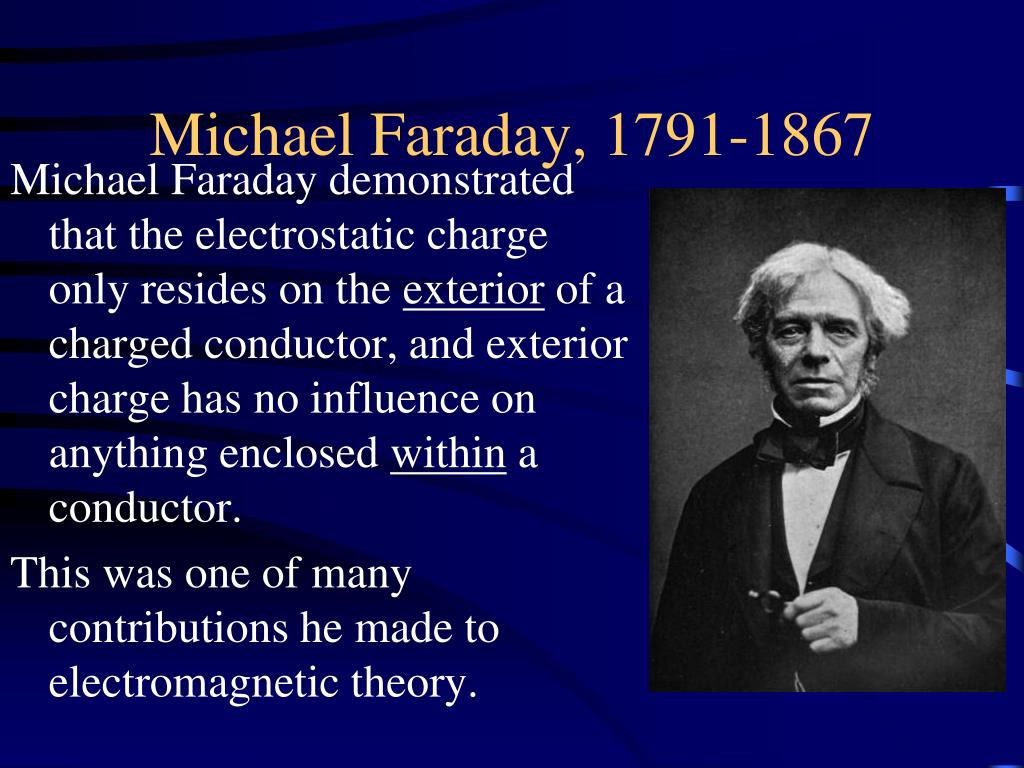

  14. Michael Faraday, 1791-1867 Michael Faraday demonstrated that the electrostatic charge only resides on the exterior of a charged conductor, and exterior charge has no influence on anything enclosed within a conductor. This was one of many contributions he made to electromagnetic theory.

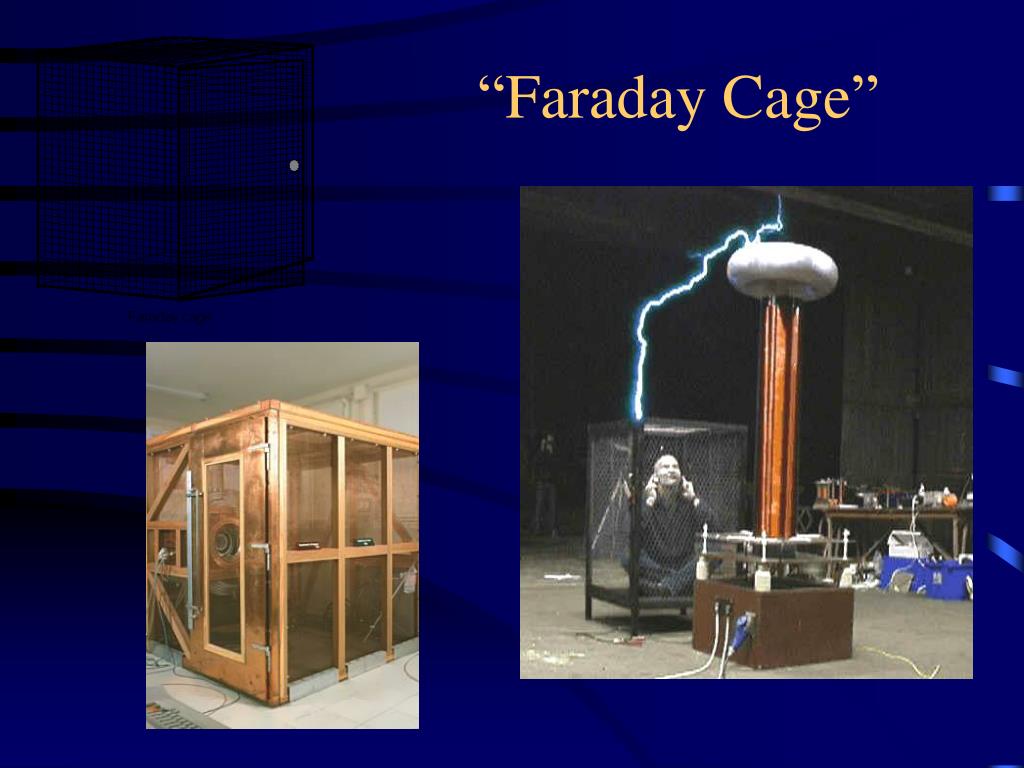

  15. “Faraday Cage”

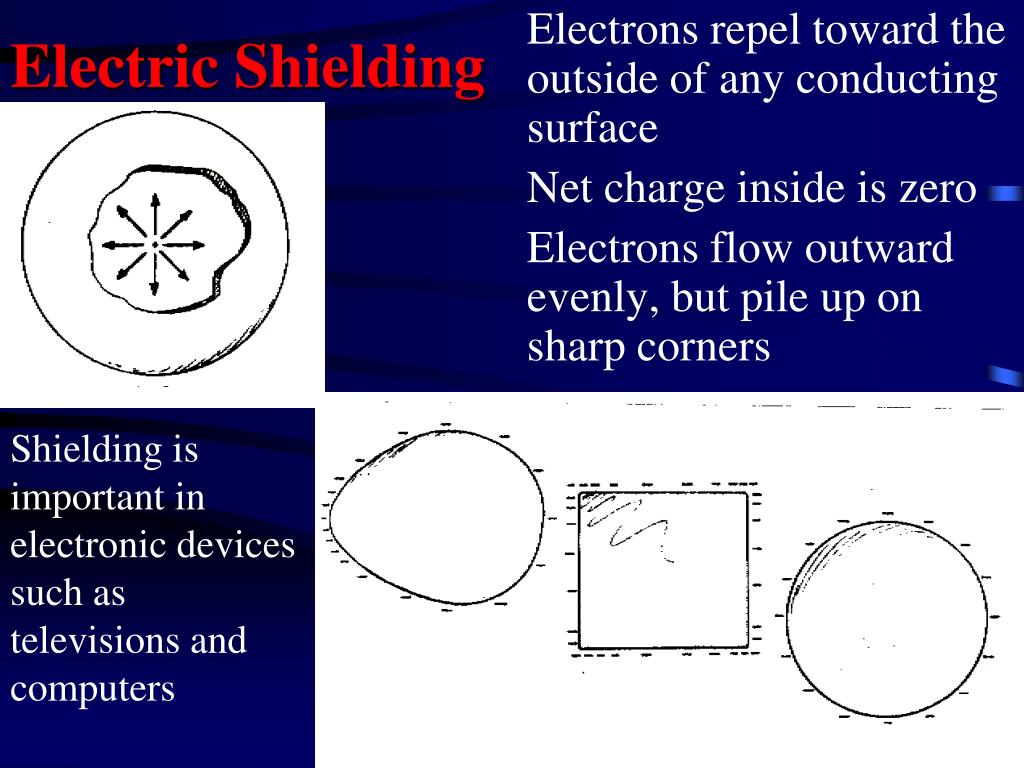

  16. Electric Shielding Electrons repel toward the outside of any conducting surface Net charge inside is zero Electrons flow outward evenly, but pile up on sharp corners Shielding is important in electronic devices such as televisions and computers

  17. Person in a car hit by artificial lightning. The lightning strikes the car and jumps to the ground bypassing the front tire arcing from the axle to the ground.

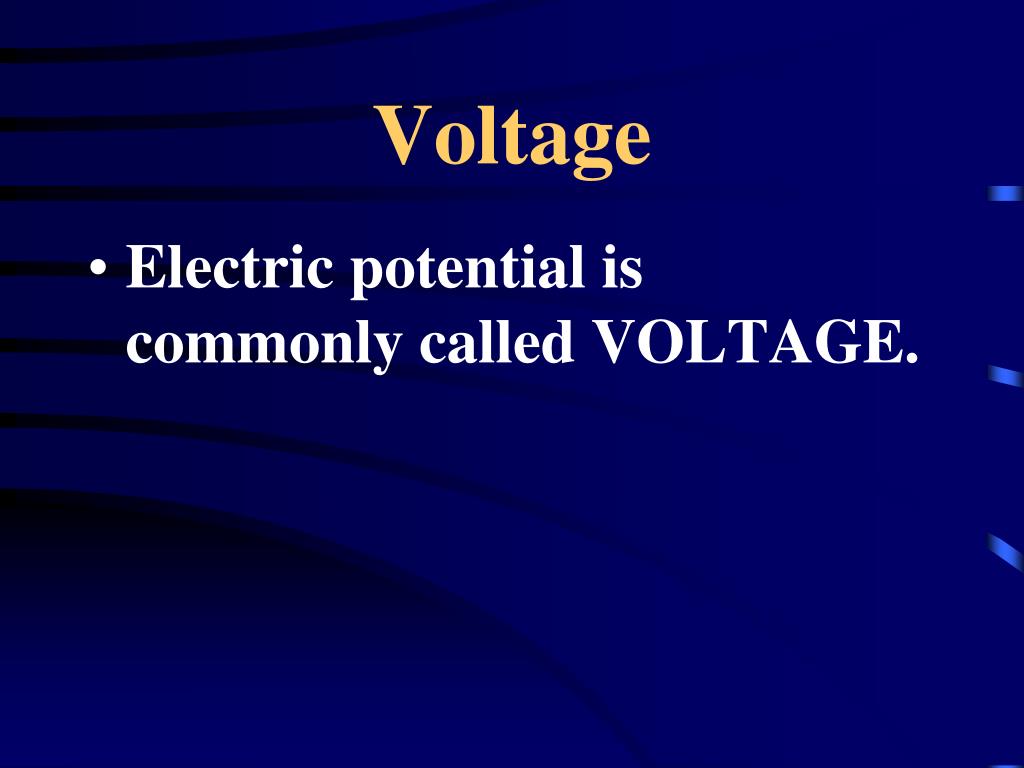

  18. Voltage • Electric potential is commonly called VOLTAGE.

  19. Rub a balloon on your hair and it becomes negatively charged, perhaps to several thousand volts. Does this mean that there’s a lot of electrical energy? Well, the charge transferred to the balloon is typically less than a millionth of a Coulomb. There’s a LOT of difference between Voltage and Energy! High Voltage does not necessarily mean that there’s a lot of useful energy or that something is dangerous.

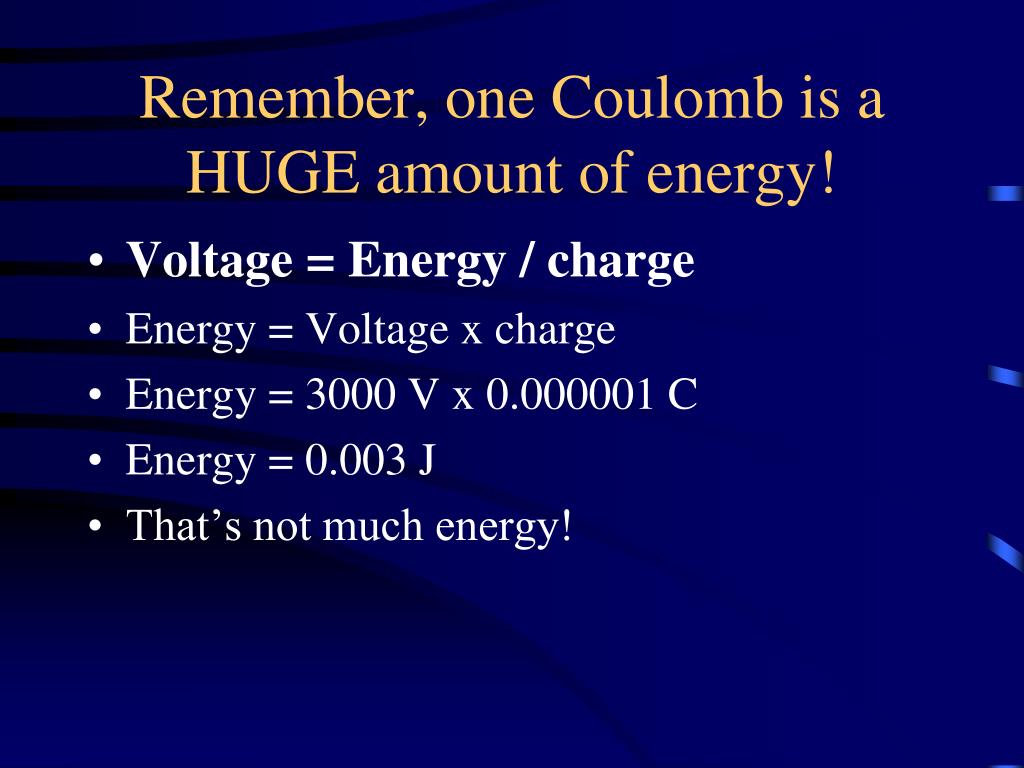

  20. Remember, one Coulomb is a HUGE amount of energy! • Voltage = Energy / charge • Energy = Voltage x charge • Energy = 3000 V x 0.000001 C • Energy = 0.003 J • That’s not much energy!

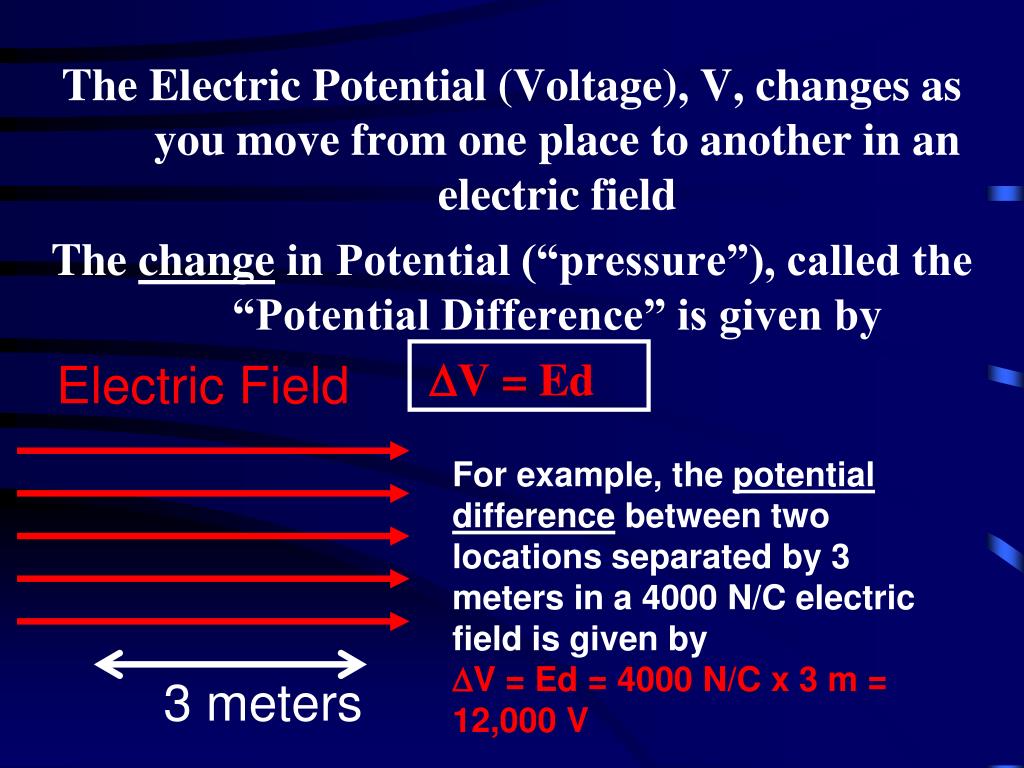

  21. Electric Field 3 meters The Electric Potential (Voltage), V, changes as you move from one place to another in an electric field The change in Potential (“pressure”), called the “Potential Difference” is given by DV = Ed For example, the potential difference between two locations separated by 3 meters in a 4000 N/C electric field is given by DV = Ed = 4000 N/C x 3 m = 12,000 V

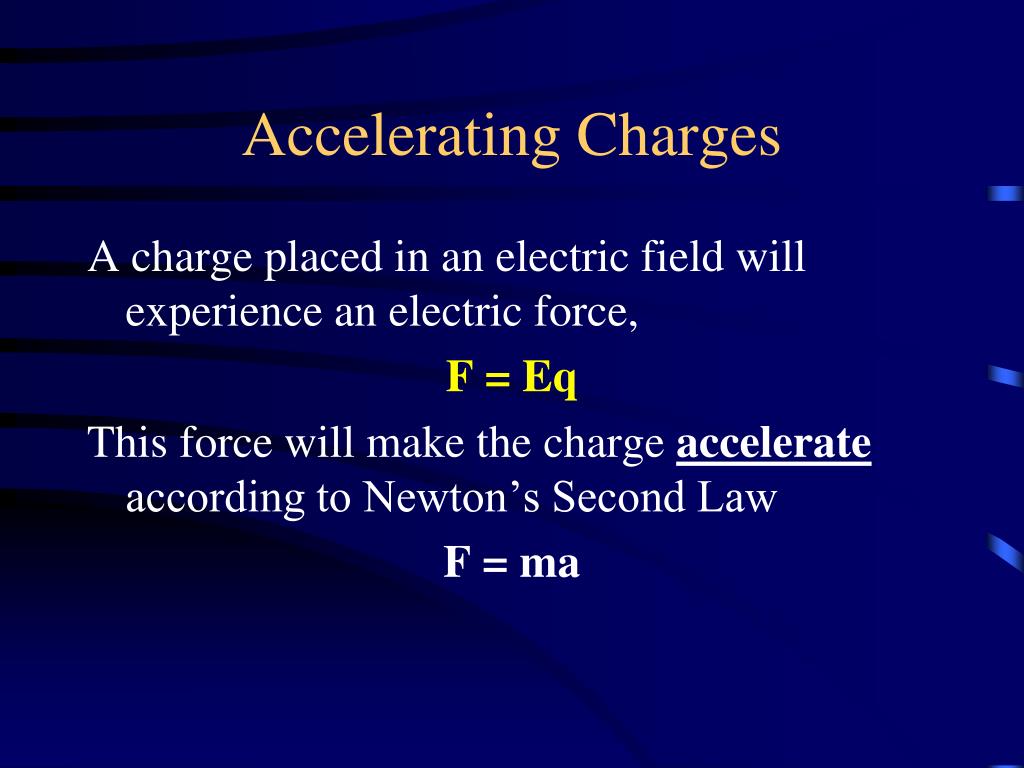

  22. Accelerating Charges A charge placed in an electric field will experience an electric force, F = Eq This force will make the charge accelerate according to Newton’s Second Law F = ma

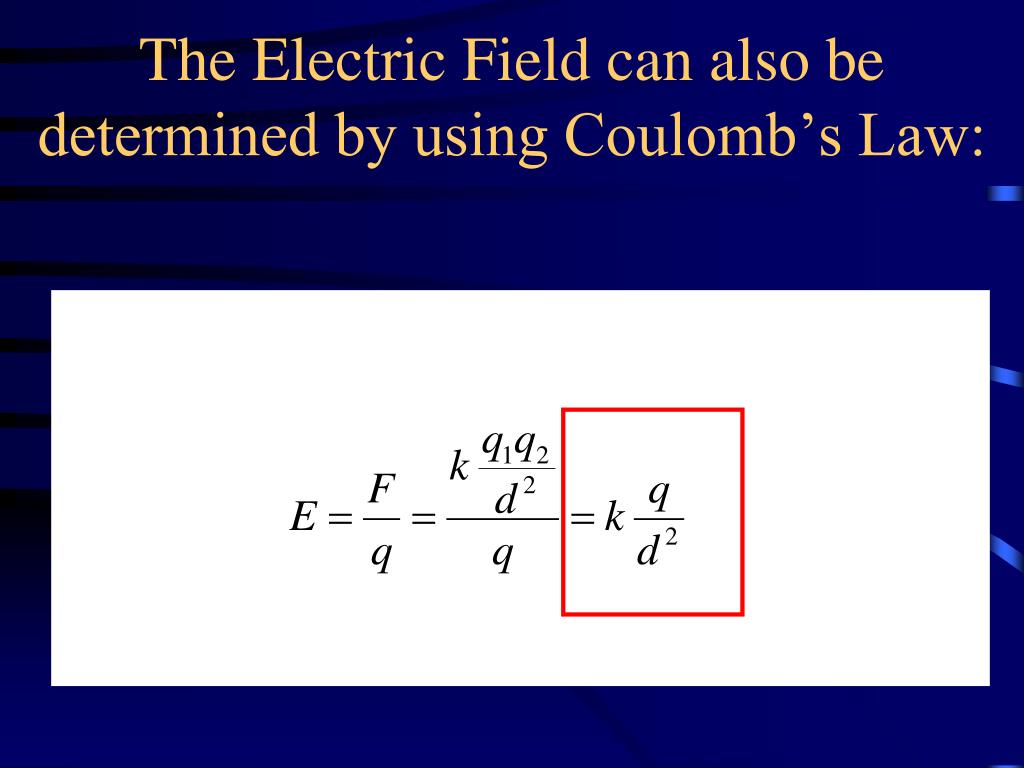

  23. The Electric Field can also be determined by using Coulomb’s Law: The Electric Field can also be determined by using Coulomb’s Law:

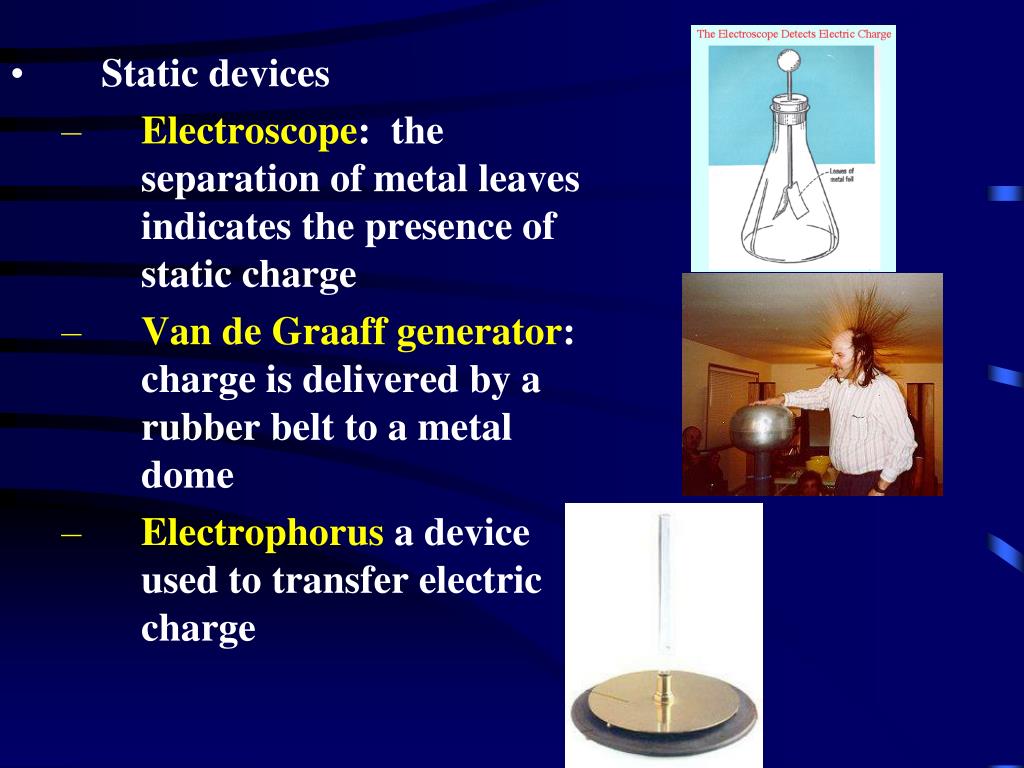

  24. Static devices • Electroscope: the separation of metal leaves indicates the presence of static charge • Van de Graaff generator: charge is delivered by a rubber belt to a metal dome • Electrophorus a device used to transfer electric charge

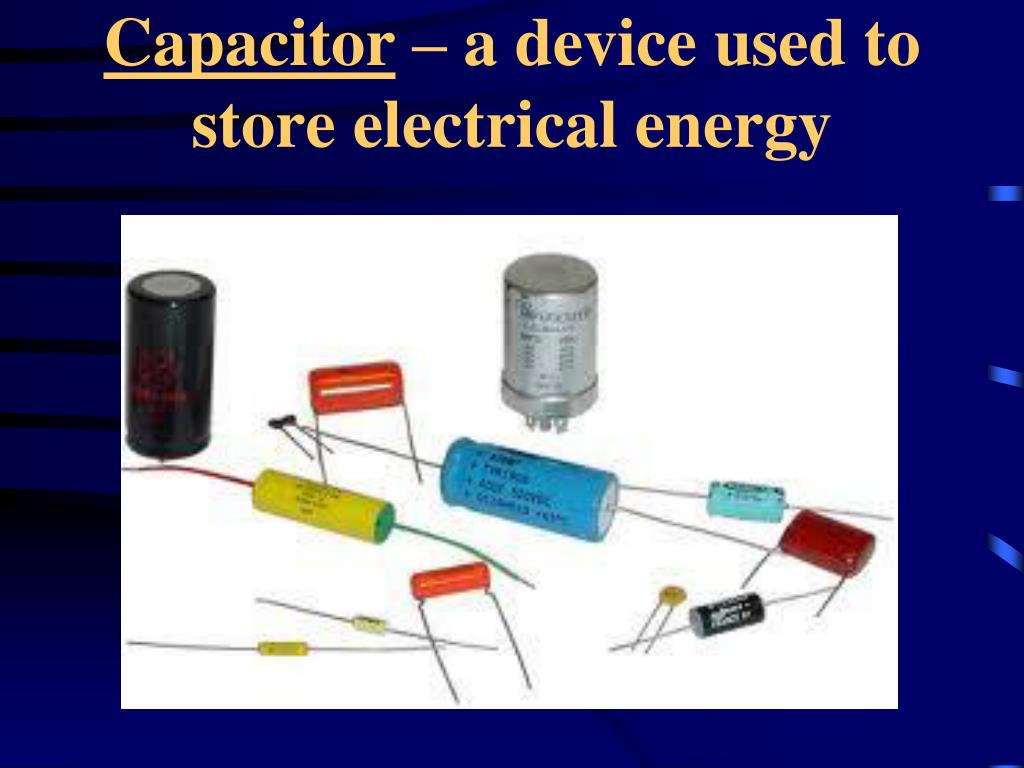

  25. Capacitor – a device used to store electrical energy

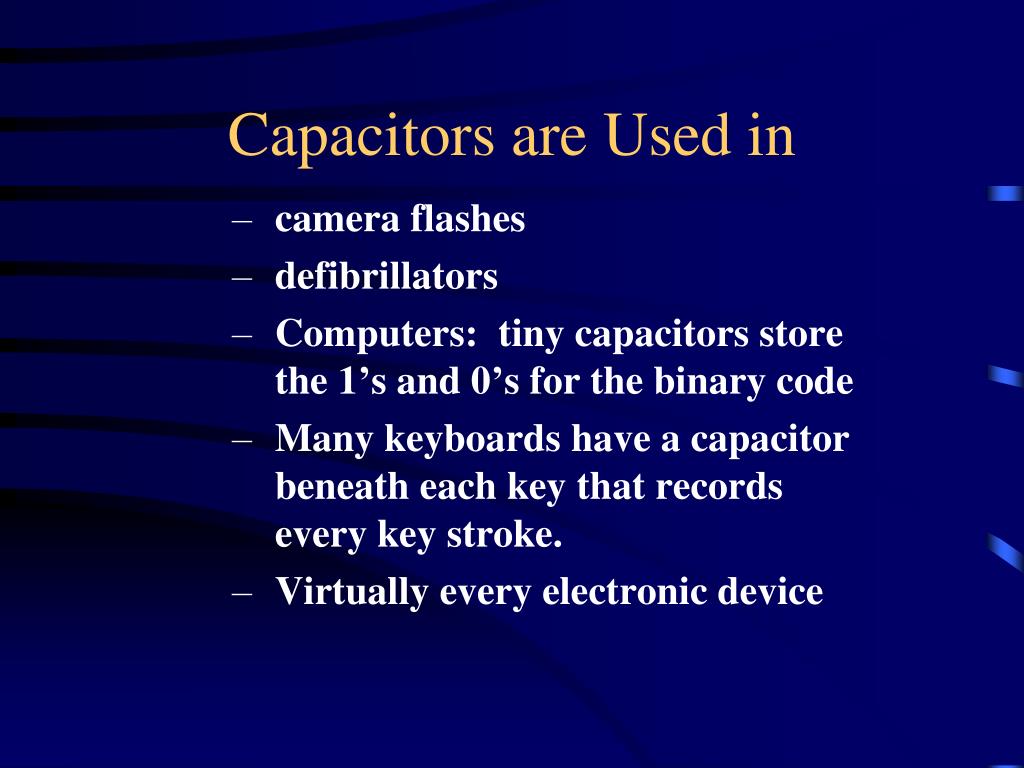

  26. Capacitors are Used in • camera flashes • defibrillators • Computers: tiny capacitors store the 1’s and 0’s for the binary code • Many keyboards have a capacitor beneath each key that records every key stroke. • Virtually every electronic device

  27. Vocabulary • Capacitor • Electric field • Electric potential energy • Electric potential • Volt • voltage
