  1. DWR Templates SiteManager 3.1a-2 Sheri Meyerhoff Indiana Department of Transportation September 8, 2003

  2. DWR Templates • Reasons INDOT uses DWR templates • Reviewing sections of the DWR template • Creating DWR templates in SiteManager • Modifying DWR templates in PowerBuilder • Reviewing and revising DWR templates • Problems with DWR templates

  3. Reasons INDOT uses DWR Templates • Uniformity of computations throughout the state of Indiana • Simplify record keeping for field employees • Reduce human error • Replace some of the paper forms currently used

  4. Reviewing sections of the DWR template Header Only

  5. Reviewing sections of the DWR template Header Detail

  6. Reviewing sections of the DWR template Multiple pages can be used in the detail

  7. Reviewing sections of the DWR template Calculations can be created in the header portion

  8. Reviewing sections of the DWR template

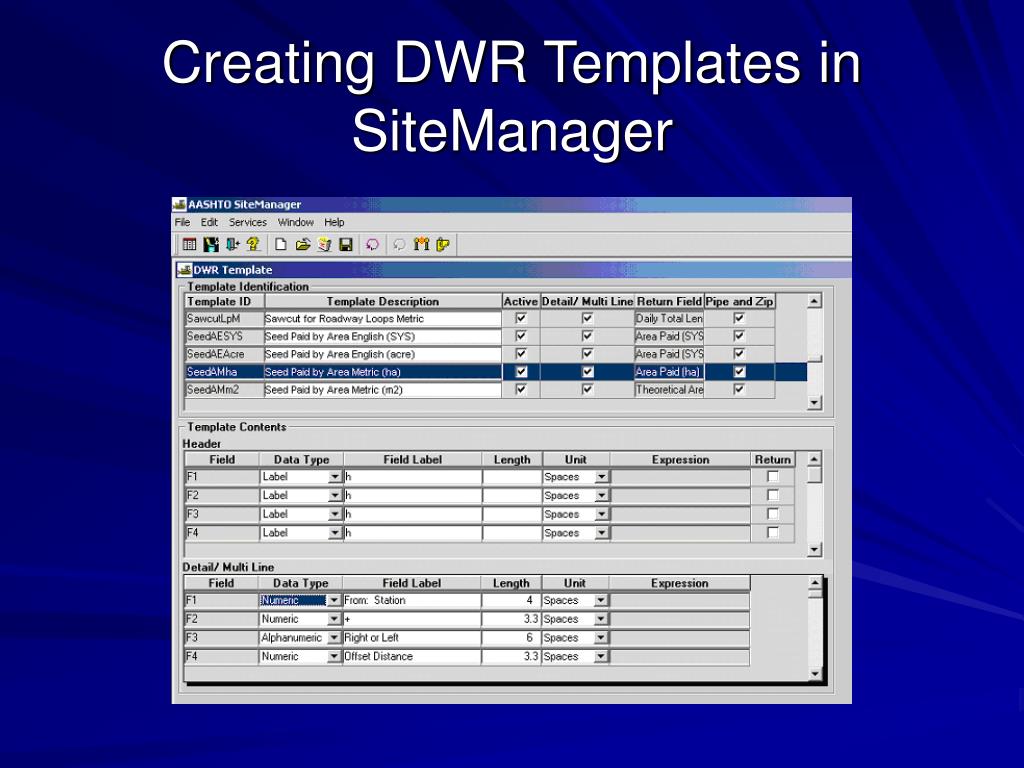

  9. Creating DWR Templates in SiteManager

  10. Creating DWR Templates in SiteManager

  11. Modifying DWR templates in PowerBuilder

  12. Drop-down lists Radio buttons Check boxes Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  13. No leading zeros Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  14. Grey out a field based on the result of a radio button Protect a field based on the result of a radio button Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  15. A length is calculated based on stationing Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  16. Calculate a text string in a computed field based on the results of a drop-down list Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  17. Use common widths on the entry and calculated fields to improve appearance Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  18. Create simple drawings to the template Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  19. Add lines and border to help organize the template Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  20. Make first 8 fields of each templates open for stationing Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  21. A general entry template is associated to each master item that has another template associated to it The first Remarks field is required Miscellaneous Modifications Modifying DWR templates in PowerBuilder

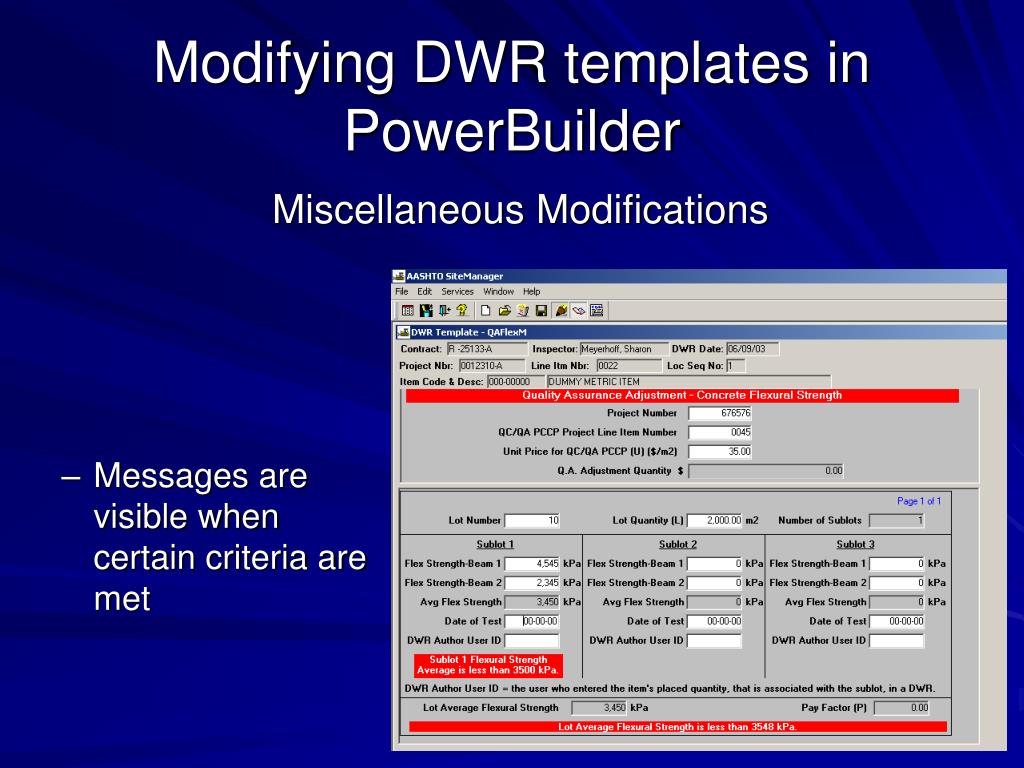

  22. Messages are visible when certain criteria are met Miscellaneous Modifications Modifying DWR templates in PowerBuilder

  23. Modifying DWR templates in PowerBuilder Miscellaneous Modifications Force Account template

  24. Modifying DWR templates in PowerBuilder Miscellaneous Modifications Check list – No Return Value

  25. Reviewing DWR Templates Attaching a DWR Template to a master item in the Item – DWR Template Association window

  26. Reviewing DWR Templates Attaching a DWR Template to a project line item Contract Item – DWR Template window

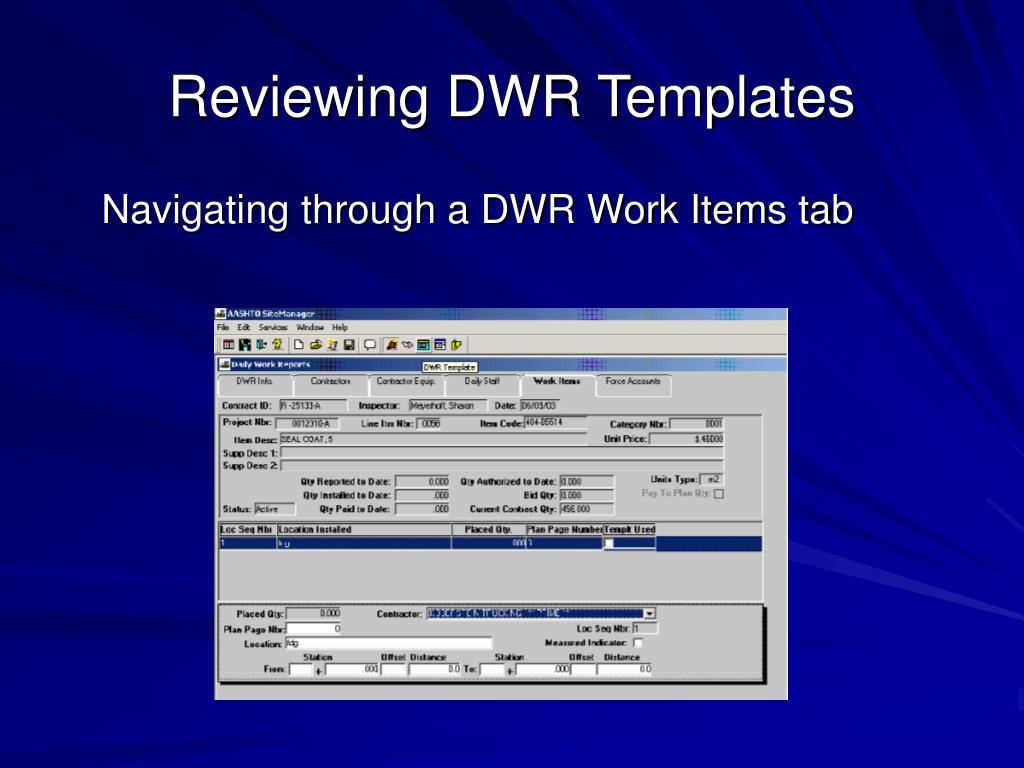

  27. Reviewing DWR Templates Navigating through a DWR Work Items tab

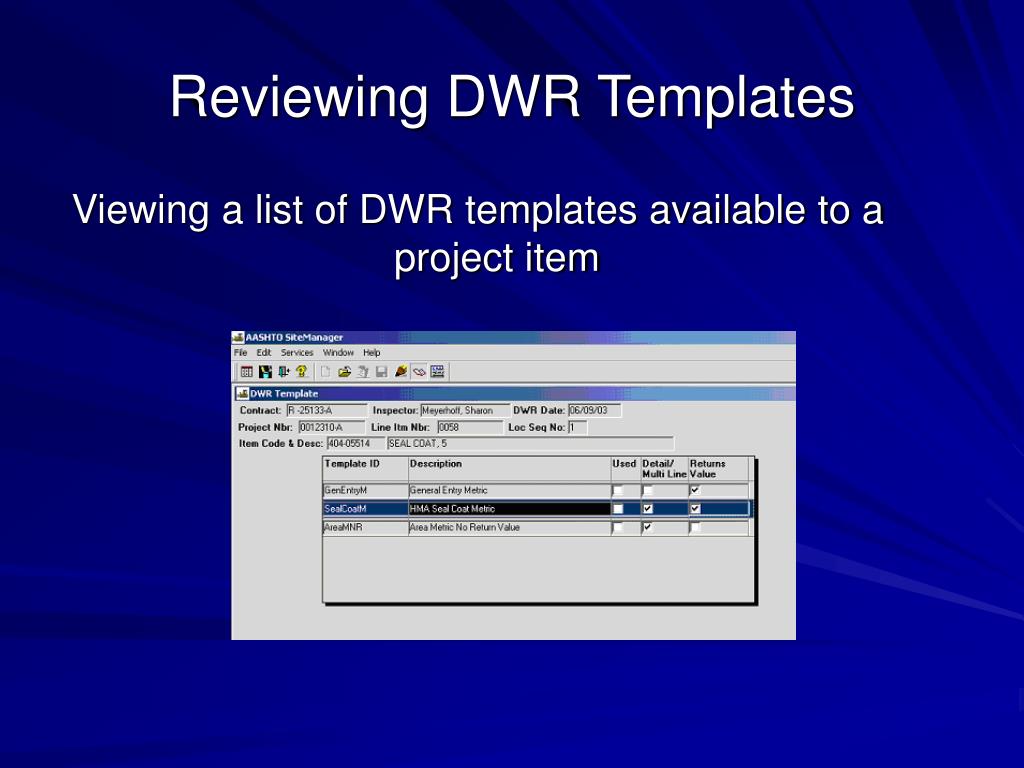

  28. Reviewing DWR Templates Viewing a list of DWR templates available to a project item

  29. Reviewing DWR Templates Viewing a DWR Template

  30. Revising DWR Templates • Export template out of SiteManager • Import template into PowerBuilder • Make adjustments in PowerBuilder • Export template out of PowerBuilder • Import template into SiteManager • Review template in a DWR • Repeat process

  31. Problems with DWR Templates • Modifying a template after it has been used in a DWR • Large templates – error message • Defaulting numeric field to zero, based on the result of an alphanumeric field

  32. DWR Templates SiteManager 3.1a-2 Sheri Meyerhoff Indiana Department of Transportation September 8, 2003
