Presentation Transcript


  1. THE APPLICATION OF CLOUD COMPUTING IN DINTE Presenter name: Nguyen HuyenQuang From : Department of information technology (DINTE)

  2. CONTENT • Brief information about Deparmentof information technology (DINTE), Ministry of natural resources and environment(MONRE) • Application of cloud computing in DINTE

  3. CONTENT • About Deparment of technology information (DINTE), Ministry of natural resources and environment(MONRE) • Application of cloud computing in DINTE

  4. ABOUT DINTE • DINTE is an agency under MONRE with function of state management of information technology • One main task in the period of 2011-2015 is to complete and operate the unified information technology infrastructure in the industry of natural resources and environment toward a part of e-government construction.

  5. ABOUT DINTE • Ongoing project • Construction of unified network in the industry • Building WAN • Construction of national spatial database • Building national spatial database (GIS data) • Making GIS data available to public application • Many other projects

  6. CONTENT • About Deparment of technology information (DINTE), Ministry of natural resources and environment(MONRE) • Application of cloud computing in DINTE

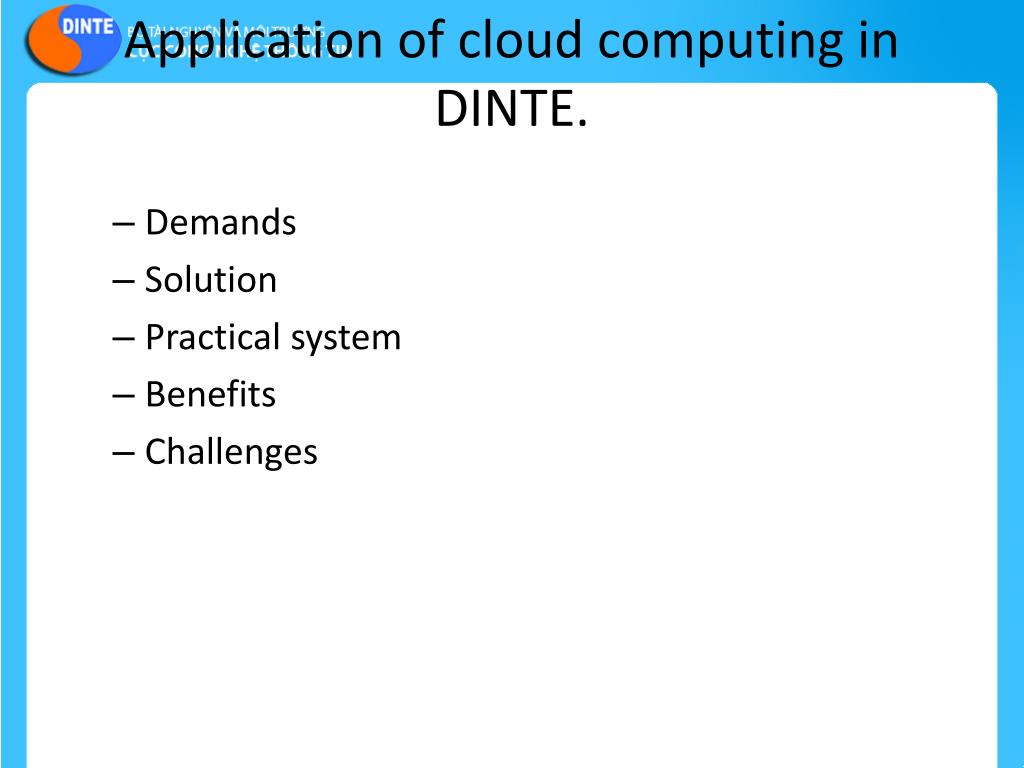

  7. Application of cloud computing in DINTE. • Demands • Solution • Practical system • Benefits • Challenges

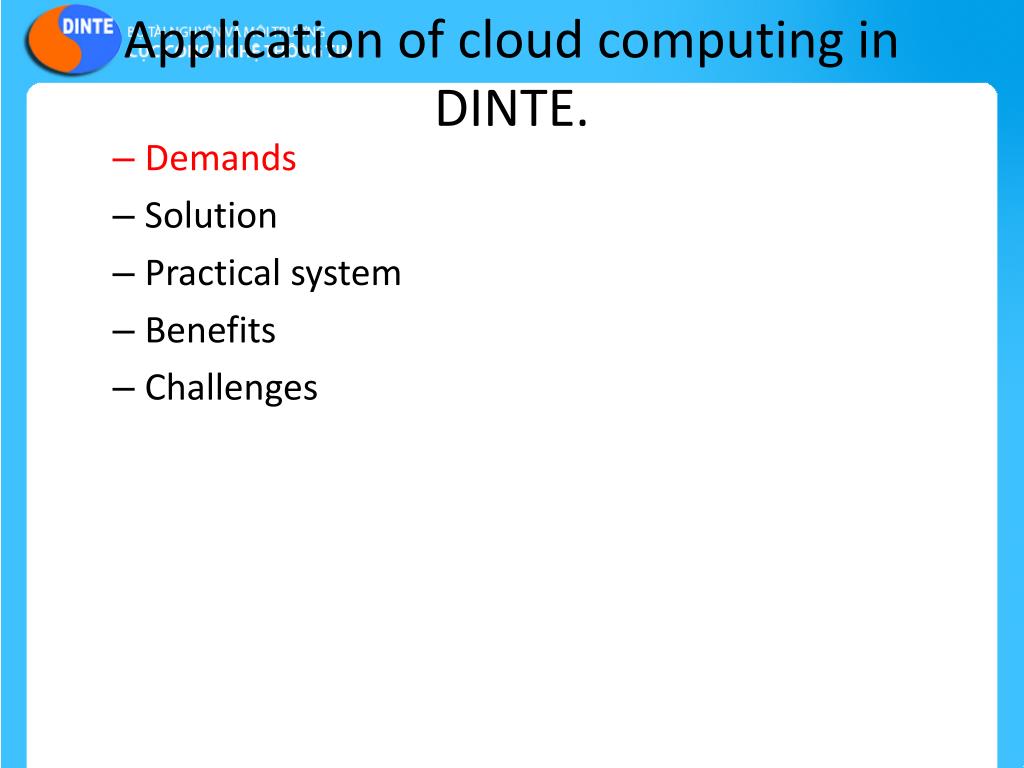

  8. Application of cloud computing in DINTE. • Demands • Solution • Practical system • Benefits • Challenges

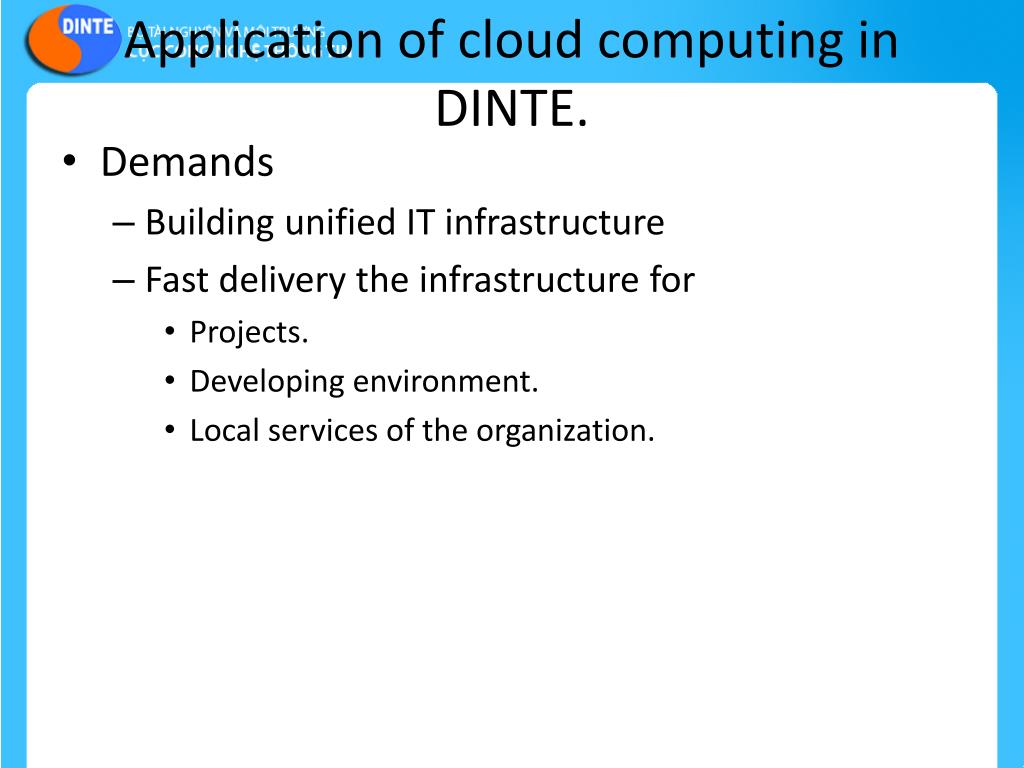

  9. Application of cloud computing in DINTE. • Demands • Building unified IT infrastructure • Fast delivery the infrastructure for • Projects. • Developing environment. • Local services of the organization.

  10. Application of cloud computing in DINTE. Content • Demands • Solution • Practical system • Benefits • Difficult

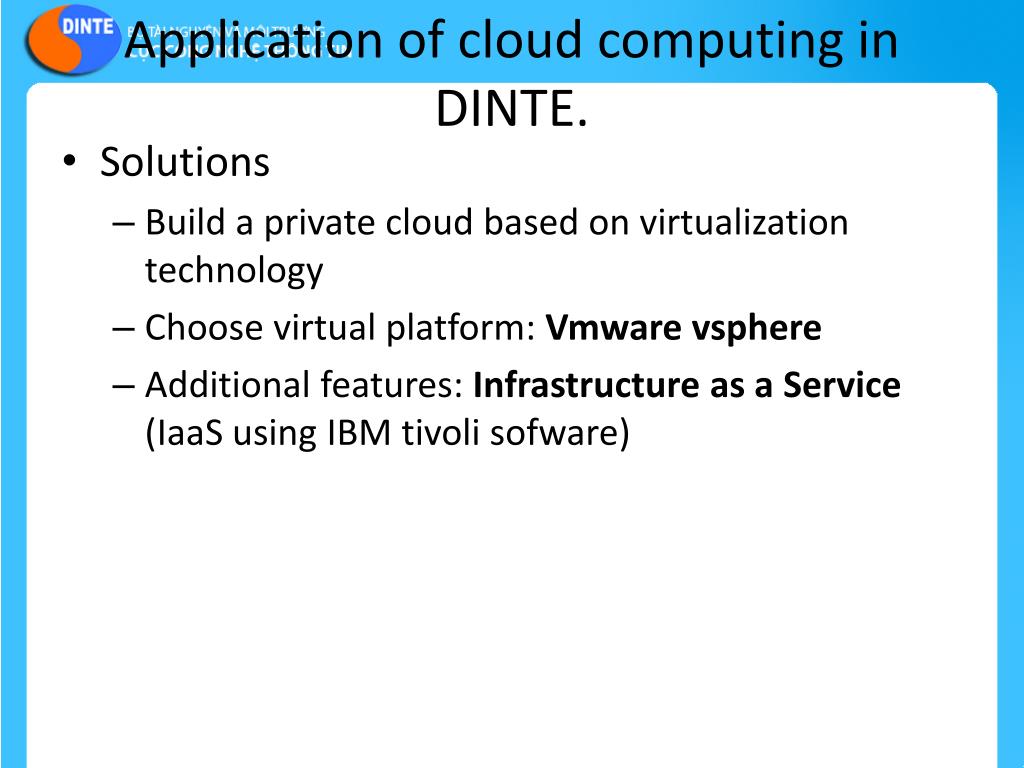

  11. Application of cloud computing in DINTE. • Solutions • Build a private cloud based on virtualization technology • Choose virtual platform: Vmwarevsphere • Additional features: Infrastructure as a Service (IaaS using IBM tivolisofware)

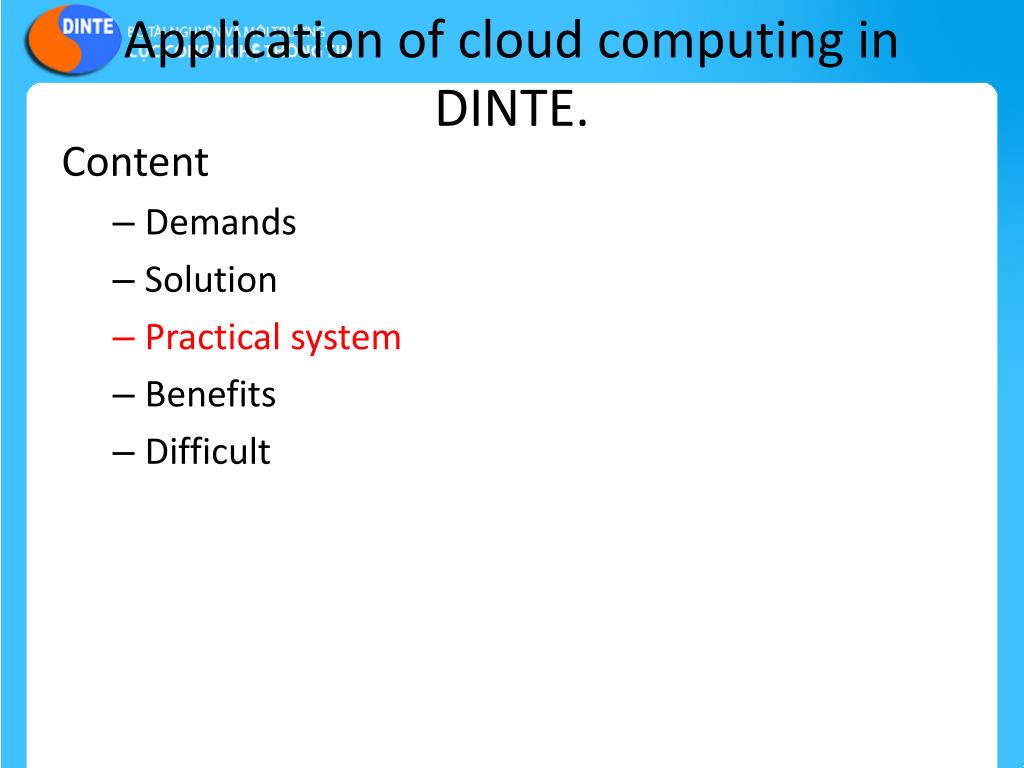

  12. Application of cloud computing in DINTE. Content • Demands • Solution • Practical system • Benefits • Difficult

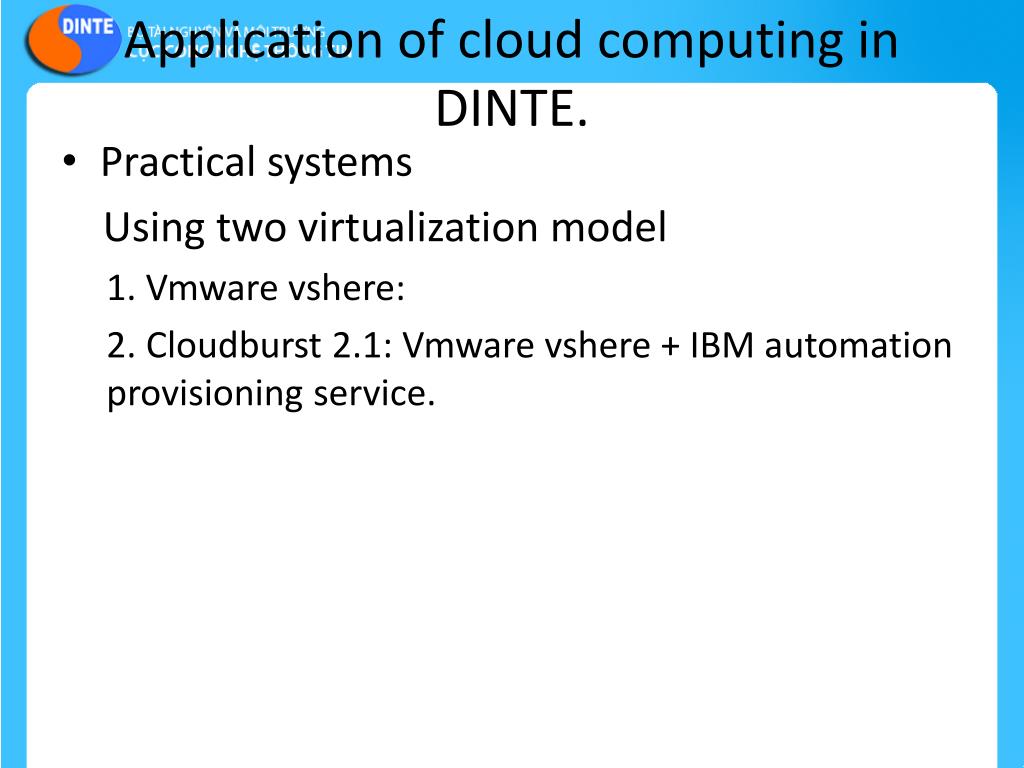

  13. Application of cloud computing in DINTE. • Practical systems Using two virtualization model 1. Vmwarevshere: 2. Cloudburst 2.1: Vmwarevshere + IBM automation provisioning service.

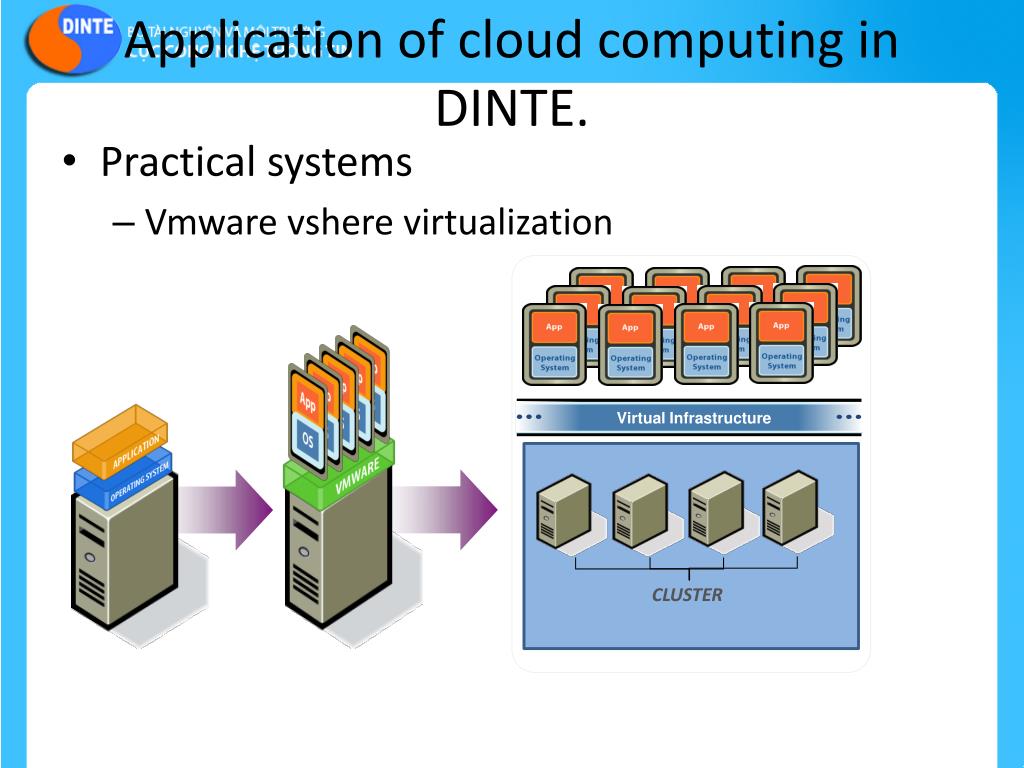

  14. Virtual Infrastructure Application of cloud computing in DINTE. • Practical systems • Vmwarevshere virtualization CLUSTER

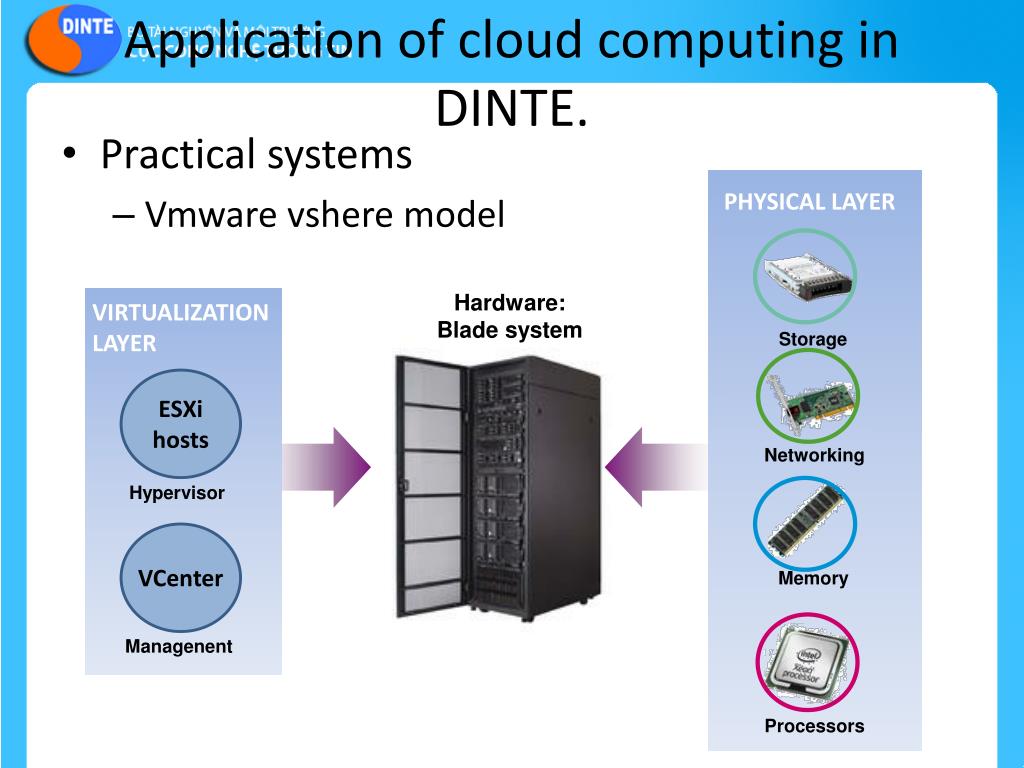

  15. Application of cloud computing in DINTE. • Practical systems • Vmwarevshere model PHYSICAL LAYER Storage Hardware: Blade system VIRTUALIZATION LAYER ESXi hosts Networking Hypervisor VCenter Managenent Memory Processors

  16. Application of cloud computing in DINTE. • Practical systems • IBM cloudburst system 2.1 PHYSICAL LAYER Storage VIRTUALIZATION LAYER ESXi hosts Networking Hypervisor VCenter Tivoli softwares SERVICE LAYER Automation Provisioning Managenent Memory Processors

  17. Application of cloud computing in DINTE. • Practical systems Computing resources (at this moment) • CPU utilization: 648,000 mhz • Memory: 1,264 GB • Storage: ~ 40TB • Network inter connect: 10 Gbps • Network outer connect: 1 or 10 Gbs • Physical servers: 18 • Virtual machine hosted: 80 (right now) PHYSICAL LAYER

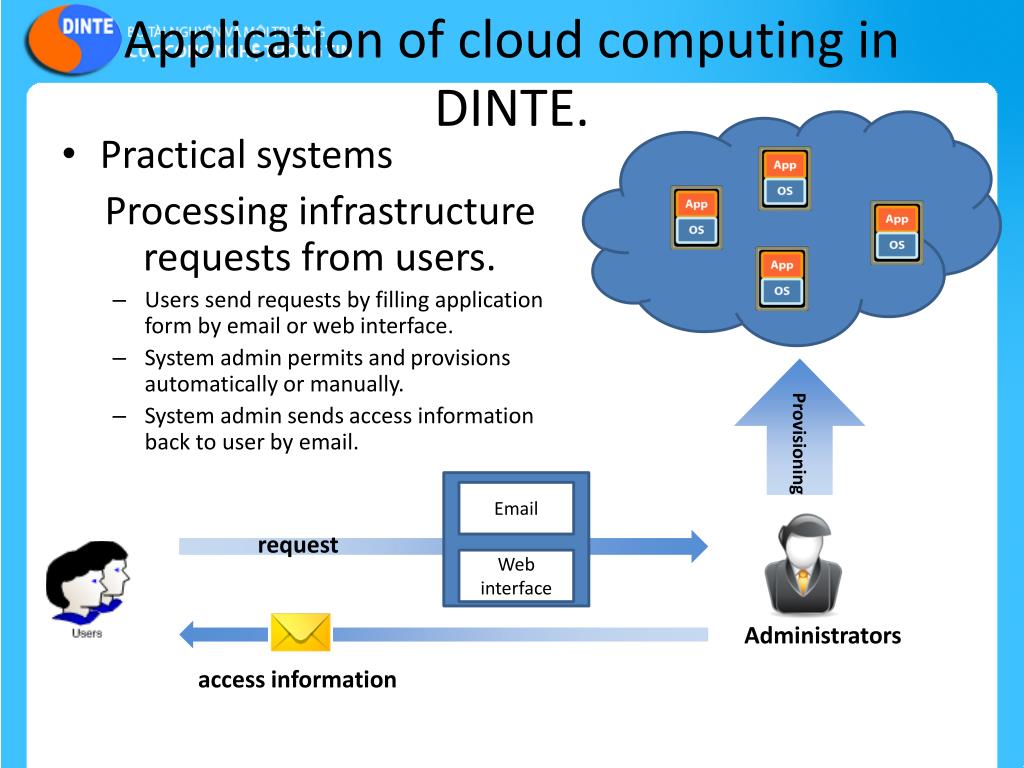

  18. Application of cloud computing in DINTE. • Practical systems Processing infrastructure requests from users. • Users send requests by filling application form by email or web interface. • System admin permits and provisions automatically or manually. • System admin sends access information back to user by email. Provisioning request Email Administrators Web interface access information

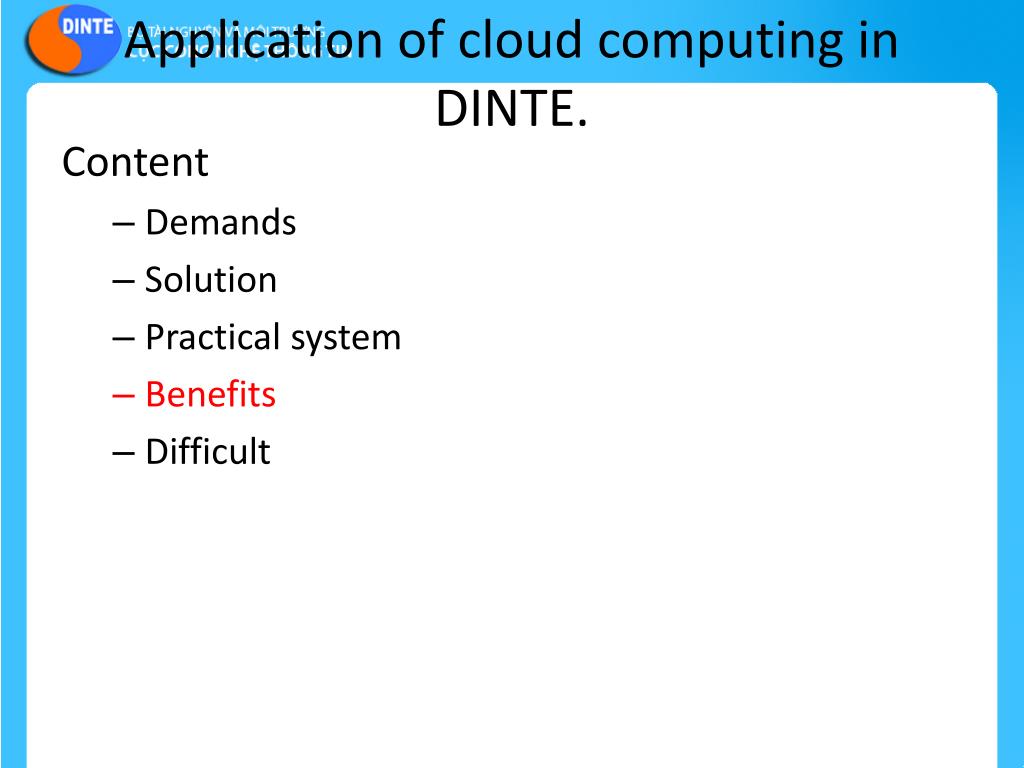

  19. Application of cloud computing in DINTE. Content • Demands • Solution • Practical system • Benefits • Difficult

  20. Benefits • Quick delivery of infrastructure to users. • Minimize downtime by physical failures or maintenance tasks. • Cost saving: • Hardware • Power and cooling • Operating • Scalability and Efficiency

  21. Benefits FAST INFRASTRUCTURE DELIVERY • After applying virtualizaton and cloud computing • Request • Approval • Provisioning • Traditional system • Request • Approval • Buying hardware, planning place, cabling,… • Installing OS and applications More than 8 weeks Less than 2 days

  22. Benefits MINIMIZE DOWNTIME • After applying virtualizaton and cloud computing • Server’s hardware failures takes less than 5 mins • Server maintenance  no down time • Traditional system • Server’s hardware failures  takes more than 20 mins • Server maintenance task takes hours

  23. Benefits COST SAVING Virtualization HUGE COST SAVING

  24. Benefits SCALABILITY and EFFICIENCY • Easy to add new hardware to increase computing resources. • Efficient share of resources based on: • Policy • Workload

  25. Application of cloud computing in DINTE. Content • Demands • Solution • Practical system • Benefits • Difficult

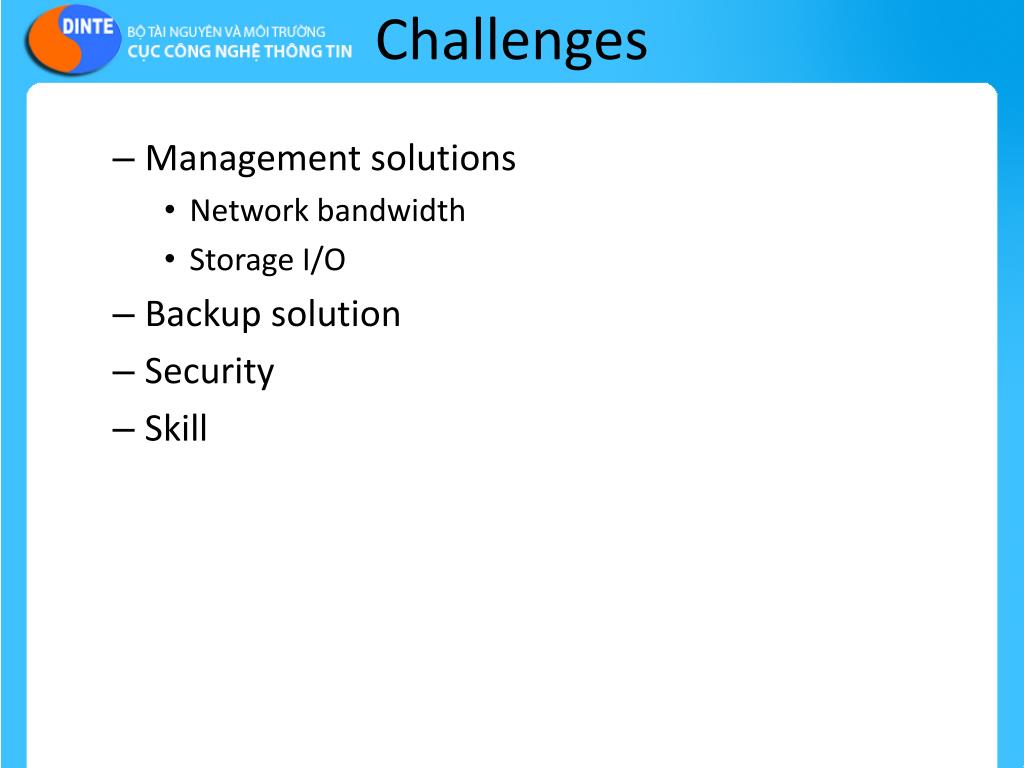

  26. Challenges • Management solutions • Network bandwidth • Storage I/O • Backup solution • Security • Skill

  27. THE END TIME FOR QUESTIONS 
