Presentation Transcript

  1. 异方性导电胶膜 Providing Solutions

  2. ACF 样品

  3. ACF ACF 装配 塑料触摸屏 / 线路板

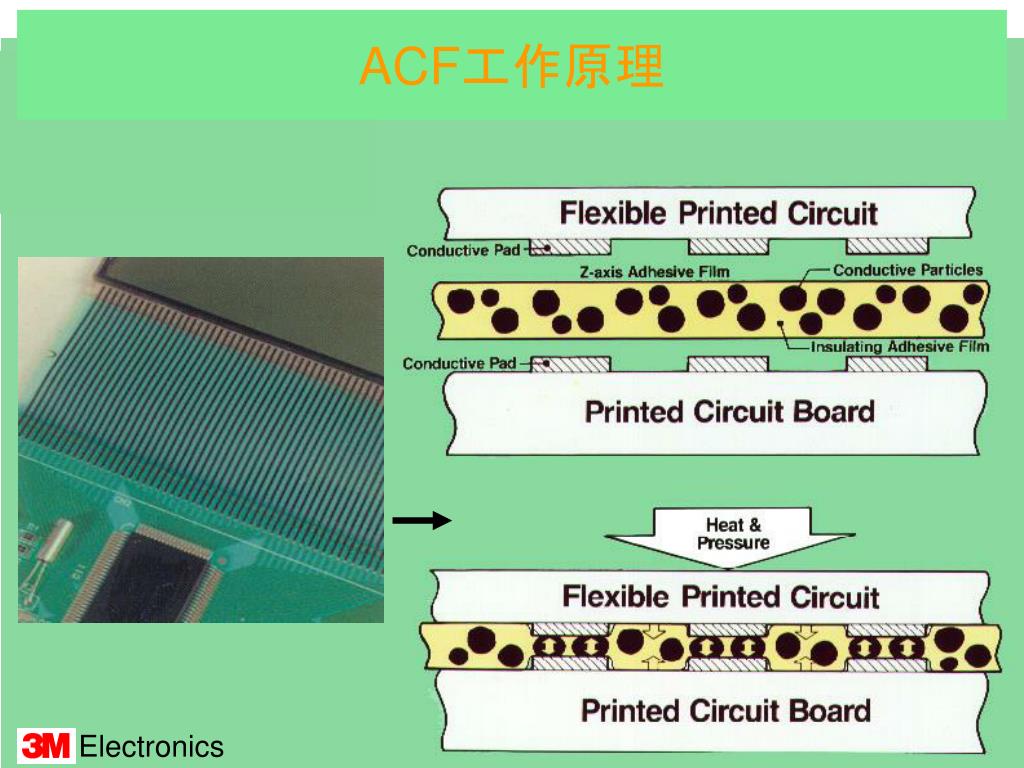

  4. ACF工作原理 Electronics

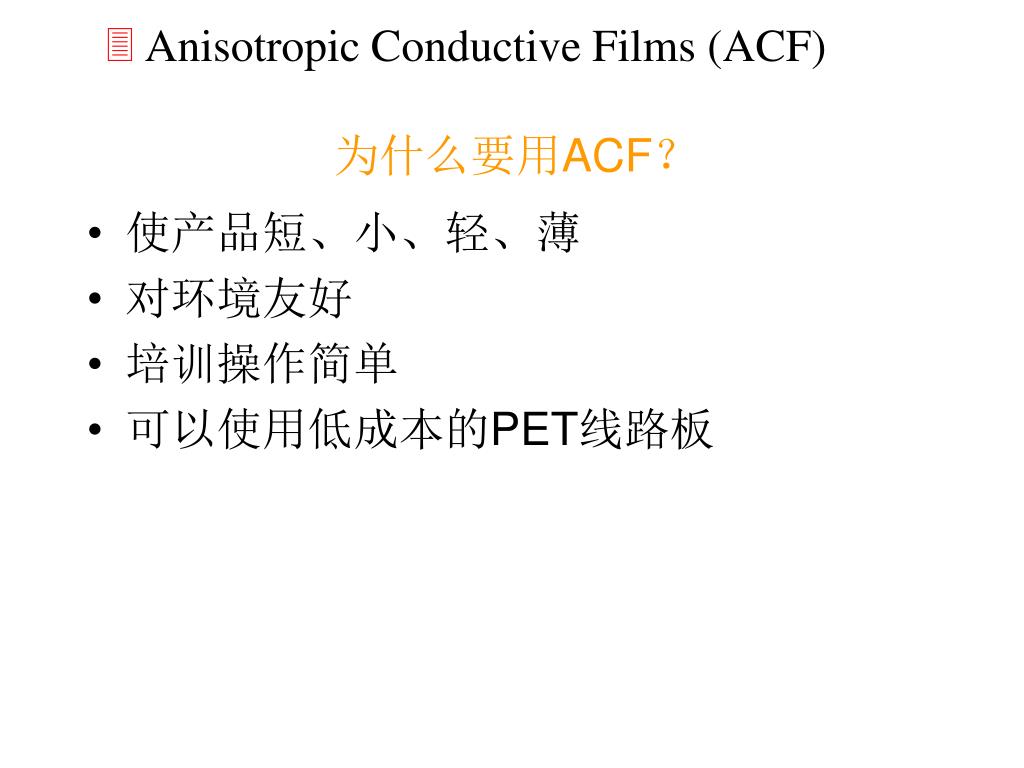

  5. 3 Anisotropic Conductive Films (ACF) 为什么要用ACF？ • 使产品短、小、轻、薄 • 对环境友好 • 培训操作简单 • 可以使用低成本的PET线路板

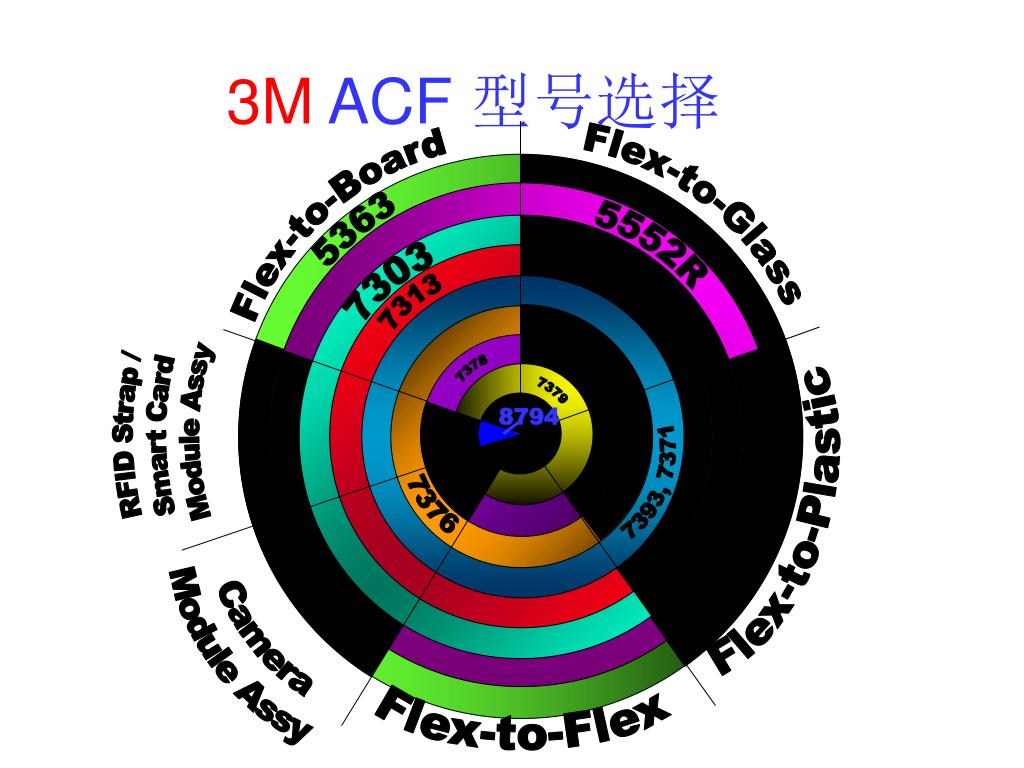

  6. 3M ACF 型号选择 Flex-to-Glass Flex-to-Board 5363 5552R 7303 7313 RFID Strap / Smart Card Module Assy 7378 7376 7393, 7371 7379 8794 Flex-to-Plastic Camera Module Assy Flex-to-Flex

  7. 优点 短的工艺时间 可以实现自动焊接 低成本 3 Anisotropic Conductive Films (ACF) 锡铅焊接 缺点 • 400um以下，焊接困难 • 容易短断路 • 毒性，环境污染

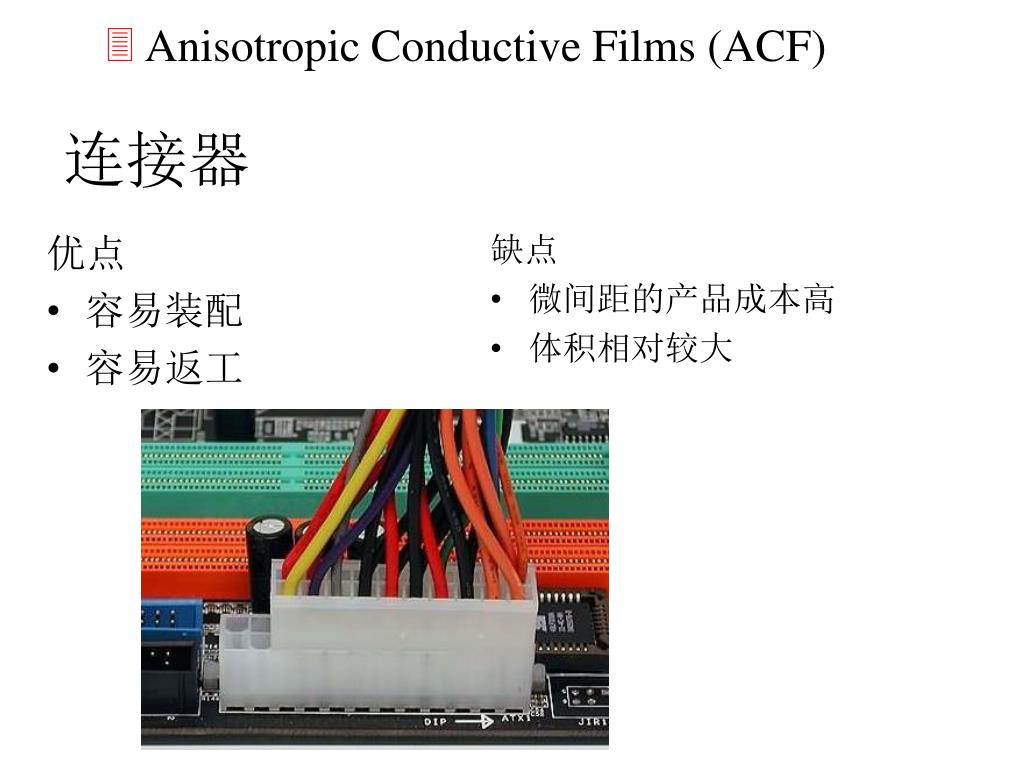

  8. 优点 容易装配 容易返工 3 Anisotropic Conductive Films (ACF) 连接器 缺点 • 微间距的产品成本高 • 体积相对较大

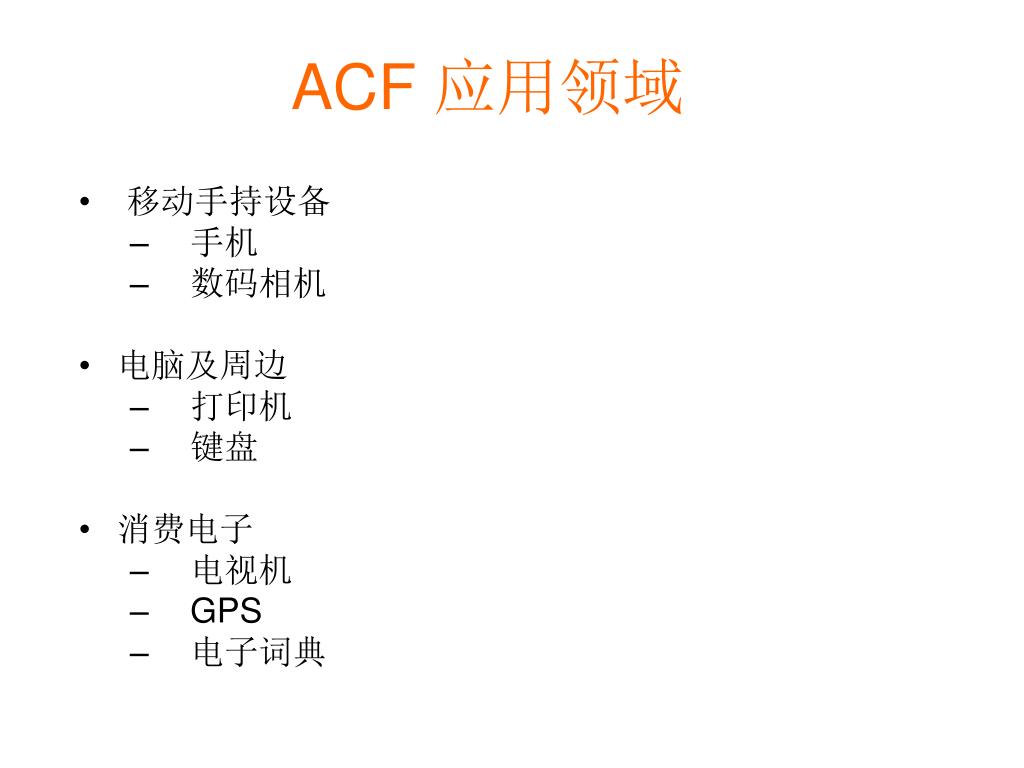

  9. ACF 应用领域 • 移动手持设备 • 手机 • 数码相机 • 电脑及周边 • 打印机 • 键盘 • 消费电子 • 电视机 • GPS • 电子词典

  10. 空隙 线间距 3 Anisotropic Conductive Films (ACF) 设计规范 : 线间距 ACF最小线间距最小空隙 7399 40m 20m 5363 200m100m 7398 200m 100m 7303 500m250m 9703 1000m400m

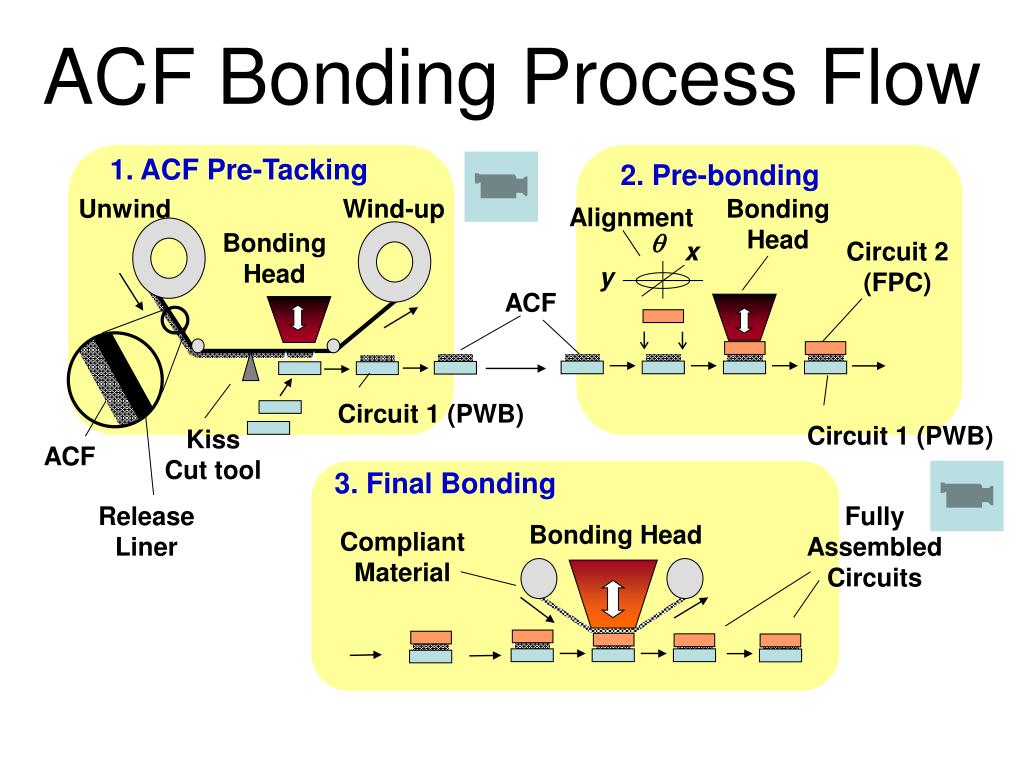

  11. ACF Bonding Process Flow 1. ACF Pre-Tacking 2. Pre-bonding Unwind Wind-up Bonding Head Alignment q Bonding Head x Circuit 2 (FPC) y ACF Circuit 1 (PWB) Circuit 1 (PWB) Kiss Cut tool ACF 3. Final Bonding Release Liner Fully Assembled Circuits Bonding Head Compliant Material

  12. 3 Anisotropic Conductive Films (ACF)

  13. 3 Anisotropic Conductive Films (ACF) Example: ACF5363:

  14. ACF5363 返工

  15. 3 Anisotropic Conductive Films (ACF) 成功案例分享

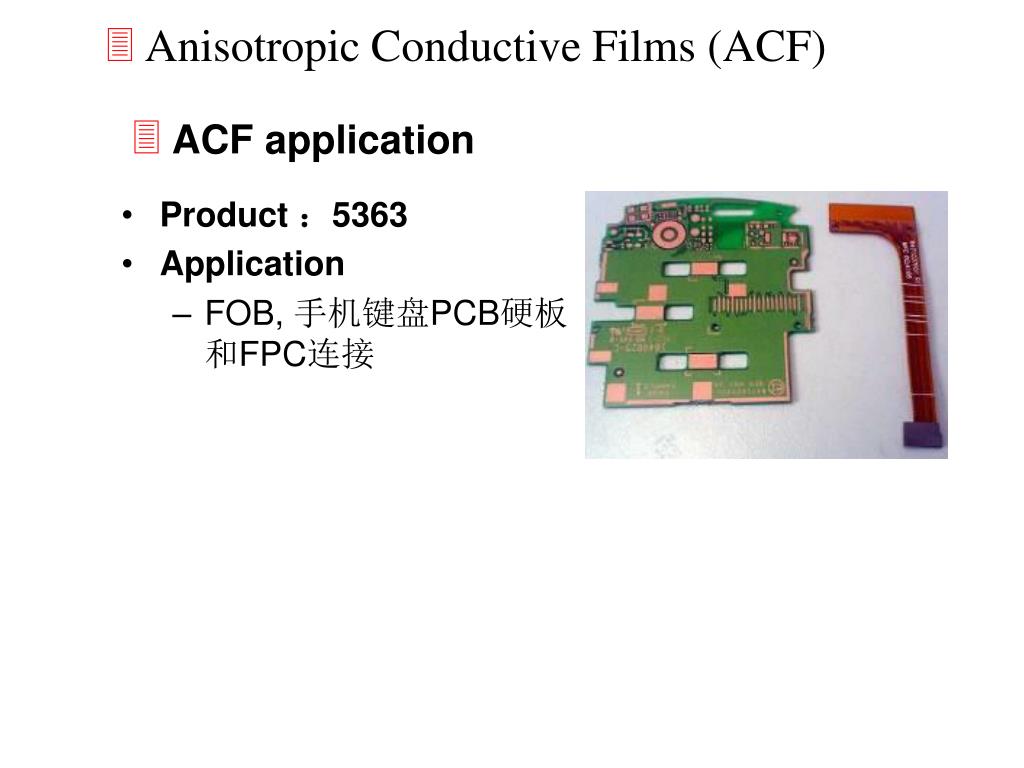

  16. Product ：5363 Application FOB, 手机键盘PCB硬板和FPC连接 3 Anisotropic Conductive Films (ACF) 3 ACF application

  17. 3 Anisotropic Conductive Films (ACF) 3 ACF application • Product ：5363 • Application • FOF, FPC和FPC连接

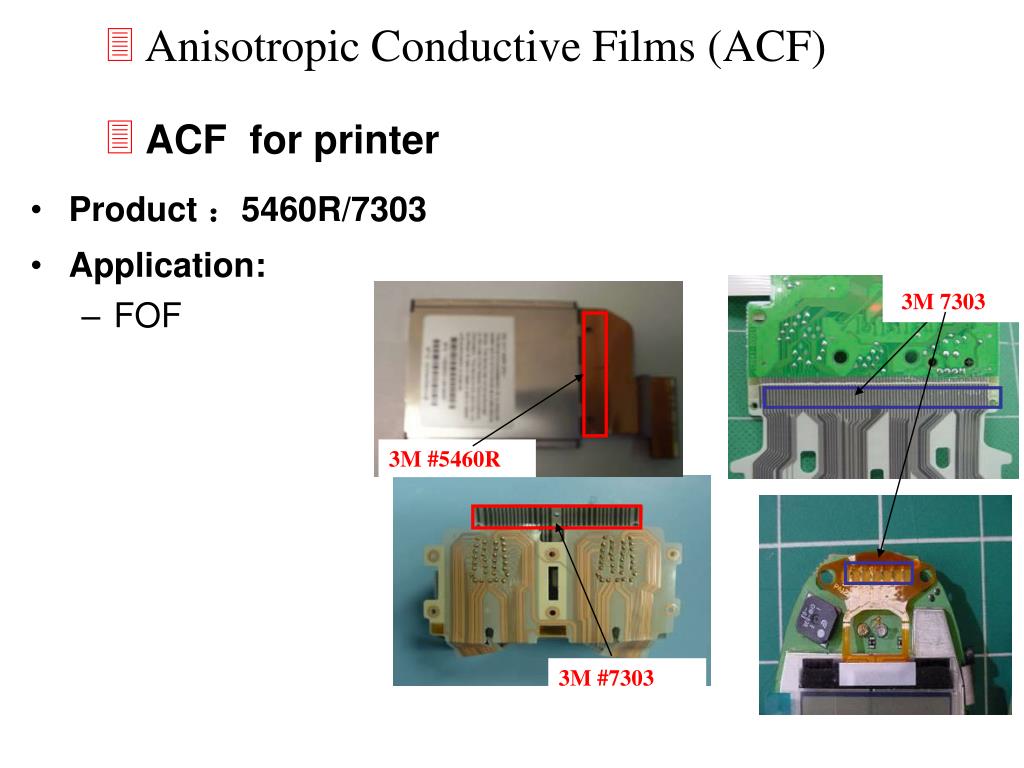

  18. 3M 7303 3M #5460R 3M #7303 3 Anisotropic Conductive Films (ACF) 3 ACF for printer • Product ：5460R/7303 • Application: • FOF

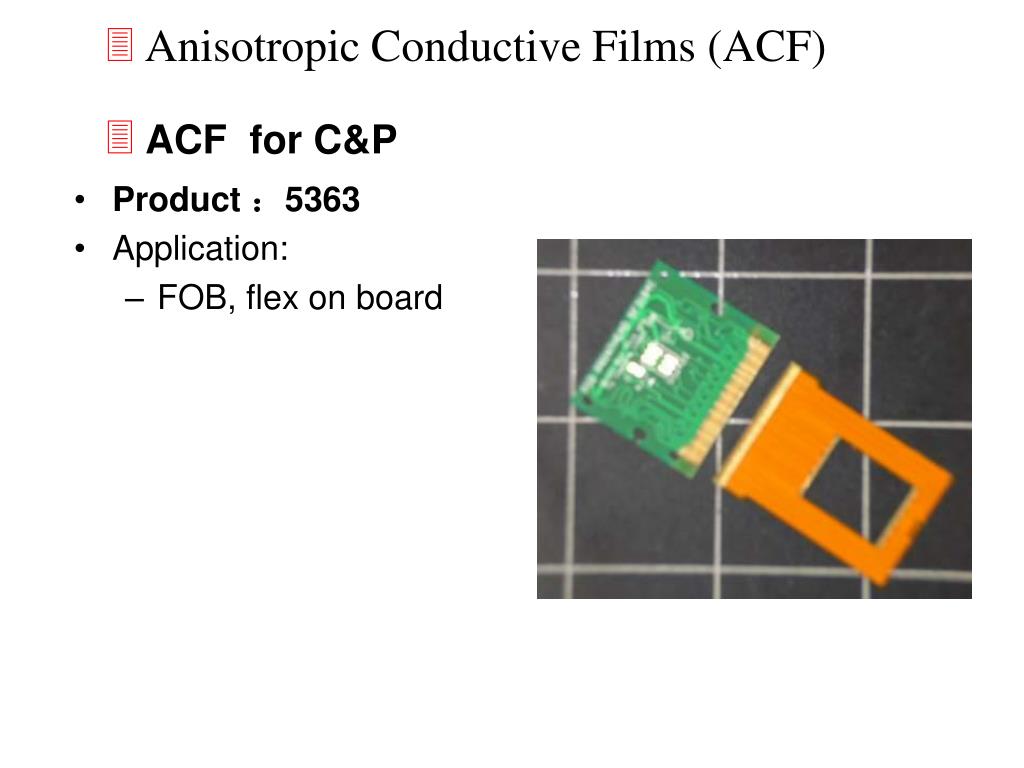

  19. 3 Anisotropic Conductive Films (ACF) 3 ACF for C&P • Product ：5363 • Application: • FOB, flex on board

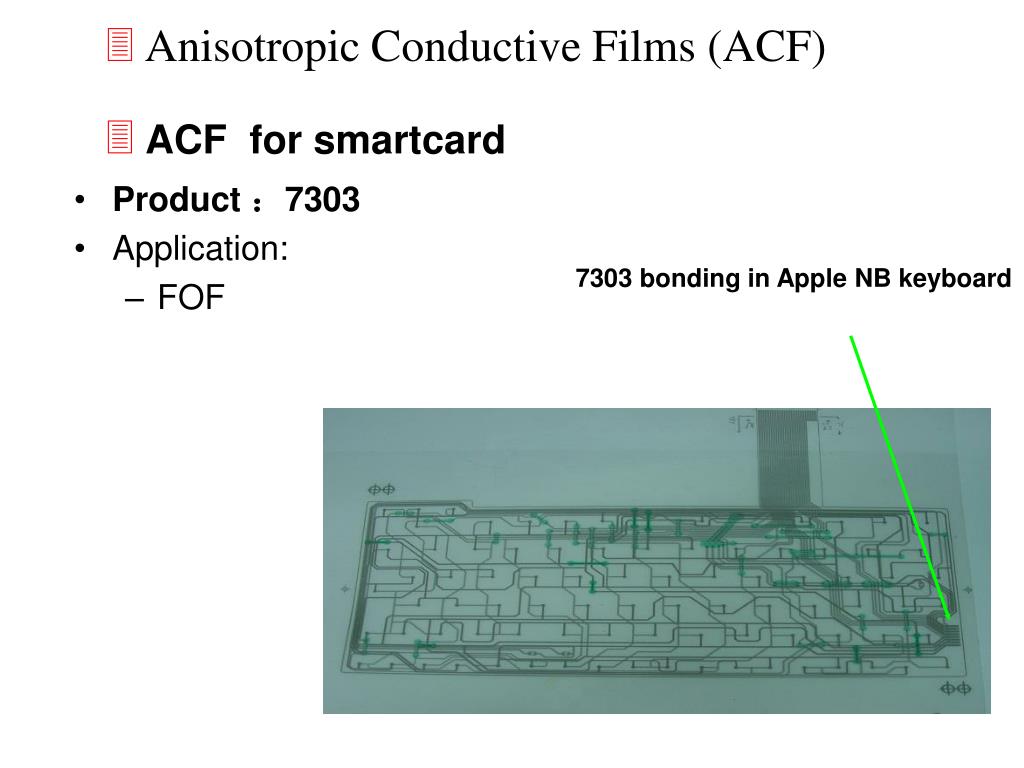

  20. 3 Anisotropic Conductive Films (ACF) 3 ACF for smartcard • Product ：7303 • Application: • FOF 7303 bonding in Apple NB keyboard

  21. ACF在塑料屏幕上的运用

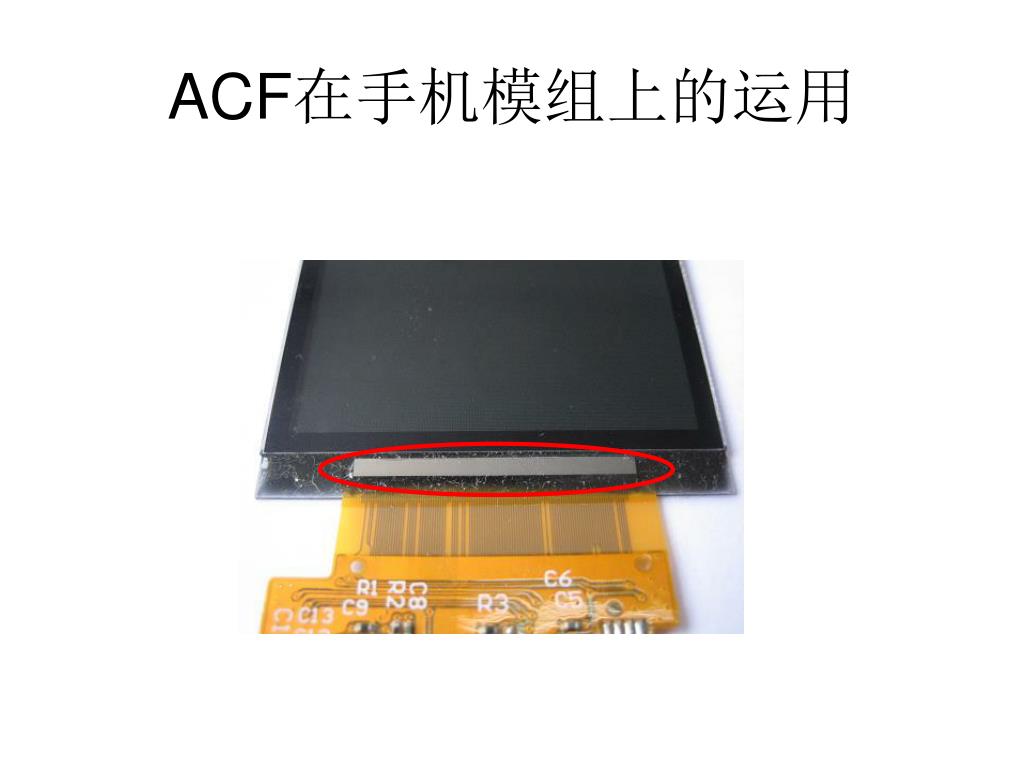

  22. ACF在手机模组上的运用

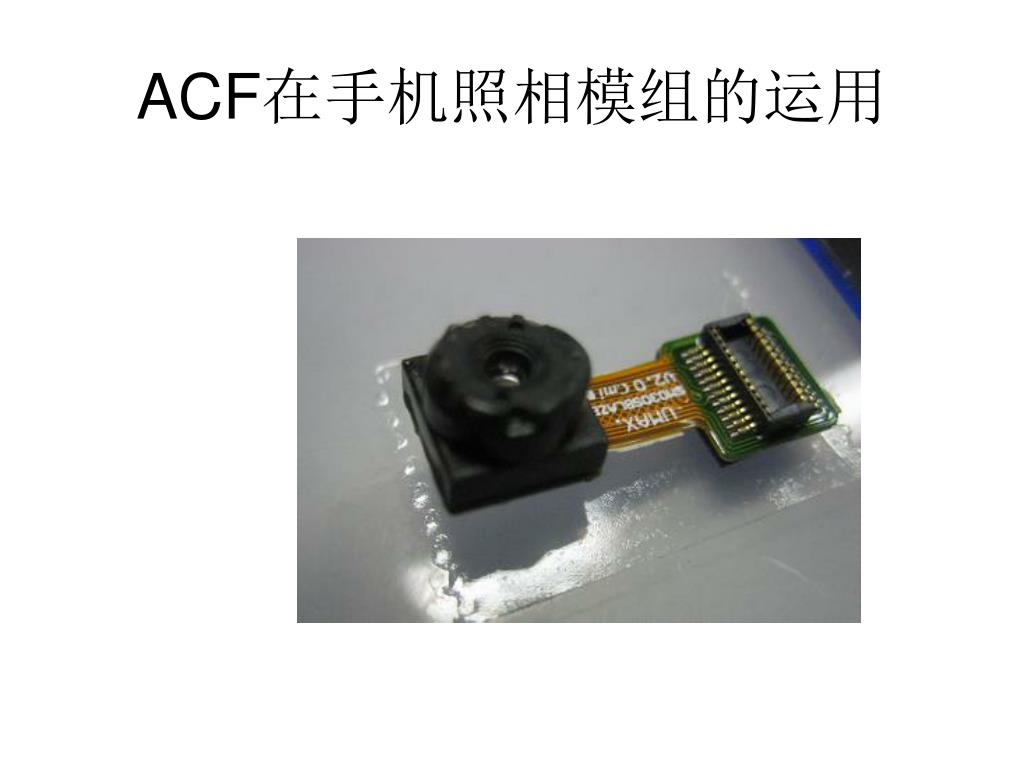

  23. ACF在手机照相模组的运用

  24. 3M在显示器里的运用 软板与ITO玻璃连接 软板与PCB板连接
